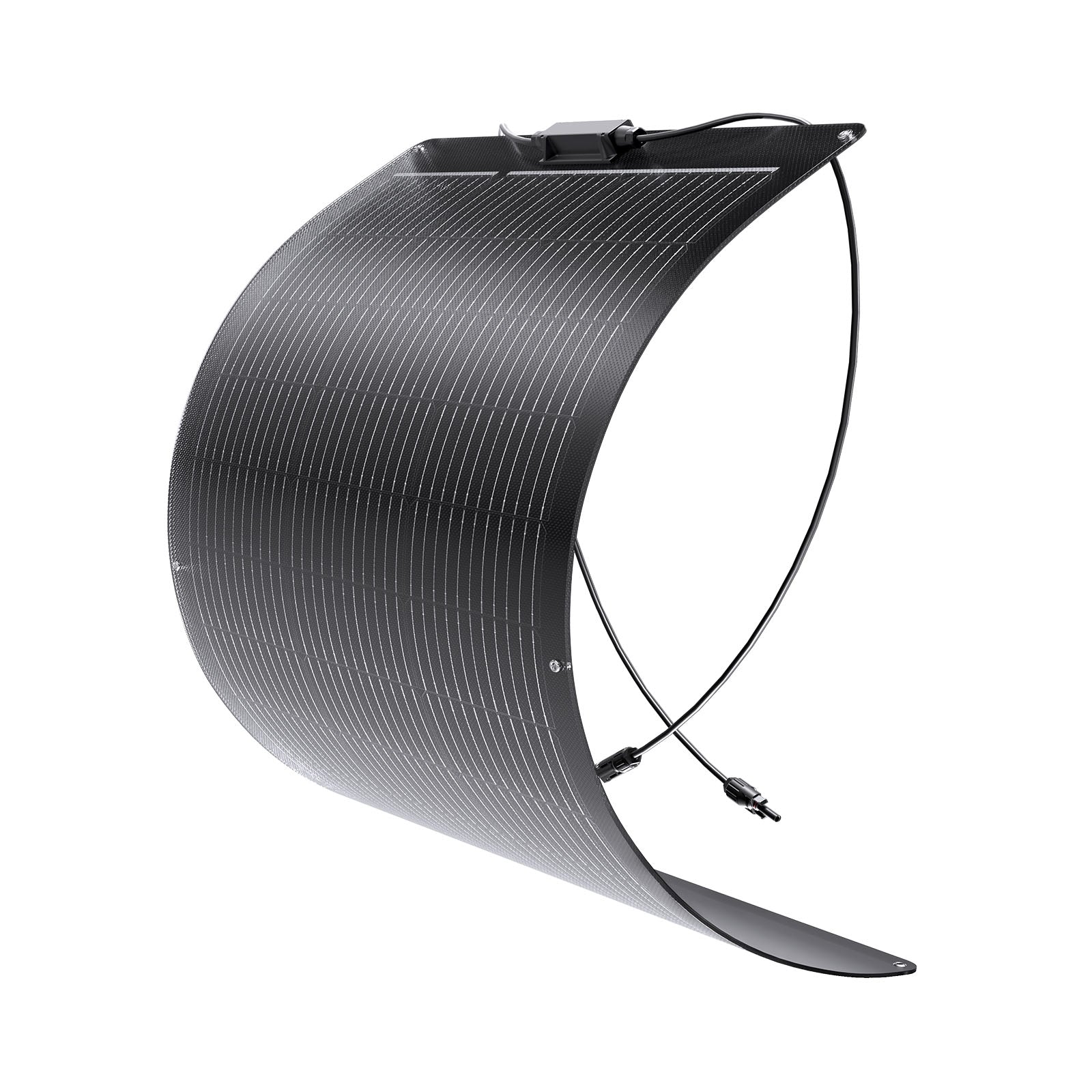

100W Flexible Solar Panel
説明
説明

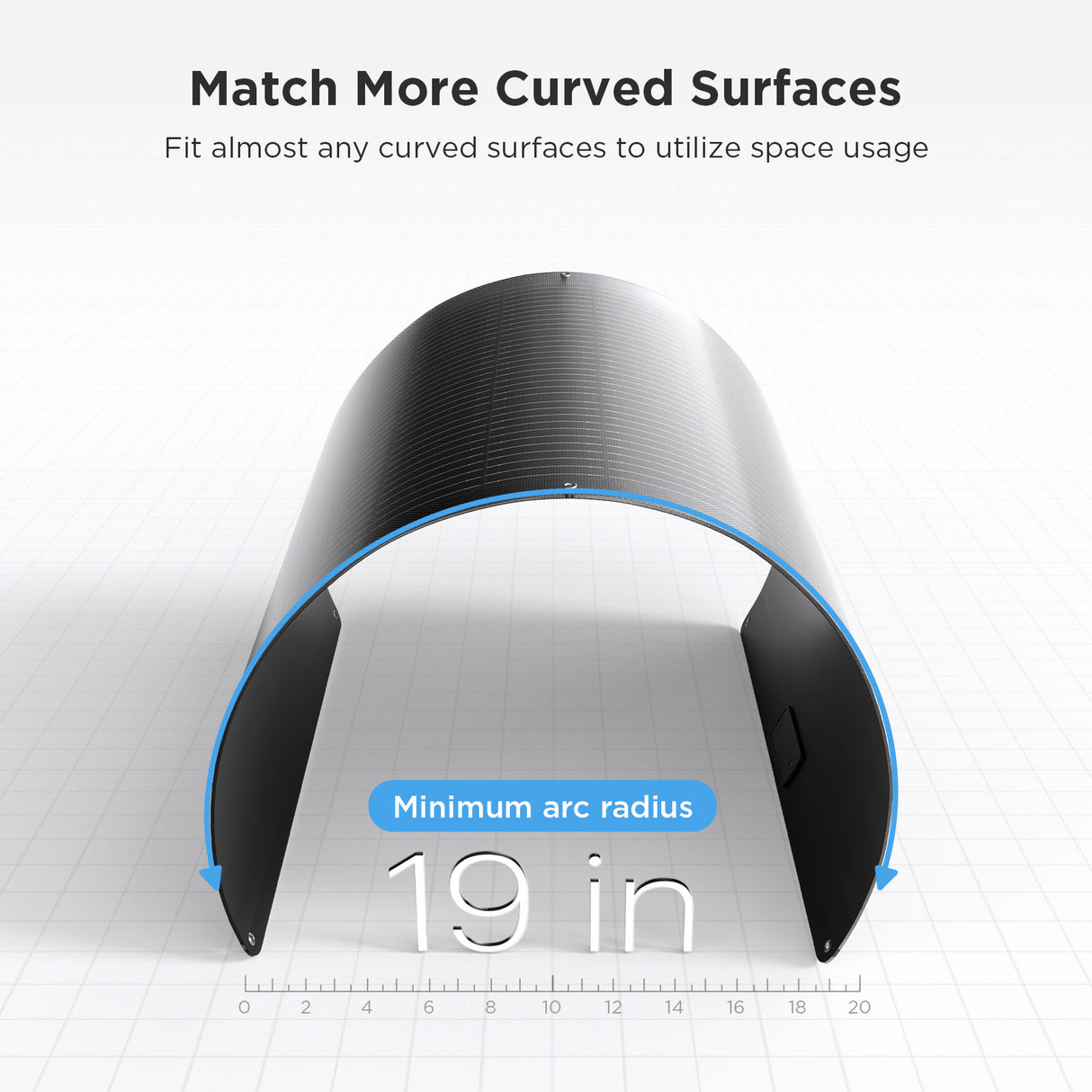

- 240° Flexible & Ultra-Lightweight | Fits curved surfaces like RV roofs and boats, weighs ~50% of rigid panels.

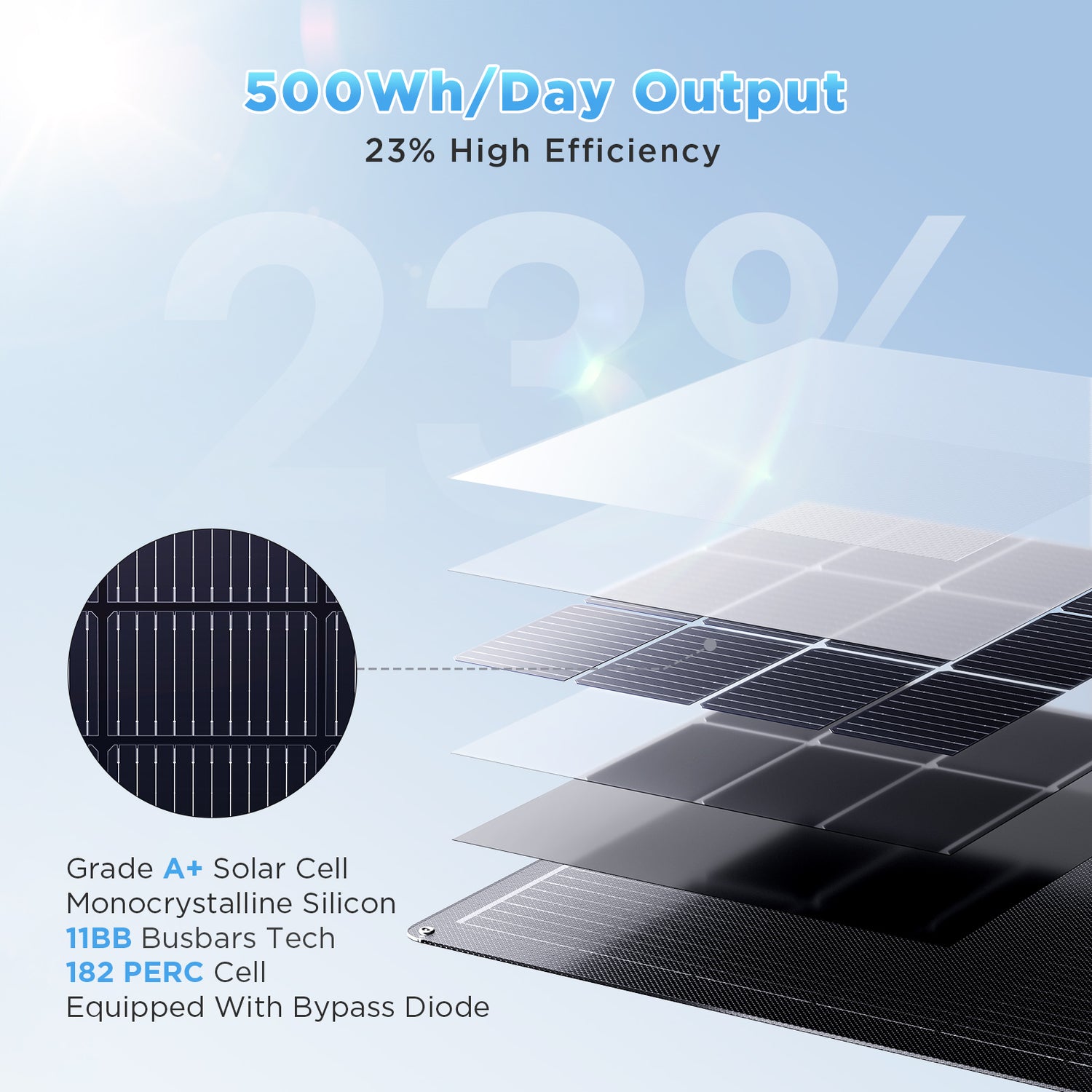

- High Efficiency 23% | Half-cut PERC cells, 11BB busbars, ETFE coating, bypass diodes for stable output.

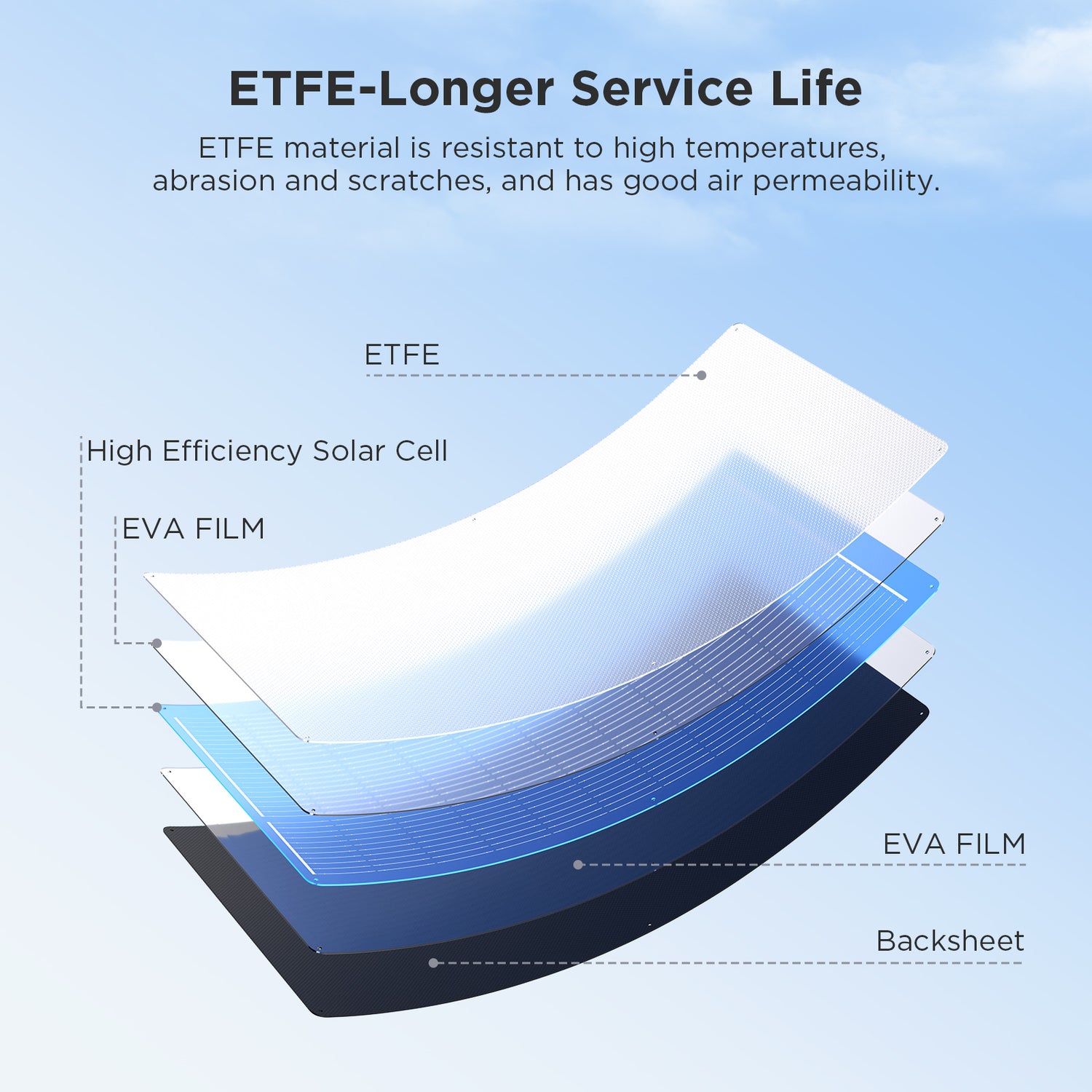

- Superior Durability | High-transparency ETFE film and multi-layer encapsulation resist hail, UV, aging, yellowing, and fading.

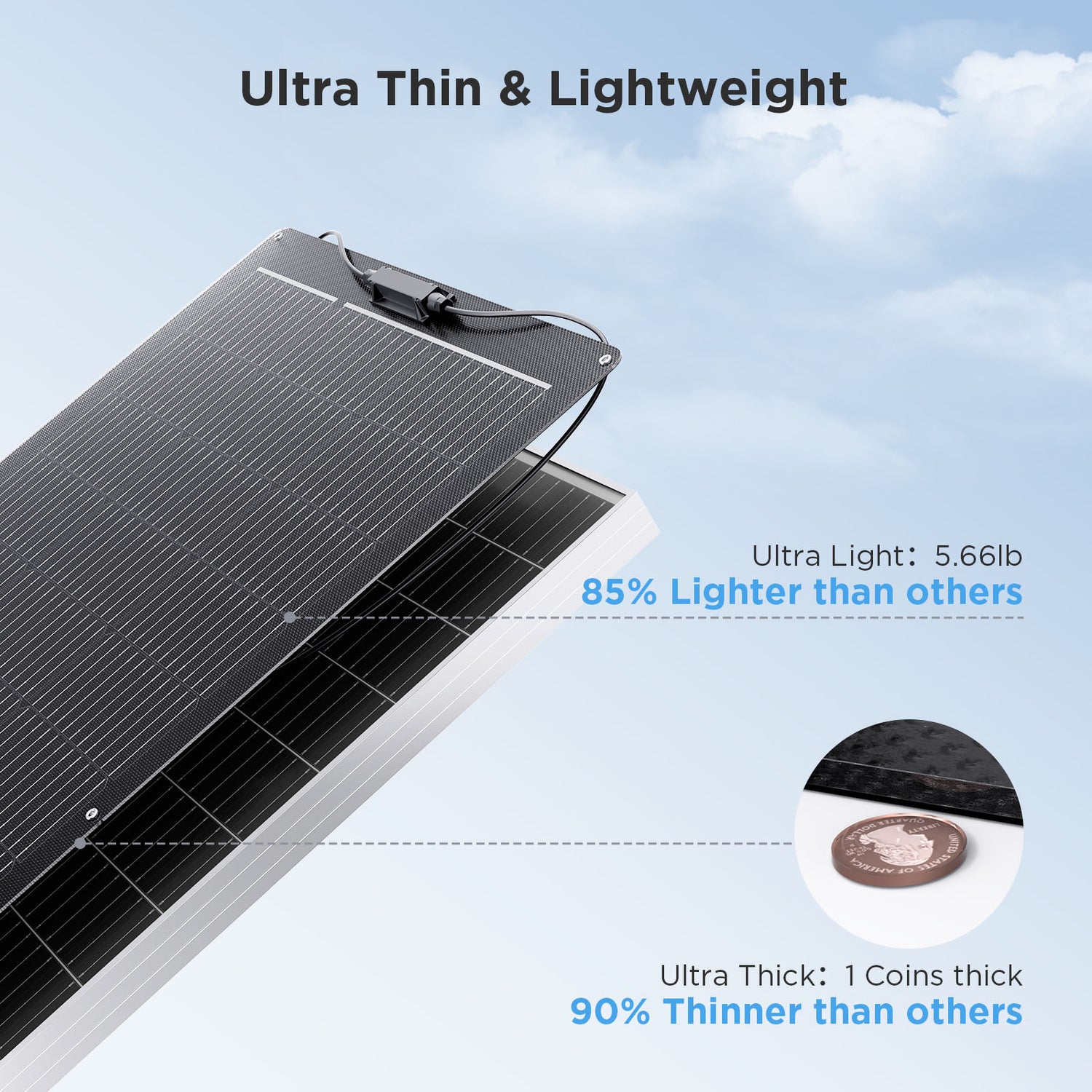

- Ultra-Thin & Stealth | Only 0.1" thick, conforms to complex shapes for low-profile solar setups.
- Quick Installation | Pre-drilled holes and 12AWG cables for fast mounting on balconies, walls, or RVs.
- Reliable 5-Year Warranty | Grade A+ materials and IP68 junction box withstand wind and snow loads, backed by warranty.
100W Flexible Solar Panel - 1 Piece ...は取り寄せ中で入荷次第発送します。
100W Flexible Solar Panel
100W Flexible Solar Panel - 1 Piece ...は取り寄せ中で入荷次第発送します。

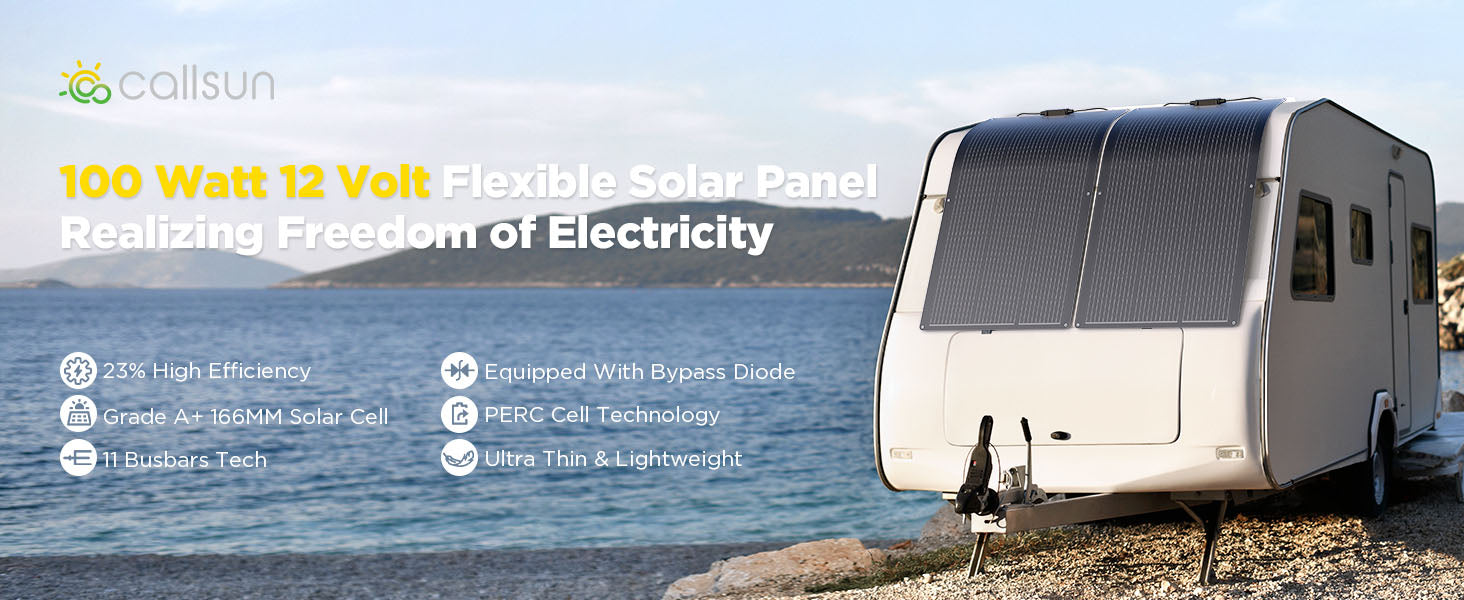

100 Watt 12 Volt Flexible Monocrystalline Solar Panel

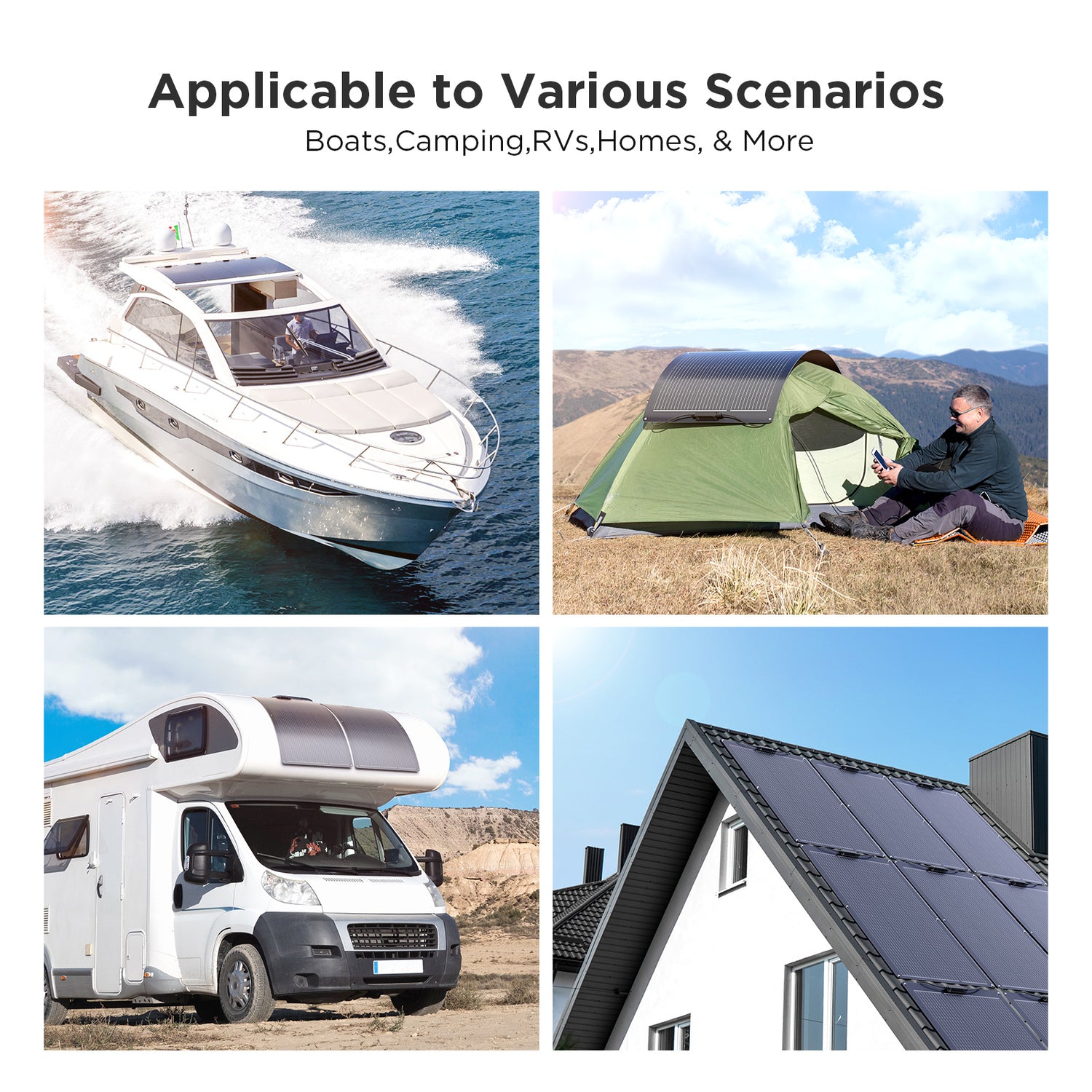

The Callsun 100W 12V Flexible Monocrystalline Solar Panel features 23% high-efficiency PERC cells, Grade A+ 166MM cells, 11-busbar technology, bypass diodes, ultra-thin, lightweight design, and bends up to 240°. It is IP68 waterproof, withstands high winds and snow loads, perfect for RVs, boats, and off-grid adventures—offering great value and reliable performance.

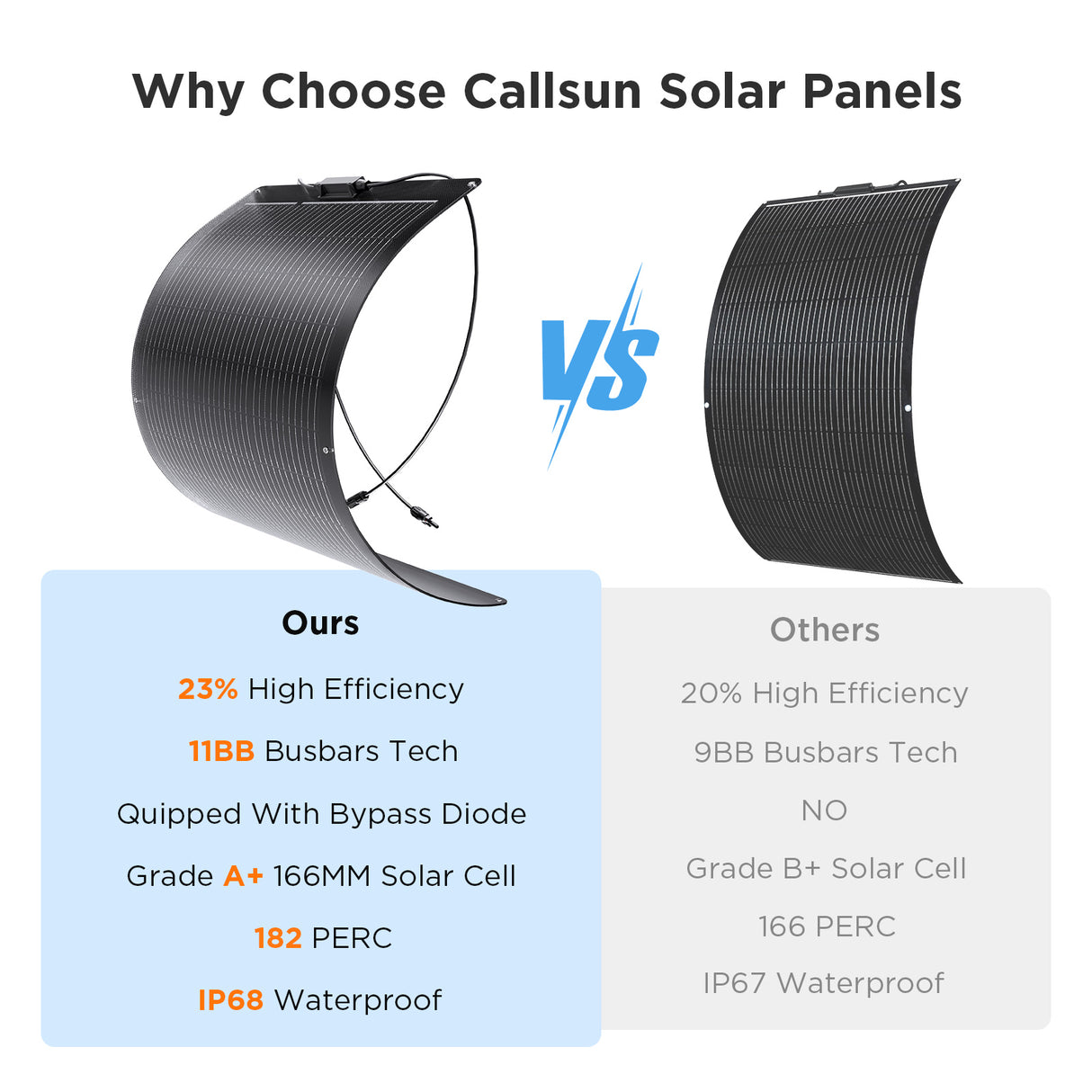

Callsun vs Other Solar Panels Comparison
| Feature | Callsun Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 23% | 20% |
| Busbars | 11 | 9 |
| Bypass Diode | Yes | No |
| Solar Cell Grade | A+ 166MM | B+ |
How to Connect Your Callsun Solar Panel System
Specifications
Key Specs at a Glance 100W output · 23% efficiency · IP68 waterproof · Flexible ETFE design
Electrical Parameters
| Max Power at STC (Pmax) | 100W |
|---|---|
| Power Tolerance | 0-3% |
| Maximum Power Voltage (Vmp) | 18.61V |
| Maximum Power Current (Imp) | 5.38A |
| Open-circuit Voltage (Voc) | 21.17V |
| Short-circuit Current (Isc) | 5.90A |
| Max. System Voltage (DC) | 600V |
| Max. Over Current | 10A |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Mechanical Parameters
| Cell Type | 182 11BB Monocrystalline Silicon, PERC |
|---|---|
| Efficiency | 23% |
| IP Rating | IP68 |
| Connector | Solar Connectors |
| Operating Temperature Range | -10°C ~ 70°C |
| Application Class | Class A |

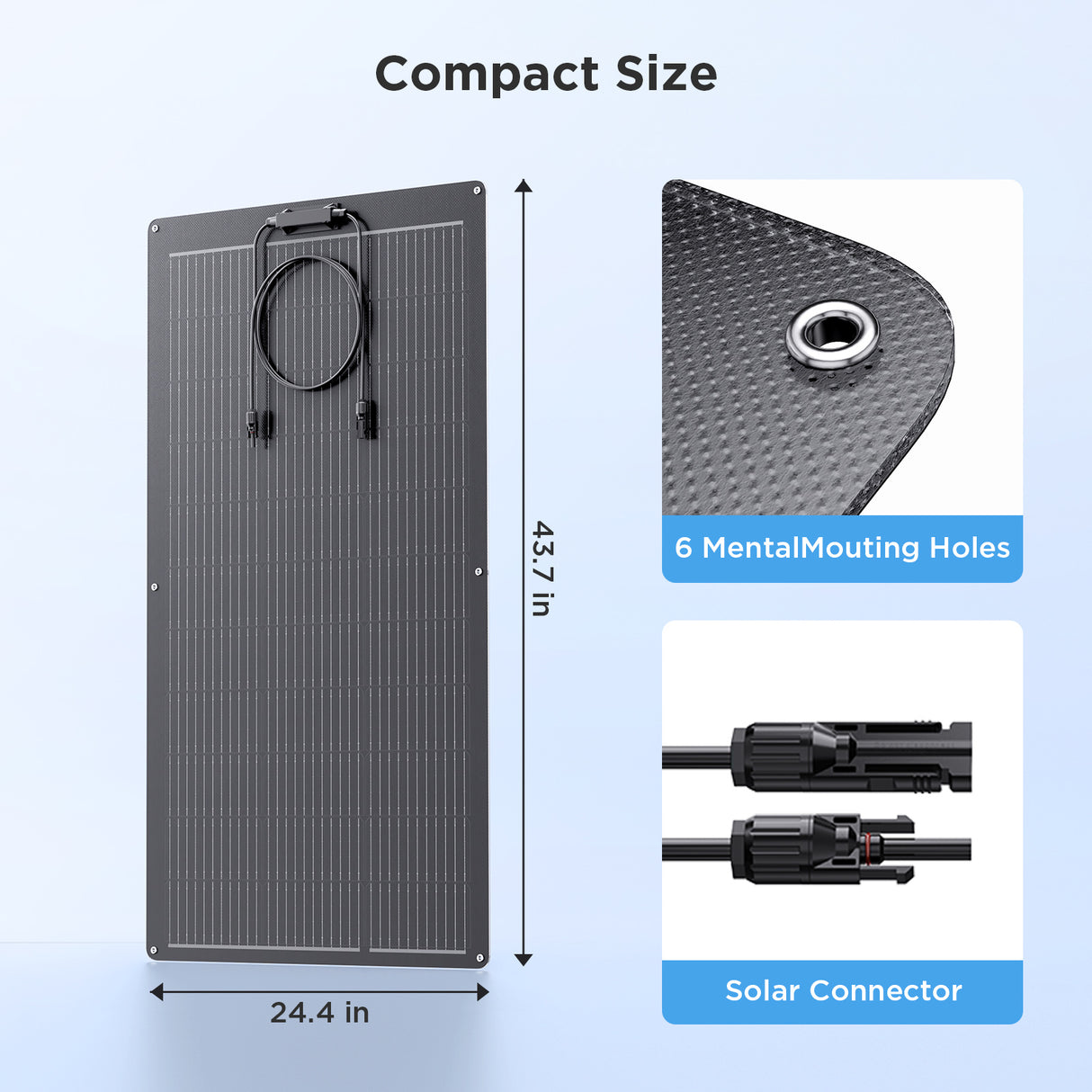

| Dimensions | 1111 × 620 × 25mm (43.7"L x 24.4"W x 0.98"H) |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.32%/°C |
|---|---|
| Temperature Coefficients of Voc | -0.26%/°C |
| Temperature Coefficients of Isc | +0.046%/°C |
| NMOT | 42°C ± 2°C |

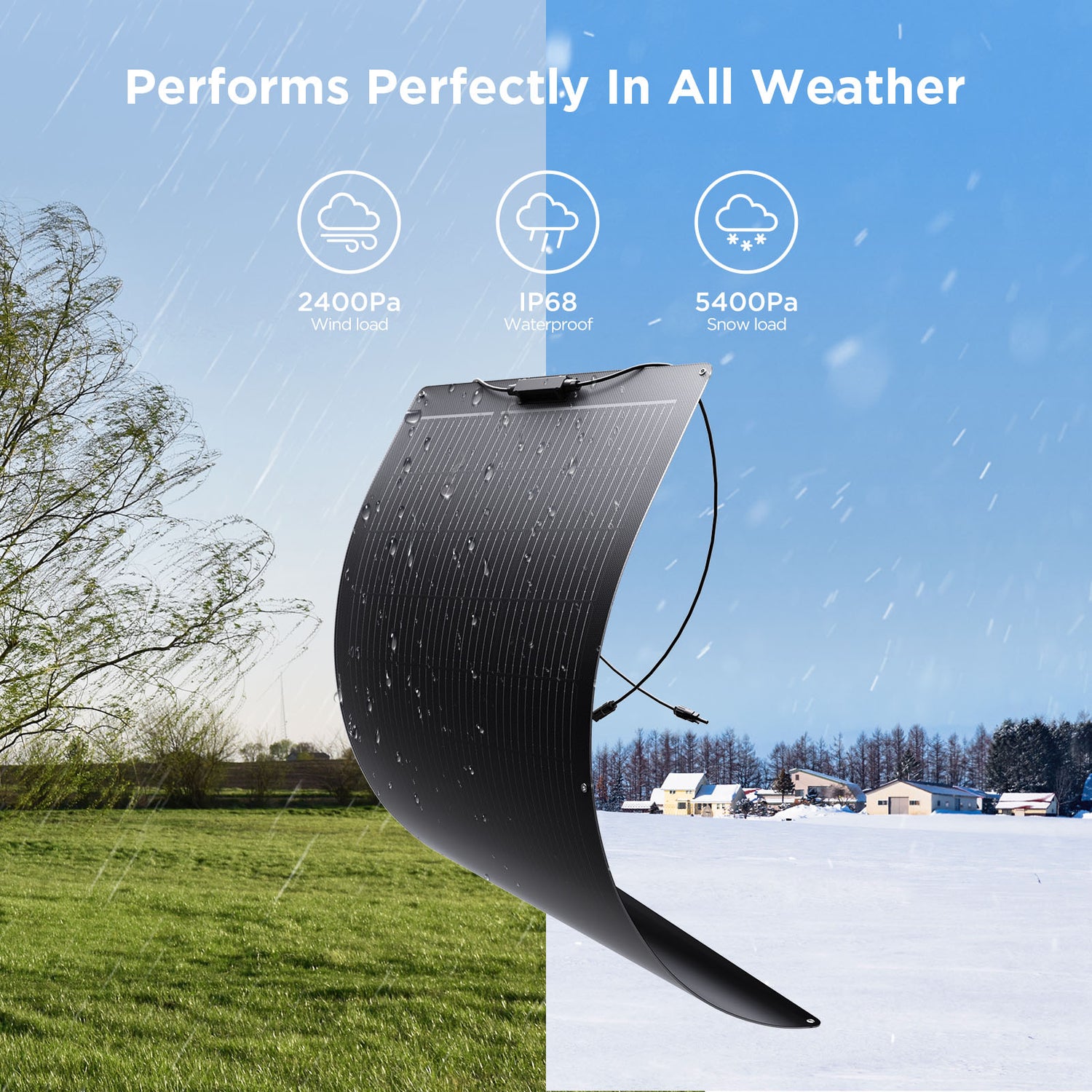

| Max. Wind Load | 2400Pa |
| Max. Snow Load | 5400Pa |
| Brand | Callsun |
| Weight | 5.7 lbs / 2.59 kg |
| Material | ETFE, Monocrystalline Silicon |
| Included Components | Solar Panel |
| Special Feature | 11 Busbars Tech, 182 PERC Cells, Bypass Diode, Ultra Lightweight |
| Size | 100W Black |
| Color | Black |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
Includes
Downloads & View
100W Flexible Solar Panel User Manual
FAQ
1. What components are required to set up an off-grid solar system?
To assemble an off-grid solar setup, you'll need solar panels, a charge controller to regulate the flow of electricity, and batteries for storing the energy. Additionally, proper cabling and connectors are required to safely link the panels, controller, and battery bank.
2. What is the difference between on-grid and off-grid solar systems?
On-grid systems are connected to the main electrical grid, while off-grid systems operate independently, storing power in batteries for use when needed. Off-grid systems are not affected by power outages in the main grid.
3. Why might my solar panel be generating less power than expected?
Reduced power output can result from environmental factors such as shade, cloudy conditions, high temperatures, or accumulated dirt and debris on the panel surface. Regular cleaning and optimal placement can help maintain performance.
4. How should I wire solar panels: series or parallel?
Connecting panels in series increases the total voltage while the current remains the same as one panel. Parallel wiring increases the total current while the voltage stays the same as one panel. You can combine series and parallel connections to meet your system’s voltage and power requirements.
5. How do I determine the number of solar panels needed?
Calculate your energy requirements first. Consider your daily power usage in watt-hours and factor in a safety margin. Once you know the required battery capacity, you can determine how many solar panels are needed to provide sufficient power for your system.
6. Can this panel charge a 12V Marine Battery or a 48V Lithium Battery?
Yes, the panel is compatible. Its operating voltage allows charging a 12V Marine Battery or a 48V Lithium Battery (with at least two panels in series). Make sure to use a charge controller that supports the corresponding system voltage.
7. How should I clean and maintain my solar panels?
Use a soft, non-abrasive sponge with water to clean the panels. Regular maintenance is recommended to remove dust, sand, and other debris, which can reduce power output over time.
