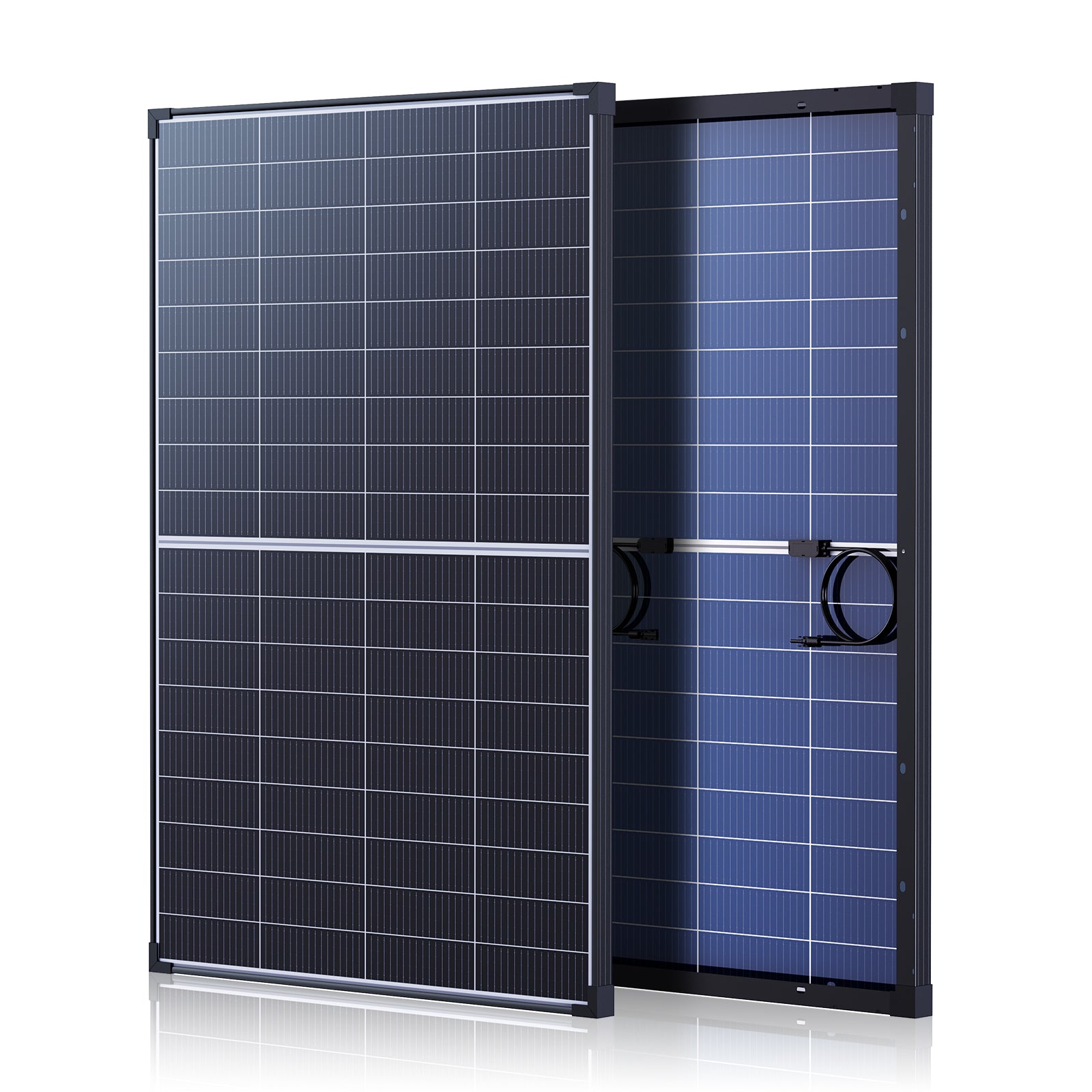

180W N-Type Anti-Shading Bifacial Solar Panel
Key Features
• 25% Efficiency N-Type Cells Advanced 16BB technology ensures high efficiency and crack resistance
• Anti-Shading Design Unique two-zone configuration maintains stable power output under partial shading
• Bifacial Energy Gain Captures reflected light to provide up to 30% additional power
• IP68 Waterproof Features a fully sealed junction box for robust, all-weather protection
• Compact & Versatile Optimized design is ideal for Class B vans and 12V/24V off-grid systems
180W N-Type Anti-Shading Bifacial Solar Panel - 1 Piece ...は取り寄せ中で入荷次第発送します。
180W N-Type Anti-Shading Bifacial Solar Panel
The Callsun 180W Bifacial Solar Panel delivers high-efficiency, shade-tolerant, and durable solar power for reliable off-grid energy anywhere.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |

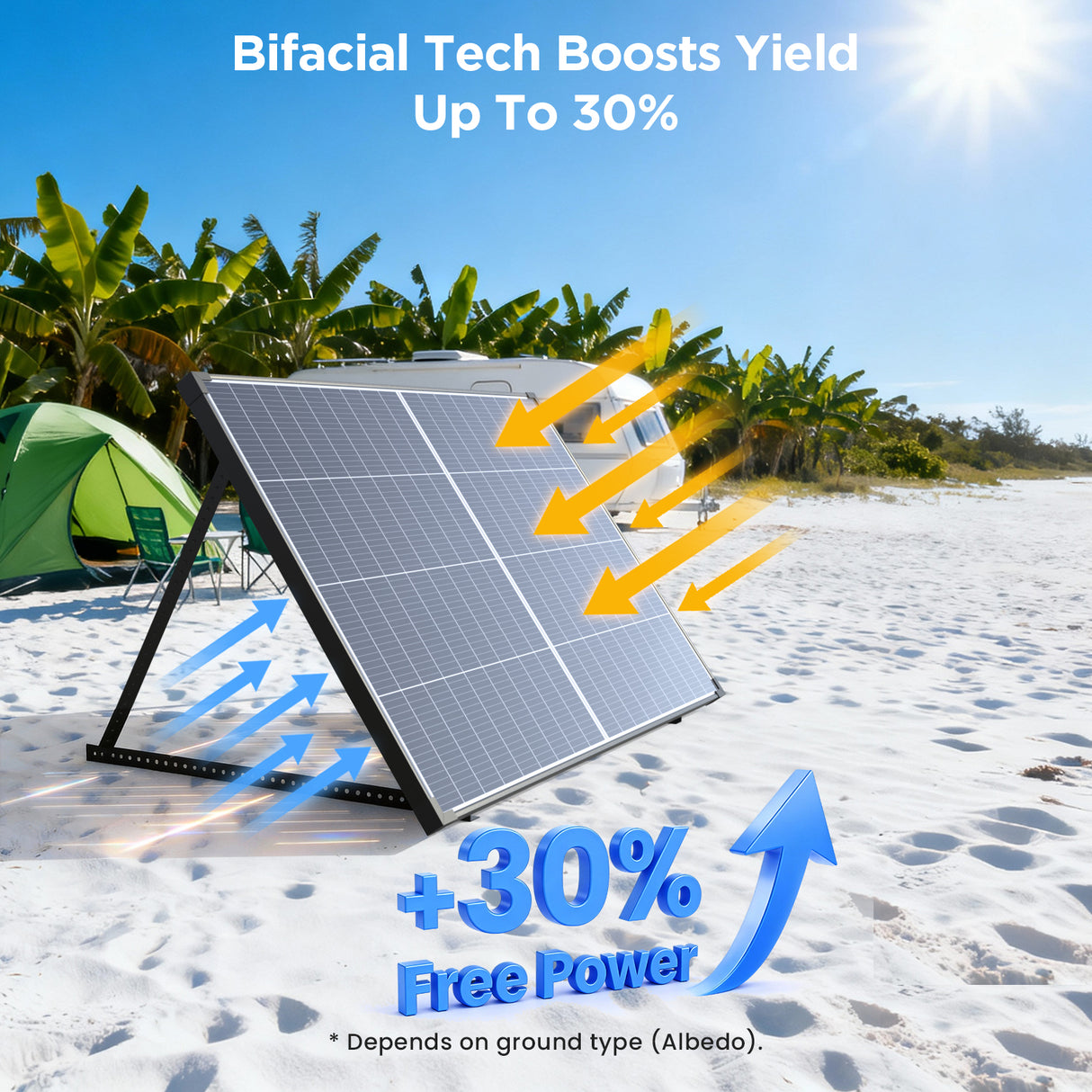

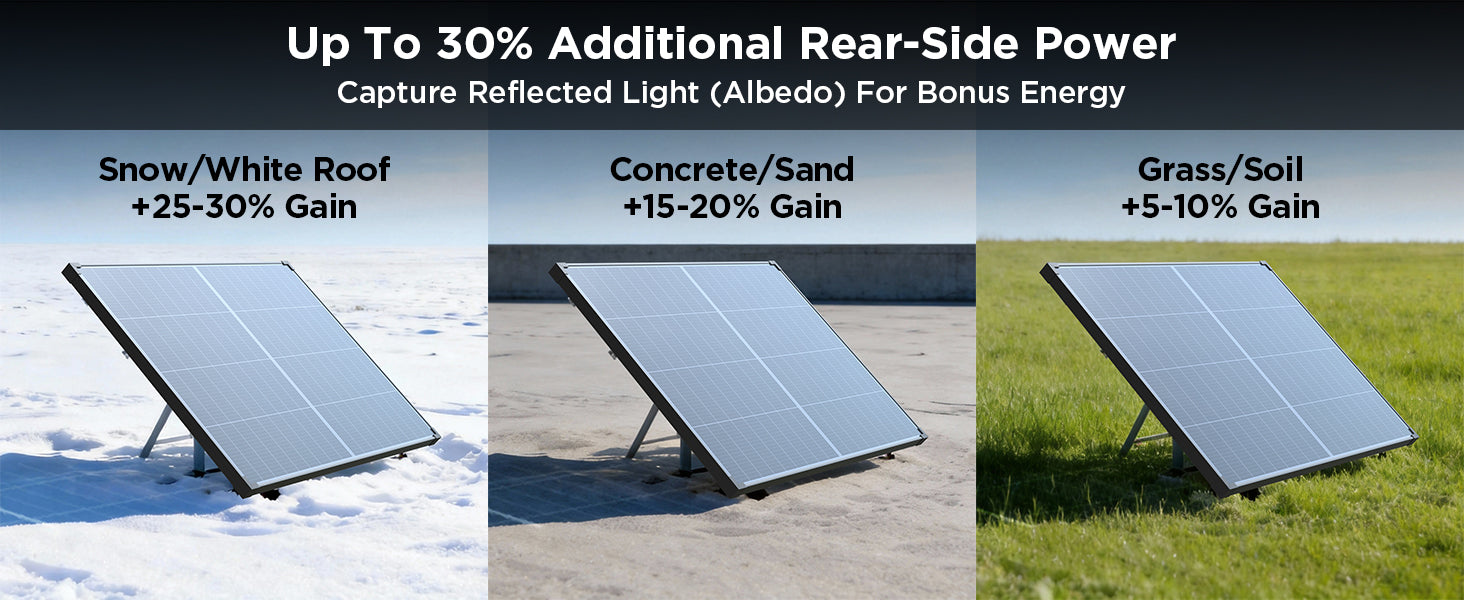

Bifacial Energy Boost
Bifacial technology captures reflected light, boosting energy output by up to 30% across snow, concrete, sand, grass, and soil.

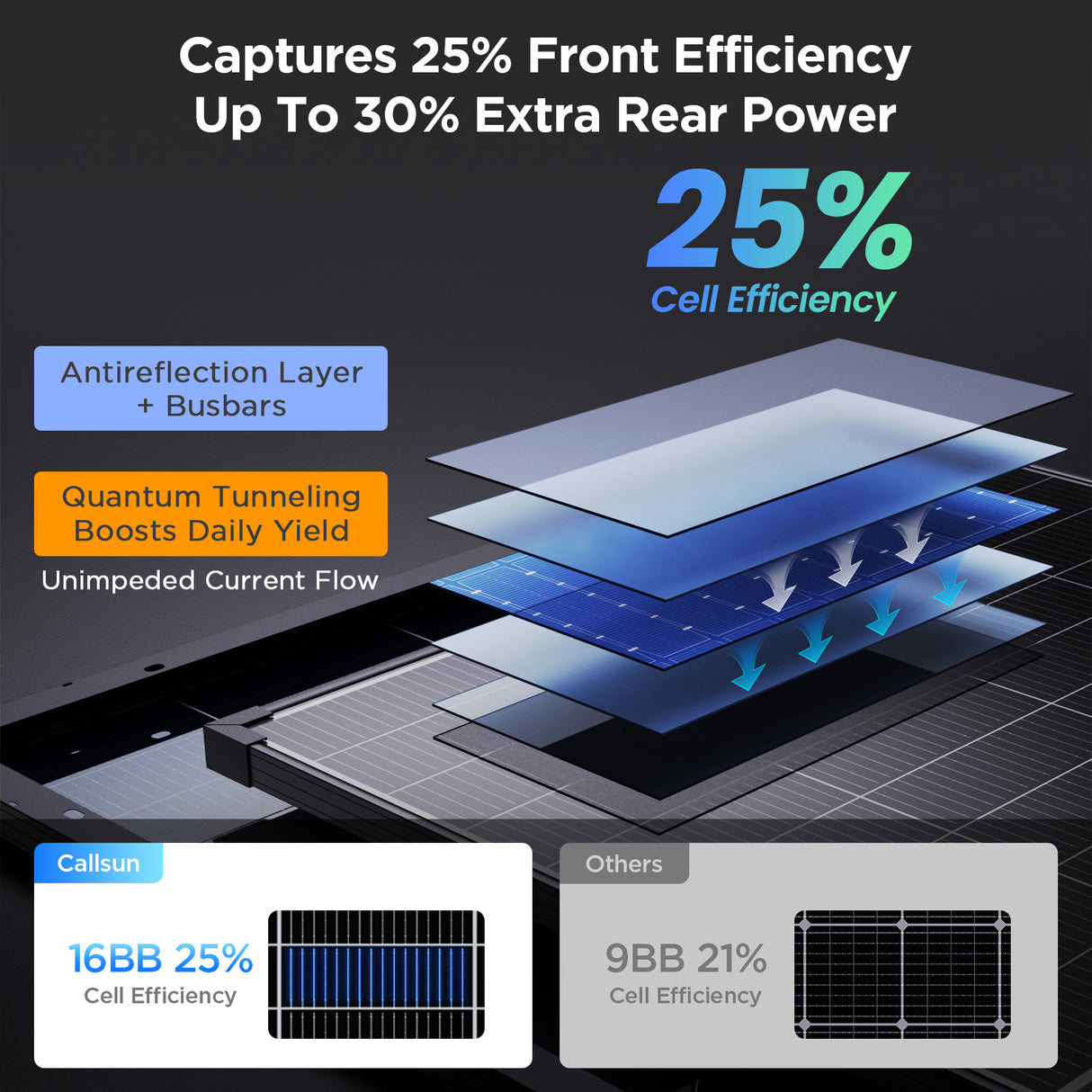

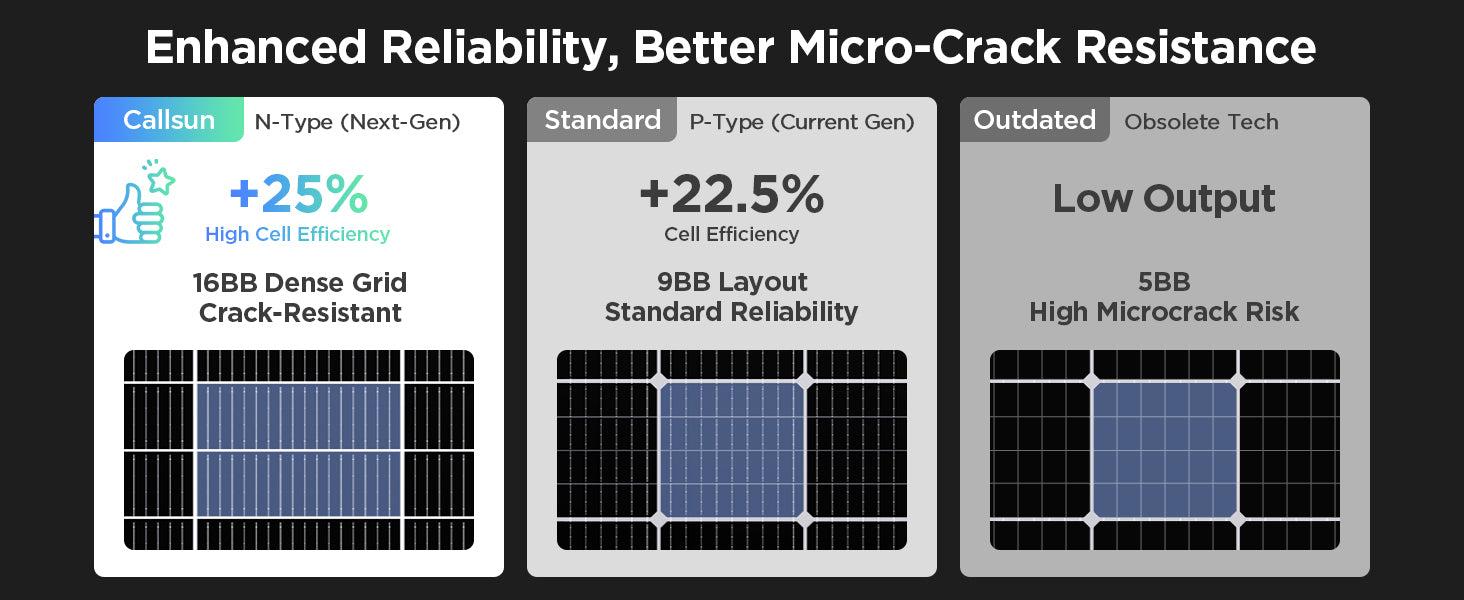

Advanced 16BB N-Type Technology
16BB N-Type cells deliver 25% efficiency, reduce micro-crack risks, and provide durable, reliable performance in demanding conditions.

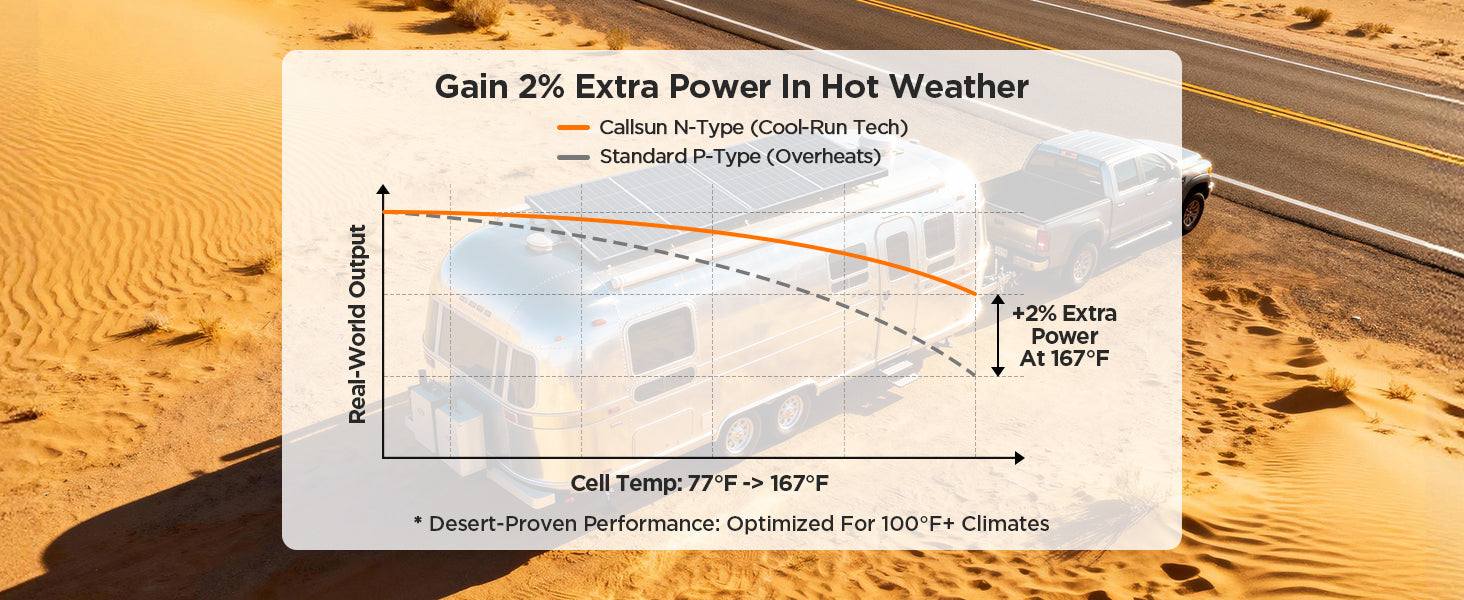

High-Temperature Performance
N-Type Cool-Run Technology reduces heat-related losses, maintaining efficient power generation in temperatures up to 167°F.

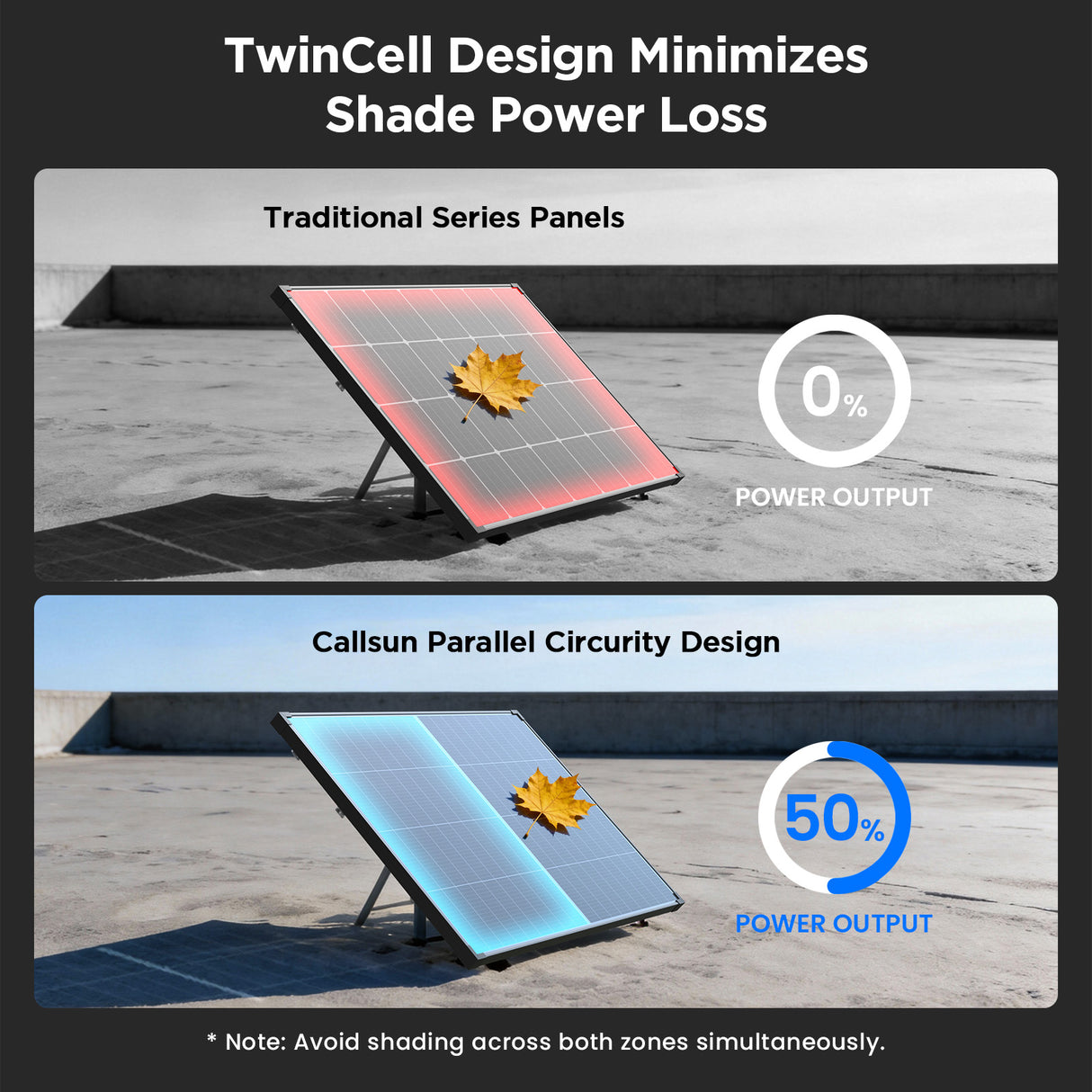

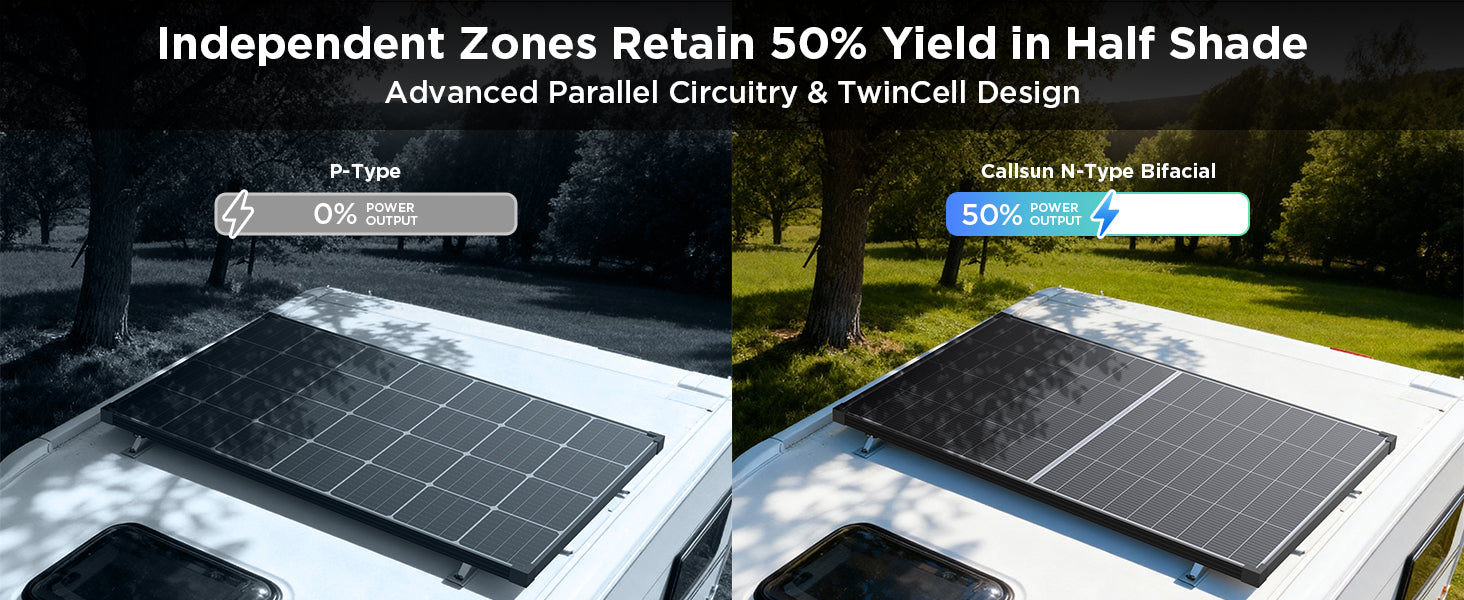

Advanced Shadow Tolerance
TwinCell parallel circuitry maintains up to 50% power output under half shade, ensuring steady energy generation.

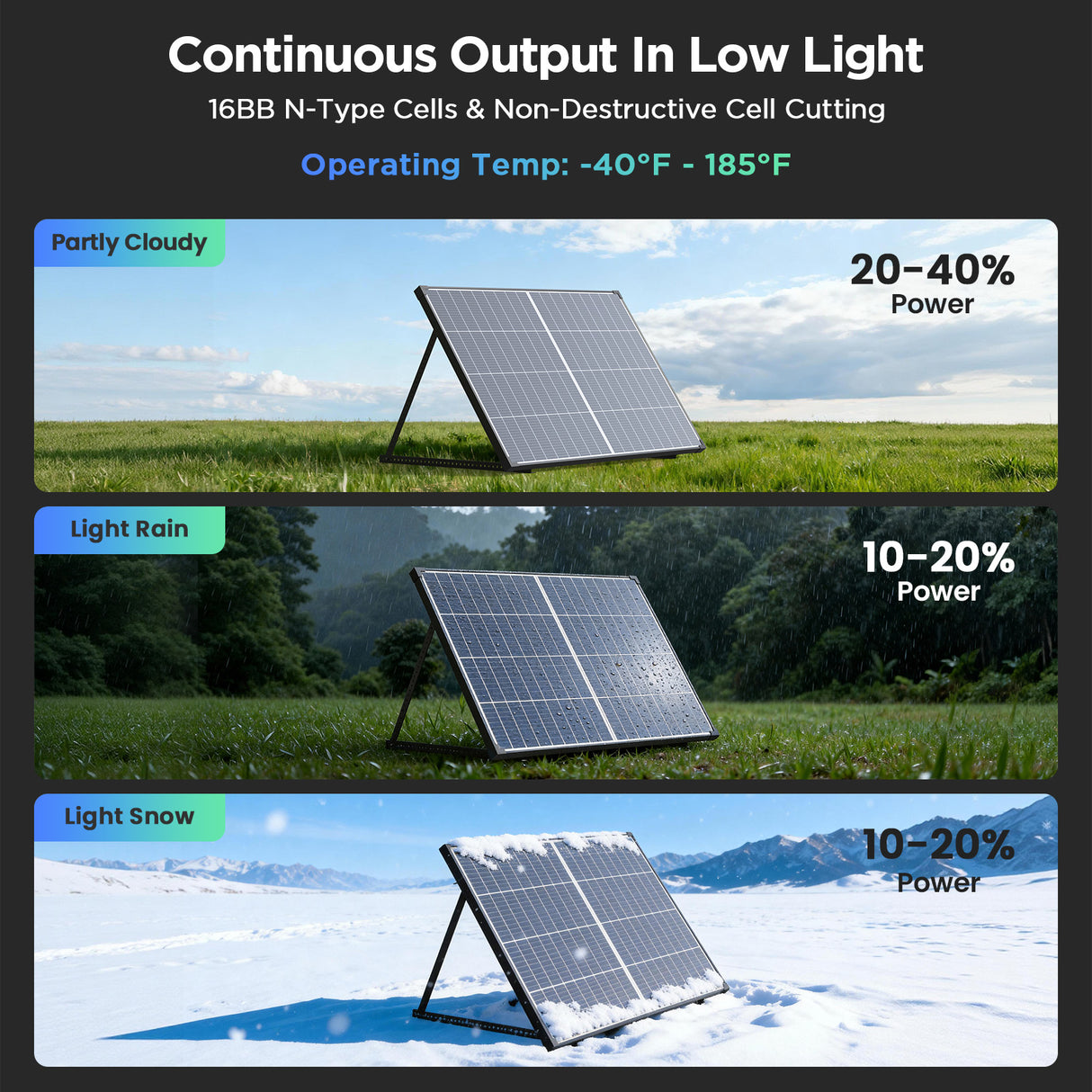

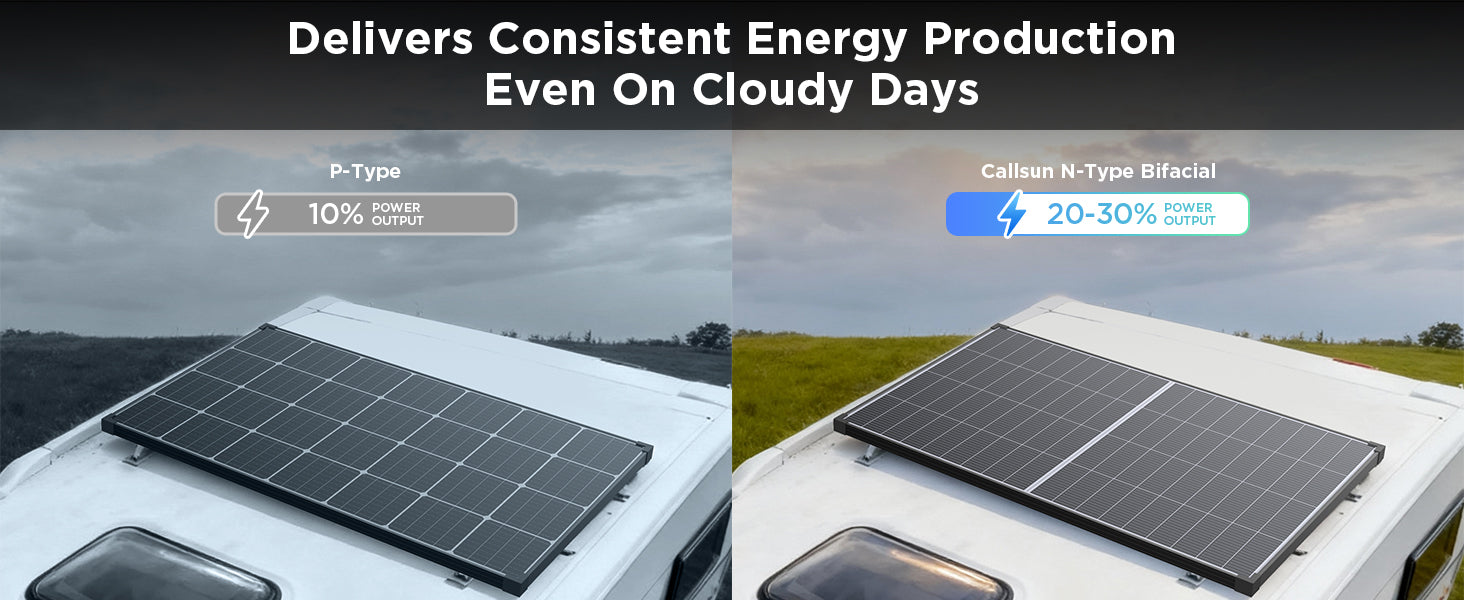

Superior Low-Light Performance
Advanced N-Type cells capture diffuse light efficiently, maintaining 20–30% power output under cloudy and overcast skies.

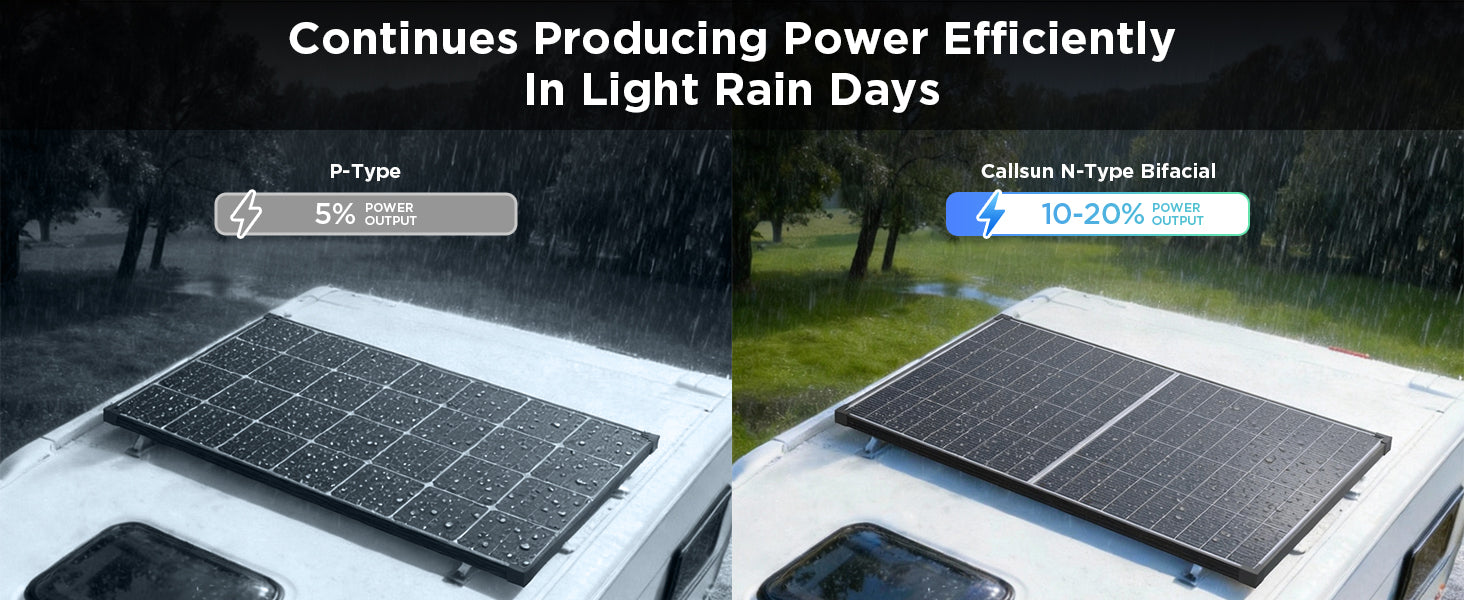

Reliable Wet-Weather Performance
N-Type bifacial technology captures scattered light in rain, maintaining 10–20% power output for reliable charging.

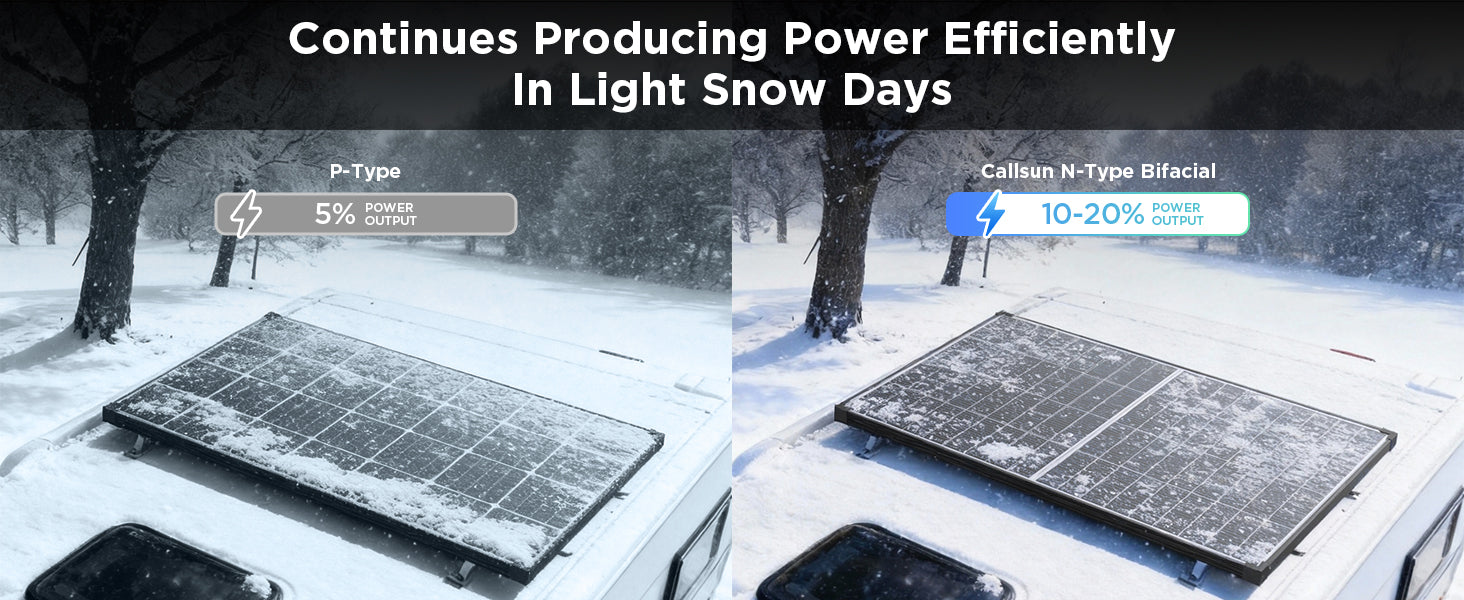

Snow-Ready Solar Performance
N-Type bifacial technology captures filtered and reflected snow light, maintaining 10–20% power output for reliable charging.

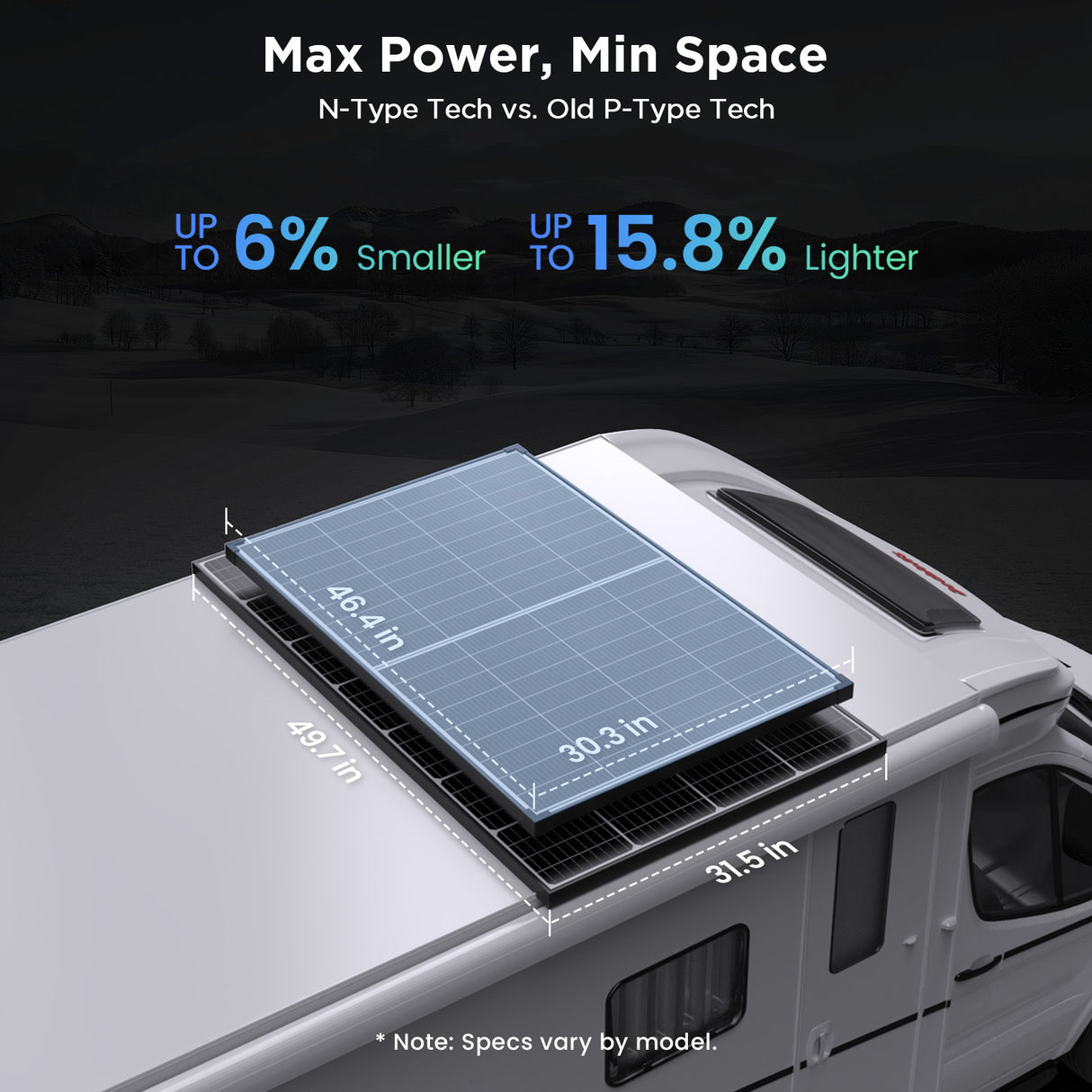

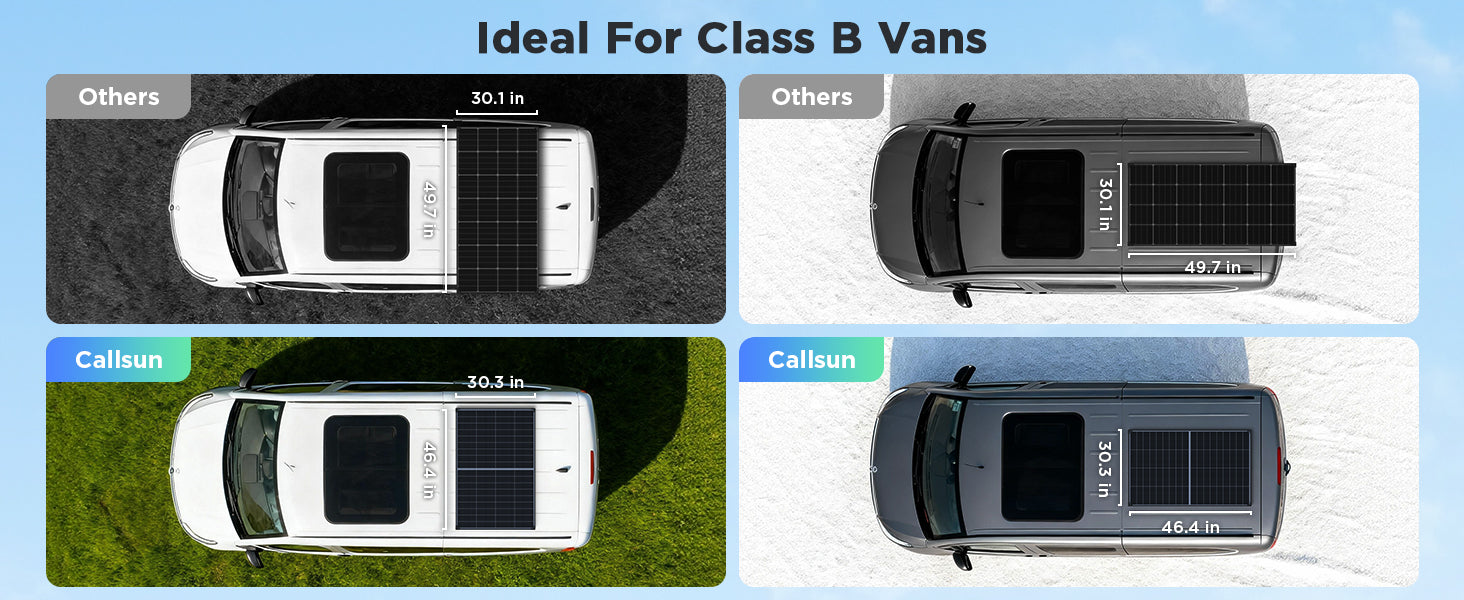

Space-Saving Camper Van Design
Compact 46.4 × 30.3 in dimensions maximize limited camper van roof space while delivering reliable off-grid power.

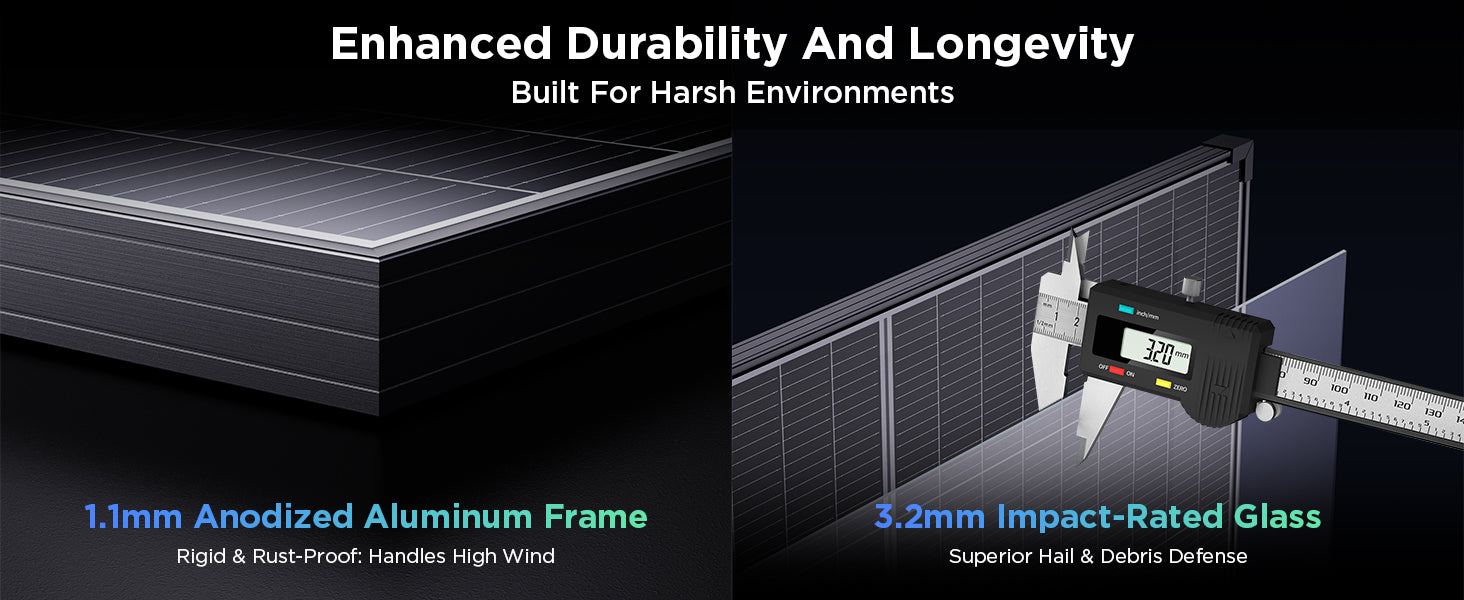

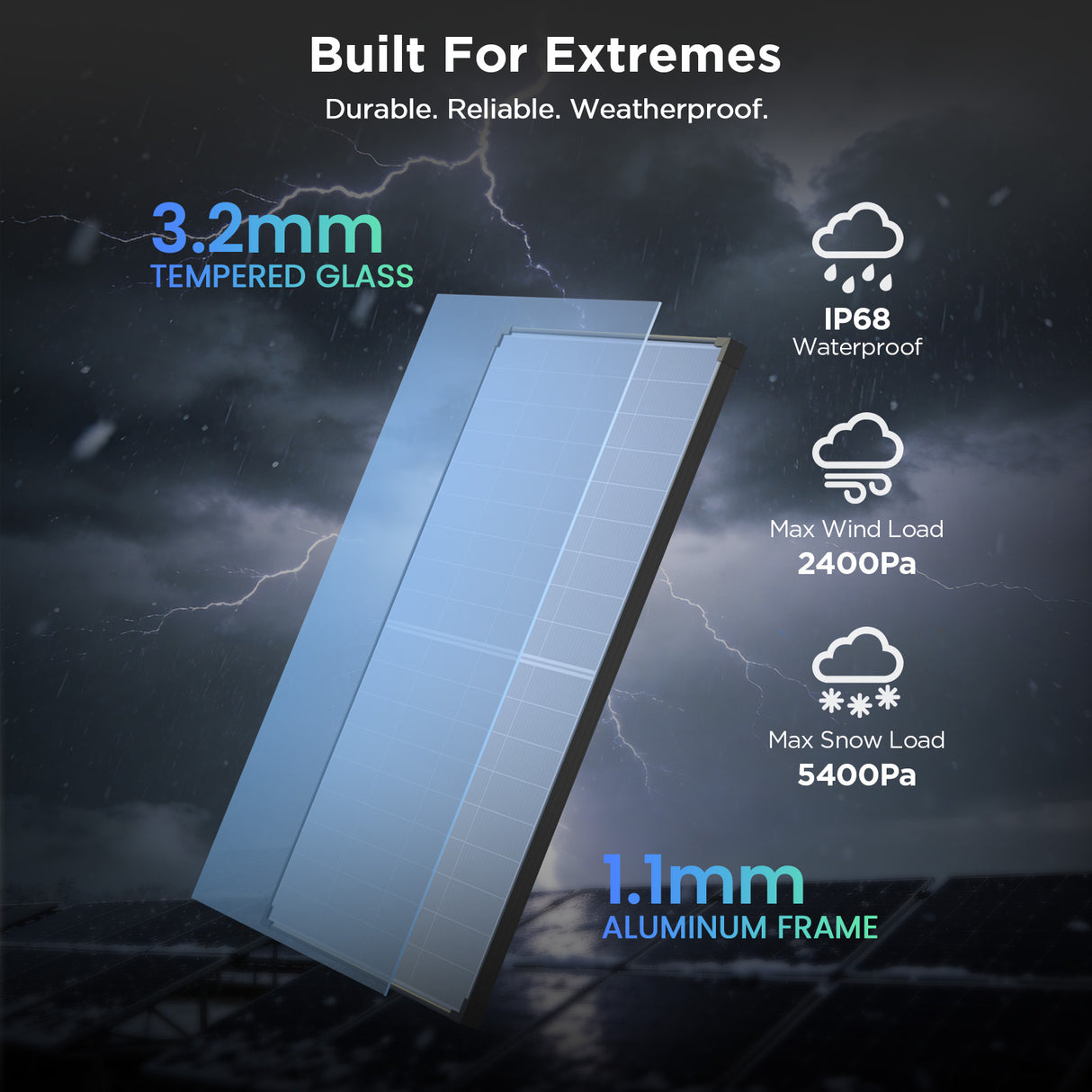

Heavy-Duty Weather Protection
1.1mm anodized aluminum and 3.2mm impact-rated glass withstand high winds, hail, and flying debris for lasting durability.

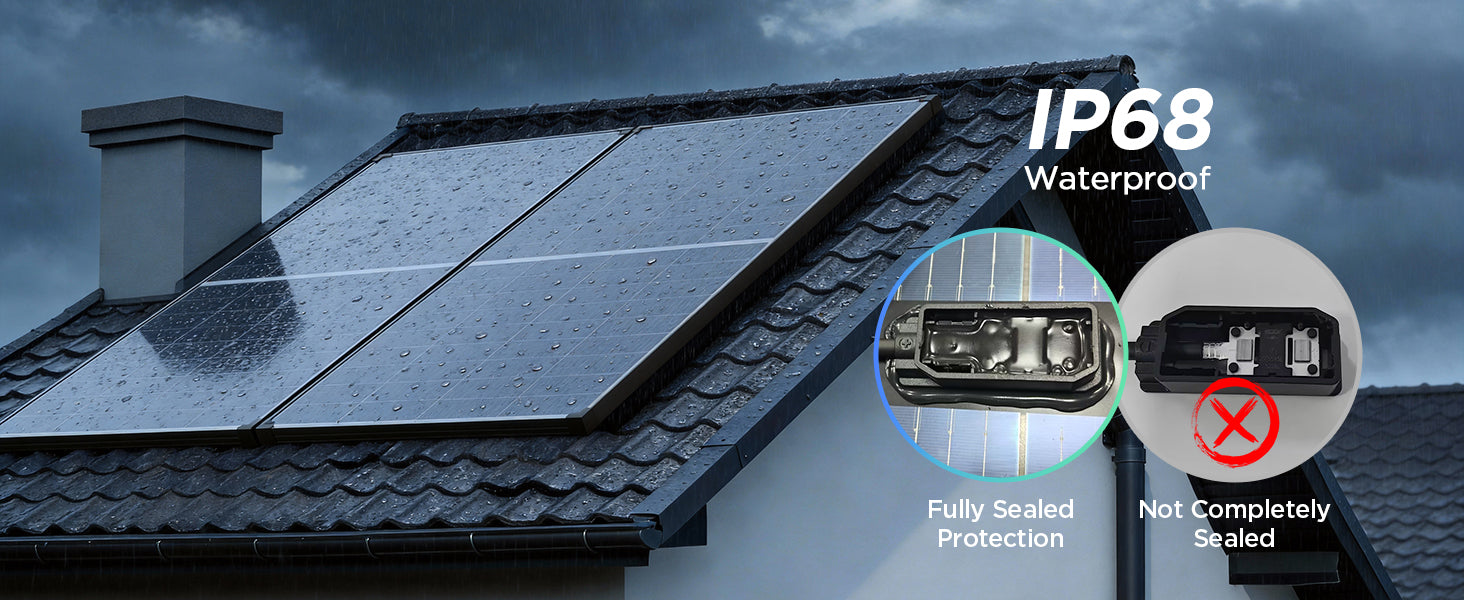

IP68 Waterproof Protection
IP68 sealed junction box prevents moisture intrusion, ensuring safe, reliable power generation during heavy rain and damp conditions.

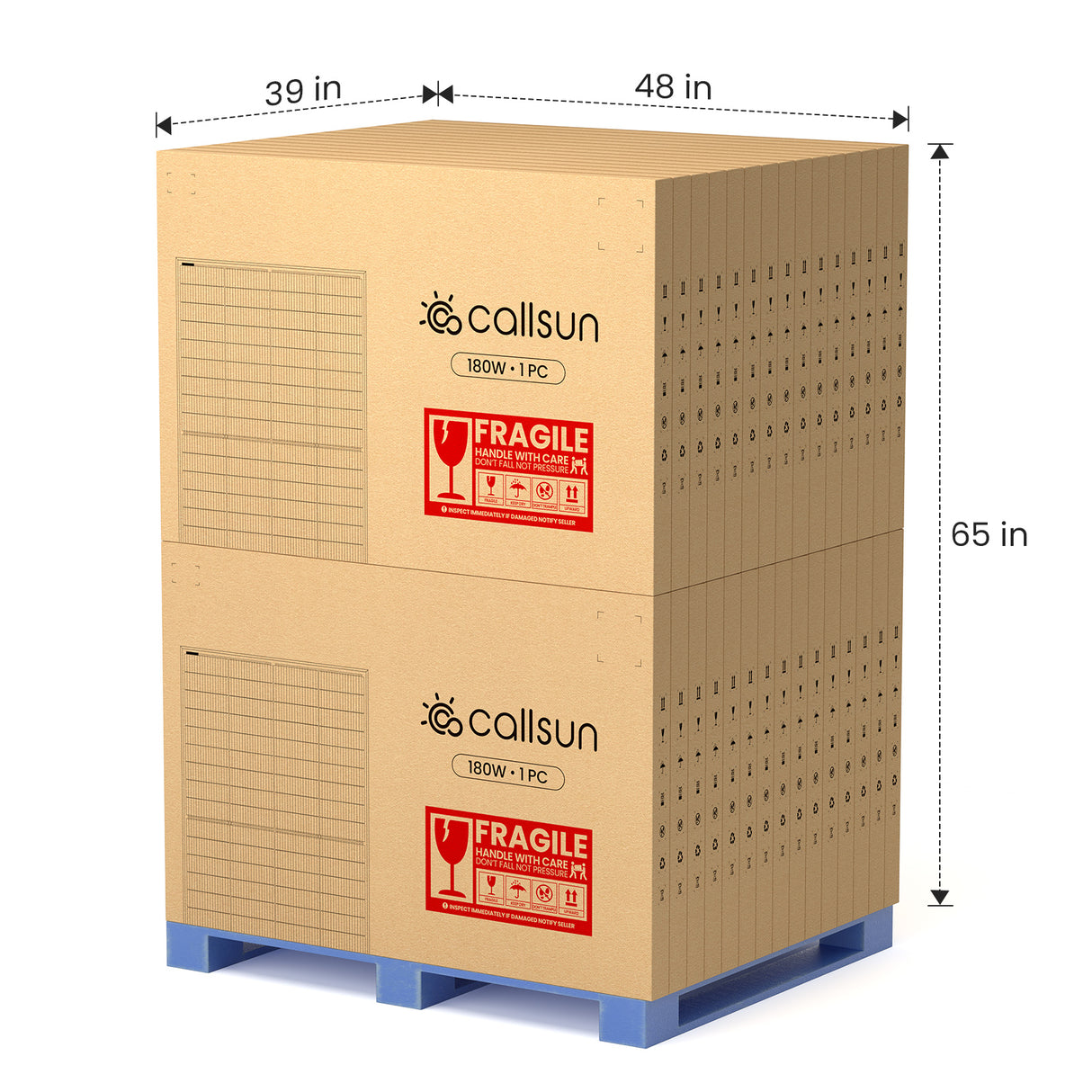

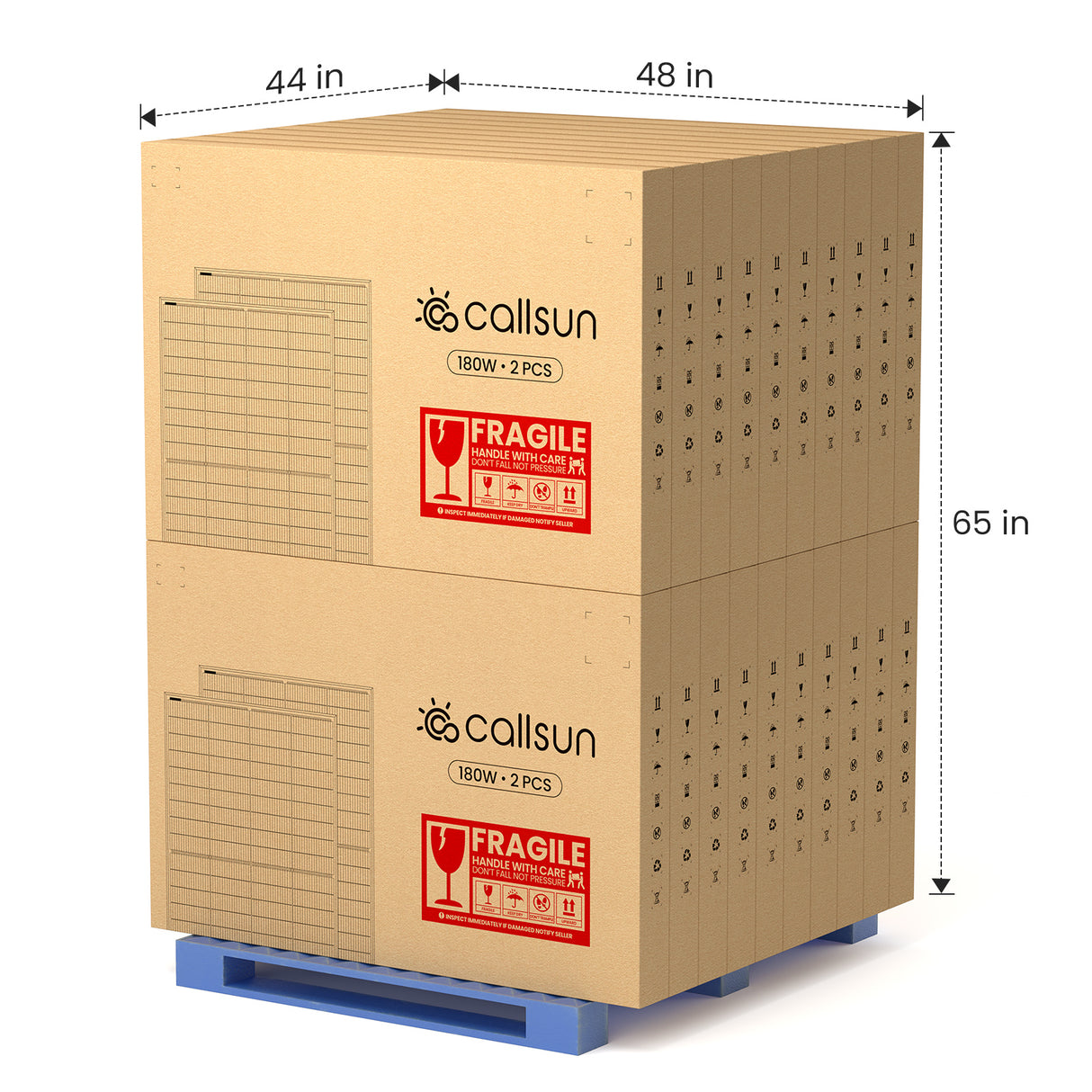

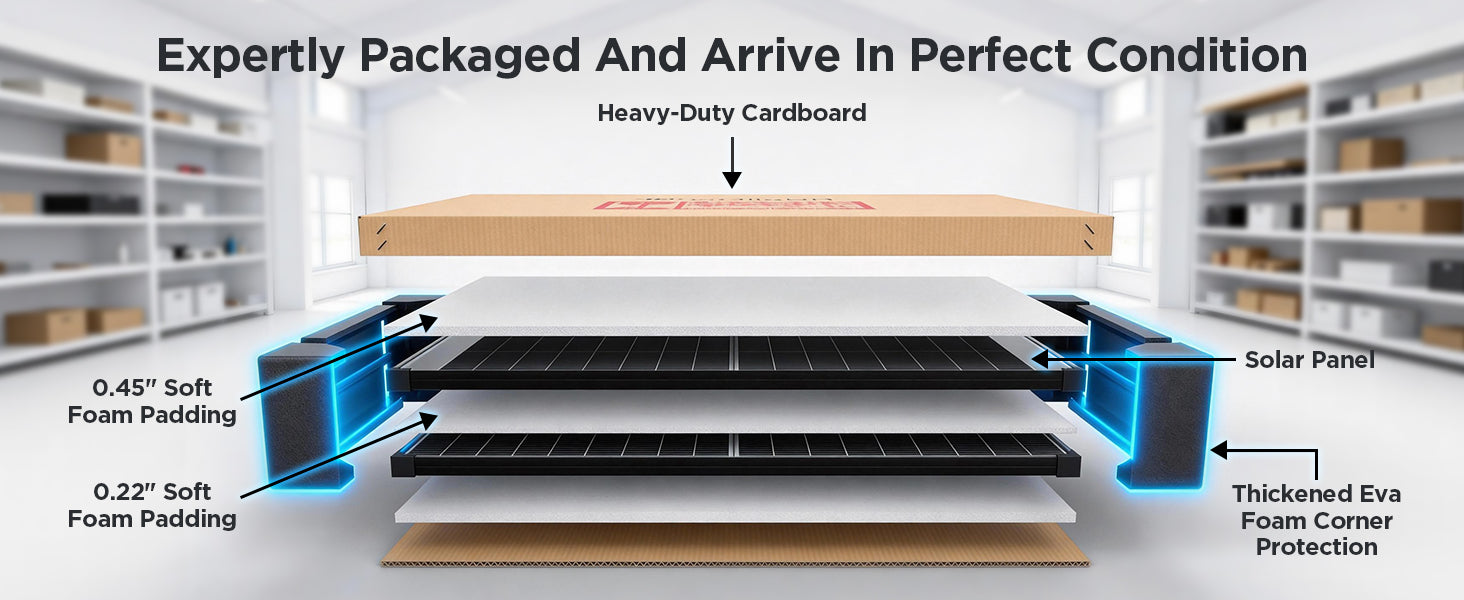

Heavy-Duty Shipping Protection
Multi-layer packaging with heavy-duty cardboard, EVA corners, and foam padding protects panels from shipping damage.

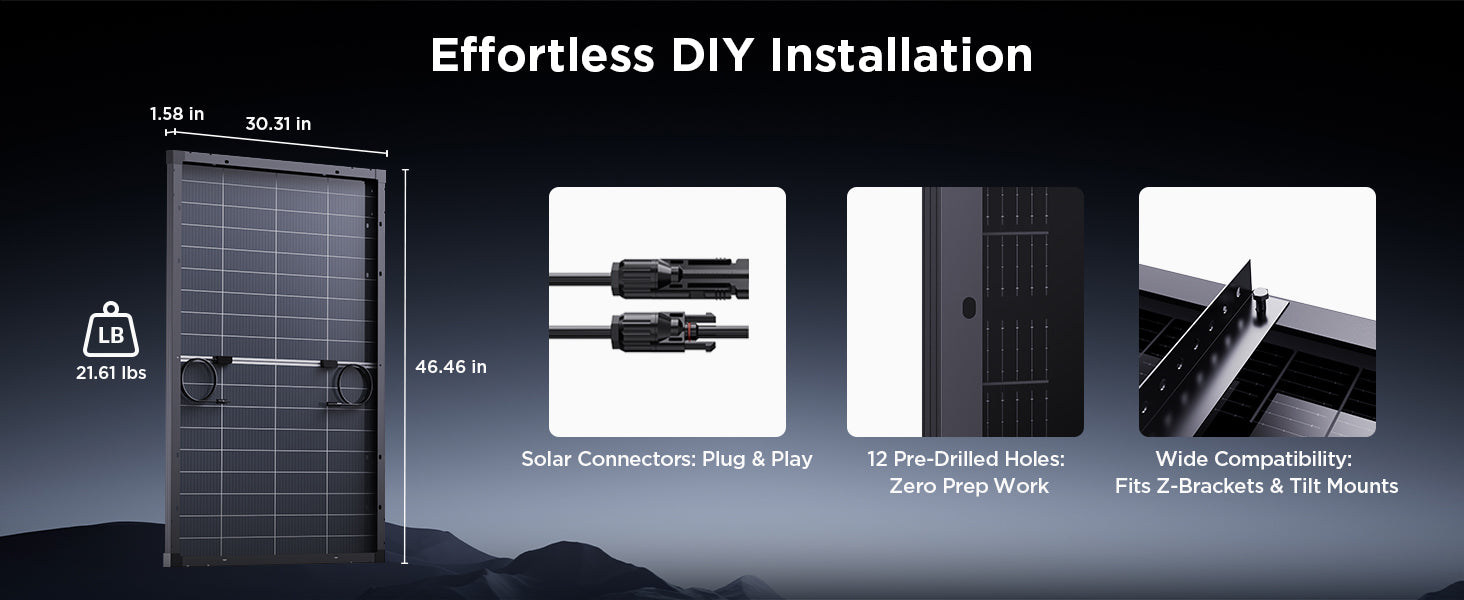

Quick & Easy Installation
12 pre-drilled holes, plug-and-play connectors, and wide mount compatibility enable fast, simple installation with minimal preparation.

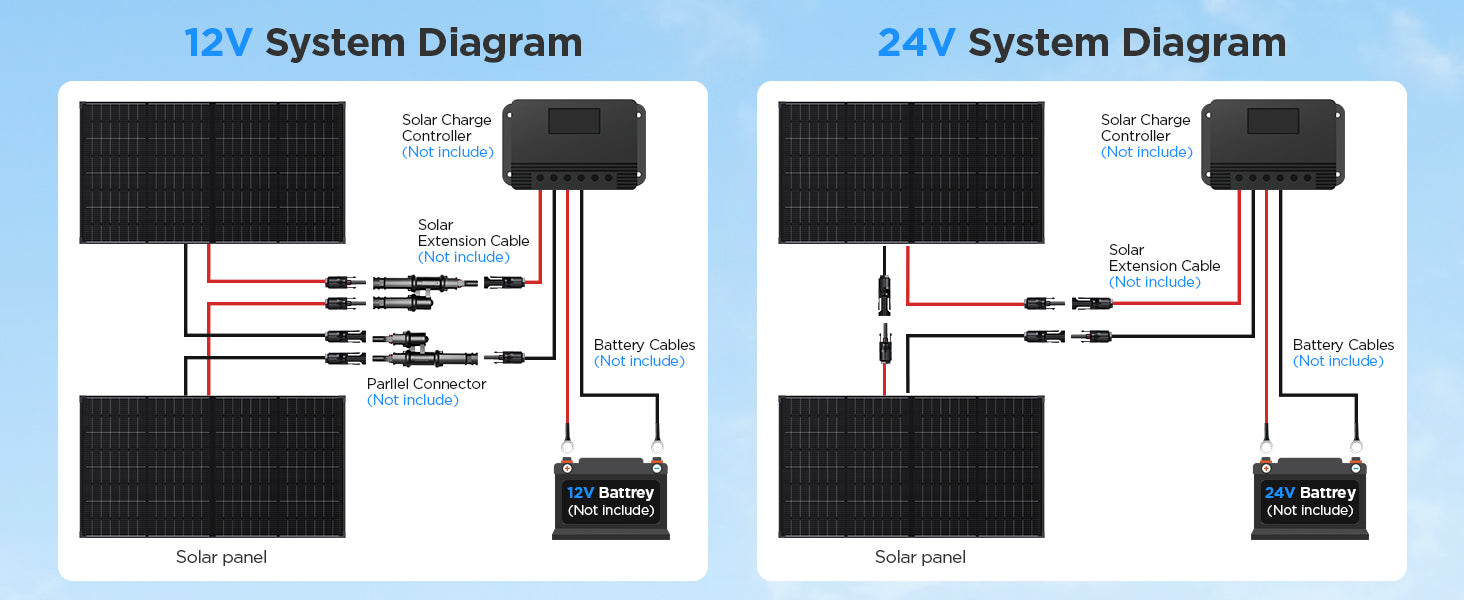

Flexible 12V & 24V Setup
Connect panels in parallel for 12V systems or series for 24V setups, integrating easily with charge controllers and batteries.

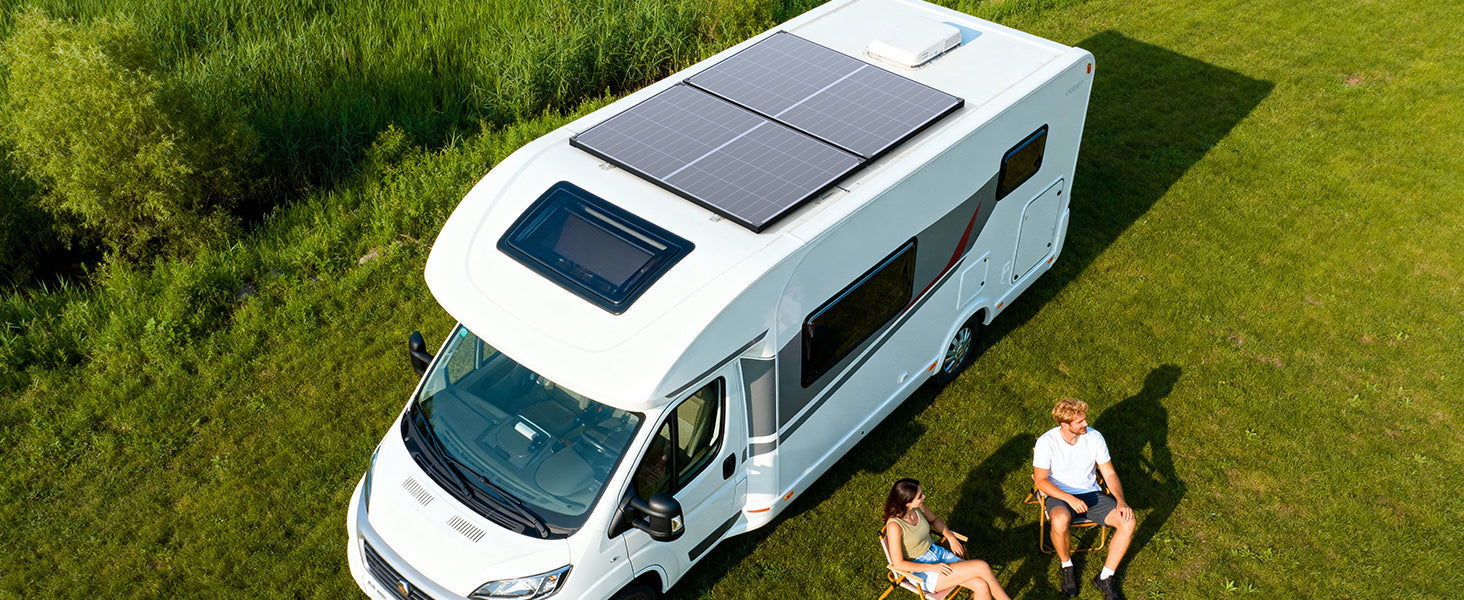

Reliable Campervan Solar Power
180W solar panels deliver clean, consistent off-grid energy for campervans, keeping your adventures powered wherever the road leads.

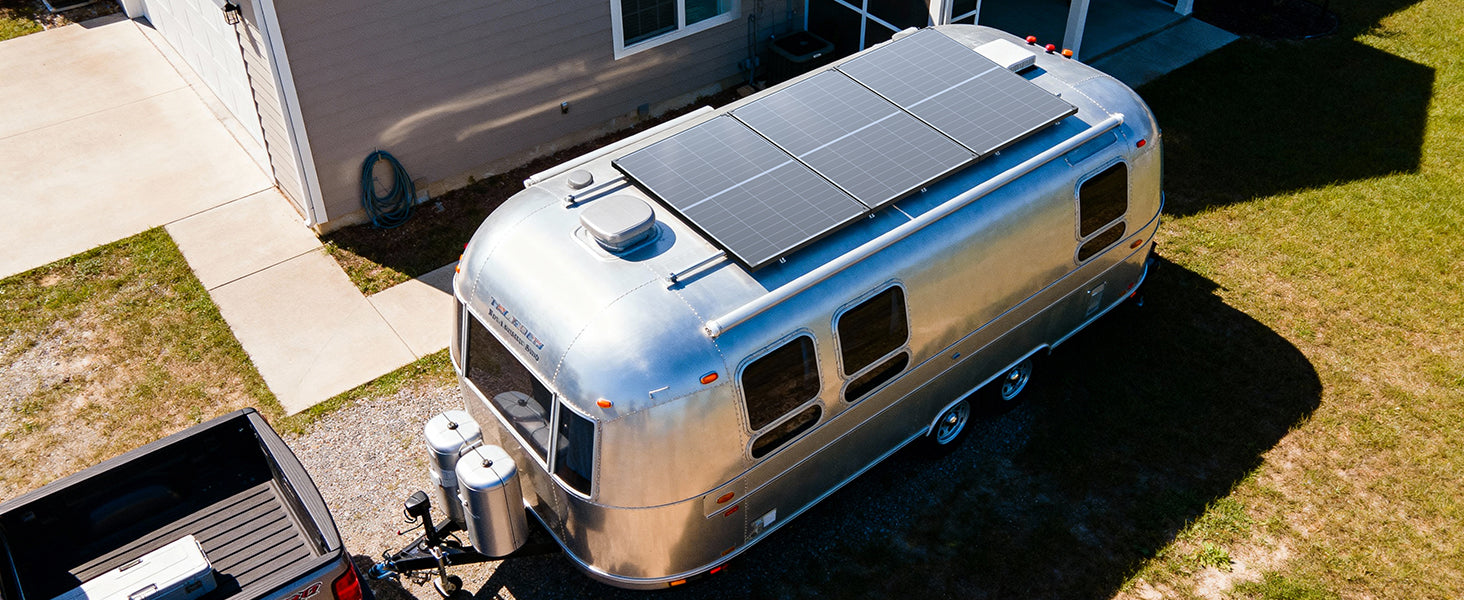

Reliable Travel Trailer Power
180W solar panels deliver clean, efficient off-grid power for travel trailers, supporting comfortable and independent mobile living.

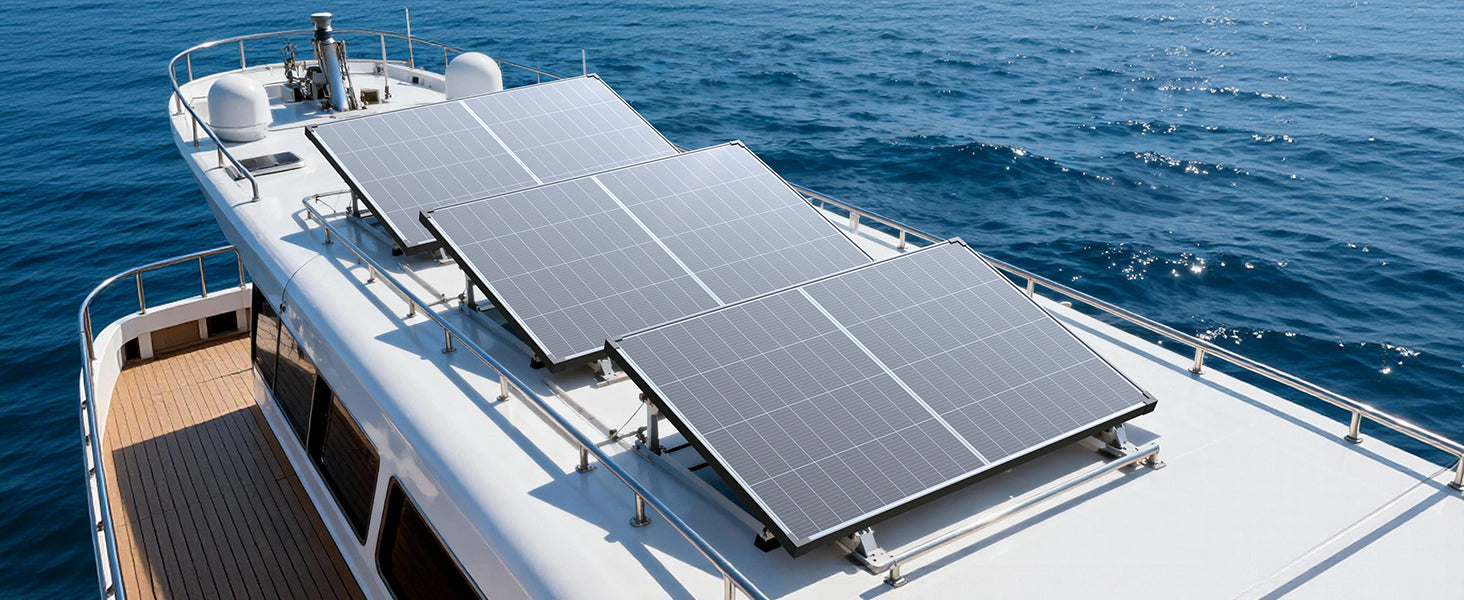

Reliable Marine Solar Power
180W solar panels deliver clean, continuous off-grid energy for boats and yachts, supporting reliable power throughout your marine adventures.

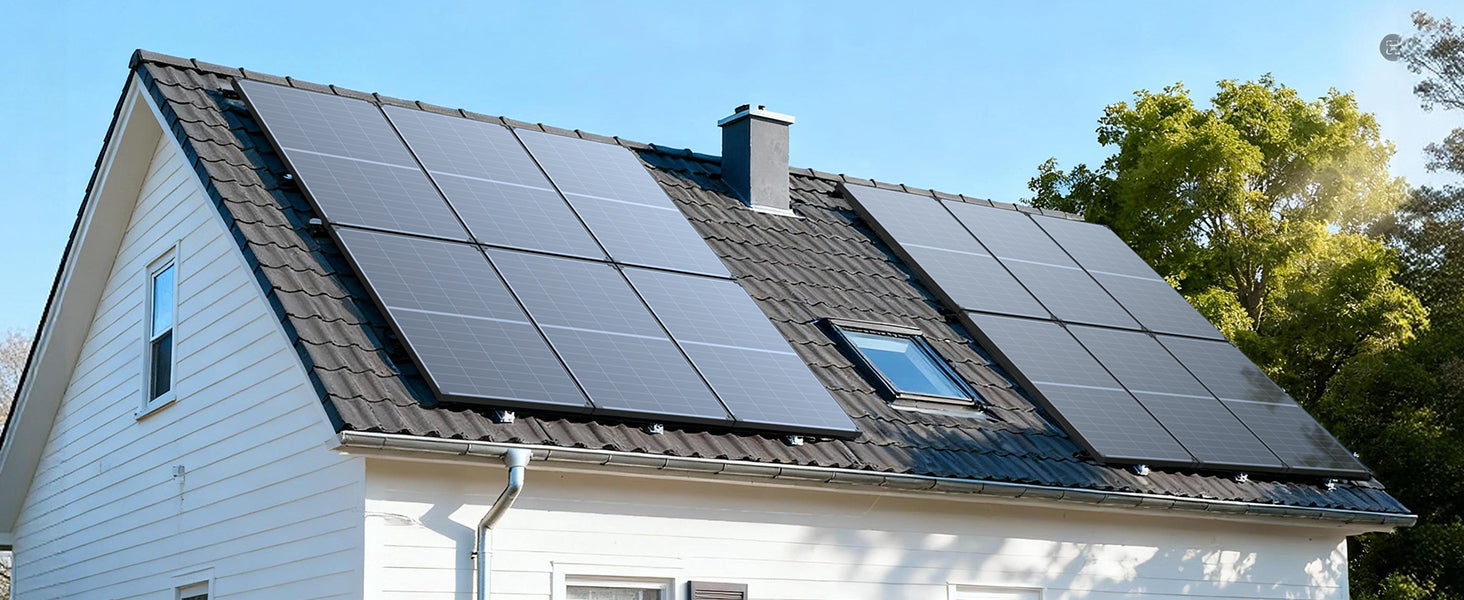

Reliable Home Solar Power
180W solar panels deliver clean, sustainable energy for homes, supporting reliable power generation for everyday household needs.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | YES | 1×180W |
| Elite 100 V2 / 200 V2 | YES | 2×180W(Series or Parallel) |
| Elite 300 | YES | 2×180W(Series or Parallel) |
| Elite 400 | YES | 2×180W(Series or Parallel) |
| AC2A | NO | PV input current (8.21A) exceeds limit (8.2A) |
| AC50B / EB3A | YES | 1×180W |
| AC70 | YES | 2×180W(Series) |
| AC180 | YES | 2×180W(Series) |
| AC200L | YES | 6×180W(Series) |
| AC300 | YES | 6×180W(Series) |
| AC500 | YES | 6×180W(Series) |
| Apex 300 | YES | 2×180W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 6×180W(Series) |
| Delta 2 / 2 Max | YES | 2×180W(Series) |
| Delta 3 / 3 Plus | YES | 2×180W(Series) |
| Delta 3 Max | YES | 2×180W(Series) |
| Delta 3 Max Plus | YES | 2×180W(Series or Parallel) |
| Delta pro 3 | YES | 6×180W(Series)-XT60 |
| River 2 | NO | PV input current (8.21A) exceeds limit (8A) |
| River 2 Pro | YES | 2×200W(Series) |
| River 2 Max | YES | 2×180W(Series) |
| River 3 | NO | PV input current (8.21A) exceeds limit (8A) |
| River 3 Plus | YES | 2×180W(Series) |
| Delta Pro Ultra | YES | 6×180W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | NO | PV input current (8.21A) exceeds limit (8.2A) |
| SOLIX C800 | YES | 1×180W |
| SOLIX C1000 | YES | 2×180W(Series) |
| SOLIX C1000 Gen2 | YES | 2×180W(Series) |
| SOLIX C2000 Gen2 | YES | 2×180W(Series) |
| SOLIX F2000 | YES | 2×180W(Series or Parallel) |
| SOLIX F2600 | YES | 2×180W(Series or Parallel) |
| SOLIX 521 | NO | PV input current (8.21A) exceeds limit (5.5A) |
| SOLIX 535 | Limited | 1×180W(Input power limited to 120W) |
| SOLIX F3000 | YES | 6×180W(Series) |
| SOLIX F3800 | YES | 2×180W(Series)/3×180W(Parallel) |
| SOLIX F3800 plus | YES | 6×180W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | NO | PV input current (8.21A) exceeds limit (7A) |
| E500LFP | NO | PV input current (8.21A) exceeds limit (7A) |
| E600LFP | YES | 2×180W(Series)-(Input power limited to 350W) |
| E1000LFP | YES | 2×180W(Series or Parallel) |
| E1500LFP | YES | 180W(Series or Parallel) |
| E2000LFP | YES | 3×180W(Series) |
| E2400LFP | YES | 3×180W(Series) |
| E3600LFP | YES | 6×180W(Series) |
| E3800LFP | YES | 6×180W(Series) |
| F1000LFP | YES | 2×180W(Series) |
| F3000LFP | YES | 5×180W(Series) |
| F5000LFP | YES | 7×180W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 3×180W(Series) |
| Mega 2 | YES | 6×180W(Series) |
| Mega 2 Pro | YES | 3×180W(Series or Parallel) |
| Exodus 2400 | YES | 3×180W(Series) |
| Exodus 1500 | YES | 2×180W(Parallel) |
| Exodus 600 Plus | YES | 1×180W |
| Exodus 600 | YES | 1×180W |
| Exodus 1200 | YES | 1×180W |
| Guardian 6000 | YES | 5×180W(Series) |
| B2 Extra Battery | YES | 6×180W(Series) |
Specifications
Key Specs at a Glance: 180W output · N-Type · 25% efficiency · Bifacial · Anti-Shading · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power at STC (Pmax) | 180W |
|---|---|
| Maximum Power Voltage (Vmp) | 21.93V |
| Maximum Power Current (Imp) | 8.21A |
| Open-circuit Voltage (Voc) | 25.56V |
| Short-circuit Current (Isc) | 8.62A |
| Cell Type | N-Type, 16BB, 182mm, Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |

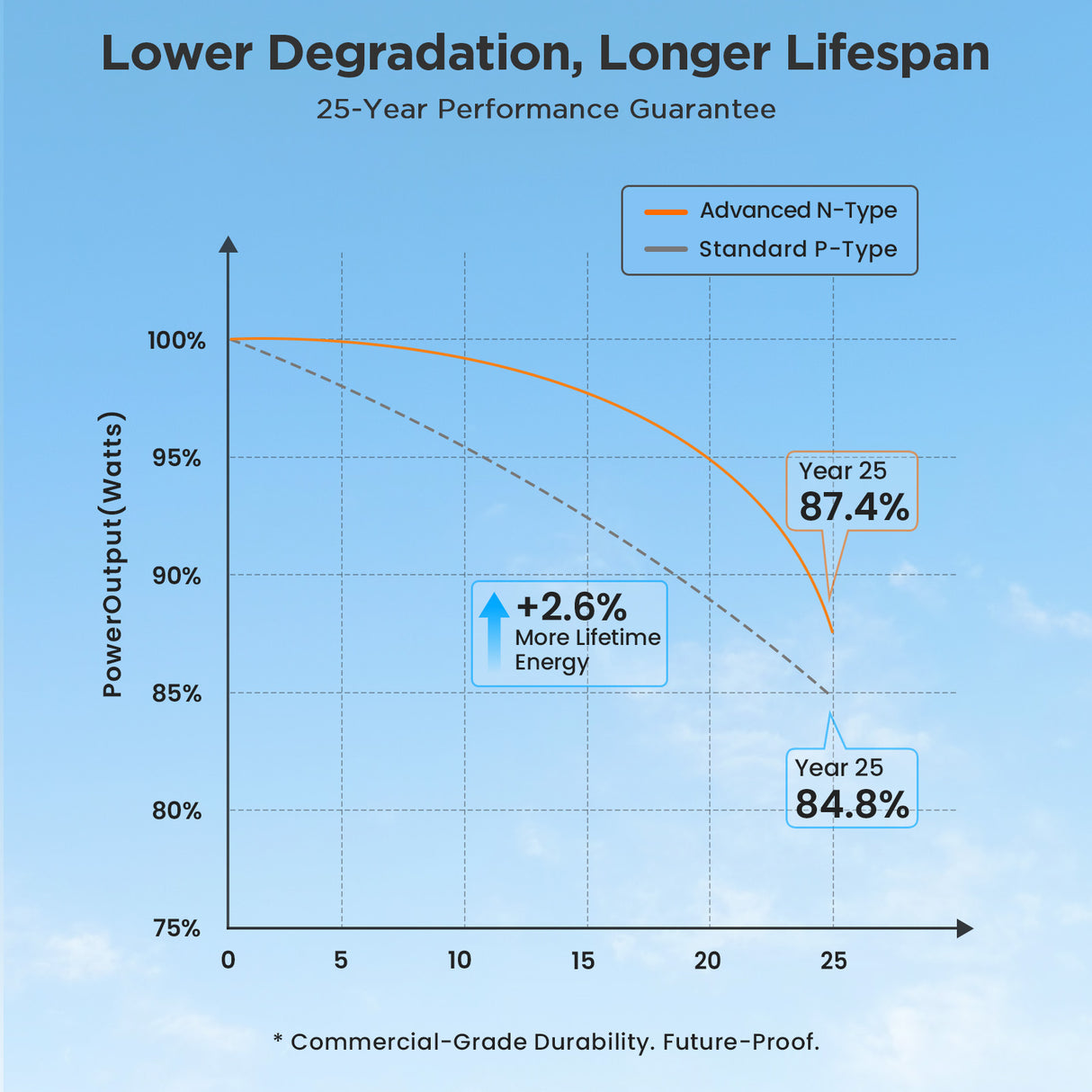

| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 1180 × 770 × 35 (±5) mm46.46 × 30.31 × 1.58 (±0.2) in |
|---|---|
| Weight | 9.80 (±0.2) kg21.61 (±0.5) lbs |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.30%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
FAQ
1. What is a bifacial solar panel and how does it increase power output?
A bifacial solar panel captures sunlight from both the front and back. By collecting reflected light from surfaces like white RV roofs, sand, or decks, it can increase total energy output by up to 30%.
2. Will the panel still work if part of it is shaded?
Yes. With TwinCell parallel circuitry, the panel operates as two independent sections. If one half is shaded by a vent or branch, the other half continues producing power.
3. How does the TwinCell parallel circuitry help with anti-shading?
Traditional panels drop drastically in power if even a small corner is shaded. Our TwinCell design splits the panel into two independent upper and lower sections, ensuring that if one half is blocked by an RV vent or tree branch, the other half still operates at 100% capacity.
4. Is this rigid panel suitable for RV roofs, and how should it be mounted?
Yes, it is ideal for RV, boat, or off-grid roofs. The reinforced aluminum frame features pre-drilled holes on the back, making it fully compatible with standard Z-brackets, corner brackets, or tilt mounts for secure installation.
