120W N-Type Bifacial Solar Panel
Key Features
• 50% Yield in Half Shade Advanced parallel circuitry and TwinCell design maintain 50% power output during partial shading
• 25% Efficiency N-Type Cells High-performance 16BB technology delivers 25% conversion efficiency
• IP68 Waterproof Certified for superior durability and protection against harsh environmental conditions
• 12V/24V System Versatility Engineered for easy integration into diverse off-grid solar power systems
• Enhanced Durability Features 3.2mm impact-rated glass and a rigid anodized aluminum frame for maximum longevity
120W N-Type Bifacial Solar Panel - 1 Piece ...は取り寄せ中で入荷次第発送します。

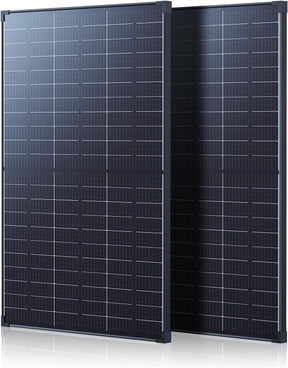

120W N-Type Bifacial Solar Panel
The Callsun 120W Bifacial Solar Panel delivers high-efficiency and durable solar power for reliable off-grid energy anywhere.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |

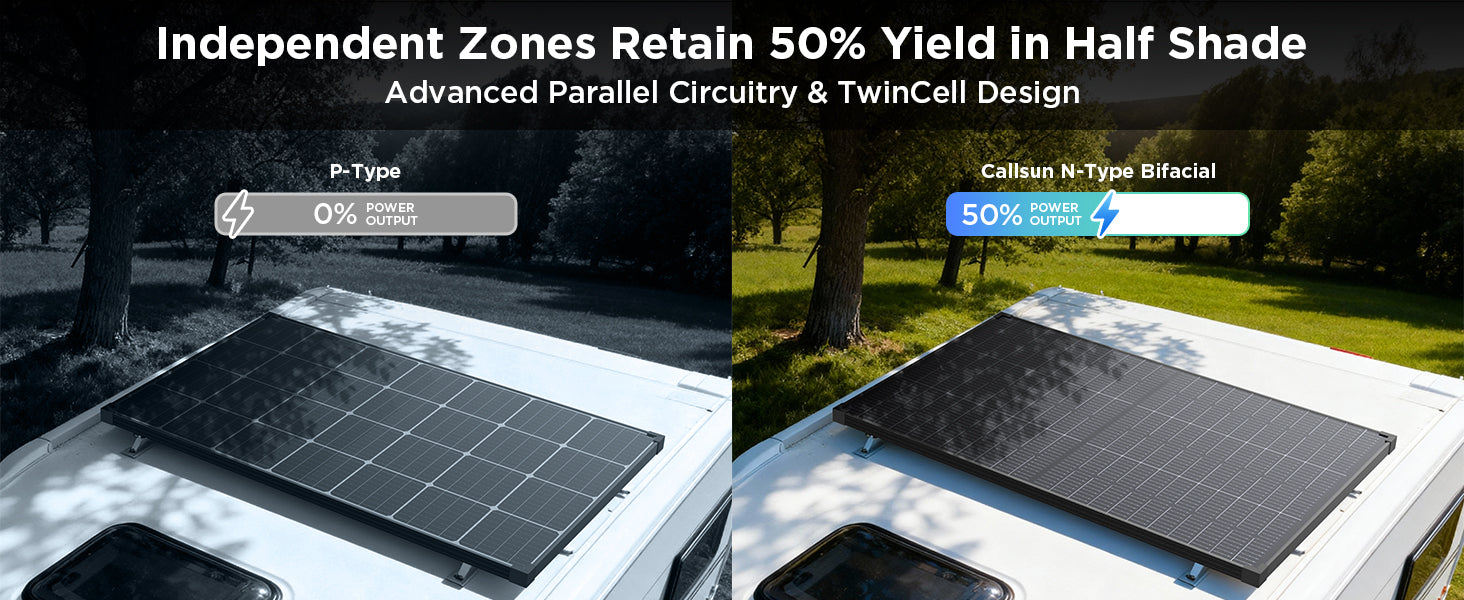

Advanced Anti-Shading Performance
TwinCell parallel circuitry minimizes shading losses, maintaining up to 50% power output under partial shading.

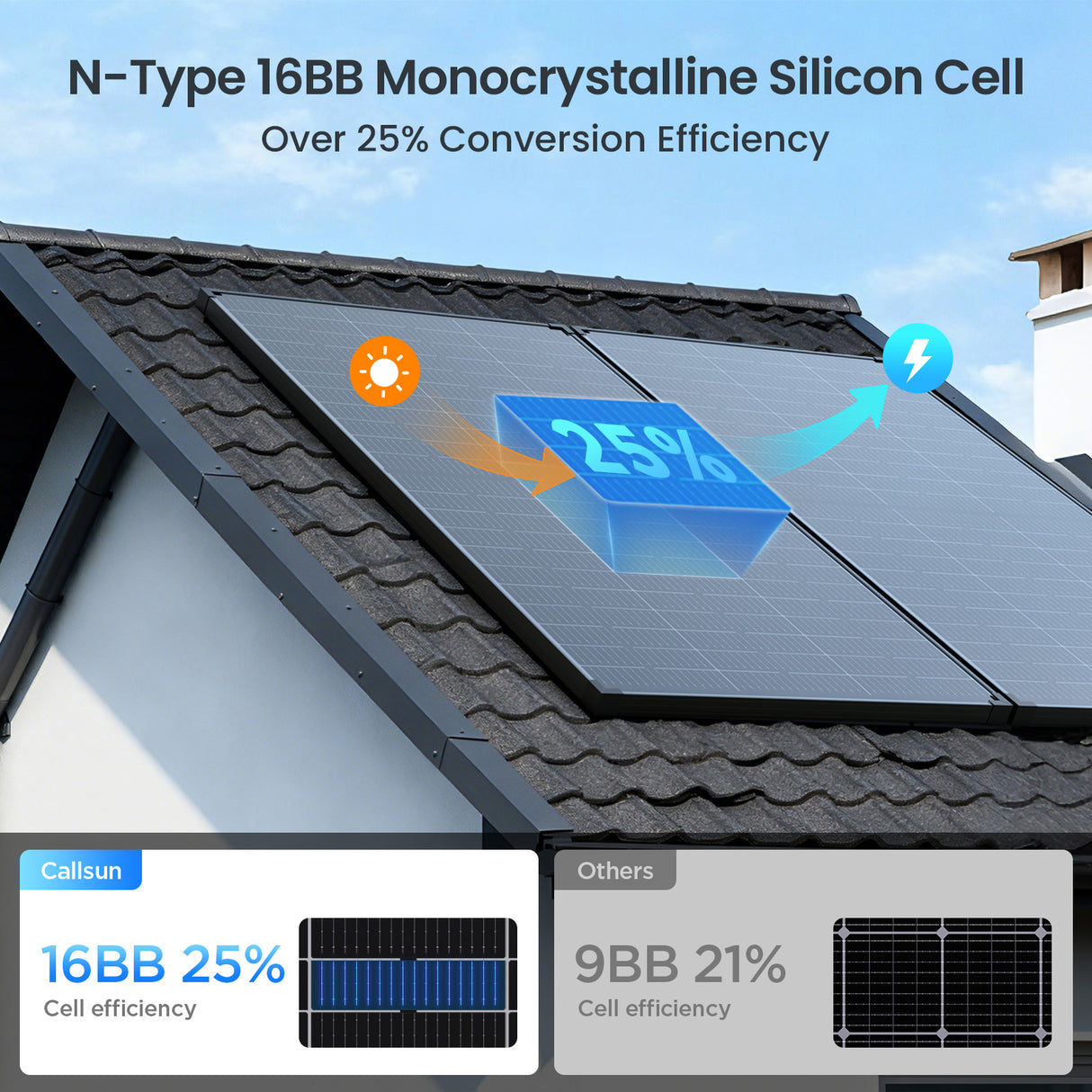

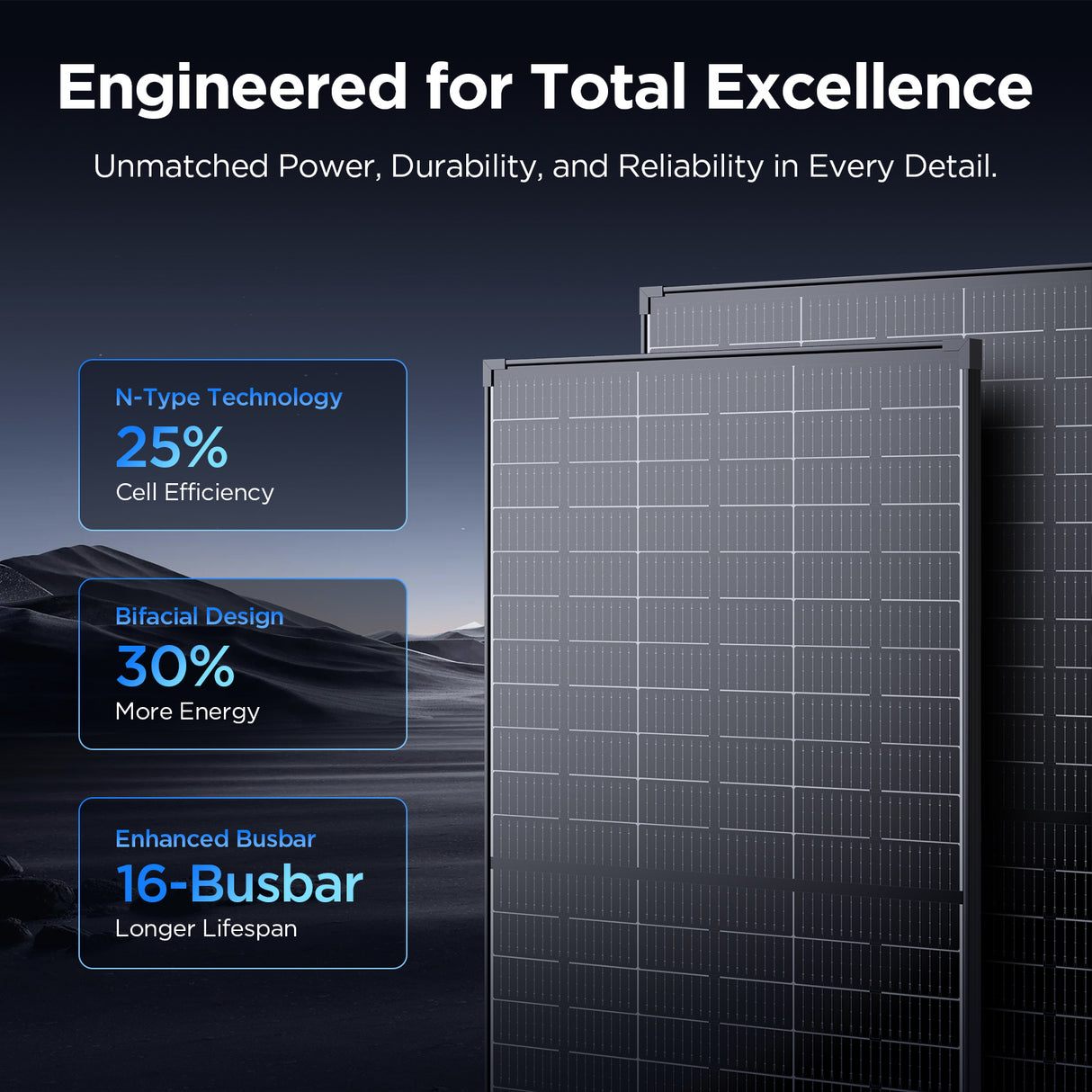

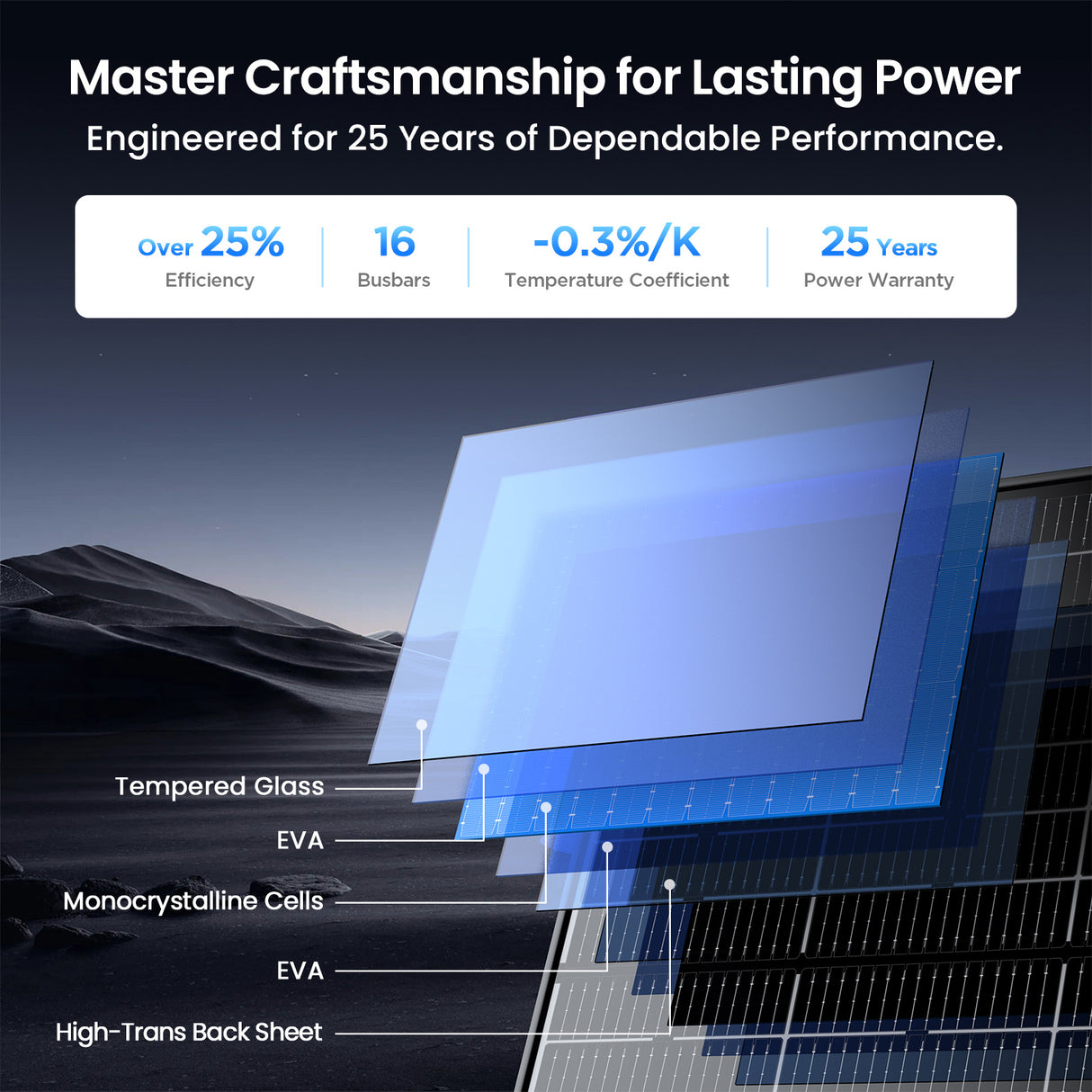

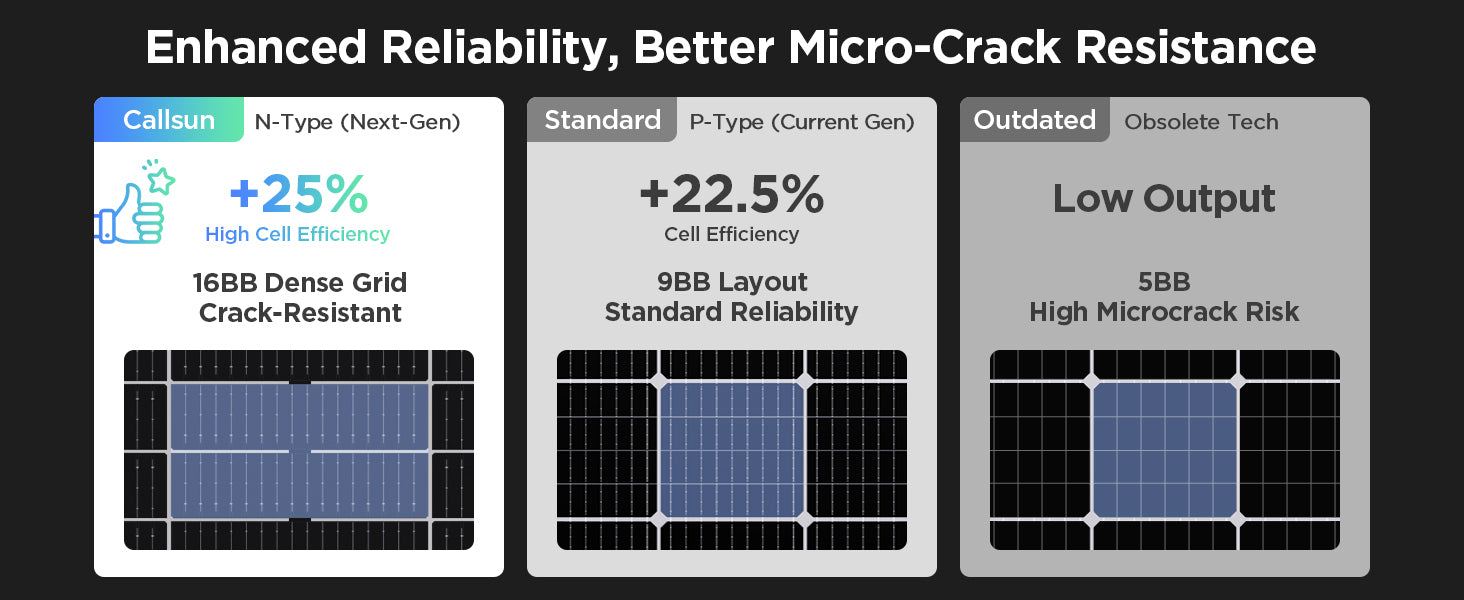

Advanced 16BB N-Type Technology
16BB N-Type cells deliver 25% efficiency, reduce micro-crack risks, and provide durable, reliable performance in demanding conditions.

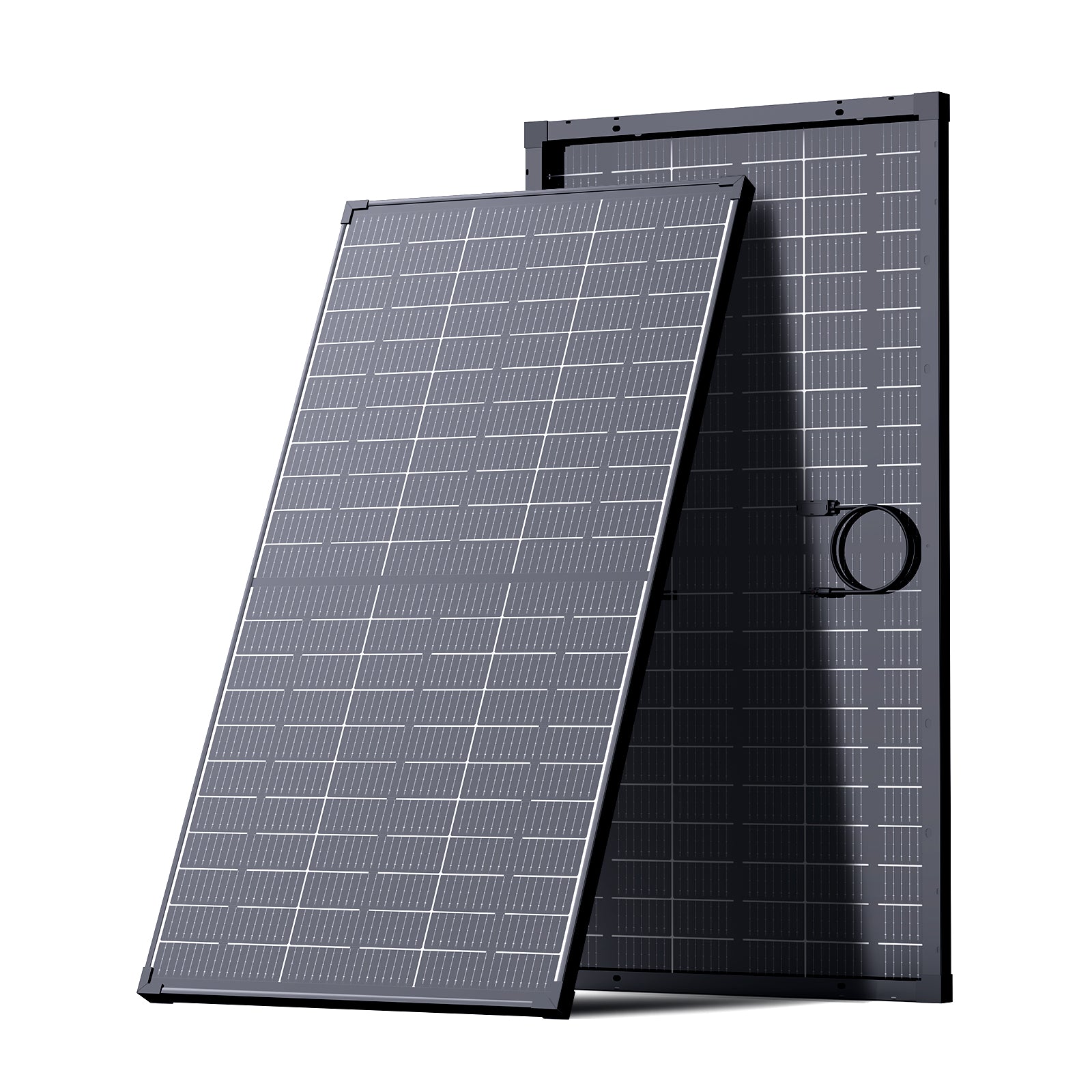

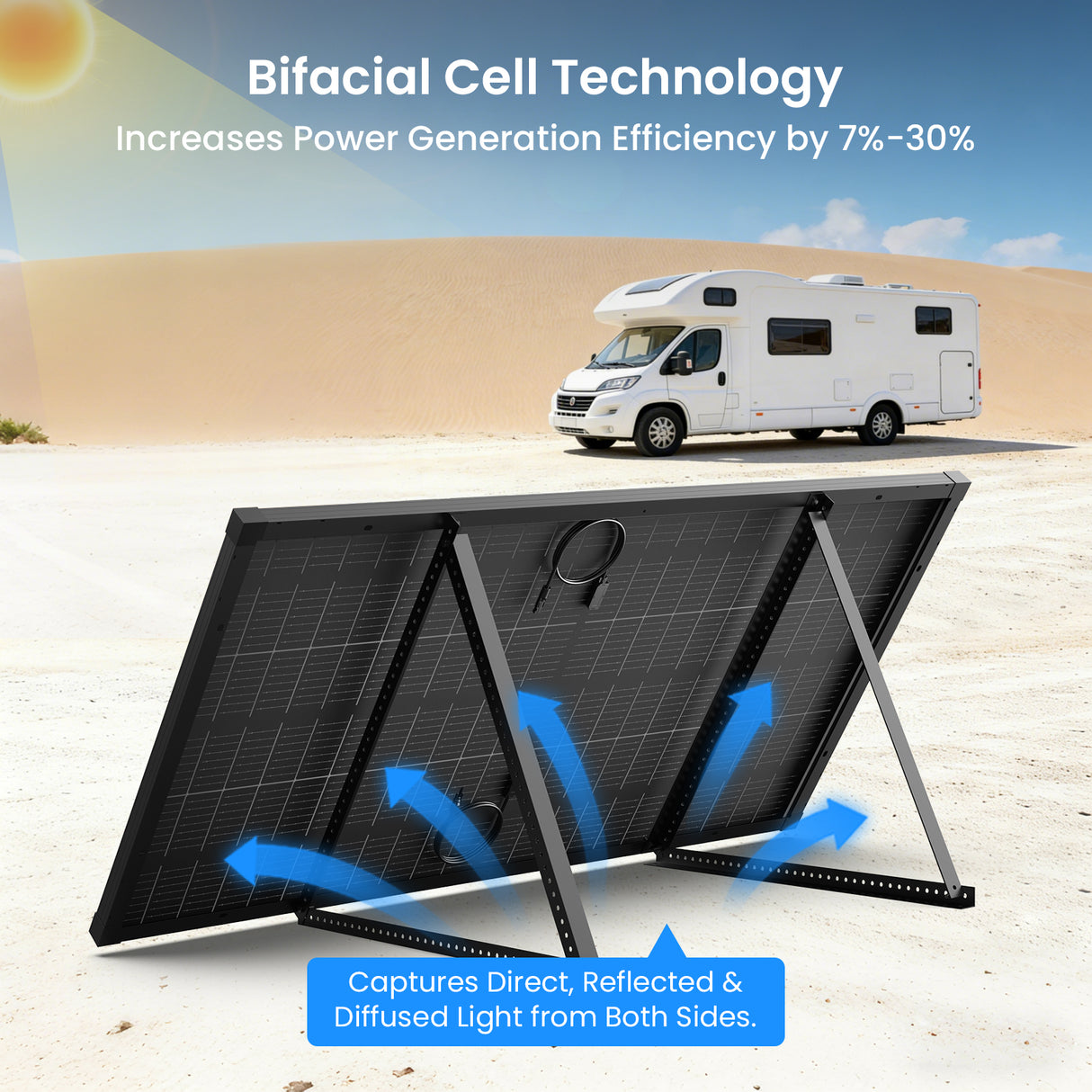

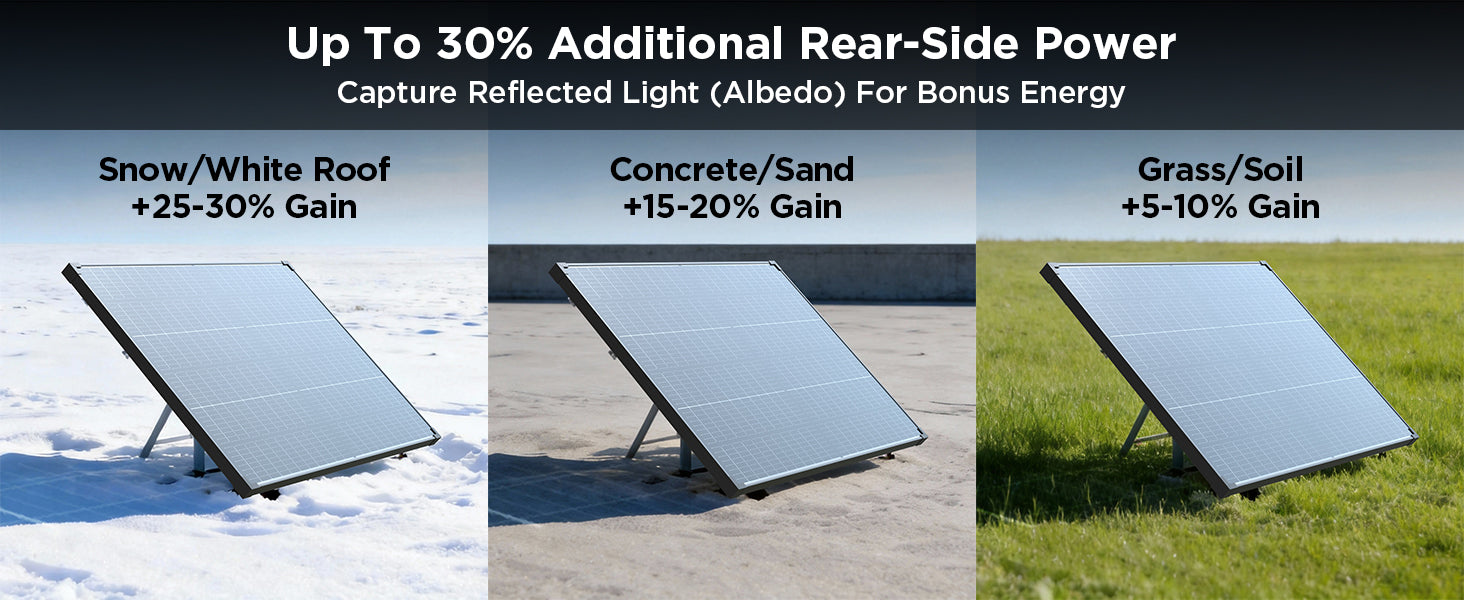

Bifacial Energy Boost
Bifacial technology captures reflected light, boosting energy output by up to 30% across snow, concrete, sand, grass, and soil.

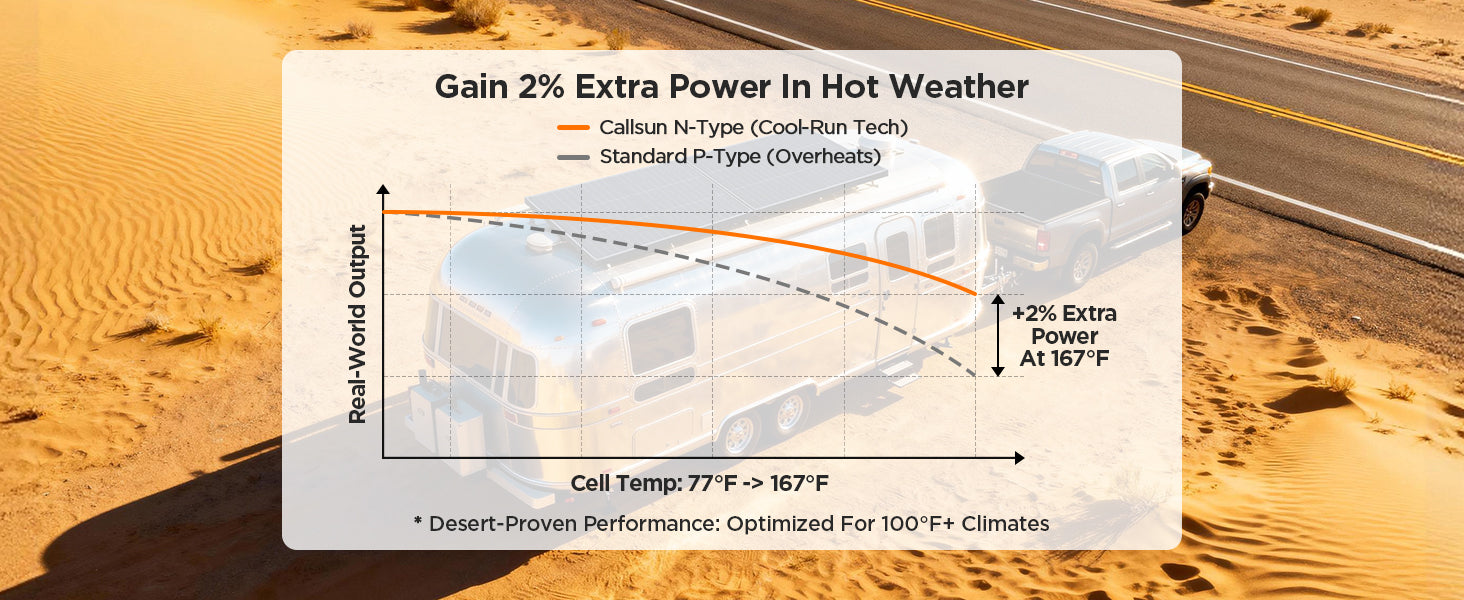

High-Temperature Performance
N-Type Cool-Run Technology reduces heat-related losses, maintaining efficient power generation in temperatures up to 167°F.

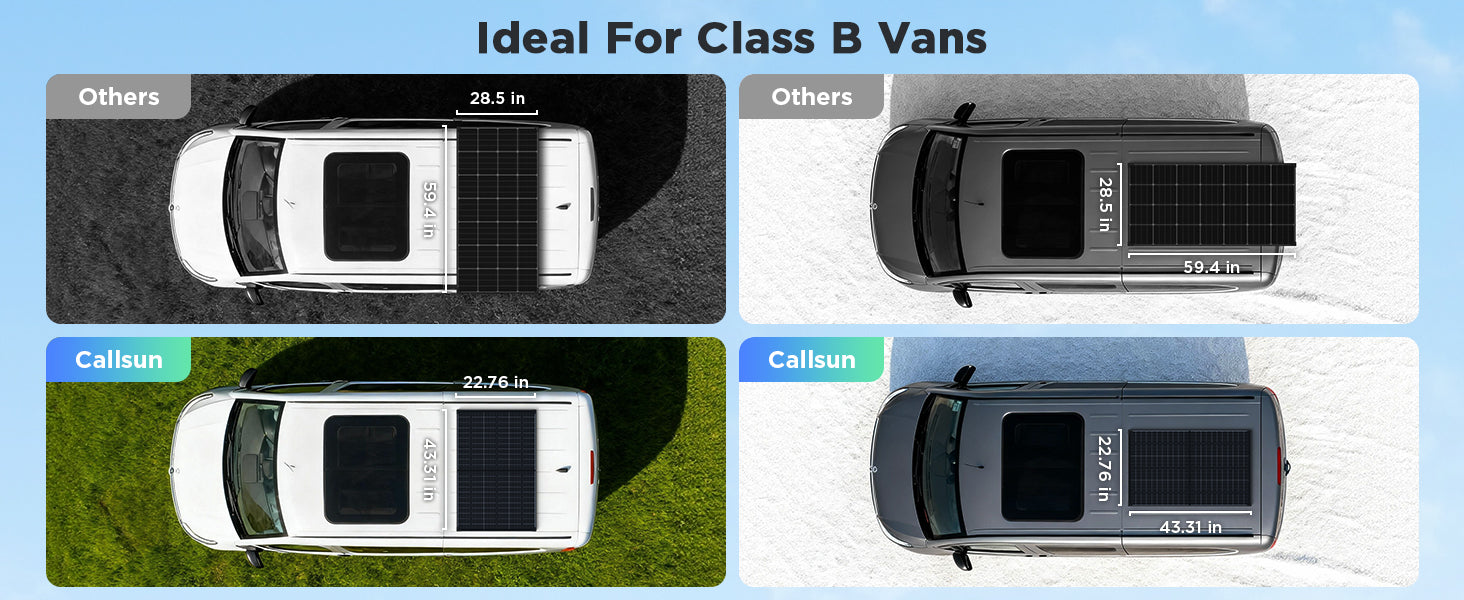

Compact RV Roof Design
Compact 43.31 × 22.76 in dimensions fit Class B RV roofs efficiently, saving space while delivering reliable off-grid power.

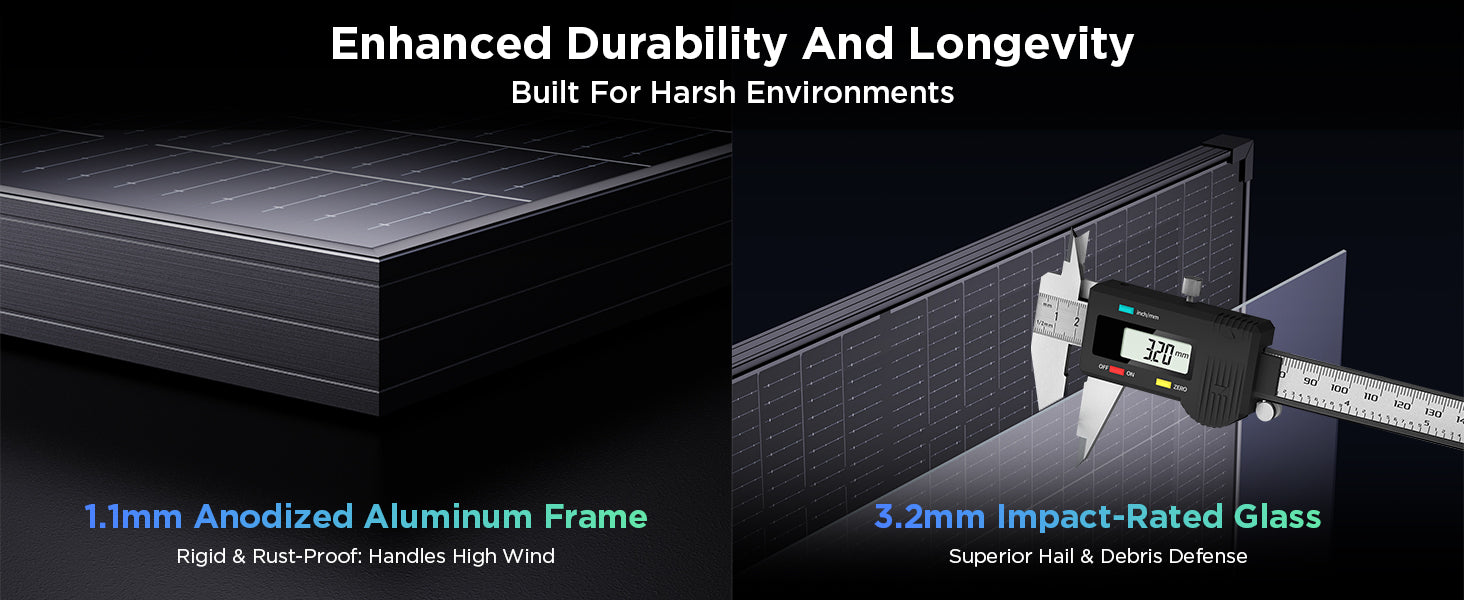

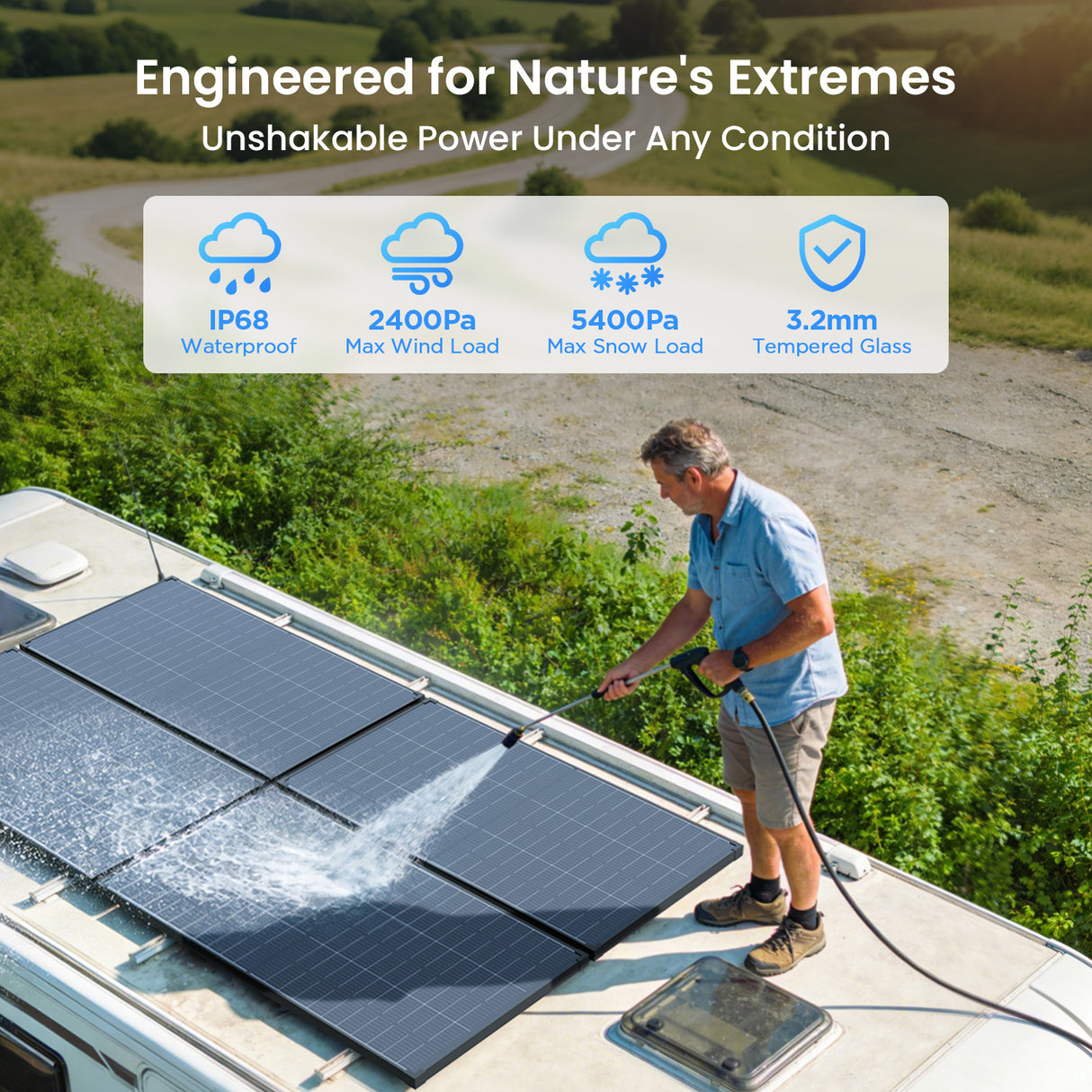

Heavy-Duty Durability
1.1mm anodized aluminum and 3.2mm impact-rated glass withstand high winds, hail, and flying debris.

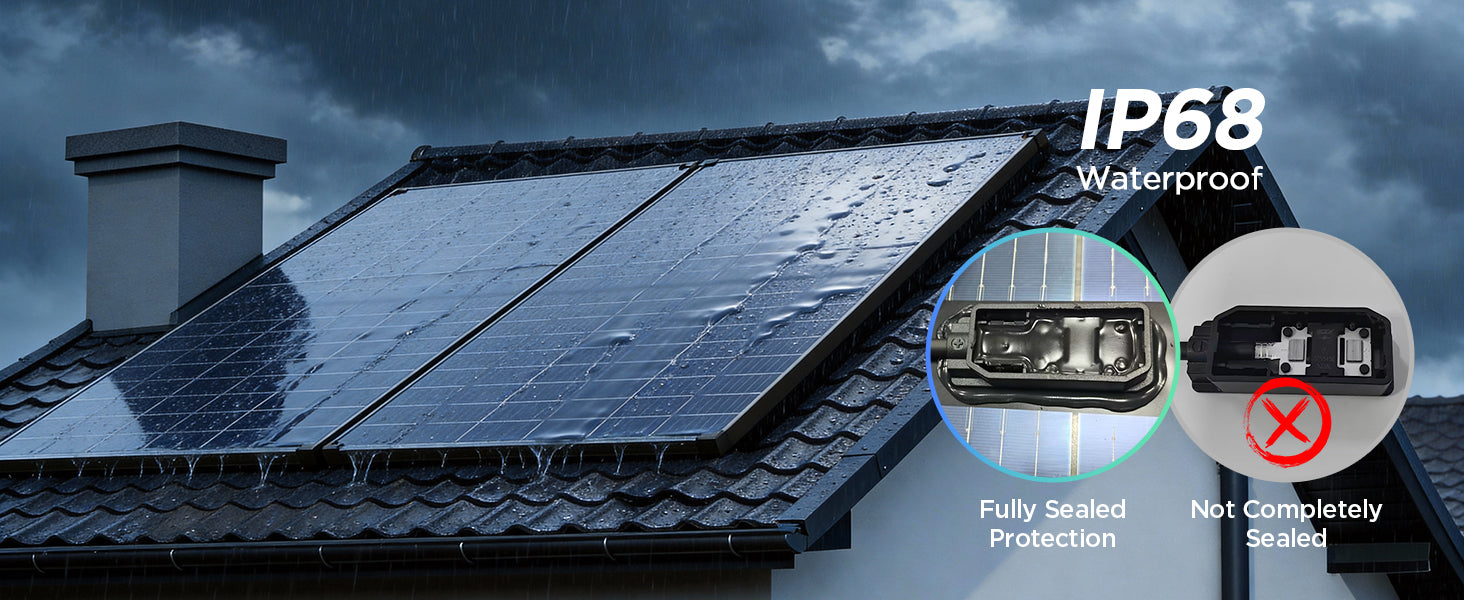

IP68 Waterproof Protection
IP68 sealed protection blocks water and moisture, ensuring reliable, long-lasting performance during heavy rain and severe storms.

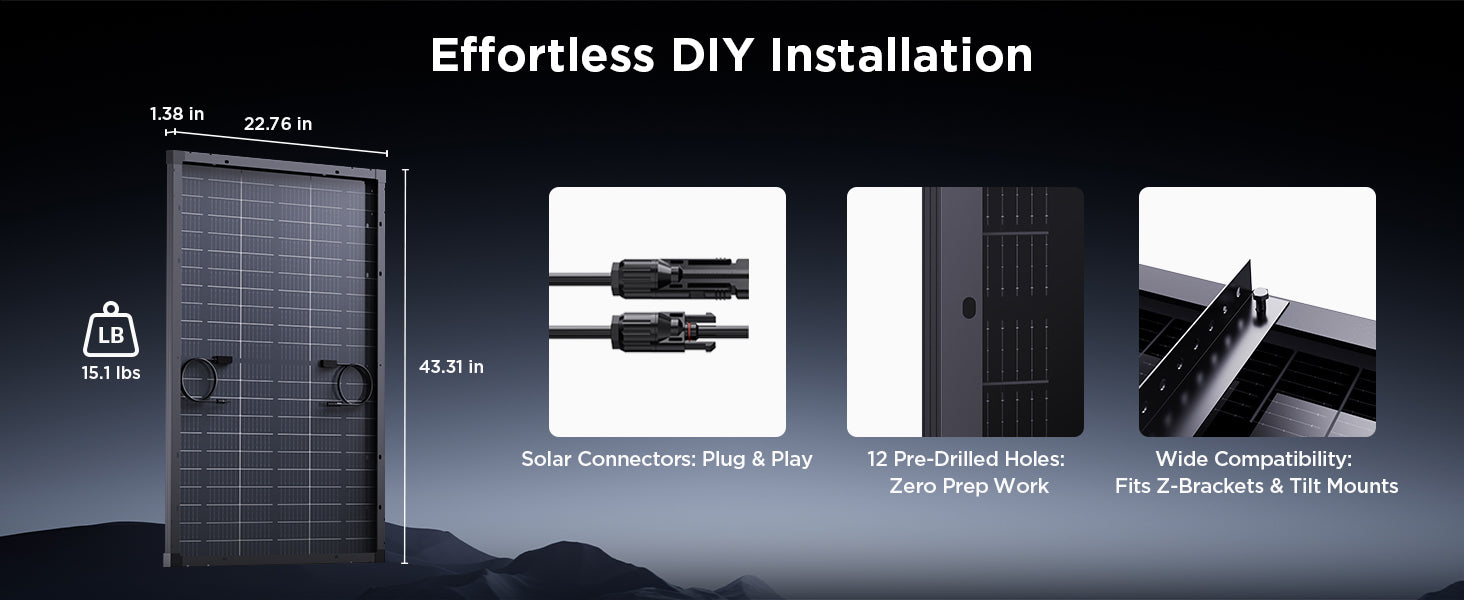

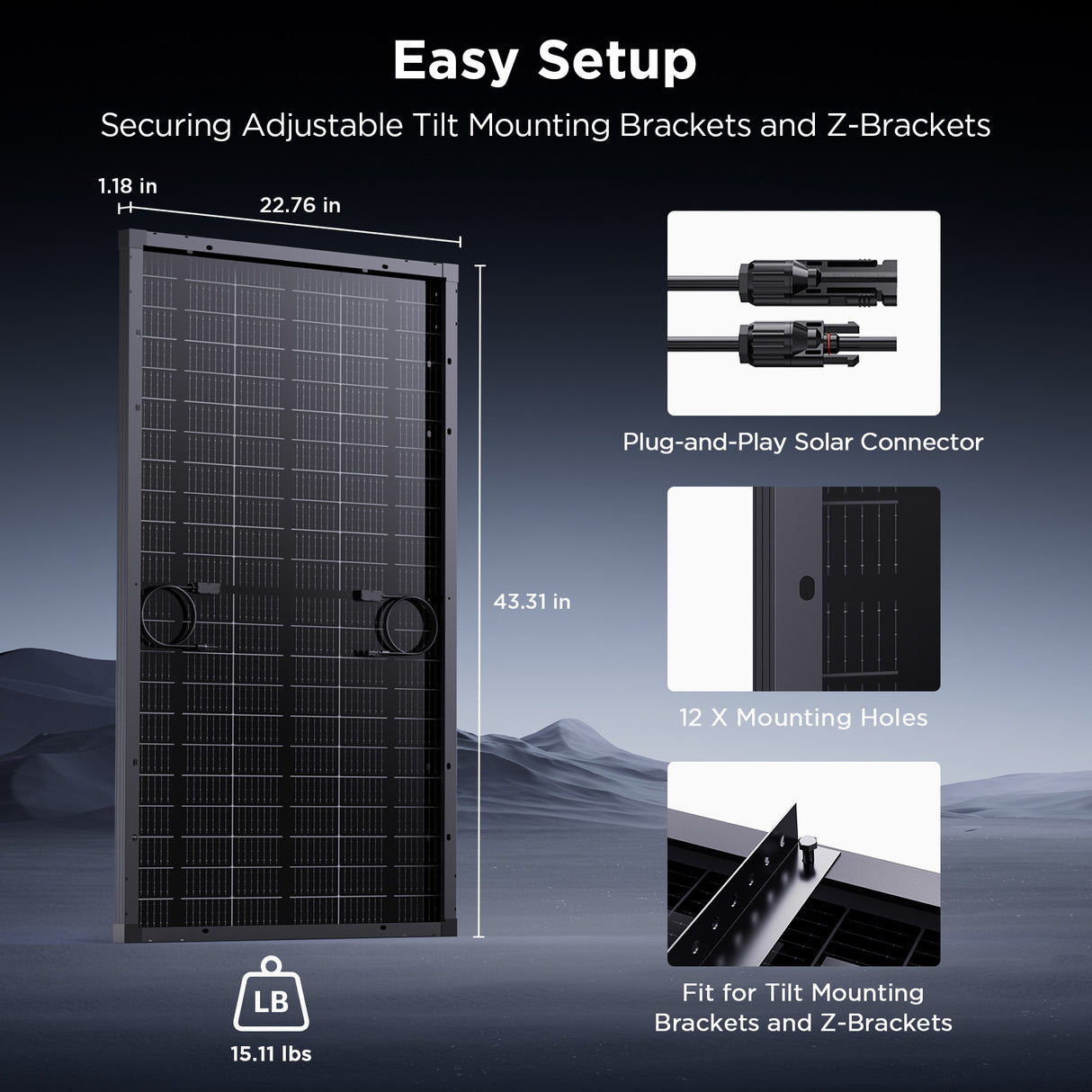

Quick, Hassle-Free Installation
Lightweight design, 12 pre-drilled holes, and plug-and-play connectors enable fast, secure, hassle-free installation.

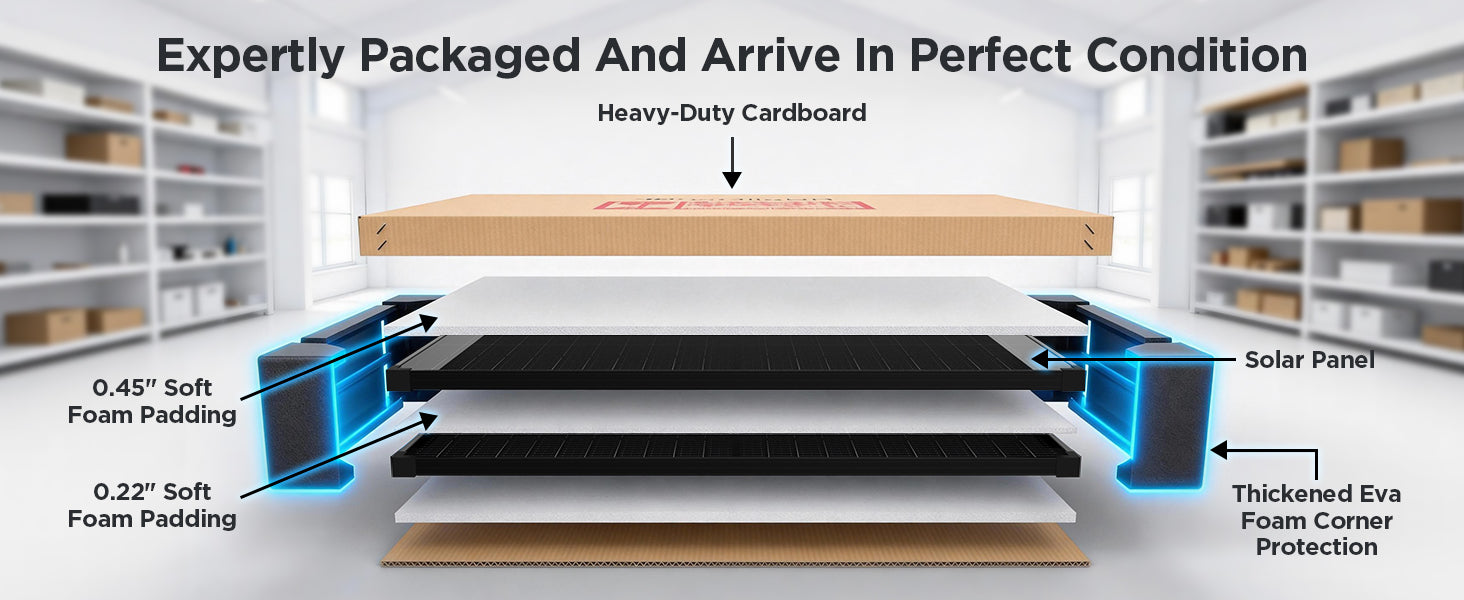

Heavy-Duty Shipping Protection
Heavy-duty cardboard, EVA corner protection, and layered foam padding safeguard panels against damage during shipping and delivery.

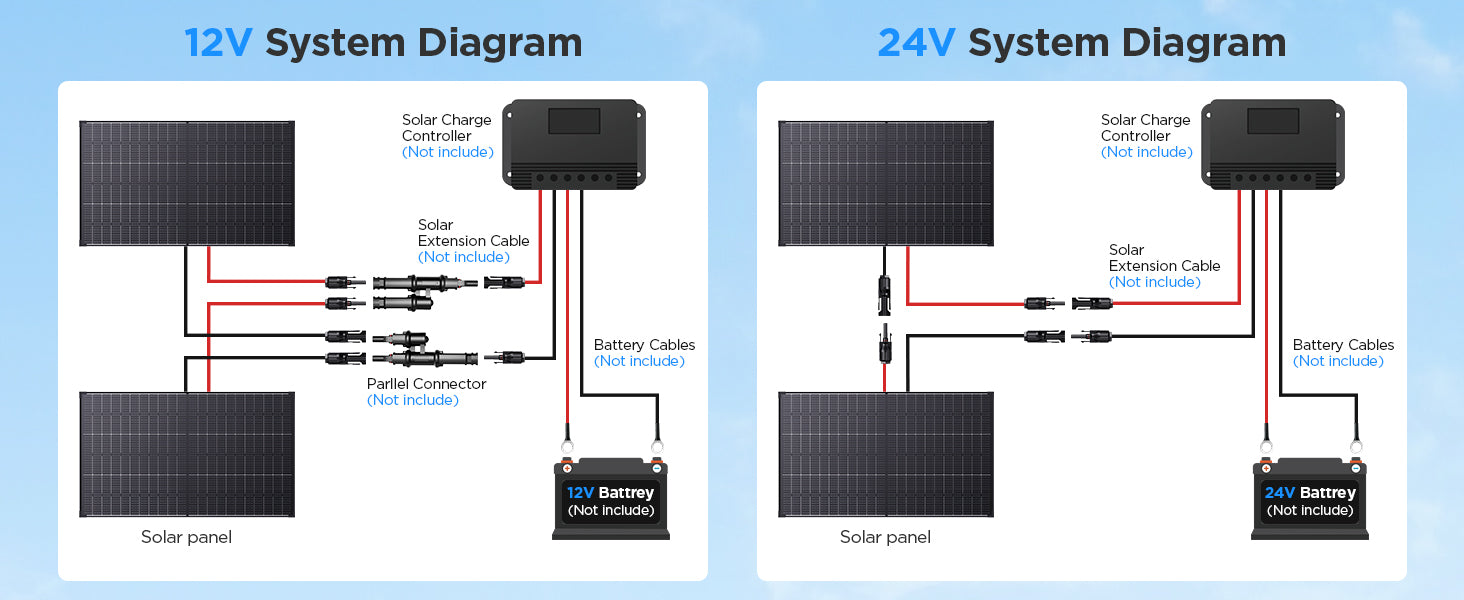

Flexible Series & Parallel Setup
Connect panels in parallel for 12V systems or series for 24V setups, adapting easily to your power needs.

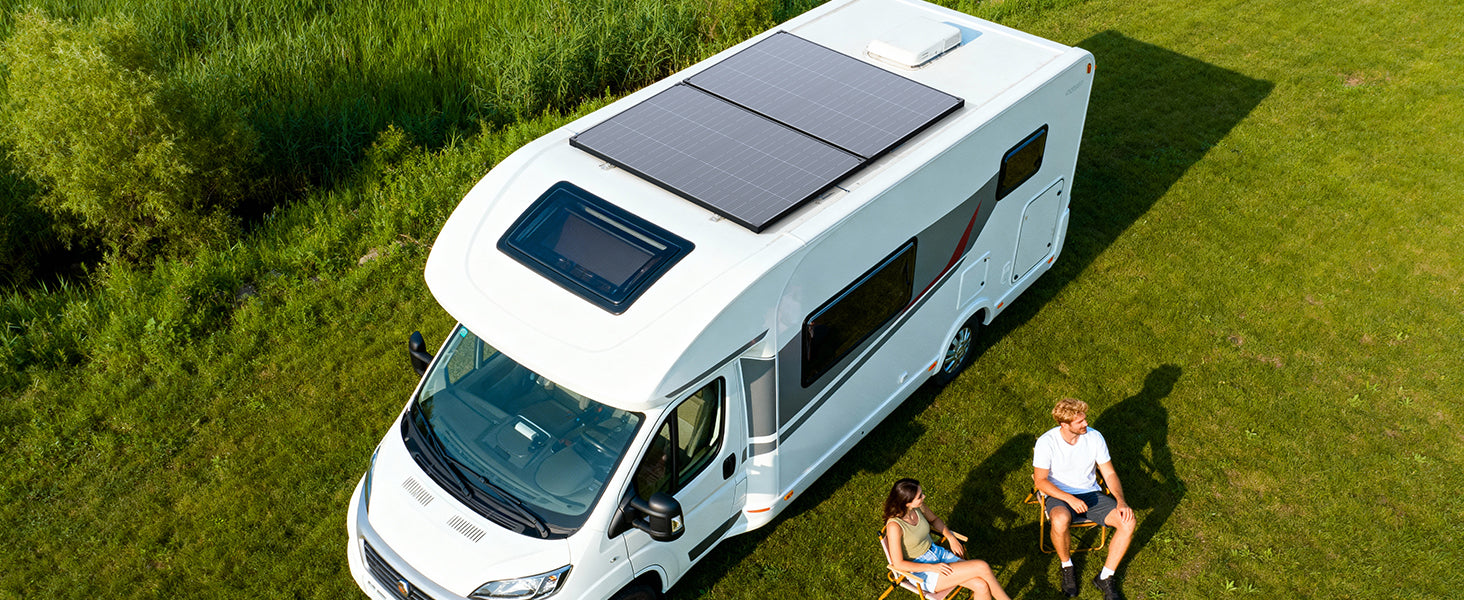

Reliable RV Solar Power
120W solar panels provide dependable off-grid power on RV roofs, keeping your adventures charged wherever the road leads.

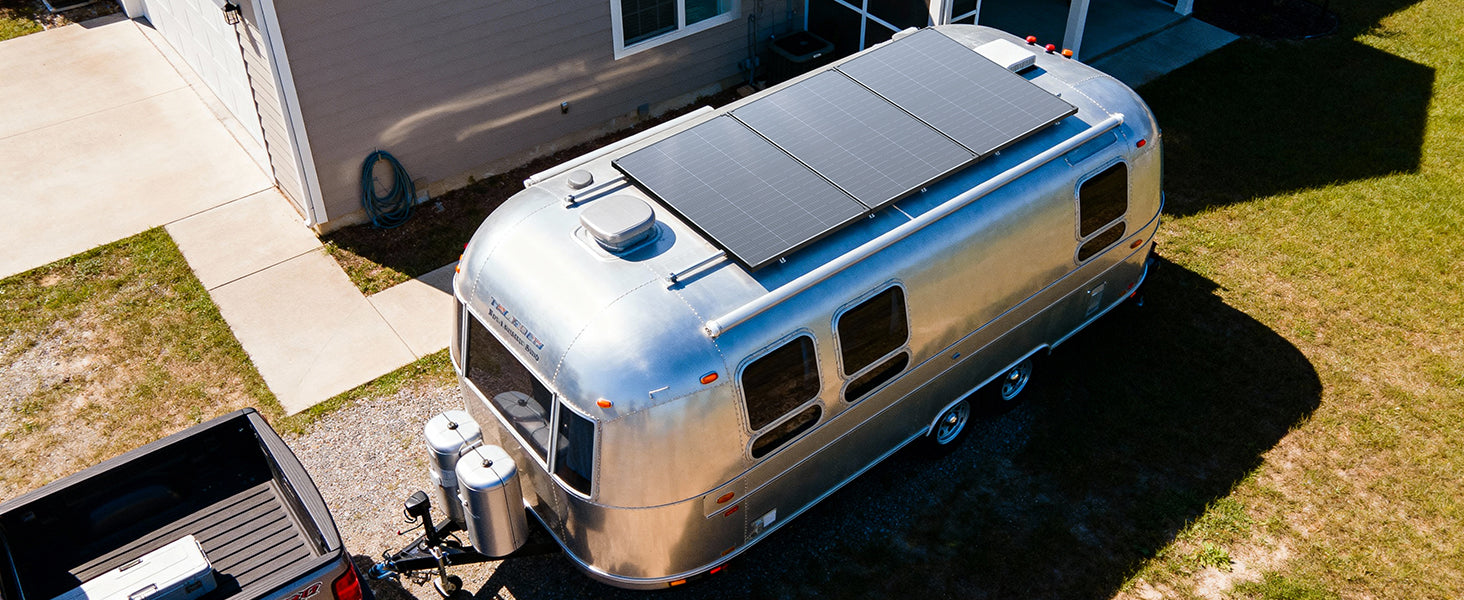

Power Your Travel Trailer
Multi-panel solar systems deliver reliable off-grid power for travel trailers, keeping essential appliances running throughout your outdoor adventures.

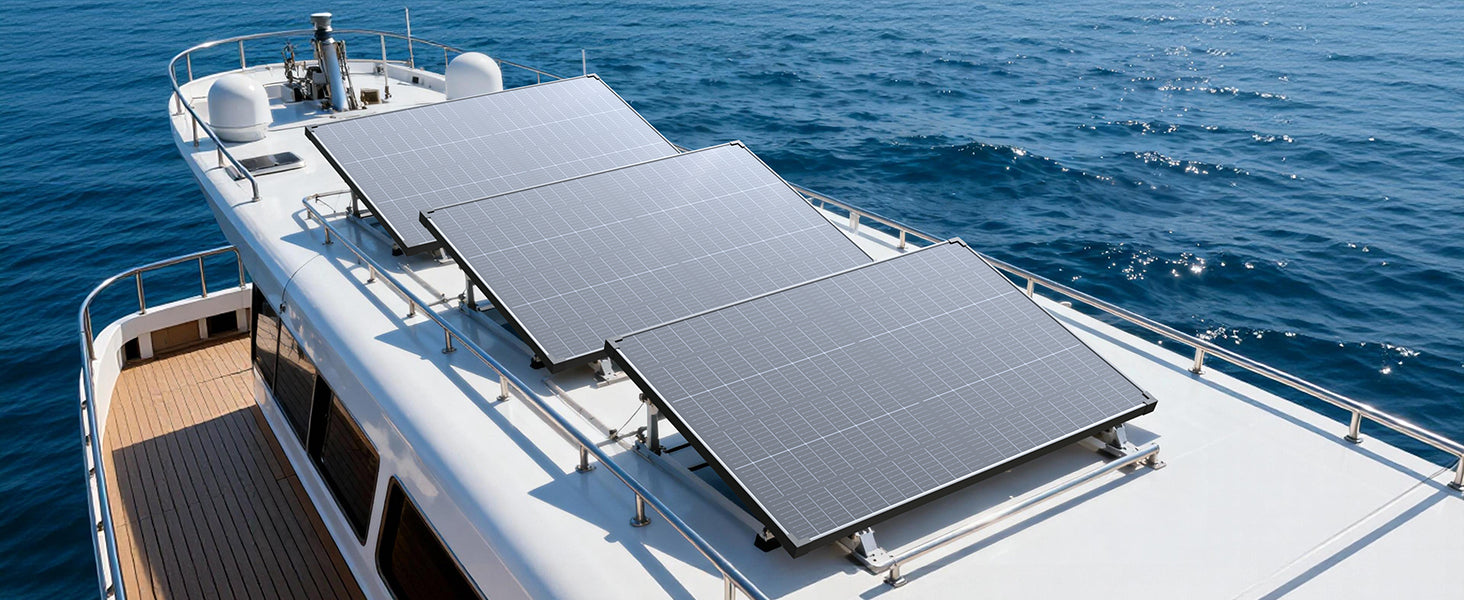

Reliable Marine Solar Power
120W solar panels provide dependable off-grid power on boat decks, supporting continuous energy during coastal and open-water adventures.

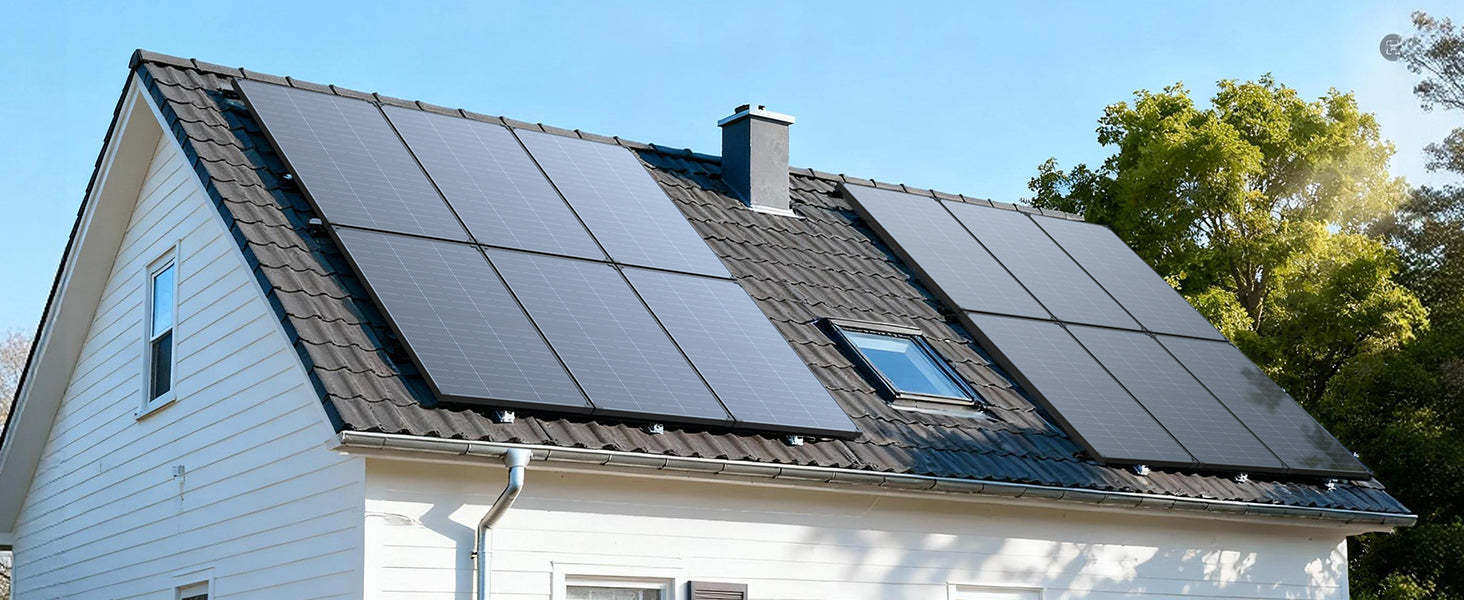

Reliable Home Solar Power
120W solar panels provide clean, efficient renewable energy for homes, supporting reliable power generation year-round.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | YES | 1×120W |
| Elite 100 V2 / 200 V2 | YES | 2×120W(Series)/3×120W(Parallel) |
| Elite 300 | YES | 2×120W(Series)/3×120W(Parallel) |
| Elite 400 | YES | 2×120W(Series)/3×120W(Parallel) |
| AC2A | YES | 1×120W |
| AC50B / EB3A | YES | 1×120W |
| AC70 | YES | 2×120W(Series) |
| AC180 | YES | 2×120W(Series) |
| AC200L | YES | 7×120W(Series) |
| AC300 | YES | 7×120W(Series) |
| AC500 | YES | 7×120W(Series) |
| Apex 300 | YES | 2×120W(Series)/3×120W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 7×120W(Series) |
| Delta 2 / 2 Max | YES | 2×120W(Series or Parallel) |
| Delta 3 / 3 Plus | YES | 2×120W(Series or Parallel) |
| Delta 3 Max | YES | 2×120W(Series) |
| Delta 3 Max Plus | YES | 2×120W(Series or Parallel) |
| Delta pro 3 | YES | 7×120W(Series)-XT60 |
| River 2 | Limited | 1×120W(Input power limited to 110W) |
| River 2 Pro | Limited | 2×120W(Input power limited to 220W) |
| River 2 Max | Limited | 2×120W(Input power limited to 220W) |
| River 3 | Limited | 1×120W(Input power limited to 110W) |
| River 3 Plus | Limited | 2×120W(Input power limited to 220W) |
| Delta Pro Ultra | YES | 7×120W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | Limited | 1×120W(Input power limited to 100W) |
| SOLIX C800 | YES | 2×120W(Series) |
| SOLIX C1000 | YES | 2×120W(Series or Parallel) |
| SOLIX C1000 Gen2 | YES | 2×120W(Series or Parallel) |
| SOLIX C2000 Gen2 | YES | 2×120W(Series or Parallel) |
| SOLIX F2000 | YES | 2×120W(Series)/3×120W(Parallel) |
| SOLIX F2600 | YES | 2×120W(Series)/3×120W(Parallel) |
| SOLIX 521 | NO | PV input current (5.86A) exceeds limit (5.5A) |
| SOLIX 535 | YES | 1×200W |
| SOLIX F3000 | YES | 2×120W(Series or Parallel) |
| SOLIX F3800 | YES | 4×120W(Parallel) |
| SOLIX F3800 plus | YES | 8×120W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | Limited | 1×120W(Input power limited to 100W) |
| E500LFP | Limited | 1×120W(Input power limited to 100W) |
| E600LFP | YES | 2×200W(Series) |
| E1000LFP | YES | 2×120W(Series)/3×120W(Parallel) |
| E1500LFP | YES | 2×120W(Series)/3×120W(Parallel) |
| E2000LFP | YES | 4×120W(Parallel) |
| E2400LFP | YES | 4×120W(Parallel) |
| E3600LFP | YES | 7×120W(Parallel) |
| E3800LFP | YES | 7×120W(Parallel) |
| F1000LFP | YES | 2×120W(Series or Parallel) |
| F3000LFP | YES | 5×120W(Series) |
| F5000LFP | YES | 7×120W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 3×120W(Series) |
| Mega 2 | YES | 7×120W(Series) |
| Mega 2 Pro | YES | 3×120W(Series) |
| Exodus 2400 | YES | 3×120W(Series) |
| Exodus 1500 | YES | 4×120W(Parallel) |
| Exodus 600 Plus | YES | 2×120W(Parallel) |
| Exodus 600 | YES | 2×120W(Parallel) |
| Exodus 1200 | YES | 2×120W(Parallel) |
| Guardian 6000 | YES | 6×120W(Series) |
| B2 Extra Battery | YES | 8×120W(Series) |
Specifications
Key Specs at a Glance: 120W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 120W |
|---|---|
| Maximum Power Voltage (Vmp) | 20.48V |
| Maximum Power Current (Imp) | 5.86A |
| Open-circuit Voltage (Voc) | 24.06V |
| Short-circuit Current (Isc) | 6.21A |
| Cell Type | N-Type,16BB, 182mm, Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 1100 × 578 × 30 ±5mm(43.31 × 22.76 × 1.38 ± 0.2in) |
|---|---|
| Weight | 6.85 ±0.2kg (15.09 ±0.5lb) |
| Cell Arrangement | 80pcs (4 × 10) × 2 |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.30%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
FAQ
1. What is the efficiency of the Callsun 120W N-Type Bifacial Solar Panel?
The Callsun 120W N-Type Bifacial Solar Panel uses advanced N-Type 16BB technology to achieve an industry-leading 25% conversion rate, outperforming standard solar panels and allowing your portable power stations to recharge faster and more efficiently.
2. How does the Callsun 120W N-Type Bifacial Solar Panel perform in reflected or low-light conditions?
This Callsun 120W N-Type Bifacial Solar Panel can capture reflected light from surfaces such as snow, sand, or white decks, boosting energy output by up to 30%. It also maintains high performance in low-light conditions, including cloudy days, dawn, or dusk, ensuring your off-grid power stays reliable.
3. Can this 120W solar panel be connected in series or parallel?
Yes. You can connect multiple 120W panels in series to increase voltage, or in parallel to increase amperage. Always ensure the combined voltage/current does not exceed your charge controller's limit.
4. What connectors does it come with? Can it plug into my power station directly?
It comes with standard solar connector cables. If your portable power station uses a different input port (such as DC 8mm, XT60, or Anderson), you will need a matching adapter cable to complete the connection.
