7.5W 12V Solar Battery Maintainer & Trickle Charger

SKU: CS7P5-G1V1-US

$21.99 USD

次精算時に配送料を算出。

🚚 Free Shipping from USA: Shipping Policy

説明

High-Efficiency Solar Charging | A+ monocrystalline cells with SmartTrack optimization deliver up to 30% higher efficiency, helping prevent battery drain during storage.

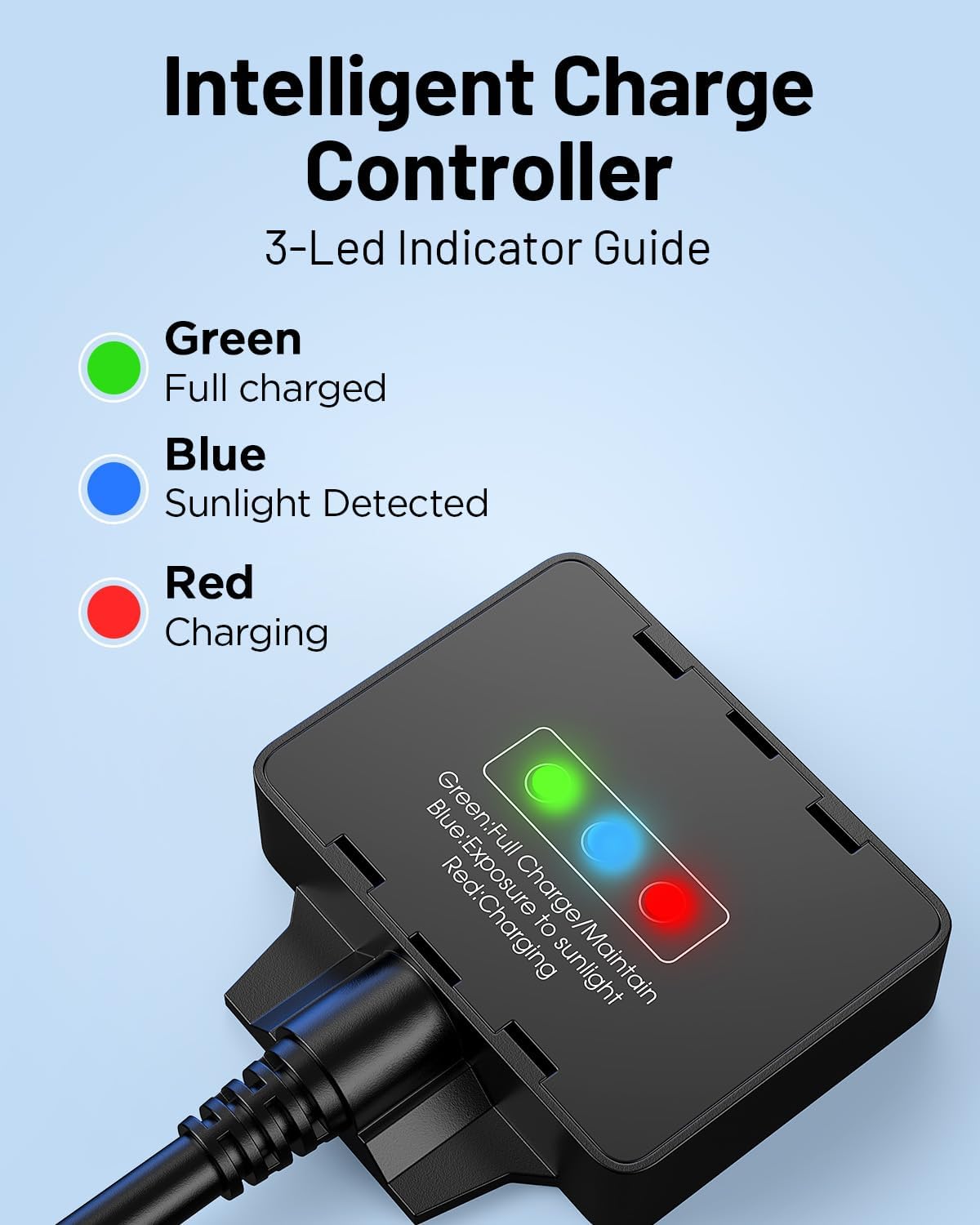

Smart LED Status & Safety Protection | 3-color LED indicators show charging and maintenance status at a glance, supported by built-in protections against reverse current and overvoltage.

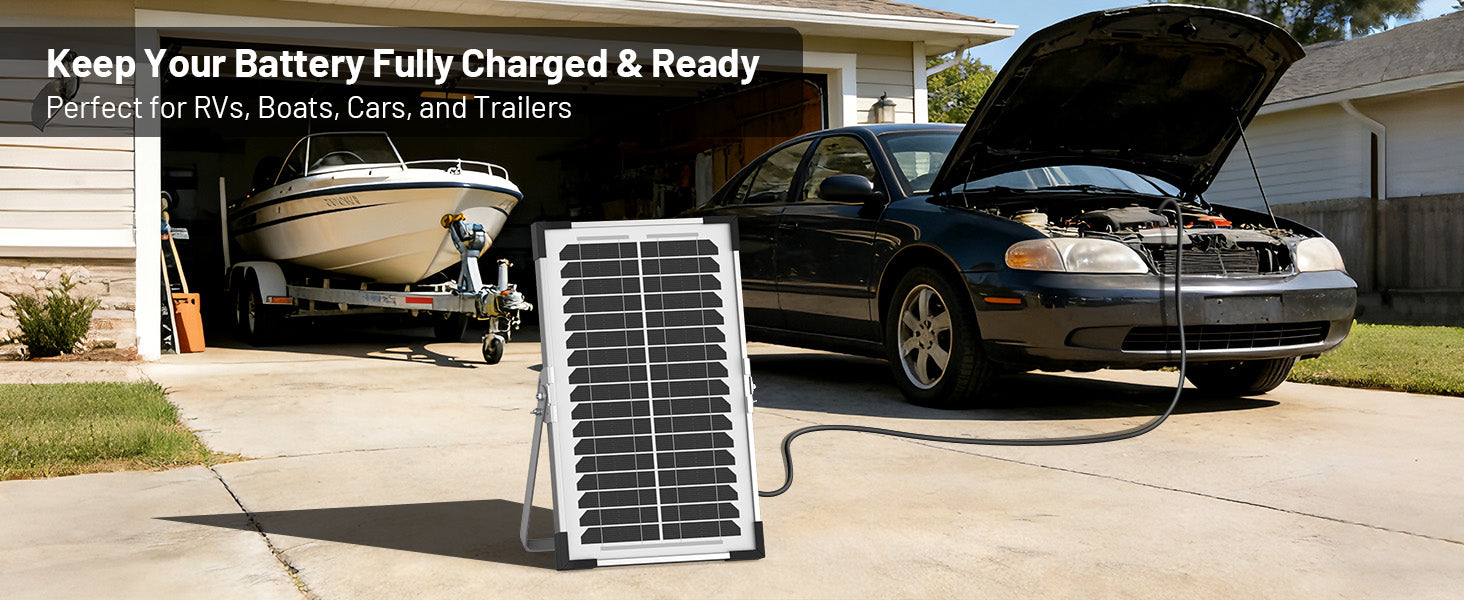

Wide 12V Compatibility | Works with LiFePO₄, AGM, and GEL batteries for cars, motorcycles, boats, RVs, and other 12V systems.

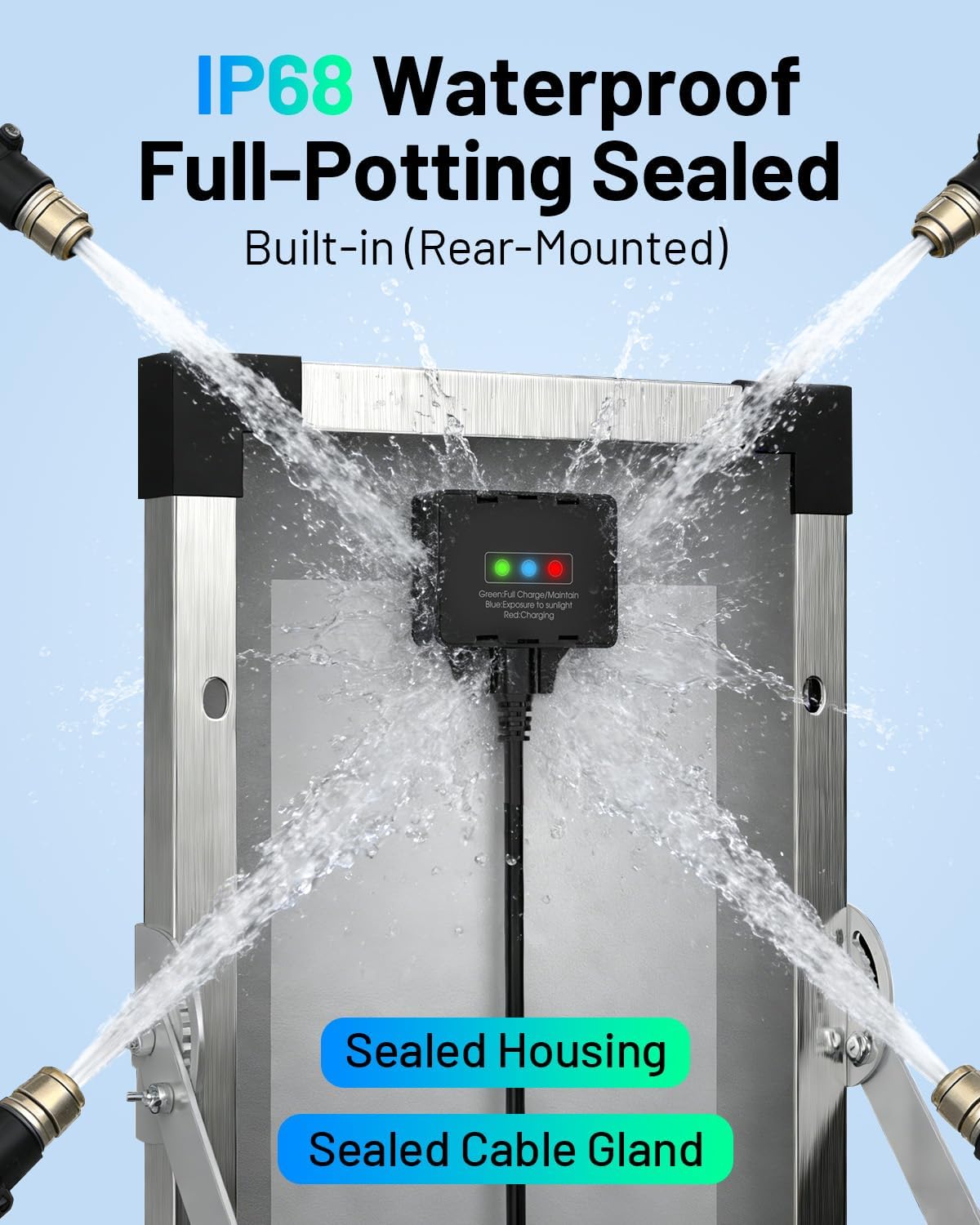

IP68 All-Weather Design | Low-iron tempered glass and corrosion-resistant aluminum frame ensure reliable performance in rain, snow, and harsh outdoor conditions.

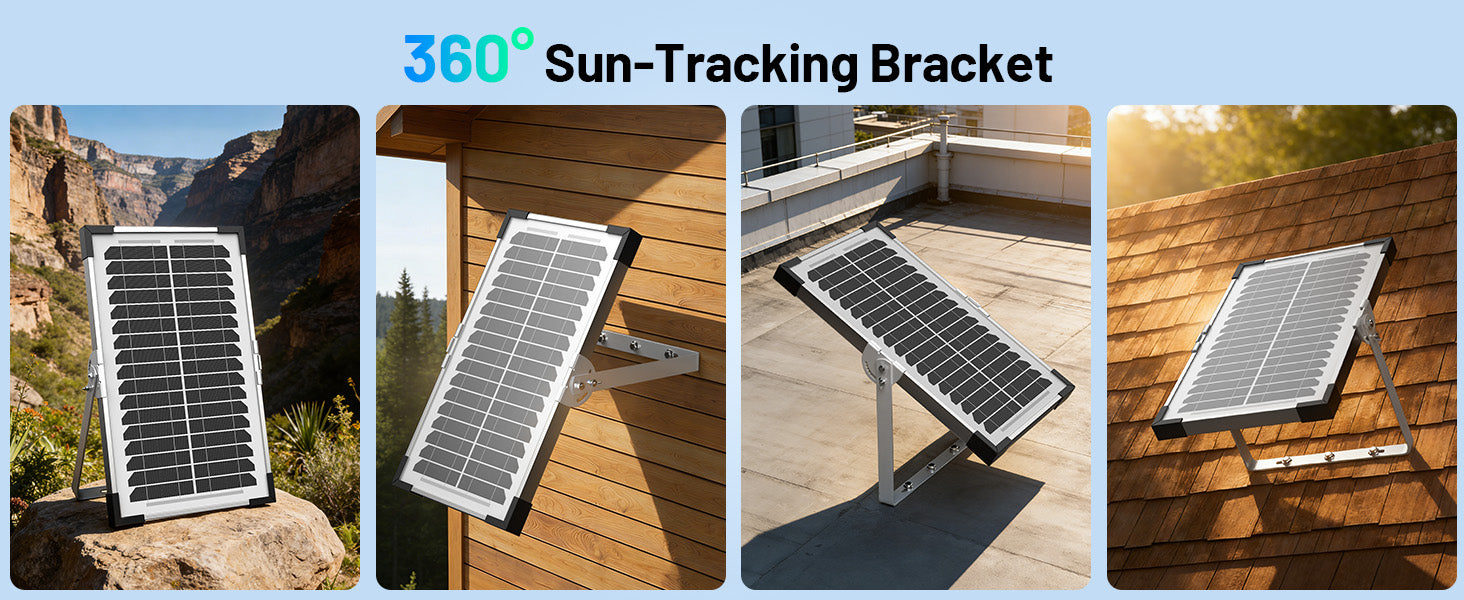

Easy 360° Installation | Includes an adjustable mounting bracket and complete accessories for quick, flexible installation.
Complete Kit & Long-Term Reliability | Comes with solar panel, smart controller, mounting hardware, cables, and warranty support for worry-free use.

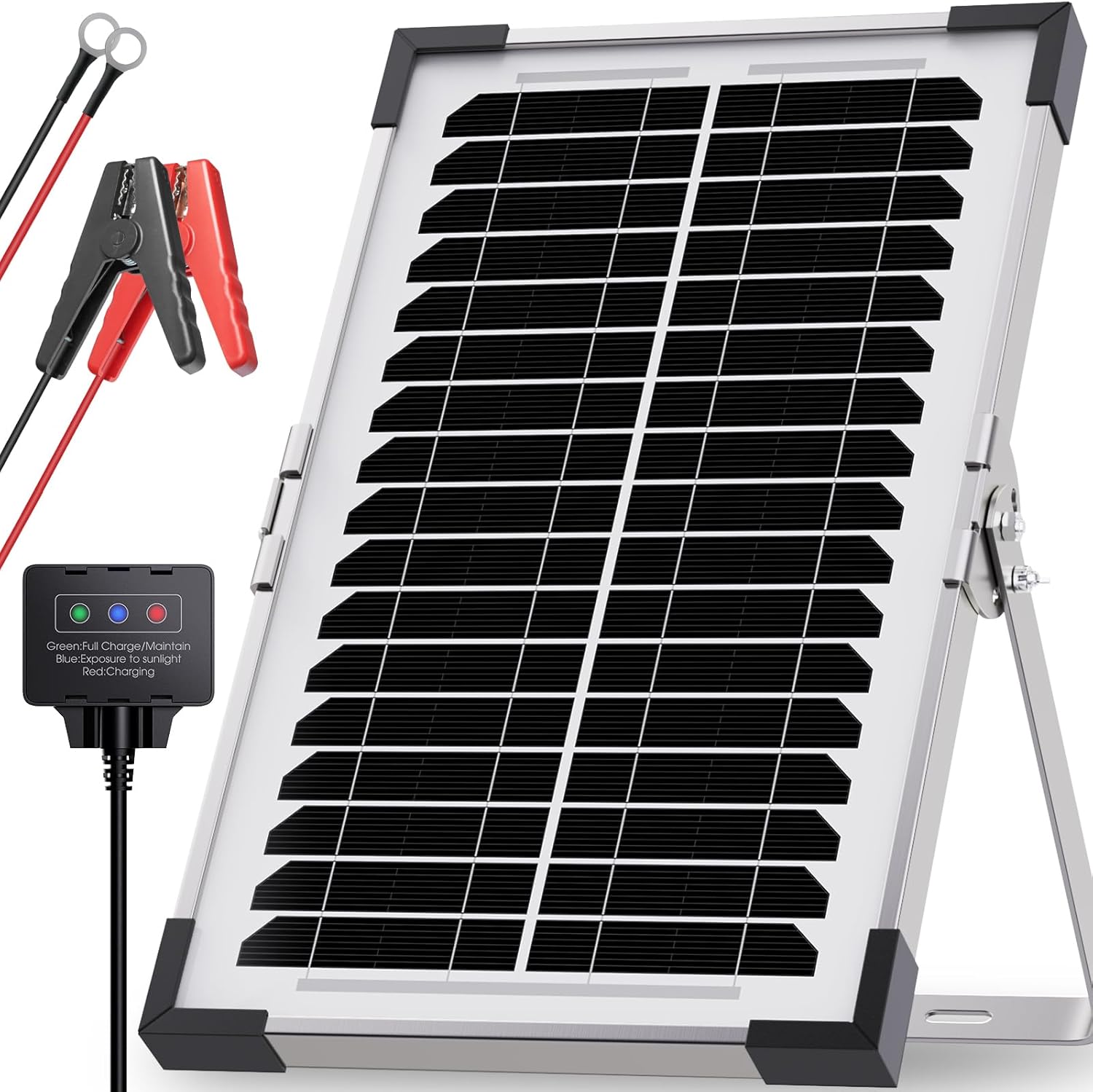

What You Get | Callsun 7.5W Solar Panel, Smart Solar Controller, 360° Mounting Bracket, Alligator Clips, O-Ring Terminal Cable, Installation Kit, user manual, our worry-free 12-month warranty, and friendly customer service.

Pack Option

1 Pack

Description Specs Includes Downloads FAQ Reviews

7.5W 12V Solar Battery Maintainer & Trickle Charger

Callsun 7.5W Solar Battery Maintainer charges efficiently with SmartTrack, shows status via LED, fits LiFePO4/AGM/GEL batteries for cars, motorcycles, boats, and RVs. Durable IP68 design, easy 360° installation, built to last.

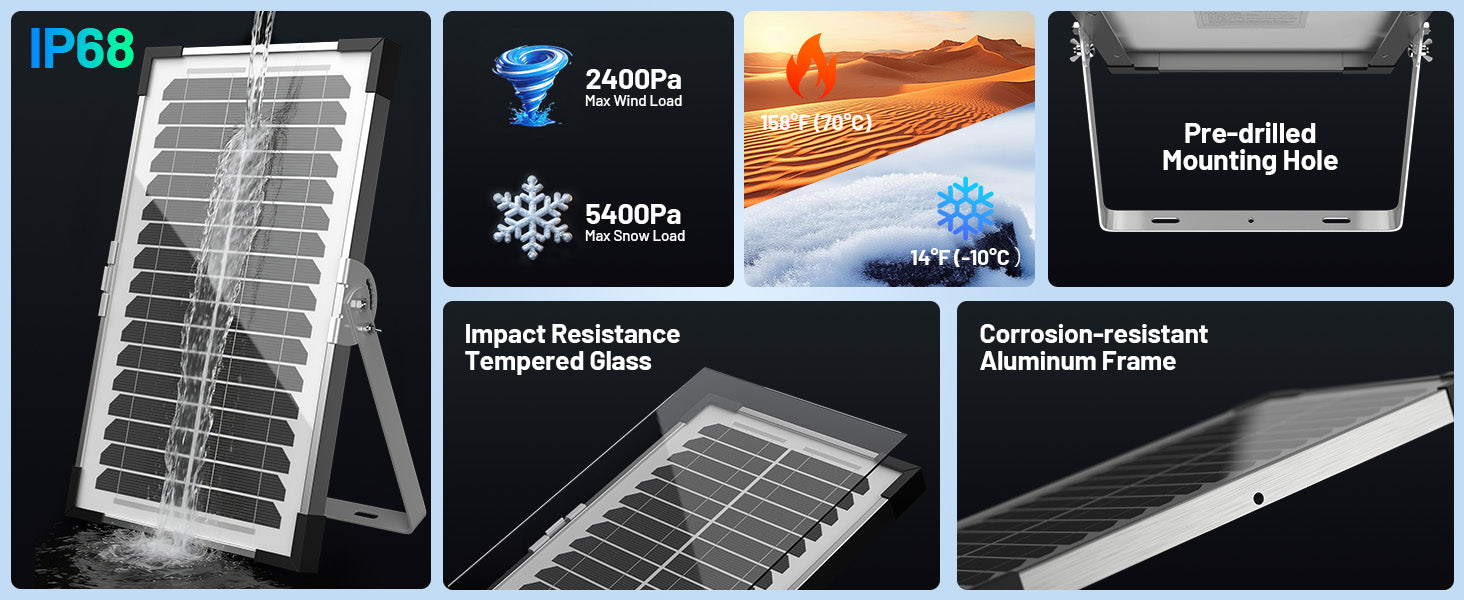

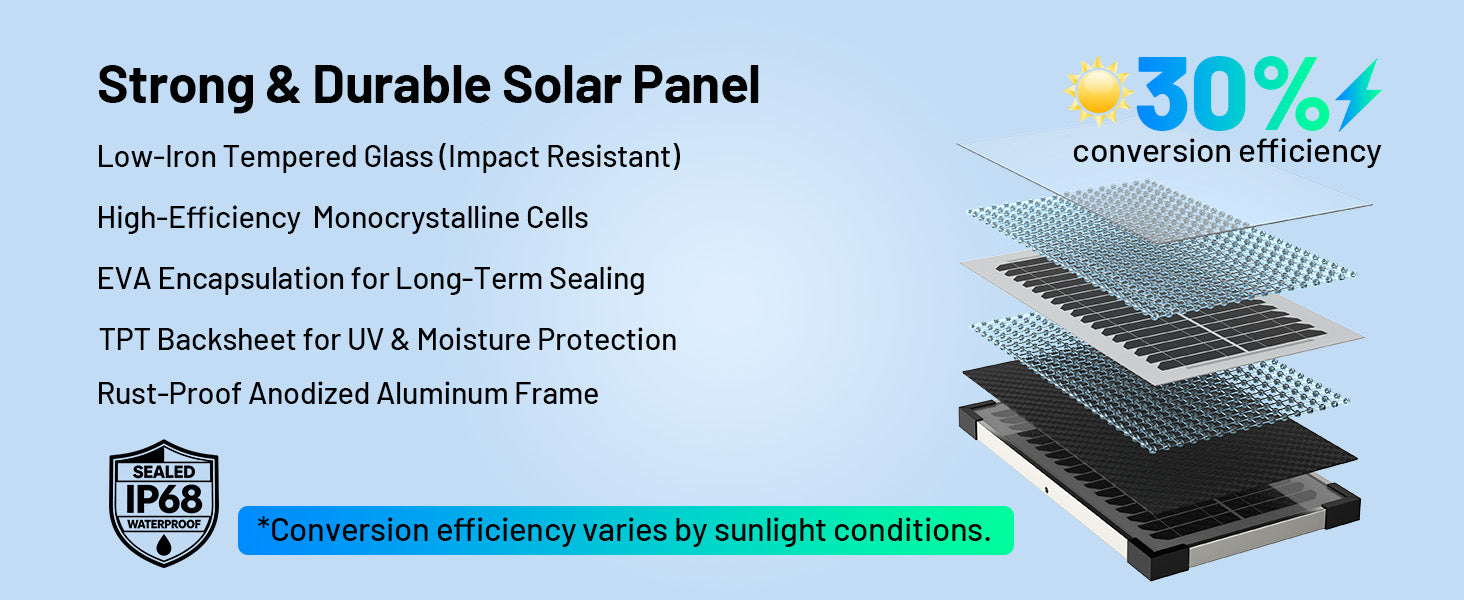

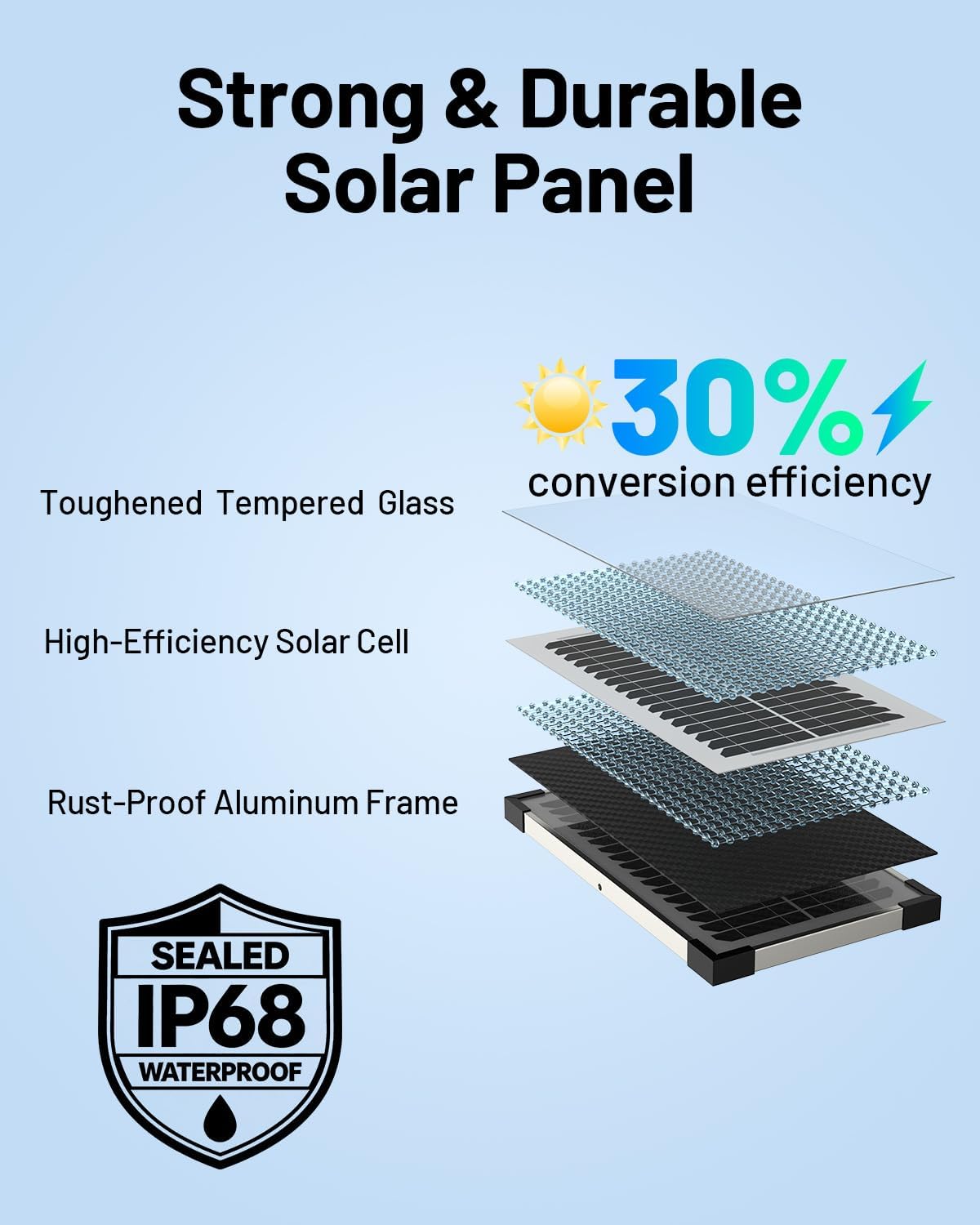

Strong & Durable Solar Panel
IP68 · Max Wind Load 2400Pa · Max Snow Load 5400Pa · 158°F(70°C) · 14°F(-10°C) · Pre-drilled Mounting Hole · Impact Resistance Tempered Glass · Corrosion-resistant Aluminum Frame

Callsun Solar Panel vs Other Solar Panels Comparison

Feature	Callsun Solar Panel	Other Solar Panels
Efficiency	High efficiency(30%)	Low efficiency(20%)
Angle	Adjustable Angle(360°)	180° Flexible Installation
Waterproof	IP68	IP65
Frame	Anodized Aluminum Alloy	General Aluminum Alloy
Glass	3.2mm Tempered Glass	0.6mm Tempered Glass

Specifications

Key Specs at a Glance 7.5W output · 30% efficiency · Adjustable Angle(360°) · IP68

Specifications

Cell Type	Monocrystalline Silicon
Glass	3.2mm Tempered Glass
Frame	Anodized Aluminum Alloy
Solar Panel Max Power (at STC)	7.5W
Maximum Power Voltage (Vmp)	18.42V
Maximum Power Current (Imp)	0.41A
Open-circuit Voltage (Voc)y	21.87V
Short-circuit Current (Isc)	0.43A

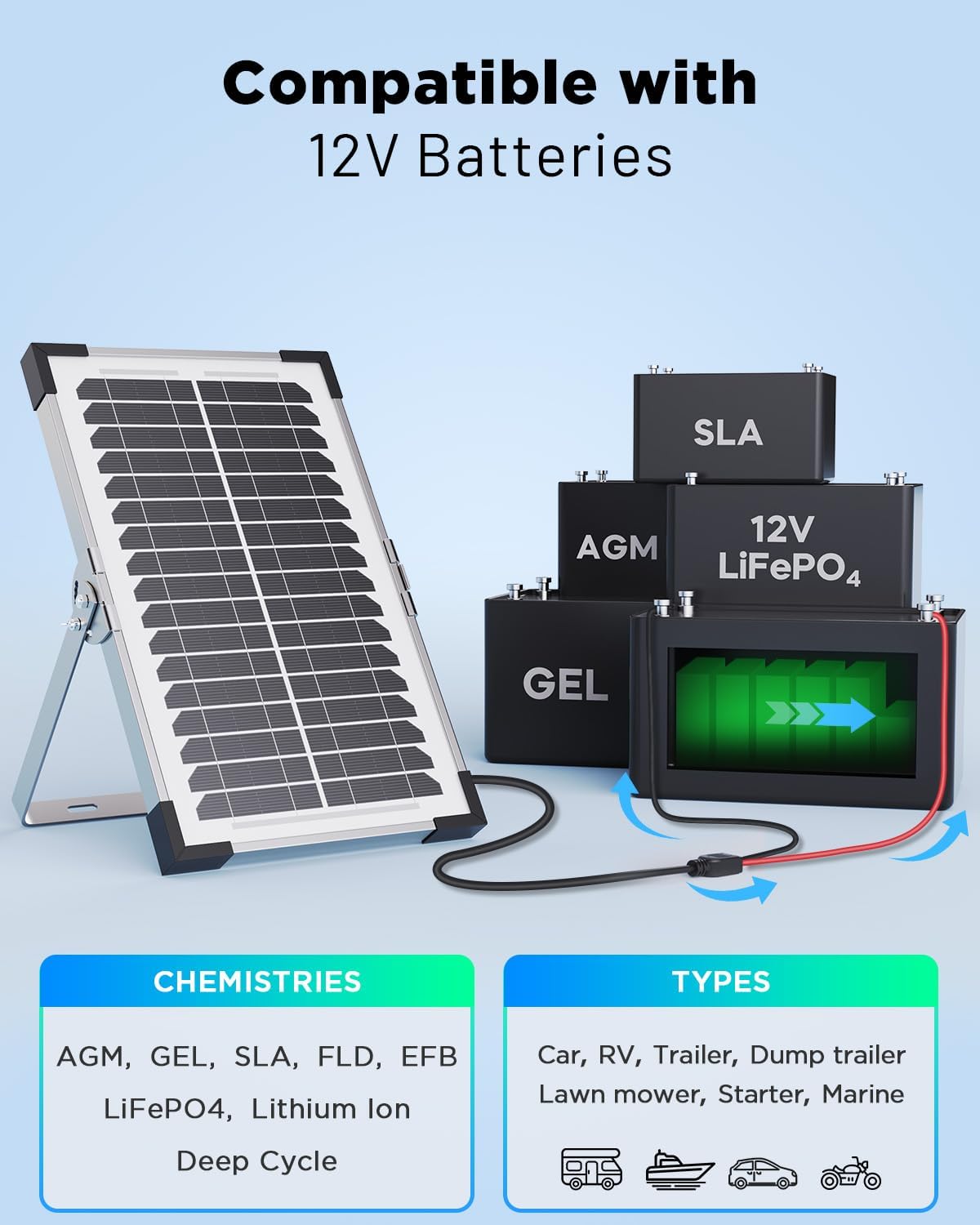

Compatible with	12V LiFePO4, Lithium Ion, AGM, SLA, GEL, FLD, EFB, MF batteries
Charging Principle	When the battery voltage is below 13 volts, boosting charging occurs. Charging stops if the instantaneous voltage exceeds 14.7 volts. When the average battery voltage falls within the range of 13.5 to 14.2 volts, trickle charging is activated. An intelligent chip employs an algorithm to maintain the battery voltage within the range of 13.7 to 14.1 volts using a small current. The specific voltage values may vary for different batteries.
Operating Temperature Range	14°F ~ 158°F (-10°C ~ 70°C)
Solar Panel Max. Wind Load (Pa)	2400
Solar Panel Max. Snow Load (Pa)	5400
IP Rating	IP68

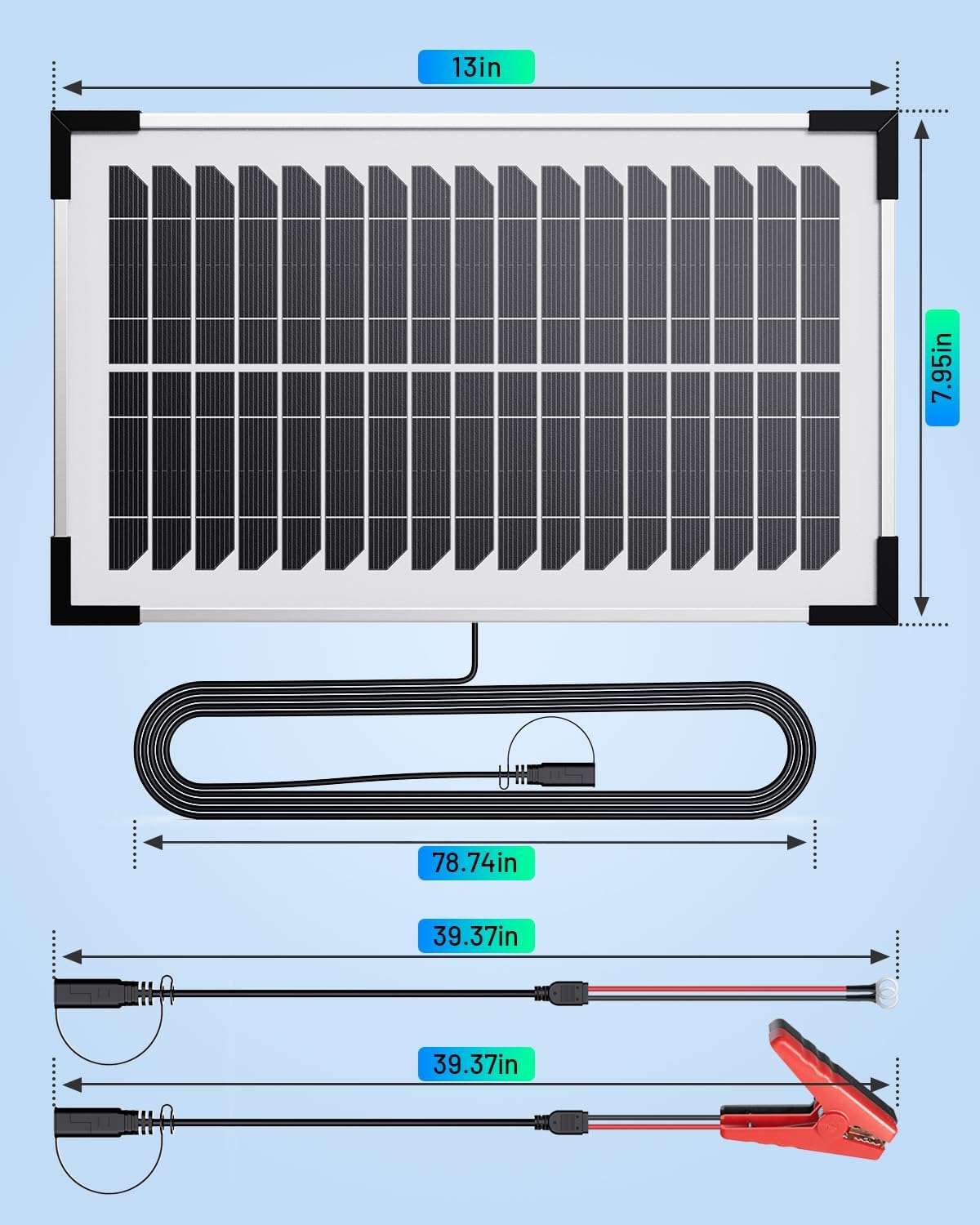

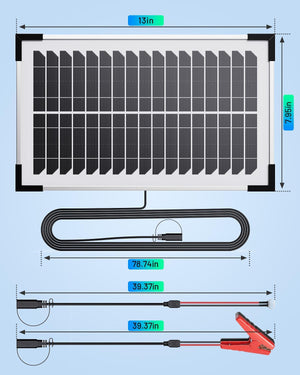

Trickle Maintainer Dimensions	201.5 × 332.5 × 20 ± 2 mm (7.94 × 13.09 × 0.79 ± 0.08 in)

*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.

Includes

1 Pack: 7.5W 12V Solar Battery Maintainer & Trickle Charger ×1

Downloads & View

📄

7.5W 12V Solar Battery Maintainer & Trickle Charger User Manual

View Download

FAQ

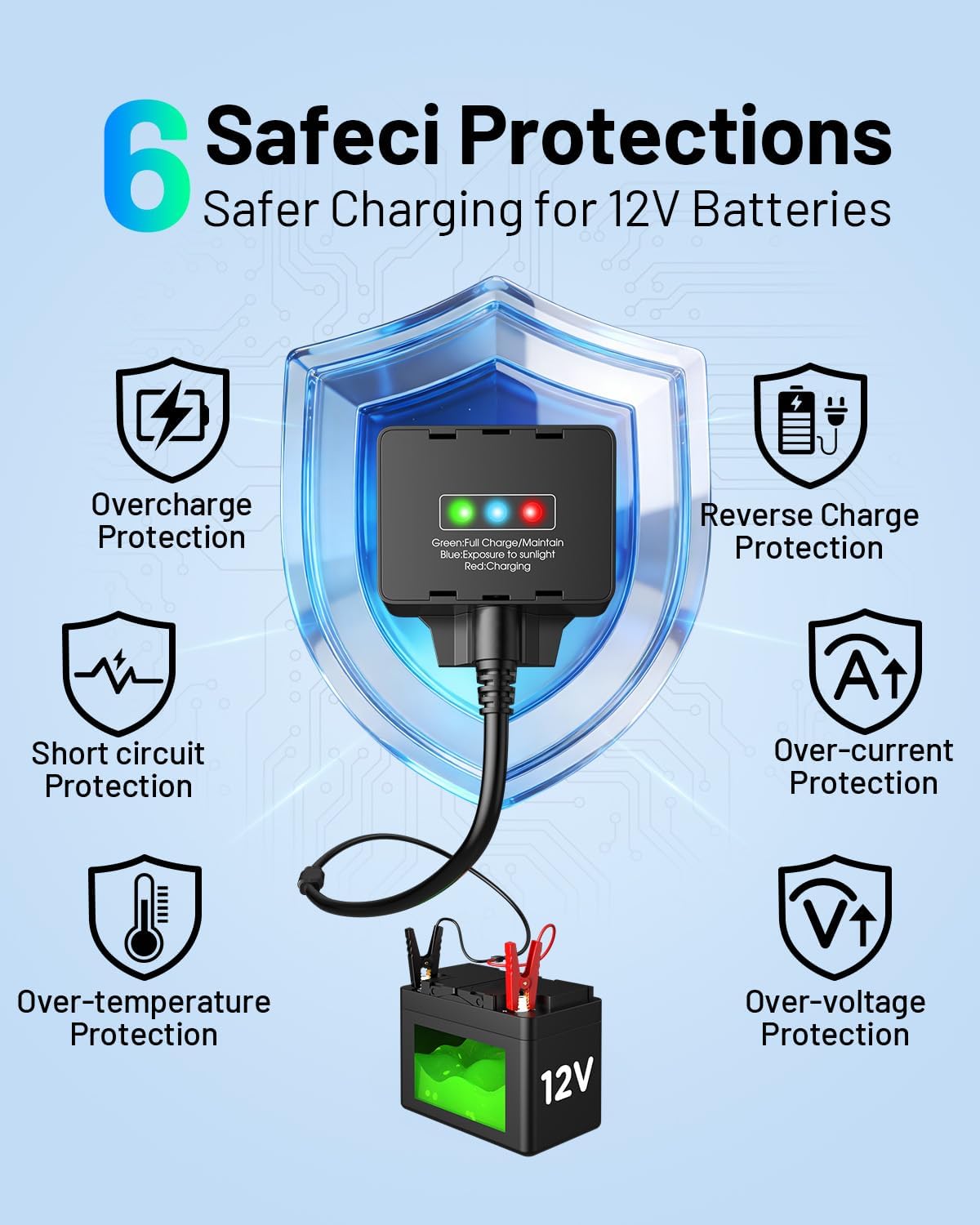

1. Can this solar battery maintainer be left connected 24/7 without damaging my battery?

Yes! Thanks to the 6-Point Smart Safety system, it protects against reverse charging and overvoltage, allowing you to safely leave it connected all day and night, extending your battery's lifespan.
