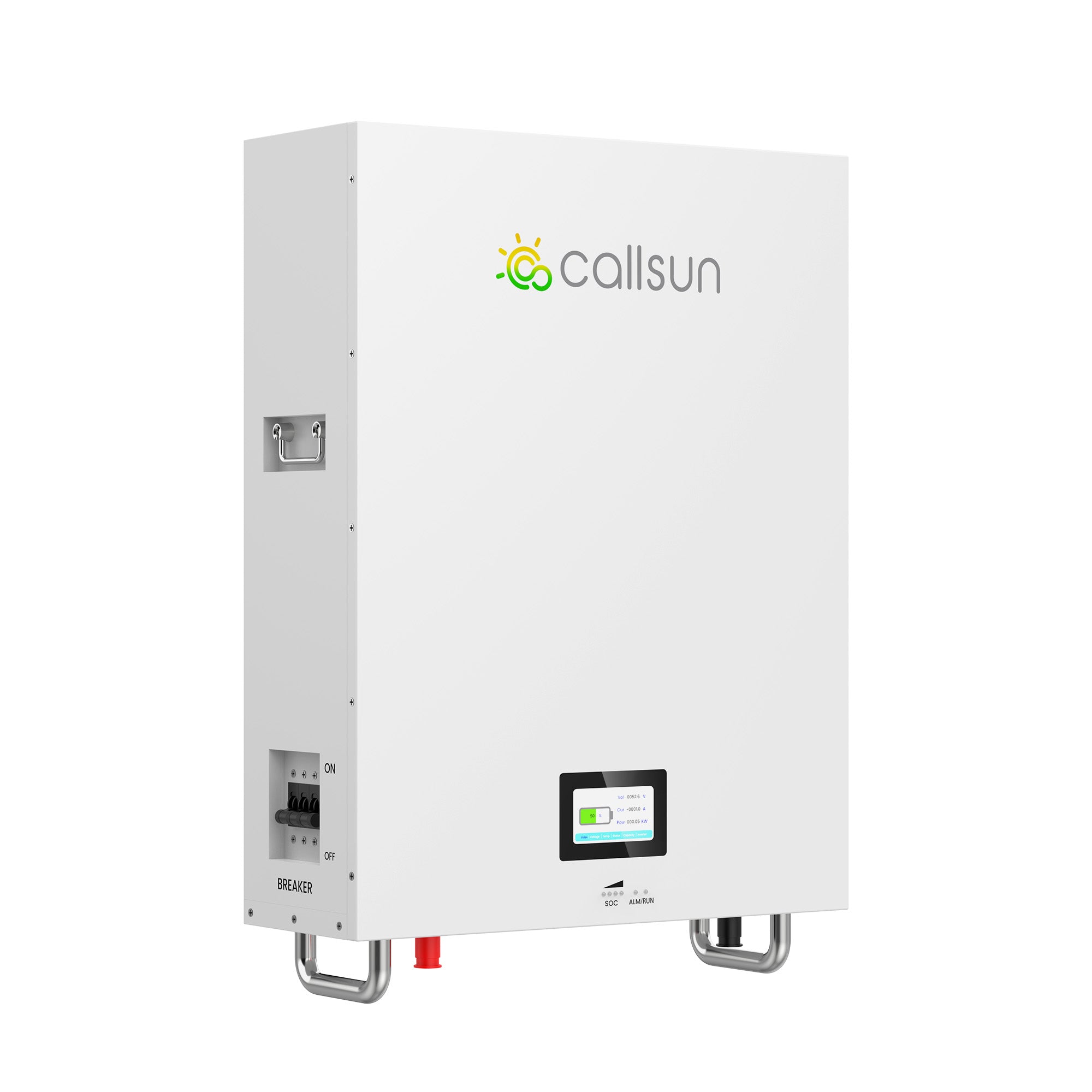

10.24kWh Wall Mounted Battery
51.2V 200Ah wall-mounted LiFePO4 battery providing 10.24kWh capacity. Delivers reliable, continuous energy to power entire household appliances and residential solar systems.

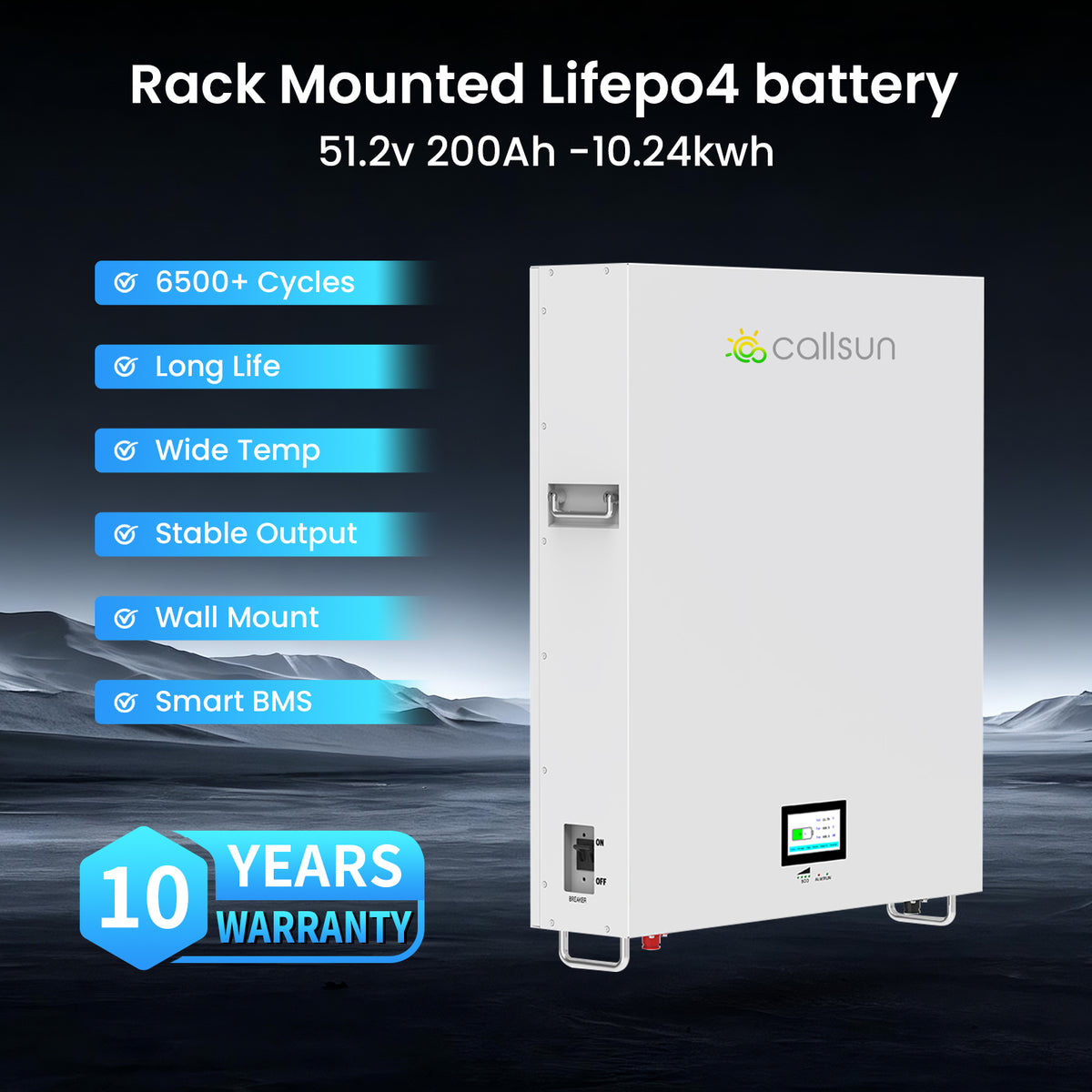

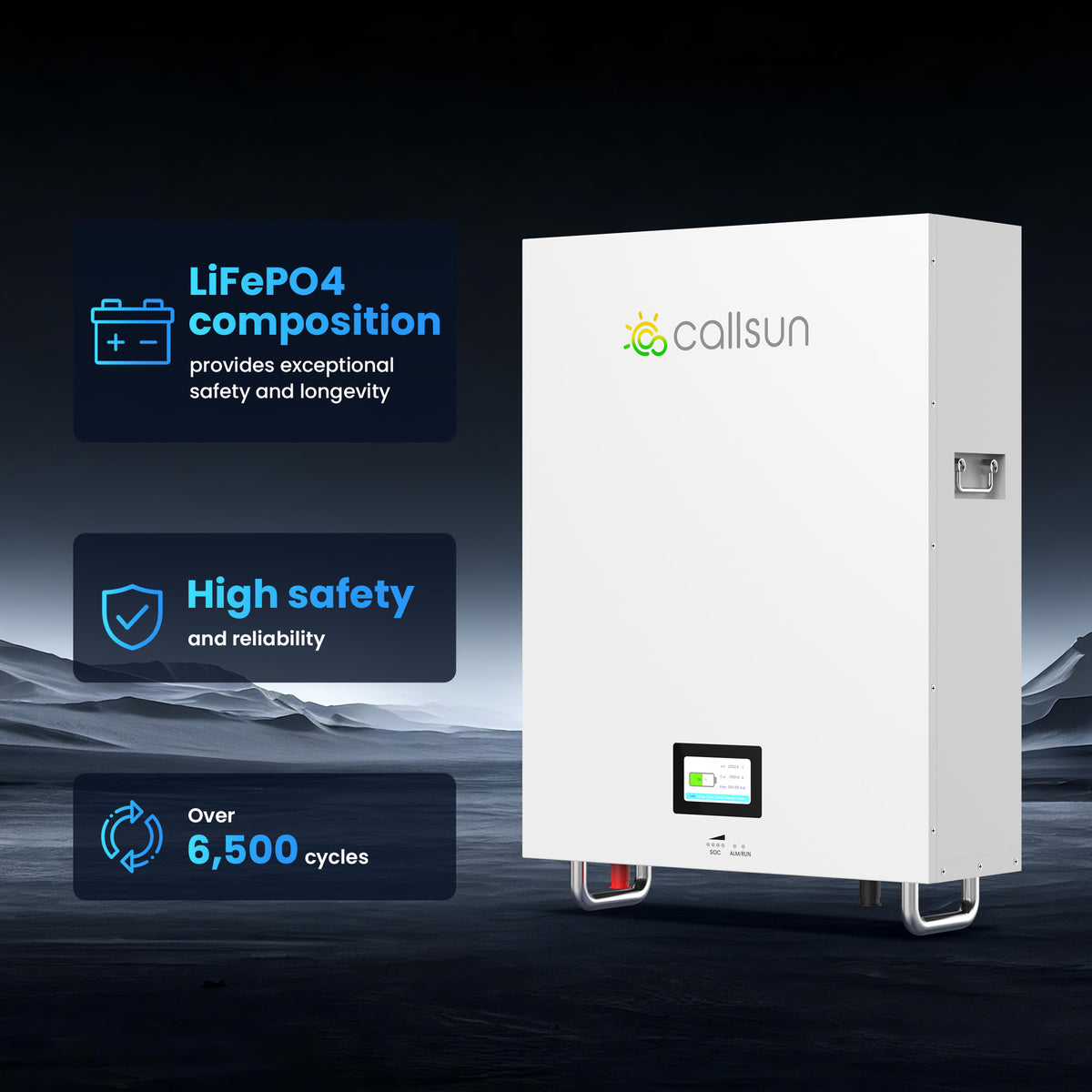

High Safety LiFePO4 Energy Battery

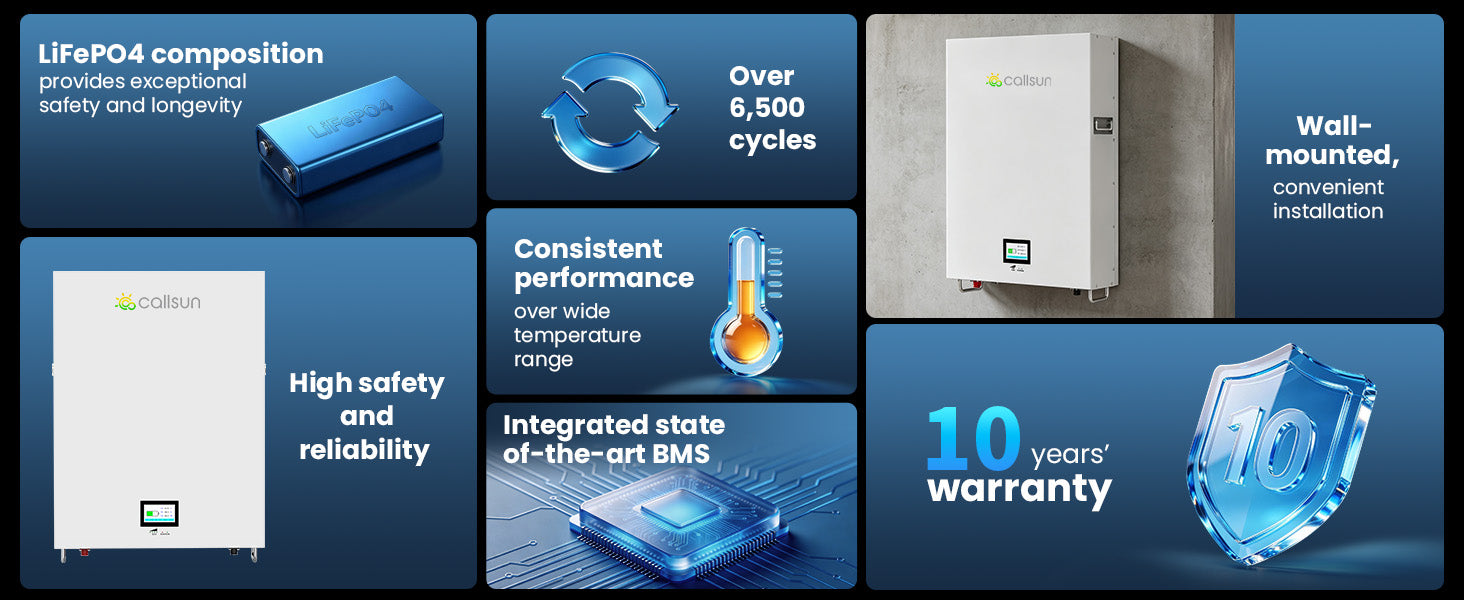

Features LiFePO4 chemistry, over 6,500 cycles, integrated BMS, and consistent wide-temp performance. Wall-mounted for convenient installation with a 10-year warranty.

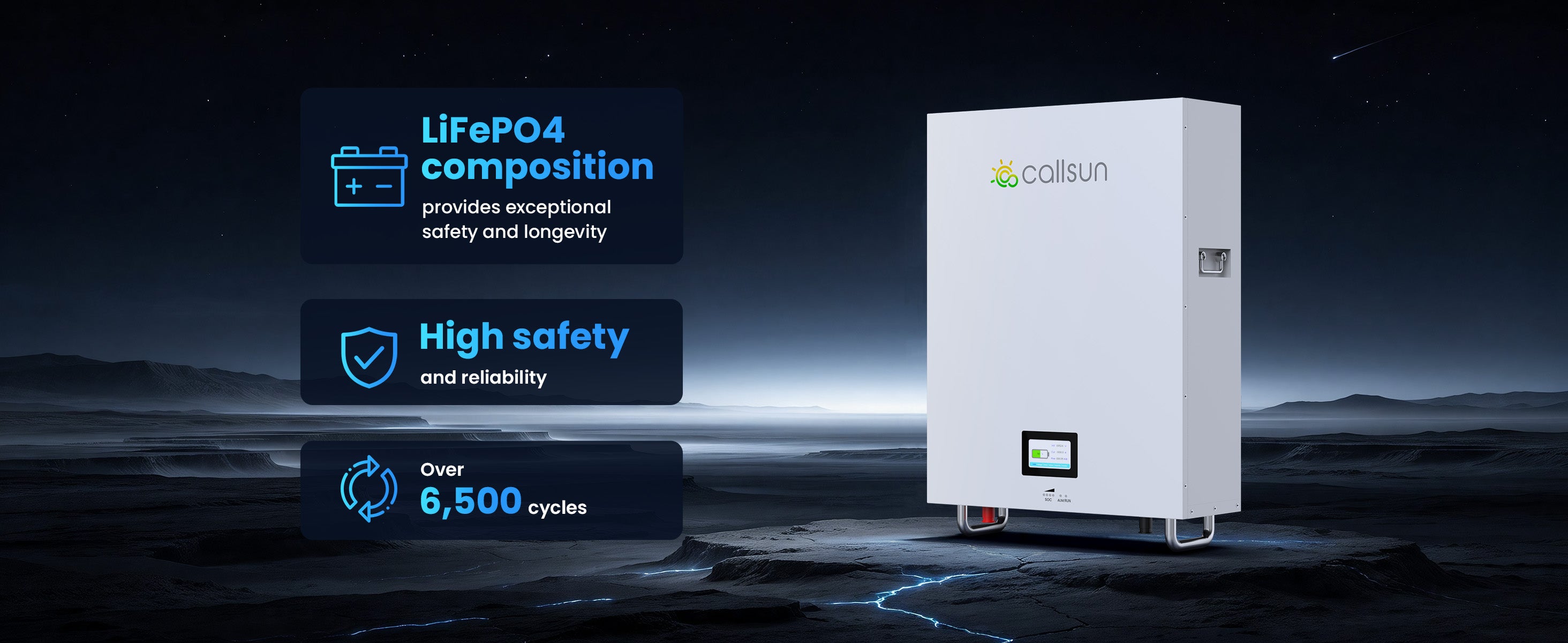

Long-Lasting Reliable Lithium Power
Engineered with high-safety LiFePO4 technology, ensuring outstanding stability and long operational life with over 6,500 cycles for dependable residential power backup.

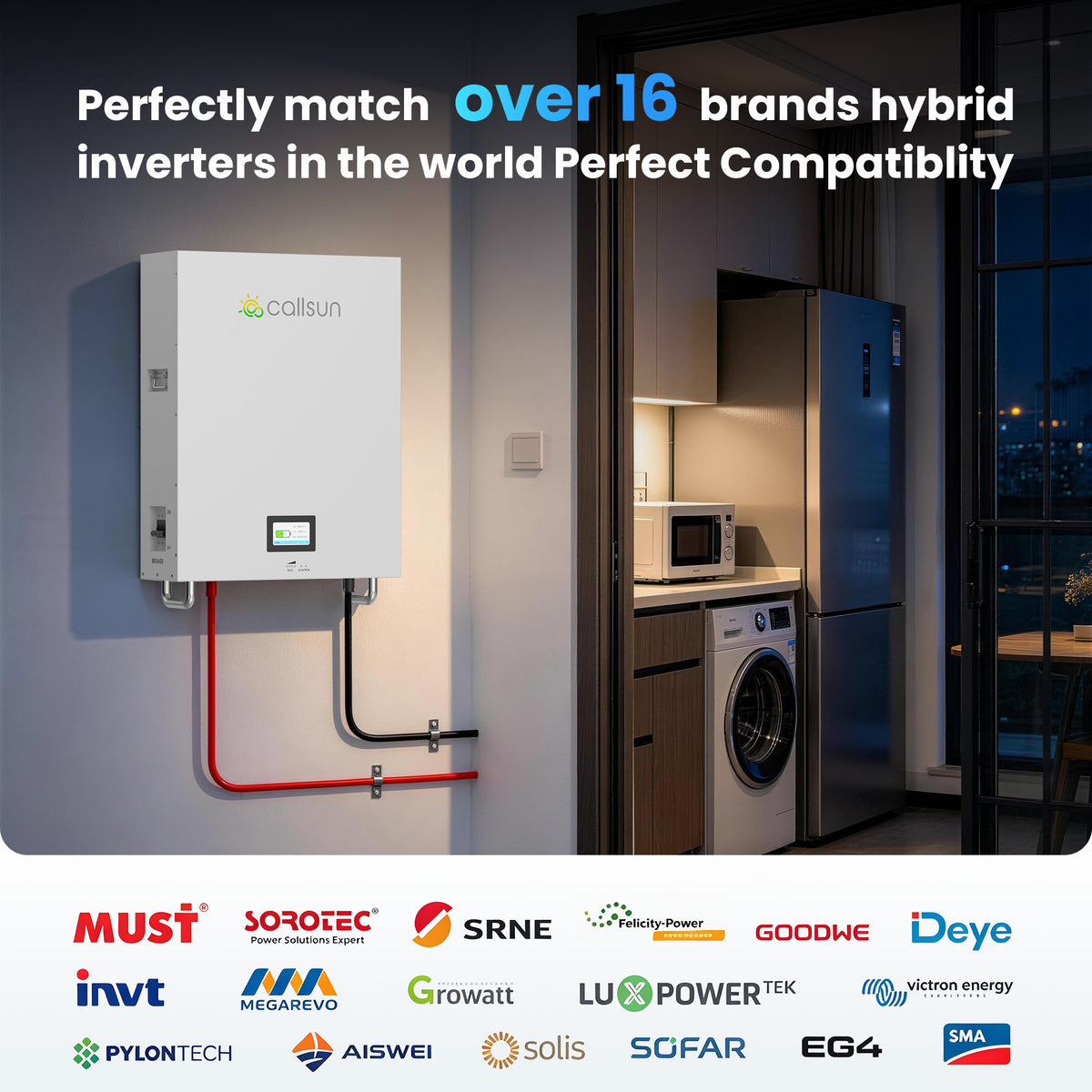

Universal Hybrid Inverter Compatibility
Perfectly matches over 16 leading global hybrid inverter brands including Growatt, Deye, Goodwe, and Victron for seamless energy integration.

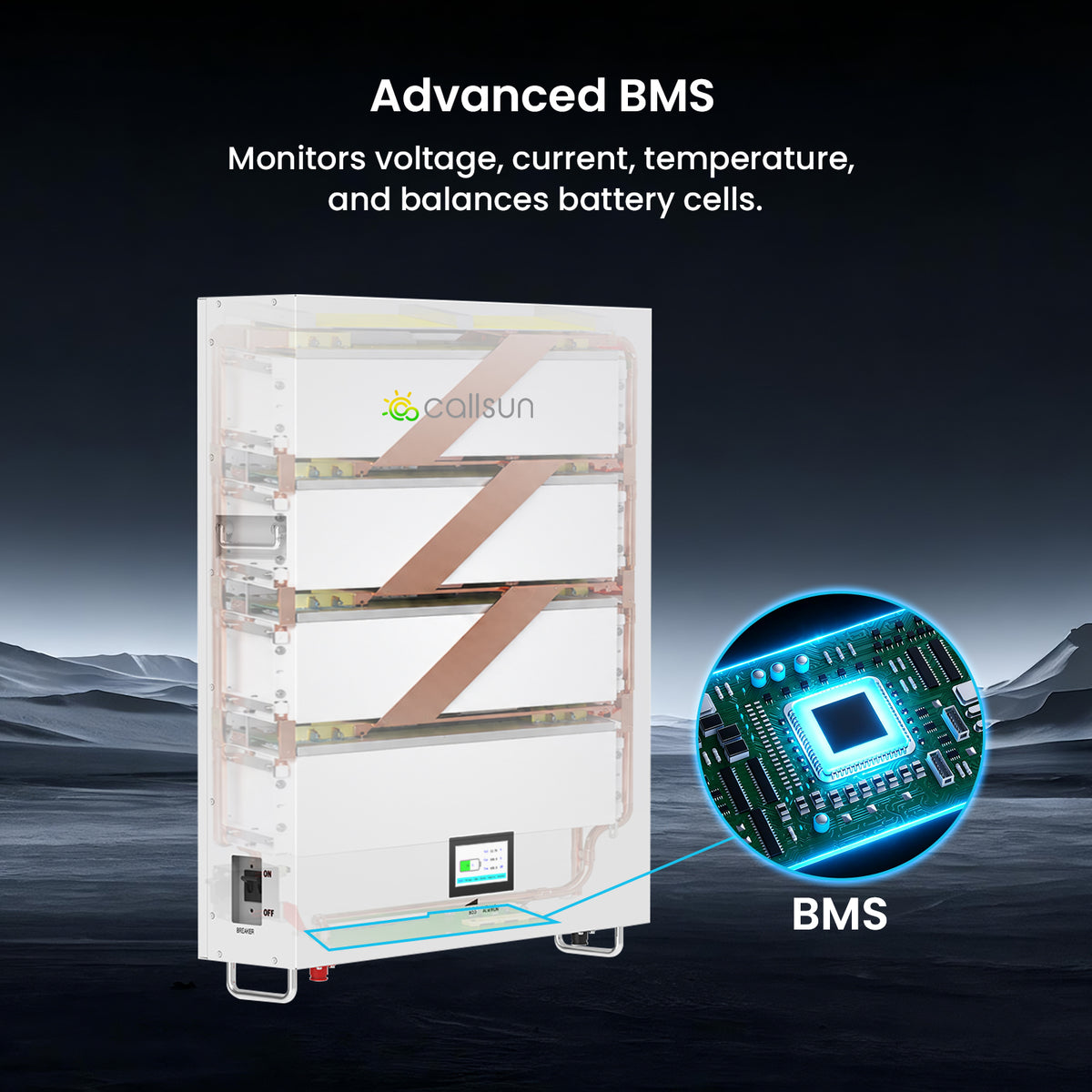

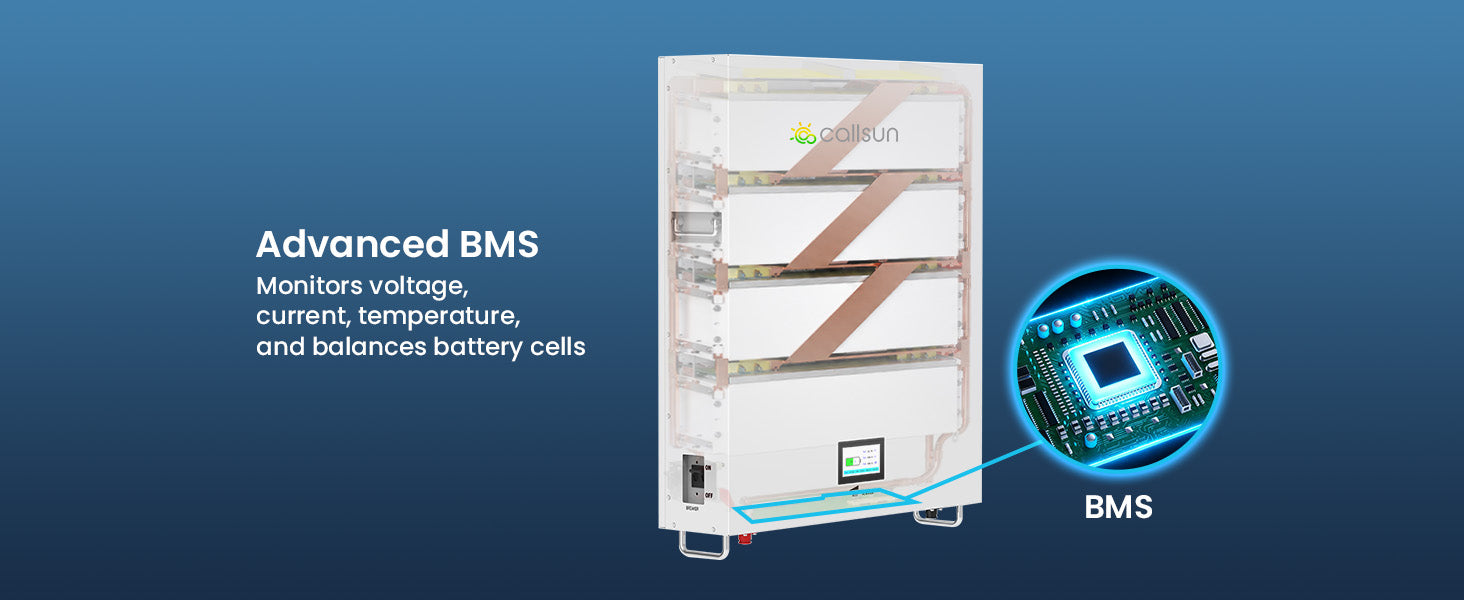

Advanced BMS Protection System
Features an Advanced BMS that actively monitors voltage, current, and temperature while balancing battery cells to maximize efficiency, safety, and lifespan.

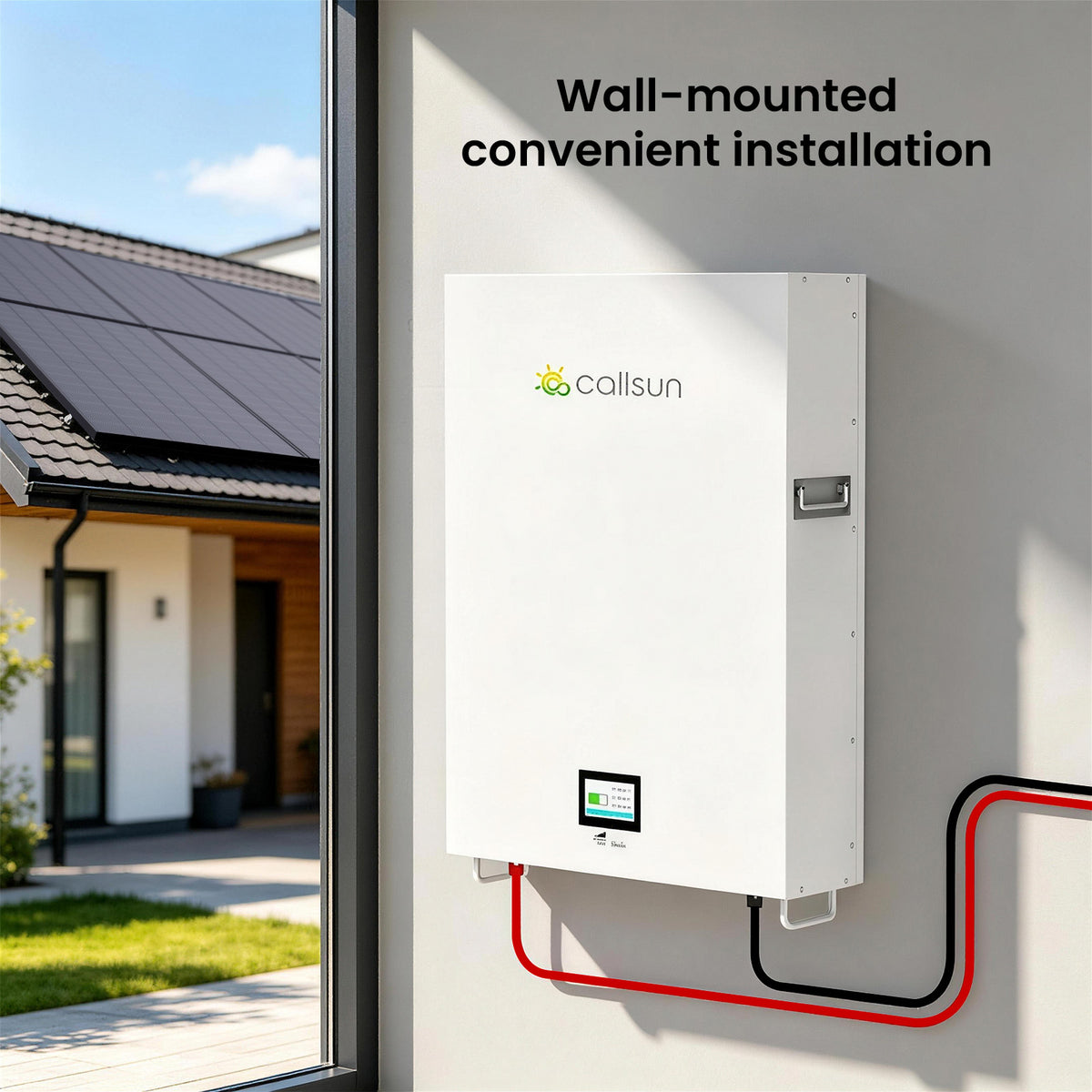

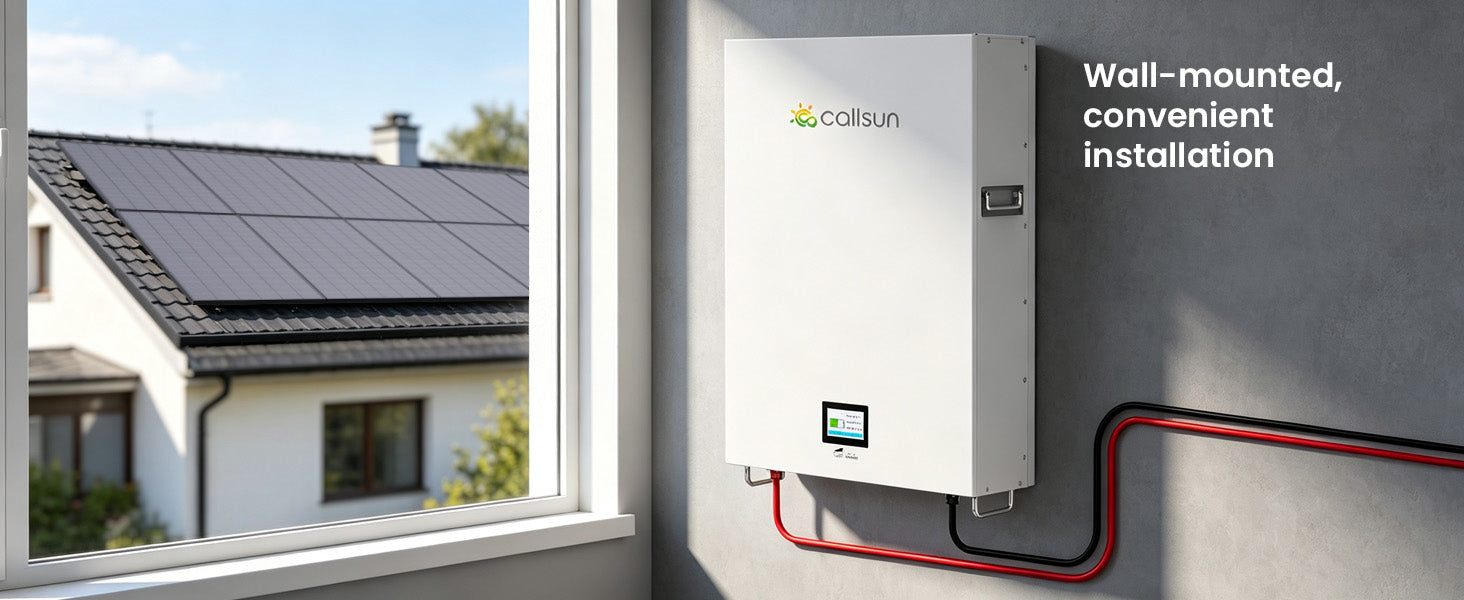

Convenient Wall-Mounted Installation
Designed for easy wall mounting with a compact footprint. Simplifies setup while saving valuable floor space in home solar and residential power storage systems.

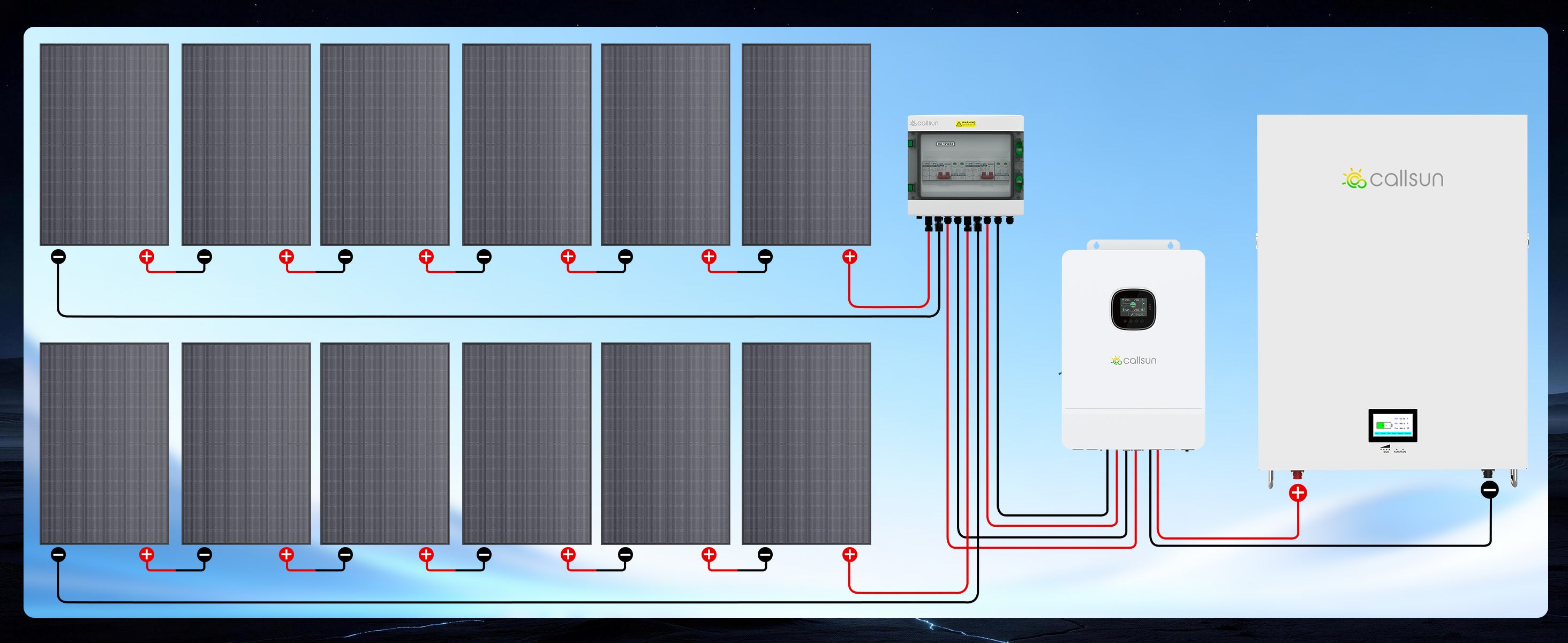

Complete Solar Wiring System Setup
Easily integrate solar arrays, combiner box, hybrid inverter, and wall-mounted LiFePO4 battery for a seamless, high-efficiency whole-home power solution.
Heavy-Duty Reinforced Protective Packaging
Engineered with multi-layer foam cushioning and a sturdy 275.58 lb rated wooden crate to ensure safe, damage-free transport for high-capacity batteries.
Seamless Business Power Storage
Keep business operations running smoothly with robust, space-saving battery storage. Delivers clean, dependable emergency backup power for modern workspaces.

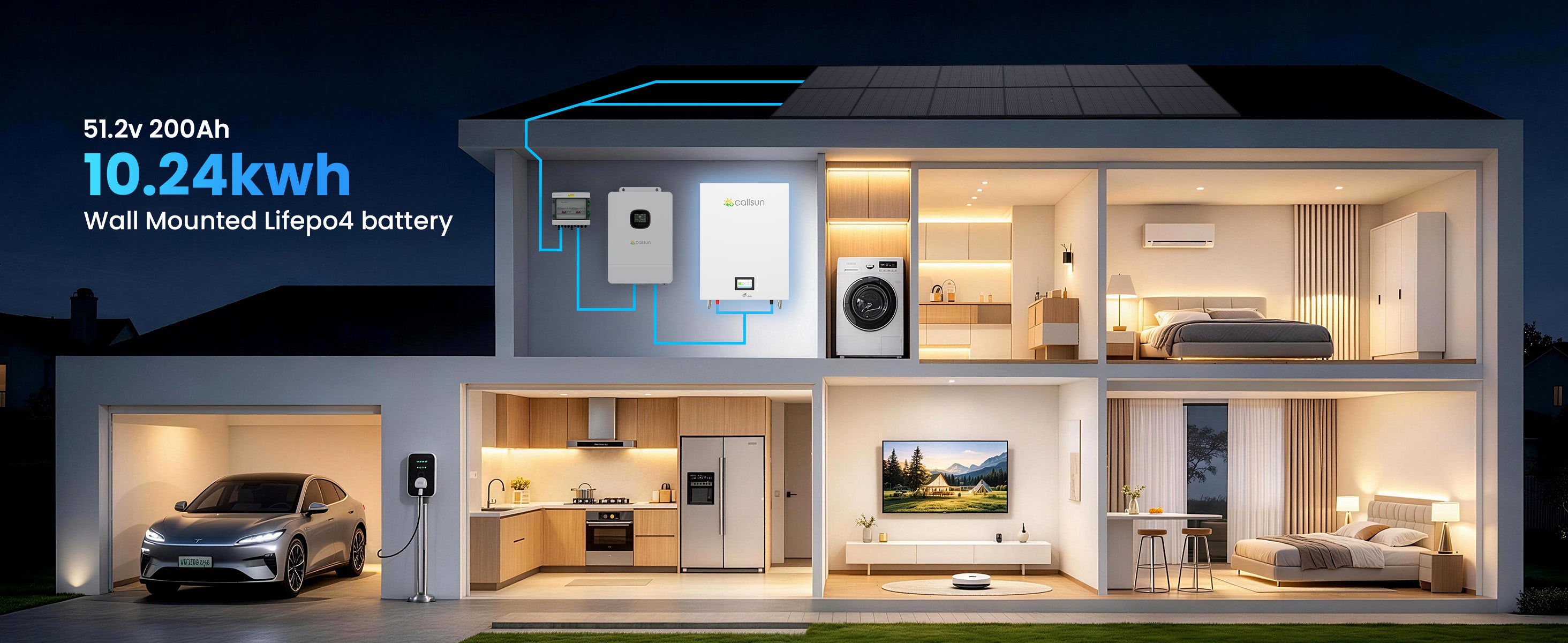

Elegant Home Backup Power
Sleek wall-mounted design blends seamlessly into modern homes, delivering high-capacity, reliable LiFePO4 battery storage for uninterrupted household energy.
Reliable Rural Energy Storage
Keep essential home and farm appliances running smoothly with durable battery storage, delivering clean, independent power for countryside and off-grid lifestyles.
Specifications
Nominal Parameters
| Nominal Voltage | 51.2V |
|---|---|
| Rated Capacity | 200Ah |
| Energy | 10.24kWh |
| Dimensions (L x W x D) | 720*550*200mm/28.3*21.6*7.8in |
| Weight | 102.5kg |
Electrical Parameters
| Max. discharge voltage of battery | 56VDC |
|---|---|
| End of discharge voltage of battery | 46VDC |
| Maximum charge current of battery | 100A |
| Maximum discharge current of battery | 150A |
| Charging temperature range of battery | 0-55°C |
| Discharge temperature range of battery | -20-55°C |
| Number of cells in battery pack | 16S1P |
| Lithium Battery Standard | UL1973, CB-IEC62619, CE-EMC, UN38.3, MSDS |
| Enclosure protection rating | IP20 |
Includes
FAQ
1. How much power can the Callsun 10.24kWh LiFePO4 battery store?
The Callsun 51.2V 200Ah battery provides 10.24kWh of nominal energy storage, making it suitable for residential solar systems, off-grid applications, and home backup power. The actual usable energy depends on the battery's operating limits, system efficiency, and connected inverter.
2. Is this 51.2V LiFePO4 battery compatible with my solar inverter?
This battery is designed for compatible 48V-class inverter systems. Before purchasing, verify the inverter's supported battery voltage range, charging parameters, maximum charge and discharge current, and BMS communication requirements. Check the manufacturer's compatibility recommendations to ensure reliable operation.
3. How long can this 10.24kWh battery power my home during a power outage?
Backup runtime depends on your household's energy consumption and inverter efficiency. For example, assuming 90% usable energy after system losses, the battery could power a 500W load for approximately 18 hours or a 1,000W load for approximately 9 hours. Actual runtime varies with operating conditions and battery settings.
4. Can I connect multiple batteries together to increase storage capacity?
Multiple batteries may be connected in parallel if the battery model supports expansion. This can increase total storage capacity for larger solar and backup systems. Before connecting batteries, confirm the permitted number of units, wiring requirements, BMS communication settings, and inverter compatibility in the product manual.
5. Is this wall-mounted LiFePO4 battery suitable for home solar backup systems?
Yes. Its 10.24kWh nominal capacity makes it suitable for compatible residential solar storage and backup power systems. It can store energy generated by solar panels for use when sunlight is limited or during a grid outage. Ensure the mounting surface can support the battery's weight and that installation follows the manufacturer's safety instructions.
