10.8kW Solar Generator System | 12kW Hybrid Inverter + 28kWh Battery Storage Kit
Key Features
- ShadeGuard™ anti-shading technology helps maintain stable power output under partial shade from trees, roof racks, and uneven sunlight.
- High-efficiency N-Type cells with advanced low-light and heat-resistant performance for reliable off-grid charging.
- Ultra-compact design with higher watt density to maximize roof space for RV and van setups.
- Bifacial energy generation captures reflected sunlight from both sides for increased overall output.
10.8kW Solar Generator System | 12kW Hybrid Inverter + 28kWh Battery Storage Kit - 10.8kW ...は取り寄せ中で入荷次第発送します。
10.8kW Solar Generator System | 12kW Hybrid Inverter + 28kWh Battery Storage Kit
Power your home with the Callsun 10.8kW Solar Generator System. Featuring a 12kW hybrid inverter and 28kWh LiFePO4 battery storage, it delivers reliable whole-home backup, off-grid power, and greater energy independence.
High-efficiency 450W solar panel with advanced N-type technology.
Maximize your clean energy production with a 450W high-performance solar panel featuring N-type cell technology, 16 busbars, anti-shading design, bifacial power generation, a durable double-glass structure, extreme weather readiness, and a 25-year performance commitment.
Up to 30% higher energy yield from reflected light.
Maximize your solar generation with an advanced bifacial design that captures both direct sunlight and reflected light from snow, sand, or grass for superior efficiency.
One module shaded, the other keeps working for maximum output.
Maintain optimal power generation even under partial shadows with an innovative parallel architecture that ensures uninterrupted energy flow.
25-year performance commitment with guaranteed output after 25 years.
Invest with confidence in durable solar panels featuring IP68 waterproof ratings, 2400 Pa wind load resistance, 5400 Pa snow load capability, an operating range from -40°C to +85°C, and a guaranteed 84.5% power output after 25 years.
Specifications
Key Specs at a Glance: 450W output · N-Type · 25.6% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 450W |
|---|---|
| Maximum Power Voltage (Vmp) | 30.08V |
| Maximum Power Current (Imp) | 14.97A |
| Open-circuit Voltage (Voc) | 35.03V |
| Short-circuit Current (Isc) | 16.05A |
| Cell Type | N-Type,16BB, 182mm,Monocrystalline Silicon |
| Cell Efficiency | 25.6% |
| First Year Degradation Rate | ＜1% |
| Commitment to maintain 84.5% output | 25 years |
| Dimension | 1762 × 1134 × 30(±5mm) 69.4 × 44.7 × 1.2(±0.1in) |
| Weight | 24.5(±0.2kg) 54.01 (±0.5lb) |
| IP Rating | IP68 |
| Connector | Solar Connector Compatible |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Reliable 14kWh energy storage with exceptional safety and longevity.
Power your home with a wall-mounted 14kWh battery featuring over 6,500 cycles, an integrated state-of-the-art BMS, consistent wide-temperature performance, and a 10-year warranty.

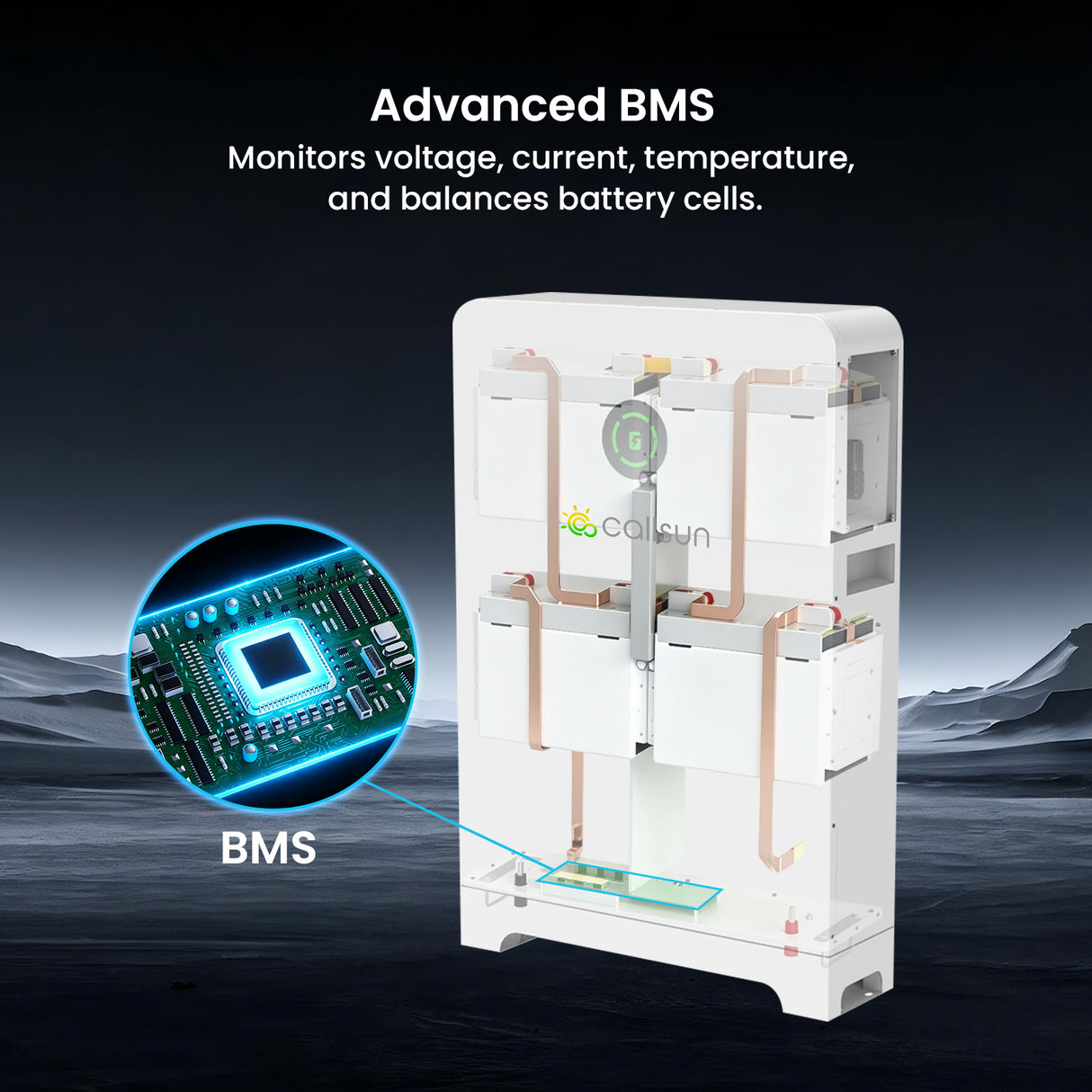

Intelligent battery management system for ultimate safety and performance.
Protect your 10kWh energy storage system with an advanced BMS that monitors voltage, current, and temperature in real time while actively balancing battery cells for extended lifespan.
Seamless Compatibility
Works seamlessly with 16+ leading hybrid inverter brands, making system integration simple, flexible, and reliable for your home energy storage setup.
Specifications
| Nominal Voltage | 51.2V |
|---|---|
| VRated Capacity | 280Ah |
| Energy | 14.34kWh |
| Dimensions (L x W x D) | 1050*700*200mm / 41.3*27.5*7.8in |
| Weight | 140kg/308.65lb |
| Max. discharge voltage of battery | 56VDC |
| End of discharge voltage of battery | 46VDC |
| Maximum discharge current of battery | 150A |
| Maximum charge current of battery | 150A |
| Charging temperature range of battery | 0-55℃ |
| Discharge temperature range of battery | -20- 55℃ |
| Number of cells in battery pack | 16S1P |
| Lithium Battery Standard | UL1973, UL9540A, CB-IEC62619, CE-EM, UN38.3, MSDS |
| Enclosure protection rating | IP65 |
10kW Inverter-Reliable and Durable
Inverter Output
| Rated Output power | 12000W |
|---|---|
| Max. Peak Power | 1.5 times rated power（10s） |
| Rated Output Voltage | 120/240Vac（Split-phase） 120/208V(Three-phase) |
| Rated AC Frequency | 50/60 Hz |
| Waveform | Pure sine wave |
| Switch Time | 10 ms (typical value) |
| Parallel Capacity | 1~6 units |
Battery
| Battery Type | Li-ion / Lead-Acid / User Defined |
|---|---|
| Rated Battery Voltage | 48Vdc |
| Rated Voltage range | 40 Vdc−60 Vdc |
| Max . grid/generator charge current | 200A/90A |
| Max. hybrid charge current | 240 A |
PV Input
| No. of MPPT Trackers | 2 |
|---|---|
| Max. PV Input Power | 9000W+9000W |
| Max. PV Input Current | 32A+32A |
| Max. Open Circuit Voltage | 550Vdc+550Vdc |
| MPPT Voltage Range | 125Vdc−425Vdc |
| Short current Isc | 40A+40A |
Grid/Generator Input
| Input Voltage Range | 90 VAC−140 VAC |
|---|---|
| Input Frequency Range | 50/60 Hz |
| Continuous Grid Passthrough Current | 200A |
General
| Dimensions | 840 mm*440 mm*260 mm/33.07*17.32*10.24in |
|---|---|
| Weight | 48kg/105.82lb |
| Protection Degree | IP65 |
| Operating Temperature Range | -25~60℃,>45℃ derated |
| Noise | <60dB |
| Built-in Interface | RS485/CAN/USB/dry contact |
| Extemal Module(optional) | Wi-Fi/GPRS |
| Safety | UL1741&IEEE1547.1-2020,CEC, RULE 21, HECO |
| EMC | FCC 15 class B |
| RoHS | Yes |
RoofTop
Farm
Backyard
How to wire it
Wiring Instructions
Includes
FAQ
1. What can the 10.8kW Solar Generator System power?
The Callsun 10.8kW Solar Generator System is designed for whole-home backup and off-grid energy applications. Equipped with a 12kW hybrid inverter and 28kWh LiFePO4 battery storage, it can power essential household appliances such as air conditioners, refrigerators, lighting, TVs, computers, washing machines, and other high-demand devices, depending on your total energy consumption.
2. Is this system suitable for whole-home backup?
Yes. With a powerful 12kW hybrid inverter and 28kWh battery storage, this system is ideal for providing backup power to most residential homes during power outages. It can also help reduce reliance on the grid by storing excess solar energy for use at night or during peak electricity rates.
3. How long will the 28kWh battery storage last?
Battery runtime depends on your electricity usage. For example, a continuous 2kW household load can theoretically be powered for approximately 14 hours. Actual runtime will vary based on appliance usage, inverter efficiency, battery condition, and environmental factors.
4. Can I expand the battery or solar panel capacity in the future?
Yes. The Callsun system is designed to support future expansion. Depending on the inverter specifications, you can increase solar panel capacity or add compatible battery modules as your energy requirements grow.
5. Does the system require professional installation?
Yes. Because this system includes a 12kW hybrid inverter and high-capacity battery storage, professional installation by a qualified electrician or solar installer is recommended. Proper installation ensures safe operation, optimal performance, and compliance with local electrical codes.
