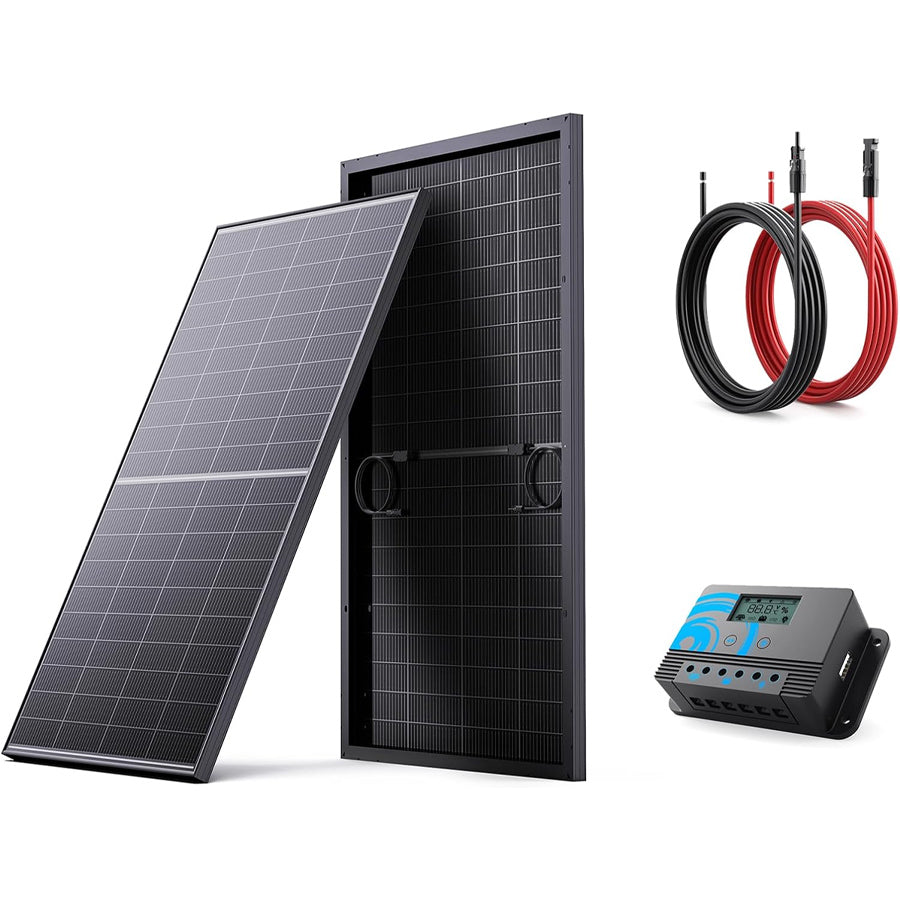

200W 12V Solar Panel Kit

Name: 200W 12V Solar Panel Kit
Brand: Callsun
Price: 189.99 USD
Availability: InStock

$189.99 USD $229.97

Versand wird beim Checkout berechnet.

🚚 Free Shipping from USA: Shipping Policy

Beschreibung

High-Efficiency & Bifacial | N-Type 200W panel with 25% efficiency and bifacial design boosts power by 30%. 16BB cells improve conversion and reduce hot spots.
Durable & Weatherproof | Low-iron tempered glass, corrosion-resistant frame, IP68 waterproof, up to 30-year lifespan.
Easy Installation & Support | Compact with pre-drilled holes. 10-year tech support, 25-year output guarantee.
Reliable Solar Cable | Tinned copper, XLPO insulation, IP68 waterproof for safe power transmission.
Smart Charge Controller | Auto 12V/24V detection, lithium settings, advanced PWM for safe and efficient operation.

Description Specs Includes Downloads FAQ Reviews

200W 12V Solar Panel Kit

The Callsun 200W N-Type solar kit features bifacial 16BB panels with 25% efficiency, durable waterproof construction, and easy installation. It comes complete with reliable tinned copper cables and a smart charge controller, delivering safe, versatile, and consistent power for RVs, boats, rooftops, or off-grid setups.

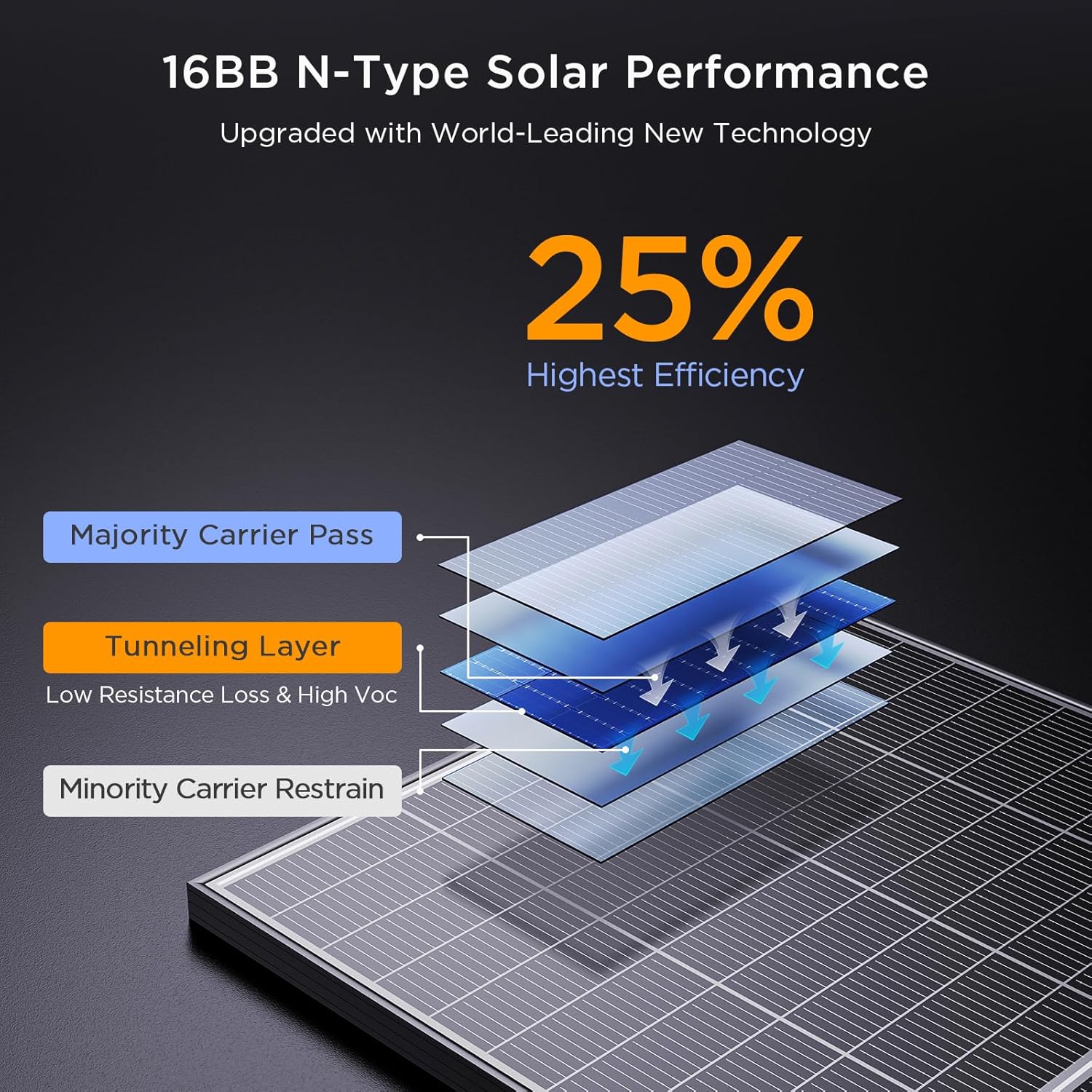

25% Highest Efficiency

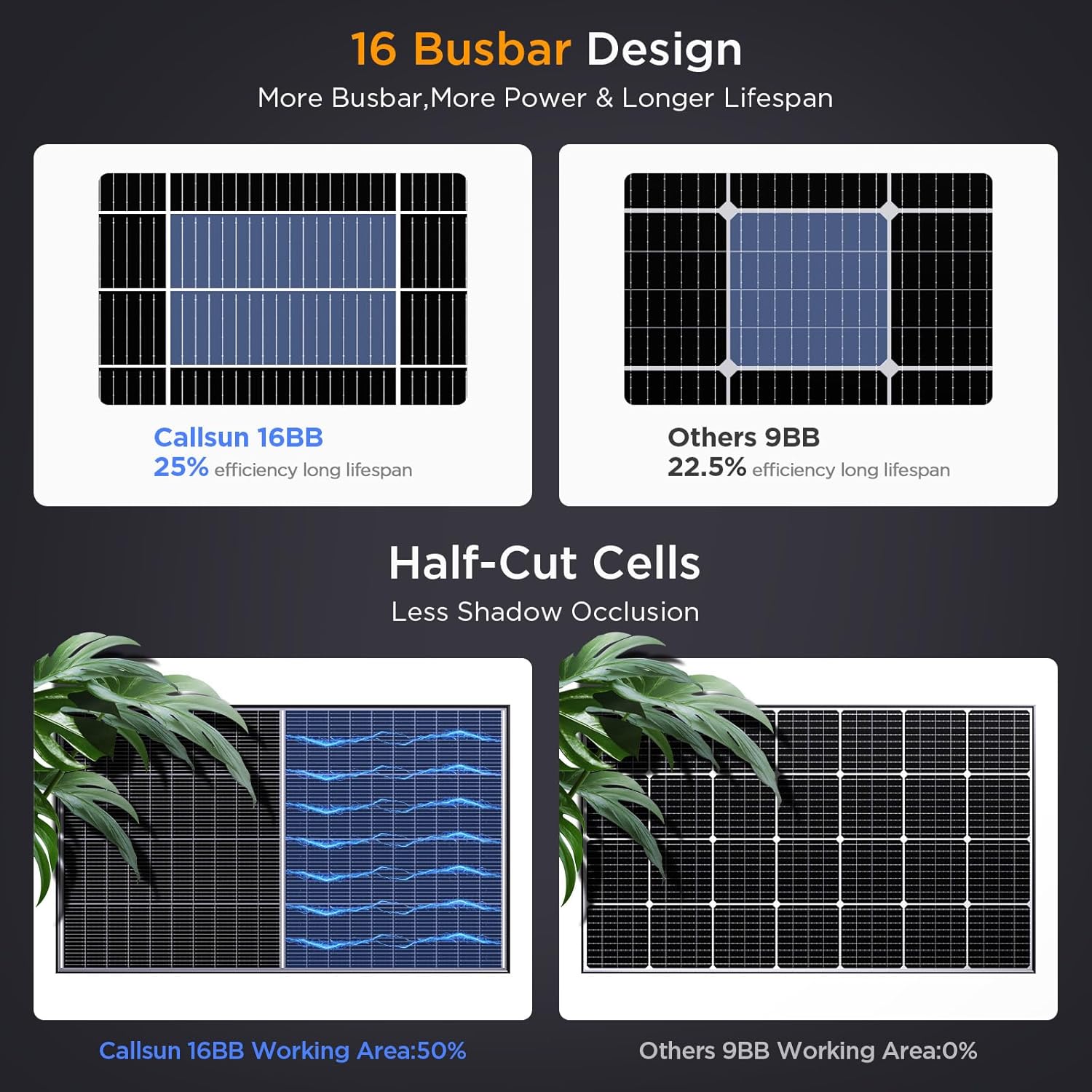

16 Busbar Design

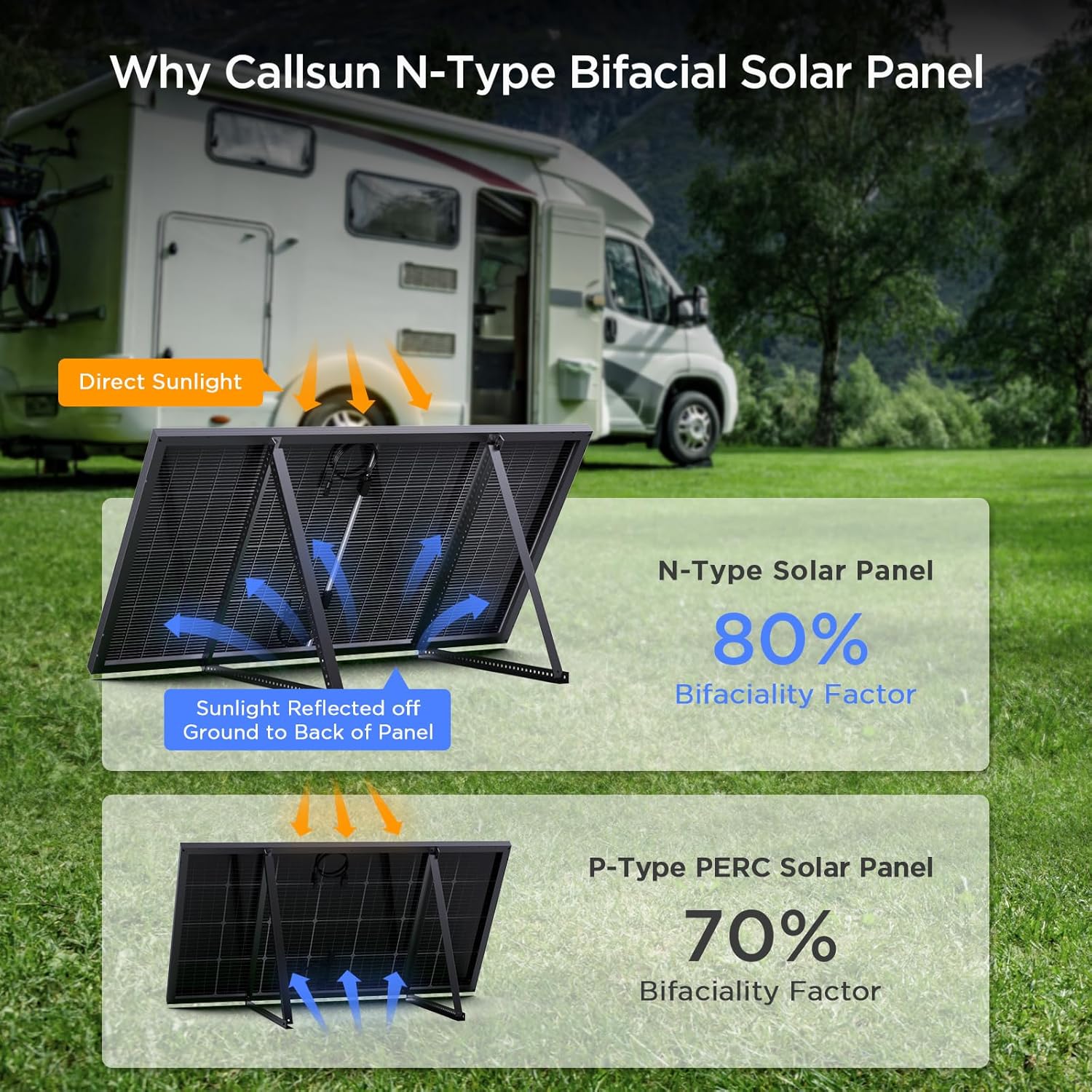

Bifaciality Factor

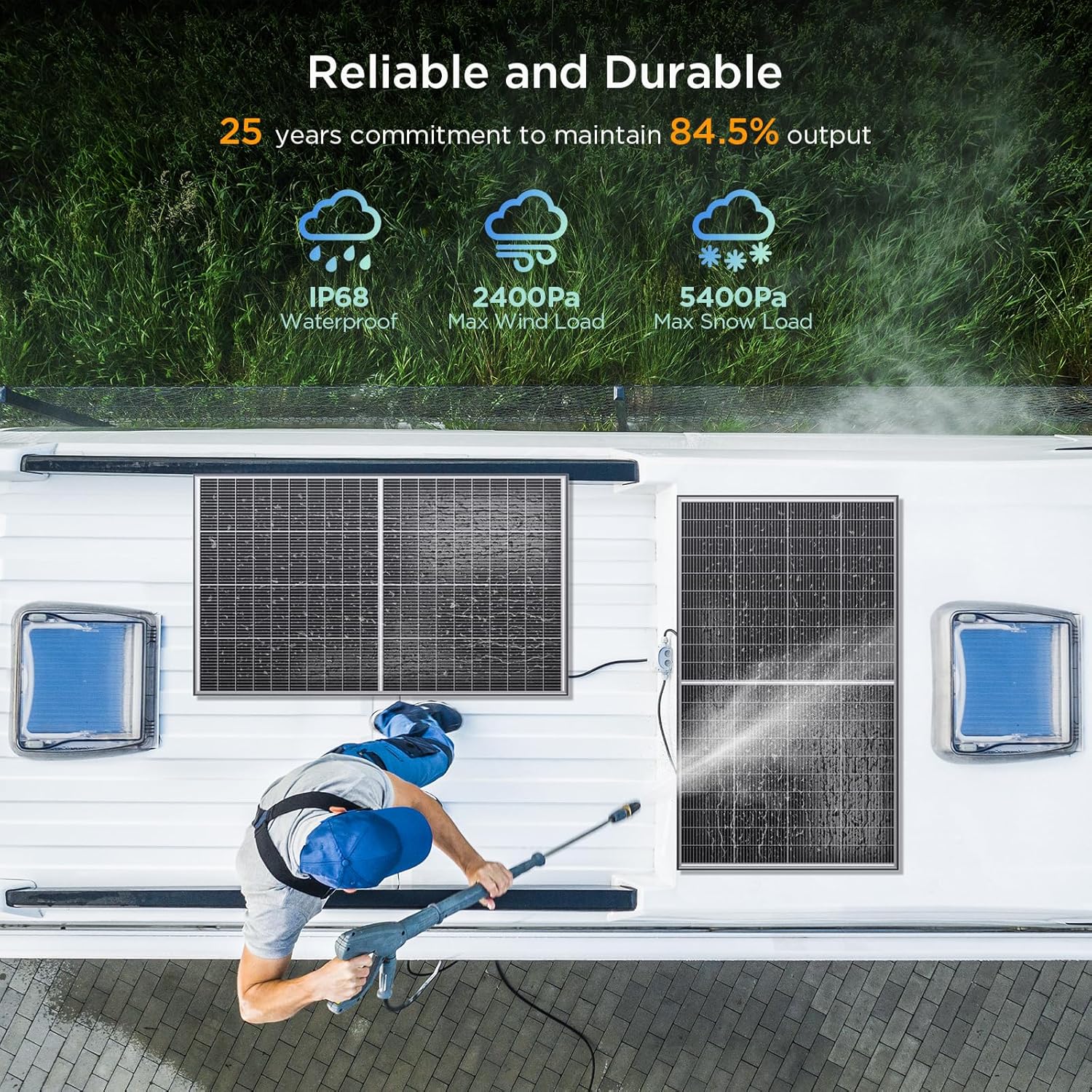

Reliable and Durable

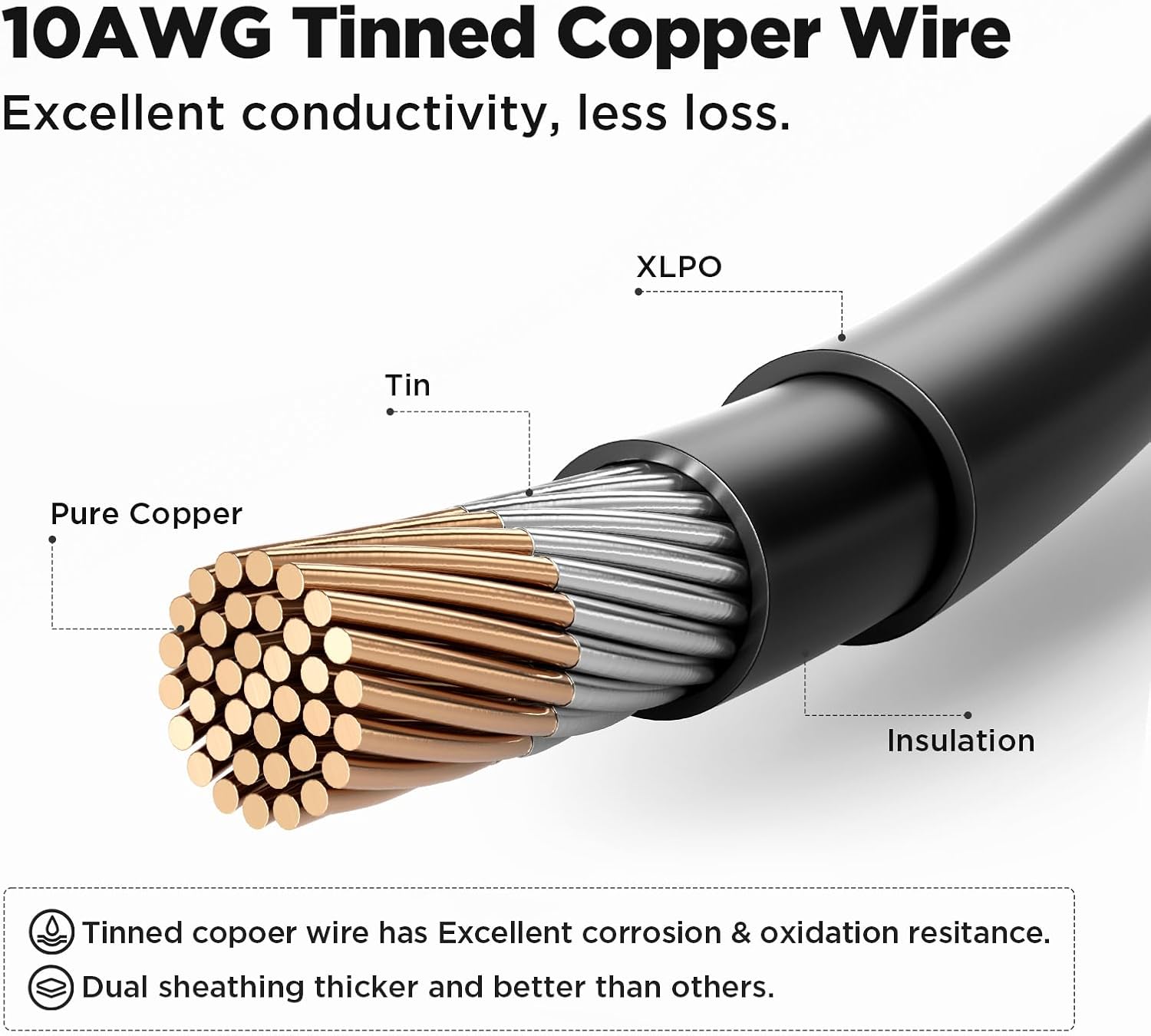

Excellent conductivity, less loss.

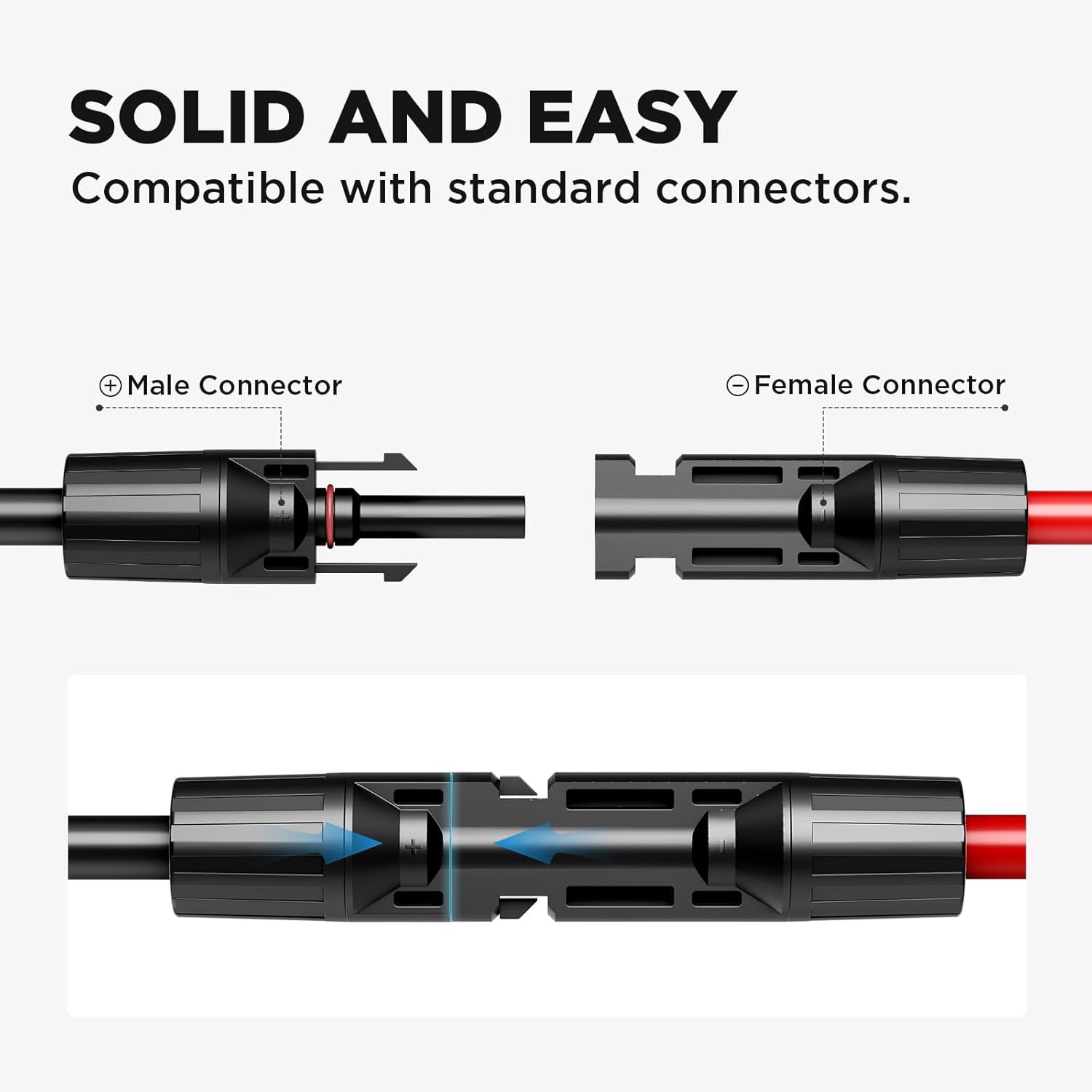

Compatible with standard connectors

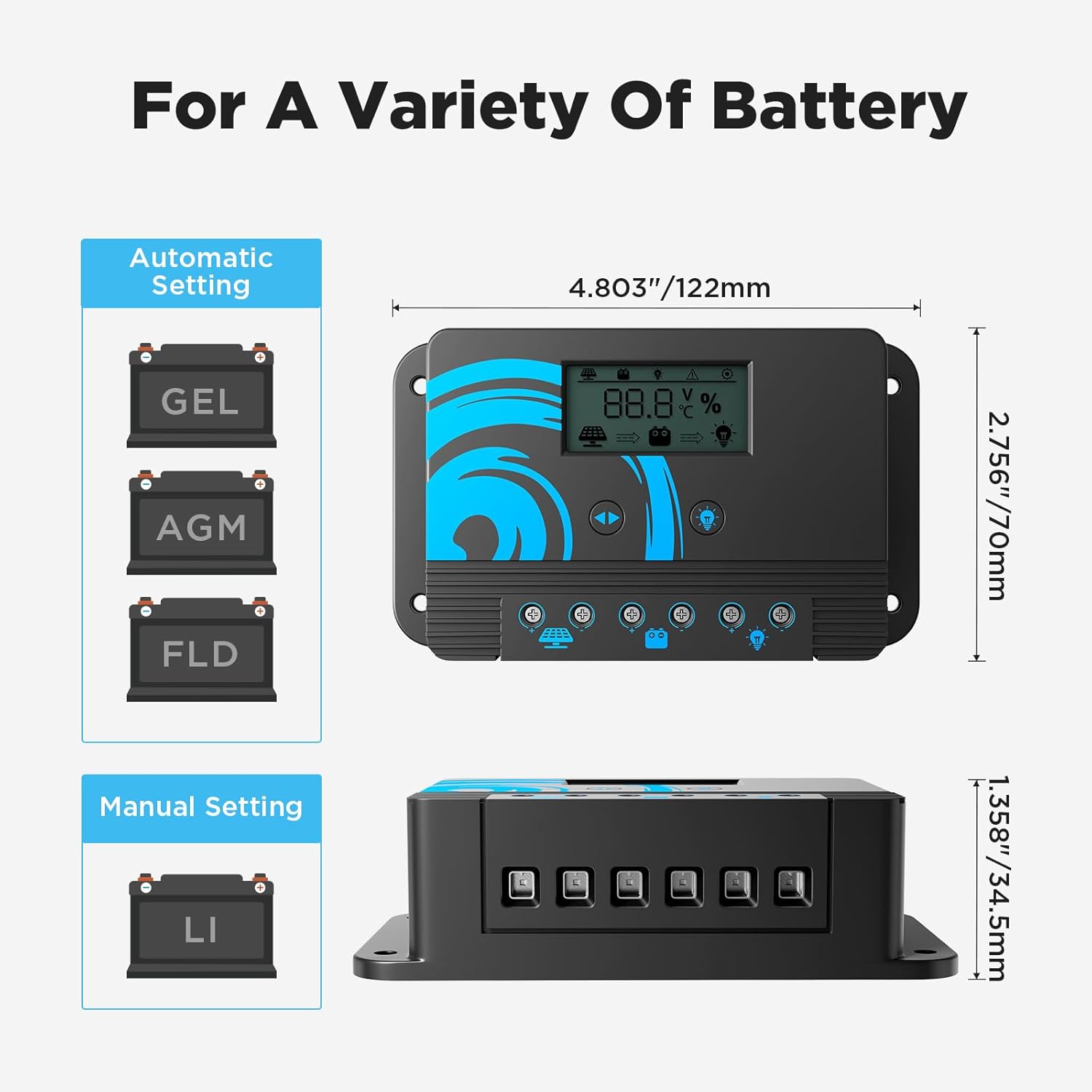

For A Variety Of Battery

Full Range Of Electrical Protection

Specifications

Key Specs at a Glance 200W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68

200W N-Type Anti-Shade Bifacial Solar Panel

Max Power at STC	200W
Cell Type	N-Type 16BB 182 Monocrystalline Silicon
Cell Efficiency	25%
Open Circuit Voltage (VOC)	27.31V
Short Circuit Current (ISC)	8.91A
Optimum Operating Current (IMP)	8.43A
Optimum Operating Voltage (VMP)	23.74V
Operating Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Dimensions	1304 × 770 × 35mm (51.34"L × 30.31"W × 1.38"H)
Weight	10.8kg(23.81 lb)

20A 12/24V PWM Solar Charge Controller

Battery System Voltage	12V/24V Auto (FLD/GEL/SEL) Manual (Li)
Rated Solar Charge Current	20A

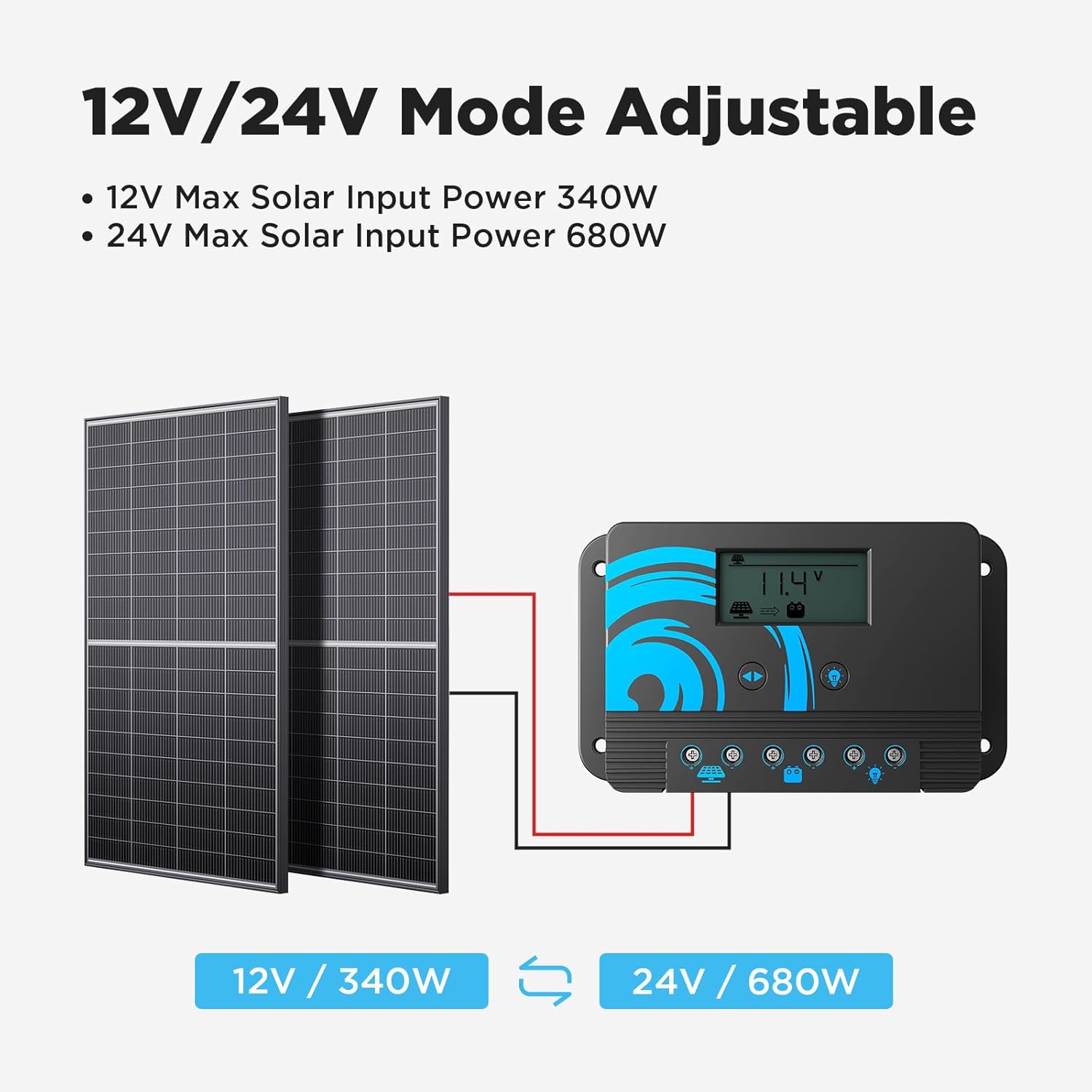

Max Solar Input Power	340W/12V; 680W/24V
Dimensions	1227034.5 mm
Weight	20.16V
Operating Temperature	-35ºC ~ +45ºC

20FT 10AWG Solar Panel Extension Cable

Cable Core Material	100% Pure Copper (Tinned)
American Wire Gauge	10AWG
Safe Operating Voltage	1000V
Safe Operating Current	30A
Operating Temperature Range	-40°F ~ 194°F (-40°C ~ 90°C)
Total Length	Approx. 20ft (6m)
Connector	Compatible with MC4, IP68

Includes

200W N-Type Anti-Shade Bifacial Solar Panel x 1

20A 12/24V PWM Solar Charge Controller x 1

20FT 10AWG Solar Panel Extension Cable x 1

Downloads & View

📄

200W N-Type Anti-Shade Bifacial Solar Panel User Manual

View Download

📄

20A 12/24V PWM Solar Charge Controller User Manual

View Download

📄

20FT 10AWG Solar Panel Extension Cable User Manual

View Download

FAQ

1. What makes the Callsun 200W N-Type Anti-Shade Bifacial Solar Panel more efficient than traditional panels?

The 200W N-Type Anti-Shade Bifacial Solar Panel uses advanced N-type 16BB solar cell technology with up to 25% conversion efficiency. Its bifacial design captures sunlight from both the front and rear sides, increasing total energy generation by up to 30% compared to conventional mono panels.
