100W N-Type Solar Panel
Key Features
• 25% conversion efficiency N-Type cells with 16BB tech for superior performance in heat and low light
• Compact 15% smaller footprint than standard panels to maximize power when roof space is limited

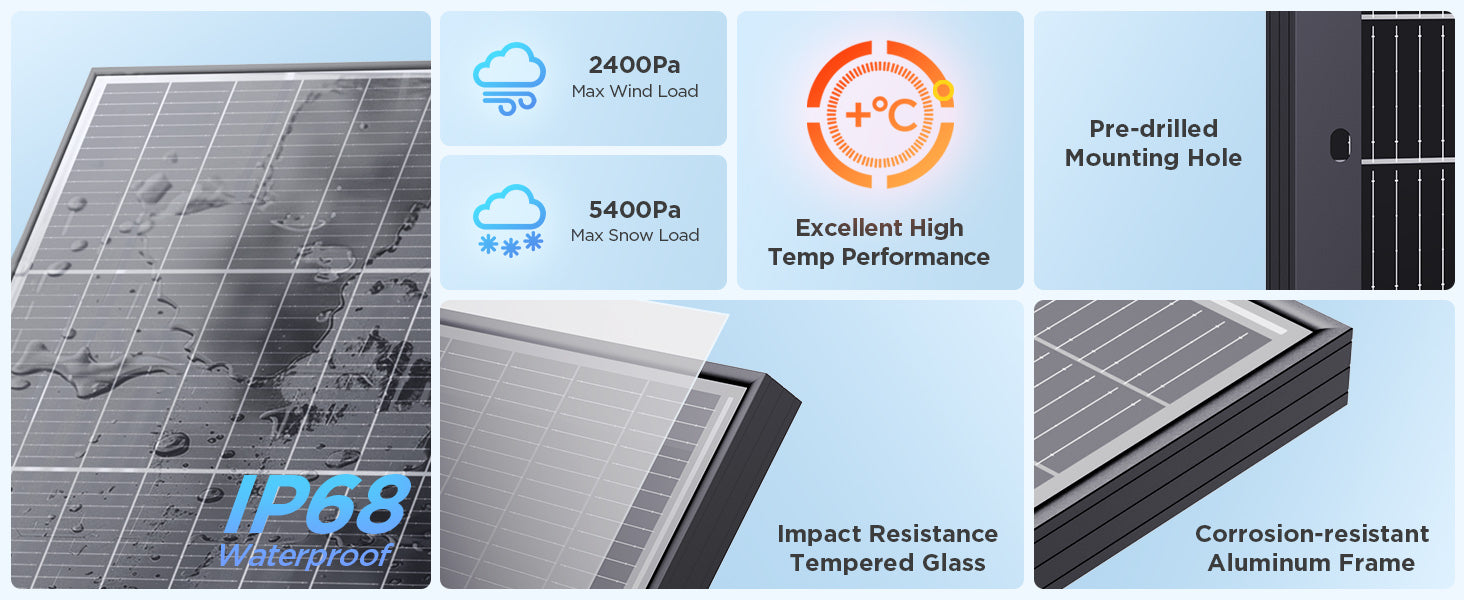

• IP68 waterproof rating, built to withstand rain, snow, dust, and heavy impact
• Rugged durability with 2400Pa wind load and 5400Pa snow load resistance
• Dimensions: 22.8 * 31.1 * 1.2 inch; designed with pre-drilled holes for easy installation
100W N-Type Solar Panel - 1 Piece is backordered and will ship as soon as it is back in stock.
Delivery time: 3-8 business days.
30-Day Return and Refund Service
Warranty Coverage
Free Shipping100 Watt N-Type 16BB Solar Panel
The Callsun 100W N-Type Solar Panel delivers up to 25% efficiency with advanced N-type cells and 16BB design. Compact, durable, IP68 waterproof—ideal for RV, off-grid, and mobile solar systems.

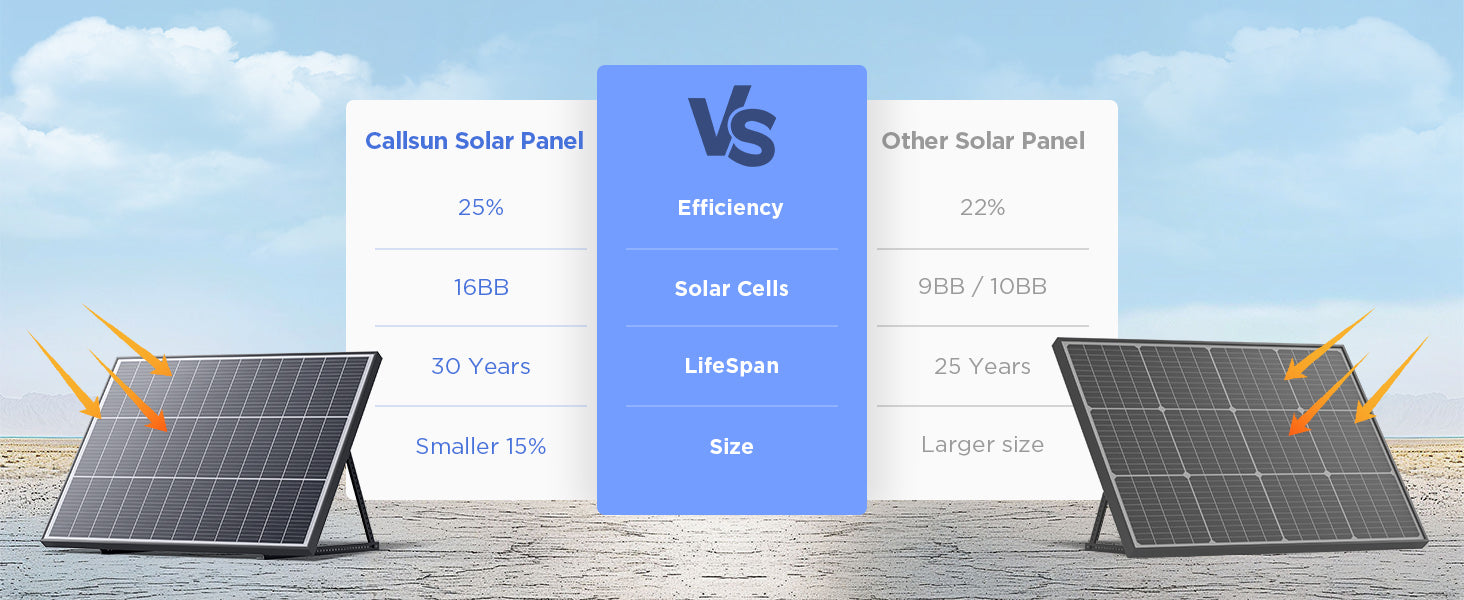

Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |

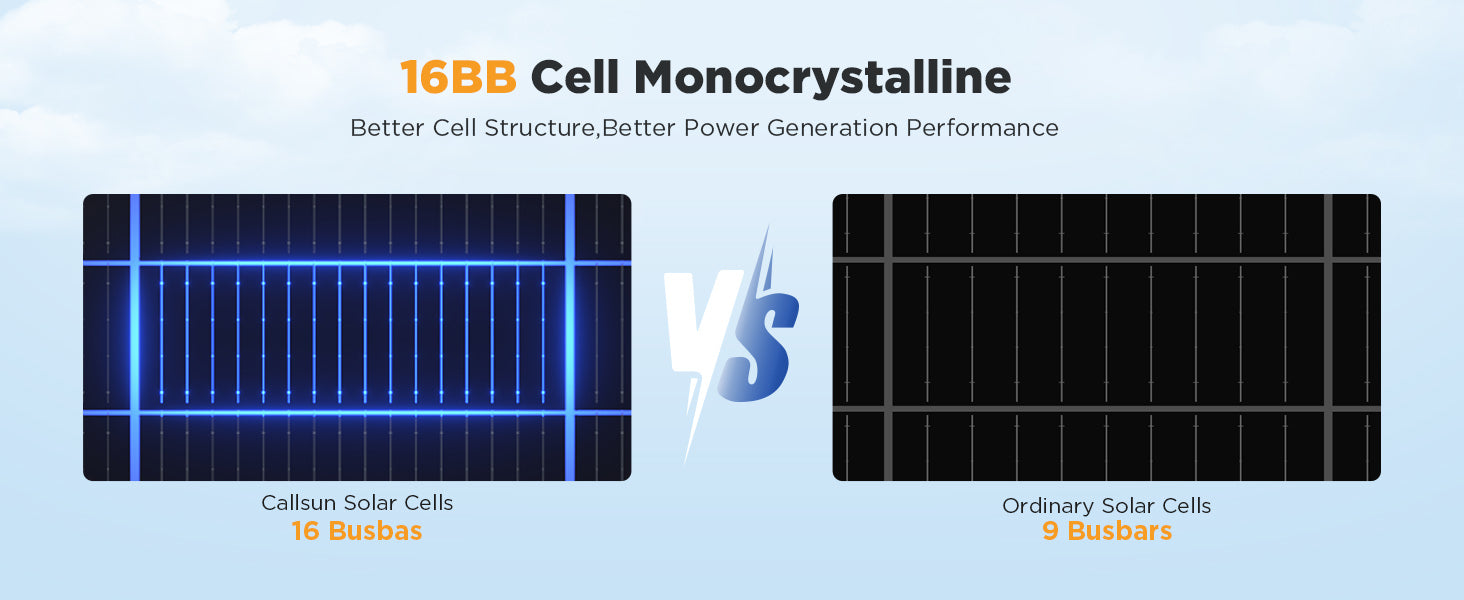

| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 15% | Larger size |
Specifications
Key Specs at a Glance 100W output · N-Type · 25% efficiency · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 100W |
|---|---|
| Maximum Power Voltage (Vmp) | 22.68V |
| Maximum Power Current (Imp) | 4.41A |
| Open-circuit Voltage (Voc) | 26.02V |
| Short-circuit Current (Isc) | 4.63A |
| Cell Type | Monocrystalline Silicon, N-Type |
| Efficiency | 25% |
| Power Tolerance | 0 ~ 5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 15A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |

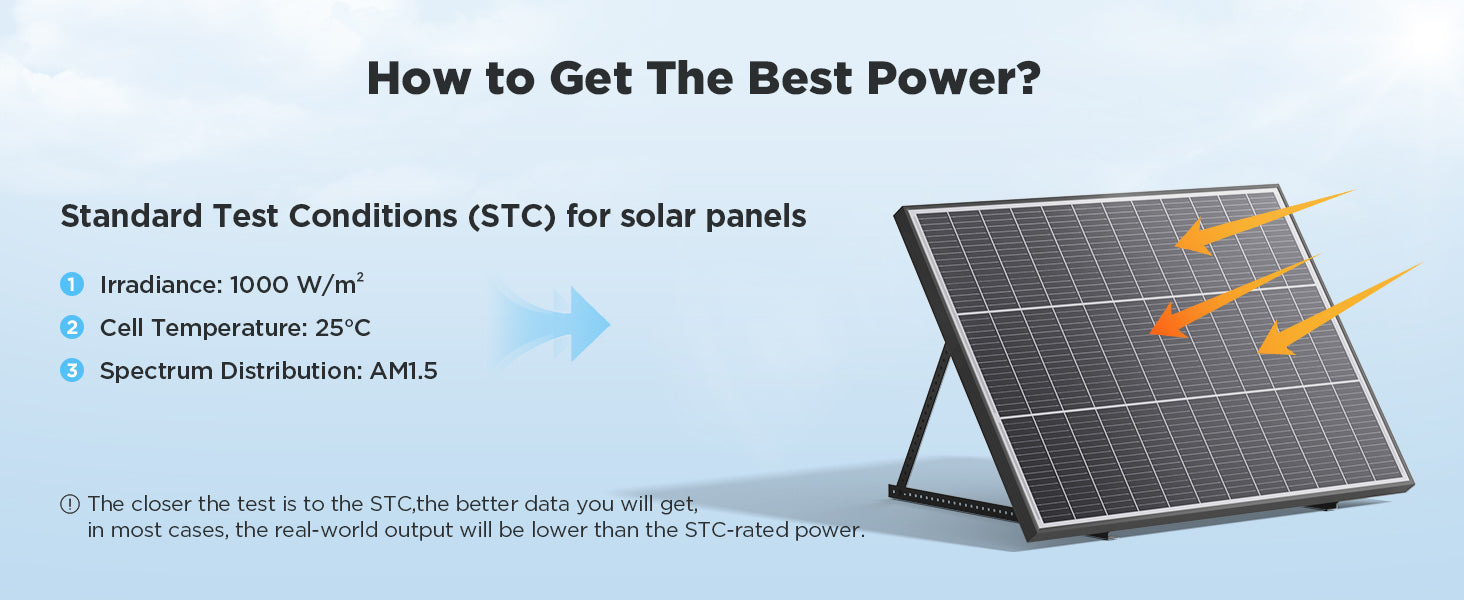

*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Mechanical Parameters
| Dimension | 578 × 790 × 30 ±5 mm(22.8 × 31.1 × 1.2 ±0.1 in) |
|---|---|
| Weight | 5.2 ± 0.2kg (11.5 ± 0.5 lb) |
| Cell Arrangement | 36pcs (3 × 12) |

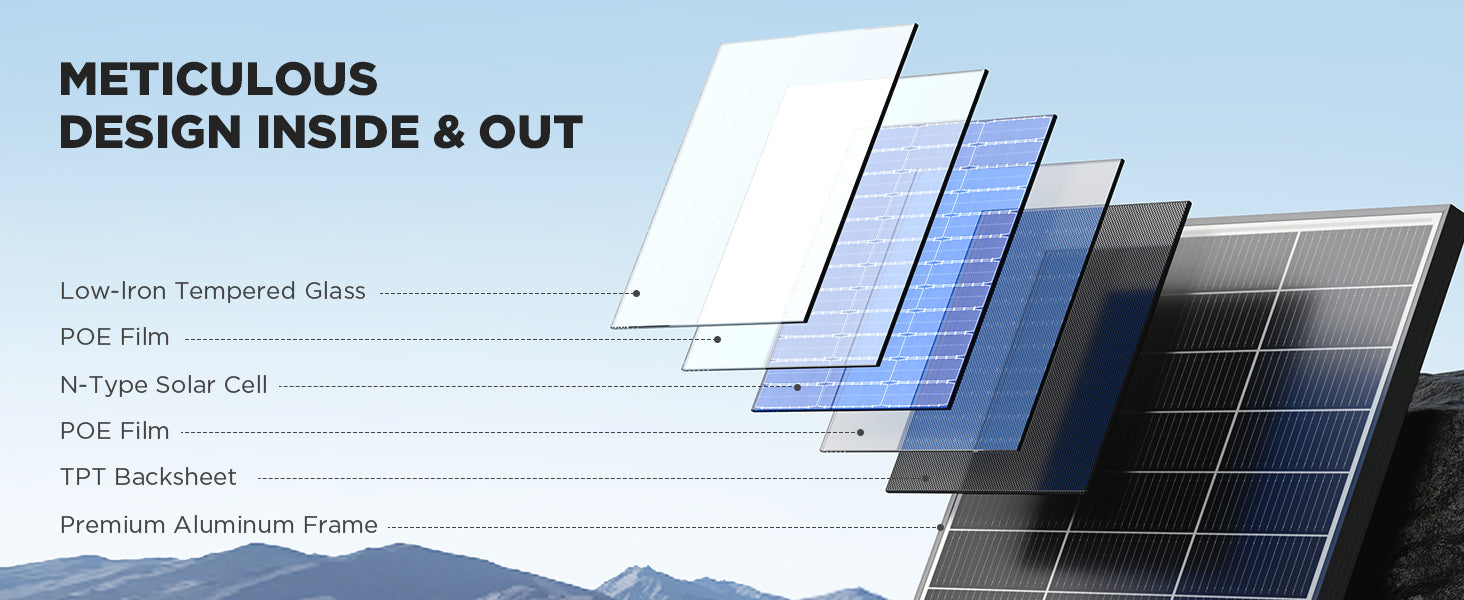

| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients

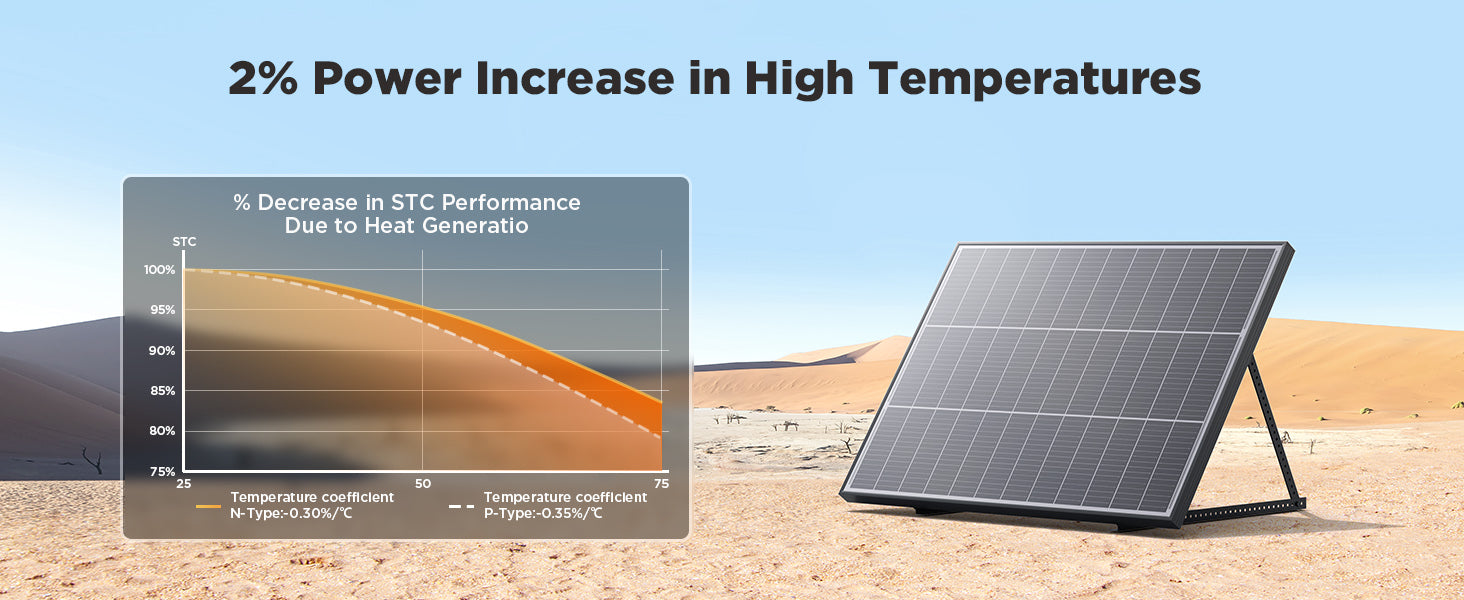

| Temperature Coefficients of Pmax | -0.3%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
Downloads & View
User Manual
FAQ
1. Why is the actual output sometimes lower than 100W?
The 100W rating is measured under Standard Test Conditions (STC): ideal sunlight and temperature. In real use, sun angle, heat, shading, wiring loss, and device efficiency affect output. So power below 100W is normal and does not indicate a defect.
2. Is this panel compatible with my 12V system?
Yes. It is suitable for 12V systems when used with a compatible charge controller. Please confirm your controller’s input specifications before purchasing.
3. What does “12V” mean in the product title?
“12V” means the panel is designed for use in a 12V system with a charge controller. It does not refer to the panel’s actual output voltage.
4. Can this panel directly power devices or charge batteries?
No. This panel must be used with a compatible charge controller or solar generator to regulate power before charging batteries or powering devices.
5. Does it come with mounting hardware?
No. Mounting hardware is not included. The panel is compatible with standard solar mounting systems.
