50W 12V Solar Panel Kit
Description
Description
- High Efficiency & Durability | N-type solar cells with 16BB technology ensure maximum power output and long-term reliability, providing consistent energy performance.
- Easy Installation | Pre-drilled holes, pre-installed connectors, and user-friendly Z brackets make setup quick and hassle-free, ideal for DIY or beginner-friendly installations.
- Versatile Compatibility | Perfect for RVs, boats, rooftops, and off-grid systems, this solar kit adapts to various solar energy needs with flexible applications.

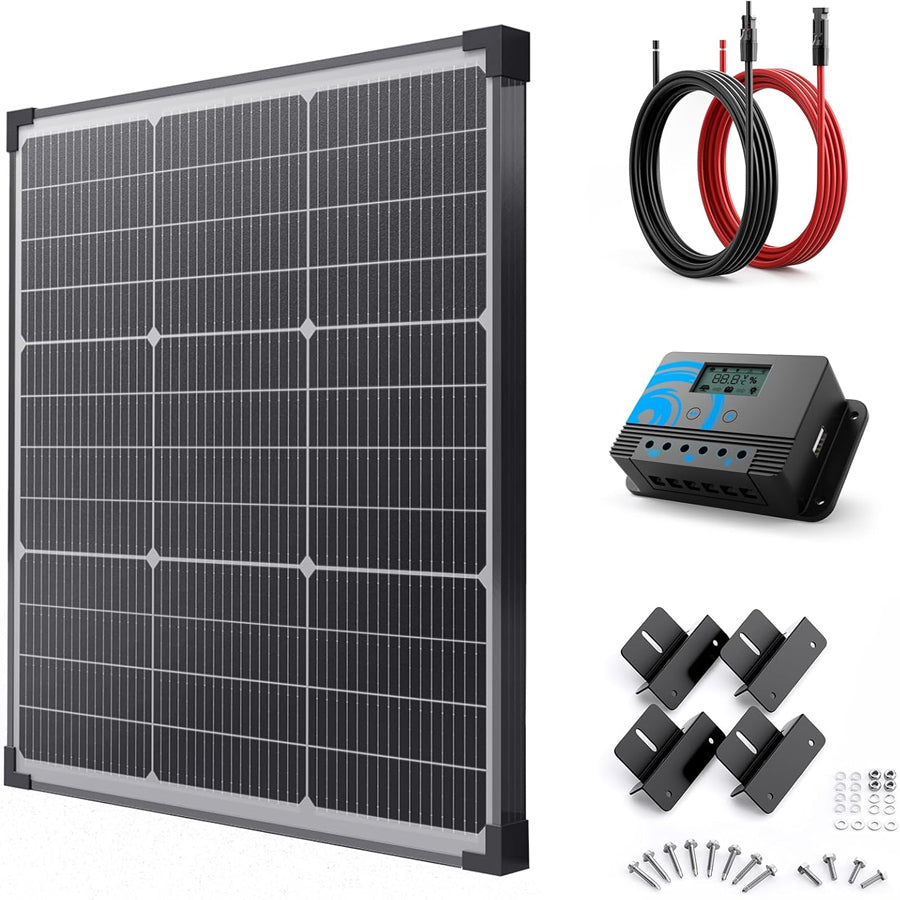

- Complete Package | Includes a high-efficiency solar panel, durable extension cable, reliable charge controller, and sturdy Z brackets—saving you time and effort with all-in-one convenience.
- Smart Energy Management | The 20A charge controller with LCD display and USB ports provides precise control, efficient power management, and convenient device charging options.
50W 12V Solar Panel Kit is backordered and will ship as soon as it is back in stock.
50W 12V Solar Panel Kit
50W 12V Solar Panel Kit is backordered and will ship as soon as it is back in stock.
50W 12V Solar Panel Kit
Elevate your off-grid energy setup with this 50W high-efficiency N-type solar kit. Featuring advanced 16BB technology, durable Z brackets, and a complete package including a solar panel, charge controller, and extension cable, this kit ensures reliable power for RVs, boats, rooftops, and remote applications. Quick and hassle-free installation makes sustainable energy simple for every user.

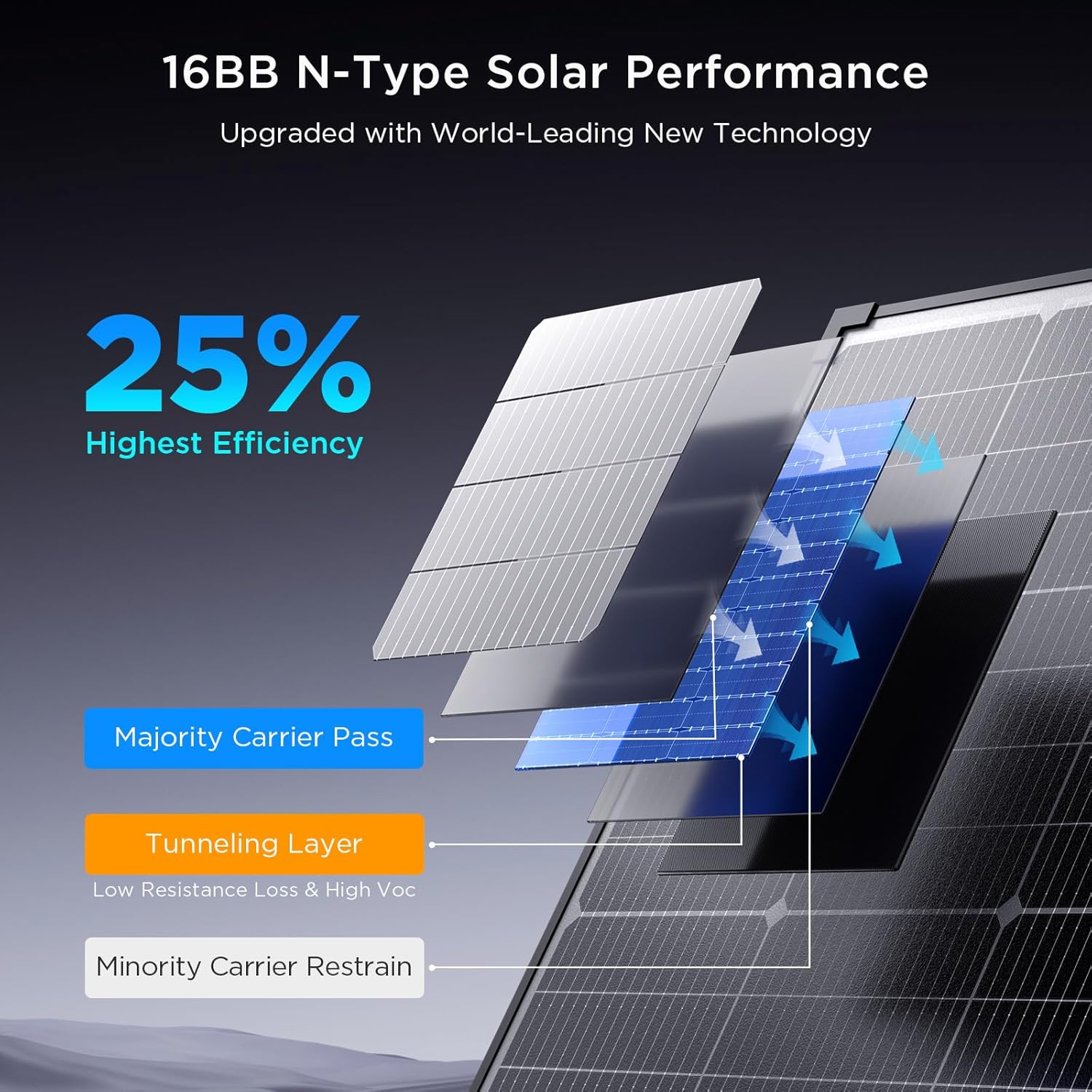

25% Highest Efficiency

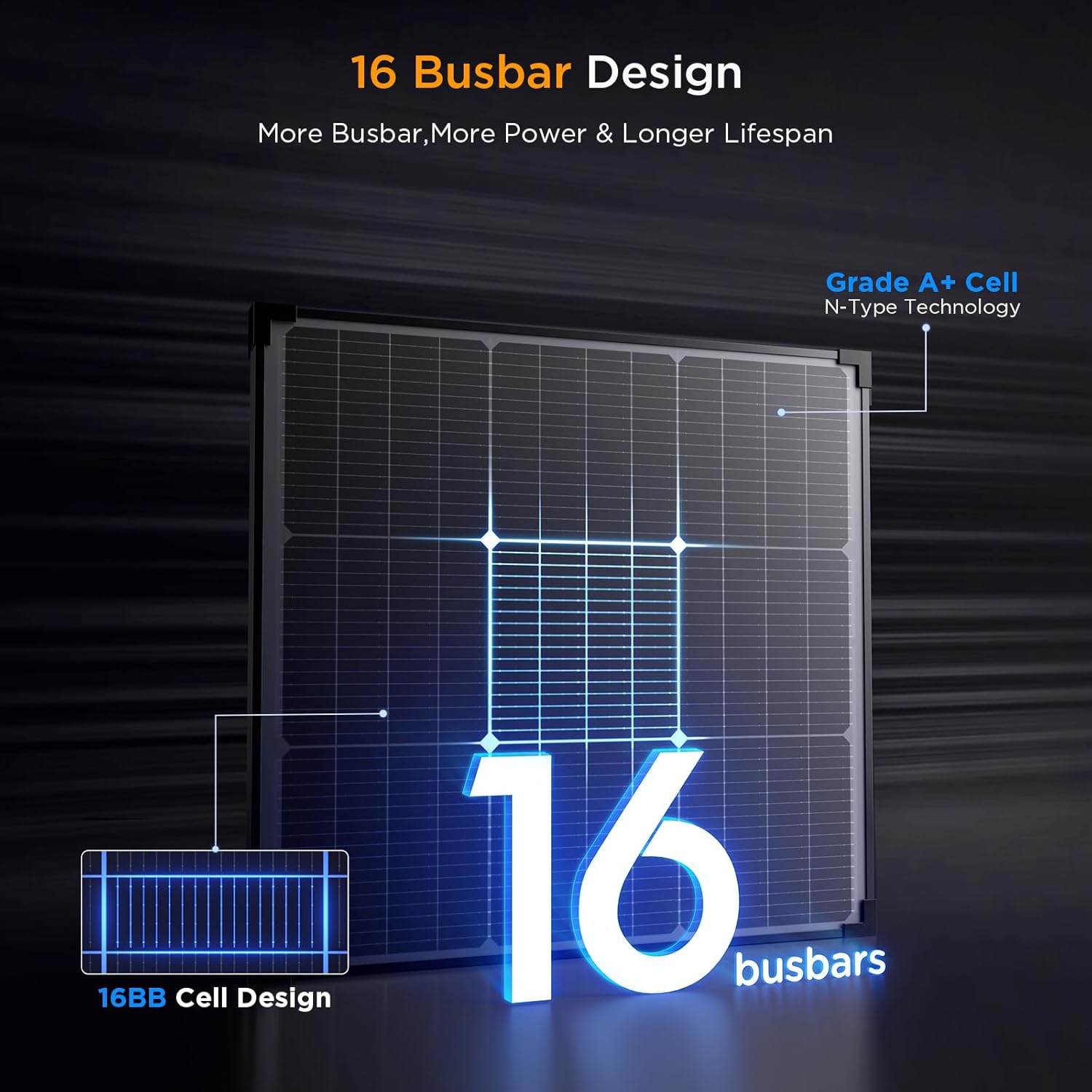

16 Busbar Design

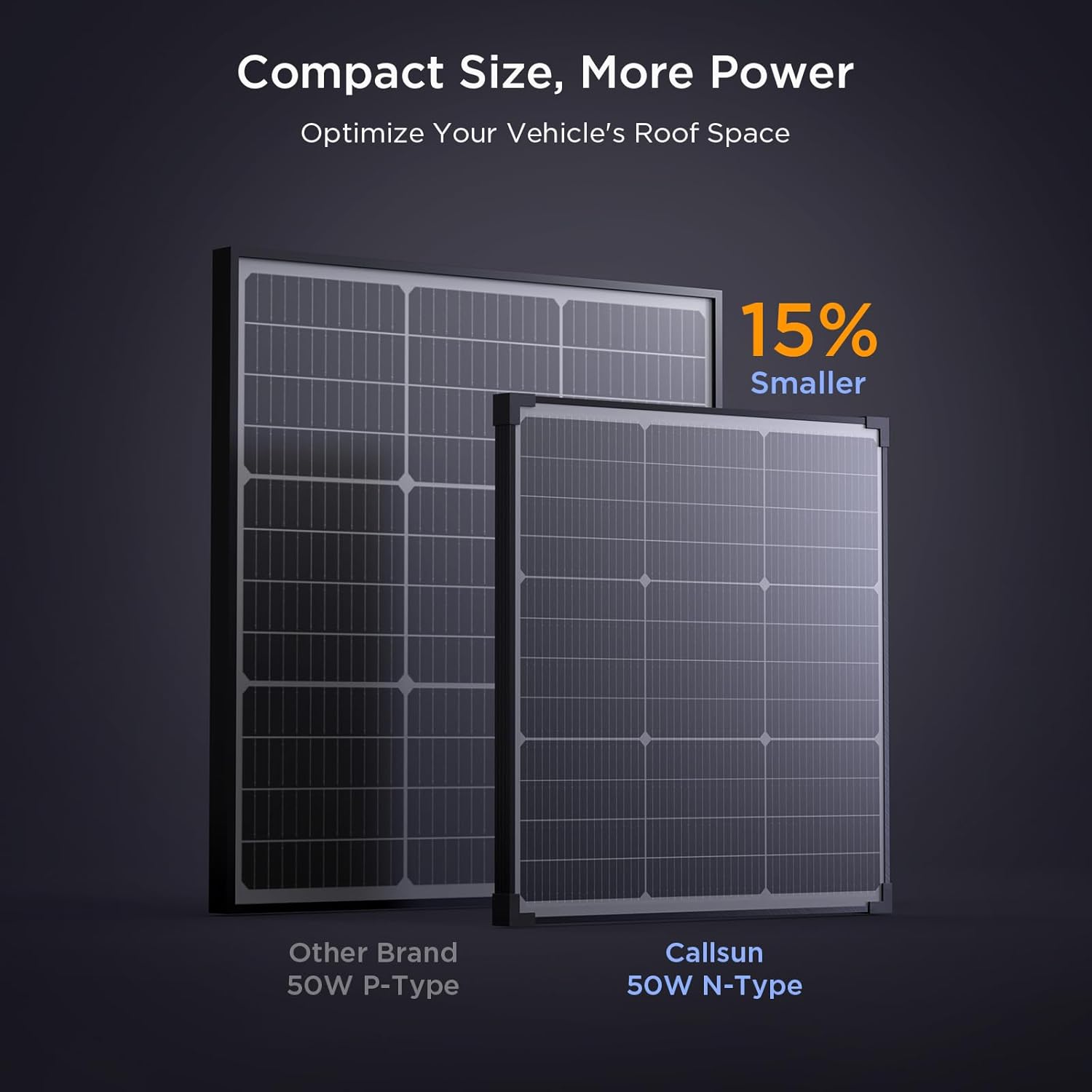

Compact Size, More Power

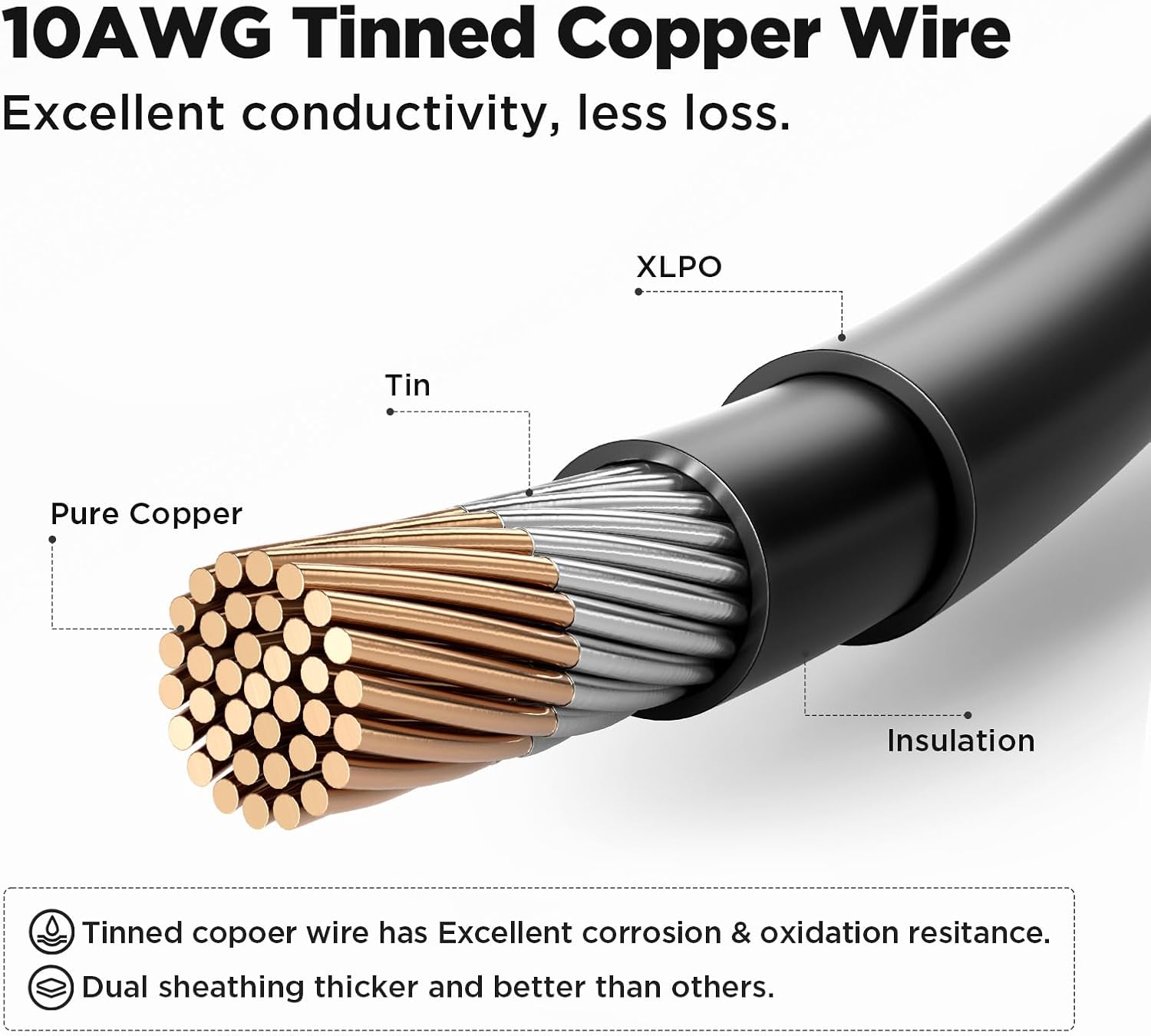

Excellent conductivity, less loss.

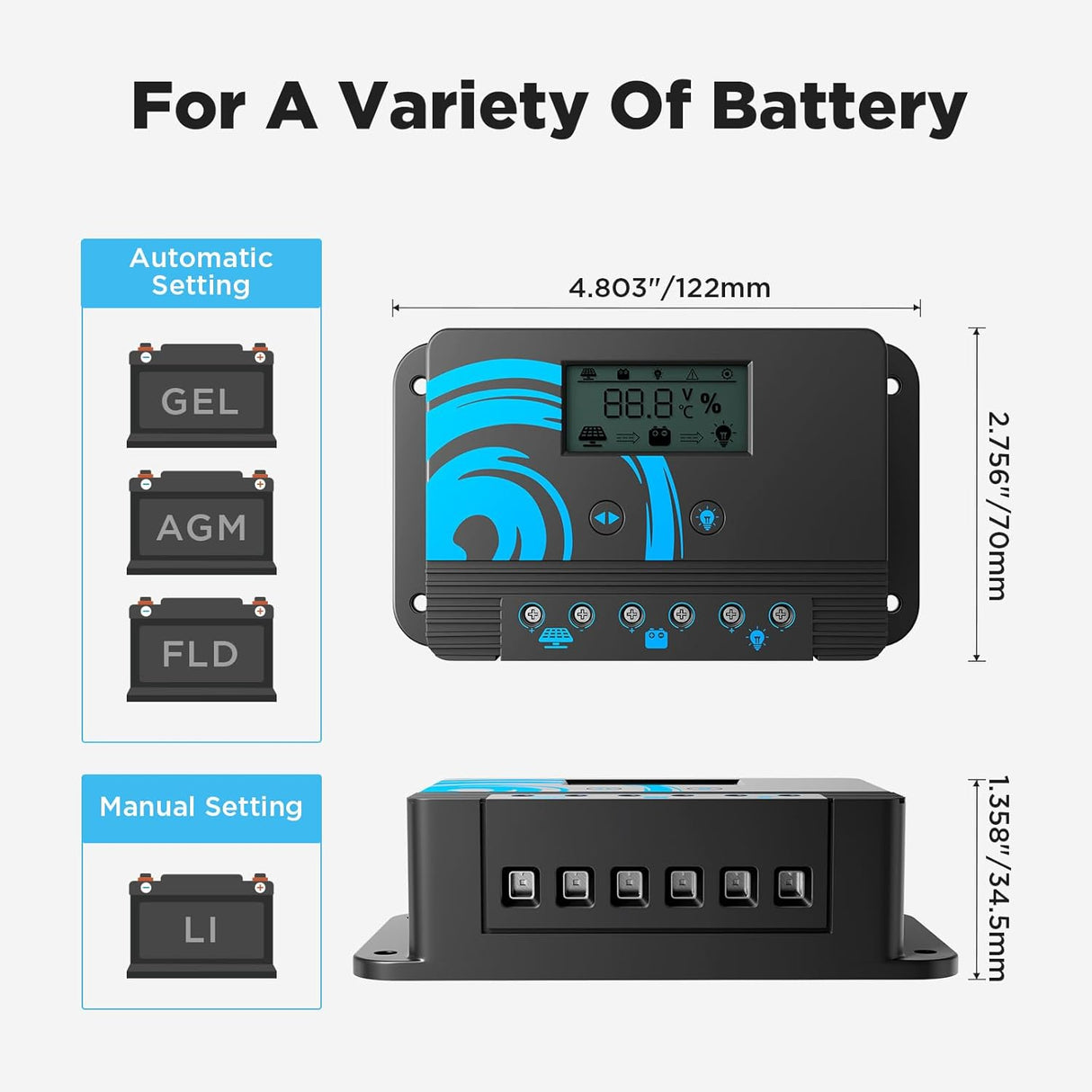

For A Variety Of Battery

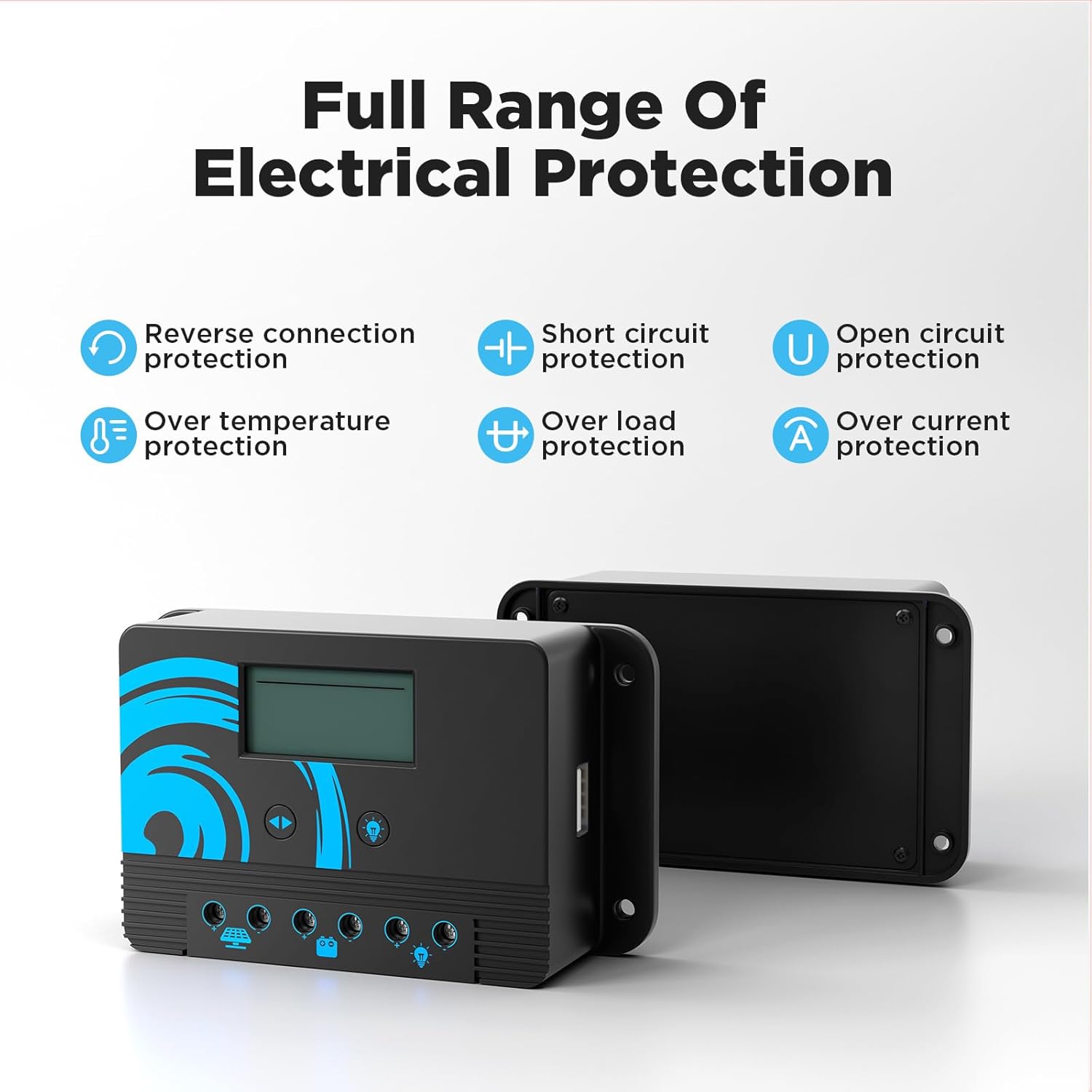

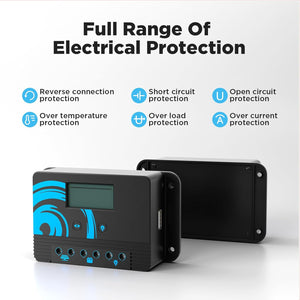

Full Range Of Electrical Protection

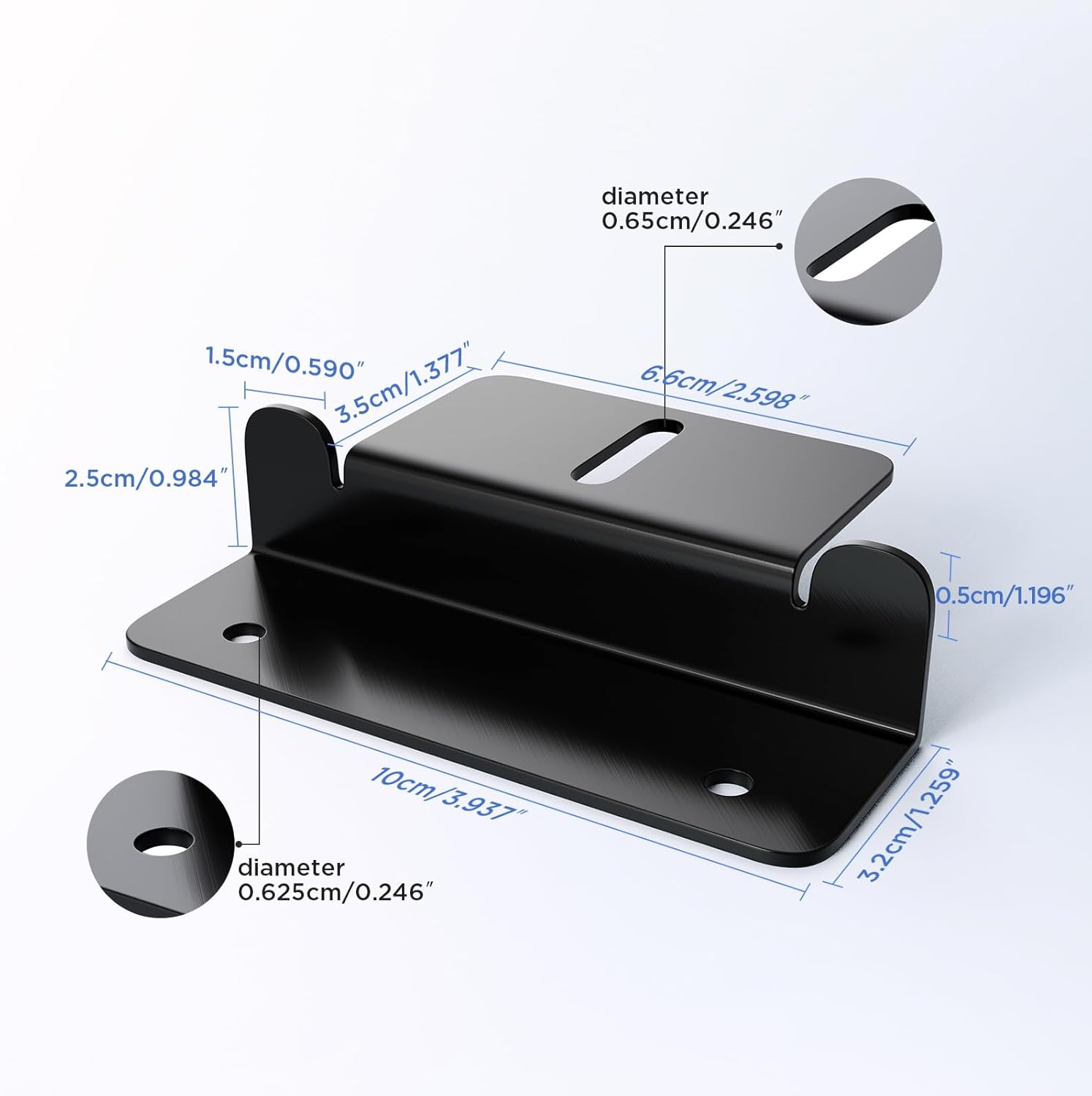

User-friendly Z Brackets
Specifications
Key Specs at a Glance 50W output · N-Type · 25% efficiency · 16BB · IP67
50W N-Type Solar Panel
| Max Power at STC | 50W |
|---|---|
| Cell Type | N-Type 16BB 182 Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Open Circuit Voltage (VOC) | 23.51V |
| Short Circuit Current (ISC) | 2.64A |
| Optimum Operating Current (IMP) | 2.51A |
| Optimum Operating Voltage (VMP) | 20.16V |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Dimensions | 578 × 608 × 30mm (22.8"W × 23.91"L × 1.18"H) |
| Weight | 4.1 kg (9 lb) |
20A 12/24V PWM Solar Charge Controller
| Battery System Voltage | 12V/24V Auto (FLD/GEL/SEL) Manual (Li) |
|---|---|
| Rated Solar Charge Current | 20A |
| Max Solar Input Power | 340W/12V; 680W/24V |
| Dimensions | 122*70*34.5 mm |
| Weight | 20.16V |
| Operating Temperature | -35ºC ~ +45ºC |
20FT 10AWG Solar Panel Extension Cable
| Cable Core Material | 100% Pure Copper (Tinned) |
|---|---|
| American Wire Gauge | 10AWG |
| Safe Operating Voltage | 1000V |
| Safe Operating Current | 30A |
| Operating Temperature Range | -40°F ~ 194°F (-40°C ~ 90°C) |
| Total Length | Approx. 20ft (6m) |
| Connector | Compatible with MC4, IP68 |
Includes
Downloads & View
50W N-Type Solar Panel User Manual
20A 12/24V PWM Solar Charge Controller User Manual
20FT 10AWG Solar Panel Extension Cable User Manual
FAQ
1. What type of solar cells does this kit use?
This kit uses high-efficiency N-type solar cells with 16 busbar (16BB) technology to ensure maximum power output and long-term reliability.
