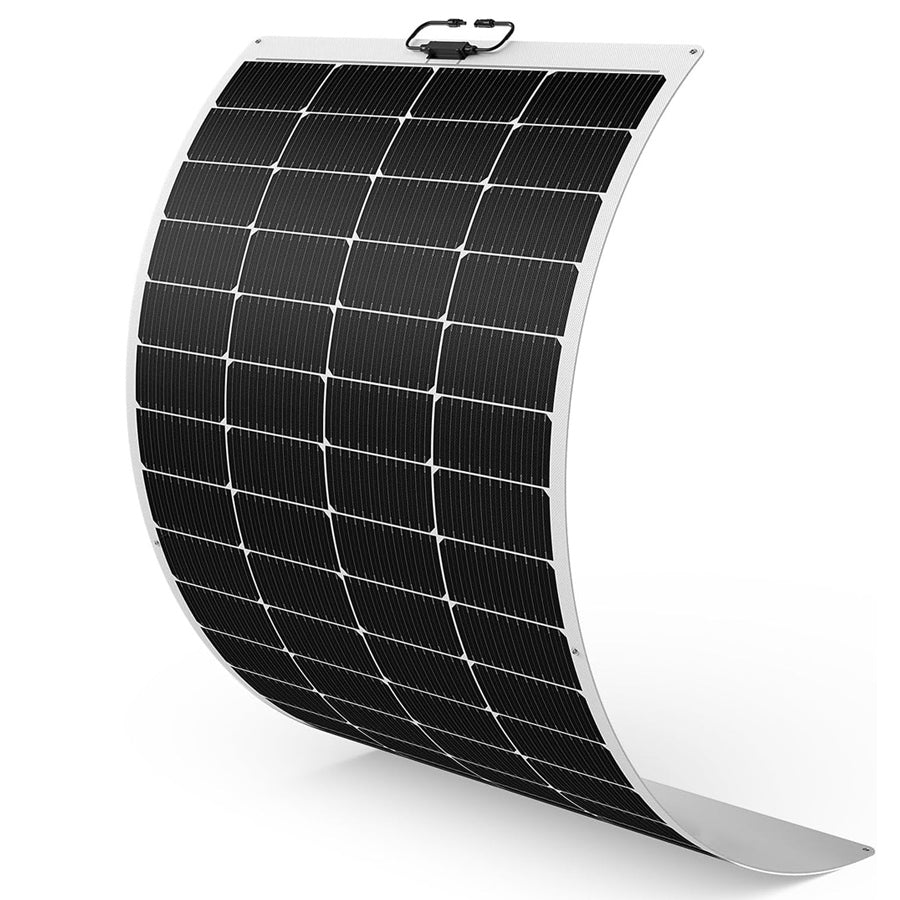

200W Flexible Solar Panel

Name: 200W Flexible Solar Panel
Brand: Callsun
SKU: CS200W-FW1V2-US
Price: 189.99 USD
Availability: InStock

SKU: CS200W-FW1V2-US

$189.99 USD

Shipping calculated at checkout.

🚚 Free Shipping from USA: Shipping Policy

Description

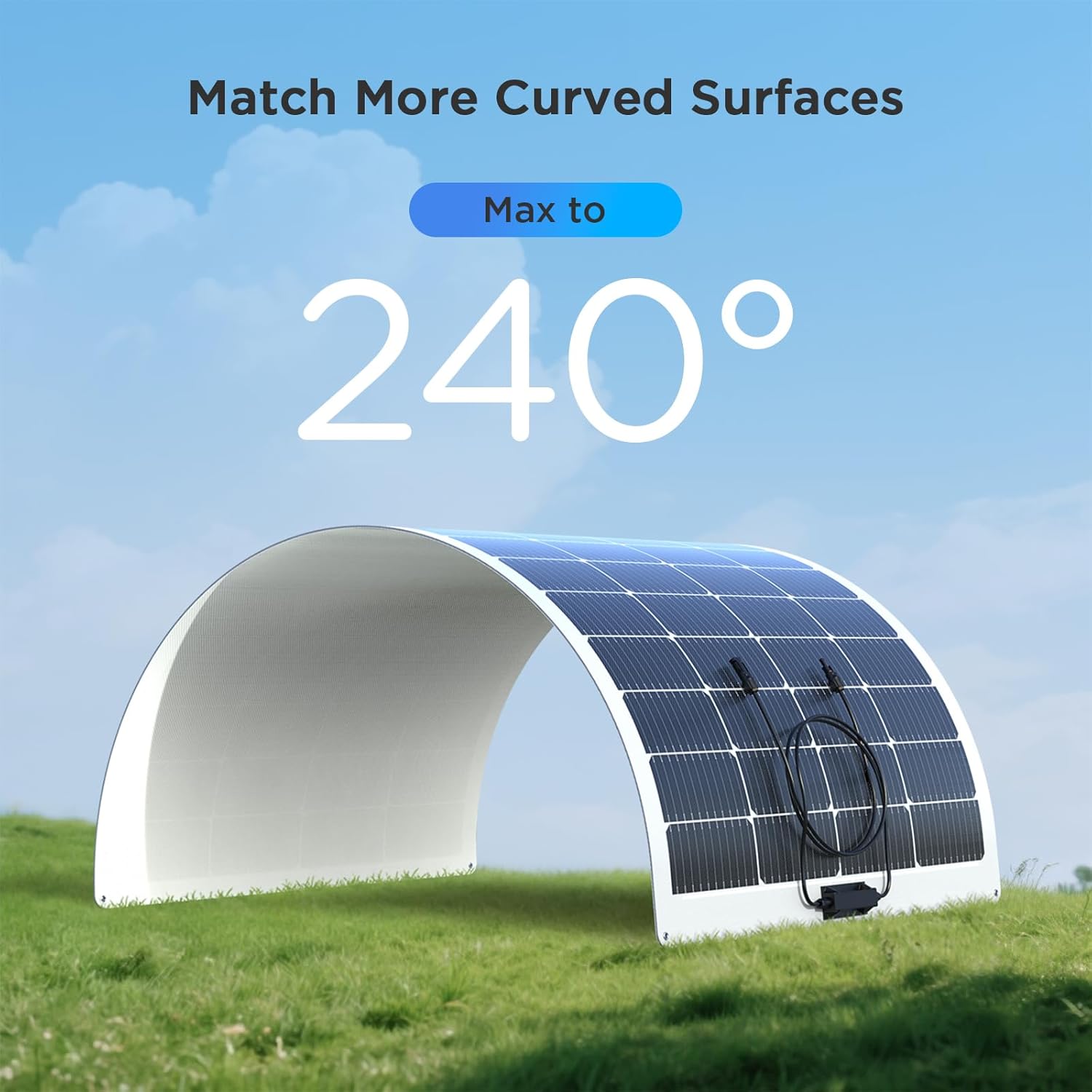

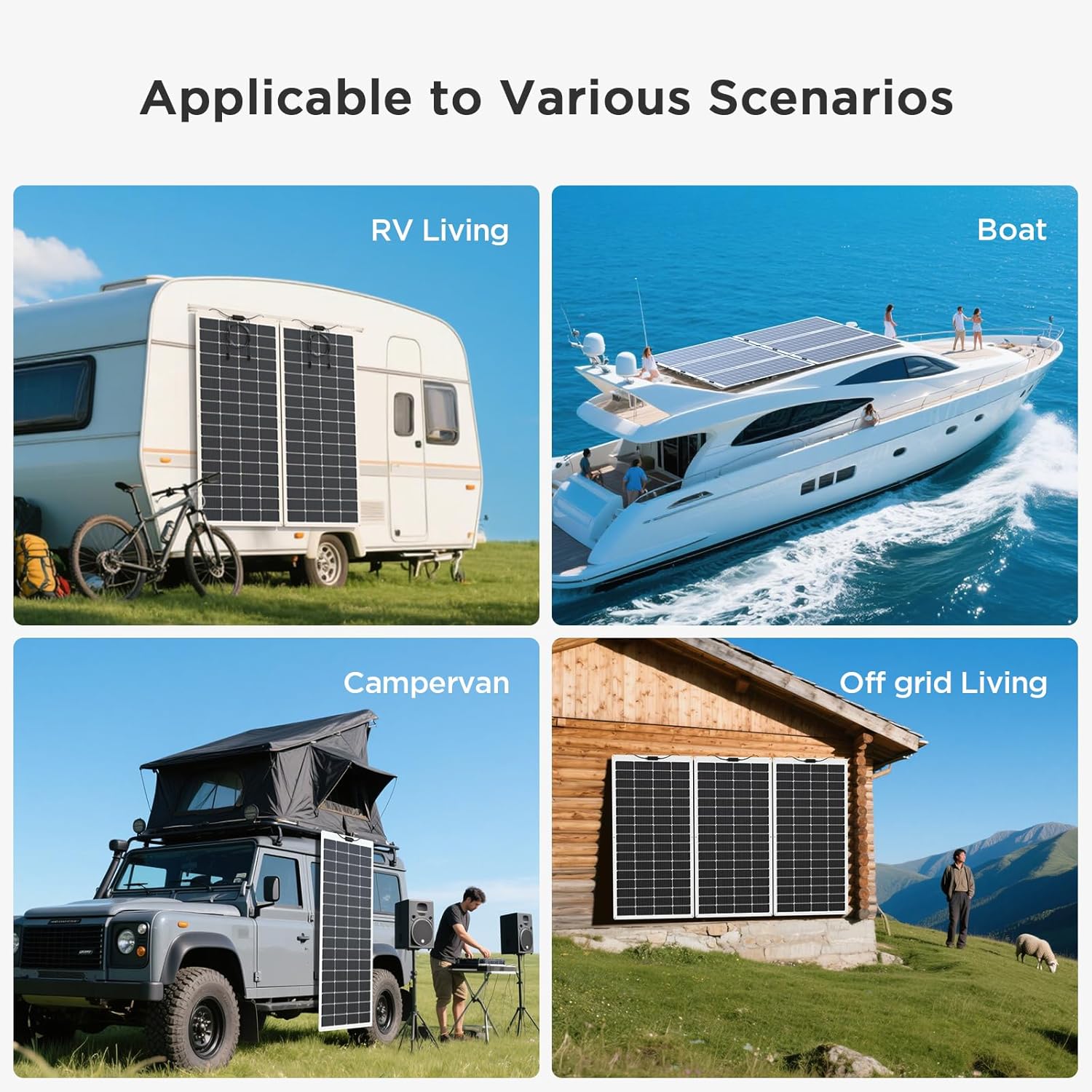

High-Power Flexibility for Motorhomes | Fits large curved surfaces with 240° flexibility. Ultra-lightweight (50% lighter than rigid panels) for sleek, aerodynamic installation on Motorhomes, Travel Trailers, and vans.

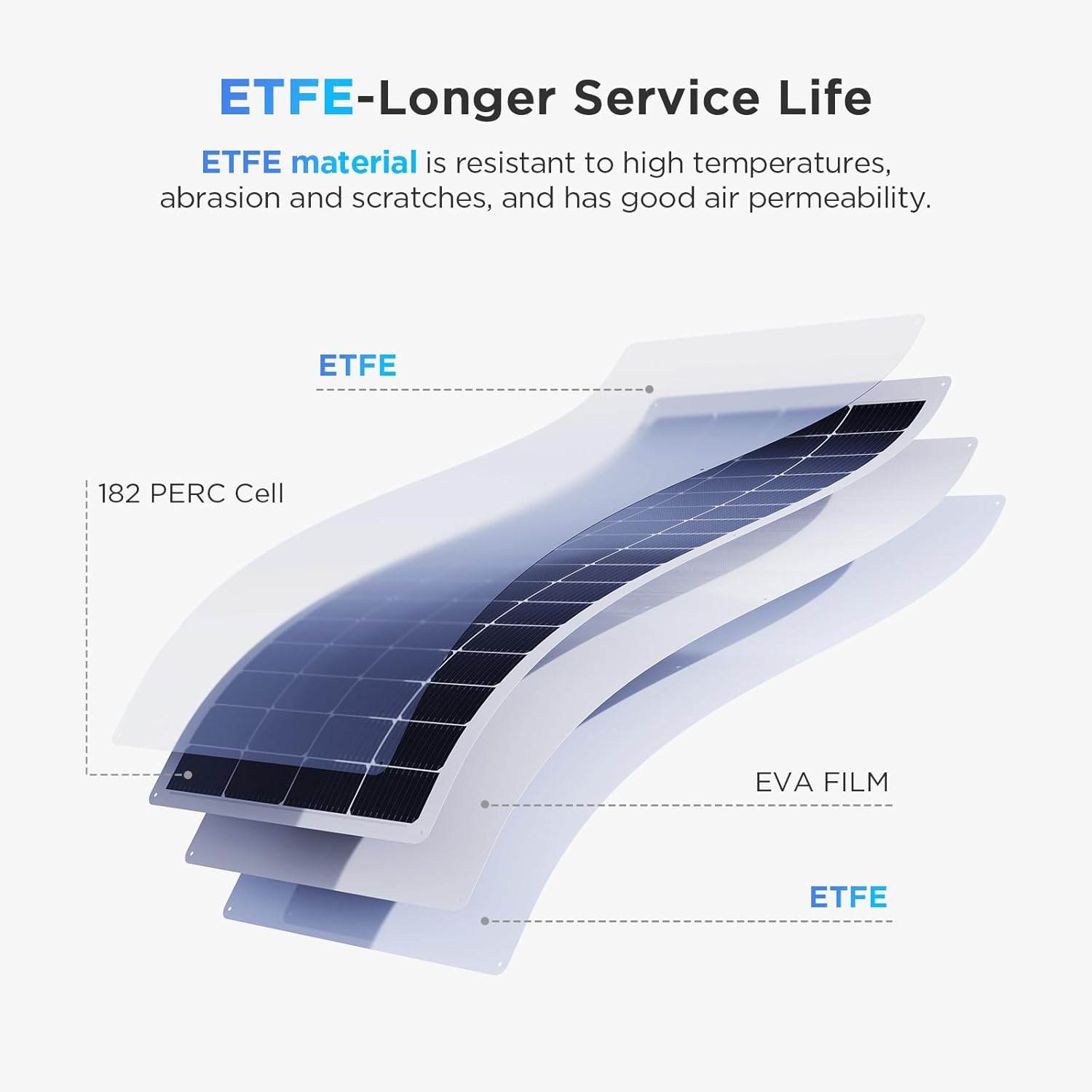

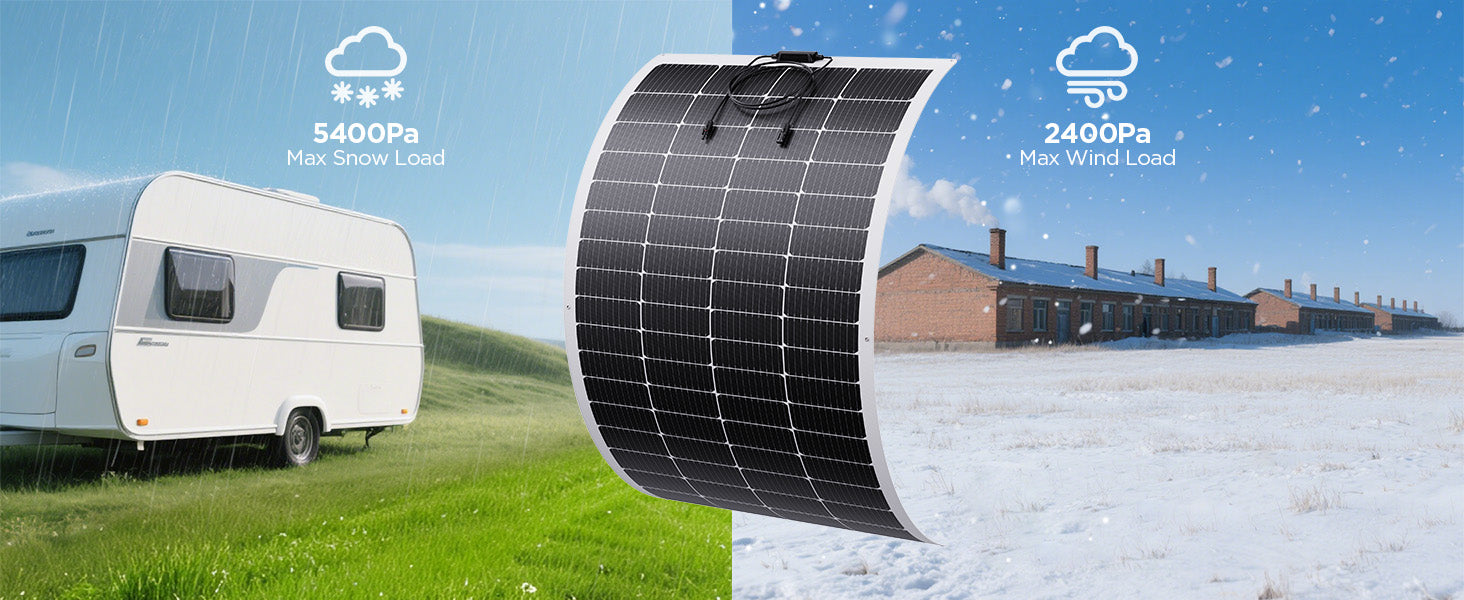

Marine-Grade Resilience at Sea | Premium ETFE coating resists salt-mist, corrosion, UV-yellowing, and harsh winds. Ideal for Sailboat decks, masts, and marine vessels.

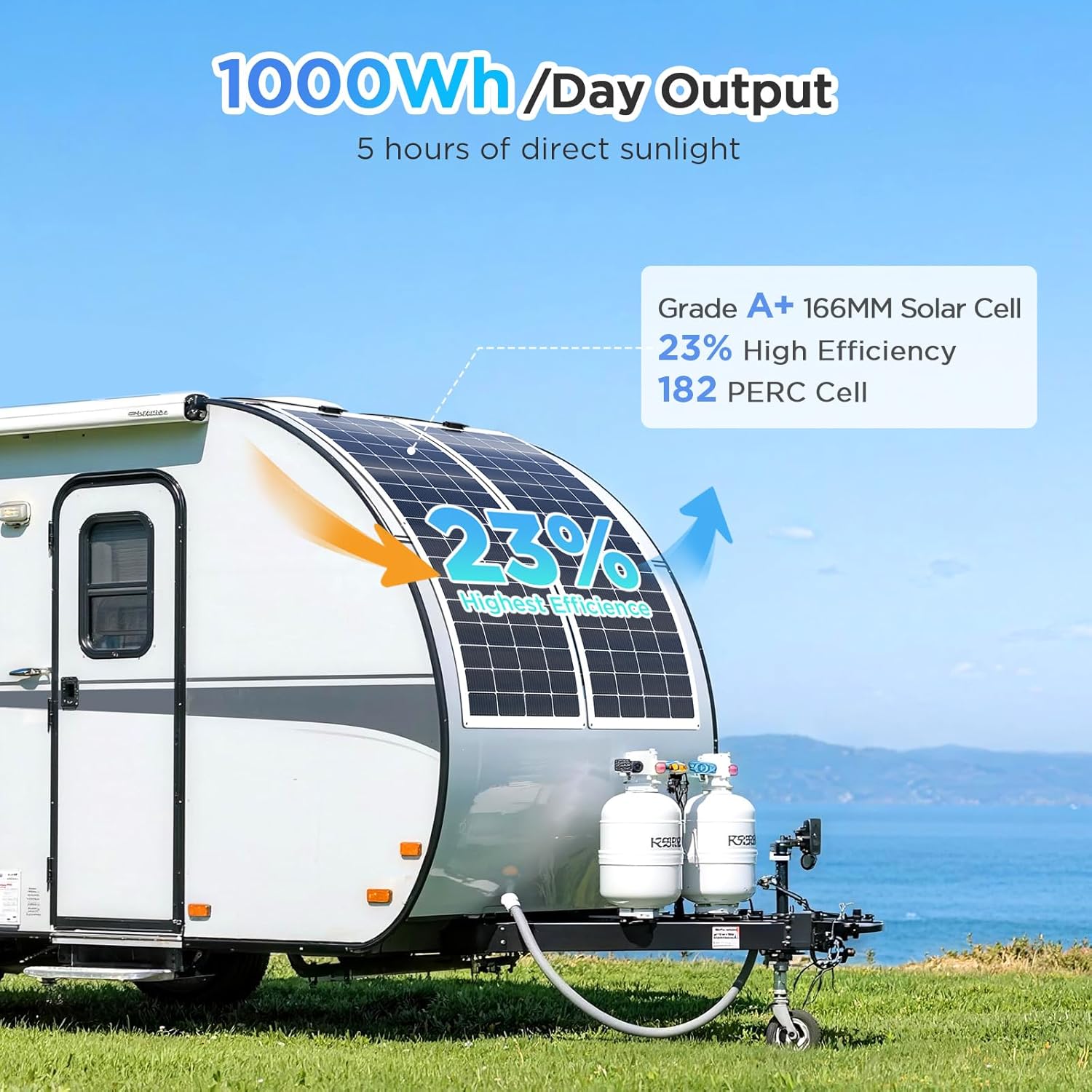

Reliable Off-Grid Power | High 200W output drives energy-hungry appliances like portable fridges, freezers, and ice makers, perfect for overlanding or camping trips.
Universal Storage Compatibility | Standard connectors enable quick, plug-and-play setup for vehicles, rigs, or off-road setups.
Stealthy 0.1" Low Profile | Ultra-thin design installs nearly flush on roofs or Utility Trailers, minimizing wind noise while powering shed LED lights or Rooftop Tents (RTT).
Reliable & 5-Year Warranty | Grade A+ monocrystalline cells (23% efficiency) with IP68 waterproof junction box. Includes user manual, 1x Callsun 200W Flexible Solar Panel, 5-year warranty, and professional support.

Pack Option

1 Piece 2 Piece

Description Specs Includes Downloads FAQ Reviews

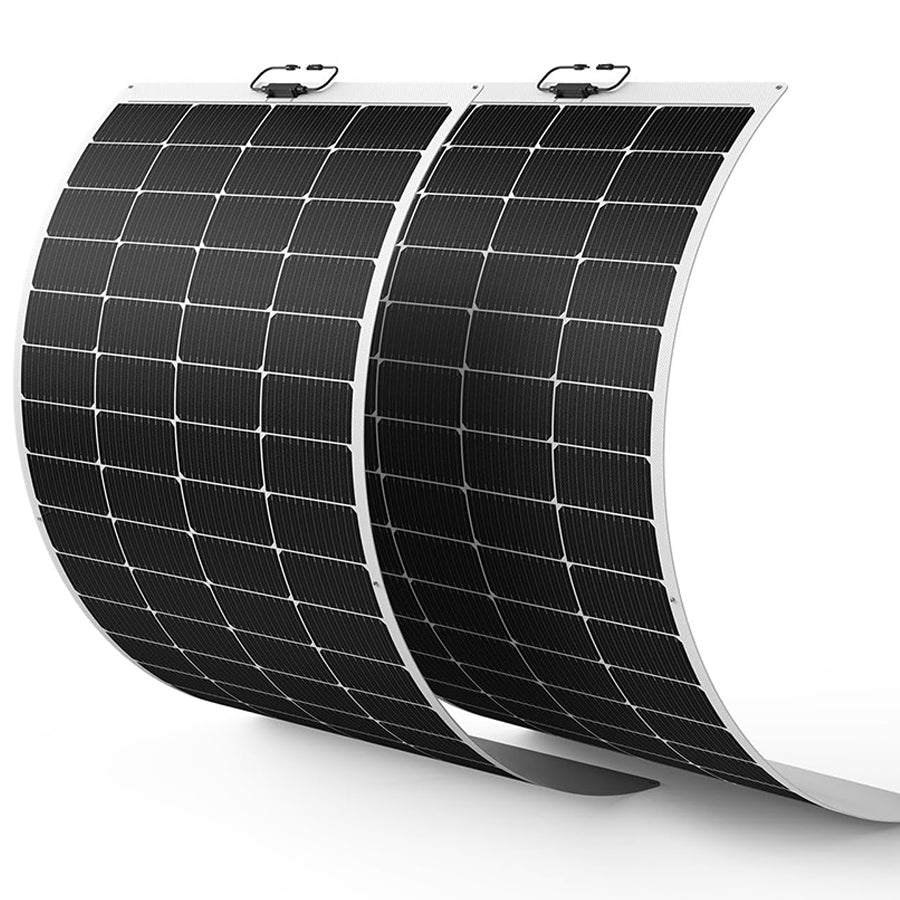

200W Flexible Solar Panel

Experience versatile, high-performance solar power with the Callsun 200W Flexible Solar Panel. Ultra-light and 240° bendable, it perfectly fits curved RV, van, or boat roofs. Marine-grade ETFE coating ensures durability against UV, salt, and harsh weather, while 23% high-efficiency cells deliver reliable off-grid energy for fridges, LED lights, and rooftop tents. Sleek 0.1" low-profile design and universal connectors make installation fast and hassle-free. Backed by a 5-year warranty for worry-free adventures.

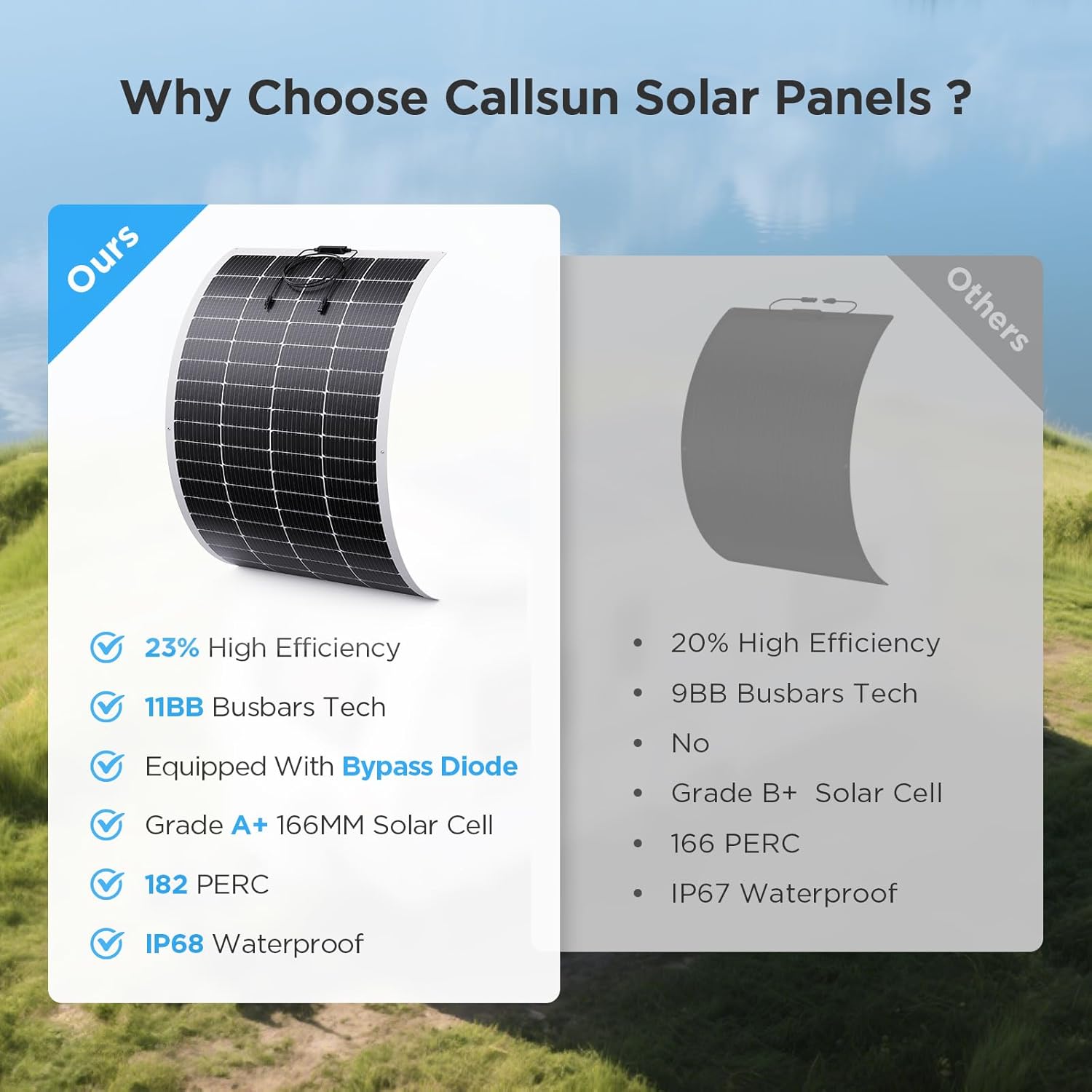

200W Flexible Solar Panel vs Other Solar Panels Comparison

Feature	Callsun 200W Flexible Solar Panel	Other Solar Panels
Efficiency	23% High Efficiency	20%
Busbars Tech	11BB	9BB

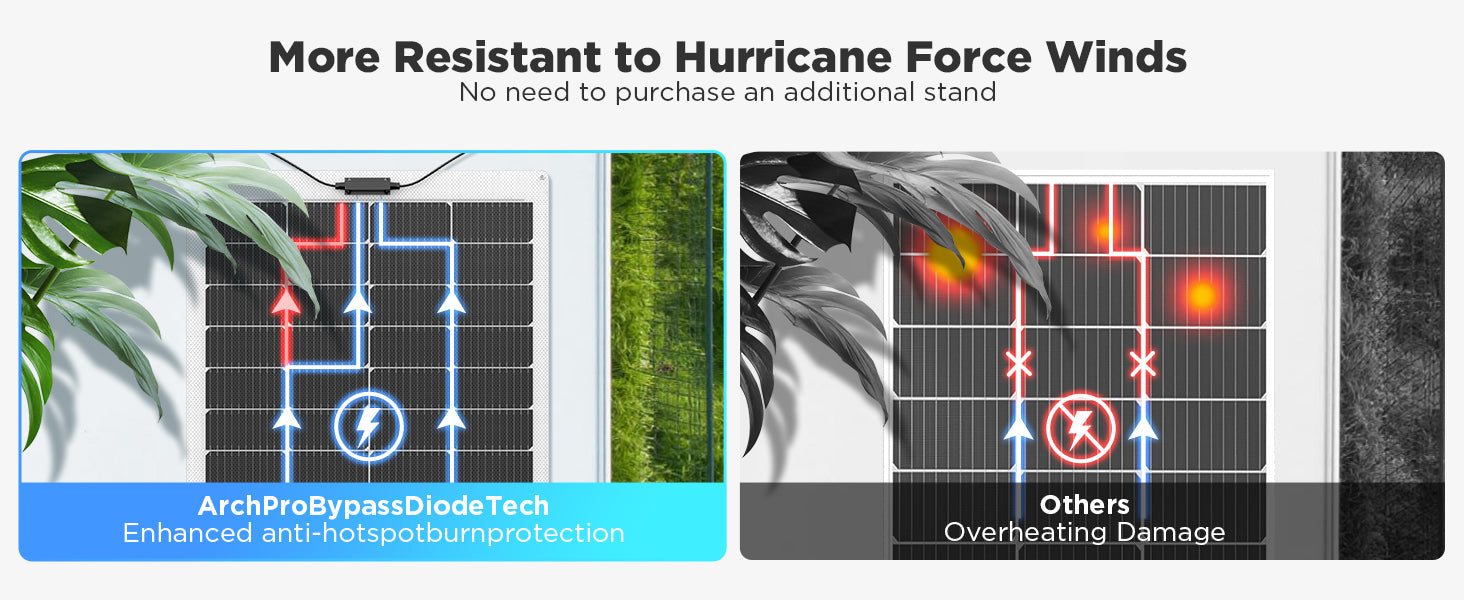

Bypass Diode	Equipped With Bypass Diode	No
Solar Cell	Grade A+ 166MM Solar Cell	Grade B+ Solar Cell
PERC	182 PERC	166 PERC
Waterproof	IP68	IP67

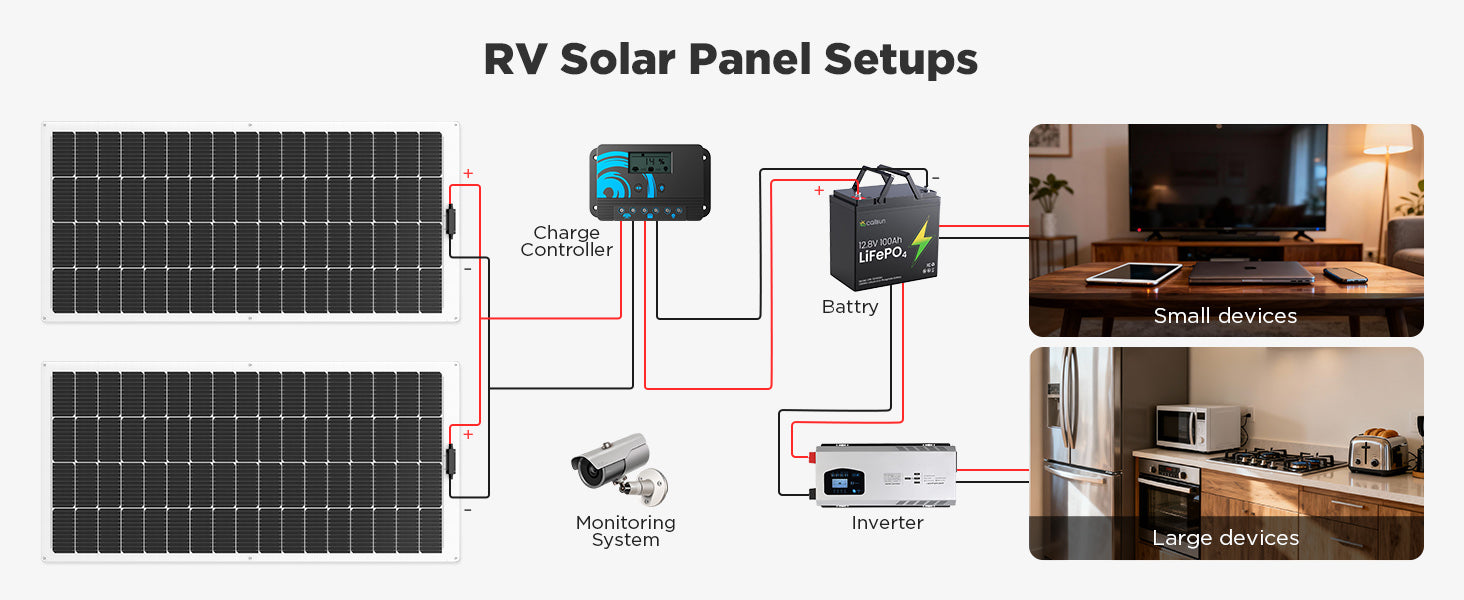

RV Solar Panel Setups

Specifications

Key Specs at a Glance 200W output · 23% efficiency · 11BB · IP68

Electrical Parameters

Maximum Power at STC (Pmax)	200W
Power Tolerance	0~3%
Maximum Power Voltage (Vmp)	19.1V
Maximum Power Current (Imp)	10.47A
Open-circuit Voltage (Voc)	22.9V
Short-circuit Current (Isc)	11.08A
Max. System Voltage (DC)	600V
Max. Over Current	18A

*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.

Mechanical Parameters

Cell Type	182 11BB Monocrystalline Silicon, PERC
IP Rating	IP68
Connector	Solar Connectors
Operating Temperature Range	-10°C ~ 70°C
Application Class	Class A
Fire Rating	Class C

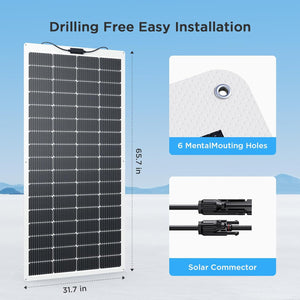

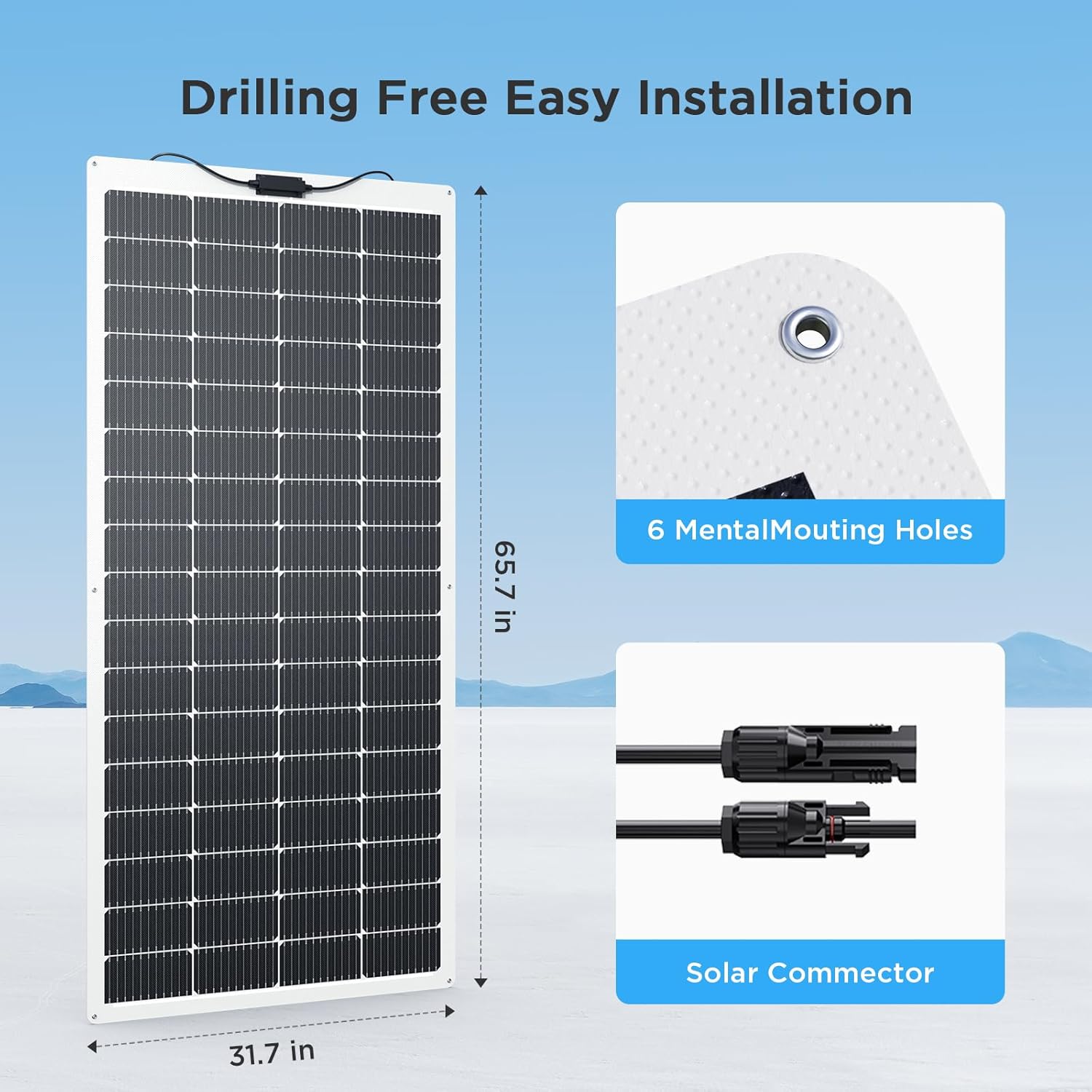

Dimensions	1669 × 805 × 25mm 65.71 × 31.69 × 0.98 in

Temperature Coefficients

Temperature Coefficients of Pmax	-0.32%/°C
Temperature Coefficients of Voc	-0.26%/°C
Temperature Coefficients of Isc	+0.046%/°C
NMOT	42°C ± 2°C

Includes

1 Piece: 200W Flexible Solar Panel ×1

2 Piece: 200W Flexible Solar Panel×2

Downloads & View

📄

200W Flexible Solar Panel User Manual

View Download

FAQ

1. What makes this solar panel suitable for curved motorhome roofs?

This panel offers 240° flexibility and is ultra-lightweight—50% lighter than rigid panels—allowing it to seamlessly conform to arched roofs of motorhomes, travel trailers, and vans, ensuring a sleek, aerodynamic installation.

2. How durable is the panel and what warranty does it include?

Built with Grade A+ monocrystalline cells (23% efficiency) and an IP68 waterproof junction box, this panel delivers all-weather reliability. It comes with a 5-year warranty, user manual, and professional customer support.
