110W N-Type Portable Solar Panel
Key Features

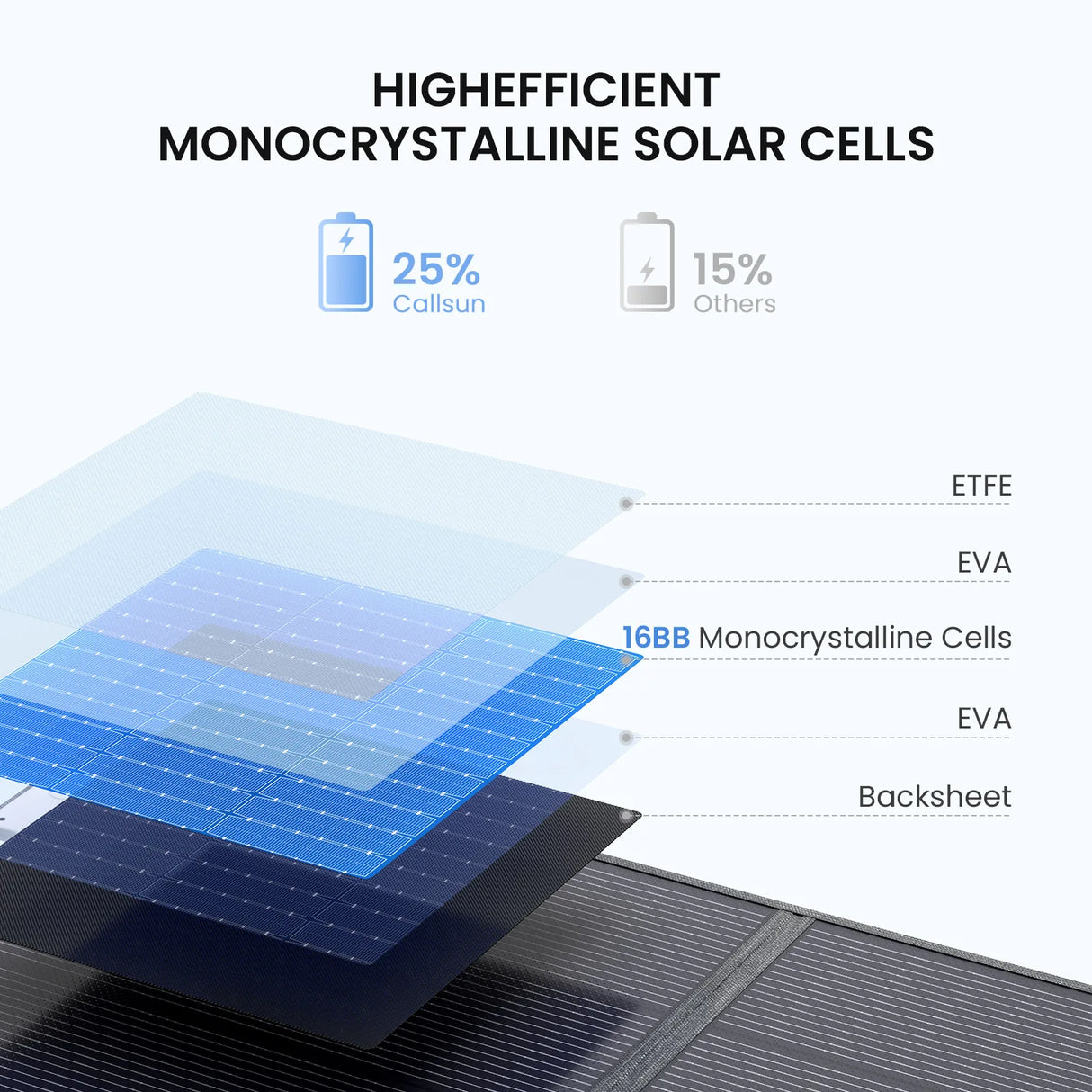

• 25% high efficiency with advanced N-Type 16BB solar cells
• Ultralight and foldable design, easy to carry and store

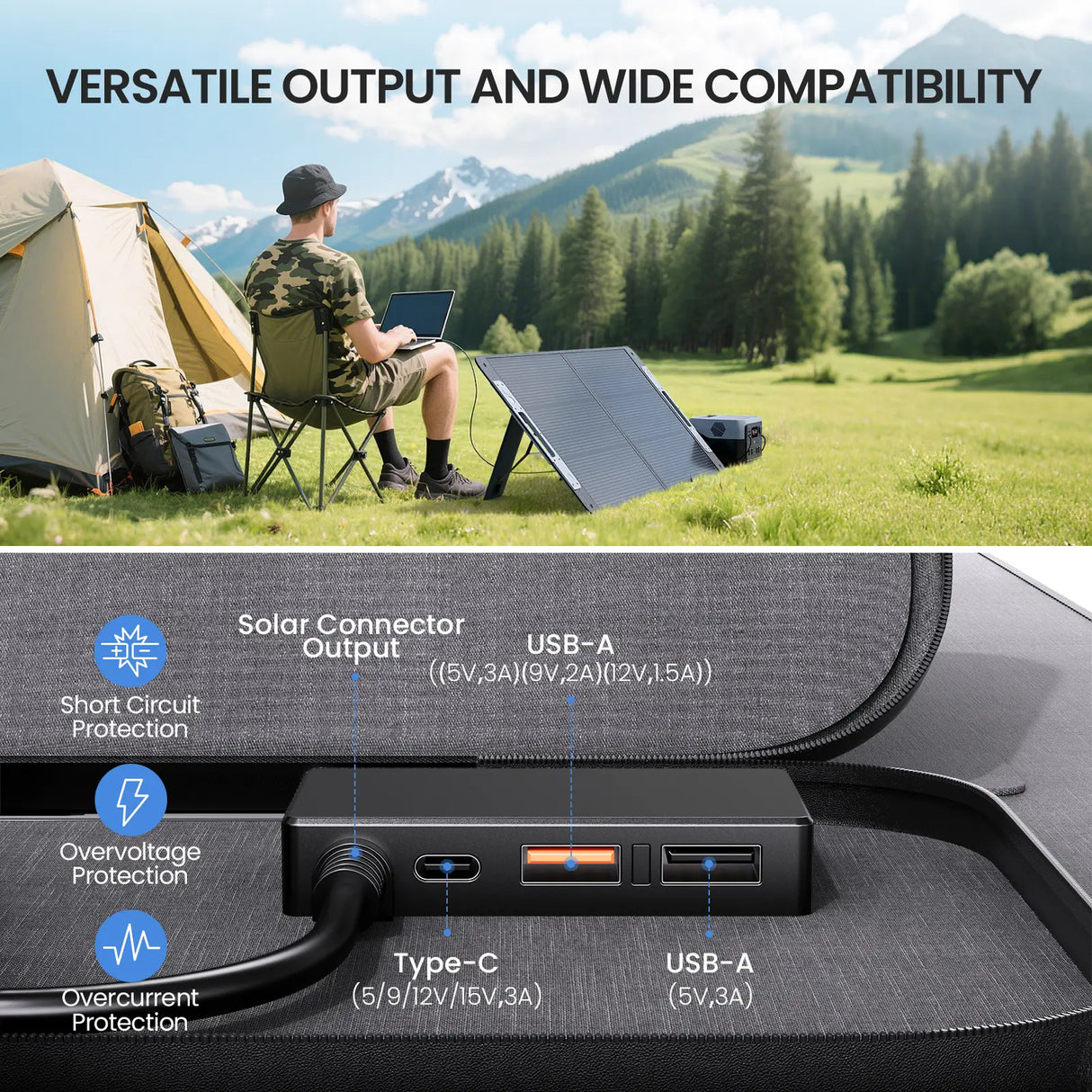

• Versatile output ports for charging multiple devices simultaneously
• IP67 waterproof and dust-resistant for rugged outdoor reliability
• Stable and adjustable kickstands for optimal solar capture
110W N-Type Portable Solar Panel is backordered and will ship as soon as it is back in stock.
Delivery time: 3-8 business days.
110W N-Type Portable Solar Panel
Callsun 110W N-Type Portable Solar Panel features 25% efficiency and IP67 waterproof durability. Its 8.02 lb ultralight build is ideal for camping and off-grid power needs.
Specifications
Key Specs at a Glance: 110W output · 25% efficiency · IP67
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 110W |
|---|---|
| Maximum Power Voltage (Vmp) | 19.8V |
| Maximum Power Current (Imp) | 5.55A |
| Open-circuit Voltage (Voc) | 22.74V |
| Short-circuit Current (Isc) | 5.83A |
| Cell Efficiency | 25% |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 621 x 584 x 40mm(24.45 x 22.99 x 1.57in) |
|---|---|
| Weight | 3.64kg(8.02lb) |
| IP Rating | IP67 |
| Operating Temperature | 14°F~158°F/-10°C~70°C |

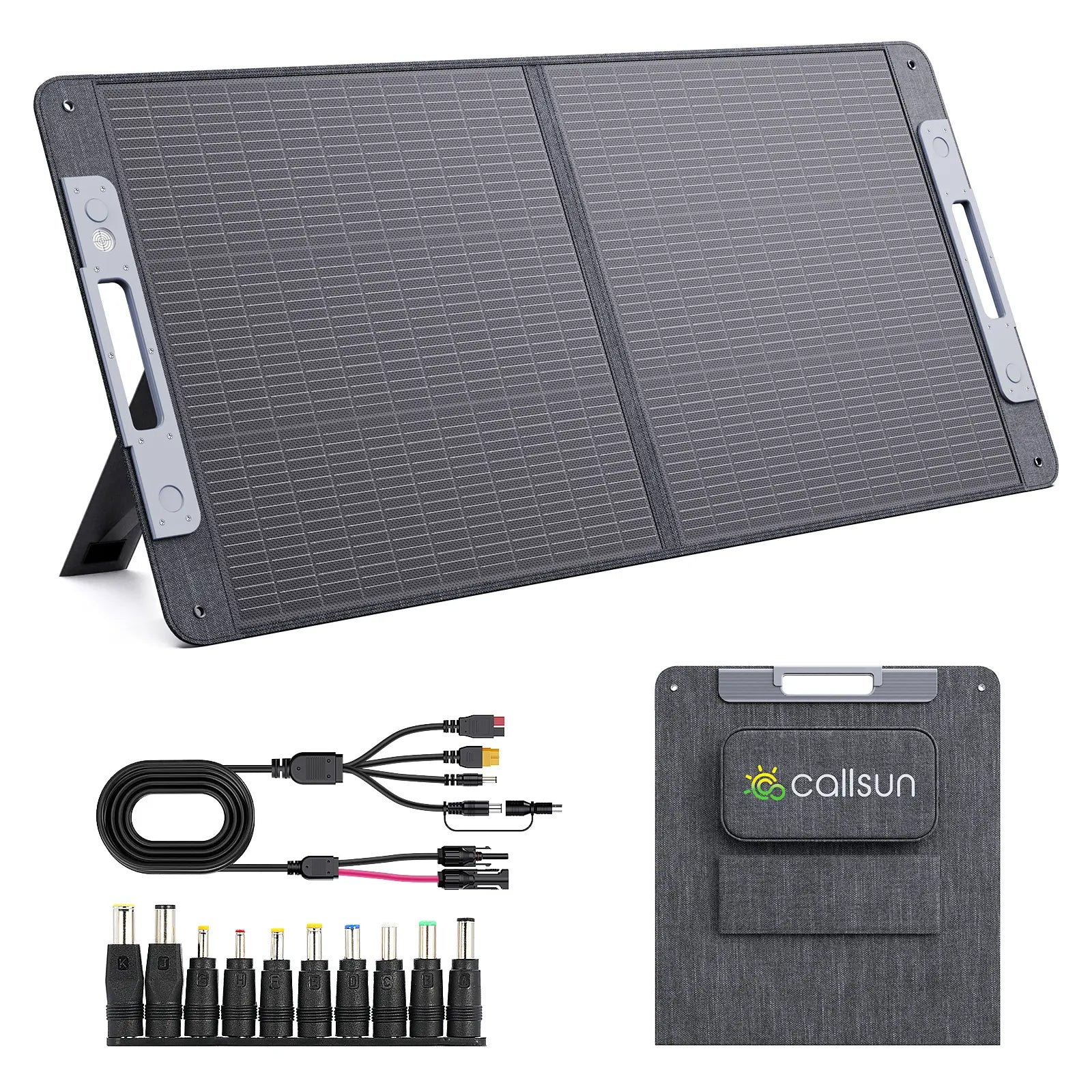

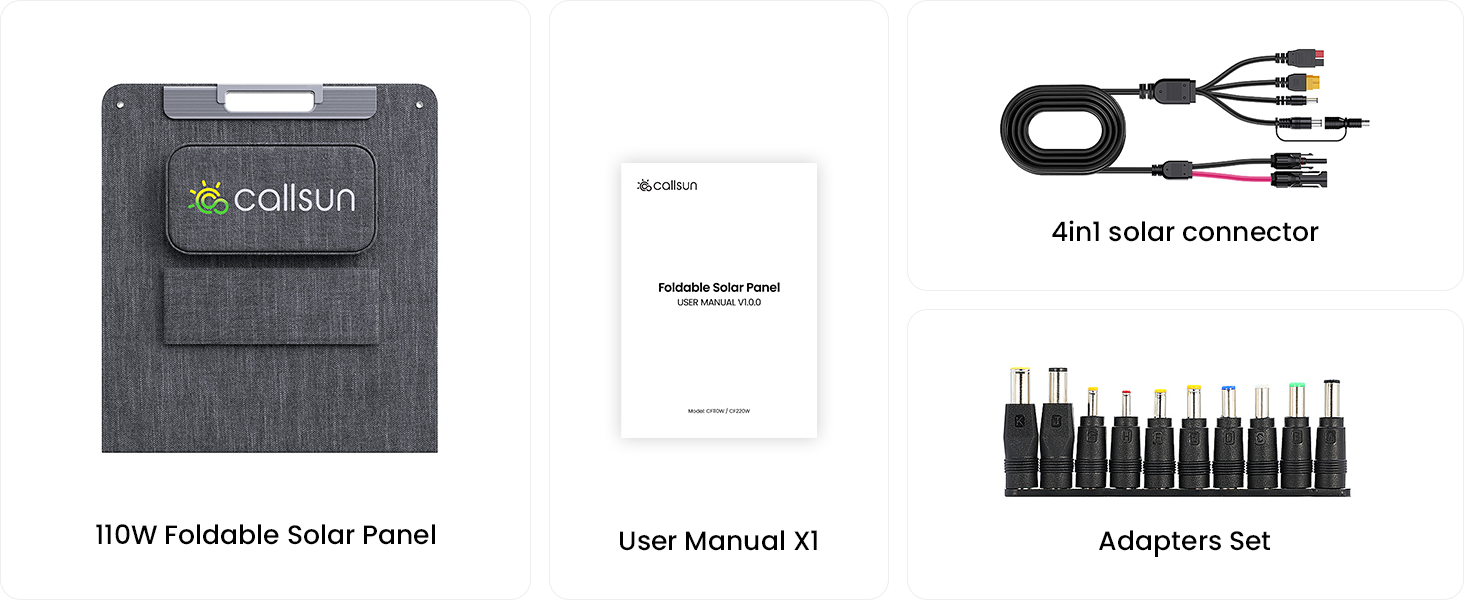

Includes
Downloads & View
User Manual
FAQ
What devices can I charge with the 110W panel?
The 110W panel is designed for portable power stations and solar batteries. With a 22.74V Open-circuit Voltage (Voc) and 19.8V Maximum Power Voltage (Vmp), it is highly compatible with most mid-range power stations. Please verify that your power station's DC input range supports a 22.74V Voc to ensure safe and efficient charging.
How do the adjustable kickstands help optimize performance?
The panel features adjustable kickstands (60°, 45°, 35°) to help you maintain a perpendicular angle to the sun. Because the 110W N-Type cells boast a 25% high-efficiency rating, optimizing this angle is crucial; capturing direct sunlight at a 90° incidence angle ensures you stay closer to the maximum 110W output throughout the day.
How does the N-Type 16BB technology perform in harsh environments?
Compared to traditional panels, our N-Type 16BB technology offers superior performance across a wider operating temperature range (-10°C to 70°C). Combined with an IP67 waterproof rating, this panel is built to withstand outdoor elements, providing consistent energy conversion even in high-heat conditions where standard panels typically experience significant voltage drops.
What is the best way to handle and store this panel?
Weighing only 8.02 lbs (3.64 kg) with a compact folded size, it is designed for maximum portability. To maintain the 25% efficiency over time, keep the surface free of dust and debris. When not in use, store the panel in a cool, dry place and ensure it is fully folded to protect the cells during transit.
