5.4kW Hybrid Solar Power System Kit with 6.5kW Hybrid Inverter & 10kWh LiFePO4 Battery
Key Features
- 450W N-Type Bifacial Solar Panel - High-efficiency N-Type bifacial panels deliver up to 25.6% efficiency, with double-glass durability, anti-shading technology, and reliable performance in all weather conditions.
- 10kWh LiFePO4 Battery Storage - Premium LiFePO4 battery with intelligent BMS provides over 6,500 cycles, enhanced safety, stable performance, and reliable energy storage with a 10-year warranty.
- 6.5kW Hybrid Solar Inverter - Pure sine wave output, 99.9% MPPT efficiency, seamless UPS backup, real-time monitoring, and dual battery compatibility ensure efficient and reliable power management.
- Complete Solar Power System - A complete 5.4kW solar power system combining high-efficiency panels, a 6.5kW hybrid inverter, and a 10kWh battery for reliable, independent energy.
5.4kW Hybrid Solar Power System Kit with 6.5kW Hybrid Inverter & 10kWh LiFePO4 Battery - 5.4k Wh ist auf Lager und wird versandt, sobald es wieder verfügbar ist
5.4kW Hybrid Solar Power System Kit | 6.5kW Inverter & 10kWh Battery
Generate clean energy with this complete 5.4kW hybrid solar power system, including a 6.5kW hybrid inverter and 10kWh LiFePO4 battery. Perfect for home backup, off-grid living, and reducing electricity costs.
High-efficiency 450W solar panel with advanced N-type technology.
Maximize your clean energy production with a 450W high-performance solar panel featuring N-type cell technology, 16 busbars, anti-shading design, bifacial power generation, a durable double-glass structure, extreme weather readiness, and a 25-year performance commitment.

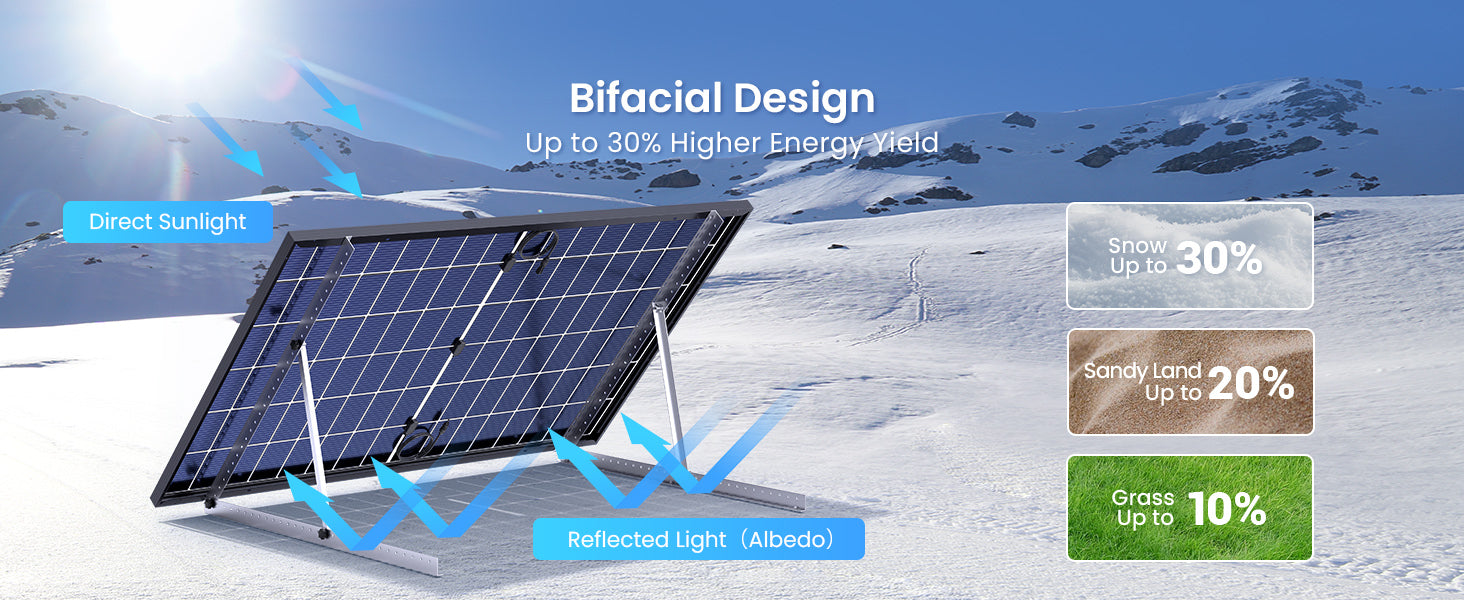

Up to 30% higher energy yield from reflected light.
Maximize your solar generation with an advanced bifacial design that captures both direct sunlight and reflected light from snow, sand, or grass for superior efficiency.

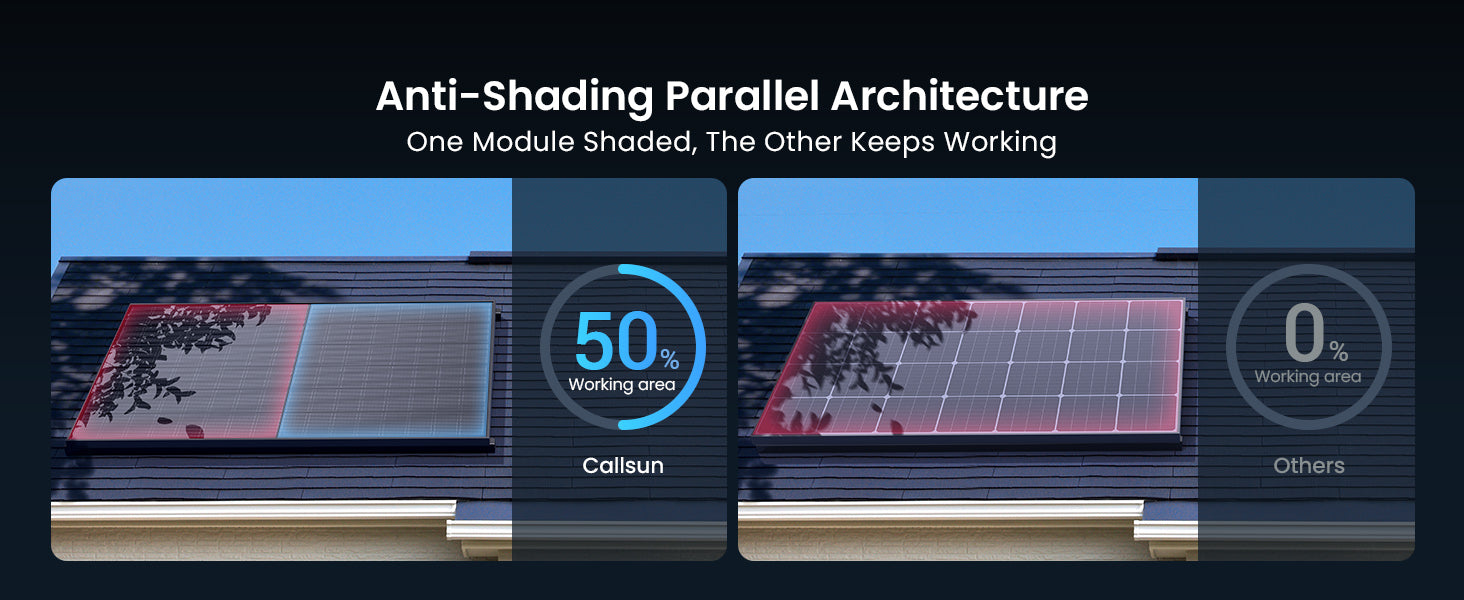

One module shaded, the other keeps working for maximum output.
Maintain optimal power generation even under partial shadows with an innovative parallel architecture that ensures uninterrupted energy flow.
25-year performance commitment with guaranteed output after 25 years.
Invest with confidence in durable solar panels featuring IP68 waterproof ratings, 2400 Pa wind load resistance, 5400 Pa snow load capability, an operating range from -40°C to +85°C, and a guaranteed 84.5% power output after 25 years.
Specifications
Key Specs at a Glance: 450W output · N-Type · 25.6% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 450W |
|---|---|
| Maximum Power Voltage (Vmp) | 30.08V |
| Maximum Power Current (Imp) | 14.97A |
| Open-circuit Voltage (Voc) | 35.03V |
| Short-circuit Current (Isc) | 16.05A |
| Cell Type | N-Type,16BB, 182mm,Monocrystalline Silicon |
| Cell Efficiency | 25.6% |
| First Year Degradation Rate | ＜1% |
| Commitment to maintain 84.5% output | 25 years |
| Dimension | 1762 × 1134 × 30(±5mm) 69.4 × 44.7 × 1.2(±0.1in) |
| Weight | 24.5(±0.2kg) 54.01 (±0.5lb) |
| IP Rating | IP68 |
| Connector | Solar Connector Compatible |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Reliable 10kWh energy storage with exceptional safety and longevity.
Power your home with a wall-mounted 10kWh battery featuring over 6,500 cycles, an integrated state-of-the-art BMS, consistent wide-temperature performance, and a 10-year warranty.

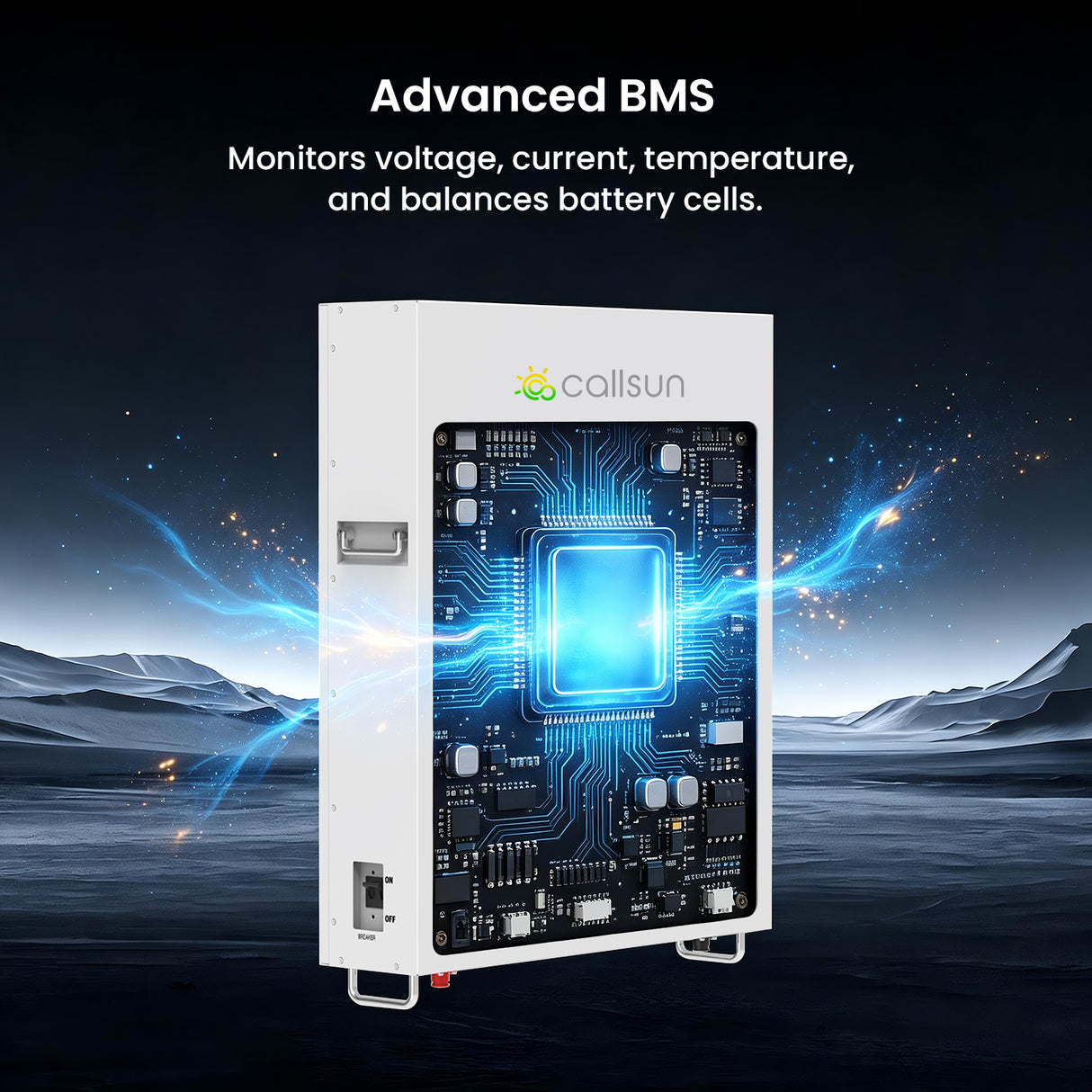

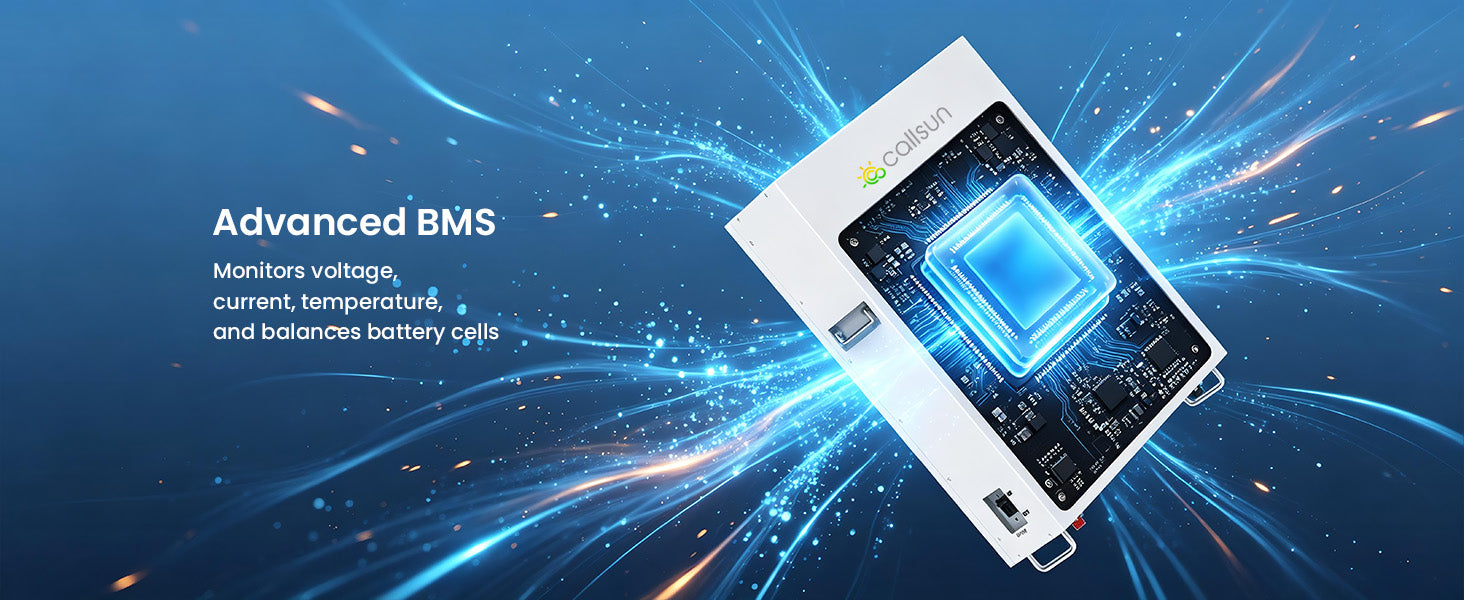

Intelligent battery management system for ultimate safety and performance.
Protect your 10kWh energy storage system with an advanced BMS that monitors voltage, current, and temperature in real time while actively balancing battery cells for extended lifespan.

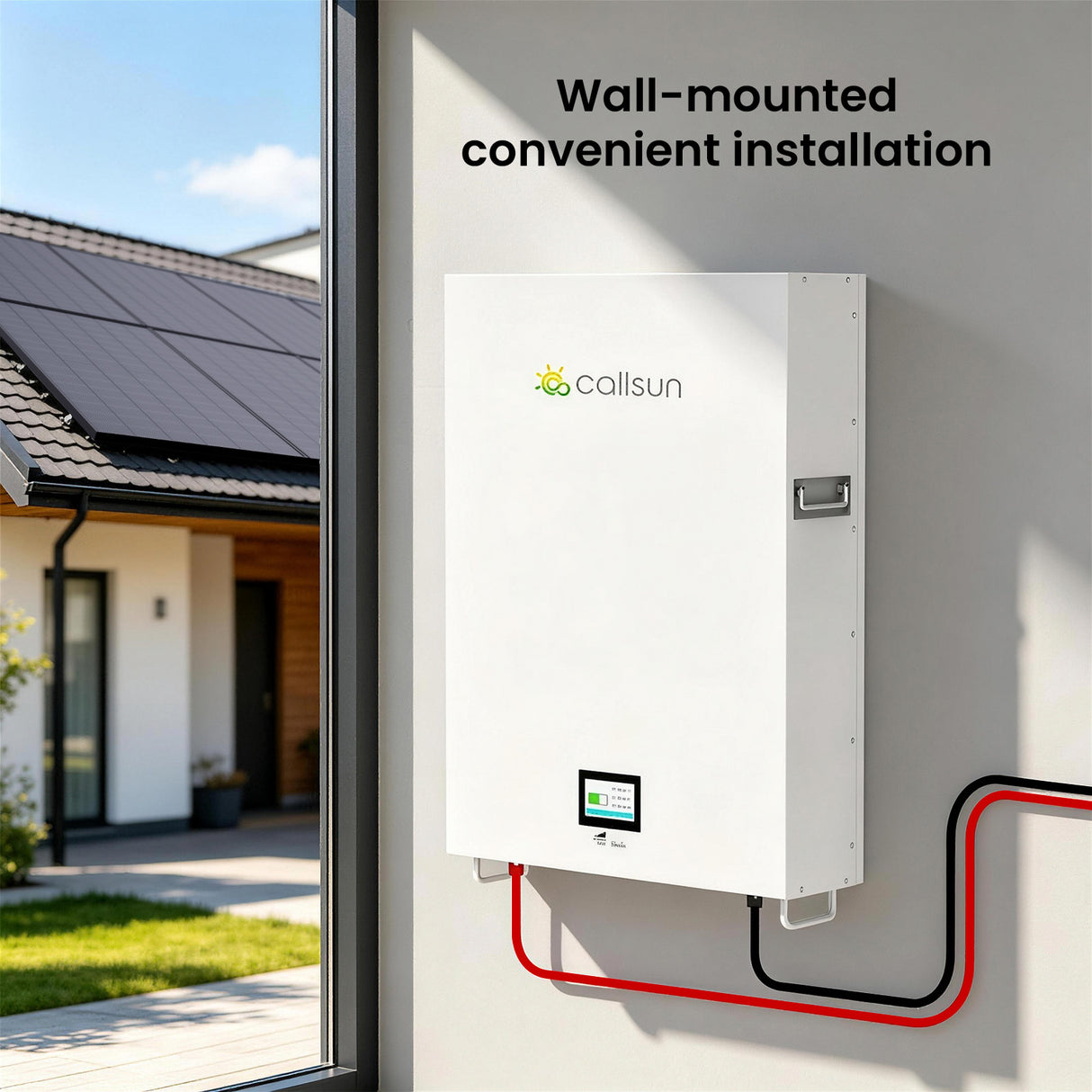

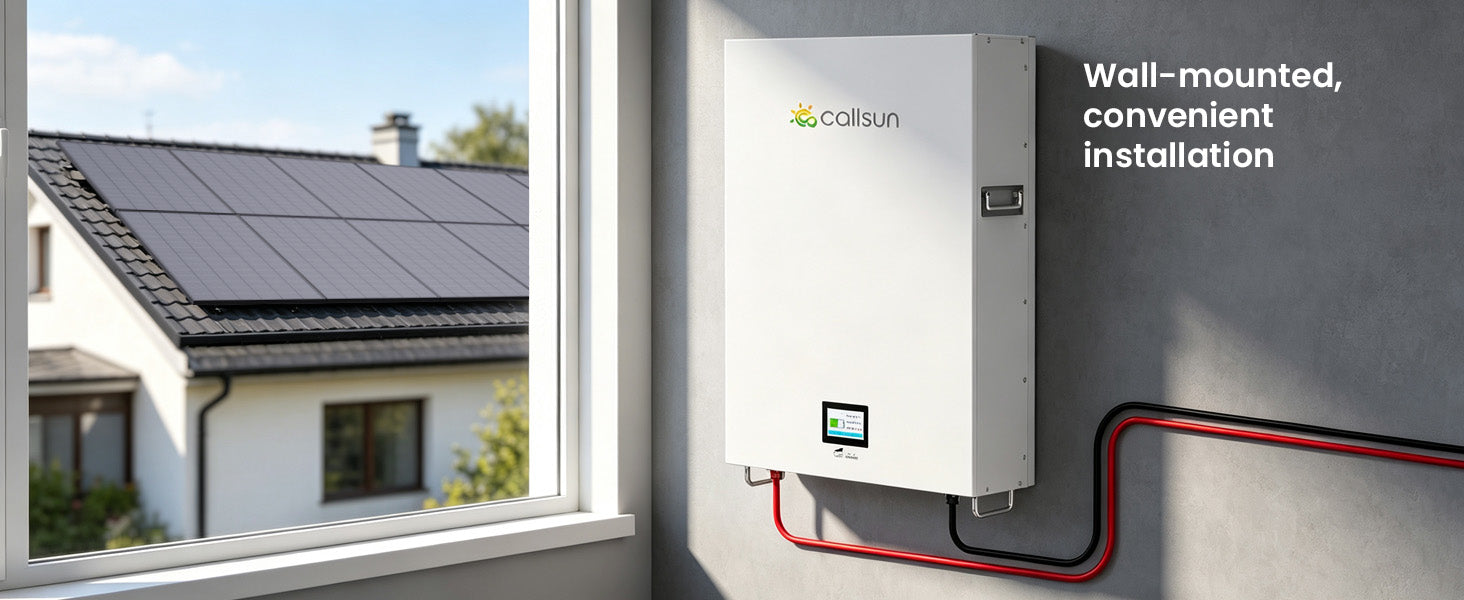

Wall-mounted, convenient installation for seamless setup.
Maximize your space-saving options with a sleek wall-mounted design that allows quick and secure installation for your home solar energy storage system.
Specifications
| Nominal Voltage | 51.2V |
|---|---|
| VRated Capacity | 200Ah |
| Energy | 10.24kWh |
| Dimensions (L x W x D) | 780*550*200mm/30.7*21.6*7.8 in |
| Weight | 102.5kg/225.97lb |
| Max. discharge voltage of battery | 56VDC |
| End of discharge voltage of battery | 46VDC |
| Maximum discharge current of battery | 150A |
| Maximum charge current of battery | 150A |
| Charging temperature range of battery | 0-45℃ |
| Discharge temperature range of battery | -20- 55℃ |
| Number of cells in battery pack | 16S1P |
| Lithium Battery Standard | UL1973,CE-EMC, UN38.3, MSDS |
| Enclosure protection rating | IP20 |
Advanced 6.5kW solar inverter with pure sine wave technology.

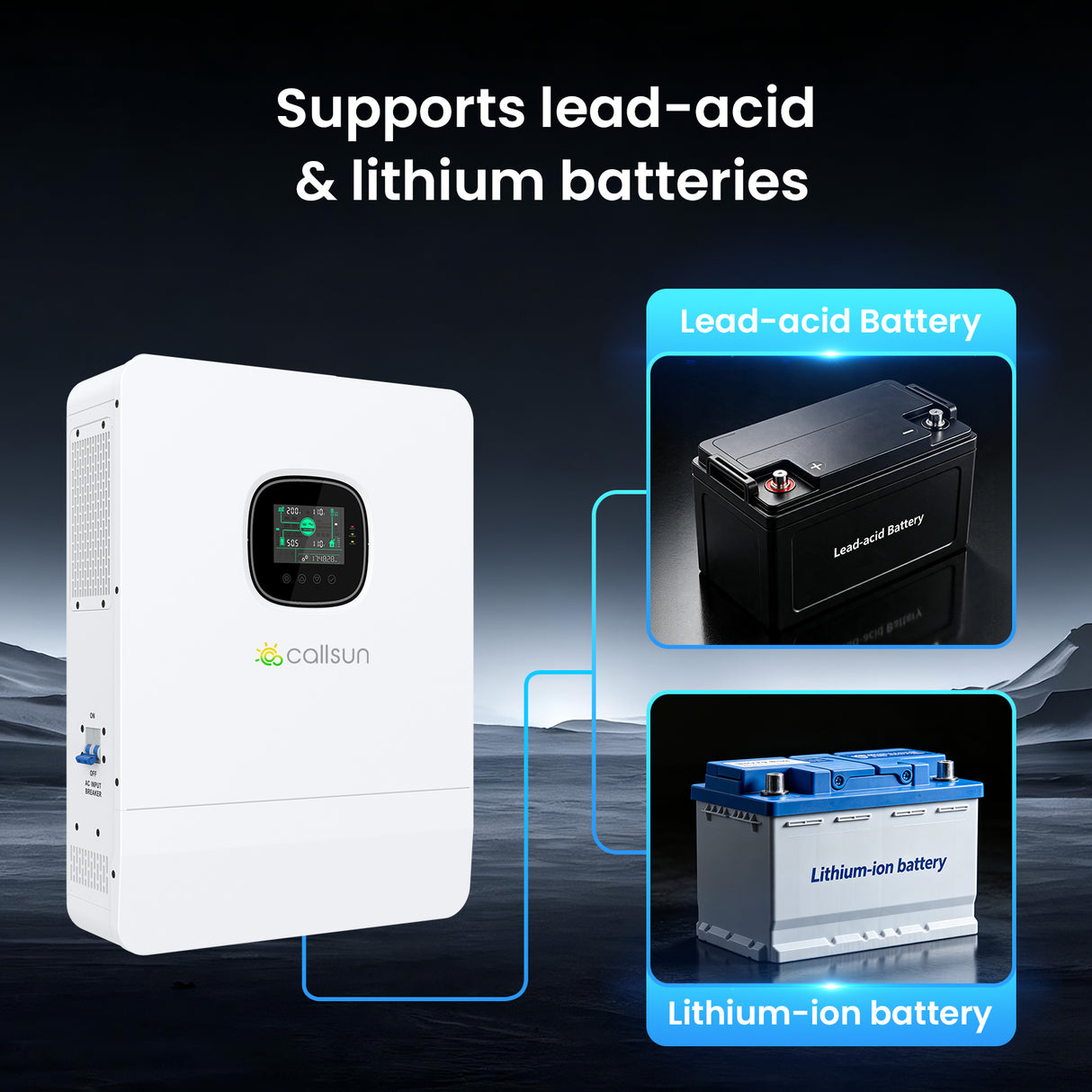

Experience efficient power management with a high-performance 6.5kW inverter featuring pure sine wave technology, real-time LCD monitoring, an intelligent cooling system, seamless UPS backup, high-efficiency MPPT control, energy-saving operation mode, and dual battery compatibility.

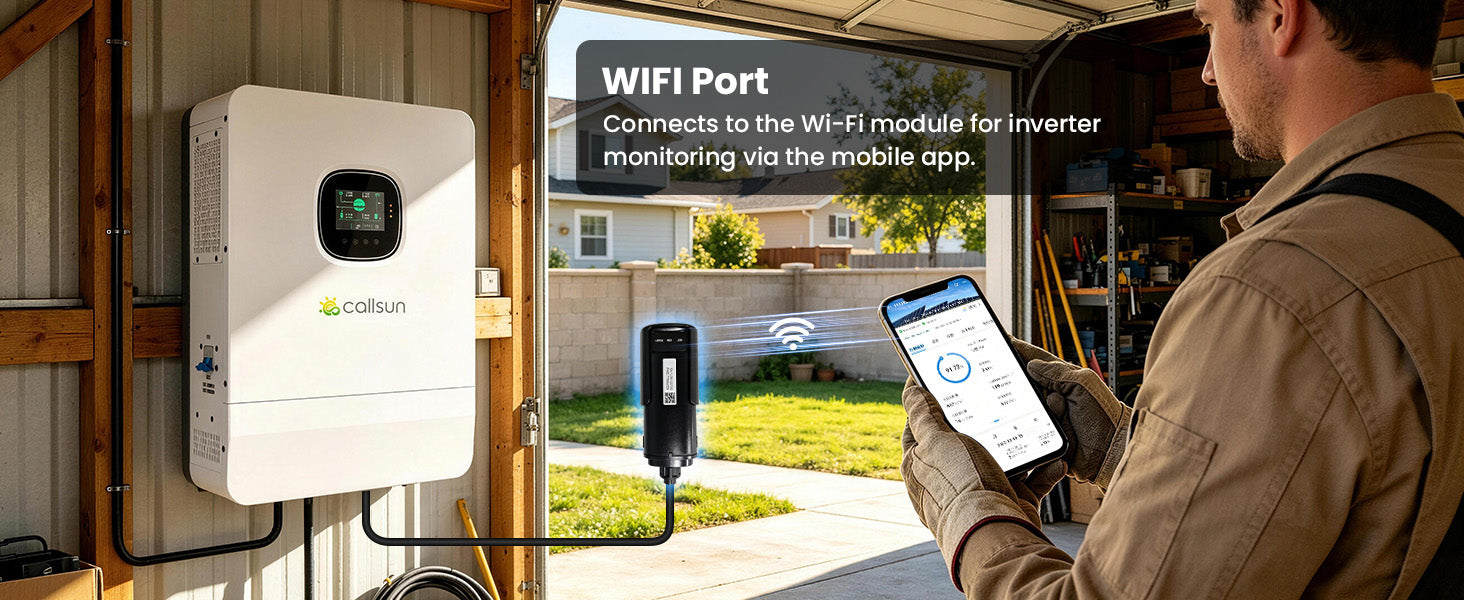

Smart Wi-Fi connectivity for real-time inverter monitoring.
Connect your solar inverter to the Wi-Fi module to easily track performance metrics, energy stats, and system status directly from your mobile app.
Effortless installation with clear instructions provided in the manual.
Set up your solar inverter system quickly and safely by following the straightforward installation steps detailed in the user manual.
Inverter Output
| Rated Output power | 6500W |
|---|---|
| Max. Peak Power | 13000 W |
| Rated Output Voltage | 120/240 VAC (single-phase/split-phase) |
| Rated AC Frequency | 50/60 Hz |
| Waveform | Pure sine wave |
| Switch Time | 10 ms (typical value) |
| Parallel Capacity | 1~6 units |
Battery
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
|---|---|
| Rated Battery Voltage | 48Vdc |
| Rated Voltage range | 40 Vdc−60 Vdc |
PV Input
| No. of MPPT Trackers | 2 |
|---|---|
| Max. PV Input Power | 5000W+5000W |
| Max. PV Input Current | 18A+18A |
| Max. Open Circuit Voltage | 550Vdc+550Vdc |
| MPPT Voltage Range | 150 Vdc～450 Vdc |
Grid/Generator Input
| Input Voltage Range | 65VAC～140VAC |
|---|---|
| Input Frequency Range | 50/60 Hz |
| Bypass Overload Current | 40A |
General
| Dimensions | 648mm*410mm*140 mm/25.51*16.14*5.51in |
|---|---|
| Weight | 21.7kg/47.84lb |
| Protection Degree | IP20, indoor only |
| Operating Temperature Range | -10°C-55°C, >45°C derated |
| Noise | <60dB |
| Built-in Interface | RS485/CAN/USB/dry contact |
| Extemal Module(optional) | Wi-Fi/GPRS |
| Safety | IEC62109-1, IEC62109-2,and UL1741 |
| EMC | EN61000-6-1, EN61000-6-3, and FCC 15 class B |
| RoHS | Yes |
Advanced home solar panel installation for clean energy.
Power your household efficiently with a rooftop-mounted solar panel system designed for high durability, reliable energy generation, and seamless home integration.
Reliable off-grid solar power system for agricultural and farm applications.
Empower your farm operations with an integrated solar power kit featuring durable solar panels, a hybrid inverter, and high-capacity battery storage designed to provide steady, independent energy for daily agricultural needs.
Ground-mounted solar power system for home garden integration.
Transform your backyard and garden into a clean energy source with a high-efficiency ground-mounted solar panel kit, providing reliable off-grid power for your household appliances and electric vehicle.
Clear and straightforward connection guide for your 12-panel solar system.
Easily configure your 12 solar panels with a structured wiring diagram detailing professional connections through the combiner box, hybrid inverter, and energy storage battery for optimal system performance.
Clear and precise connection guide for your 8-panel solar system.
Seamlessly configure your 8 solar panels with a structured wiring diagram detailing professional connections through the combiner box, hybrid inverter, and energy storage battery for optimal efficiency.
Includes
Downloads & View
User Manual
FAQ
What appliances can this 5.4kW solar power system run?
This system is designed to power most essential household appliances, including refrigerators, TVs, lighting, fans, Wi-Fi routers, washing machines, microwaves, and selected air conditioners. Actual runtime and supported loads depend on your daily energy consumption, battery capacity, and available sunlight. A 5.4kW PV array paired with a 6.5kW hybrid inverter is commonly suitable for residential backup and off-grid applications.
Can this system work during a power outage?
Yes. The 6.5kW hybrid inverter automatically switches to battery backup during grid outages, providing uninterrupted power for connected loads. When sunlight is available, the solar panels can continue charging the battery while supplying your home, helping extend backup time.
Is the 10kWh LiFePO4 battery expandable?
Yes. The system is designed with future expansion in mind. If your energy demand increases, additional compatible LiFePO4 battery modules can typically be added to increase storage capacity. Please refer to the product specifications or contact our technical team to confirm the maximum supported configuration.
Is this solar system suitable for off-grid and residential use?
Absolutely. This complete solar power system is ideal for homes, cabins, workshops, farms, RV properties, and other off-grid applications. It can also be used as a home backup power solution to reduce grid dependence and improve energy security. Hybrid systems of this type are widely used for both off-grid living and residential backup.
Does the kit include everything needed for installation?
The kit includes high-efficiency solar panels, a 6.5kW hybrid inverter, a 10kWh LiFePO4 battery, and the essential components listed on the product page. Before installation, we recommend verifying your roof space, local electrical requirements, and any additional mounting hardware or wiring needed for your specific project. Professional installation is recommended for optimal performance and safety.
