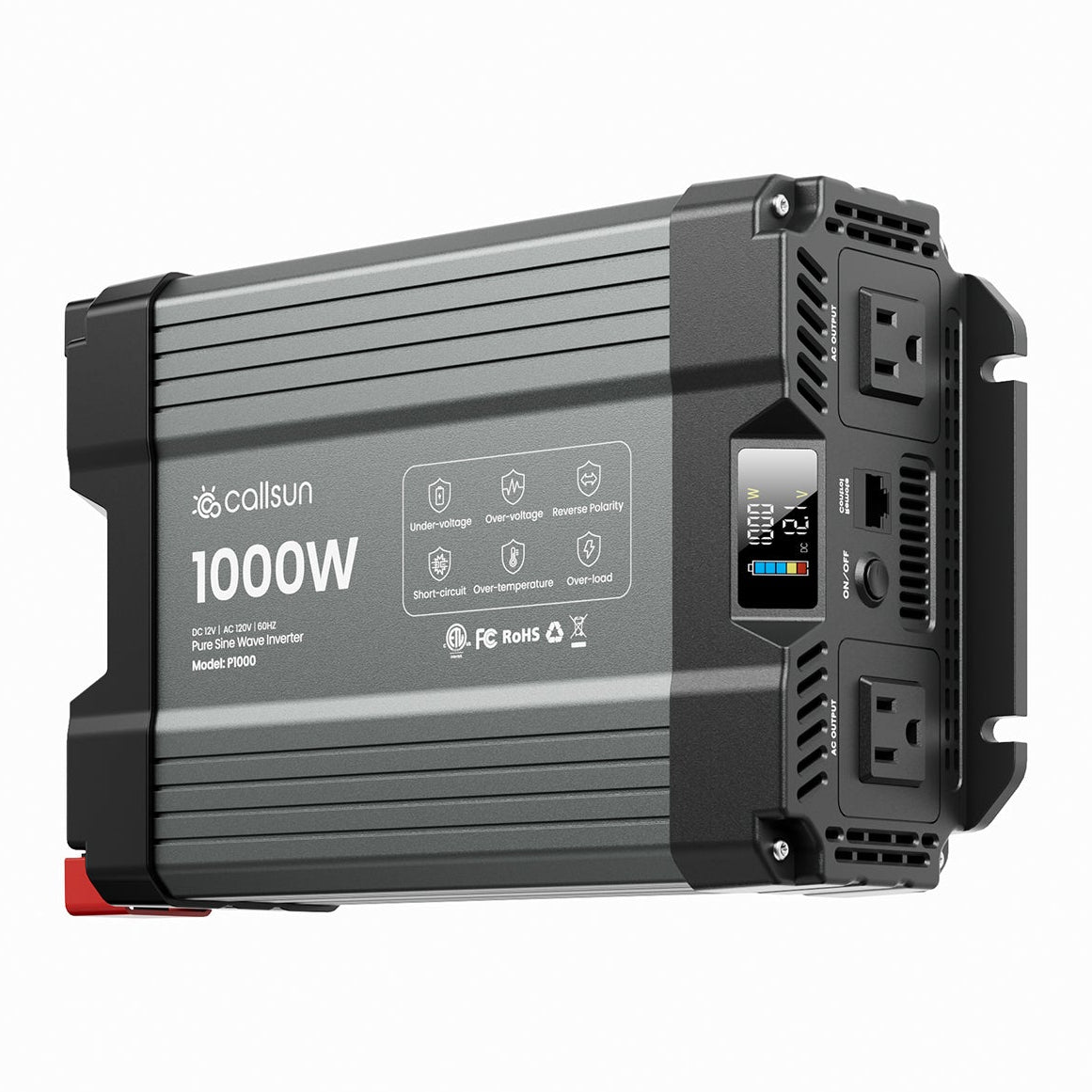

1000W Pure Sine Wave Inverter 12V DC to 120V AC
Key Features
- Reliable 1000W Inverter 12V to 120V pure sine wave inverter provides 1000W continuous power and 2000W peak surge with over 91% efficiency.
- Universal Battery Compatibility Works with various 12V batteries, perfect for RVs, camping, off-grid setups, and emergency power needs. Provides reliable power for daily use or during power outages.
- Pure Sine Wave Performance Delivers stable, clean AC power for high-power appliances and electronics, reducing noise and protecting sensitive devices like TVs, laptops, and refrigerators.
- 8-Fold Protection Includes protections against low/high voltage, temperature extremes, overload, short-circuit, and more. Dual cooling fans ensure safe operation by adjusting automatically.
1000W Pure Sine Wave Inverter 12V DC to 120V AC ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Power Wherever You Go
Provides efficient, stable power to safely charge and run all your devices while outdoors.
Empower Your Life
A utility-grade AC power supply with waveforms matching those of the public grid, particularly suitable for inductive and capacitive loads.
More Power, More Possibilities
Multi-functional Scenario Usage
Advanced Safety Protection
Built-in intelligent chip provides reliable, stable power with comprehensive multi-layer protection.
Wide 12V Battery Compatibility
Compatible with various 12V batteries (Li, Gel, AGM) for continuous and stable voltage output.

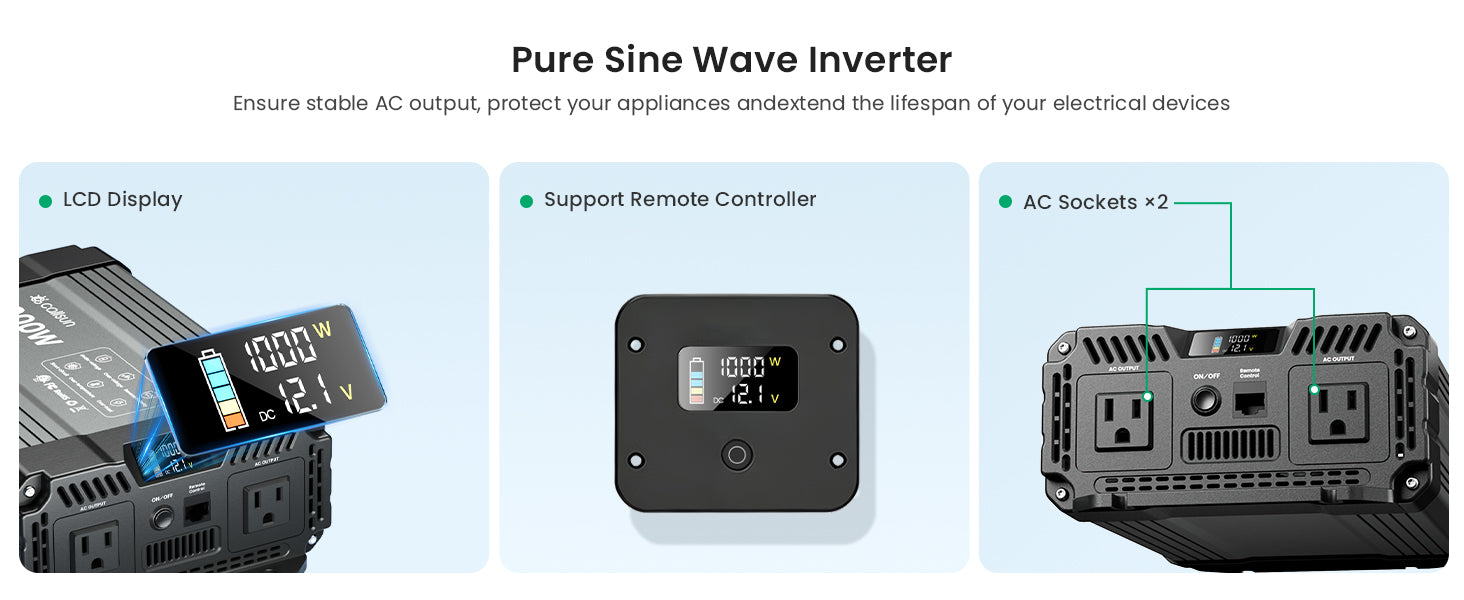

Advanced Control & AC Outlets
Features an LCD display, remote control support, and dual AC sockets for stable, safe power.

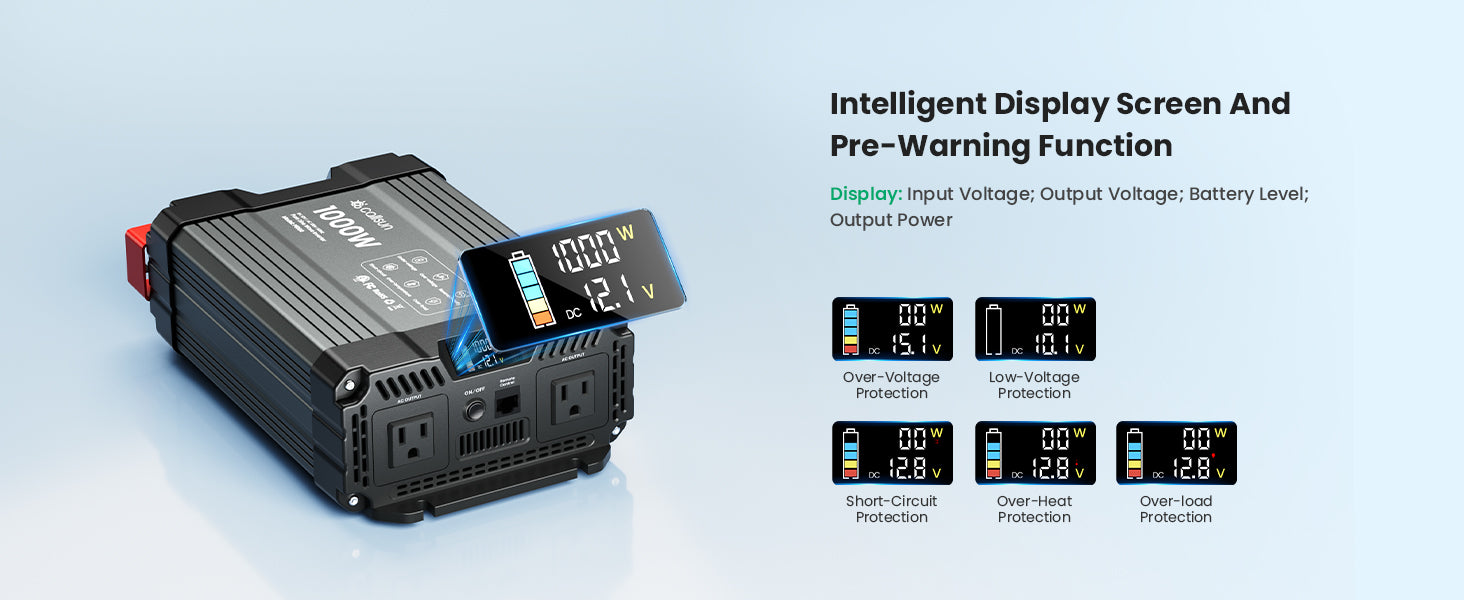

Smart Screen & Safety Protection
Monitors voltage, power, and battery status with intelligent display and multi-warning protections.

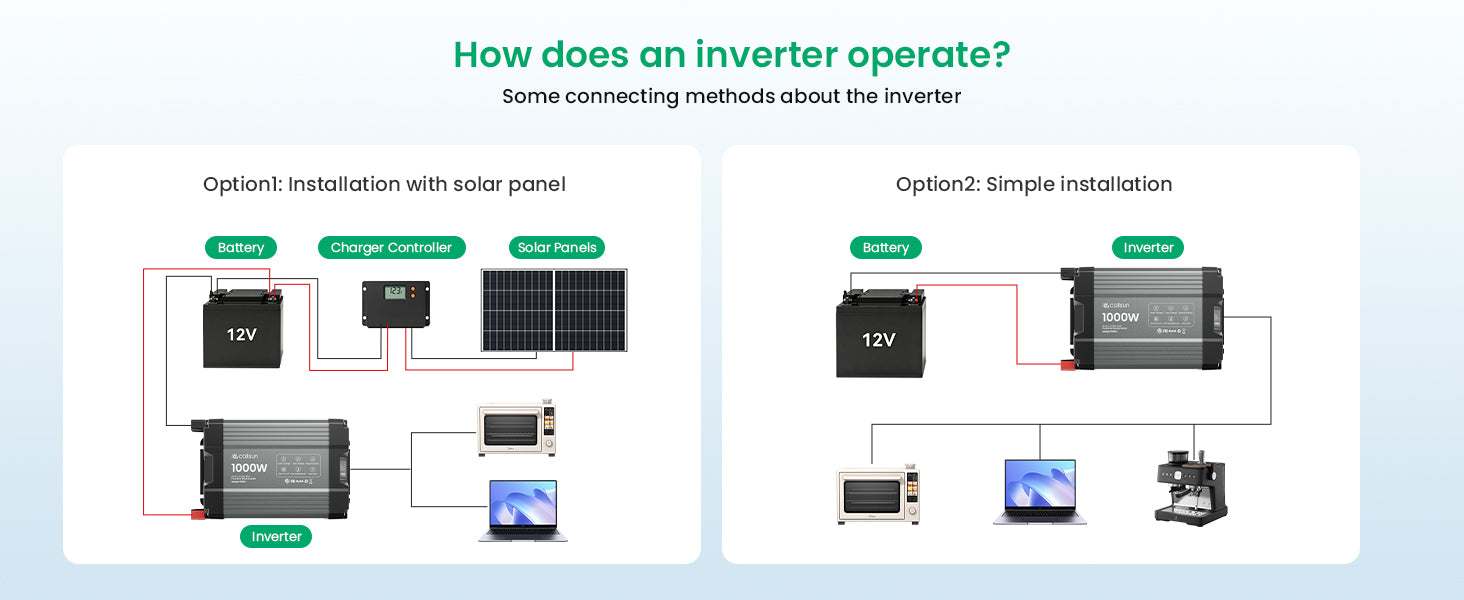

Flexible Inverter Setup Options
Supports solar panel integration via charge controller or simple direct battery connection setups.
1000W Pure Sine Inverter
Reliable 12V pure sine wave power inverter for RVs, boats, trucks, and off-grid solar systems.
Clean Power For Electronics
Pure sine wave output protects sensitive electronics from distortion and ensures safe operation.
Smart Display & Easy Mounting
Features intelligent screen monitoring, pre-warning alerts, compact dimensions, and wall-mount support.
Versatile Power For Appliances
Adaptable for various scenarios, powering TVs, freezers, ACs, and kitchen appliances on the go.
Specifications
Electrical Data
| Continuous Output Power | 1000W |
|---|---|
| Continuous Output Current | 8.34A |
| Maximum Power Current (Imp) | 8.43A |
| Surge Power | 2000W@0.2S |
| Output Voltage Range | 120V AC (105V~125V) |
| Input Voltage Range | 12.8V DC (10.5V~15V) |
| Input Under Voltage Protection Range | 15.5V±0.5V DC |
| Full Load Efficiency | >86% |
| Max Efficiency | >91% |
| Standby Power | <7.5W |
| Power Factor | PF≥0.8 |
General Data
| Output Waveform | Pure Sine Wave |
|---|---|
| Dimensions | 10.24x7.09x3.39in/260x180x86mm |
| Weight | 3.53 lb |
| Operating Temperature | 14°F to 104°F/-10°C to 40°C |
| Storage Temperature | -4°F to 140°F/-20°C to 60°C |
| Working/Storage Humidity | 20%~85% RH (non-condensing) |
| Cooling | Thermally controlled Fans |
| Regulatory and Safety Specifications | ETL listed to CSA Standard C22.2 No. 107.1 and UL 458 |
Wired Remote Data
| Dimensions | 3.35 x 2.95 x 0.98 in/85x75x25 mm |
|---|---|
| Wired Length | 10ft |
| Temperature Coefficients of Isc |
Includes
FAQ
1. What can I power with the Callsun 1000W Pure Sine Wave Inverter?
The 1000W inverter can power many household and outdoor devices such as laptops, TVs, lights, fans, small refrigerators, CPAP machines, and other electronics. For devices with high startup power (such as motors or compressors), make sure the starting wattage is within the inverter's surge capacity.
2. Is this inverter compatible with my RV or solar power system?
Yes. This 12V DC to 120V AC pure sine wave inverter is designed for RVs, camping, vans, trucks, boats, and off-grid solar systems. Simply connect it to a compatible 12V battery bank to convert stored DC power into standard AC electricity.
3. What is the difference between a pure sine wave inverter and a modified sine wave inverter?
A pure sine wave inverter provides cleaner and more stable AC power, similar to the electricity from the grid. It is safer for sensitive electronics such as laptops, TVs, medical devices, and audio equipment, helping them operate more efficiently and quietly.
4. What size battery do I need for this 1000W inverter?
The required battery size depends on your power usage and runtime needs. For best performance, we recommend using a deep-cycle 12V battery with sufficient capacity. At full 1000W output, the inverter can draw around 80–100A from a 12V battery system, so a larger battery bank is recommended for longer operation.
5. Can I use this inverter with solar panels directly?
No. Solar panels cannot be connected directly to the inverter. A solar charge controller and 12V battery bank are required. The solar panels charge the battery first, and then the inverter converts the stored DC power into 120V AC electricity for your devices.
