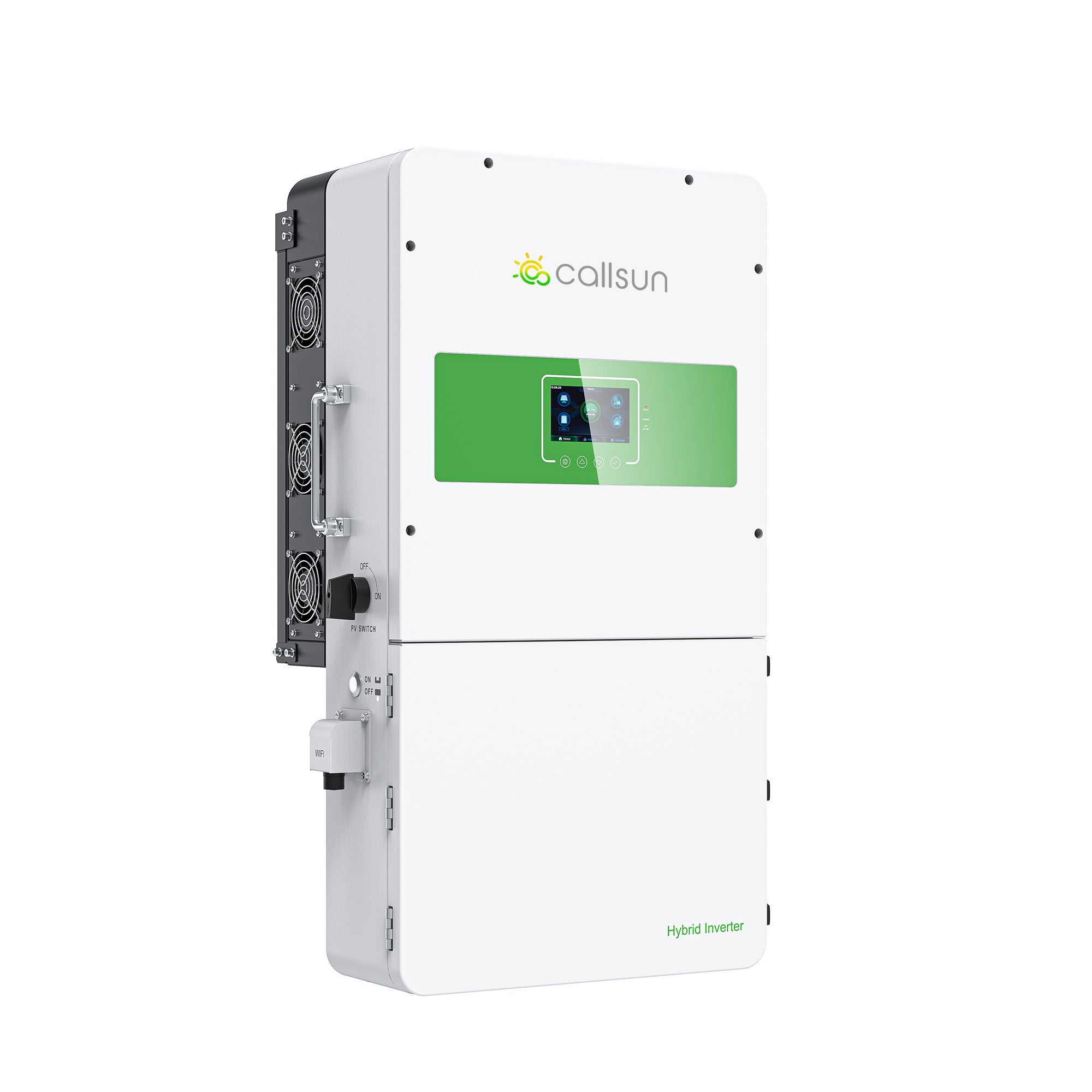

12KW Split-Phase Pure Sine Wave Hybrid Solar Inverter
Key Features
- 12KW Whole-Home Power Supply Delivers powerful and stable energy for large residential loads, backup systems, and off-grid applications.
- Pure Sine Wave Clean Output Provides stable AC power to safely operate sensitive electronics and high-demand appliances.
- Dual MPPT Solar Optimization Maximizes solar energy harvesting with independent MPPT tracking under different sunlight conditions.
- Smart Hybrid Energy Management Seamlessly combines solar, battery, and grid power for flexible energy independence.
12KW Split-Phase Pure Sine Wave Hybrid Solar Inverter ist auf Lager und wird versandt, sobald es wieder verfügbar ist
12KW Solar Storage Inverter
High-efficiency 48V hybrid inverter featuring dual MPPT tracking, pure sine wave output, and flexible parallel expansion for reliable home backup power.

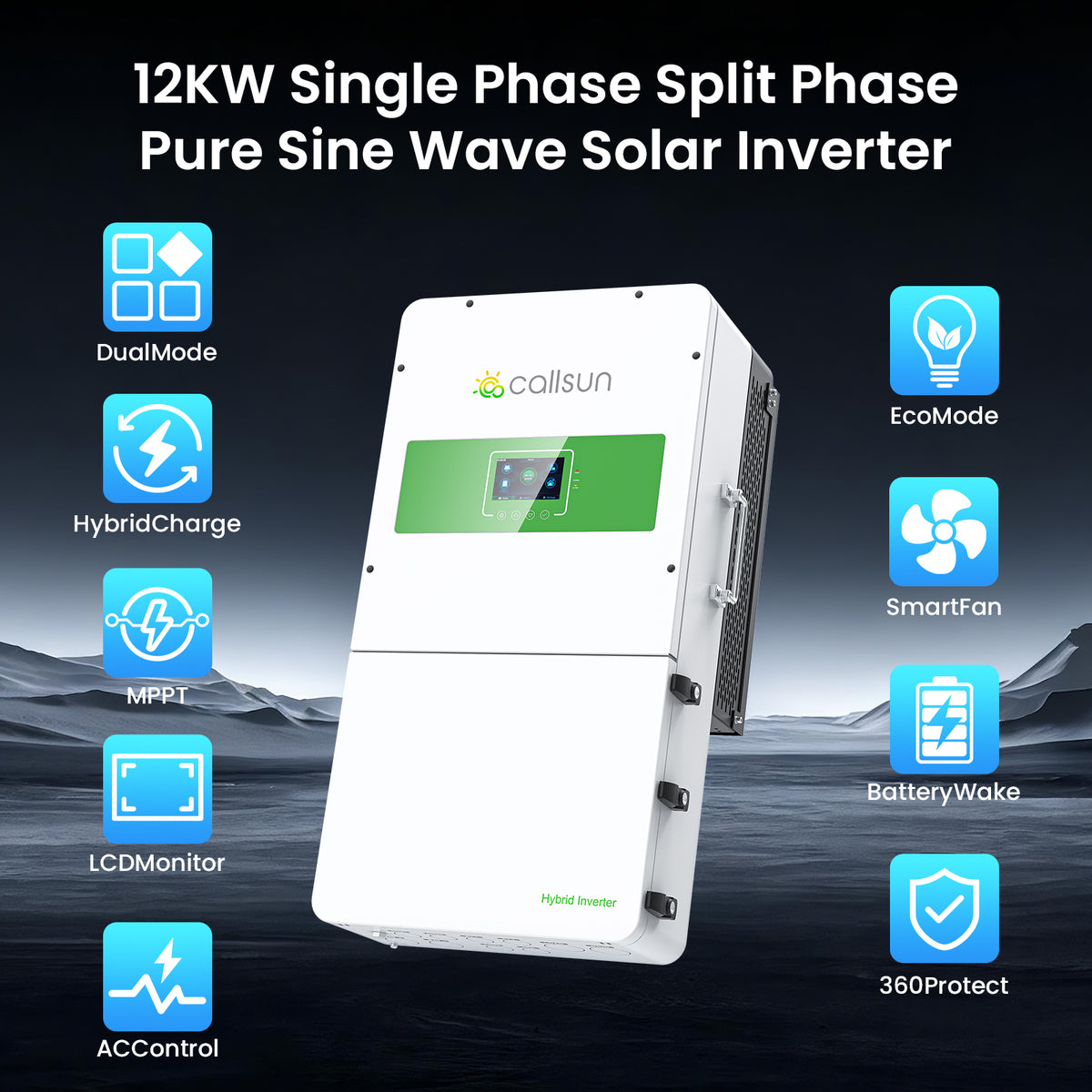

Advanced Solar Inverter Features
Enjoy clean energy with pure sine wave technology, seamless UPS backup, and high-efficiency MPPT control. Monitor performance in real time via LCD, benefit from smart cooling, energy-saving modes, and dual battery compatibility.

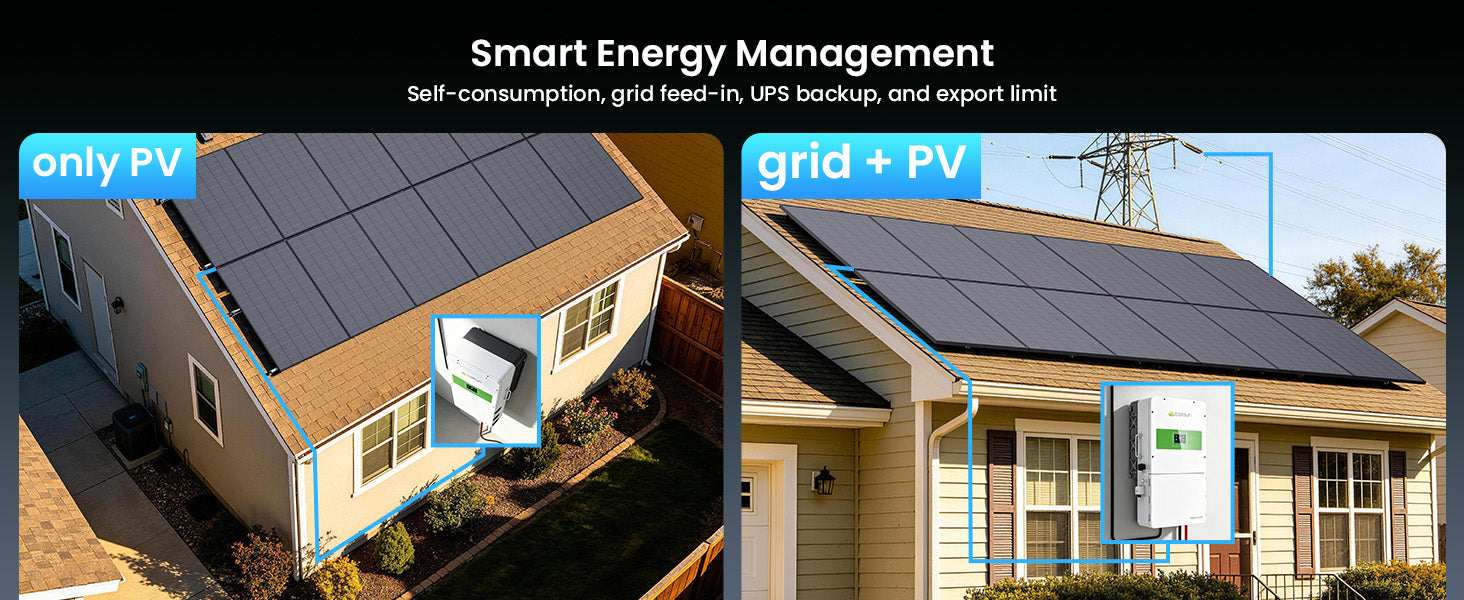

Flexible Power Modes
Adapt your solar setup to any operational requirement with multiple intelligent modes. Easily switch between standalone PV generation and grid-tied configurations, supporting export limits and reliable UPS backup for total energy control.

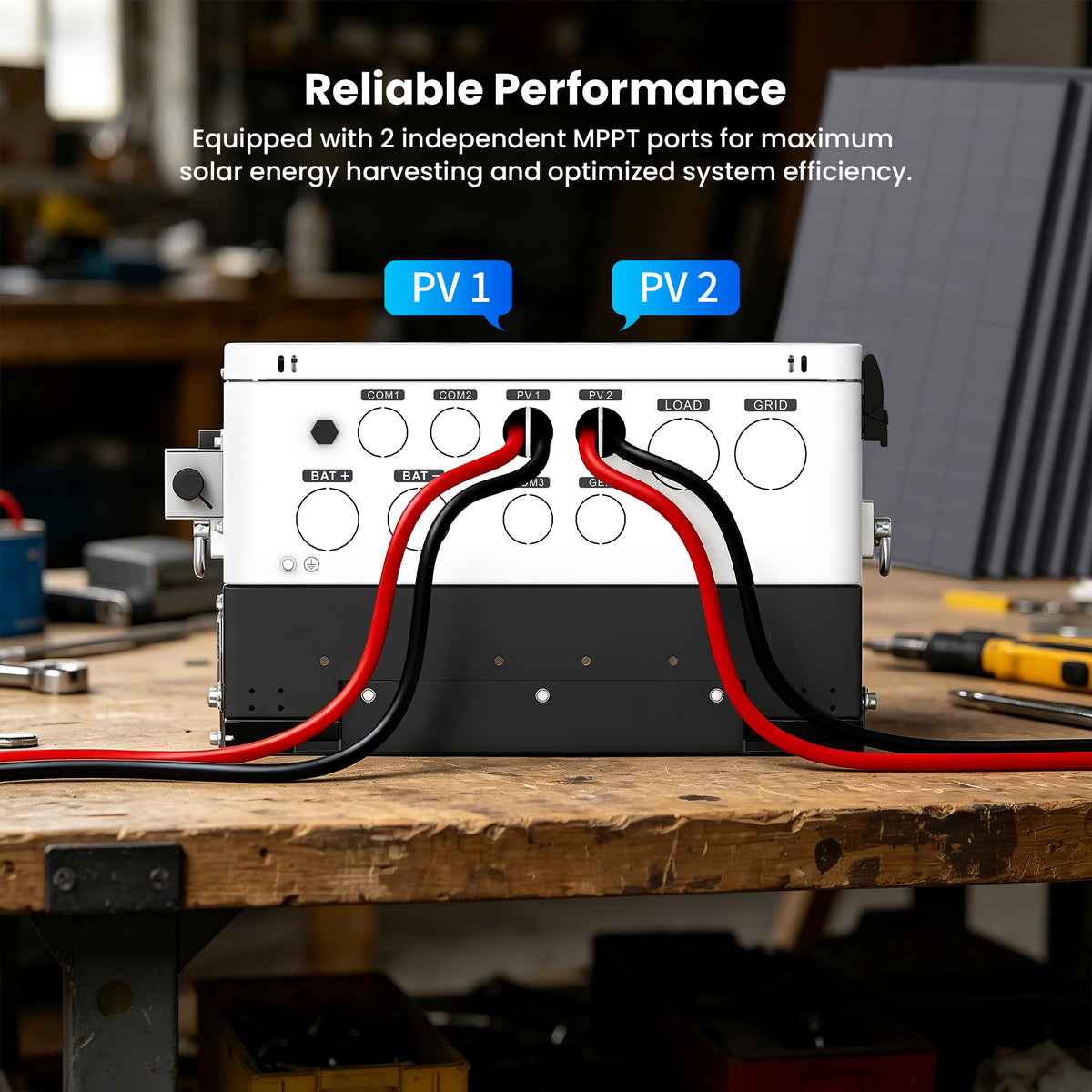

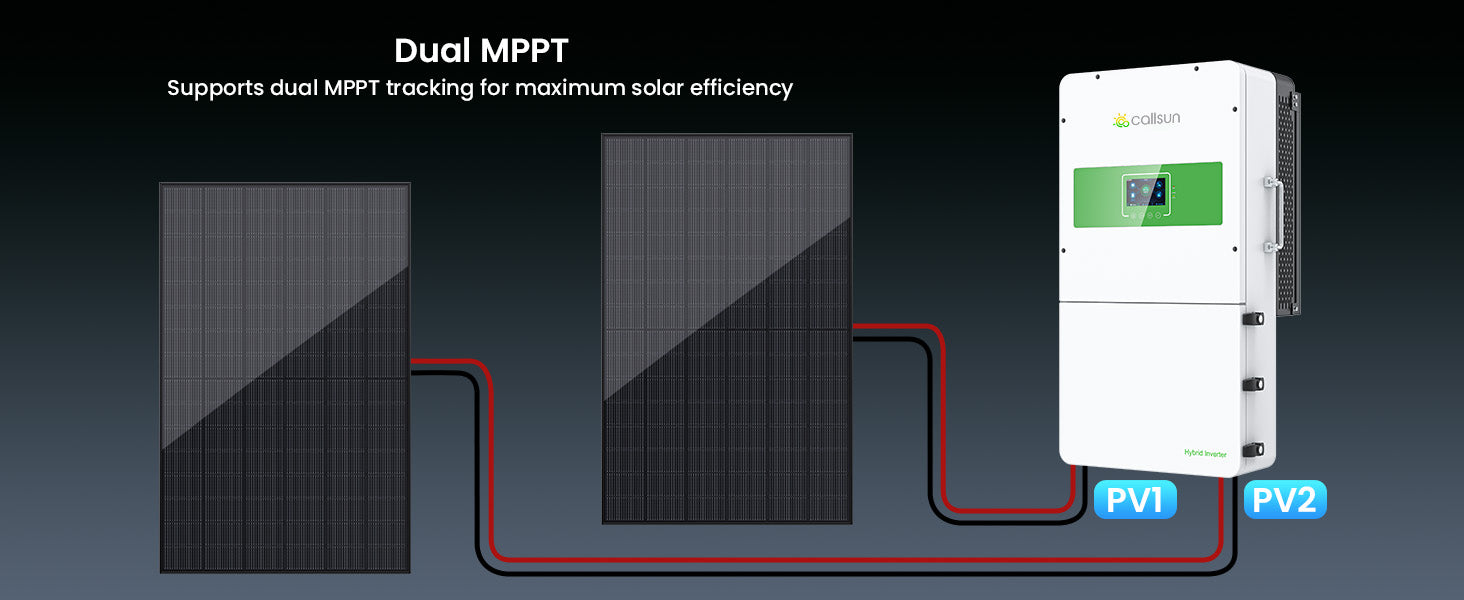

Dual MPPT Technology
Maximize solar power generation with independent dual MPPT inputs. Optimizes energy yield from multiple panel arrays across different orientations, ensuring peak performance and higher efficiency under varying sunlight conditions.

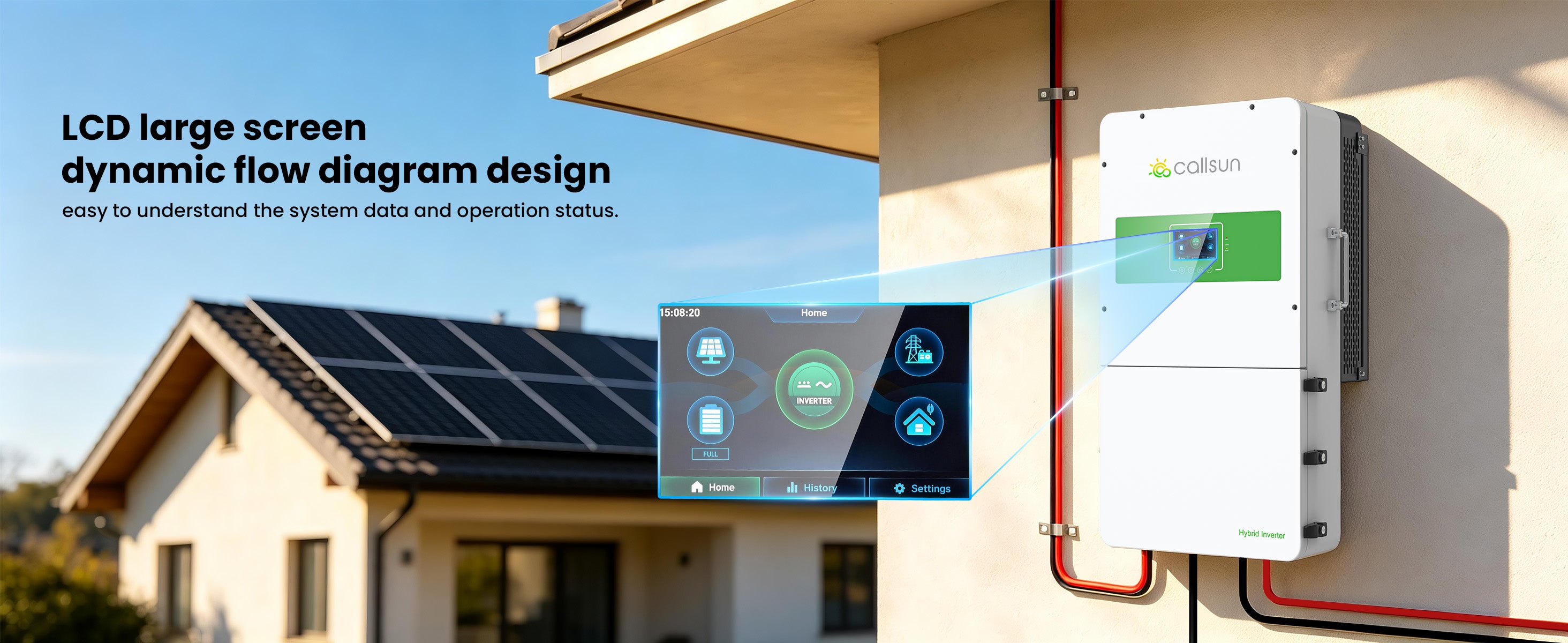

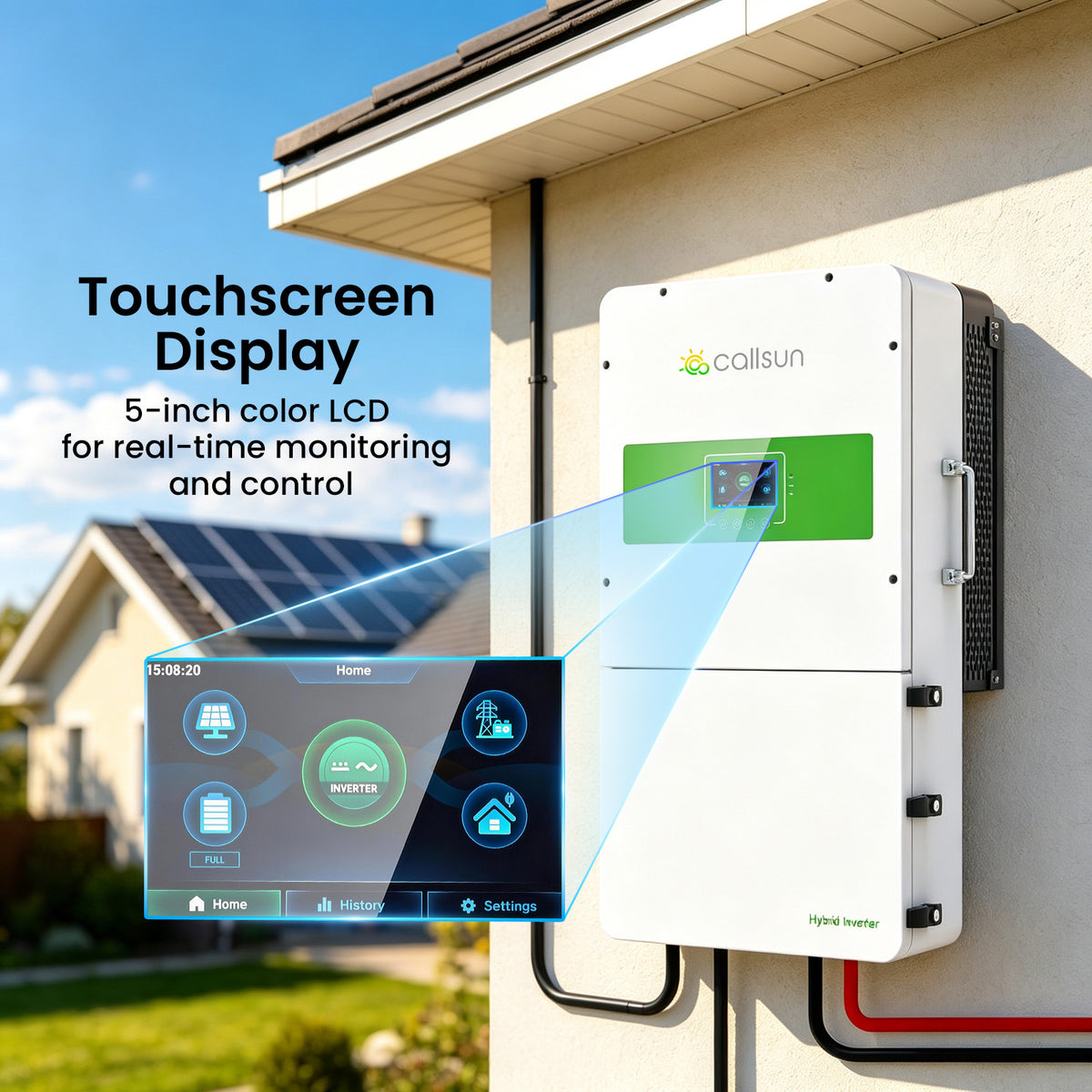

Interactive LCD Flow Diagram
A large, intuitive screen provides a real-time, dynamic visualization of the entire power system. Easily monitor energy flow from solar panels, grid, battery, and to your home loads. System data and operational status are displayed clearly for effortless understanding.

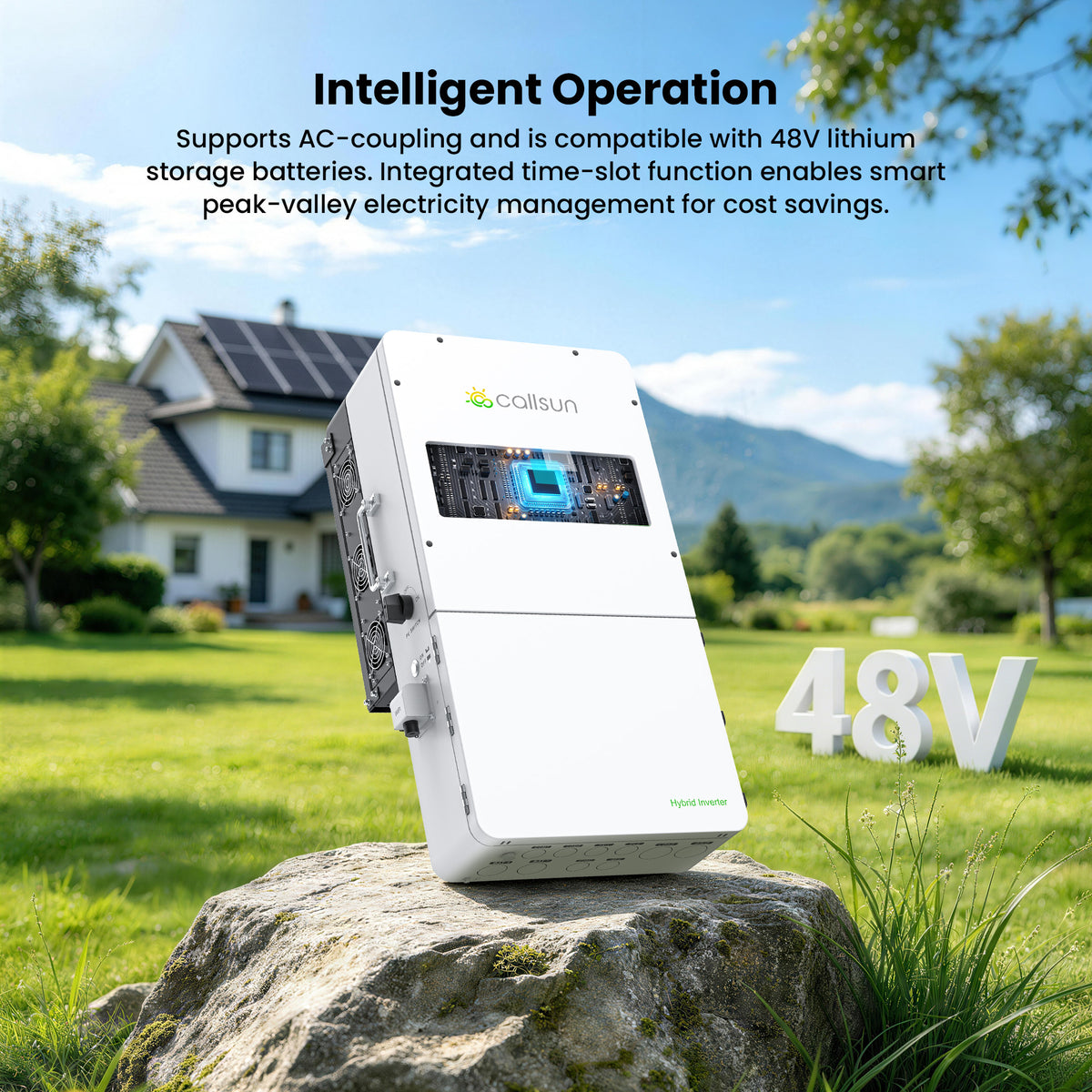

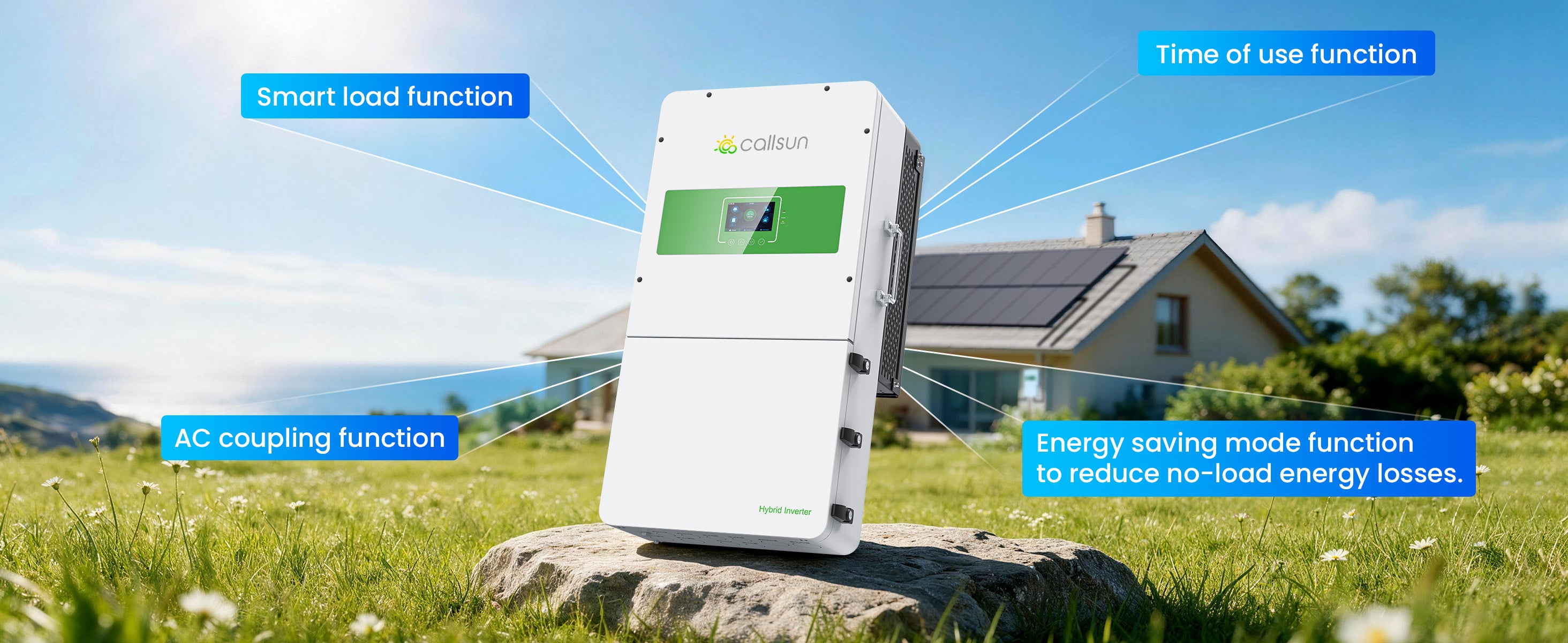

Intelligent Power Management
Optimize your energy usage with advanced smart load and AC coupling functions. Leverage the time of use feature to reduce electricity bills and activate the energy-saving mode to minimize no-load power losses.

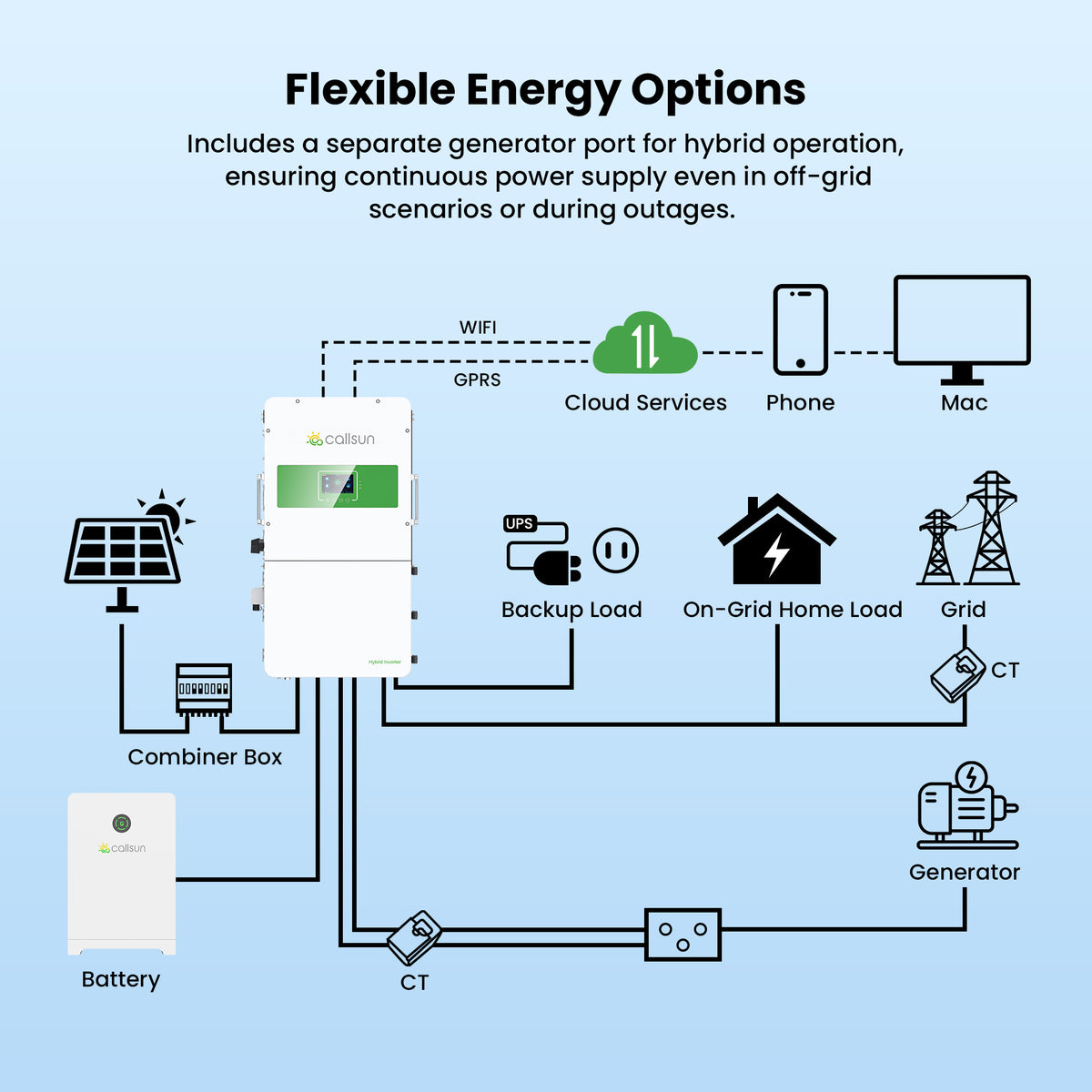

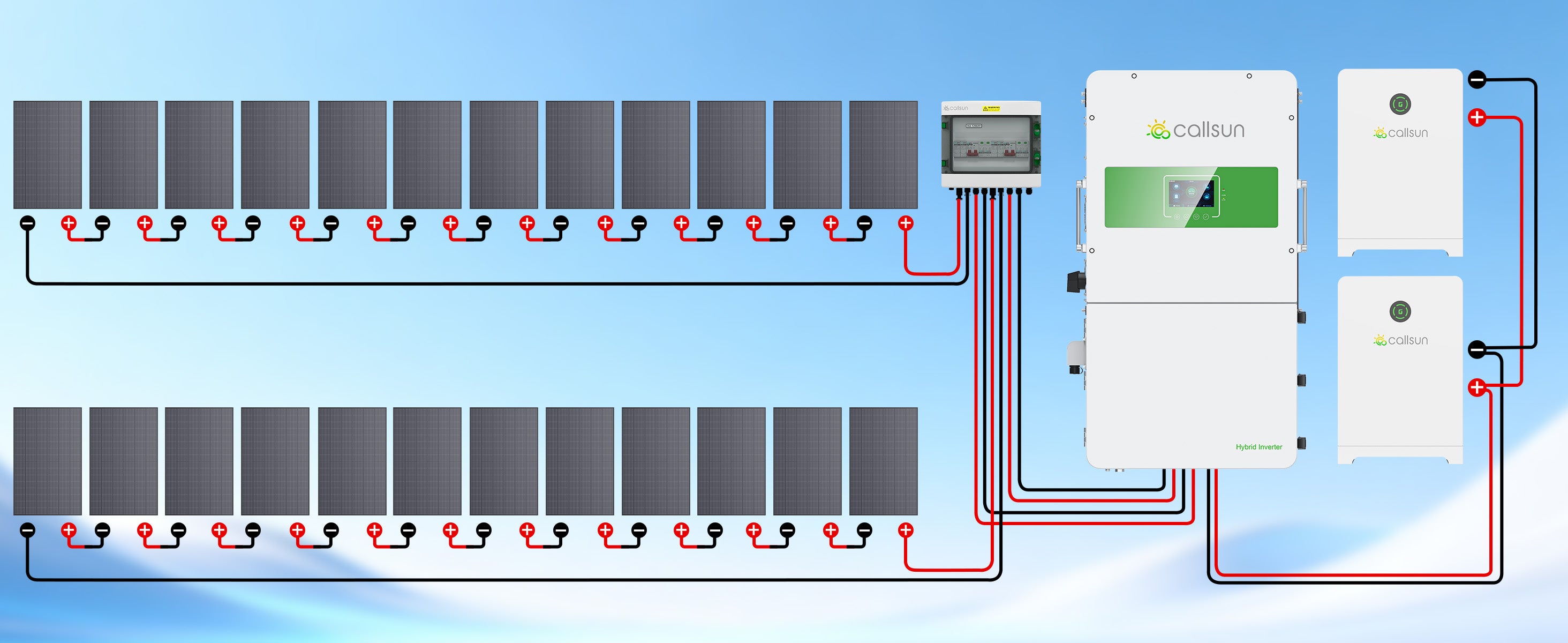

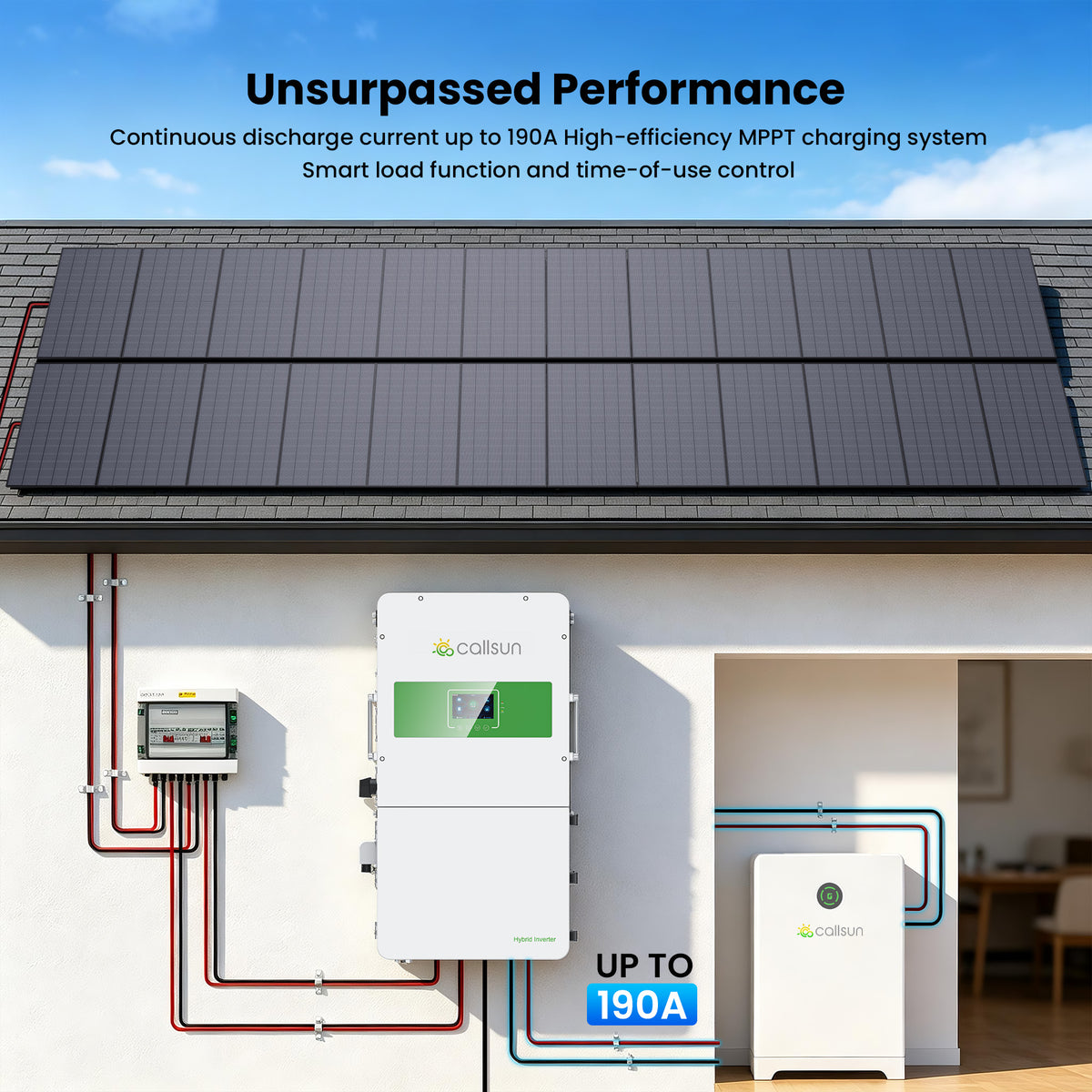

Comprehensive System Wiring Diagram
Easily map out your solar installation with a clear, structured layout connecting photovoltaic panel strings, a central combiner box, the hybrid inverter, and multi-unit battery storage. Designed for seamless power integration, maximum capacity, and safe energy flow.

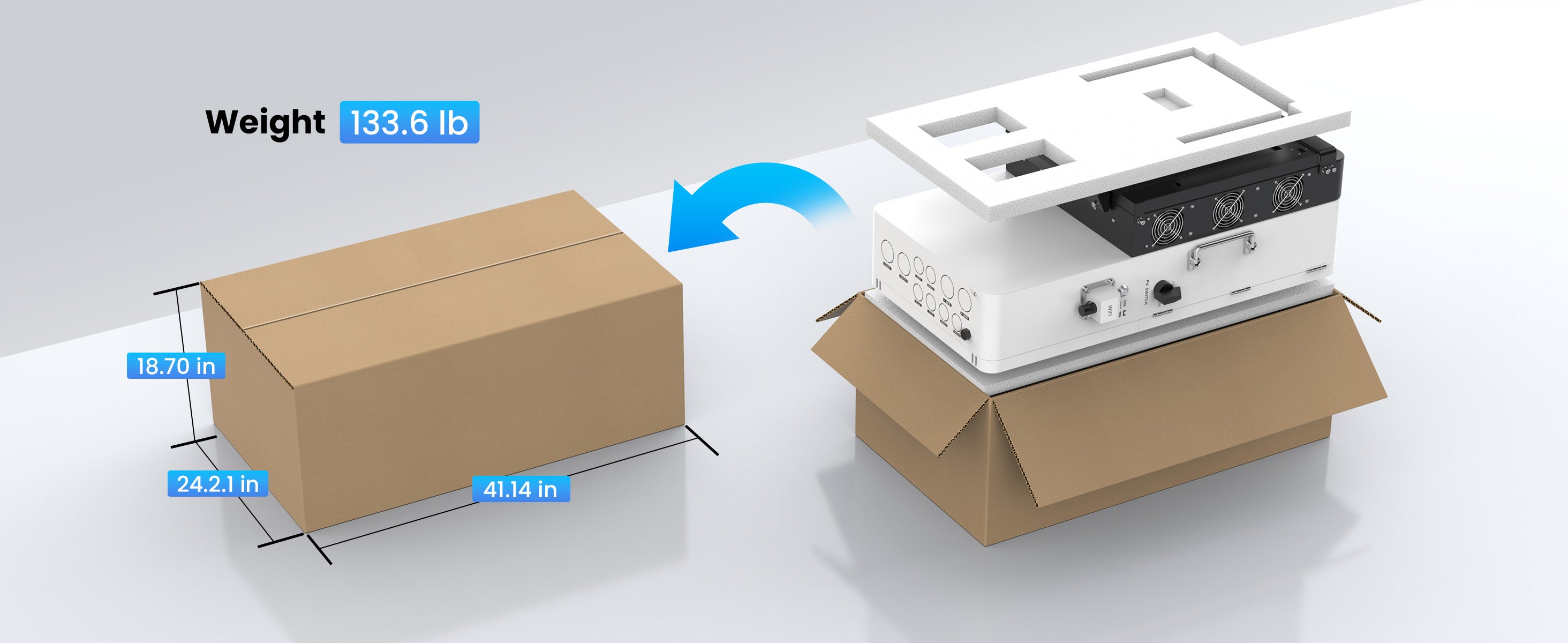

Compact Package Design
Designed for secure transport and easy handling, weighing 133.6 lb with optimized packaging dimensions of 41.14 x 24.21 x 18.70 in. Ensure safe delivery and convenient storage on site.

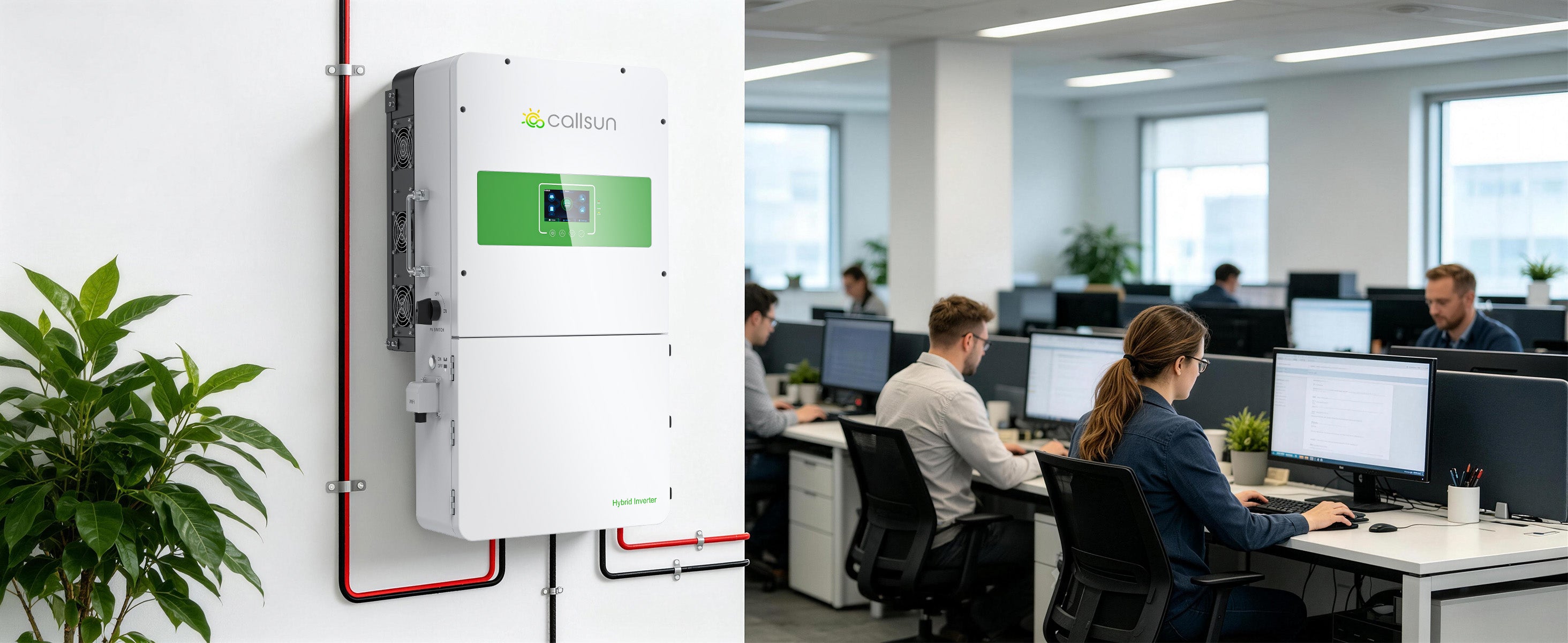

Commercial Grade Power
Deliver uninterrupted clean energy to workspaces and commercial environments with a sleek wall-mounted hybrid inverter system. Combines high-efficiency performance with a professional, space-saving aesthetic.

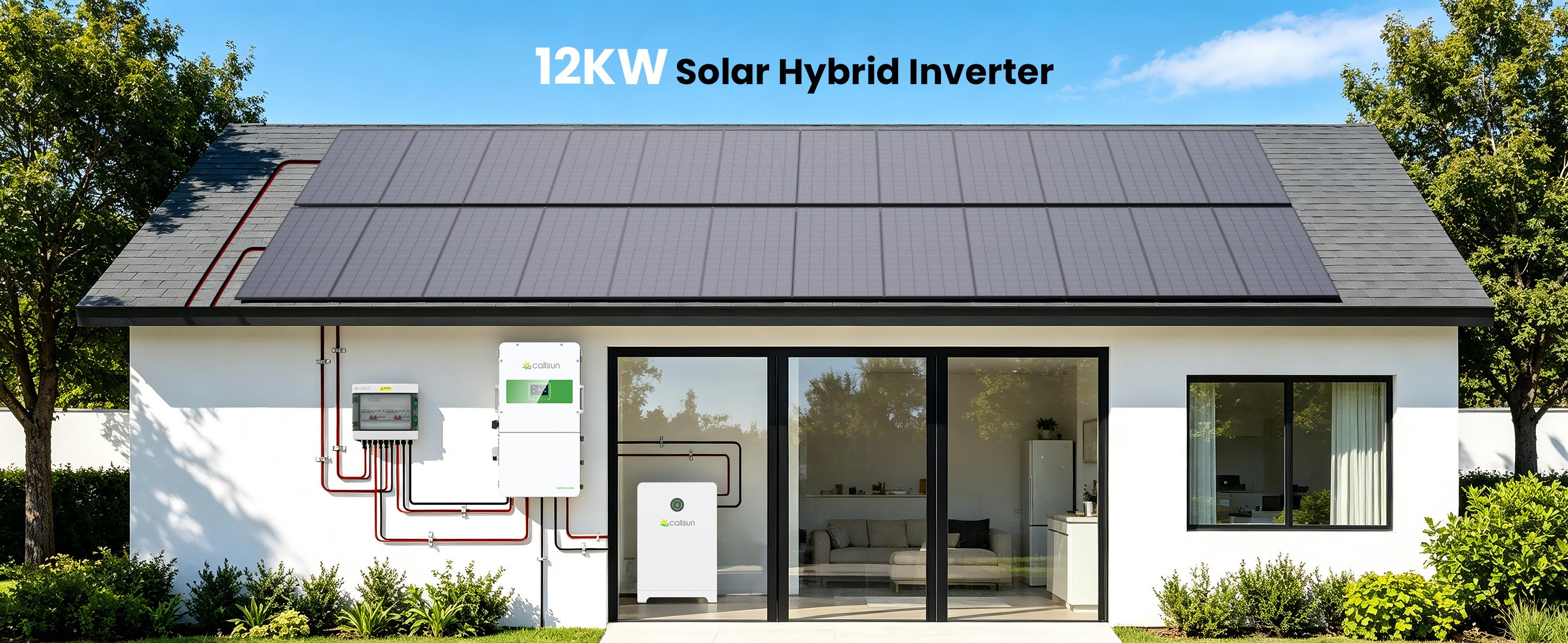

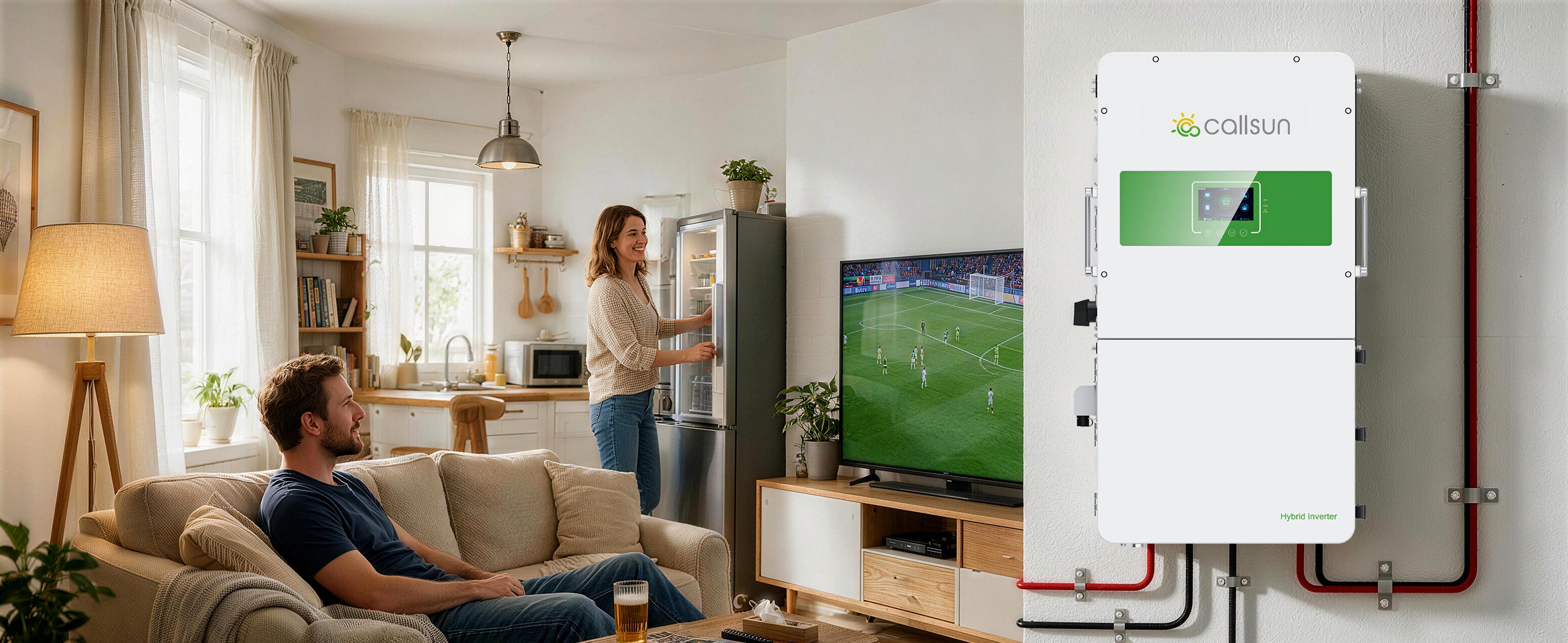

Reliable Home Energy Backup
Keep your household appliances running smoothly and enjoy uninterrupted daily life with a reliable hybrid inverter system. Delivers stable, continuous power to your living space for total peace of mind.

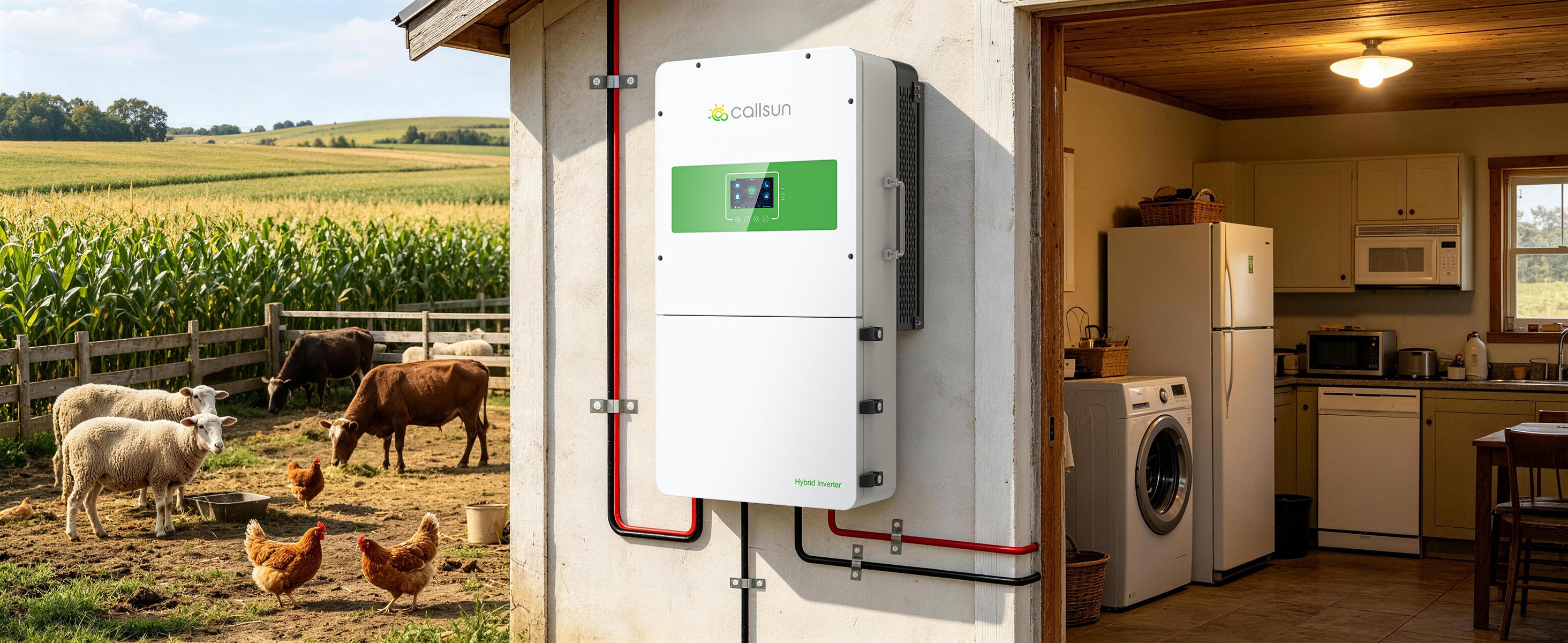

Reliable Off-Grid Power Solutions
Power your remote farms, ranches, and rural properties with a robust hybrid inverter system. Ensures continuous electricity supply for heavy-duty appliances and daily operations, even in off-grid environments.
Specifications
Inverter output
| Rated output power | @240V 12000W/ @208V 10400W |
|---|---|
| Max. peak power | 1.5 times rated power (10s) |
| Rated output voltage | 120/240Vac (Split-phase) 120/208V(Three-phase) |
| Output voltage error | 50A |
| Load Capacity of Motors | 6HP |
| Rated AC Frequency | 50/60Hz |
| Parallel number | 6 |
| Waveform | Pure Sine Wave |
Battery
| Battery type | Lithium-ion battery/lead-acid battery/user-defined battery |
|---|---|
| Rated battery voltage | 48 Vdc |
| Voltage range | 40 Vdc−60 Vdc |
| Max. grid/generator charge current | 200 A/90 A |
| Max. hybrid charge current | 240 A |
PV input
| MPPT channel number | 2 |
|---|---|
| Max. input power | 9000W+9000W |
| Max. Input Current | 32A+32A |
| Max. open circuit voltage | 550Vdc/550Vdc |
| MPPT operating volta gerange | 125Vdc−450Vdc / 125Vdc−450Vdc |
Grid/generator input
| Inputvoltage range | 90 VAC−140 VAC |
|---|---|
| Input frequency range | 50/60 Hz |
| Bypass overload current | 200A |
Efficiency
| MPPT tracking efficiency | 99.9% |
|---|---|
| Max. efficiency of battery inverter | 97.5% |
| CEC Efficiency | 96.5% |
General
| Dimension | 840mm*440 mm*260 mm |
|---|---|
| Weight | 48 kg |

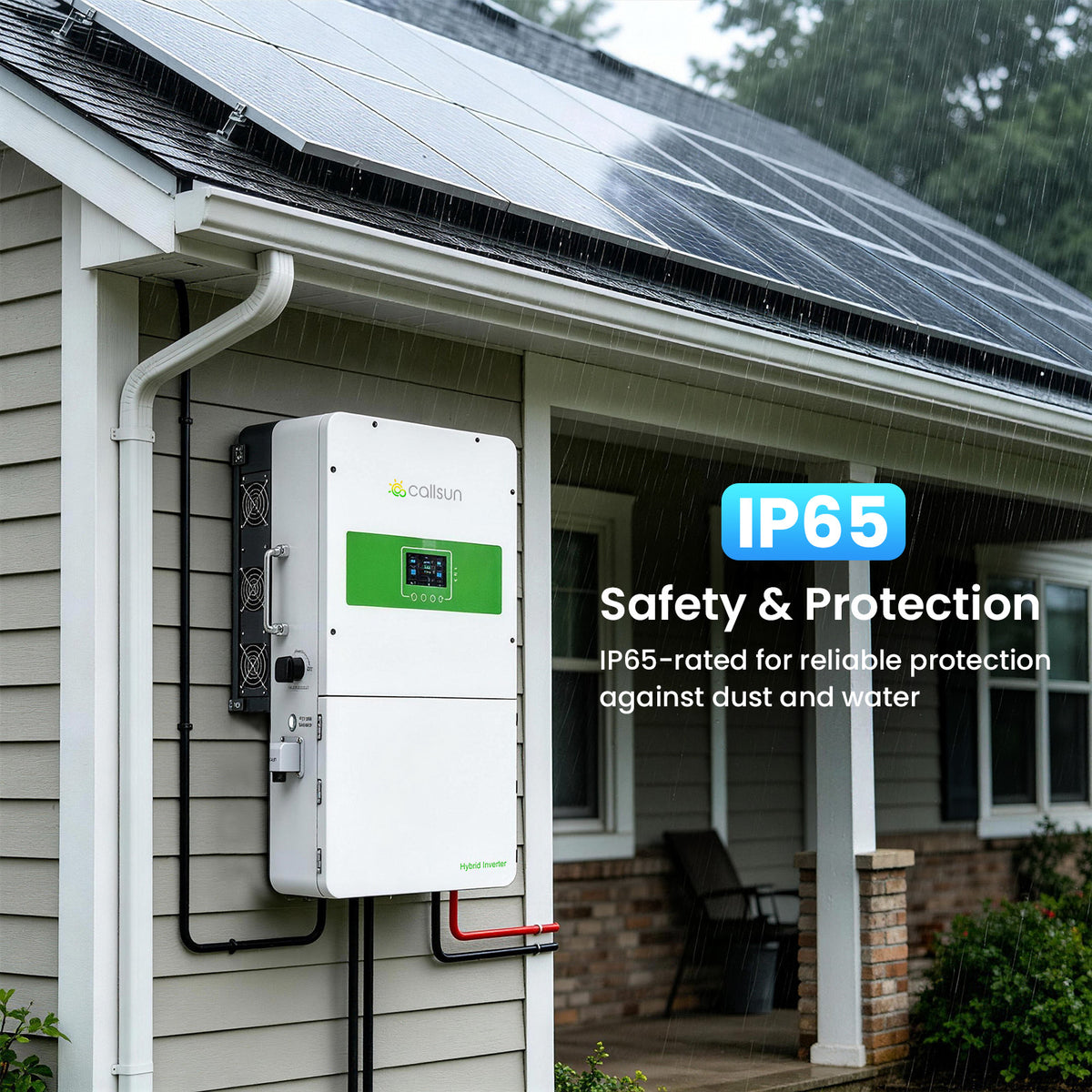

| Protection level | IP65 |
| Ambient temperature | −25°C−65°C, >45°C derating |
| Noise | <60 dB |
| Cooling mod | Heat sink + intelligent fan cooling |
Communication

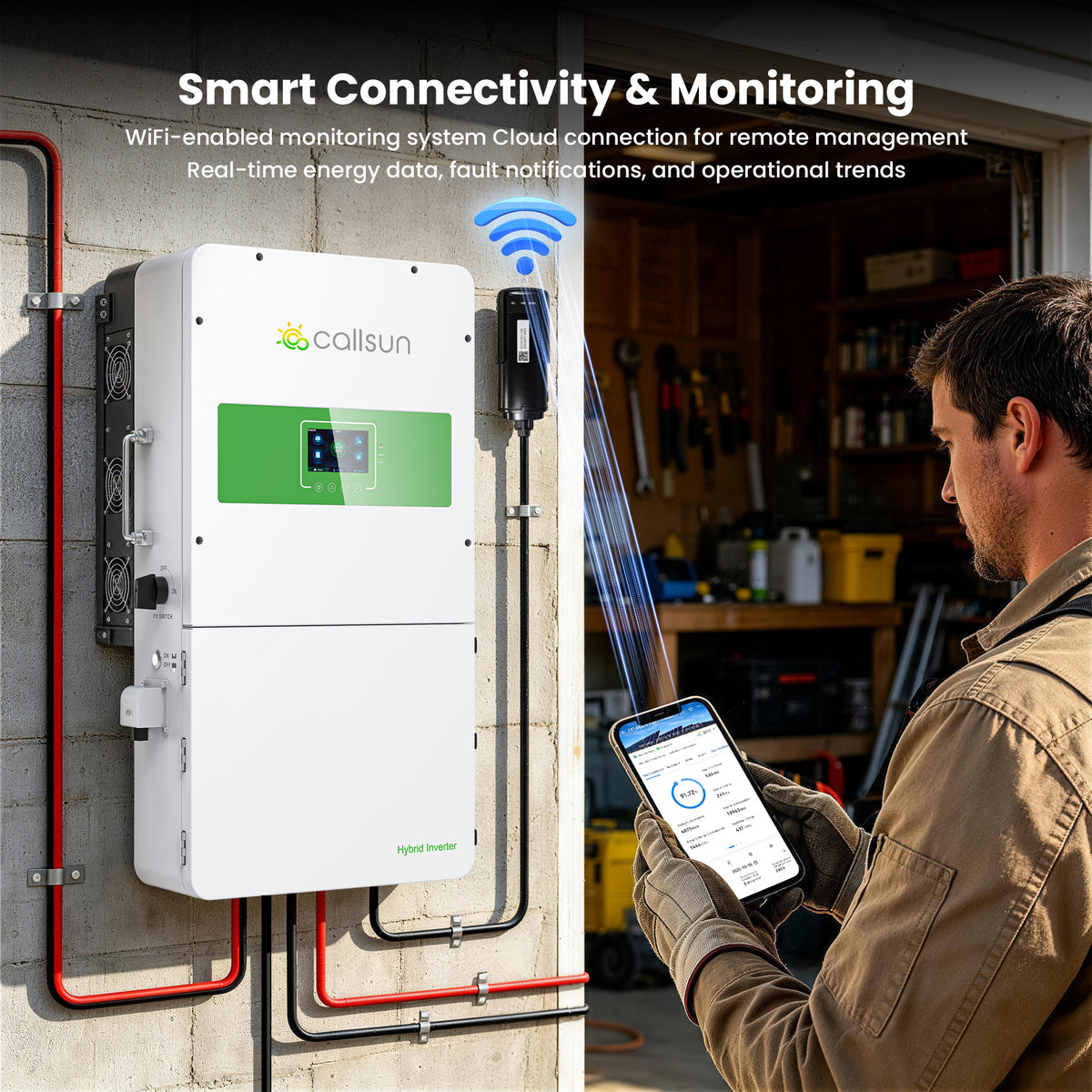

| Built-in interface | RS485/CAN/USB/dry contact |
|---|---|
| External module | Wi-Fi/GPRS |
Certification
| Safety | UL1741&IEEE1547.1-2020CEC, RULE 21, HECO |
|---|---|
| EMC | FCC 15 class B |
| RoHS | Yes |
Includes
FAQ
1. What can I power with the Callsun 12kW Hybrid Solar Inverter?
The 12kW hybrid inverter can support a wide range of residential loads, including refrigerators, air conditioners, well pumps, kitchen appliances, lighting, and other household electronics. Its high power capacity makes it suitable for larger homes and off-grid systems. Actual load capacity depends on startup surges and the total power demand of connected appliances.
2. Does this inverter support both 120V and 240V appliances?
Yes. The inverter supports 120V/240V split-phase output for compatible US residential appliances and electrical systems. It also supports 120V/208V three-phase output according to the product specifications. Confirm your electrical system requirements before installation.
3. What type of battery is compatible with the 12kW hybrid inverter?
The inverter supports compatible 48V battery systems, including lithium-ion, LiFePO₄, lead-acid, and user-defined battery configurations. Choose the appropriate charging settings and ensure the battery's continuous discharge current can meet your power requirements.
4. Can this inverter provide backup power during a grid outage?
Yes. When configured with compatible solar panels and battery storage, the inverter can provide backup power during grid outages. Its hybrid energy management helps coordinate solar generation, battery storage, and grid power to support essential household loads.
5. How many solar panels can I connect to the Callsun 12kW Hybrid Solar Inverter?
The inverter features two MPPT trackers, each supporting up to 9,000W of PV input, for a combined maximum PV input power of 18,000W. The maximum open-circuit voltage is 550V per MPPT, with an operating voltage range of 125–425V. The final number of panels depends on each panel's electrical specifications and the series/parallel configuration.
