800W 12V Complete Solar Panel Kit
Key Features
- 800W High-Efficiency Solar Power Reliable Solar Energy for Off-Grid Living
- Smart MPPT Charging Technology Optimized Solar Harvest for 12V Systems
- Pure Sine Wave AC Power Reliable Power for Everyday Appliances
- Complete Off-Grid Solar Kit Ideal for RVs, Vans & Remote Cabins
800W 12V Complete Solar Panel Kit ist auf Lager und wird versandt, sobald es wieder verfügbar ist
800W 12V Complete Solar Panel Kit
Power your off-grid RV adventures with a 800W 12V solar kit featuring four 200W panels, charge controller, battery, and inverter. Runs appliances reliably wherever your outdoor road trip takes you.

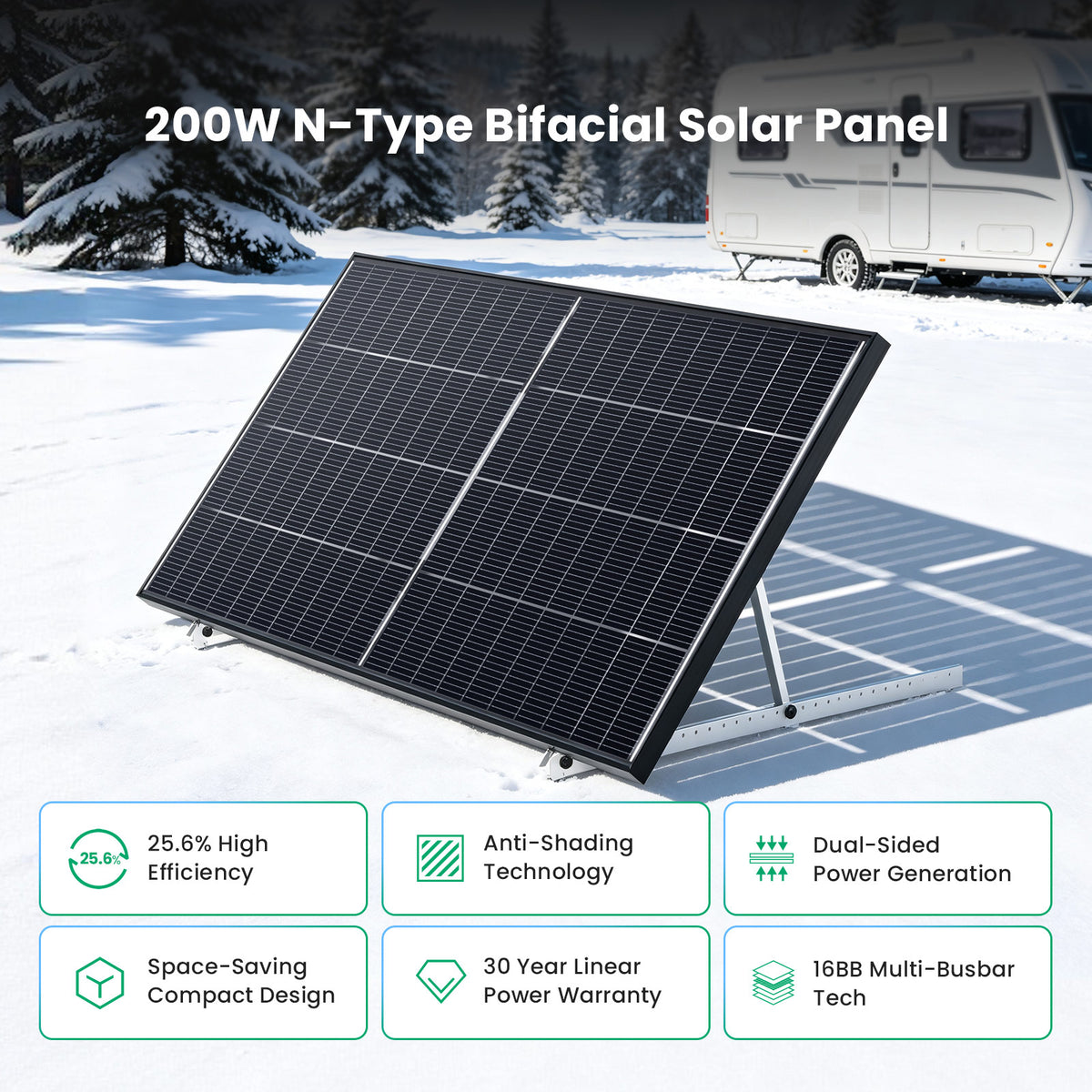

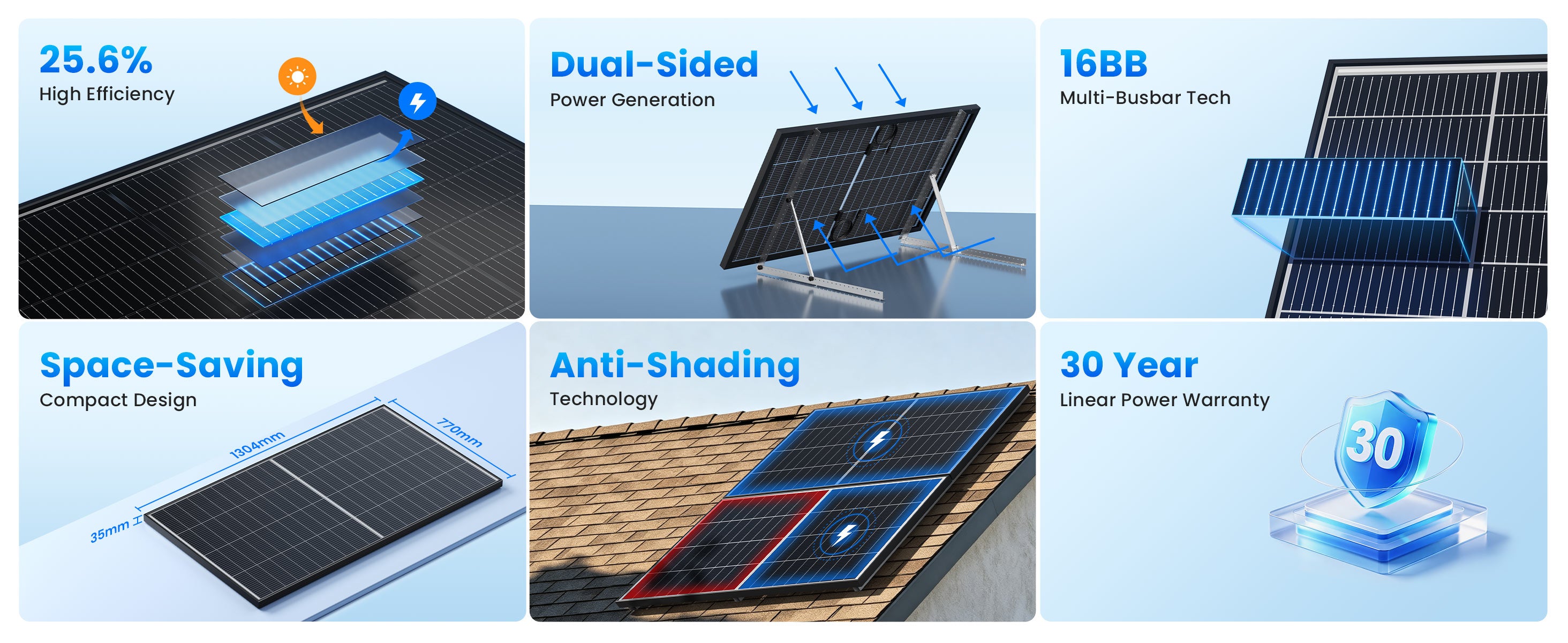

Advanced Bifacial Solar Panels
Boost energy yields with 25.6% high efficiency and 16BB multi-busbar architecture. Built with anti-shading technology, a space-saving footprint, and backed by a 30-year linear power warranty.

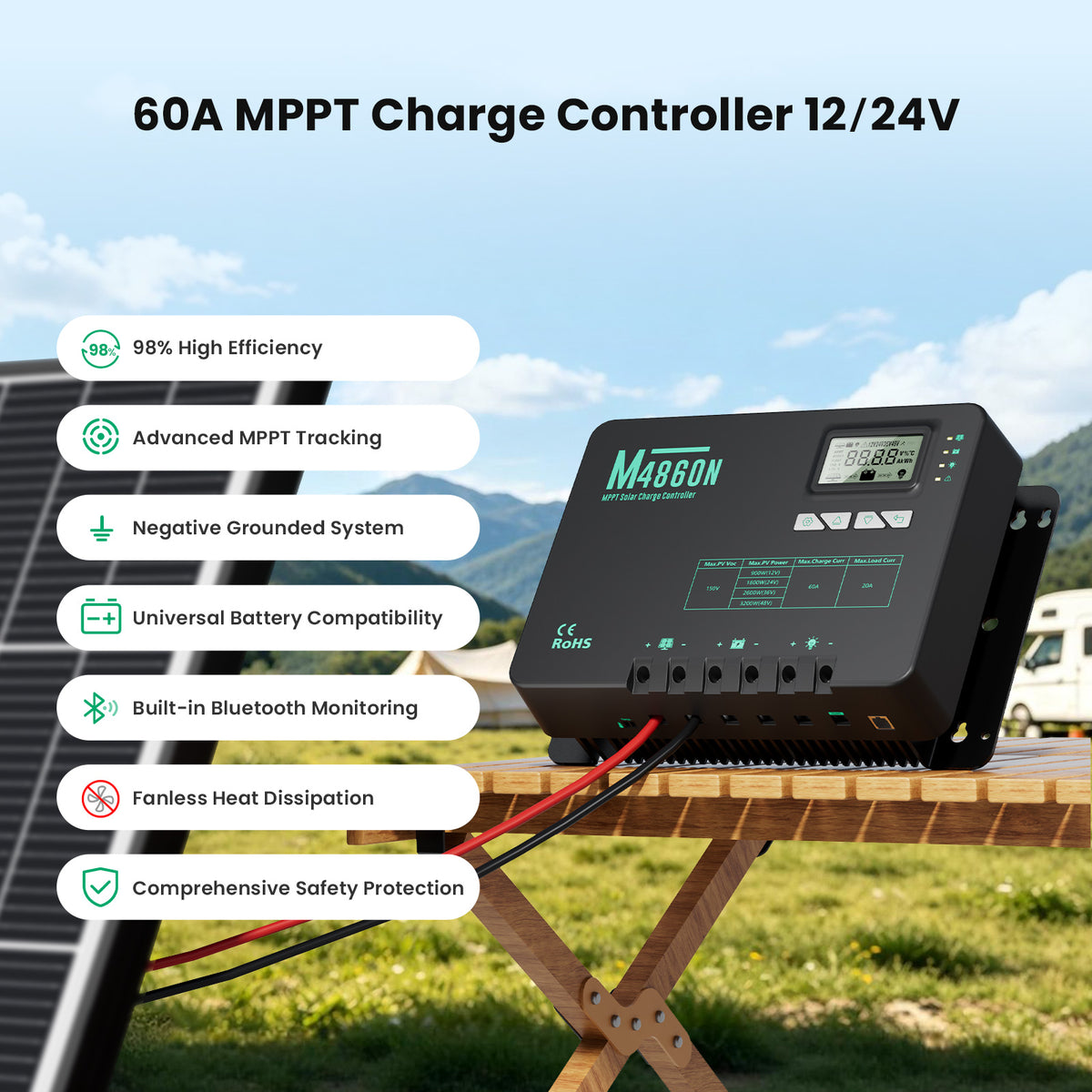

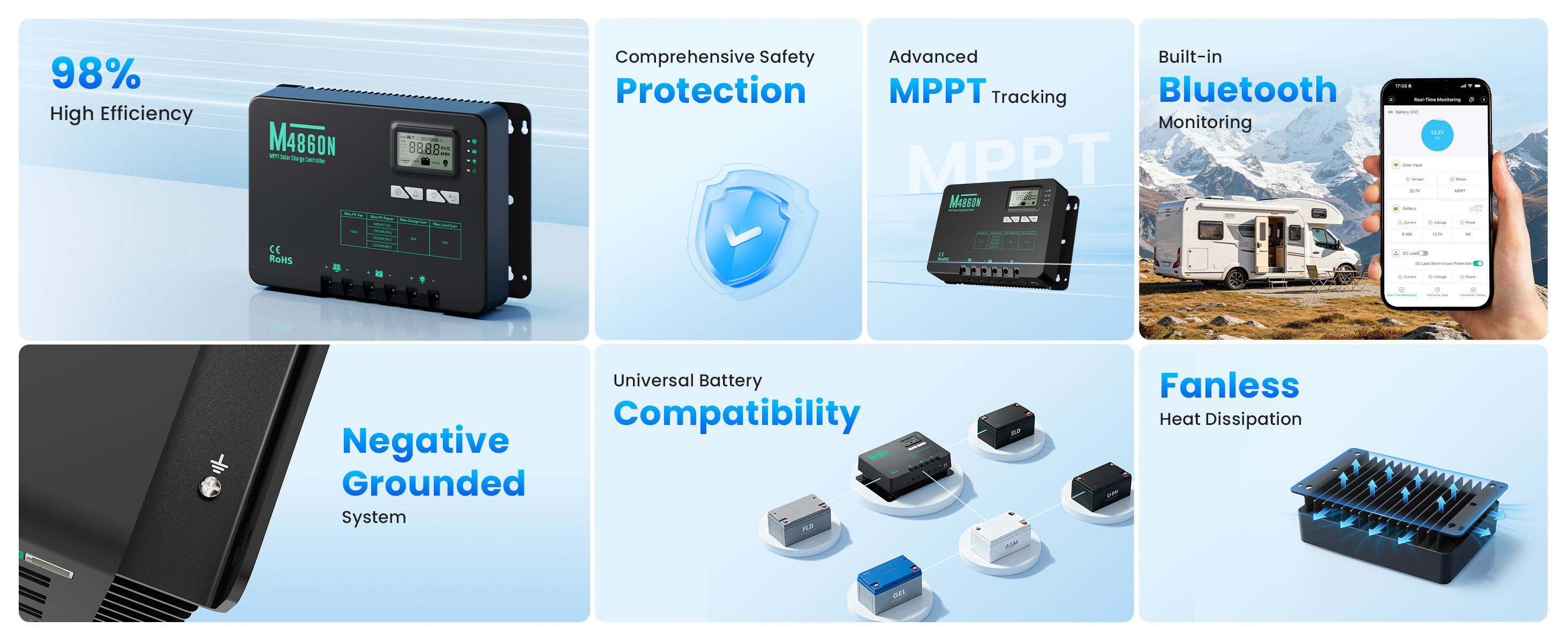

Smart Solar Charge Controller
Features 98% high efficiency, advanced MPPT tracking, Bluetooth app monitoring, negative grounded design, fanless heat dissipation, and universal battery compatibility for safe power management.

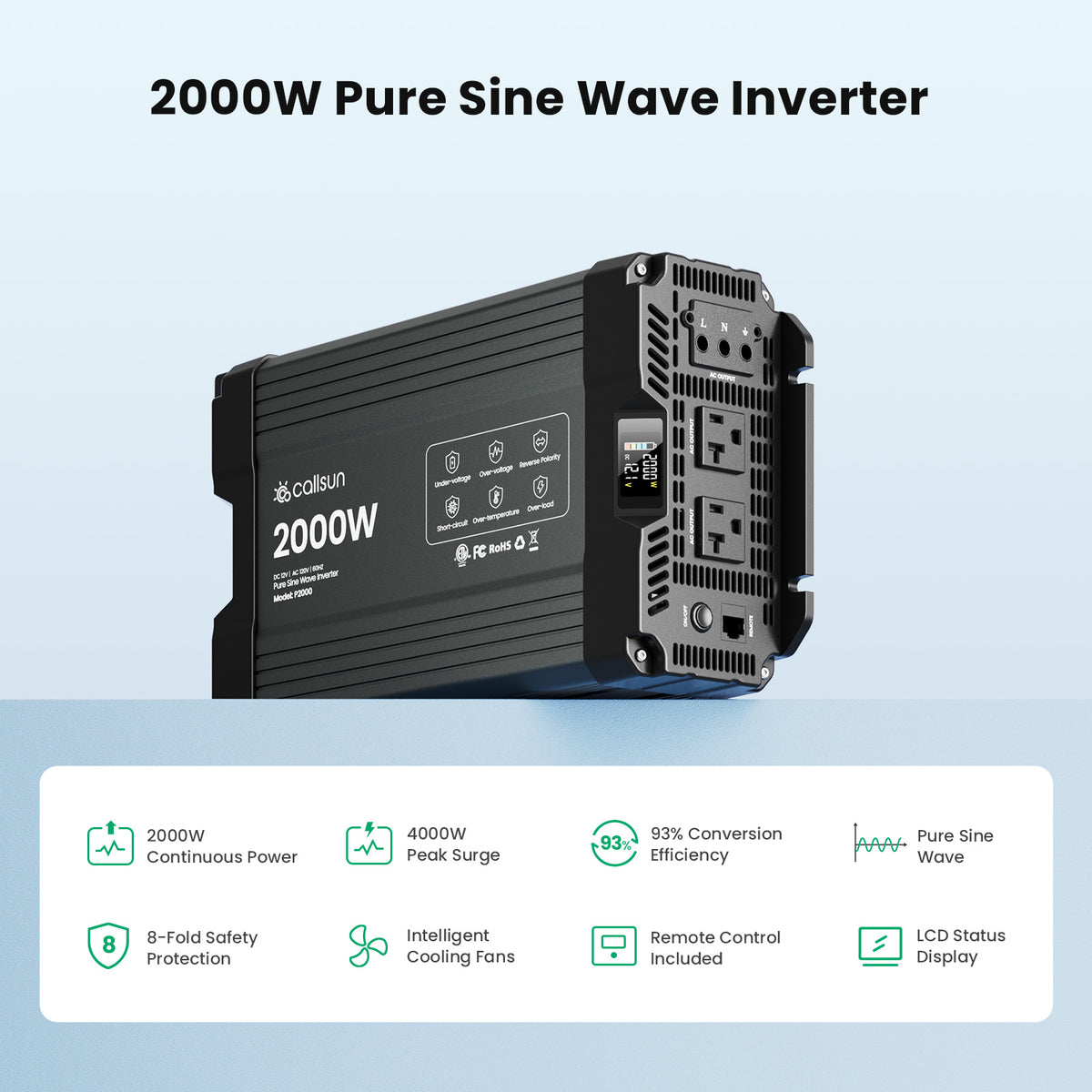

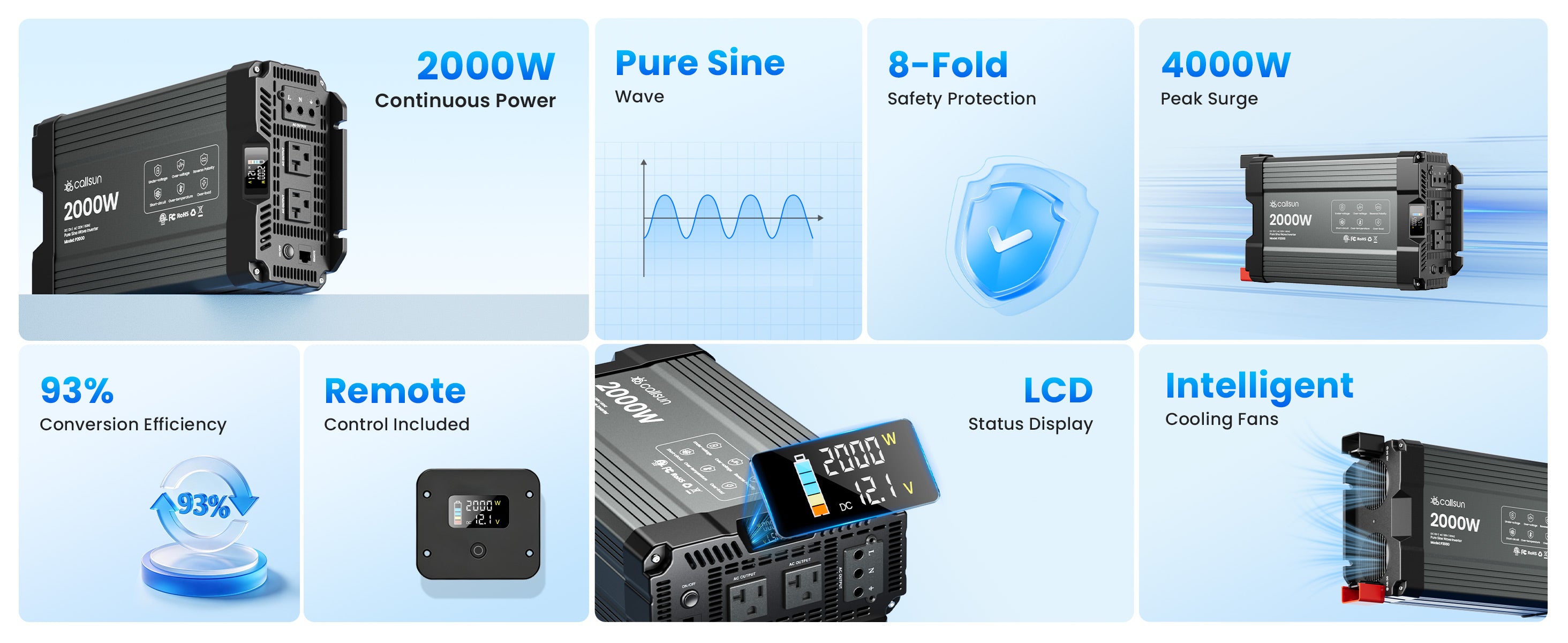

Pure Sine Wave Inverter
Features 2000W continuous output, 4000W peak surge, 98% conversion efficiency, pure sine wave power, 8-fold safety protection, LCD display, remote control, and intelligent cooling fans.

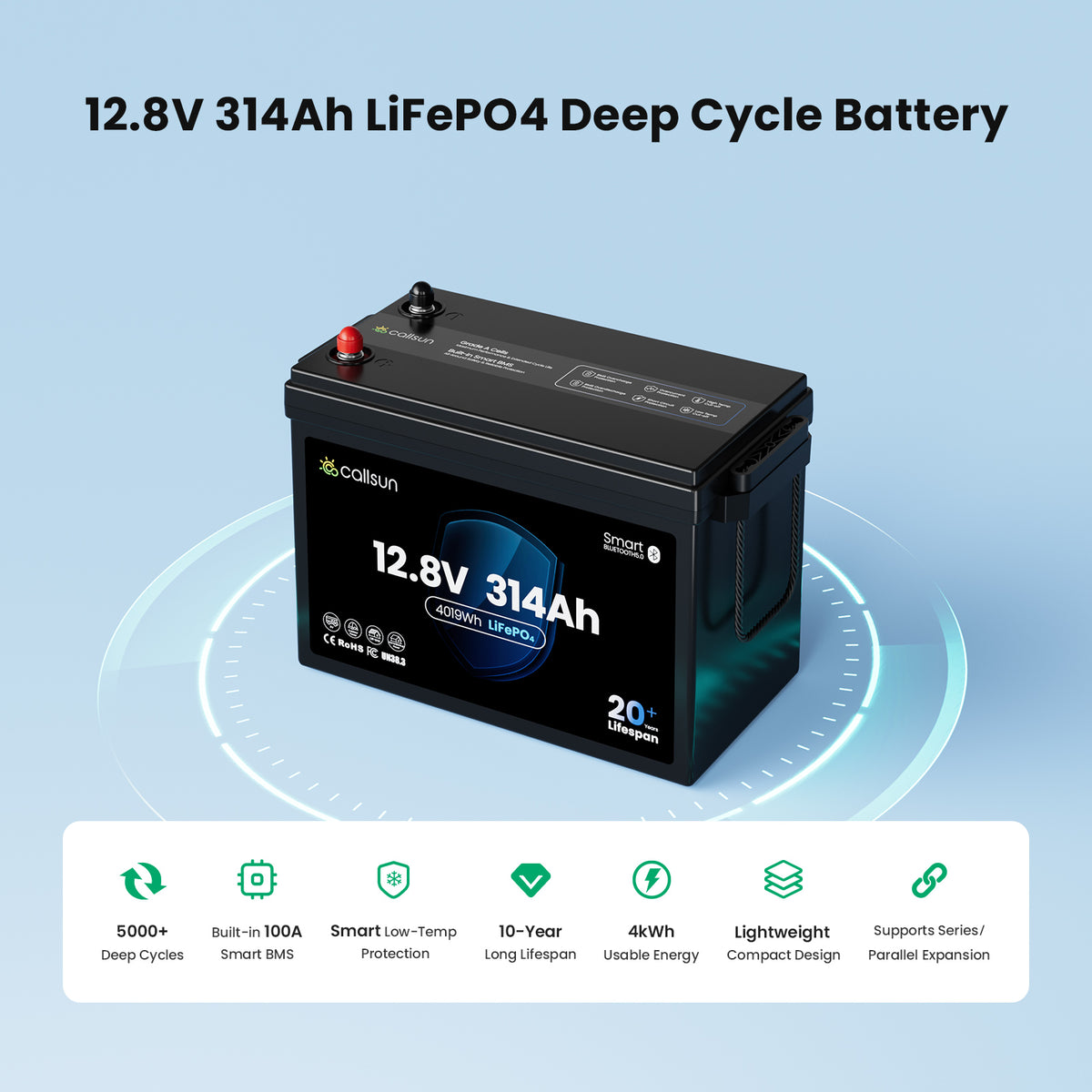

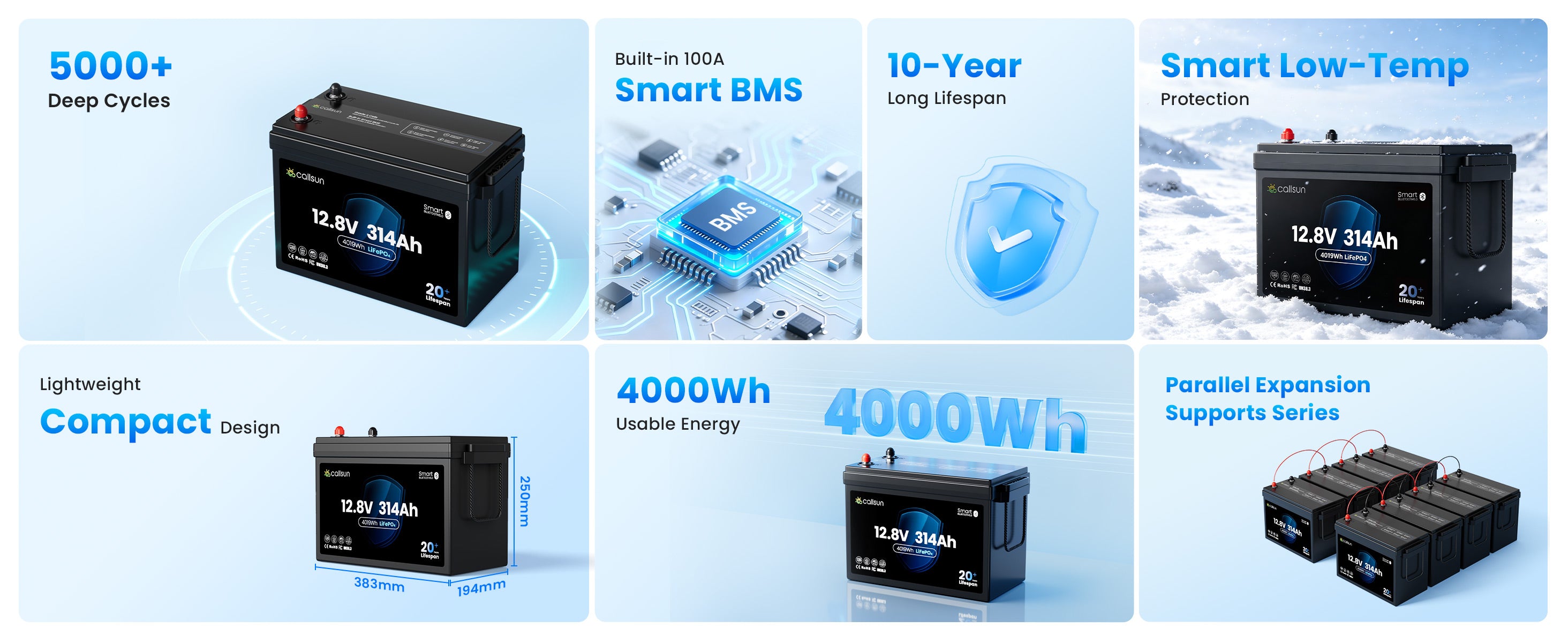

High-Performance LiFePO4 Battery
Offers 5000+ deep cycles, 4000Wh usable energy, built-in 314A smart BMS, 10-year lifespan, smart low-temp protection, lightweight compact design, and series-parallel expansion.

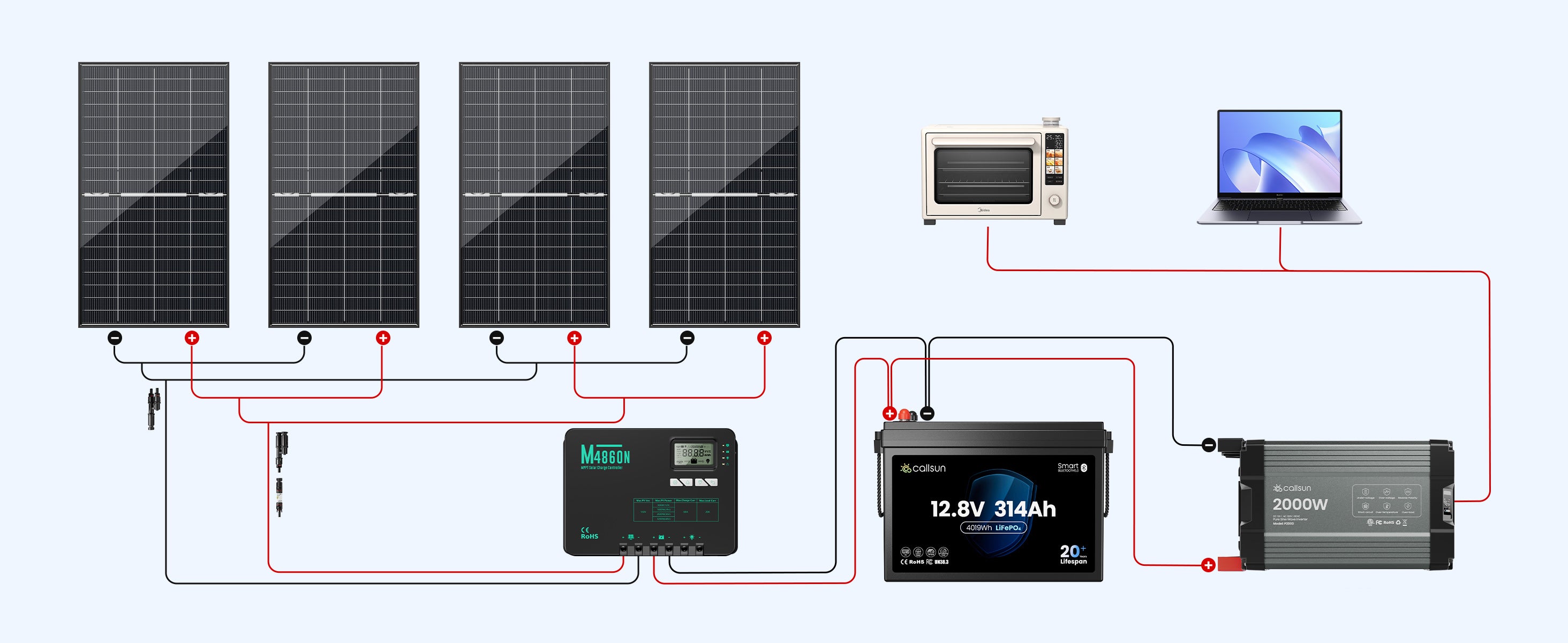

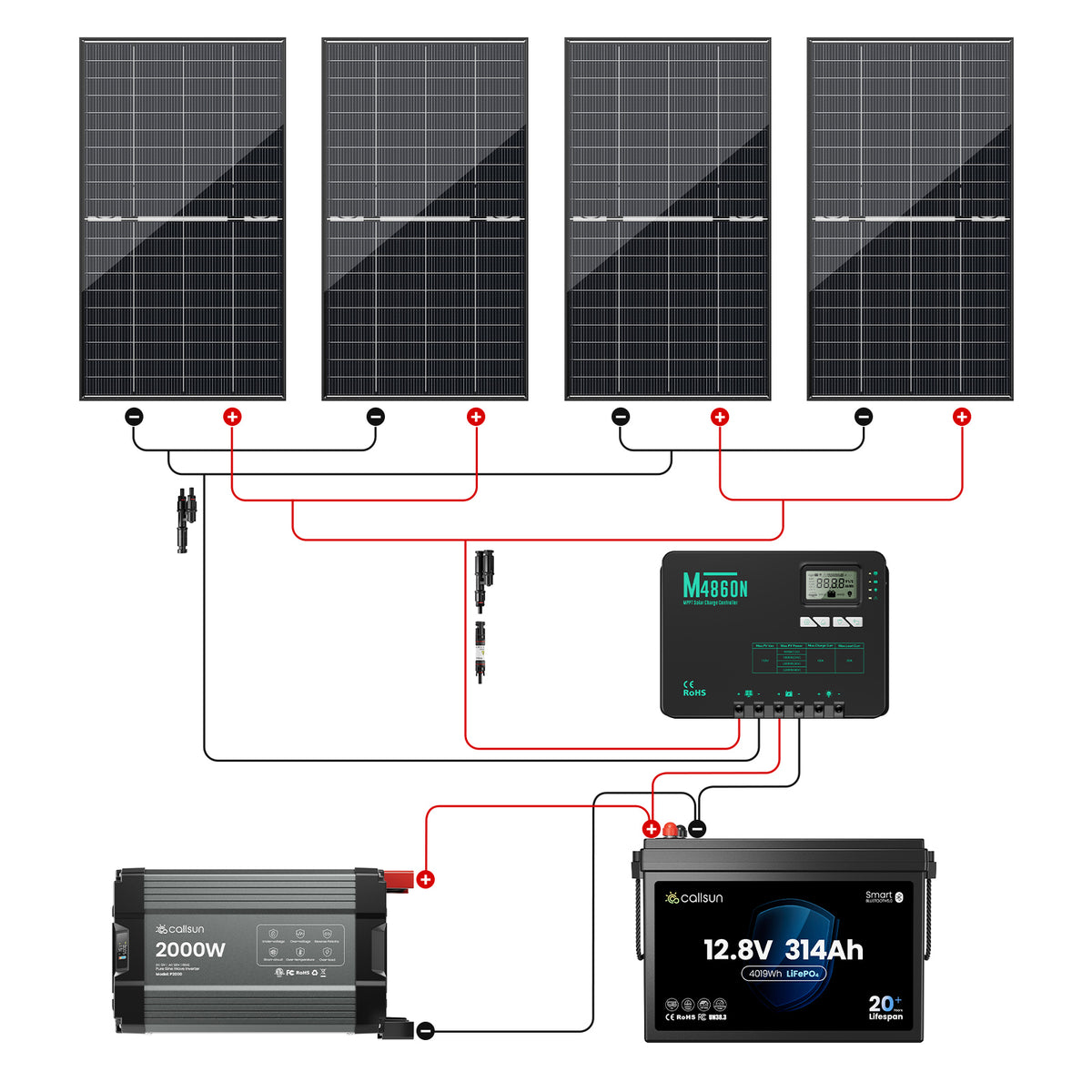

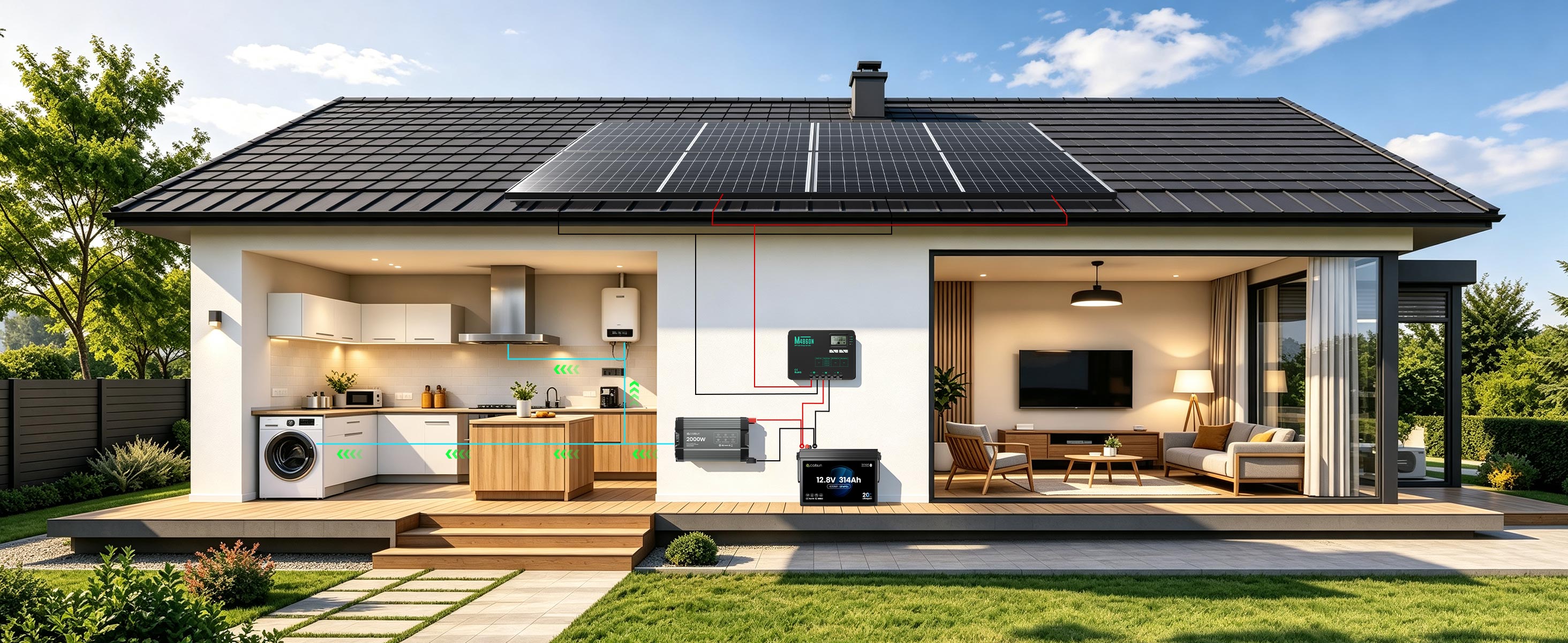

Easy Solar Power Setup
Streamlined wiring configuration powers everyday electronics with high efficiency. Integrates high-yield solar collection, smart battery storage, and stable inverter output effortlessly.

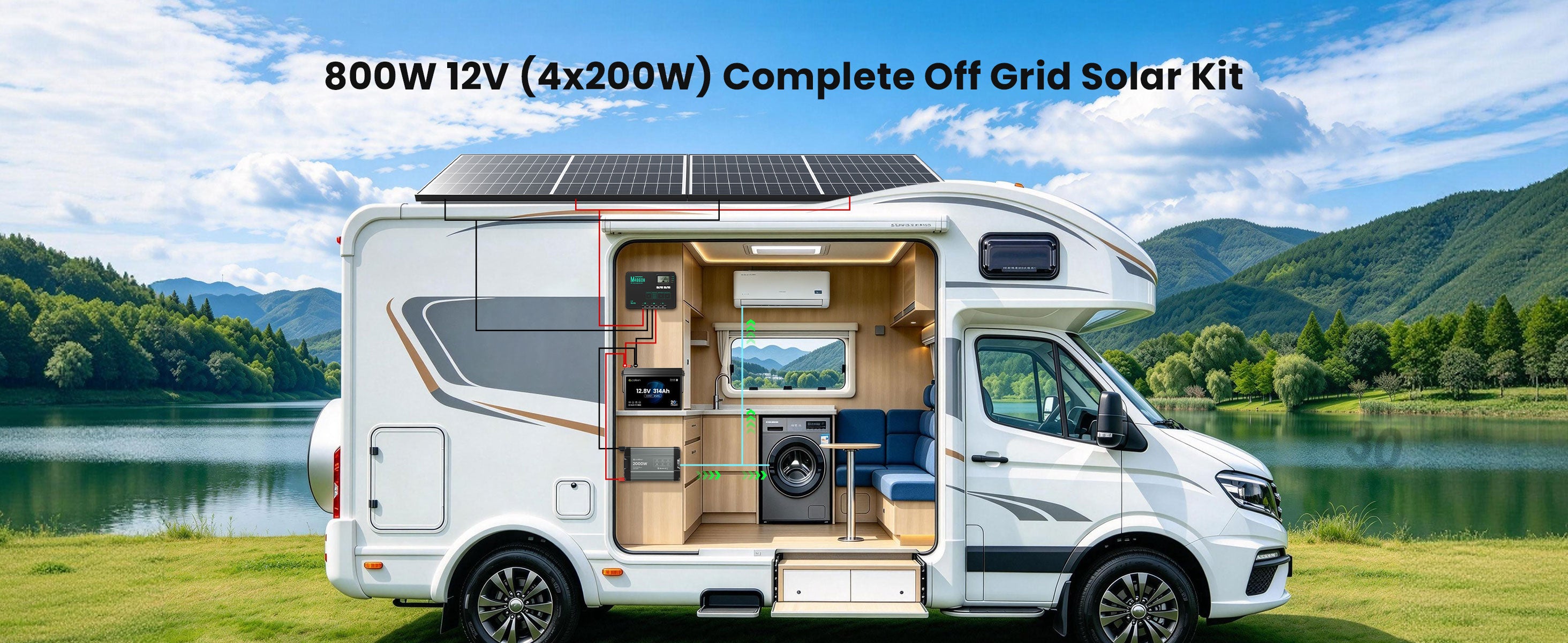

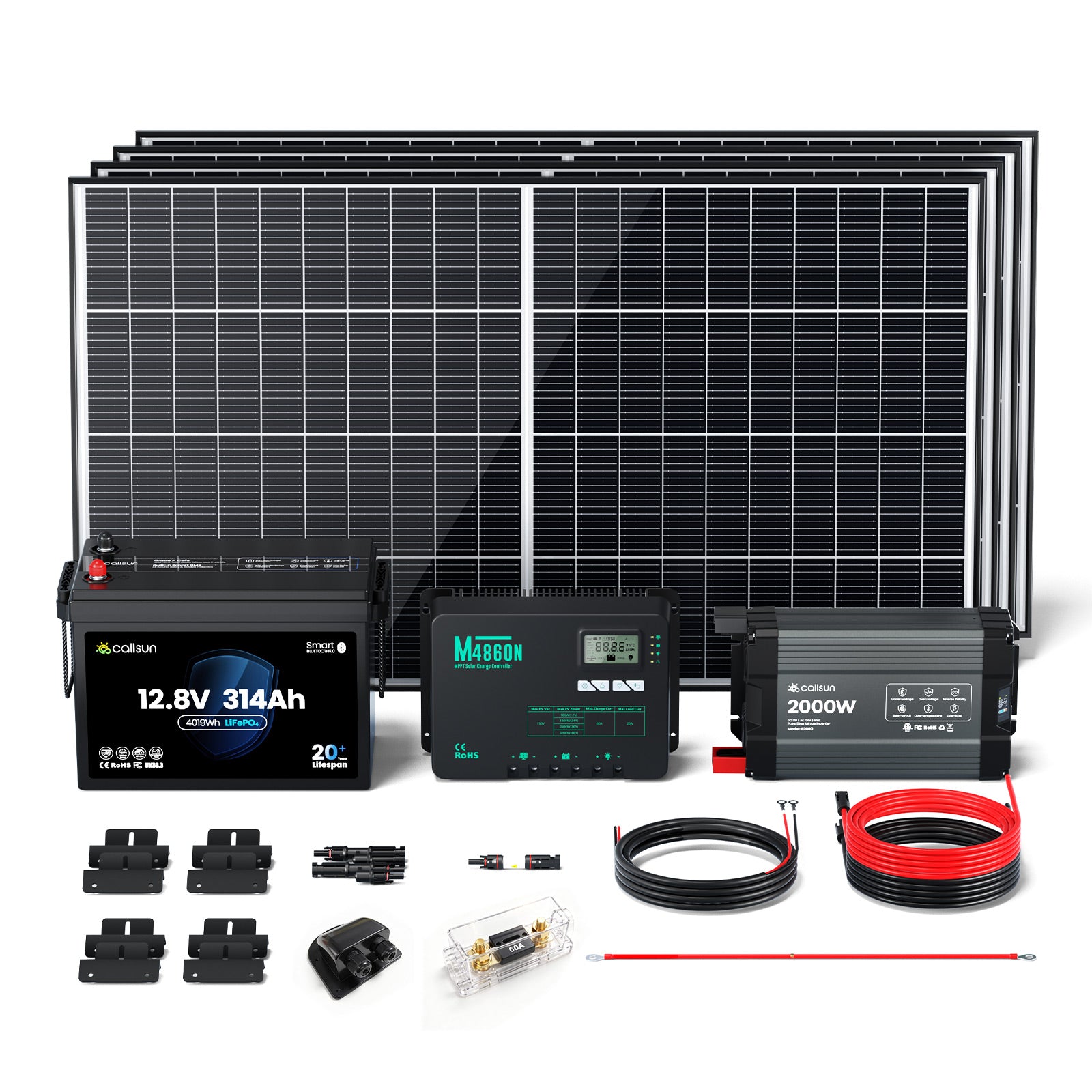

All-In-One Power System Package
Fully equipped 800W 12V solar solution featuring high-efficiency panels, smart MPPT charge control, 4.19kWh battery storage, pure sine inverter, and complete mounting accessories.

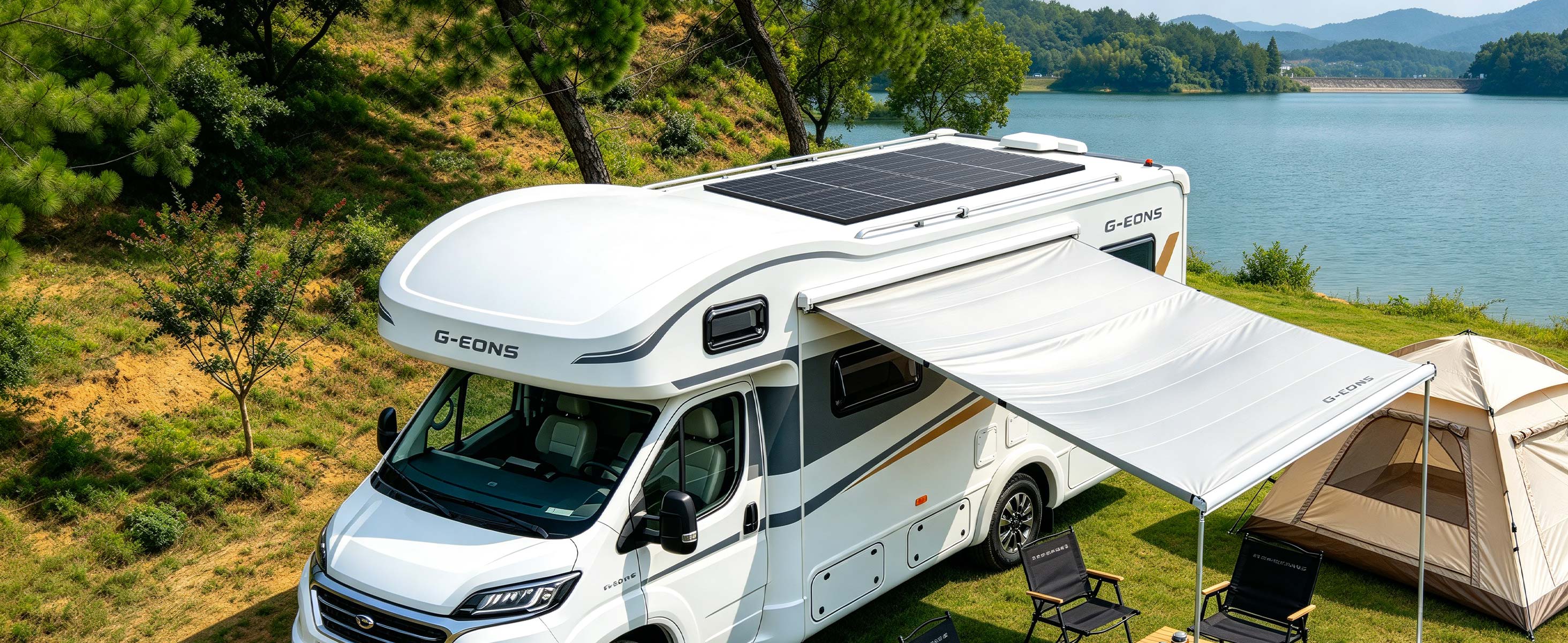

RV

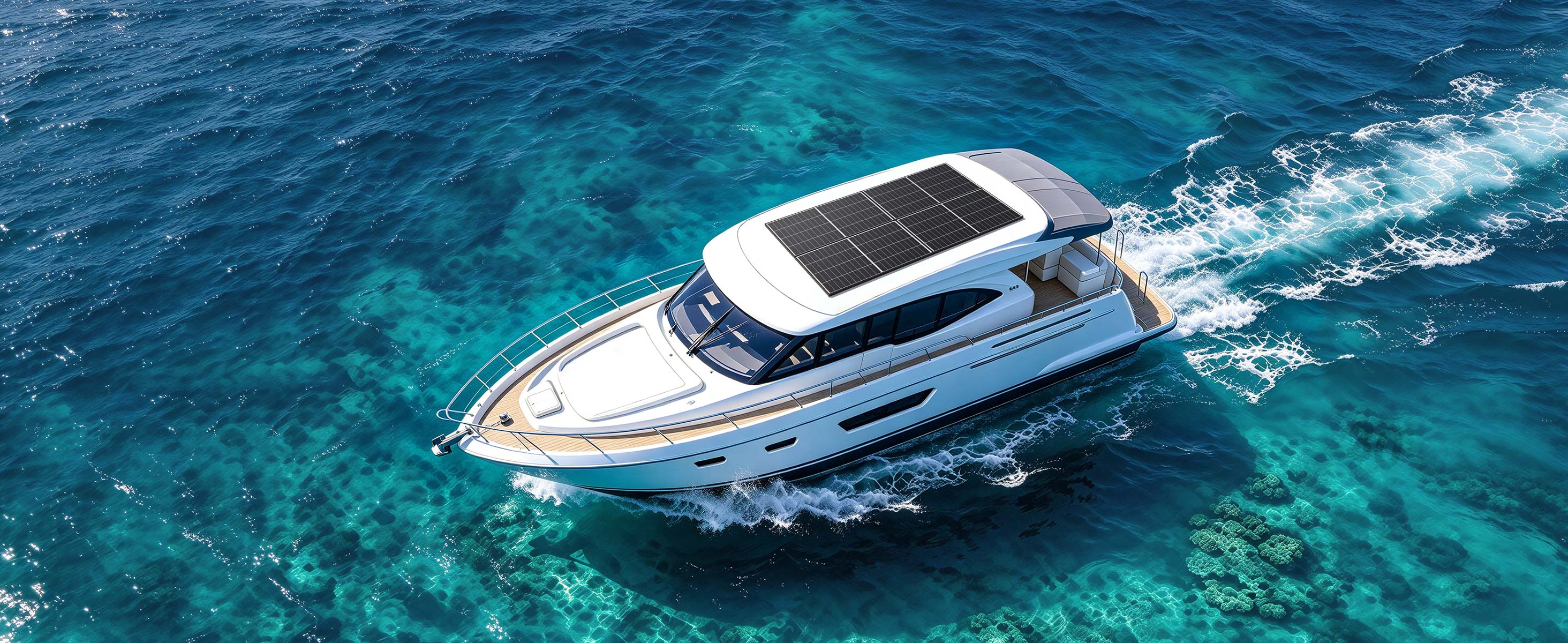

Marine
RoofTop

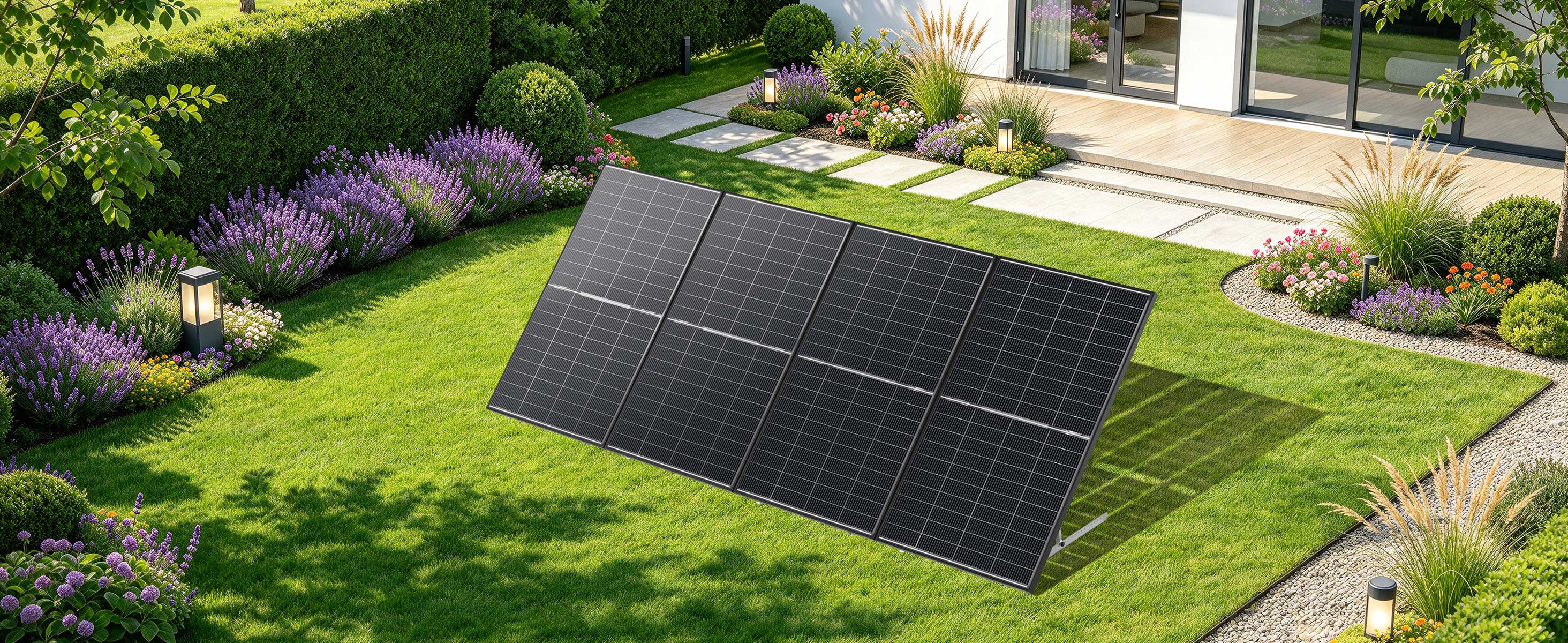

Backyard
Specifications
Key Specs at a Glance: 200W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 200W |
|---|---|
| Maximum Power Voltage (Vmp) | 23.74V |
| Maximum Power Current (Imp) | 8.43A |
| Open-circuit Voltage (Voc) | 27.31V |
| Short-circuit Current (Isc) | 8.91A |
| Cell Type | Monocrystalline Silicon, TOPCon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| First Year Degradation Rate | <1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 1304 × 770 × 35mm(51.34"L × 30.31"W × 1.38"H) |
|---|---|
| Weight | 10.8kg(23.81 lb) |
| Cell Arrangement | 80pcs (4 × 10) × 2 |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.30%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
2000W Inverter
General Data
| Output Waveform | Pure Sine Wave |
|---|---|
| AC Terminals | 2xAC Sockets |
| Dimensions(LxWxH) | 14.17x7.48x3.74in/360x190x95mm |
| Weight | 6.74 lb |
| Operating Temperature | 14°F to 104°F/-10°C to 40°C |
| Storage Temperature | -4°F to 140°F/-20°C to 60°C |
| Working/Storage Humidity | 20%~85% RH (non-condensing) |
| Cooling | Thermally controlled Fans |
| Regulatory and Safety Specifications | ETL listed to CSA Standard C22.2 No. 107.1 and UL 458 |
Electrical Data
| Continuous Output Power | 2000W |
|---|---|
| Continuous Output Current | 16.7A |
| Total Harmonic Distortion (THD) | ≤5% (120V/full load) |
| Surge Power | 4000W@0.2S |
| Output Voltage Range | 120V AC (105V~125V) |
| Input Voltage Range | 12.8V DC (10.5V~15V) |
| Input Under Voltage Protection Range | 10.0V+0.5V DC |
| Input Over Voltage Protection Range | 15.5V+0.5V DC |
| Full Load Efficiency | >87% |
| Max Efficiency | >91% |
| Standby Power | <15W |
| Power Factor | PF≥0.8 |
60A Charge Controller
Parameter
| System Wiring Grounded | Negative Grounded |
|---|---|
| Battery System Voltage | 12V/24V/36V/48V Auto (FLD/GEL/SEL/USE) Manual (LI/USE) |
| No-load Loss | 12ma(12V), 10ma(24V) 5ma(36V), 5ma(48V) |
| Max Solar Input Voltage | <150Voc |
| Rated Solar Charge Current | 60A |
| Max Solar Input Power | 900W/12V ;1800W/24V 2600W/36V ;3200W/48V |
| Light Control Voltage | 5V*n |
| Light Control Delay Time | 10s |
| Max Load Output Current | 20A |
| Operating Temperature | -35ºC ~ +45ºC |
| IP Protection | IP32 |
| Net Weight | 4.55kg |
| Communication Port | RS485(RJ12) / Inbuilt BT |
| Operating Altitude | ≤3000 meters |
| Controller Dimension(mm) | 308*210*102.7 |
100Ah Battery
Specifications
| Dimensions | 382*193*249mm |
|---|---|
| Weight | 25.9 kg/57.10 lbs |
| Terminal | M8 |
| IP Rating | IP65 |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Rated Capacity | 314Ah |
| Energy | 4019Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | 6000 Cycles ≥80%DOD |
| Charge Voltage | 14.2V |
| Сharge Mode | cc/cv |
| Standard Charge Current | 0.2C (20A) |
| Charge Cut-off Current | 0.02C (2A) |
| Max Continuous Charge Current | 200A |
|---|---|
| Max Continuous Discharge Current | 200A |
| Peak Discharge Current | 600A ≥5s |
| End-of-Discharge Voltage | 10V |
| Charge Temperature | 0~45°C (32~113°F) |
| Discharge Temperature | -20~60°C (-4~140°F) |
| Storage Temperature | IM:-20-45°C (-4~113°F) 3M:-20-45°C (-4~113°F) IY:-20-20°C (-4-68°F) |

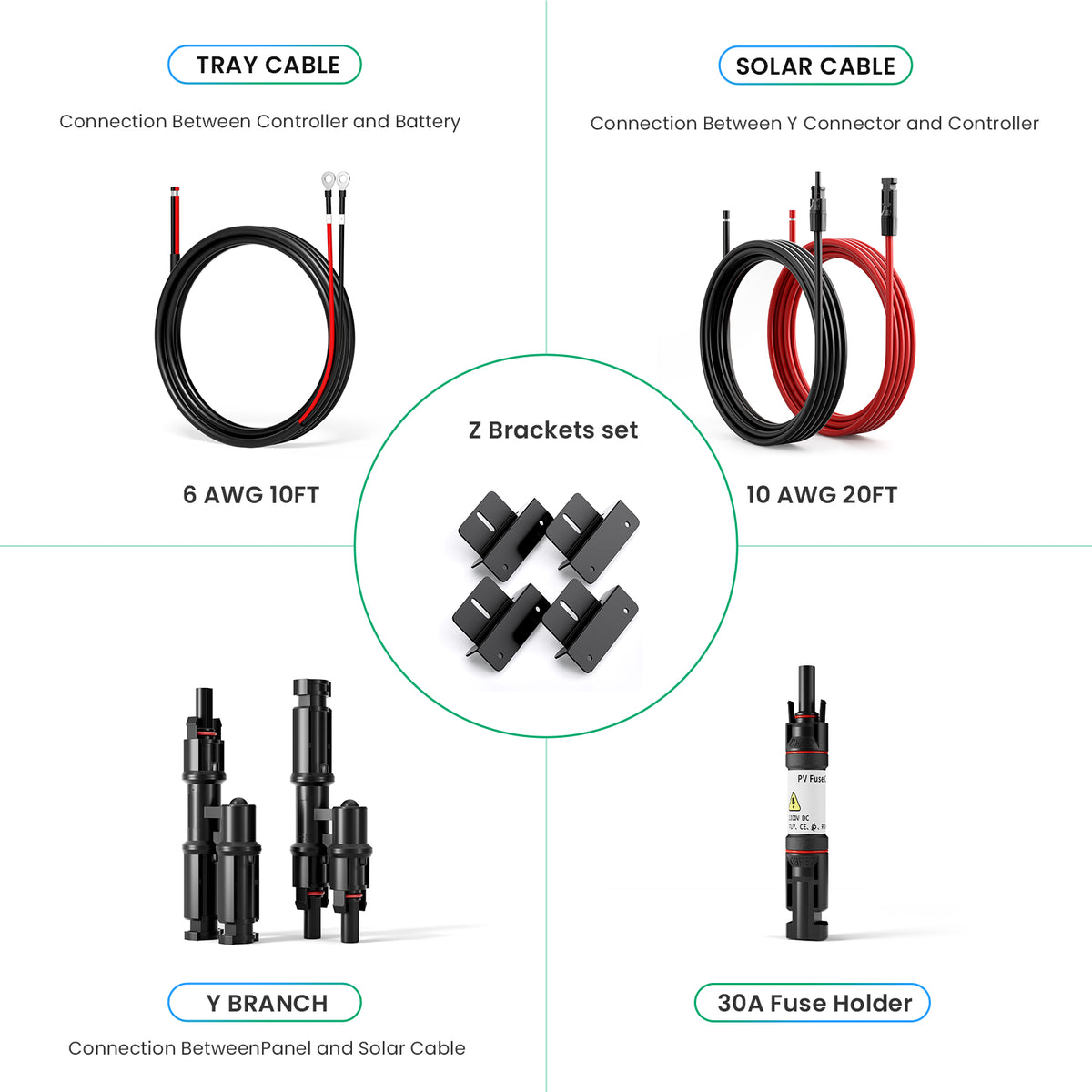

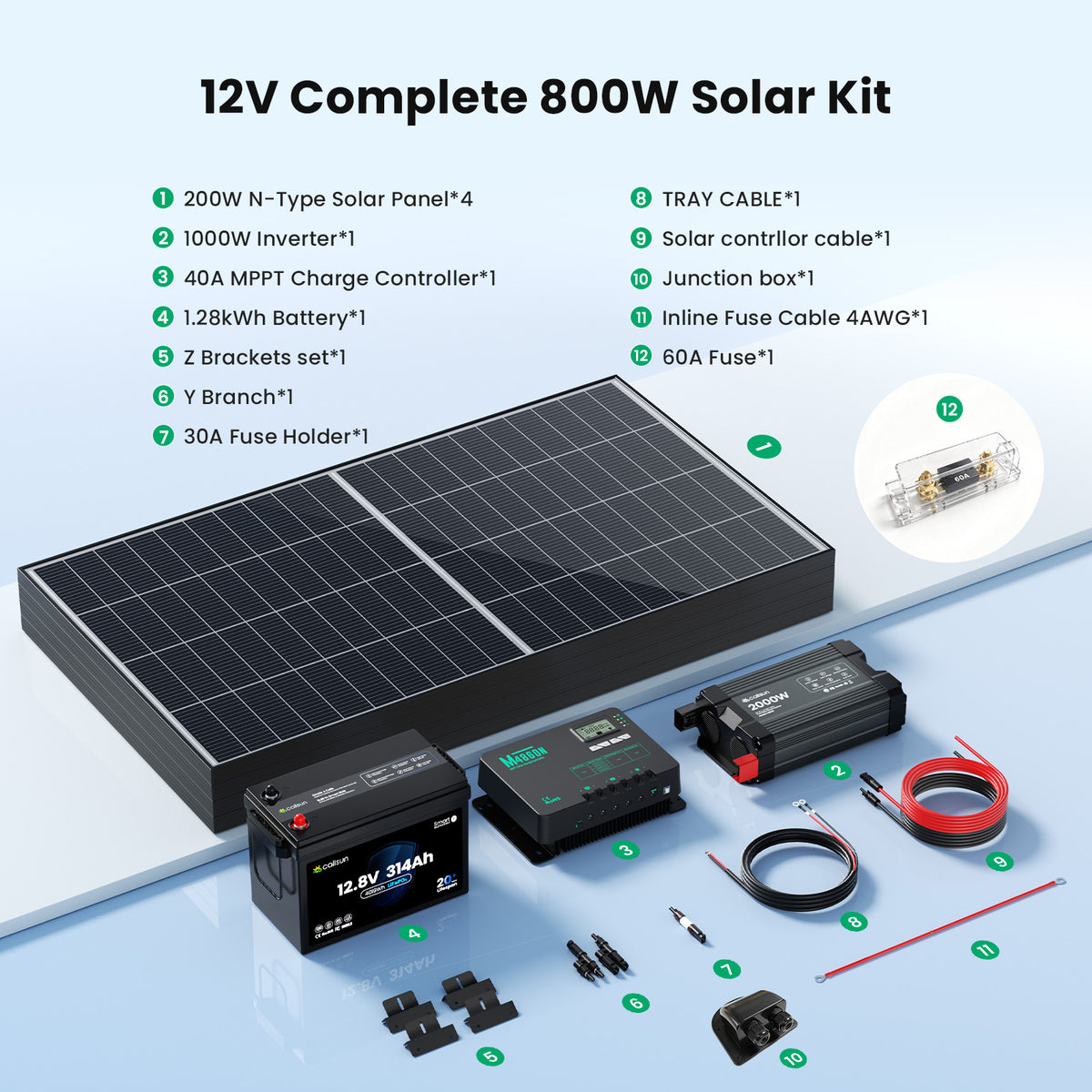

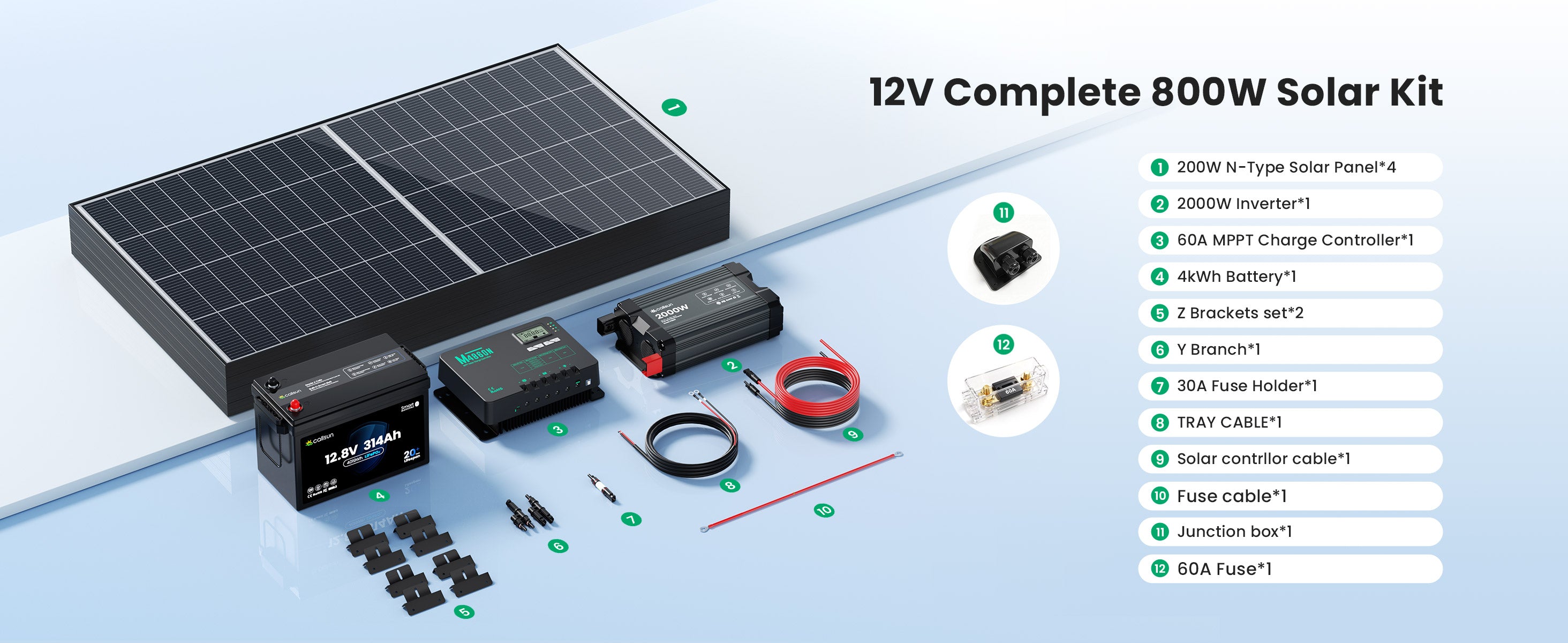

Includes
FAQ
1. What can the Callsun 800W 12V Solar Panel Kit power?
The 800W solar kit is designed for RVs, camper vans, cabins, boats, and off-grid applications. It can help generate electricity for charging batteries and powering devices such as lights, fans, laptops, refrigerators, and other compatible appliances when paired with a properly sized battery and inverter.
2. Is this 800W solar kit compatible with a 12V battery system?
Yes. This kit is designed for 12V solar power applications. Before installation, confirm that the included charge controller supports your battery chemistry and capacity. Make sure the controller's maximum charging current and PV input specifications are suitable for the 800W solar array.
3. How much electricity can an 800W solar panel kit generate per day?
Daily energy production depends on sunlight hours, weather, shading, panel orientation, and system efficiency. For example, with 5 peak sun hours and an assumed system efficiency of 80%, an 800W solar array could generate approximately 3.2kWh per day. Actual output will vary with installation and environmental conditions.
4. Can the 800W solar kit run 120V household appliances?
Solar panels generate DC electricity, so a compatible inverter is required to power standard 120V AC appliances. A battery can store solar energy for use when sunlight is limited or unavailable. Choose an inverter based on the appliances' combined running wattage and startup power requirements.
5. Can I expand the Callsun 800W solar kit with additional panels or batteries?
The system may be expandable, depending on the included charge controller, battery configuration, and wiring. Before adding solar panels, verify the controller's maximum PV input power, open-circuit voltage, and input current limits. Additional batteries must also be compatible with the existing system and connected according to the manufacturer's instructions.
