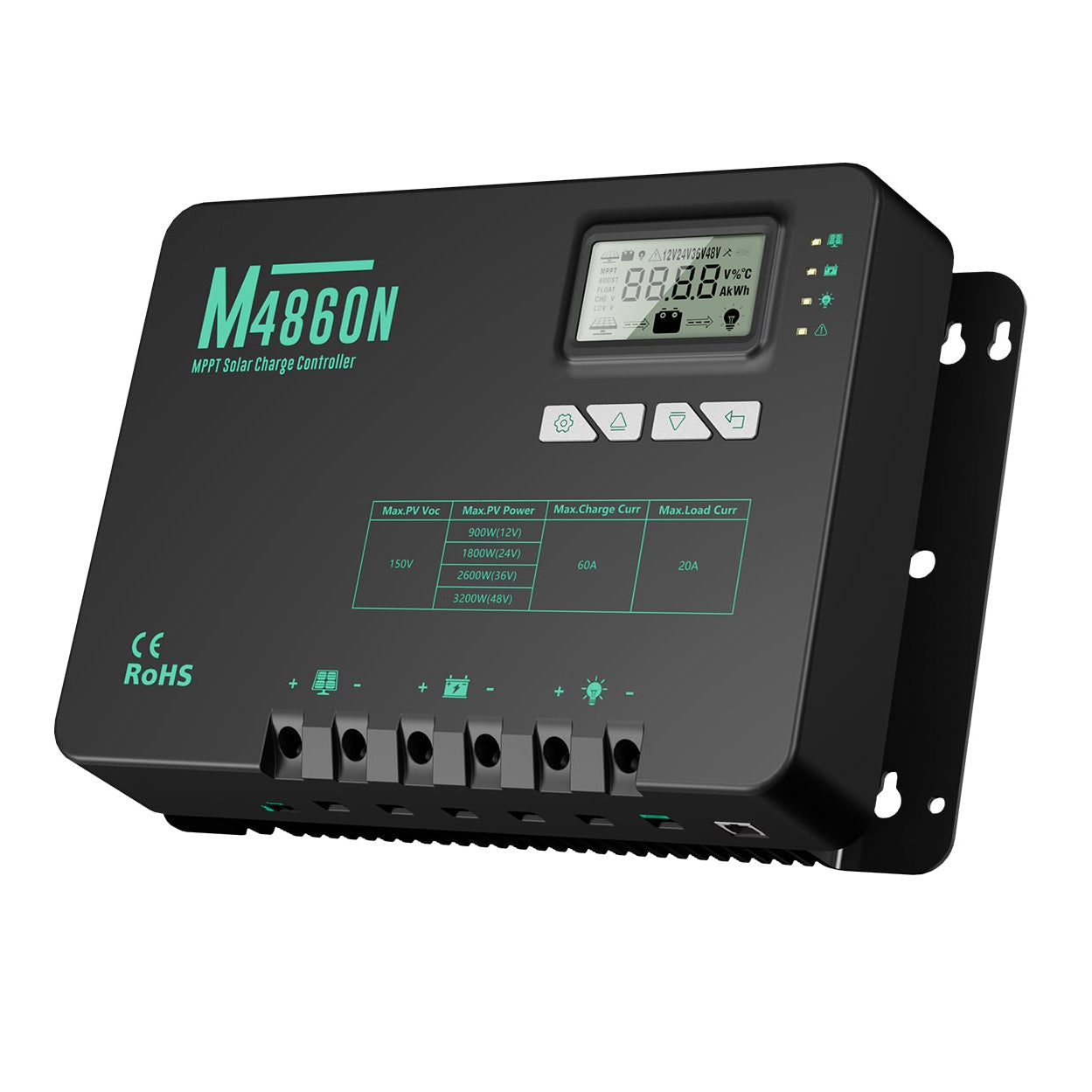

60A MPPT Solar Charge Controller 12V/24V
Key Features
- High-Power 60A MPPT Charging Unlock more solar energy with advanced MPPT technology, delivering efficient charging performance for larger off-grid solar systems.
- Built for 12V/24V Solar Systems Supports both 12V and 24V battery setups, making it ideal for RVs, cabins, boats, backup power, and DIY solar applications.
- Smart Battery Compatibility Works seamlessly with LiFePO₄, AGM, GEL, and lead-acid batteries for flexible solar power system configurations.
- Intelligent Protection for Reliable Power Built-in protection against overcharge, overcurrent, short circuit, reverse polarity, and overheating helps keep your batteries and solar system safe.
60A MPPT Solar Charge Controller 12V/24V ist auf Lager und wird versandt, sobald es wieder verfügbar ist

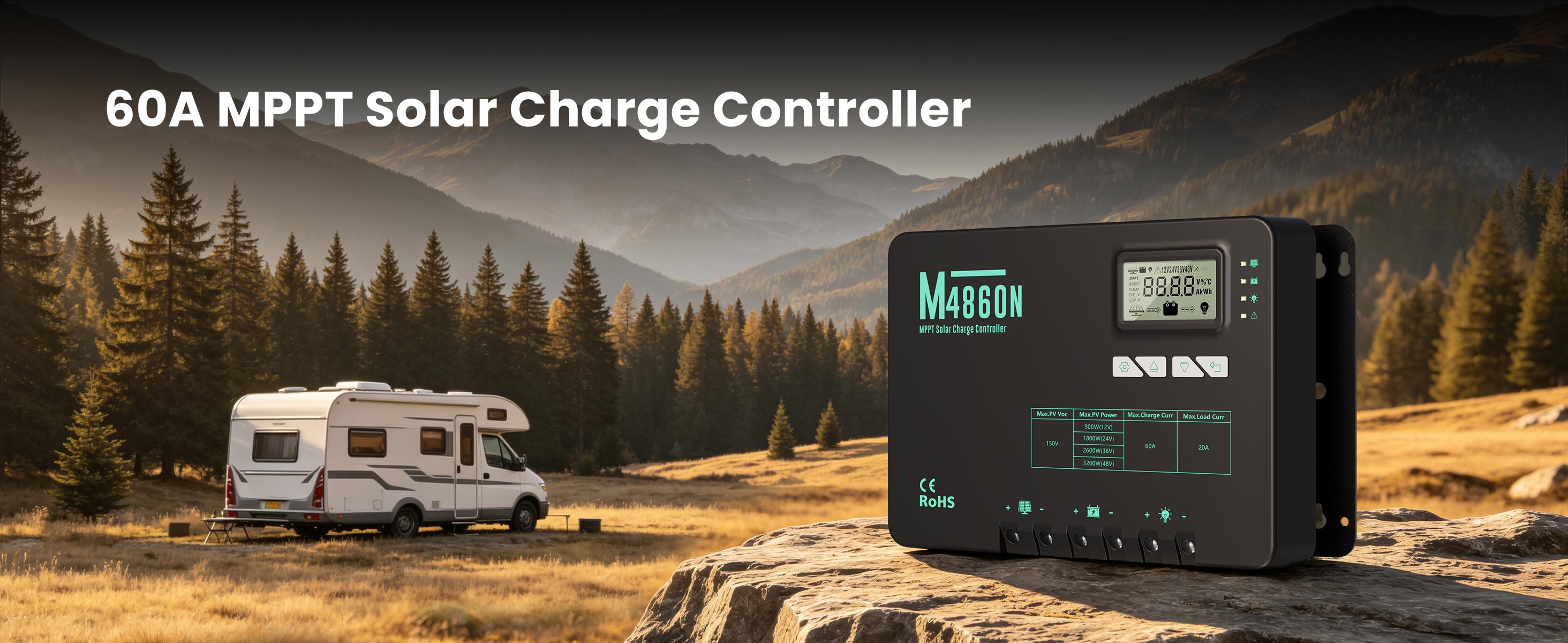

60A MPPT Charge Controller
High-capacity 60A MPPT solar charge controller engineered for maximum efficiency in RV and off-grid power systems.
Advanced Bluetooth MPPT Controller
Features multi-voltage support, Bluetooth app control, smart MPPT tracking, and comprehensive protections.

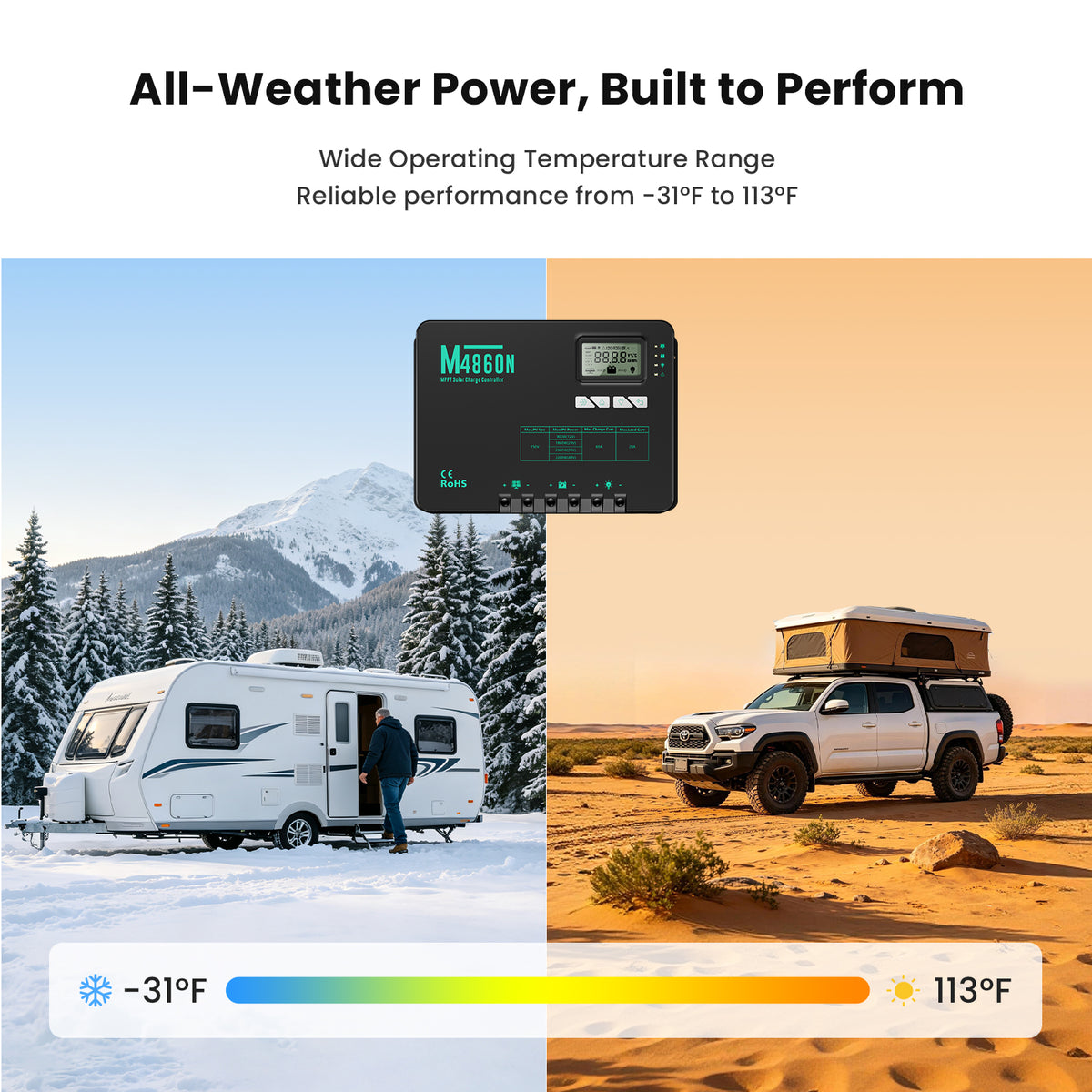

All-Weather Temperature Performance
Operates reliably in extreme weather, supporting full power output from -31°F (-35°C) to 131°F (45°C).

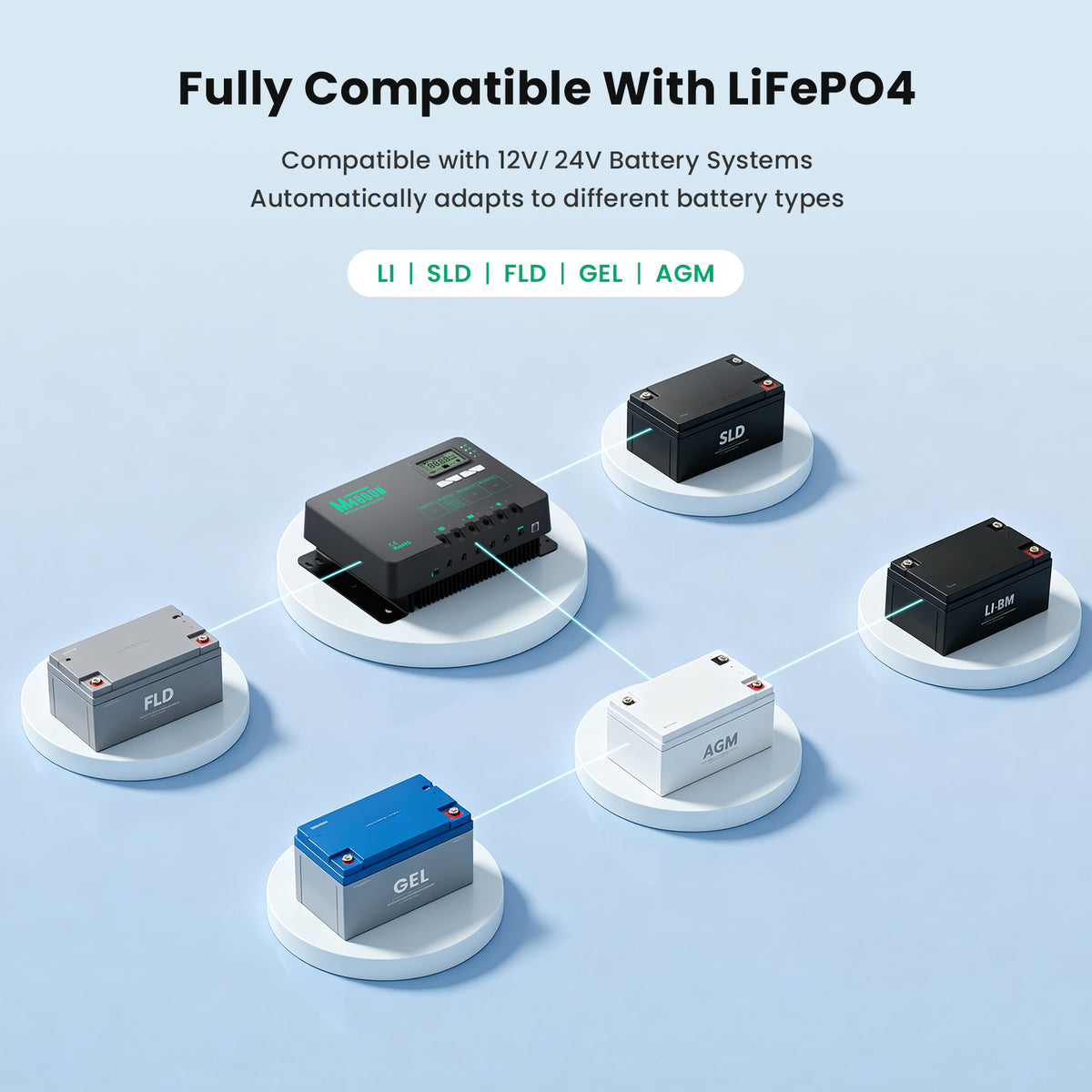

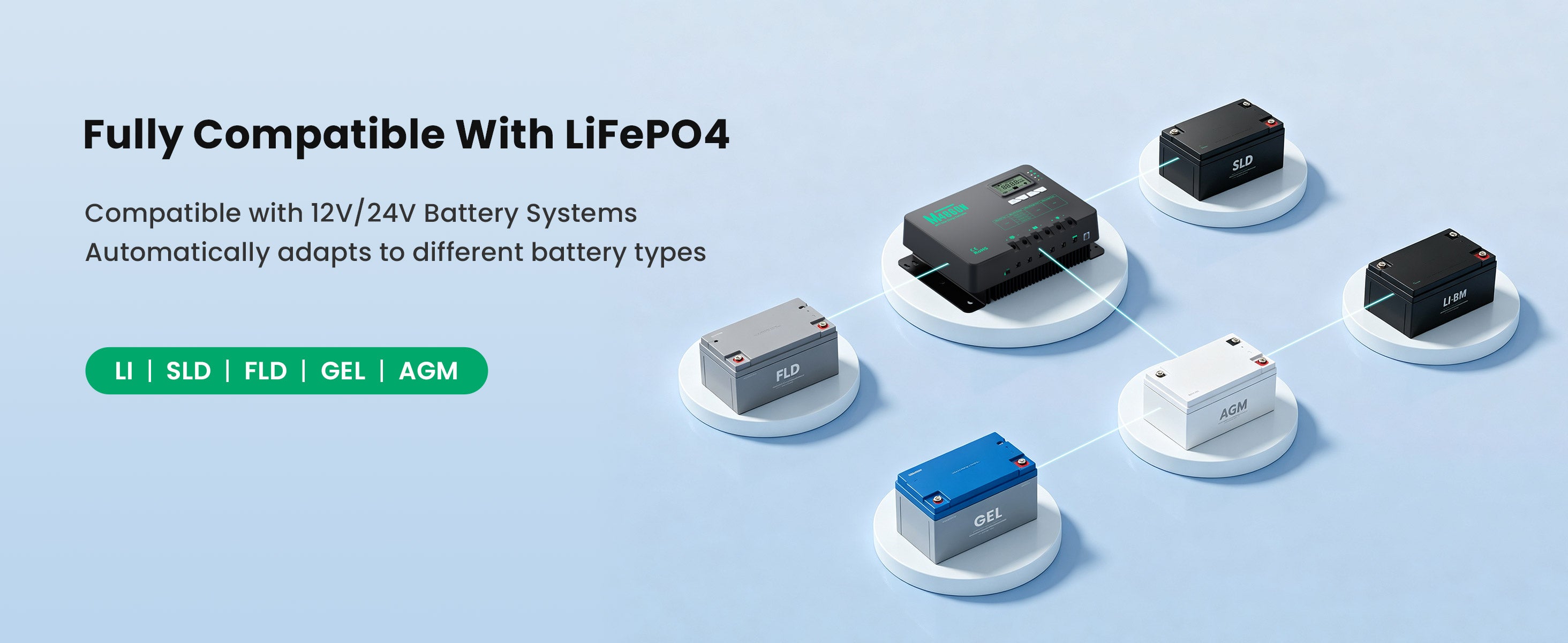

Multi-Battery Type Compatibility
Seamlessly adapts to 12V/24V systems and supports Lithium, Gel, AGM, SLD, and FLD batteries.

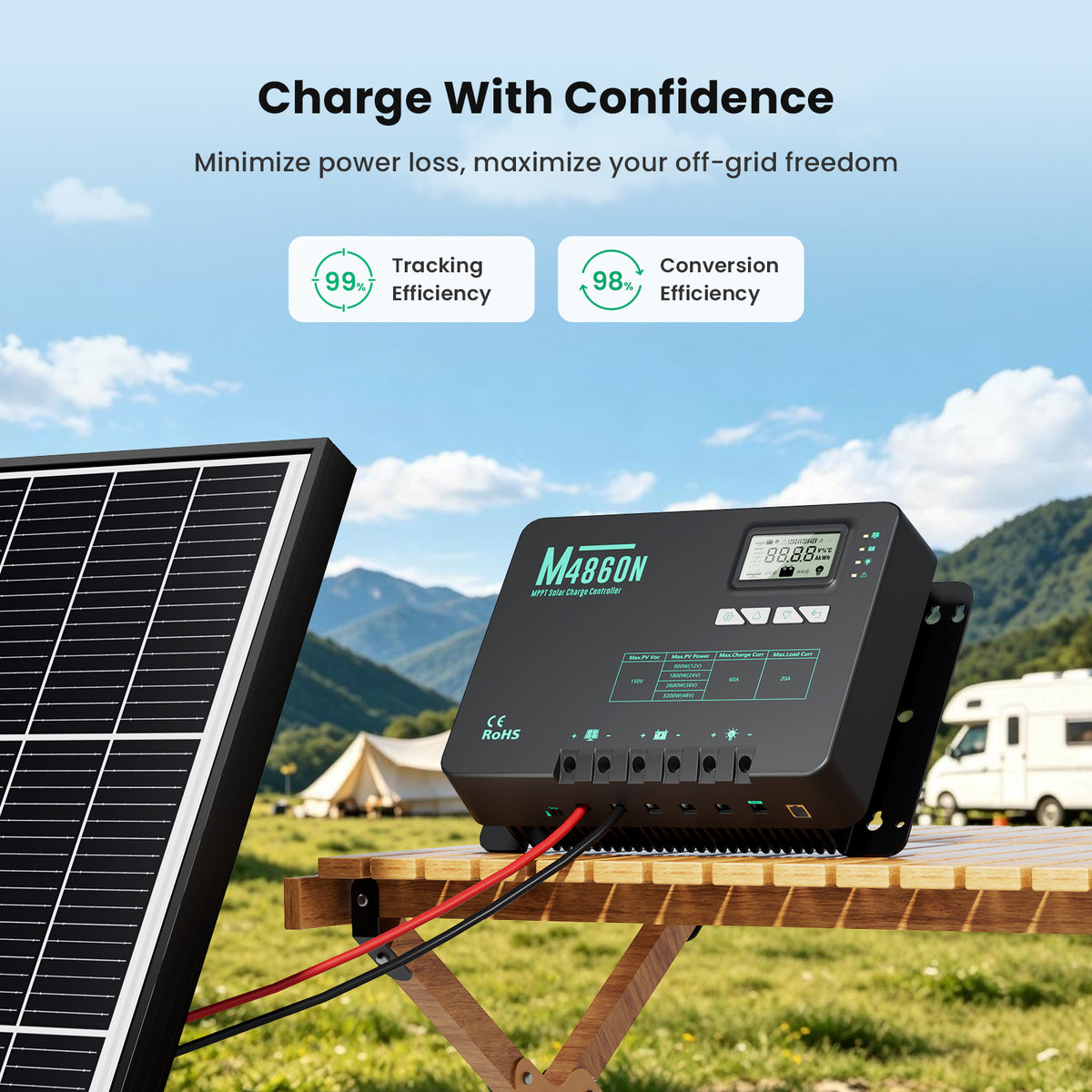

Maximum Solar Energy Yield
Delivers 99% tracking efficiency and 98% conversion efficiency to minimize energy loss off-grid.

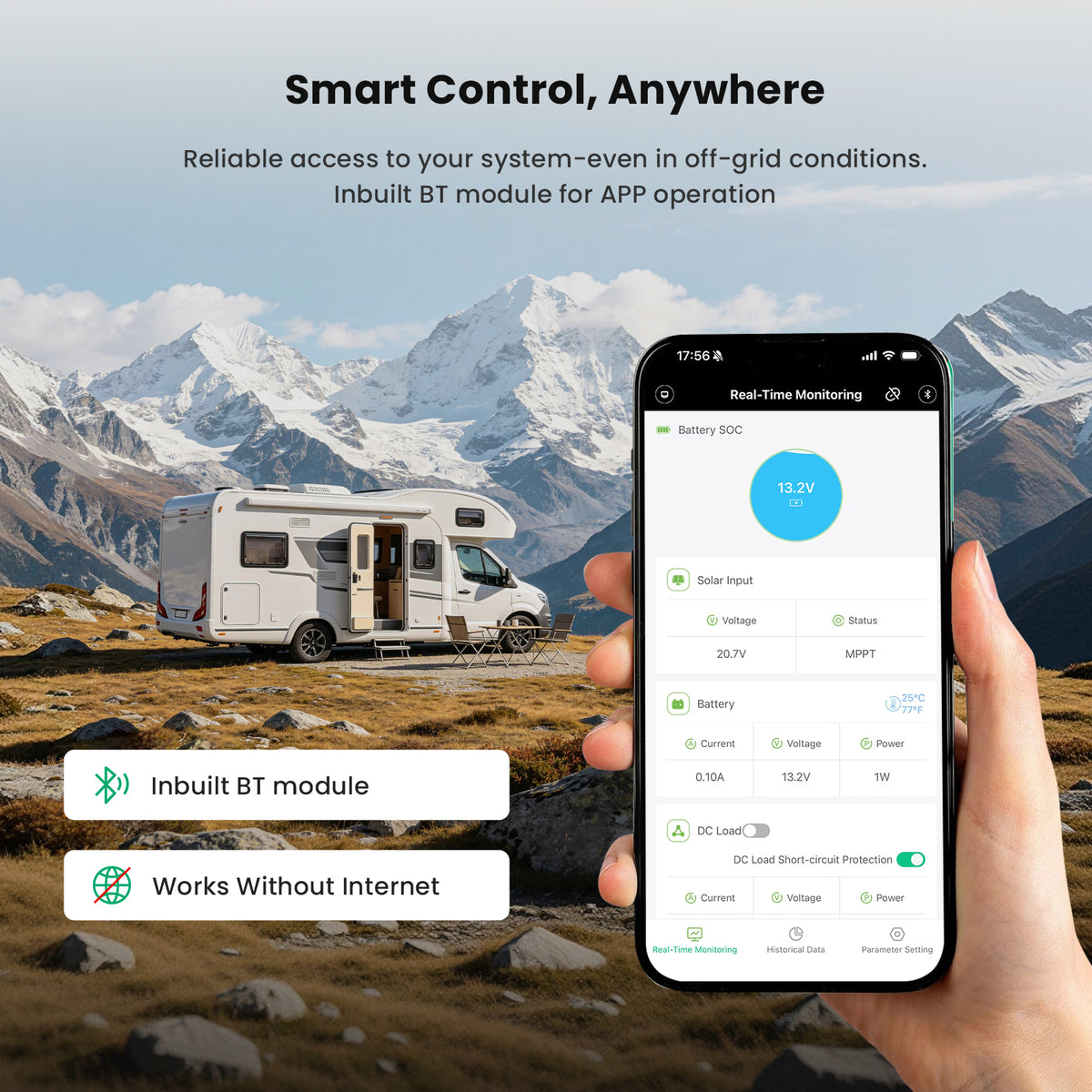

Off-Grid Smart App Monitoring
Integrated Bluetooth module provides full mobile app system access without needing cellular network signal.

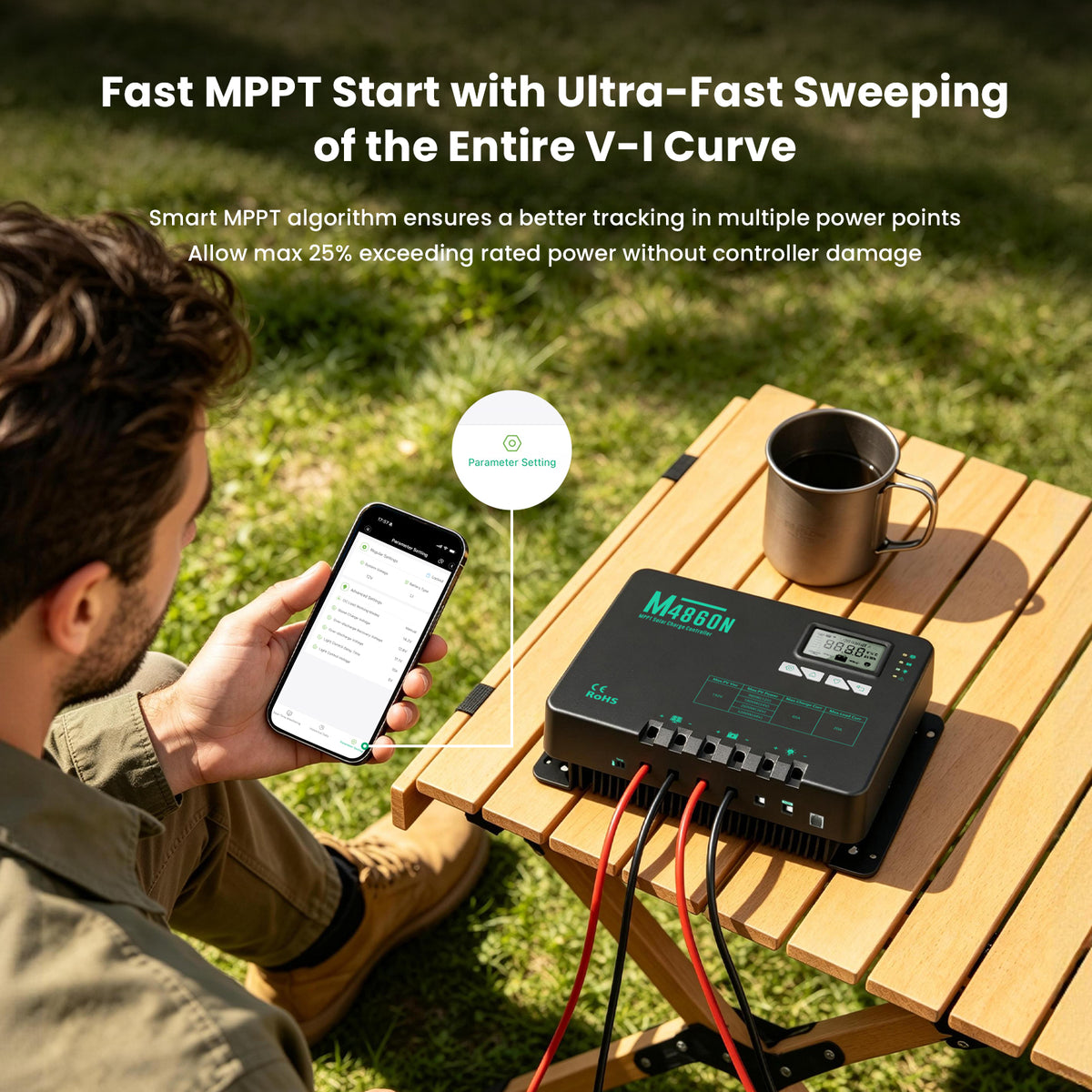

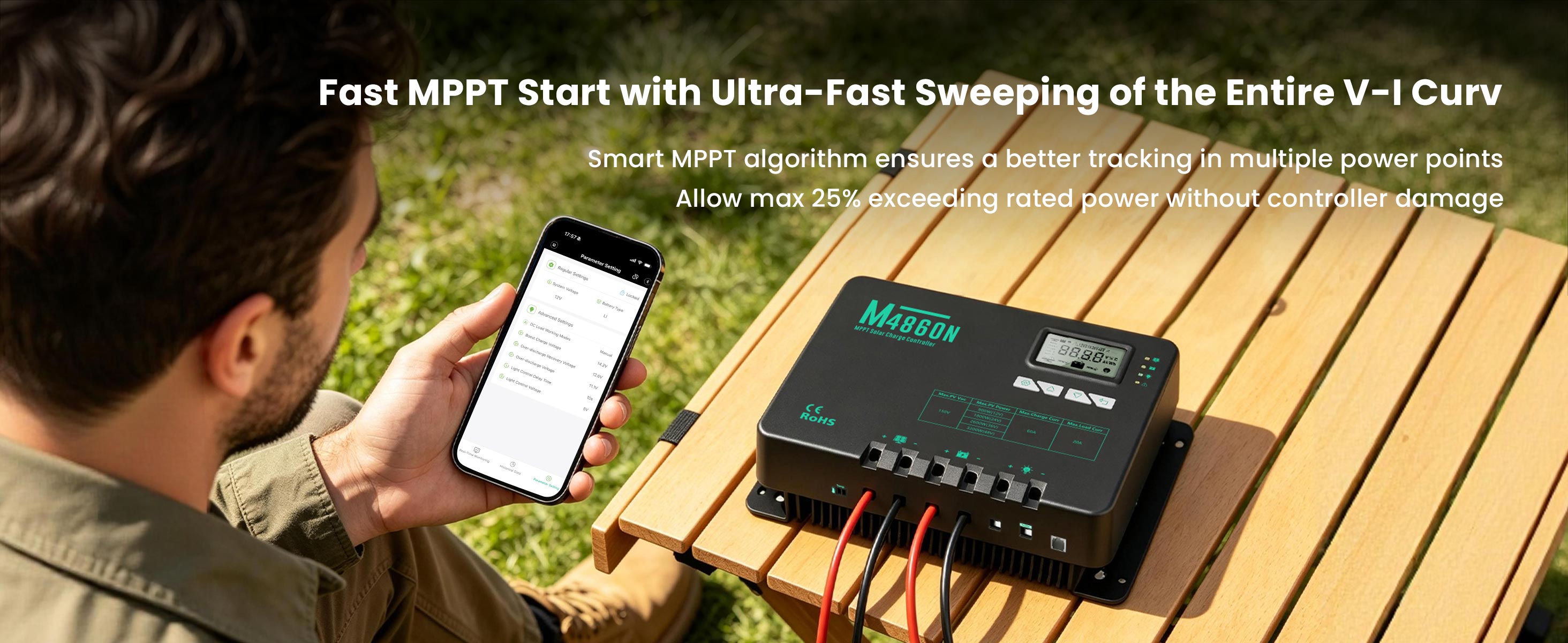

Rapid V-I Curve Tracking
Advanced MPPT tracking rapidly scans power points and allows up to 25% power overload safely.

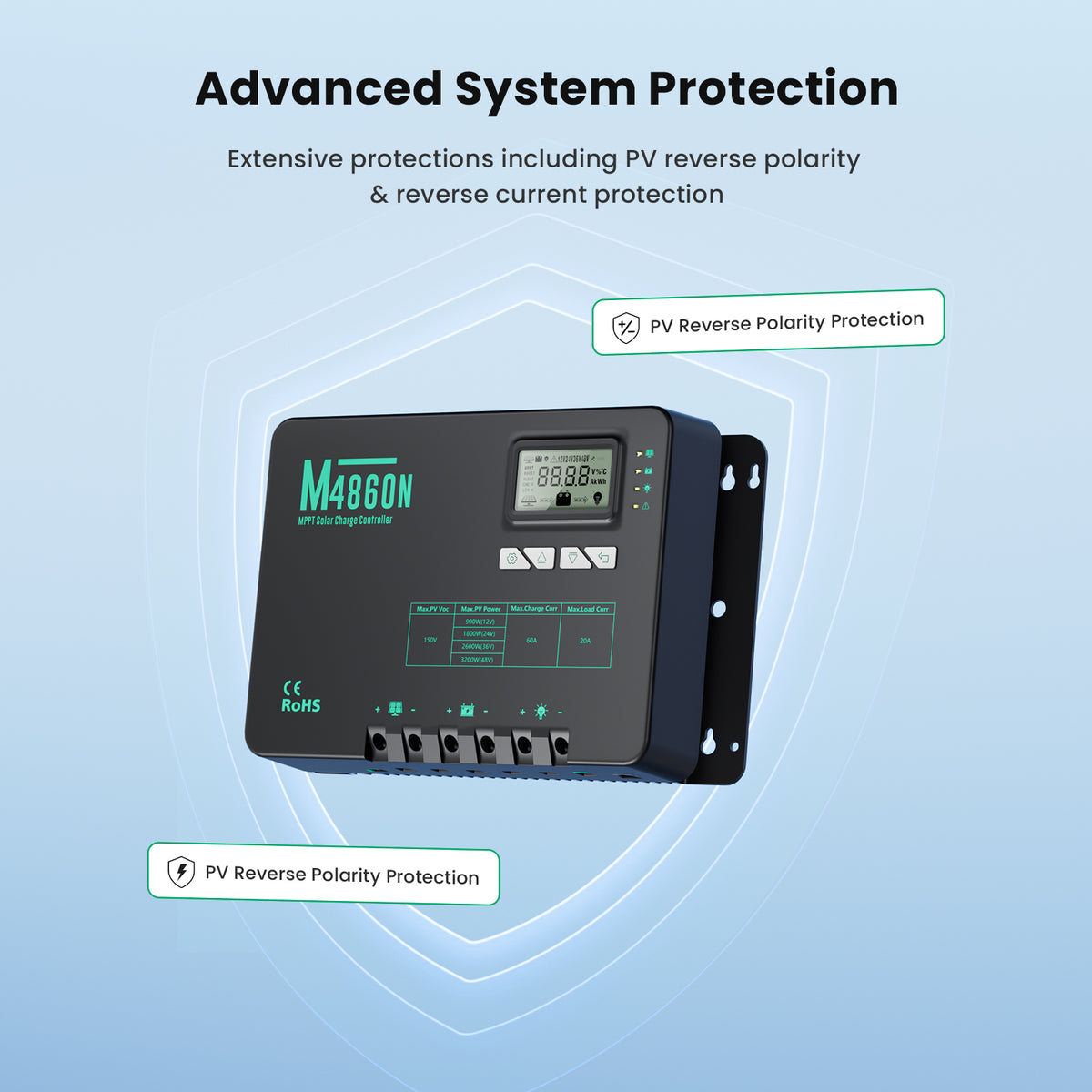

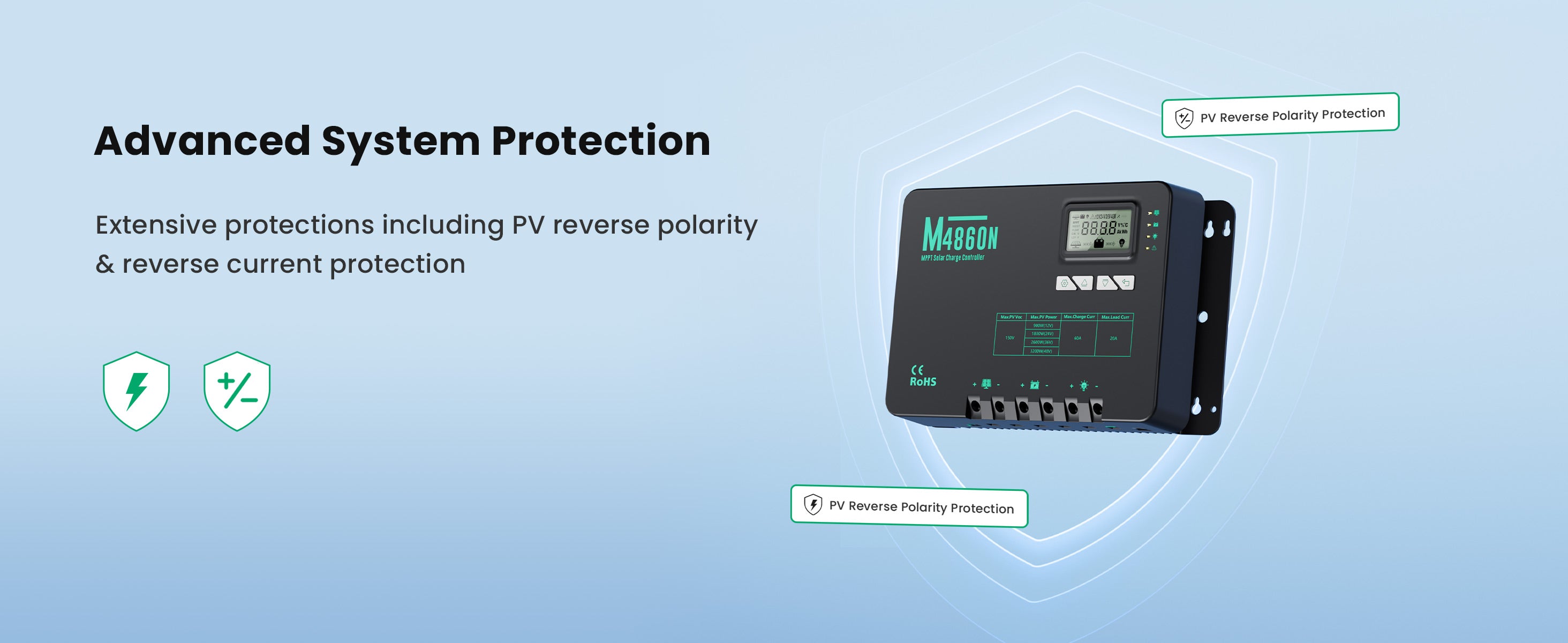

Comprehensive Hardware Safeguards
Protects solar power setups with PV reverse polarity and reverse current safeguards.

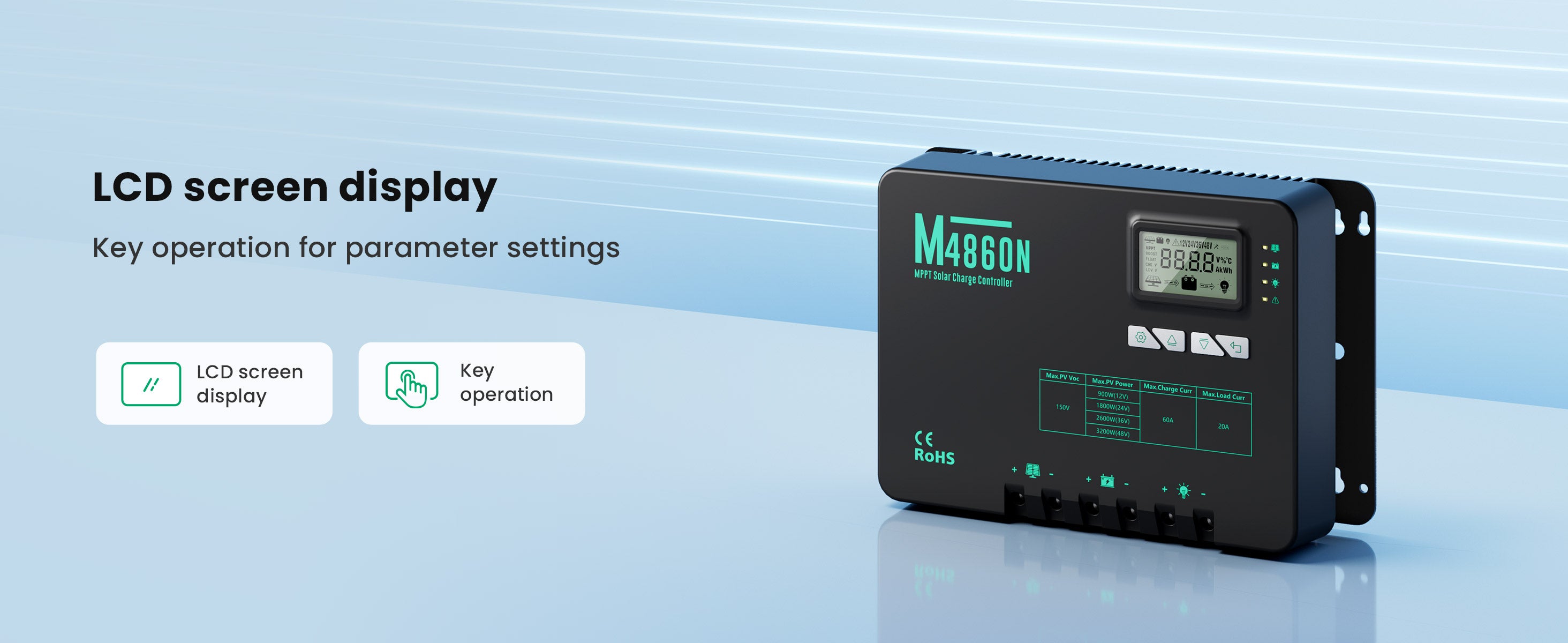

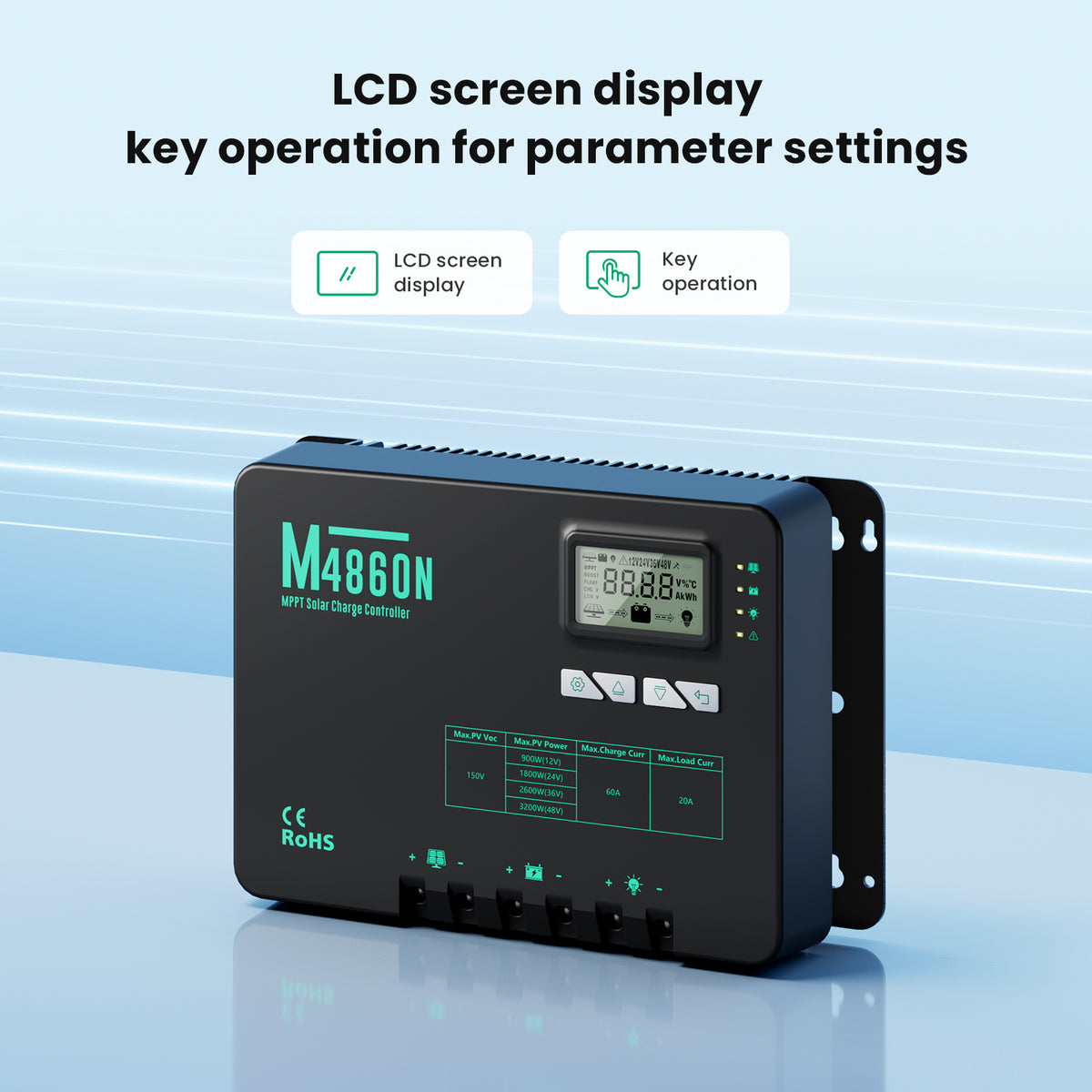

Real-Time LCD Screen Display
Clear digital screen featuring physical button controls for convenient system configuration and tracking.

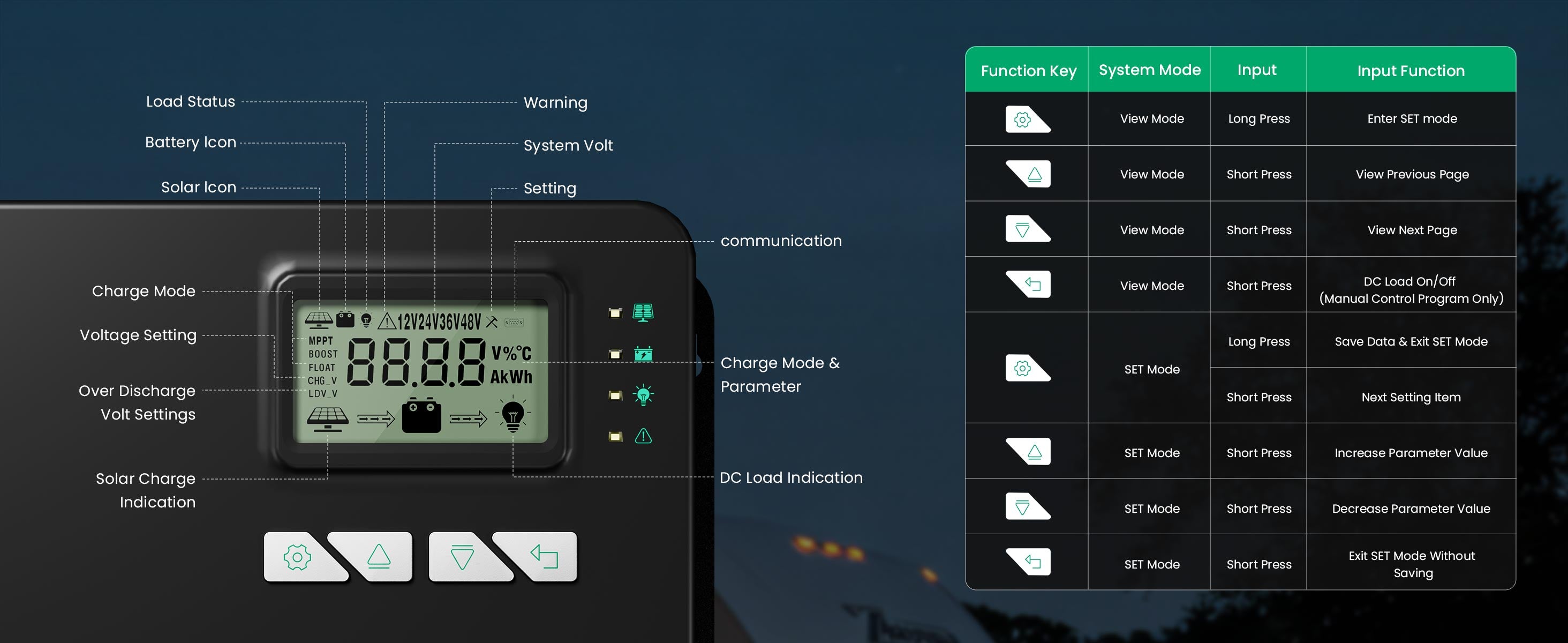

Interactive Interface & Key Mapping
Detailed LCD layout and function keys allow seamless navigation, status viewing, and parameter customization.
Specifications
Parameter
| System WModel No. | Negative Grounded |
|---|---|
| Battery System Voltage | 12V/24V/36V/48V |
| No-load Loss | 12ma(12V), 10ma(24V),5ma(36V), 5ma(48V) |
| Max Solar Input Voltage | <150Voc |
| Rated Solar Charge Current | 60A |
| Max Solar Input Power | 900W/12V ;1800W/24V;2600W/36V ;3200W/48V |
| Light Control Voltage | 5V*n |
| Light Control Delay Time | 10s |
| Max Load Output Current | 20A |
| Operating Temperature | -35ºC ~ +45ºC |
| IP Protection | IP32 |
| Net Weight | 4.55 kg |
| Communication Port | RS485 (RJ12) |
| Operating Altitude | ≤3000 meters |
| Controller Dimension(mm) | 308*210*102.7 |
Includes
FAQ
1. What is the advantage of a 60A MPPT solar charge controller?
A 60A MPPT solar charge controller can handle higher charging current and larger solar arrays compared with lower-current controllers. MPPT technology continuously tracks the maximum power point of your solar panels to improve charging efficiency, especially in changing weather conditions.
2. Is this 60A MPPT controller compatible with 12V and 24V battery systems?
Yes. This controller supports both 12V and 24V battery systems, making it suitable for RVs, camper vans, boats, cabins, and off-grid solar applications. Always make sure your battery voltage matches your system configuration before installation.
3. What types of batteries can I use with this MPPT charge controller?
The 60A MPPT solar charge controller supports common battery types, including LiFePO₄ (lithium), AGM, GEL, and lead-acid batteries. Select the correct battery type and charging parameters to ensure safe and efficient charging.
4. How many solar panels can I connect to the Callsun 60A MPPT controller?
The number of solar panels depends on the panel wattage, system voltage, and the controller's maximum PV input specifications. For example, a 12V system with multiple high-power solar panels may require a 60A controller to properly manage the higher charging current. Always keep the solar panel voltage and current within the controller's rated limits.
5. Can I use this 60A MPPT controller for an RV solar upgrade?
Yes. It is a great choice for upgrading an RV solar system when adding more panels or increasing battery capacity. For example, users expanding from a small solar setup to multiple 200W solar panels can benefit from a higher-capacity controller to handle additional solar input.
