Solar Panel Mounting Z Brackets

Name: Solar Panel Mounting Z Brackets
Brand: Callsun
SKU: CS-ZB1V1-US
Price: 8.99 USD
Availability: InStock

SKU: CS-ZB1V1-US

$8.99 USD

Shipping calculated at checkout.

🚚 Free Shipping from USA: Shipping Policy

Description

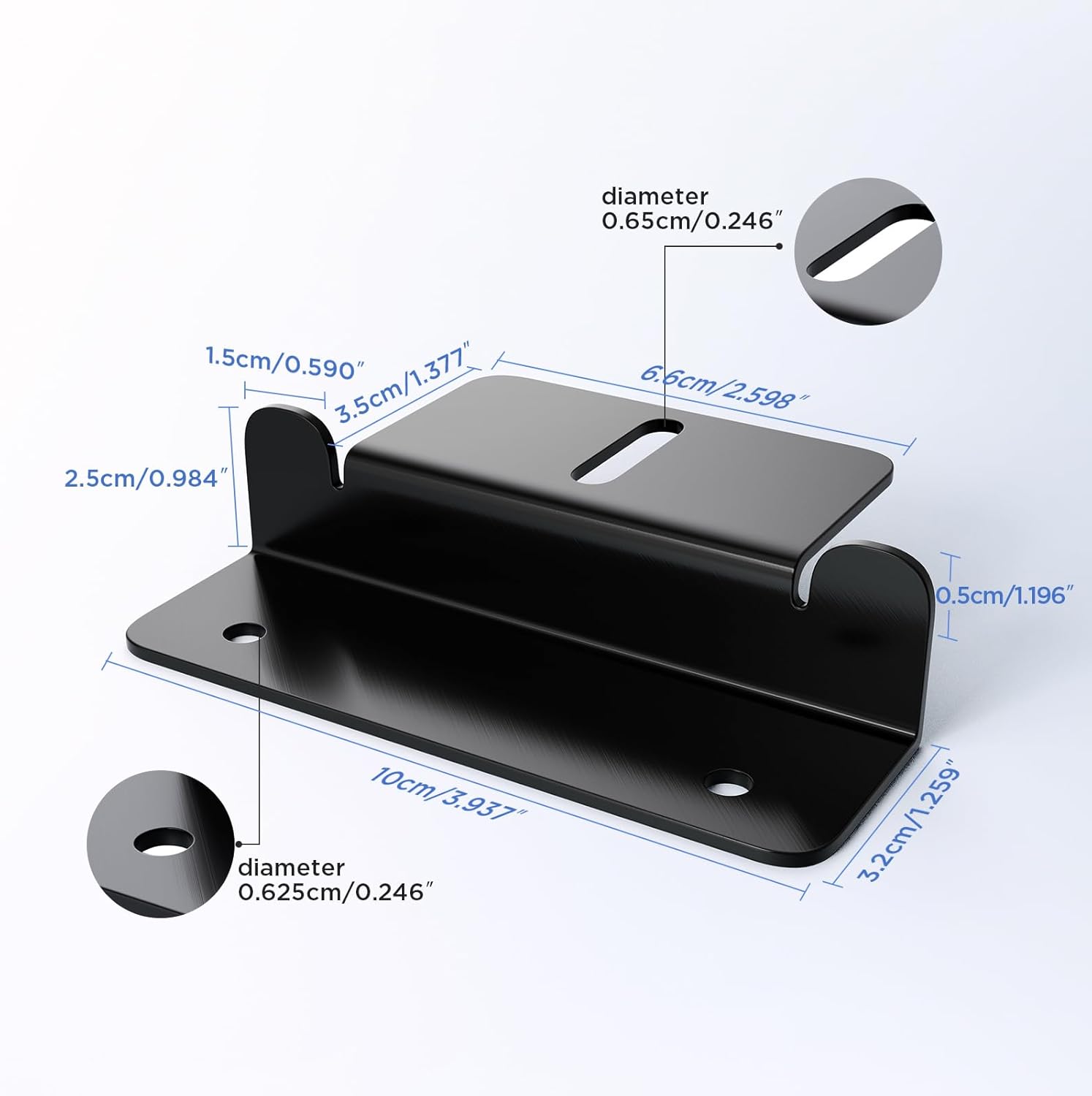

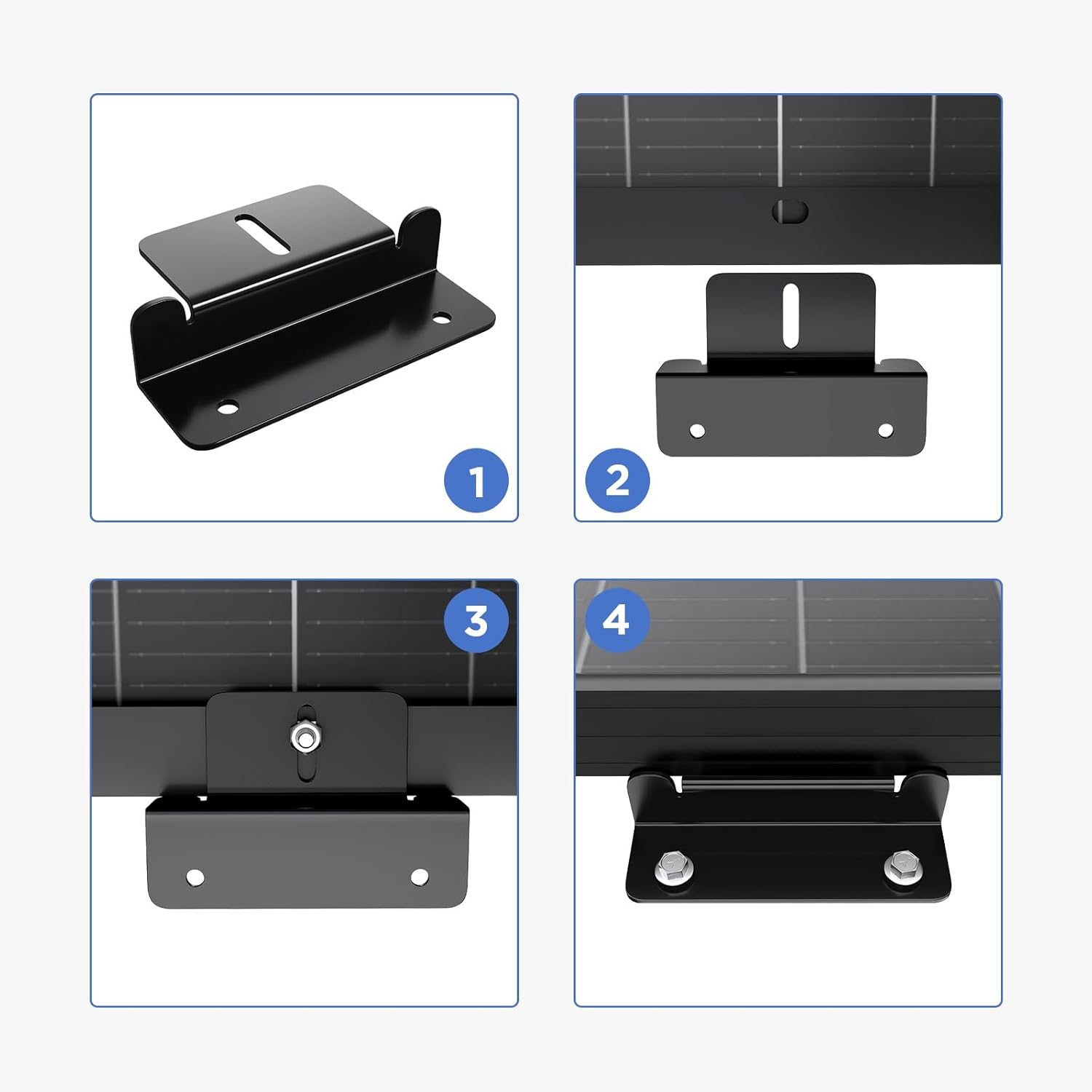

Wide Panel Compatibility | Z-shaped mounting brackets fit 40W–700W solar panels, offering flexible support for both small and large modules across different solar setups.

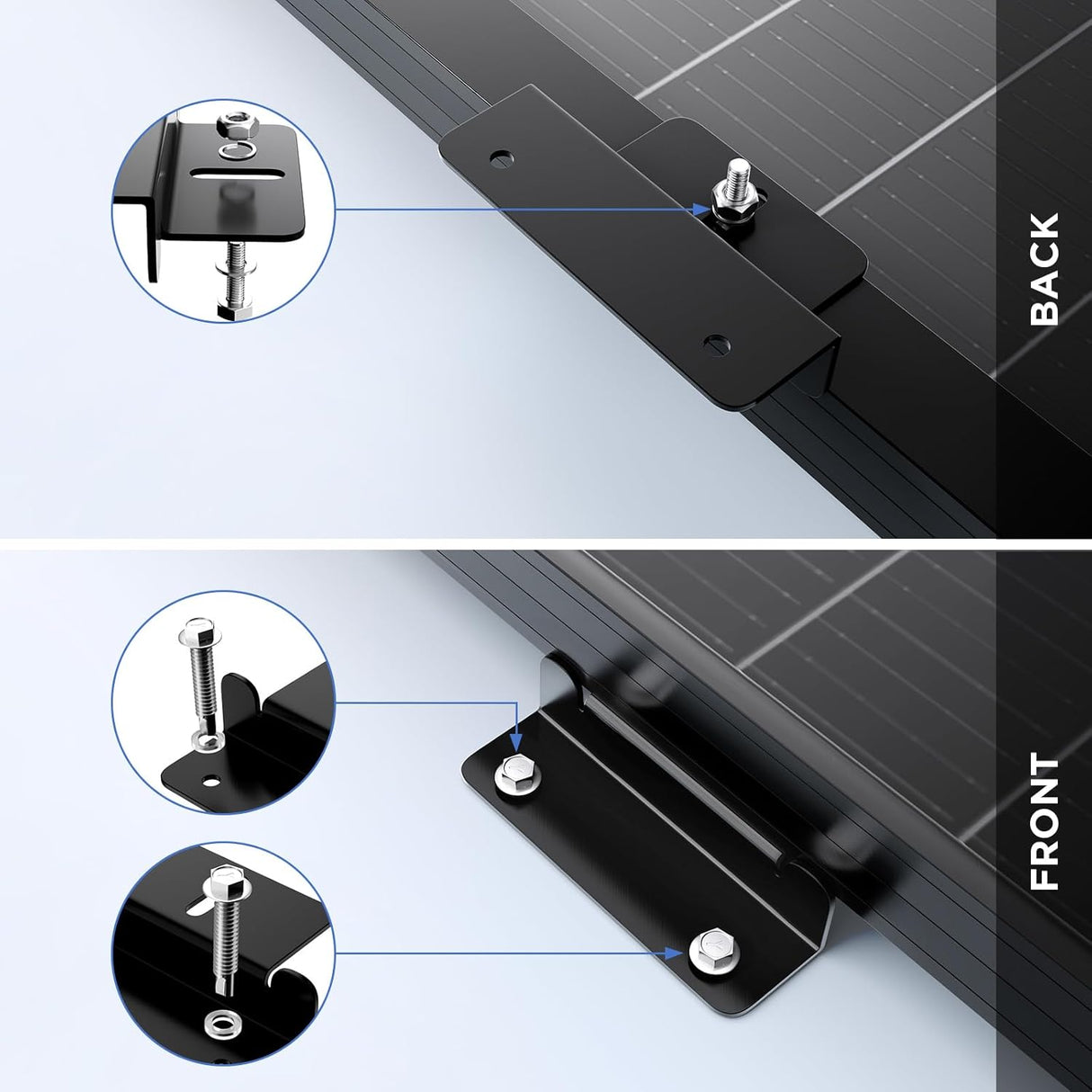

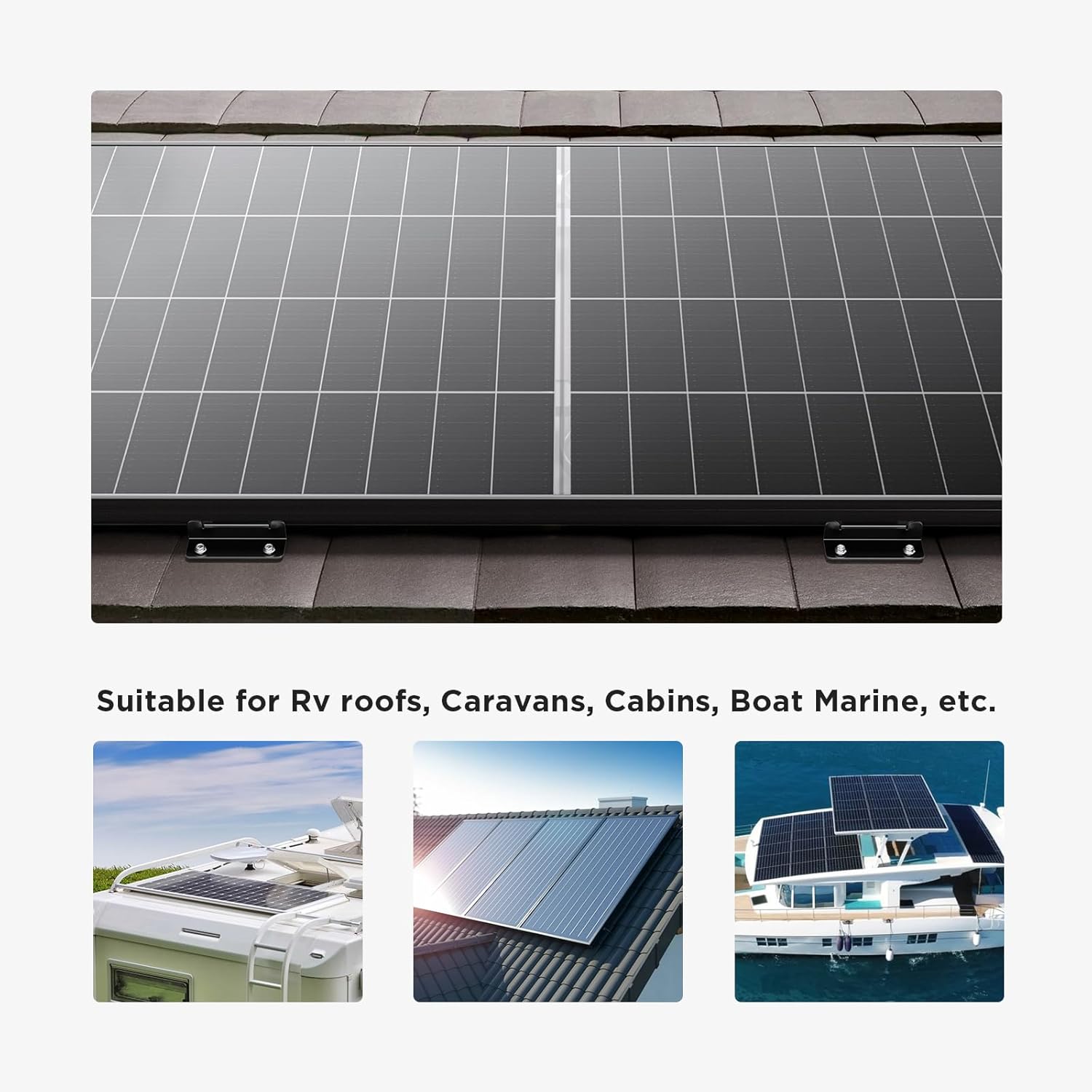

Stable on Uneven Surfaces | Elevated Z-bracket design improves stability on irregular roofs—ideal for RVs, boats, rooftops, cabins, and off-grid installations.

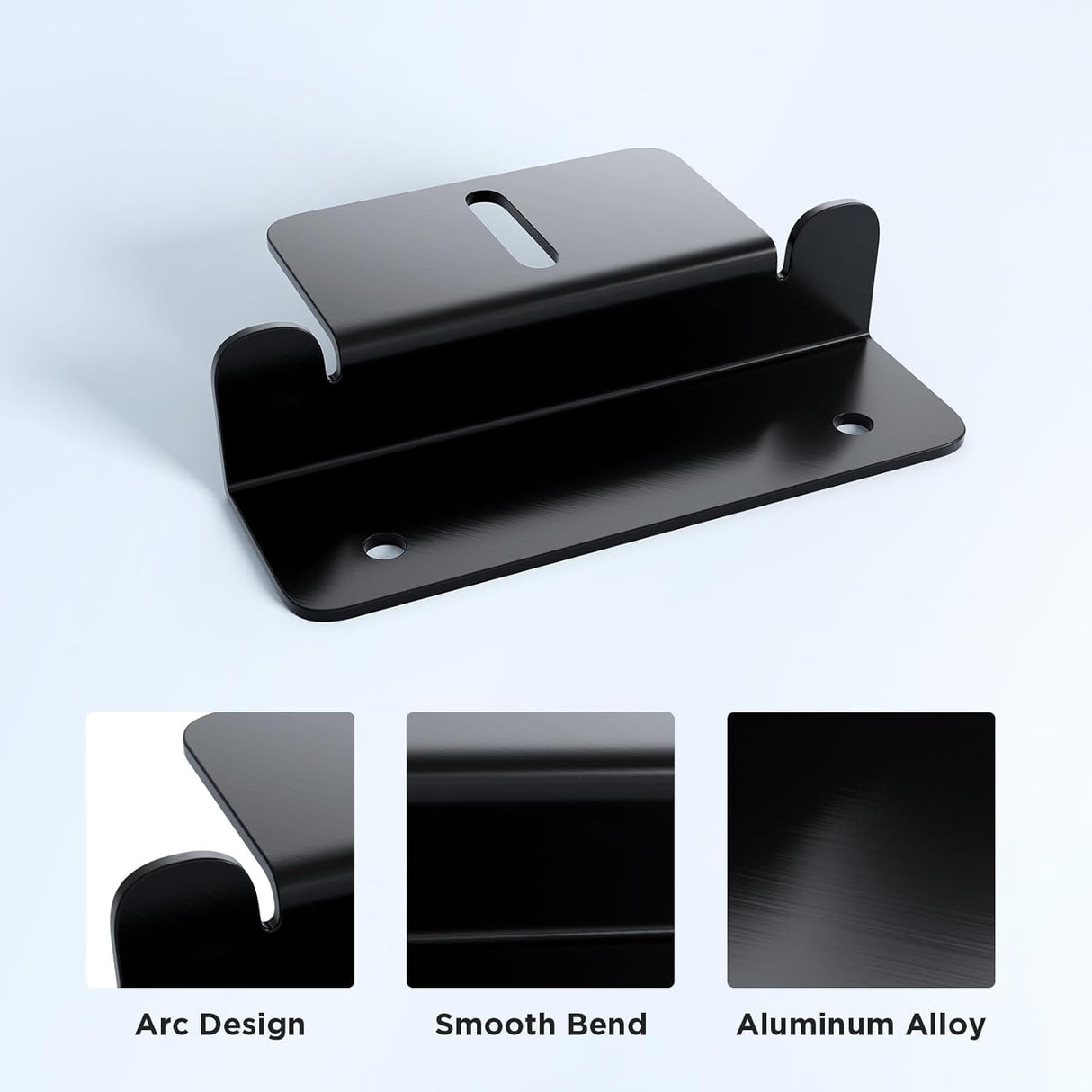

Durable Yet Lightweight | Built from high-strength aluminum alloy, corrosion-resistant and lightweight—adds durability without unnecessary roof load.

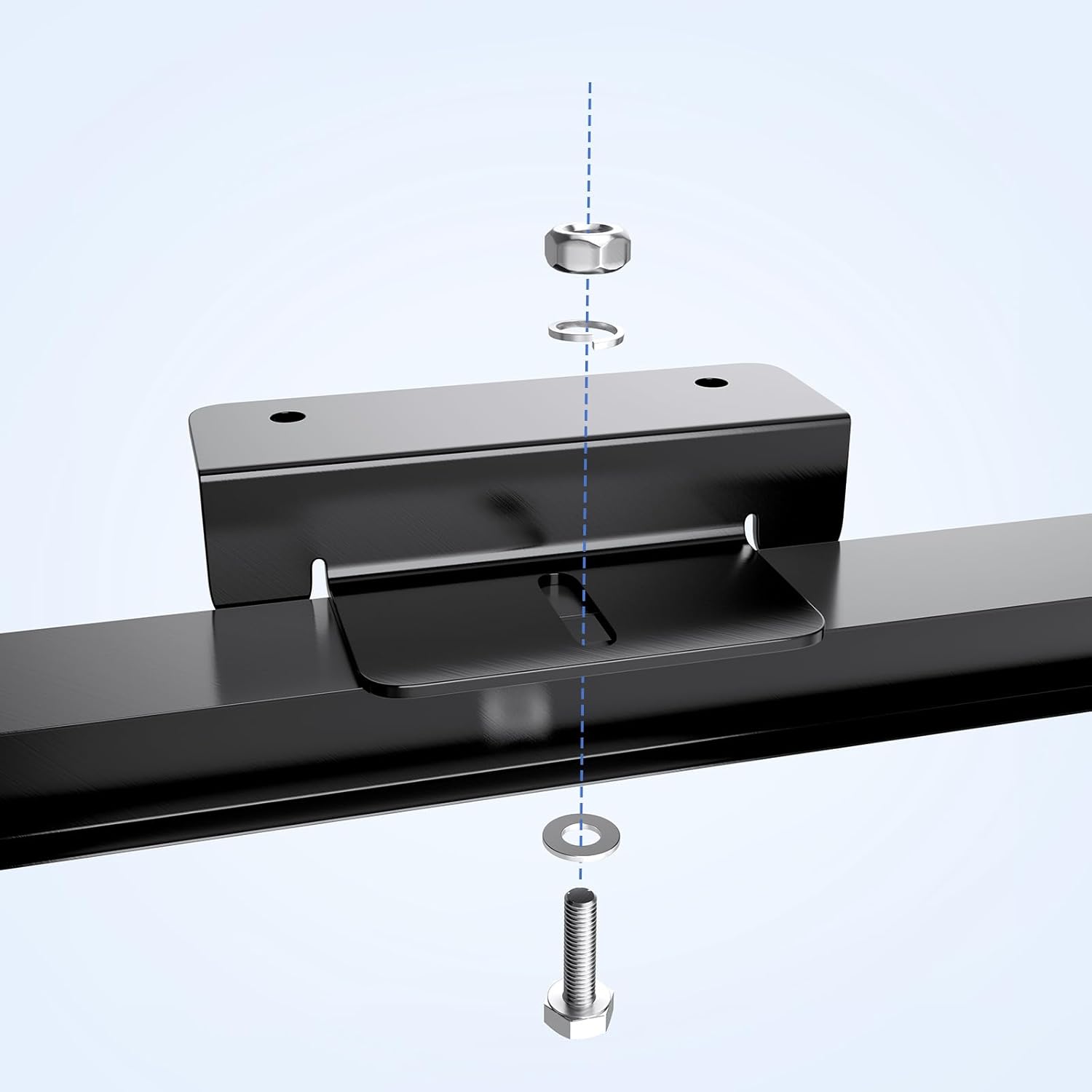

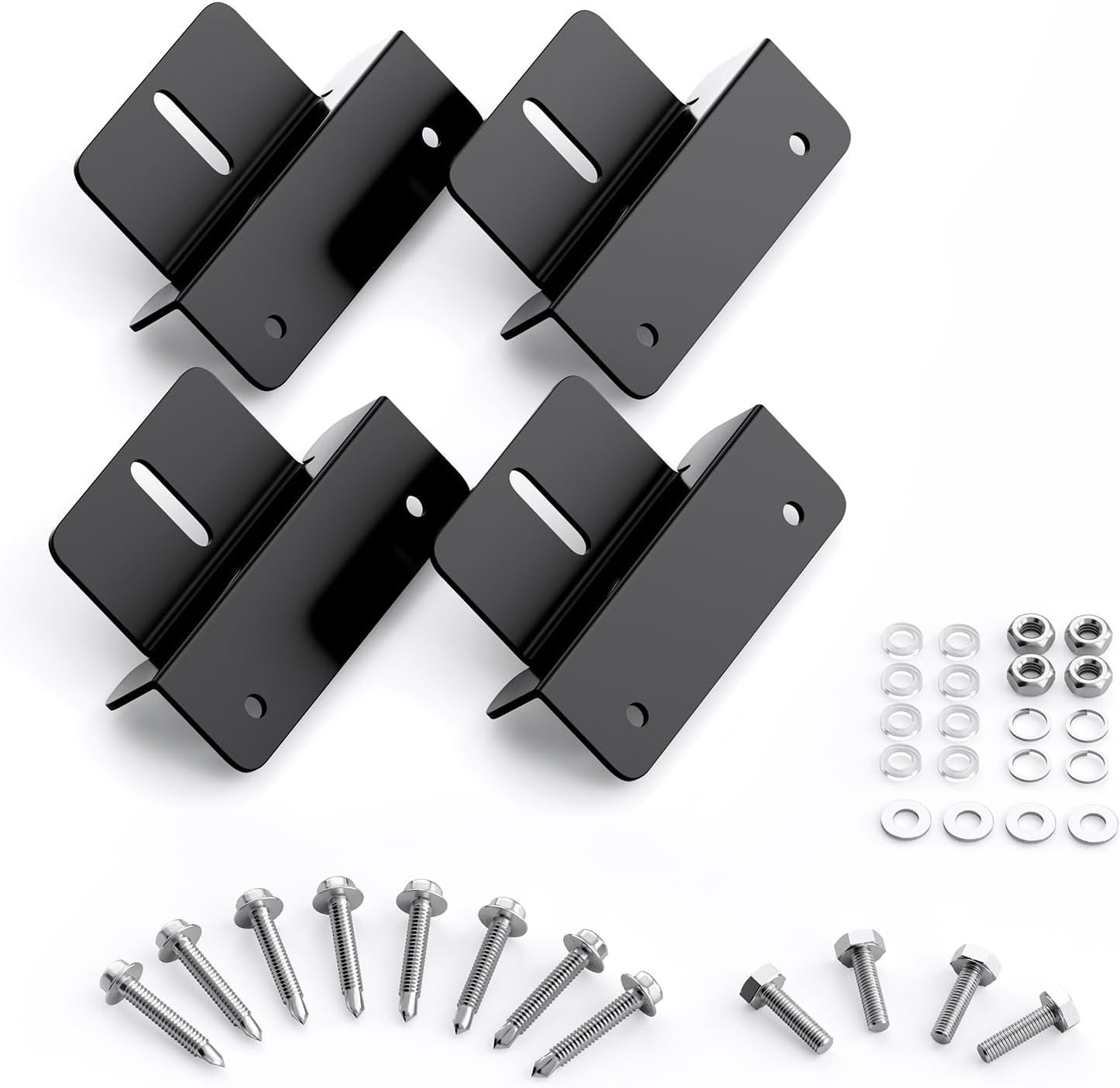

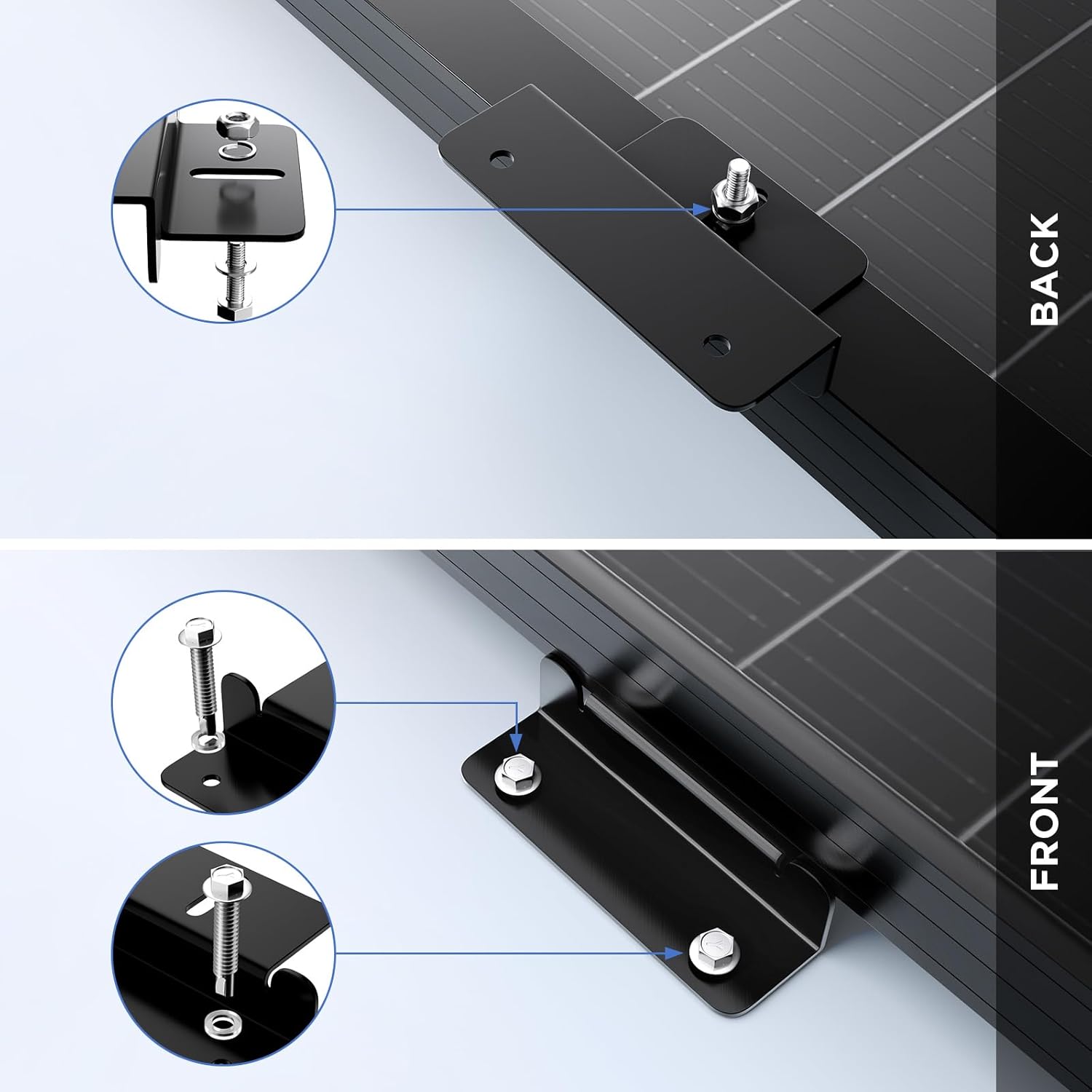

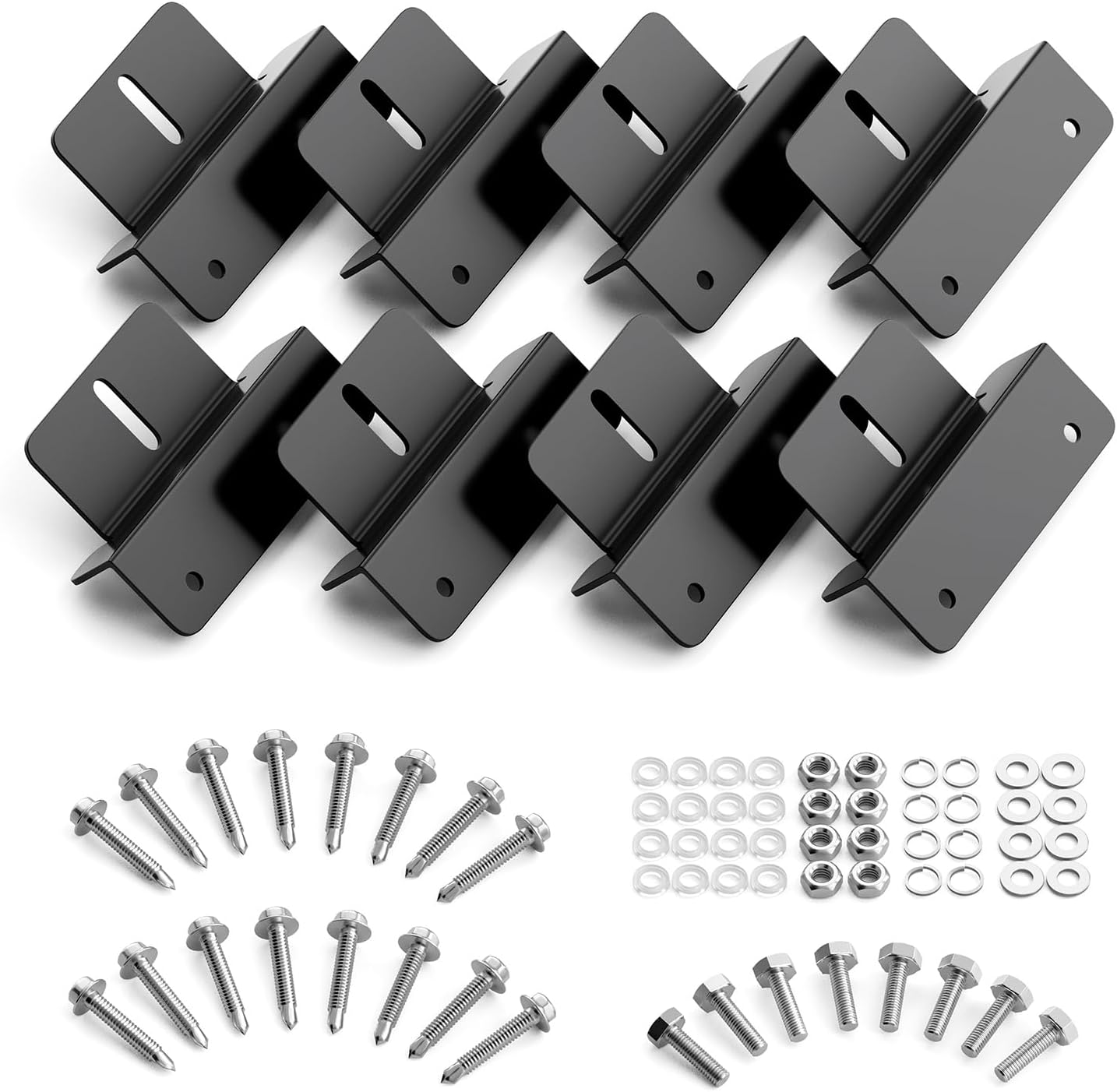

Complete Installation Kit | Includes all required screws, nuts, washers, and clear instructions for fast, beginner-friendly installation.
Versatile Off-Grid Use | Perfect for residential roofs, RVs, marine systems, and ground mounts, backed by a 24-month warranty for long-term reliability.

Pack Option

1 Set (4 pcs) 2 Sets (8 pcs)

Description Specs Includes Downloads FAQ Reviews

Solar Panel Mounting Z Brackets

The Callsun Solar Panel Mounting Z Brackets for solar panels installed on RVs, Trailers, Boats, Motorhome, Yachts, Wall, Cabins, Sheds, Garages and Other Off Gird Roofs.

Specifications

Key Specs at a Glance 180W output · N-Type · 25% efficiency · Bifacial · Anti-Shading · 16BB · IP68

Mechanical Characteristics(STC)

Maximum Power at STC (Pmax)	180W
Maximum Power Voltage (Vmp)	21.93V
Maximum Power Current (Imp)	8.21A
Open-circuit Voltage (Voc)	25.56V
Short-circuit Current (Isc)	8.62A

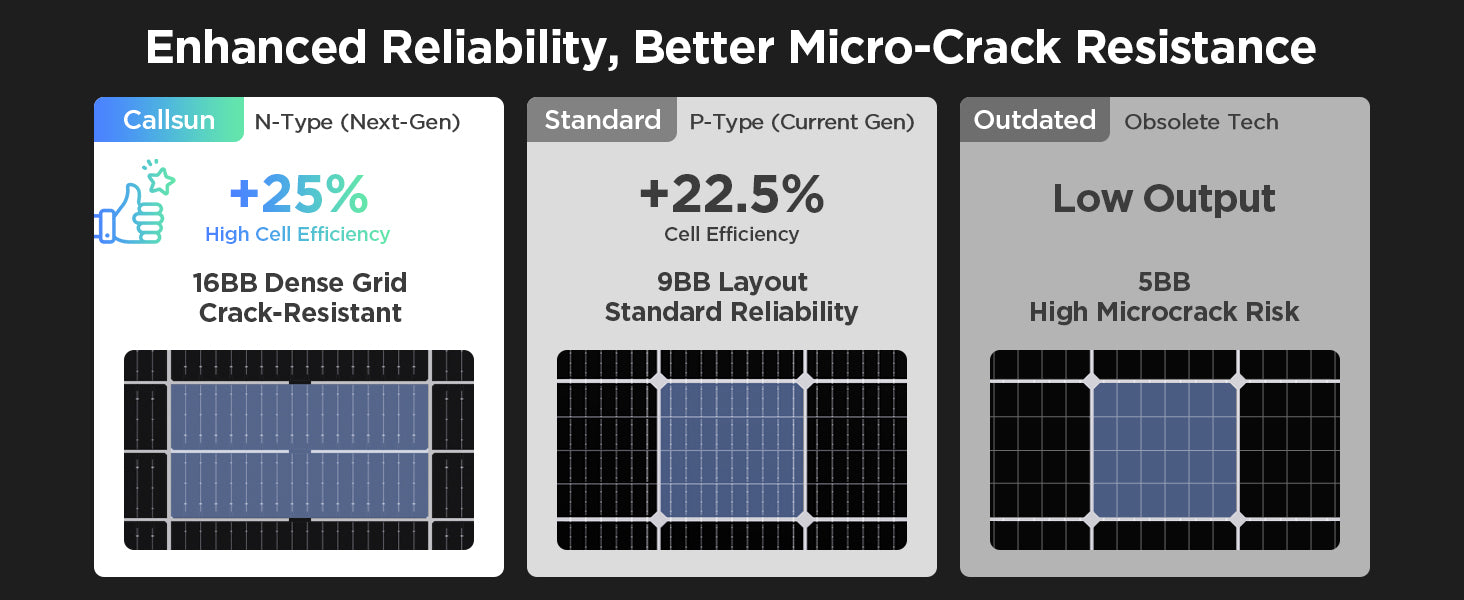

Cell Type	N-Type, 16BB, 182mm, Monocrystalline Silicon
Cell Efficiency	25%
Power Tolerance	0~5%
Maximum System Voltage	1000V DC
Maximum Series Fuse Rating	25A
First Year Degradation Rate	<1%
Linear Degradation Rate	0.4%
Commitment to maintain 84.5% output	25 years

*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.

Specifications

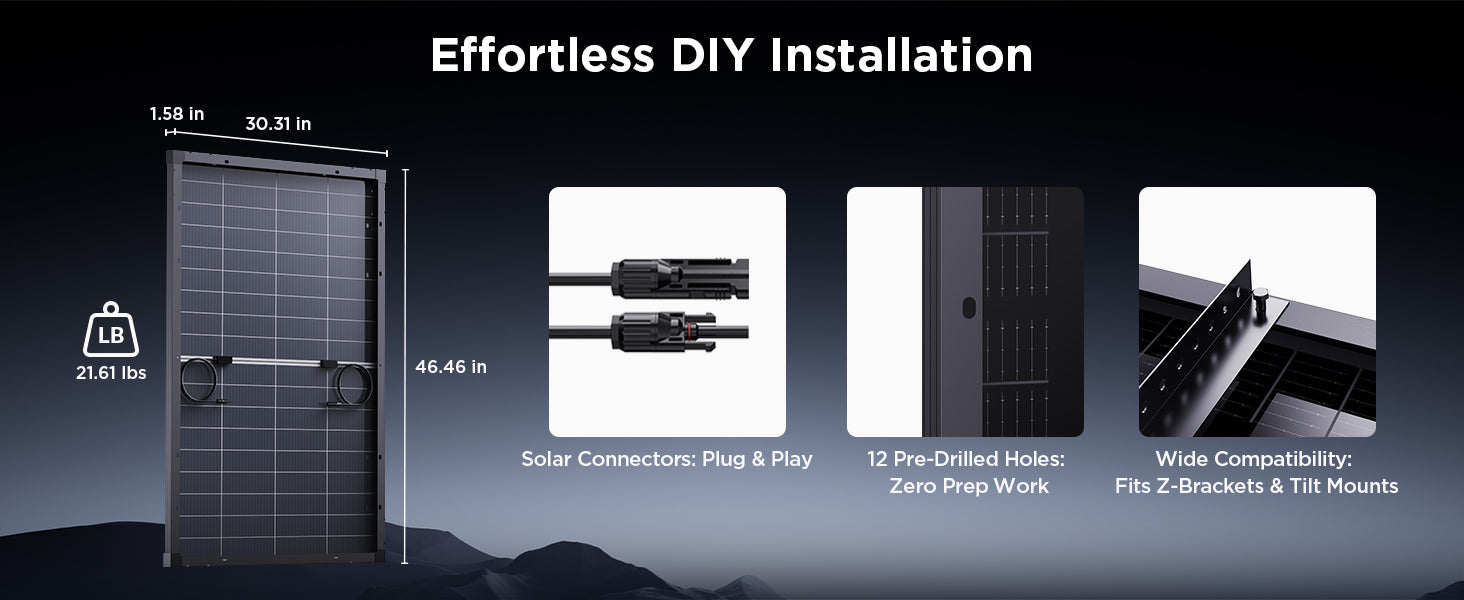

Dimension	1180 × 770 × 35 (±5) mm 46.46 × 30.31 × 1.58 (±0.2) in
Weight	9.80 (±0.2) kg 21.61 (±0.5) lbs

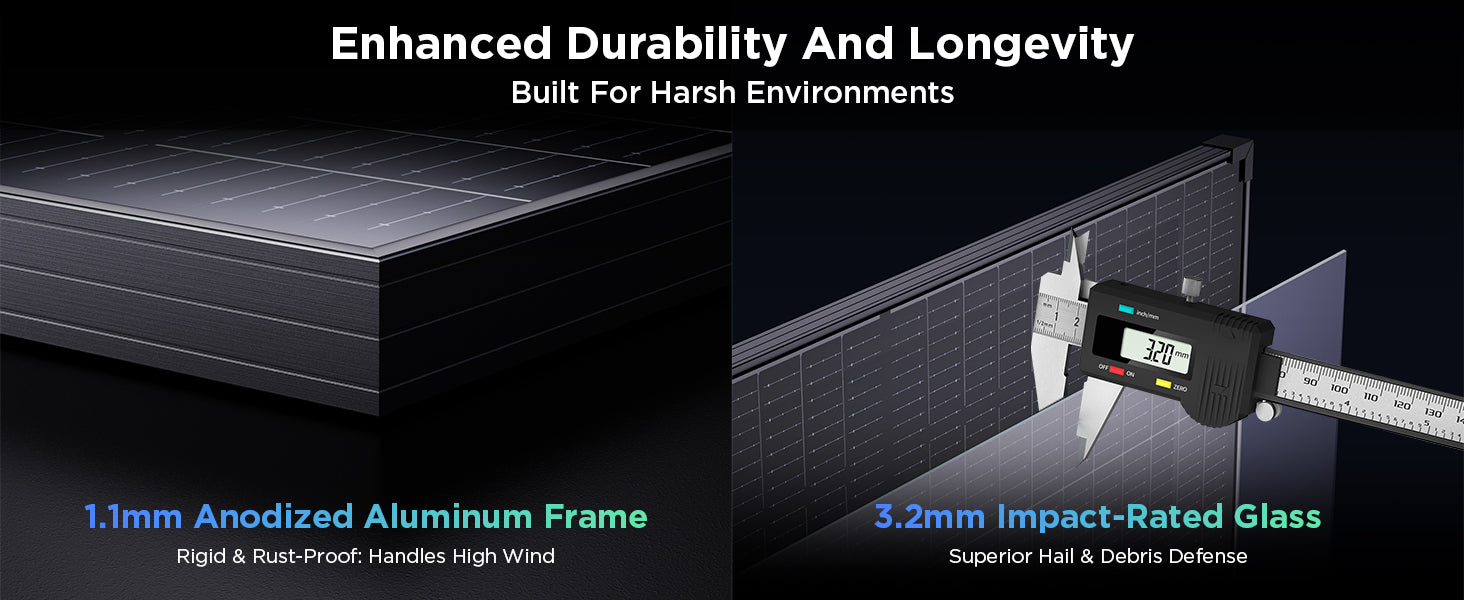

Glass	3.2mm Tempered Glass
Frame	Anodized Aluminium Alloy

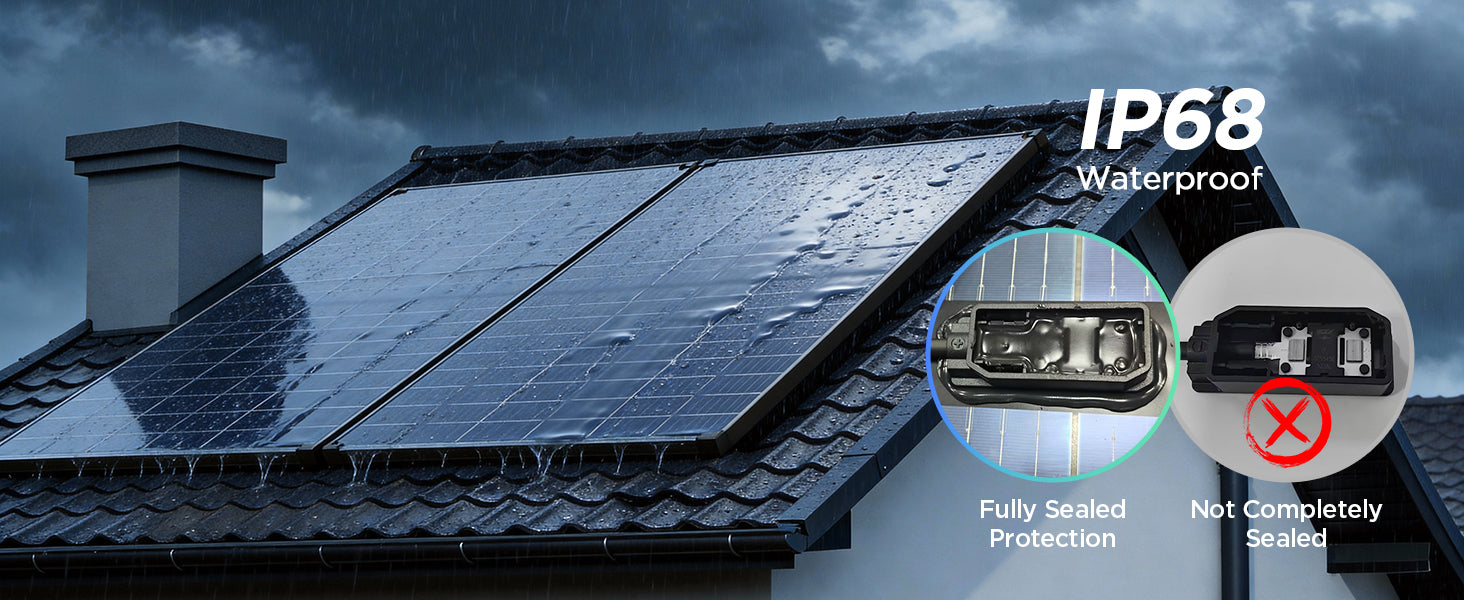

IP Rating	IP68
Max. Wind Load/Snow Load	2400Pa/5400Pa
Connector	Solar Connector

Temperature Coefficients

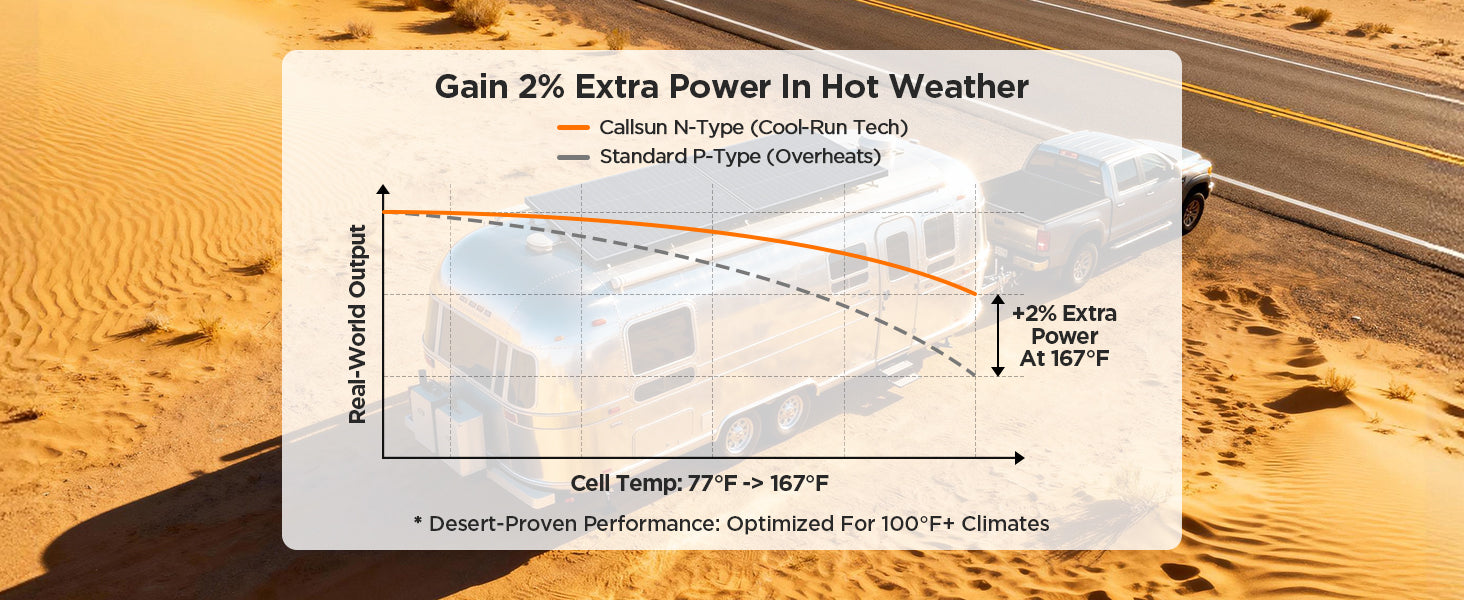

Temperature Coefficients of Pmax	-0.30%/K
Temperature Coefficients of Voc	-0.25%/K
Temperature Coefficients of Isc	0.045%/K
Operating Temperature(°C)	-40°C ~ 85°C (-40°F ~ 185°F)

Includes

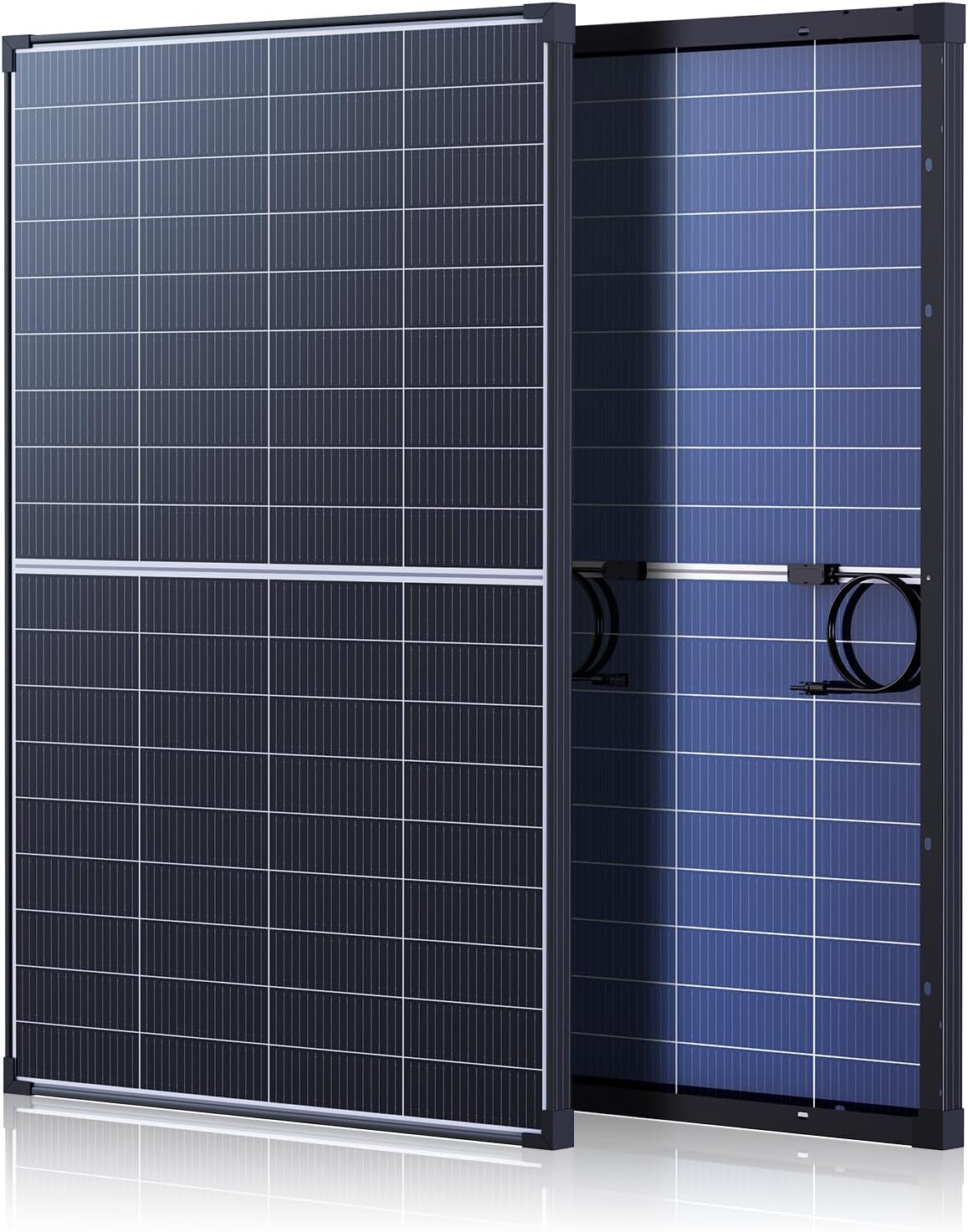

1 Piece: 180W N-Type Anti-Shading Bifacial Solar Panel ×1

2 Piece: 180W N-Type Anti-Shading Bifacial Solar Panel×2

Downloads & View

📄

180W N-Type Anti-Shading Bifacial Solar Panel User Manual

View Download

FAQ

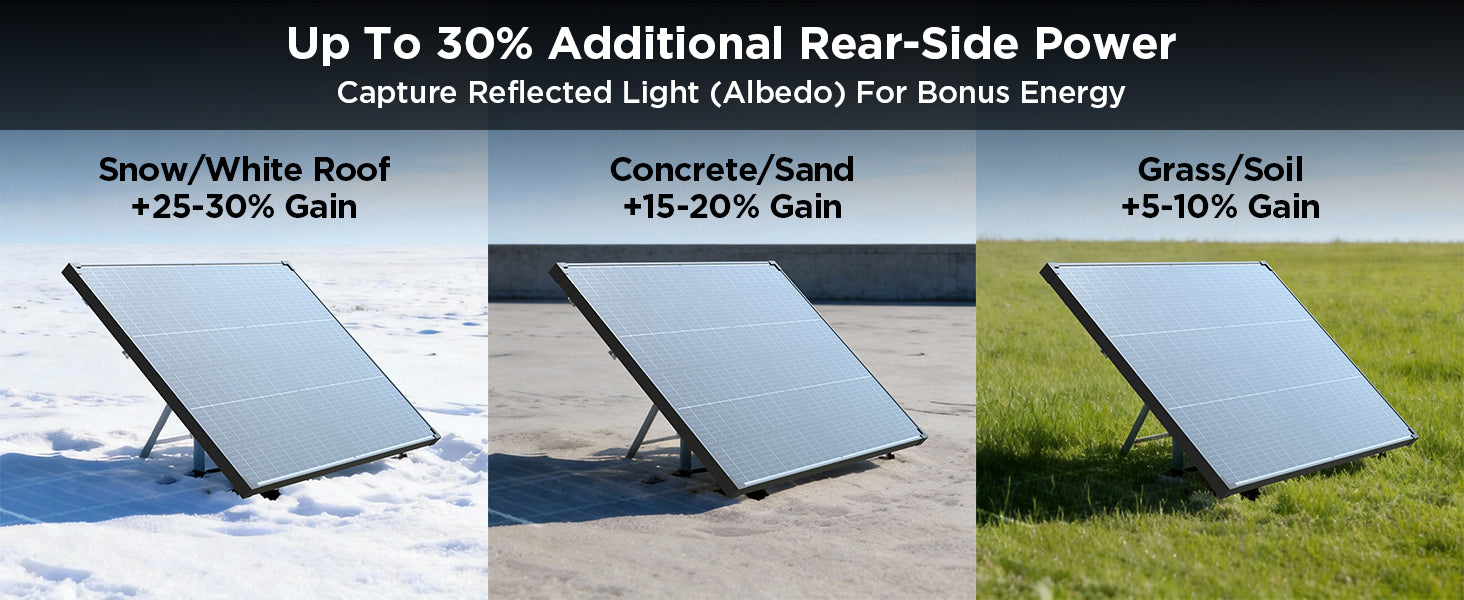

1. What is a bifacial solar panel and how does it increase power output?

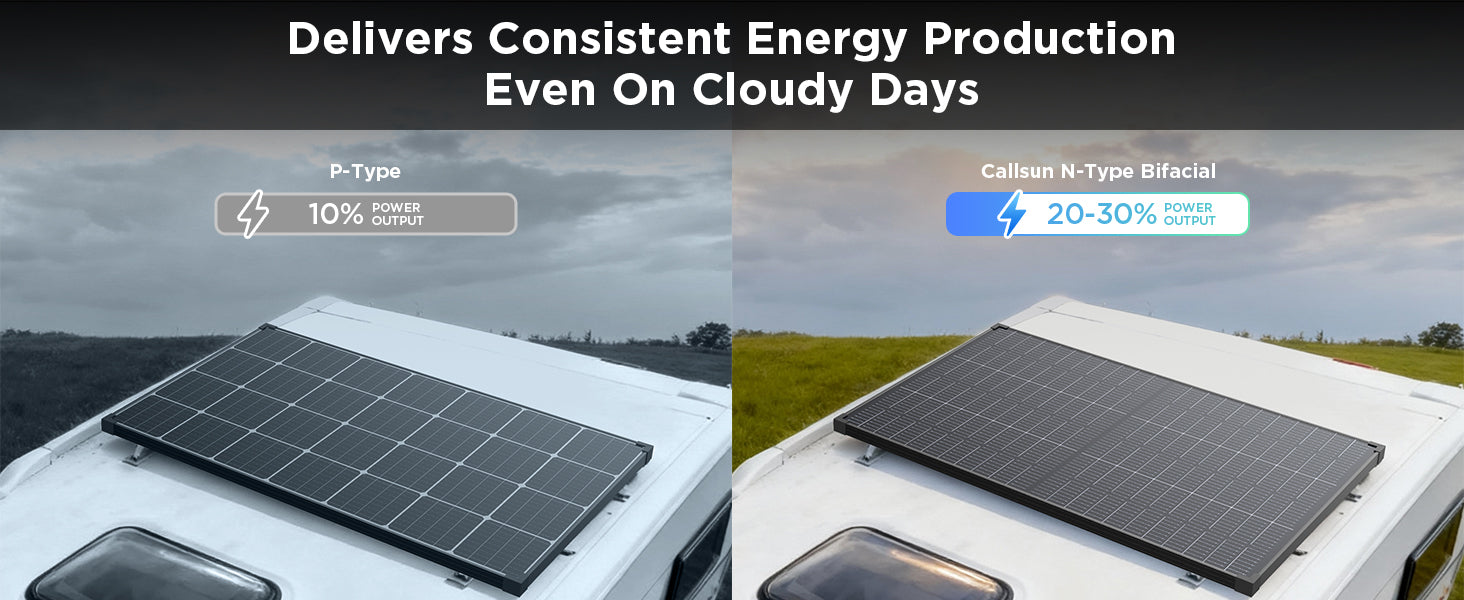

A bifacial solar panel captures sunlight from both the front and back. By collecting reflected light from surfaces like white RV roofs, sand, or decks, it can increase total energy output by up to 30%.

2. Will the panel still work if part of it is shaded?

Yes. With TwinCell parallel circuitry, the panel operates as two independent sections. If one half is shaded by a vent or branch, the other half continues producing power.
