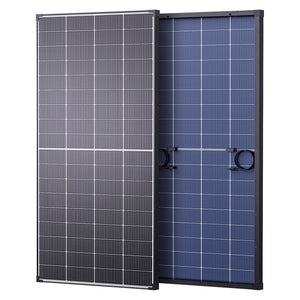

215W N-Type Anti-Shade Bifacial Solar Panel
Key Features
• 25% Efficiency N-Type Cells Advanced 16BB technology achieves 25% conversion efficiency
• 4-Independent Anti-Shading Innovative quad-cell design maintains power output during partial shading
• IP68 Weatherproof Rugged, all-weather construction withstands rain, snow, and dust
• High-Temp Resilience Superior -0.30%/K temperature coefficient ensures consistent year-round energy
• Compact 215W Power 56.0 × 30.2 × 1.4 inch footprint provides reliable off-grid energy
215W N-Type Anti-Shade Bifacial Solar Panel - 1 Piece is backordered and will ship as soon as it is back in stock.
215 Watt N-Type Anti-Shading Bifacial Solar Panel
The Callsun 215W N-Type Anti-Shading Bifacial Solar Panel delivers over 25% conversion efficiency with a quad-cell anti-shading design, ensuring stable power even under partial shading. IP68 waterproof and lightweight, it’s perfect for RVs, boats, camping, and off-grid solar systems, providing reliable energy year-round.
Callsun Anti-Shading vs Other Solar Panels Comparison
| Feature | Callsun Anti-Shading Solar Panel | Other Solar Panels |
|---|---|---|
| In the Dappled Sunlight | 80% Power Out | 0% Power Out |
| In the Building Shadow (25% Partial Shading) | 75% Power Out | 0% Power Out |
| In the Leaves Shadow (50% Partial Shading) | 50% Power Out | 0% Power Out |
| In the Snow Shadow (75% Partial Shading) | 25% Power Out | 0% Power Out |
Four independent modules maintain power generation under partial shading.
Experience uninterrupted energy output with an innovative 4-independent-module design that ensures partial shading from leaves or debris does not shut down your entire solar array.
Maintain stable power output under dappled or imperfect sunlight.
Outperform standard panels with advanced anti-shading technology that delivers up to 80% power output under tree shadows and partial shading conditions.
Keep 75% power output even under building shadows.
Maintain high efficiency when structures block sunlight, ensuring your solar system continues to generate reliable power even with a 25% shadow coverage.
Maintain 50% power output under heavy leaf coverage.
Keep your solar system generating reliable energy even when autumn leaves cover half of the panel, outperforming standard alternatives that drop to zero power.
Keep 25% power output even under heavy snow cover.
Ensure your system continues to generate energy when snow covers 75% of the panel, outperforming conventional panels that drop completely to zero.
Over 25% high efficiency with advanced bifacial cell technology.
Maximize your energy conversion with superior over-25% efficiency, rugged IP68 waterproofing, and advanced bifacial cell technology designed to capture light from both sides.
Advanced bifacial cell technology captures light from both sides.
Maximize your energy harvesting capabilities by capturing direct, reflected, and diffused light from both the front and rear sides of the panel for superior overall performance.
Grade A+ N-type 16BB mono cells delivering high conversion efficiency.
Maximize electrical current flow and reduce internal resistance using premium Grade A+ N-type 182mm 16BB monocrystalline cells designed for over 25% conversion efficiency.
More stable temperature performance in high heat environments.
Maintain lower operational temperatures and superior efficiency in extreme environments with advanced N-type technology compared to standard P-type PERC panels.
Premium multi-layer architecture for lasting power and durability.
Engineered with master craftsmanship featuring tempered glass, EVA layers, high-efficiency monocrystalline cells, and a high-trans back sheet, delivering 25% efficiency, 25 years of stable power, 16 busbars, and a low -0.3%/K temperature coefficient.
Precision craftsmanship featuring 3.2mm tempered glass and a seamless frame.
Built with meticulous precision showcasing a seamless corrosion-resistant frame, robust 3.2mm tempered glass, and a perfectly laminated surface for long-lasting reliability.
Securing adjustable tilt mounting brackets and Z-brackets with ease.
Simplify your installation process using a 25.38 lbs lightweight design measuring 55.98 x 30.16 x 1.38 inches, featuring plug-and-play solar connectors, 12 mounting holes, and complete compatibility with tilt mounting brackets and Z-brackets.
Clear wiring configurations for 12V and 24V setups.
Easily wire your solar panels with dedicated 12V and 24V system diagrams, guiding you through connections for solar panels, solar charge controllers, and batteries.
Built to withstand heavy snow loads and high wind forces.
Ensure maximum structural durability and safety in harsh weather conditions with an engineered design supporting up to 5400Pa max snow load and 2400Pa max wind load.
Advanced IP68 waterproof rating for ultimate weather protection.
Protect your investment in heavy downpours and wet environments with a fully waterproof IP68-rated design built to withstand extreme moisture and inclement weather.
Built to handle IP68 waterproofing, 2400Pa wind load, 5400Pa snow load, and 3.2mm tempered glass.
Conquer the toughest outdoor environments with extreme durability features including IP68 waterproofing, 2400Pa max wind load, 5400Pa max snow load, and robust 3.2mm tempered glass.
Collect up to 24.85% more energy with an advanced bifacial design.
Maximize your backside solar gain across different environments, achieving up to 7.21% on grass, 9.54% on cement, 9.84% on sandy land, 14.83% on snow, and 24.85% on mirror surfaces with a 215W front panel and 15-65W rear panel configuration.
Maintain stable energy generation under tree branches and foliage shadows.
Keep your RV powered even when surrounded by trees, utilizing advanced anti-shading performance to minimize power loss from natural obstructions.
Maintain continuous power generation despite mast and sail shadows on marine vessels.
Ensure reliable energy output on your boat even when masts and sails cast shadows across the deck, utilizing advanced anti-shading performance to keep your systems running smoothly.
Maintain stable energy generation despite chimneys, skylights, and architectural shadows.
Ensure consistent power output on residential rooftops even when chimneys, skylights, and surrounding objects cast shadows, utilizing advanced anti-shading performance to minimize energy loss.
Maintain power output and accelerate snow shedding in winter conditions.
Keep your solar panels generating energy even when partial snow cover blocks the surface, utilizing advanced design features to promote quick snow clearance and minimize downtime.
Maintain stable energy generation when fallen leaves block portions of the panel.
Keep your vehicle powered even when autumn leaves and debris land on the surface, leveraging advanced anti-shading performance to minimize power loss.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | NO | PV input current (12.38A) exceeds limit (10A) |
| Elite 100 V2 / 200 V2 | YES | 3×215W(Series) |
| Elite 300 | YES | 3×215W(Series) |
| Elite 400 | YES | 3×215W(Series) |
| AC2A | NO | PV input current (12.38A) exceeds limit (8.2A) |
| AC50B / EB3A | NO | PV input current (12.38A) exceeds limit (8.5A) |
| AC70 | NO | PV input current (12.38A) exceeds limit (10A) |
| AC180 | NO | PV input current (12.38A) exceeds limit (10A) |
| AC200L | YES | 5×215W(Series) |
| AC300 | NO | PV input current (12.38A) exceeds limit (12A) |
| AC500 | YES | 8×215W(Series) |
| Apex 300 | YES | 3×215W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 7×215W(Series) |
| Delta 2 / 2 Max | YES | 2×215W(Series) |
| Delta 3 / 3 Plus | YES | 2×215W(Series) |
| Delta 3 Max | YES | 2×215W(Series) |
| Delta 3 Max Plus | YES | 2×215W(Series) |
| Delta pro 3 | YES | 7×215W(Series)-XT60 |
| River 2 | NO | PV input current (12.38A) exceeds limit (8A) |
| River 2 Pro | YES | 1×215W |
| River 2 Max | YES | 1×215W |
| River 3 | NO | PV input current (12.38A) exceeds limit (8A) |
| River 3 Plus | YES | 1×215W |
| Delta Pro Ultra | YES | 7×215W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | NO | PV input current (12.38A) exceeds limit (8.2A) |
| SOLIX C800 | NO | PV input current (12.38A) exceeds limit (8.2A) |
| SOLIX C1000 | YES | 2×215W(Series) |
| SOLIX C1000 Gen2 | YES | 2×215W(Series) |
| SOLIX C2000 Gen2 | YES | 3×215W(Series) |
| SOLIX F2000 | YES | 3×215W(Series) |
| SOLIX F2600 | YES | 3×215W(Series) |
| SOLIX 521 | NO | PV input current (12.38A) exceeds limit (5.5A) |
| SOLIX 535 | NO | PV input current (12.38A) exceeds limit (10A) |
| SOLIX F3000 | YES | 7×215W(Series) |
| SOLIX F3800 | YES | 3×215W(Series) |
| SOLIX F3800 plus | YES | 7×215W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | NO | PV input current (12.38A) exceeds limit (7A) |
| E500LFP | NO | PV input current (12.38A) exceeds limit (7A) |
| E600LFP | NO | PV input current (12.38A) exceeds limit (11A) |
| E1000LFP | YES | 2×215W(Series) |
| E1500LFP | YES | 3×215W(Series) |
| E2000LFP | YES | 5×215W(Series) |
| E2400LFP | YES | 3×215W(Series) |
| E3600LFP | YES | 5×215W(Series) |
| E3800LFP | YES | 5×215W(Series) |
| F1000LFP | YES | 2×215W(Series) |
| F3000LFP | YES | 5×215W(Series) |
| F5000LFP | YES | 10×215W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 3×215W(Series) |
| Mega 2 | YES | 8×215W(Series) |
| Mega 2 Pro | YES | 4×215W(Series) |
| Exodus 2400 | YES | 3×215W(Series) |
| Exodus 1500 | YES | 2×215W(Parallel) |
| Exodus 600 Plus | NO | PV input current (12.38A) exceeds limit (12A) |
| Exodus 600 | NO | PV input current (12.38A) exceeds limit (12A) |
| Exodus 1200 | NO | PV input current (12.38A) exceeds limit (12A) |
| Guardian 6000 | YES | 8×215W(Series) |
| B2 Extra Battery | YES | 9×215W(Series) |
Specifications
Key Specs at a Glance: 215W output · N-Type · 25% efficiency · Bifacial · Anti-Shading · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power at STC (Pmax) | 215W |
|---|---|
| Maximum Power Voltage (Vmp) | 17.37V |
| Maximum Power Current (Imp) | 12.38A |
| Open-circuit Voltage (Voc) | 20.41V |
| Short-circuit Current (Isc) | 13.12A |
| Cell Type | N-Type, 16BB, 182mm, Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 1422 × 766 × 35(±5mm) 56.0× 30.2 × 1.4(±0.1in) |
|---|---|
| Weight | 11.5(±0.2kg) 25.4(±0.5lb) |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector |
Includes
Downloads & View
User Manual
FAQ
1. What are the benefits of using bifacial solar panels?
Callsun Bifacial solar panels capture sunlight from both front and rear sides, allowing them to generate more energy than traditional monofacial panels. They can gain an additional 5%-30% power from reflected surfaces such as snow, sand, or rooftops. This design also ensures better performance in low-light conditions and provides flexibility in installation for various applications
2. What advantages does Anti-Shading Technology provide?
Callsun Anti-Shading panels use a Quad-Cell structure, dividing the panel into four independent units. When part of the panel is shaded by trees, leaves, or snow, the other units continue to generate power, reducing energy loss by up to 75%-80% compared to standard panels. This ensures stable and reliable electricity for off-grid or partially shaded installations.
3. How long are the cables on the split junction box, and do I need extensions?
The panel comes with pre-attached output cables. Depending on your specific layout and the distance to your charge controller, you may need to purchase standard solar extension cables.
4. What does the -0.3%/K temperature coefficient mean for winter operations?
It means the panel's voltage increases as temperatures drop below 25°C. In freezing winter conditions, the open-circuit voltage will rise higher than normal, so ensure your controller has enough voltage headroom.
