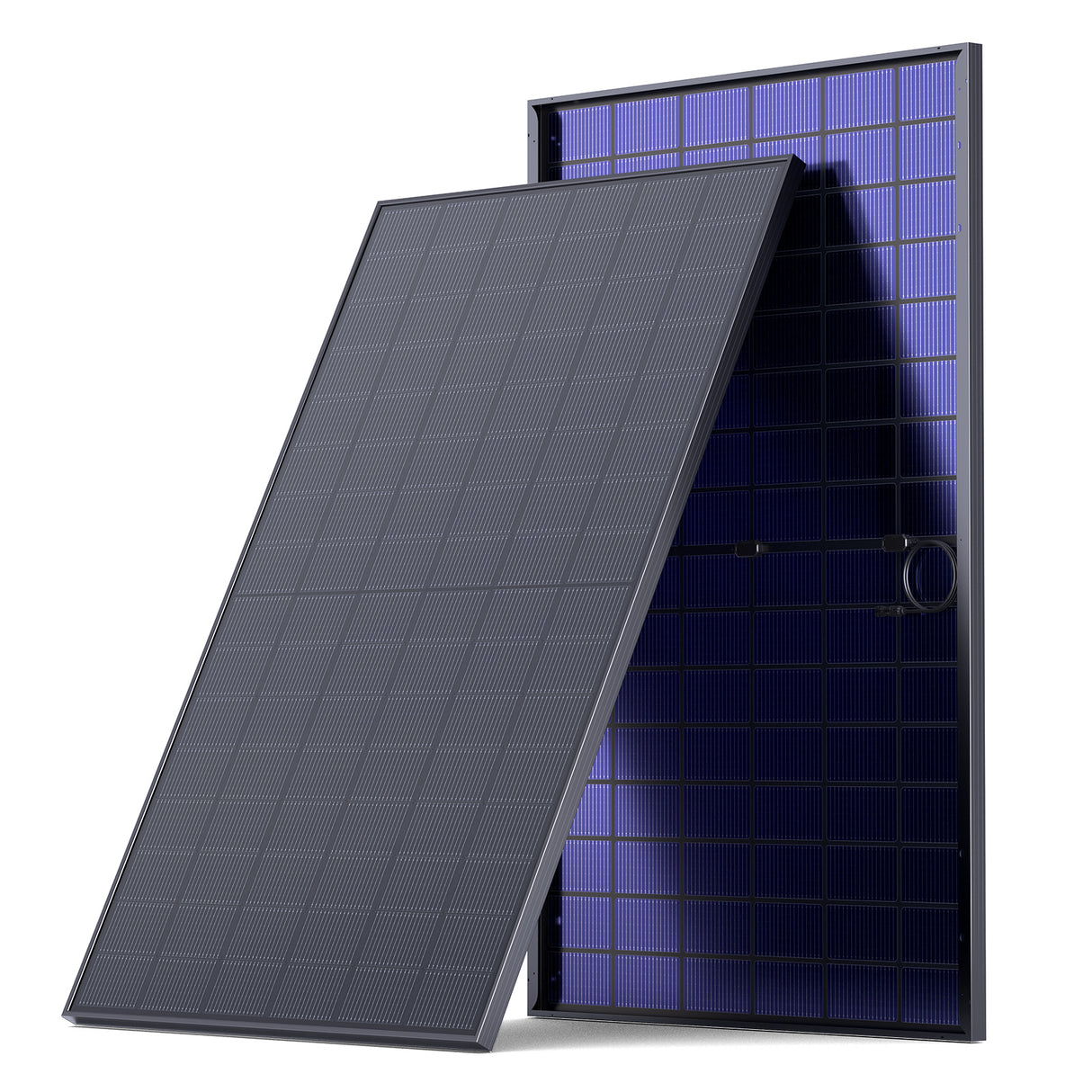

450W N-Type Solar Panel(36 pcs)
Key Features
• 25.4% Efficiency N-Type Cells Advanced 16BB technology achieves 25.4% conversion efficiency
• Anti-Shading Design Innovative circuitry ensures continuous power output during partial shading conditions
• Bifacial Double Glass Dual-sided light absorption and durable double glass structure maximize energy harvest
• Extreme Weather Ready Rugged IP68 construction withstands 2400Pa wind and 5400Pa snow loads
• Long-Term Reliability High-performance build ensures consistent energy with a 25-year performance commitment
450W N-Type Solar Panel(36 pcs) - 36 Pieces is backordered and will ship as soon as it is back in stock.
Delivery time: 3-8 business days.
30-Day Return and Refund Service
Warranty Coverage
Free Shipping450 Watt N-Type Anti-Shad Bifacial Solar Panel
Callsun 450W N-Type Bifacial Solar Panel offers 25.4% efficiency with 16BB cells. Anti-shading, IP68 rated, ideal for home backup & off-grid power systems.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |
Specifications
Key Specs at a Glance: 450W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 450W |
|---|---|
| Maximum Power Voltage (Vmp) | 30.08V |
| Maximum Power Current (Imp) | 14.97A |
| Open-circuit Voltage (Voc) | 35.03V |
| Short-circuit Current (Isc) | 16.05A |
| Cell Type | N-Type,16BB, 182mm,Monocrystalline Silicon |
| Cell Efficiency | 25% |
| First Year Degradation Rate | 1% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 1762 × 1134 × 30(±5mm) 69.4 × 44.7 × 1.2(±0.1in) |
|---|---|
| Weight | 24.5(±0.2kg) 54.01 (±0.5lb) |
| Glass | 4mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.29%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
Downloads & View
User Manual
FAQ
1.What are the benefits of using bifacial solar panels?
Callsun Bifacial panels capture sunlight from both sides, significantly increasing total energy output. Built with N-Type cells, they offer higher efficiency, superior low-light performance on cloudy days, and excellent durability.
2.What else do I need to complete my off-grid solar power system?
Since our panels are sold as standalone units, you will need to separately source a compatible MPPT charge controller, a deep-cycle battery bank (such as LiFePO4), an inverter, and appropriate gauge solar connection cables.
3.What does off-grid and on-grid mean?
An on-grid system connects to the local utility grid to feed back excess power. An off-grid system runs independently, storing energy directly into batteries, making it self-sufficient and unaffected by grid blackouts.
4.Why is my 450W solar panel underproducing power?
Real-world output depends on weather and setup. Indirect sunlight, extreme heat, heavy overcast, or dirt on the glass can reduce power. For bifacial panels, raising them above a reflective surface (like light sand or white roofs) optimizes rear-side generation.
