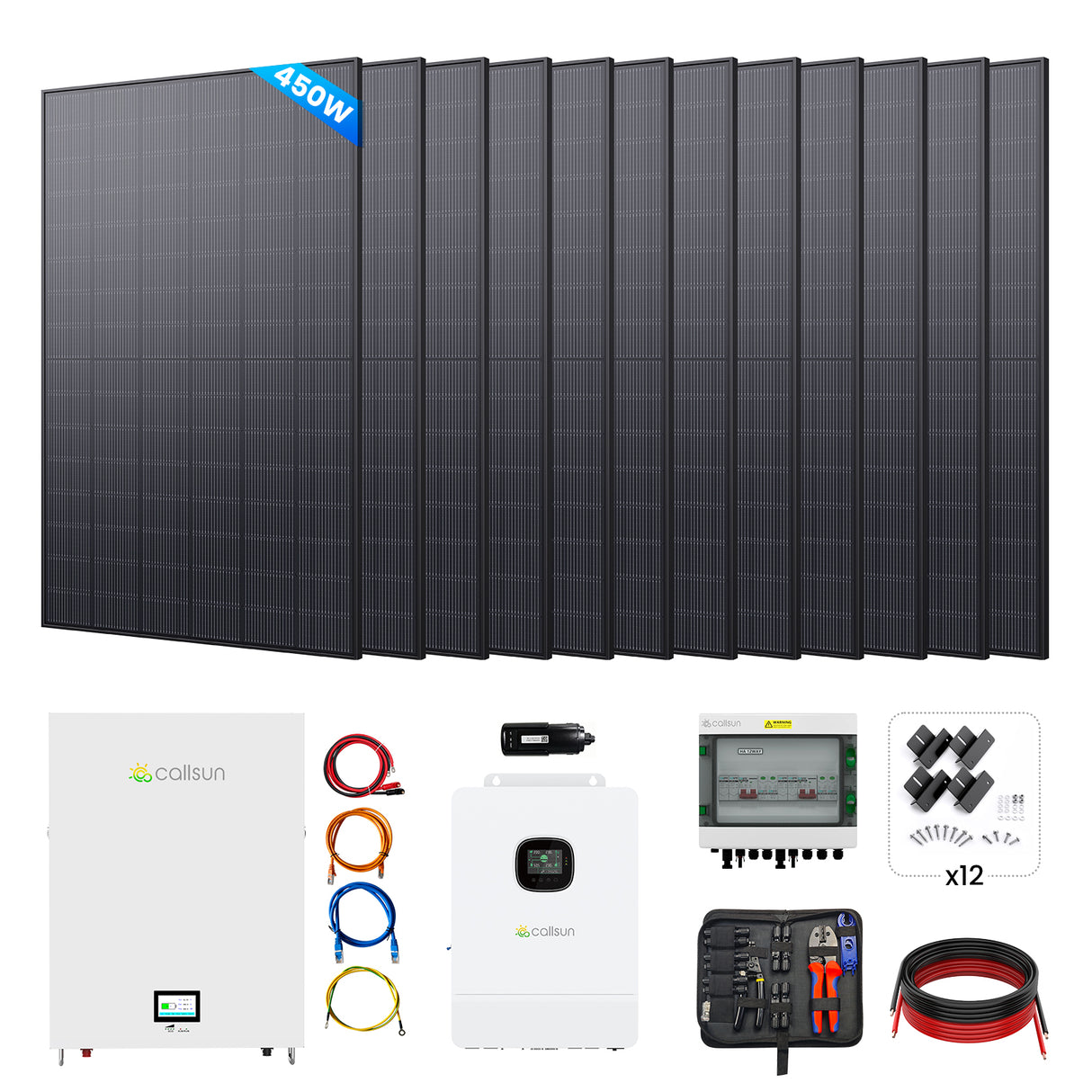

5.4kW Hybrid Solar Power System Kit with 6.5kW Hybrid Inverter & 10kWh LiFePO4 Battery
Key Features
- 450W N-Type Bifacial Solar Panel - High-efficiency N-Type bifacial panels deliver up to 25.6% efficiency, with double-glass durability, anti-shading technology, and reliable performance in all weather conditions.
- 10kWh LiFePO4 Battery Storage - Premium LiFePO4 battery with intelligent BMS provides over 6,500 cycles, enhanced safety, stable performance, and reliable energy storage with a 10-year warranty.
- 6.5kW Hybrid Solar Inverter - Pure sine wave output, 99.9% MPPT efficiency, seamless UPS backup, real-time monitoring, and dual battery compatibility ensure efficient and reliable power management.
- Complete Solar Power System - A complete 5.4kW solar power system combining high-efficiency panels, a 6.5kW hybrid inverter, and a 10kWh battery for reliable, independent energy.
5.4kW Hybrid Solar Power System Kit with 6.5kW Hybrid Inverter & 10kWh LiFePO4 Battery - 5.4k Wh is backordered and will ship as soon as it is back in stock.
5.4kW Hybrid Solar Power System Kit | 6.5kW Inverter & 10kWh Battery
Generate clean energy with this complete 5.4kW hybrid solar power system, including a 6.5kW hybrid inverter and 10kWh LiFePO4 battery. Perfect for home backup, off-grid living, and reducing electricity costs.

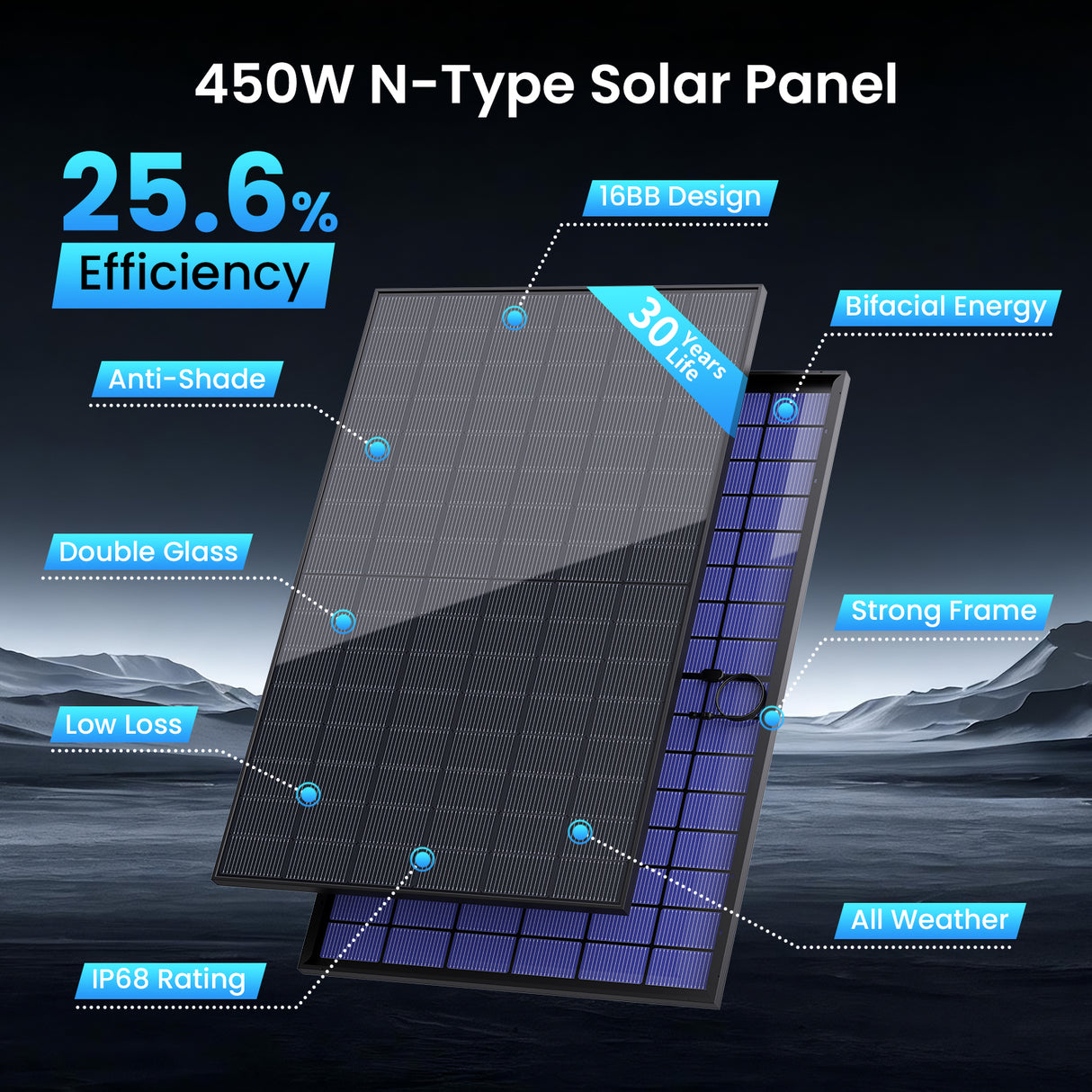

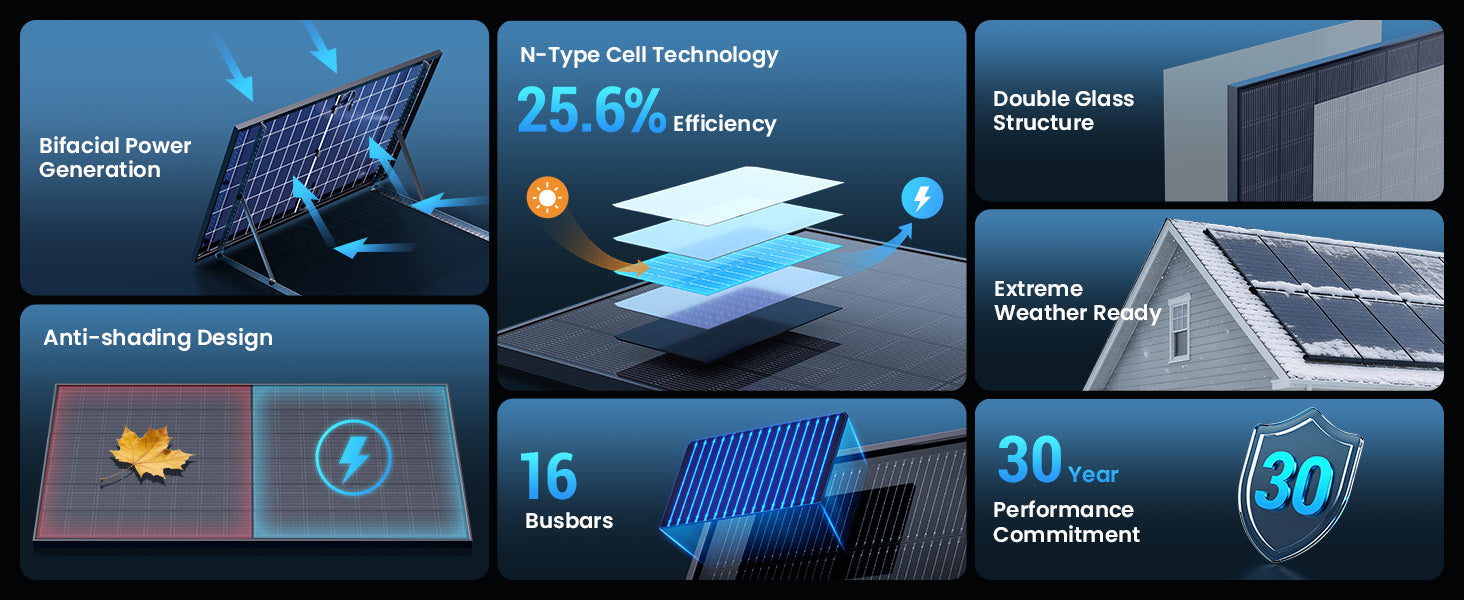

450W High-Efficiency Bifacial Power
N-Type 16BB technology, anti-shading, bifacial generation, double-glass durability, and 25-year performance deliver reliable outdoor power.
Up to 30% More Energy
Bifacial technology captures direct and reflected light from snow, sand, and grass, delivering up to 30% higher energy yield.
Stable Power Under Partial Shade
Parallel module architecture keeps one module generating power when the other is shaded, maintaining stable energy output.
25-Year Guaranteed Performance
IP68 protection, 5400Pa snow and 2400Pa wind resistance, -40°C to 85°C operation, and 84.5% output after 25 years.
Specifications
Key Specs at a Glance: 450W output · N-Type · 25.6% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 450W |
|---|---|
| Maximum Power Voltage (Vmp) | 30.08V |
| Maximum Power Current (Imp) | 14.97A |
| Open-circuit Voltage (Voc) | 35.03V |
| Short-circuit Current (Isc) | 16.05A |
| Cell Type | N-Type,16BB, 182mm,Monocrystalline Silicon |
| Cell Efficiency | 25.6% |
| First Year Degradation Rate | ＜1% |
| Commitment to maintain 84.5% output | 25 years |
| Dimension | 1762 × 1134 × 30(±5mm) 69.4 × 44.7 × 1.2(±0.1in) |
| Weight | 24.5(±0.2kg) 54.01 (±0.5lb) |
| IP Rating | IP68 |
| Connector | Solar Connector Compatible |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.

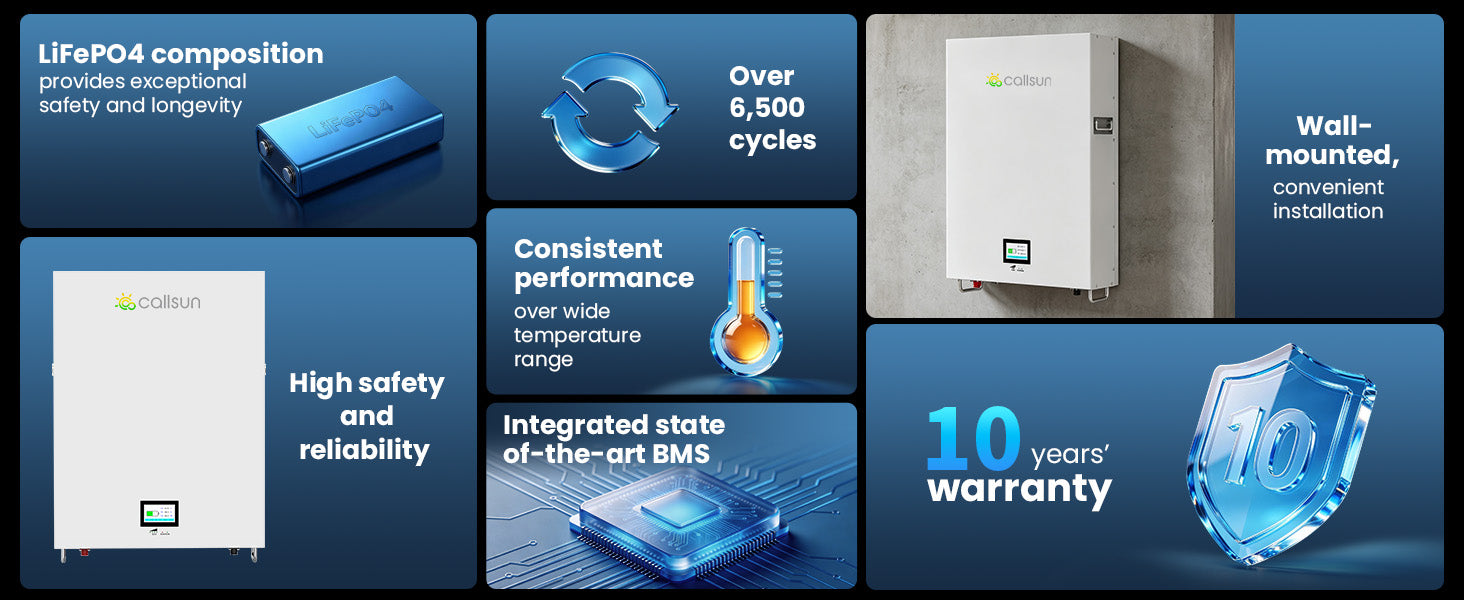

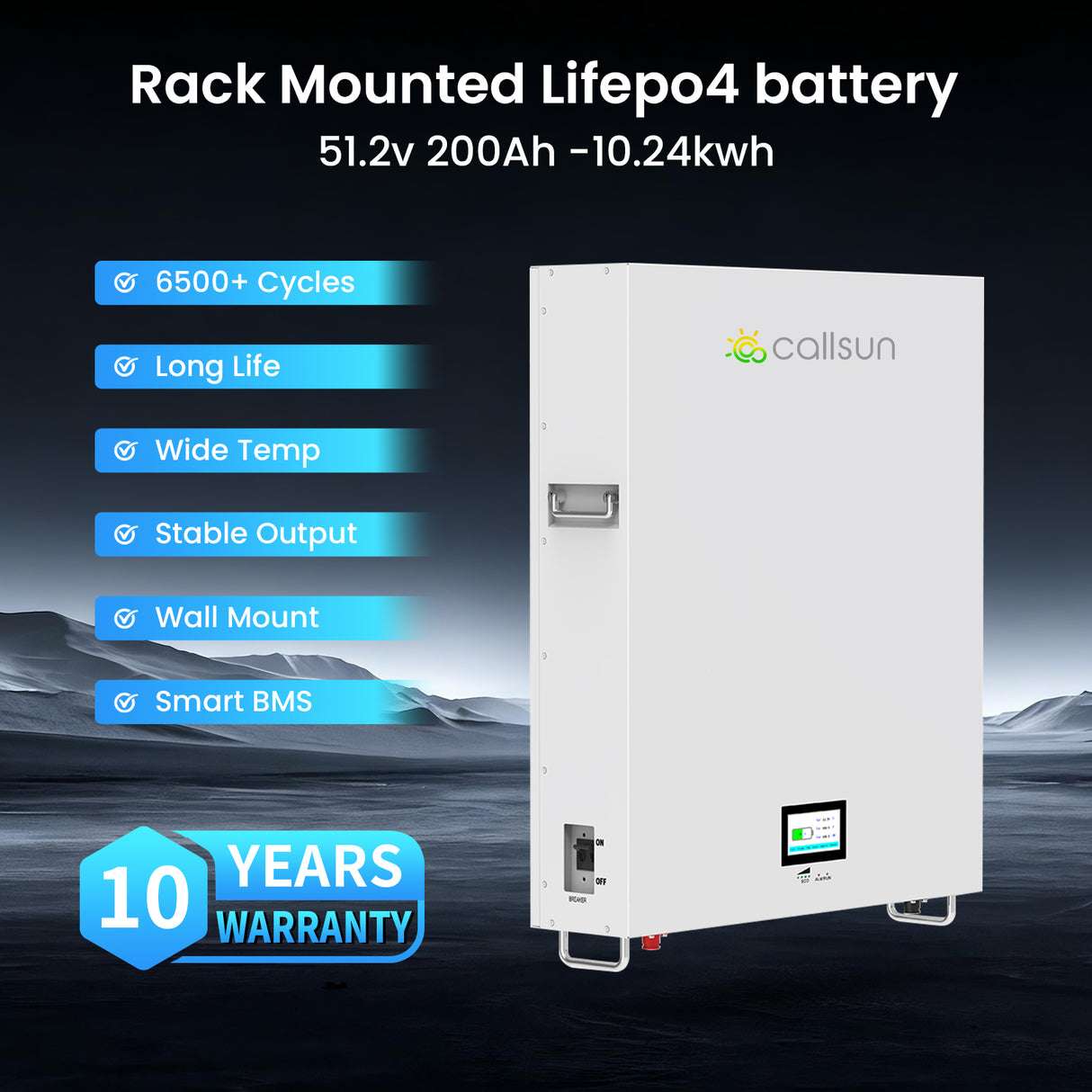

Reliable 10kWh Energy Storage
10kWh capacity, 6,500+ cycles, advanced BMS, wide-temperature performance, and a 10-year warranty deliver safe, reliable energy storage.
Advanced BMS Protection
Advanced BMS monitors voltage, current, and temperature in real time while balancing cells for safer, longer-lasting performance.
Space-Saving Wall Mount
Sleek wall-mounted design enables quick, secure installation while saving space for a clean and efficient home energy storage setup.
Specifications
Mechanical Characteristics(STC)
| Nominal Voltage | 51.2V |
|---|---|
| VRated Capacity | 200Ah |
| Energy | 10.24kWh |
| Dimensions (L x W x D) | 780*550*200mm/30.7*21.6*7.8 in |
| Weight | 102.5kg/225.97lb |
| Max. discharge voltage of battery | 56VDC |
| End of discharge voltage of battery | 46VDC |
| Maximum discharge current of battery | 150A |
| Maximum charge current of battery | 150A |
| Charging temperature range of battery | 0-45℃ |
| Discharge temperature range of battery | -20- 55℃ |
| Number of cells in battery pack | 16S1P |
| Lithium Battery Standard | UL1973,CE-EMC, UN38.3, MSDS |
| Enclosure protection rating | IP20 |

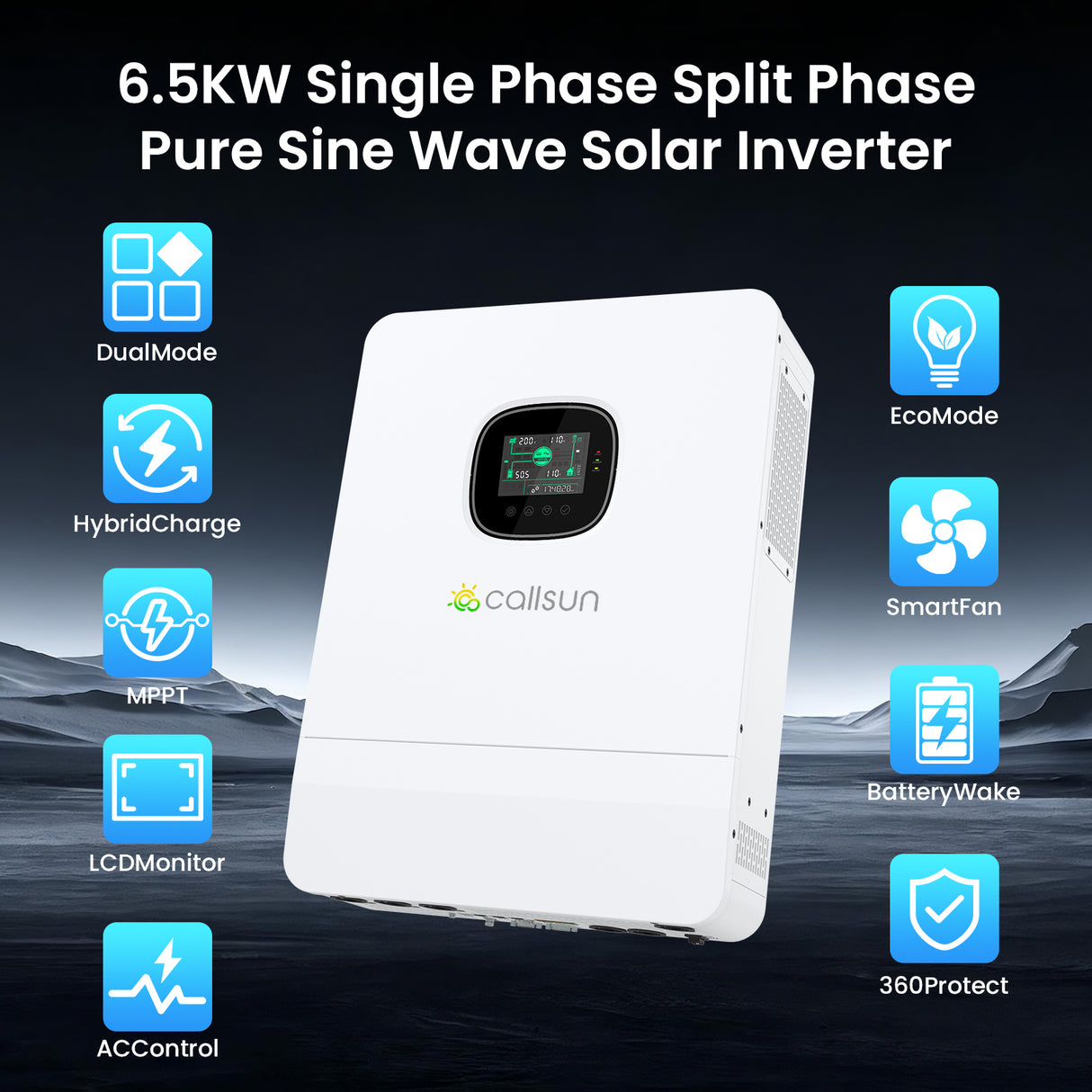

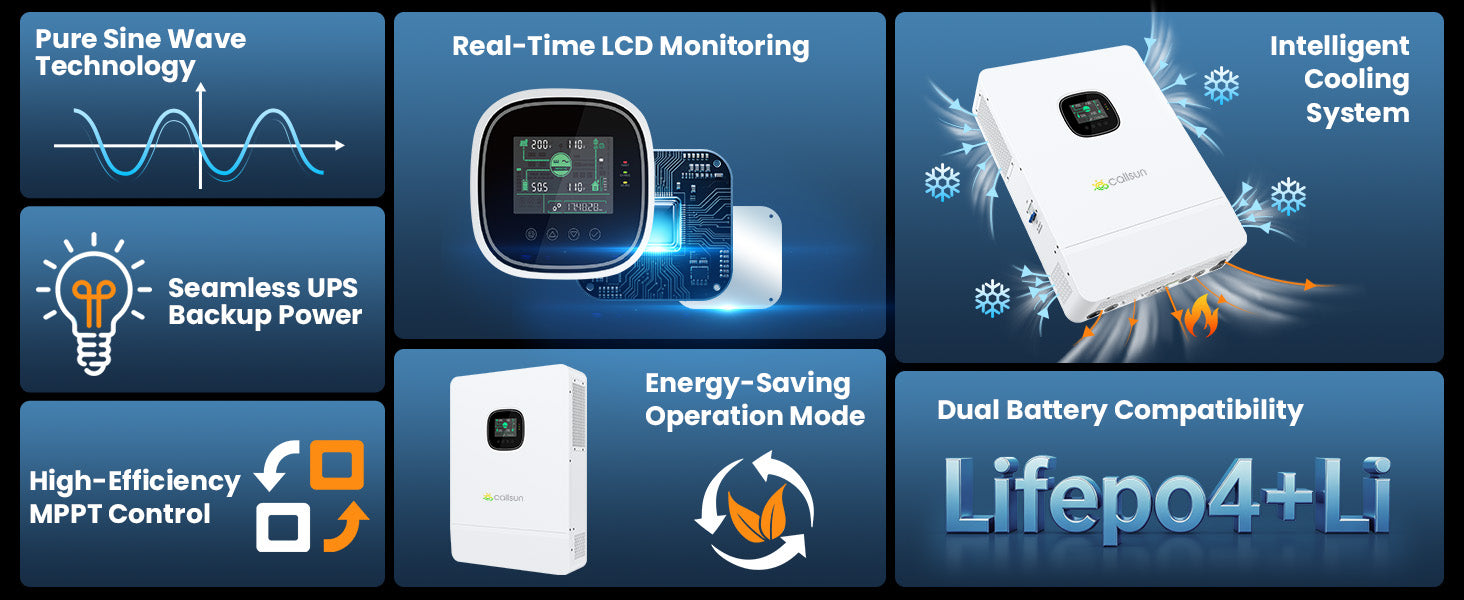

Powerful 6.5kW Solar Inverter
Pure sine wave output, MPPT control, LCD monitoring, intelligent cooling, UPS backup, and dual battery compatibility for efficient power management.
Smart Wi-Fi Monitoring
Connect via Wi-Fi to track inverter performance, energy data, and system status anytime through your mobile app.
Easy Installation
Set up your solar inverter system quickly and safely by following the straightforward installation steps detailed in the user manual.
Specifications
Inverter Output
| Rated Output power | 6500W |
|---|---|
| Max. Peak Power | 13000 W |
| Rated Output Voltage | 120/240 VAC (single-phase/split-phase) |
| Rated AC Frequency | 50/60 Hz |
| Waveform | Pure sine wave |
| Switch Time | 10 ms (typical value) |
| Parallel Capacity | 1~6 units |
Battery
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
|---|---|
| Rated Battery Voltage | 48Vdc |
| Rated Voltage range | 40 Vdc−60 Vdc |
PV Input
| No. of MPPT Trackers | 2 |
|---|---|
| Max. PV Input Power | 5000W+5000W |
| Max. PV Input Current | 18A+18A |
| Max. Open Circuit Voltage | 550Vdc+550Vdc |
| MPPT Voltage Range | 150 Vdc～450 Vdc |
Grid/Generator Input
| Input Voltage Range | 65VAC～140VAC |
|---|---|
| Input Frequency Range | 50/60 Hz |
| Bypass Overload Current | 40A |
General
| Dimensions | 648mm*410mm*140 mm/25.51*16.14*5.51in |
|---|---|
| Weight | 21.7kg/47.84lb |
| Protection Degree | IP20, indoor only |
| Operating Temperature Range | -10°C-55°C, >45°C derated |
| Noise | <60dB |
| Built-in Interface | RS485/CAN/USB/dry contact |
| Extemal Module(optional) | Wi-Fi/GPRS |
| Safety | IEC62109-1, IEC62109-2,and UL1741 |
| EMC | EN61000-6-1, EN61000-6-3, and FCC 15 class B |
| RoHS | Yes |

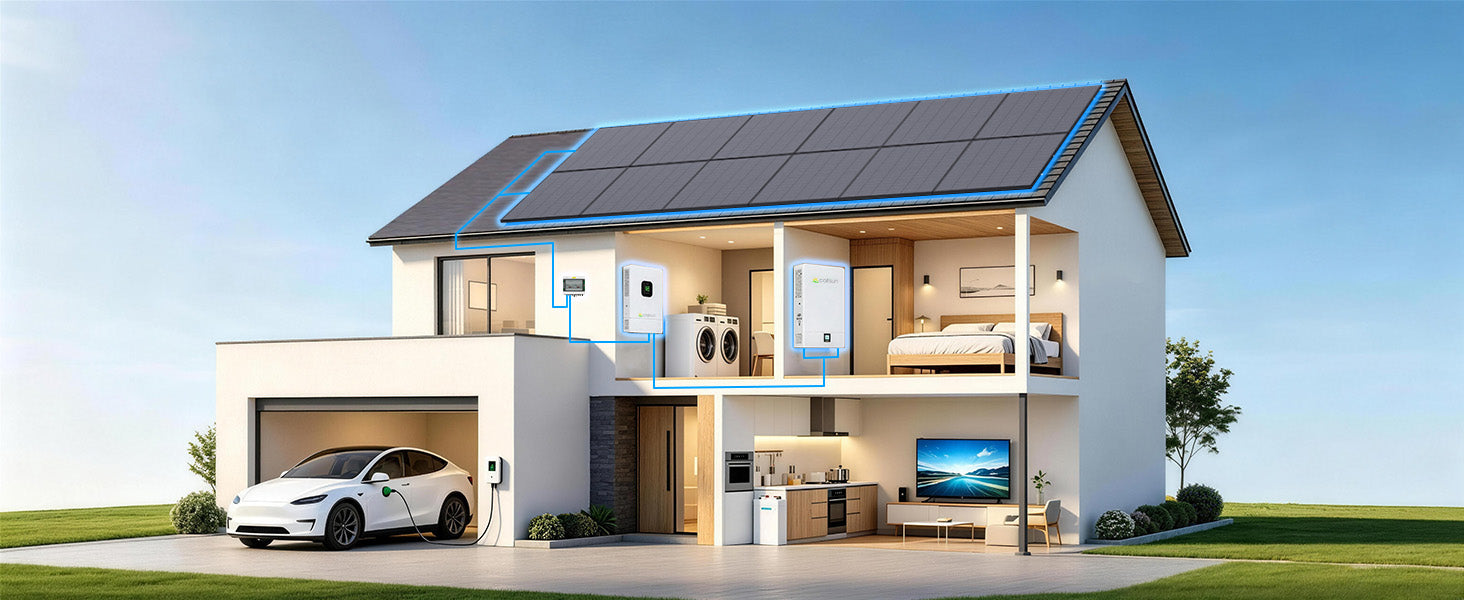

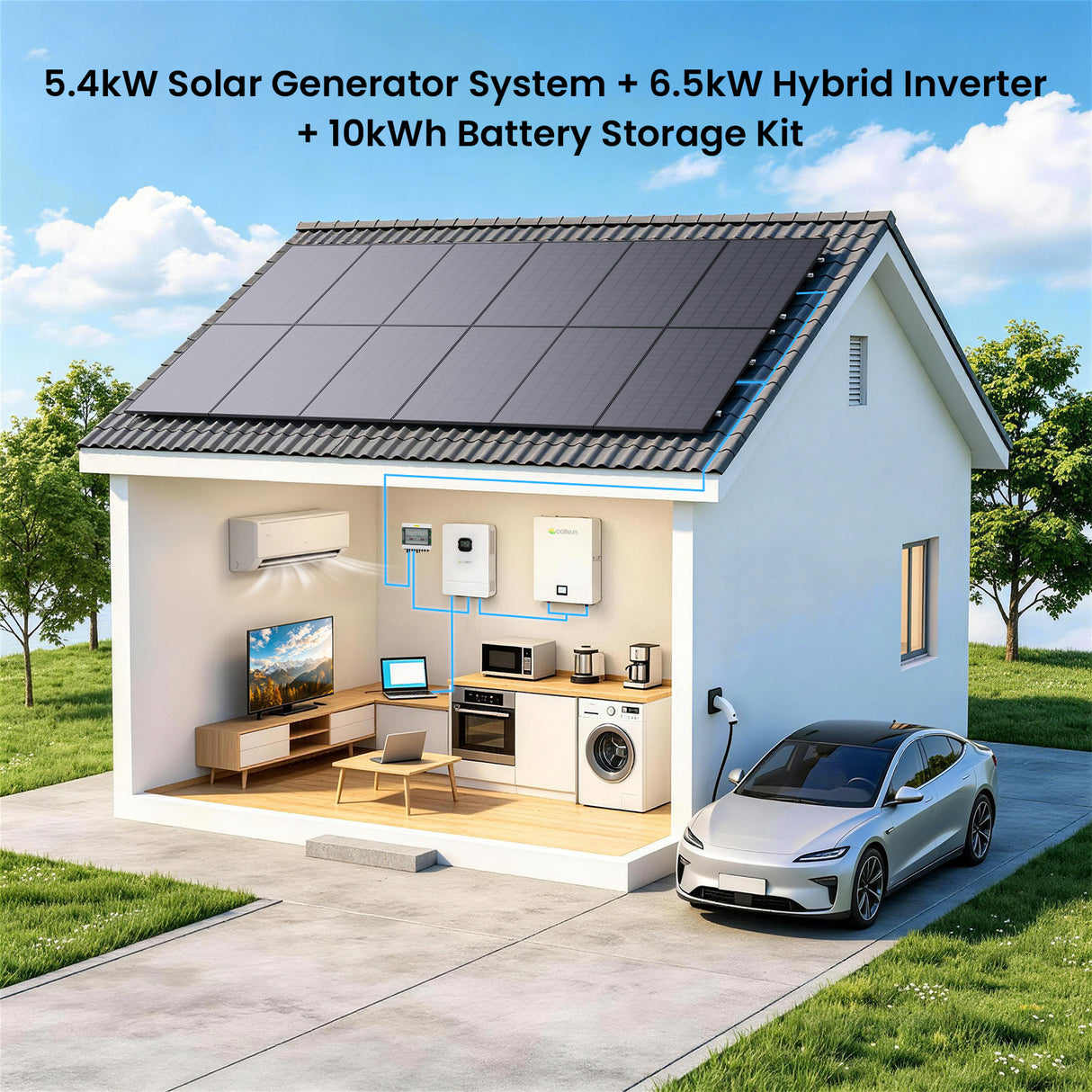

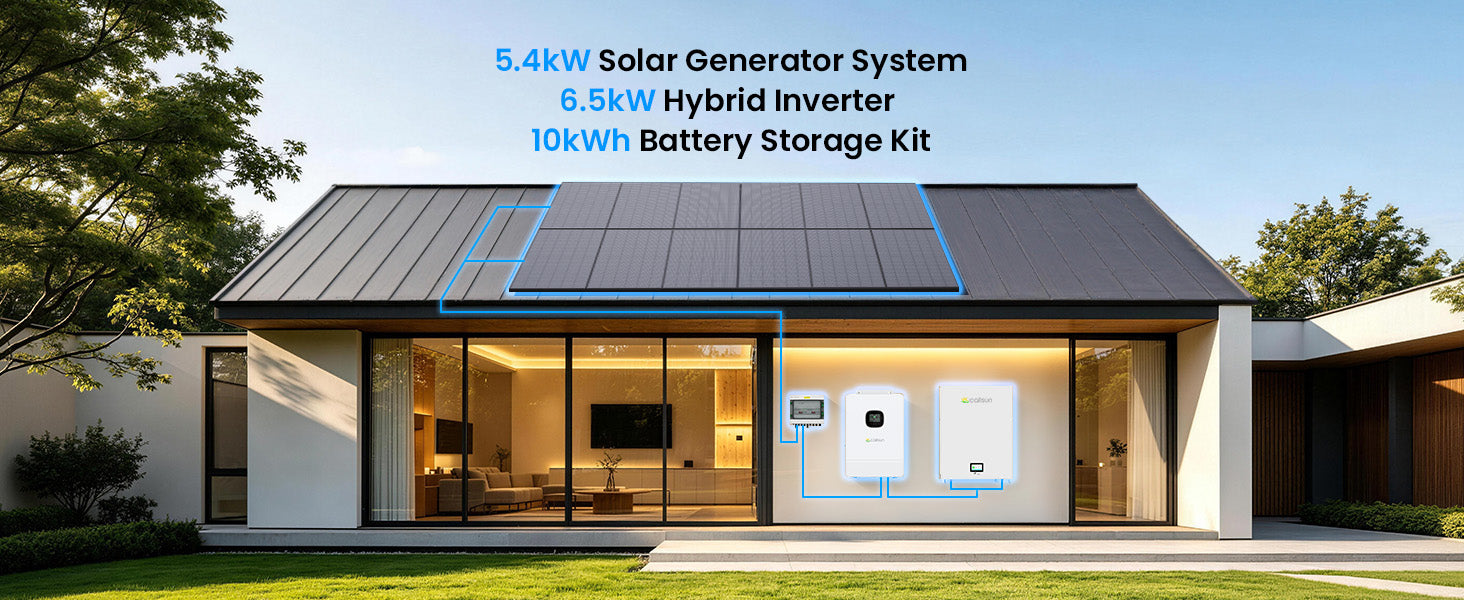

Reliable Home Solar Power
Durable rooftop solar panels deliver clean, efficient energy with reliable performance and seamless integration into your home energy system.

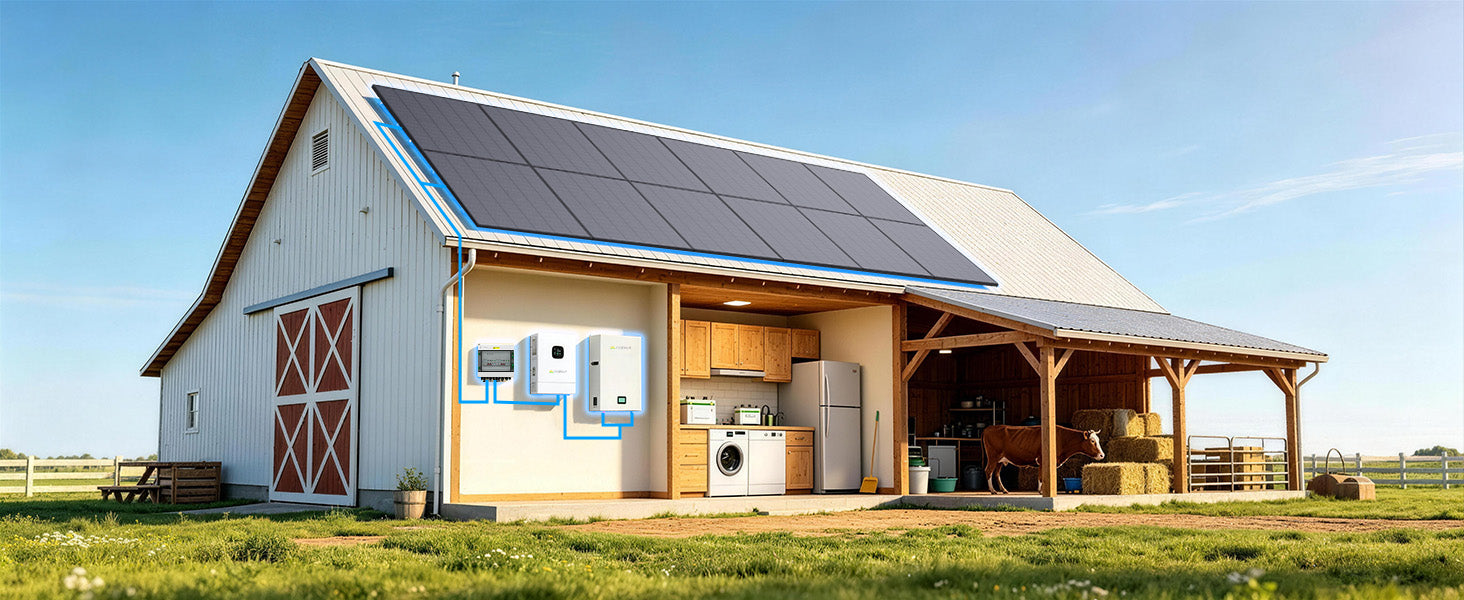

Reliable Farm Solar Power
An integrated solar system with durable panels, a hybrid inverter, and battery storage delivers reliable, independent energy for daily agricultural operations.

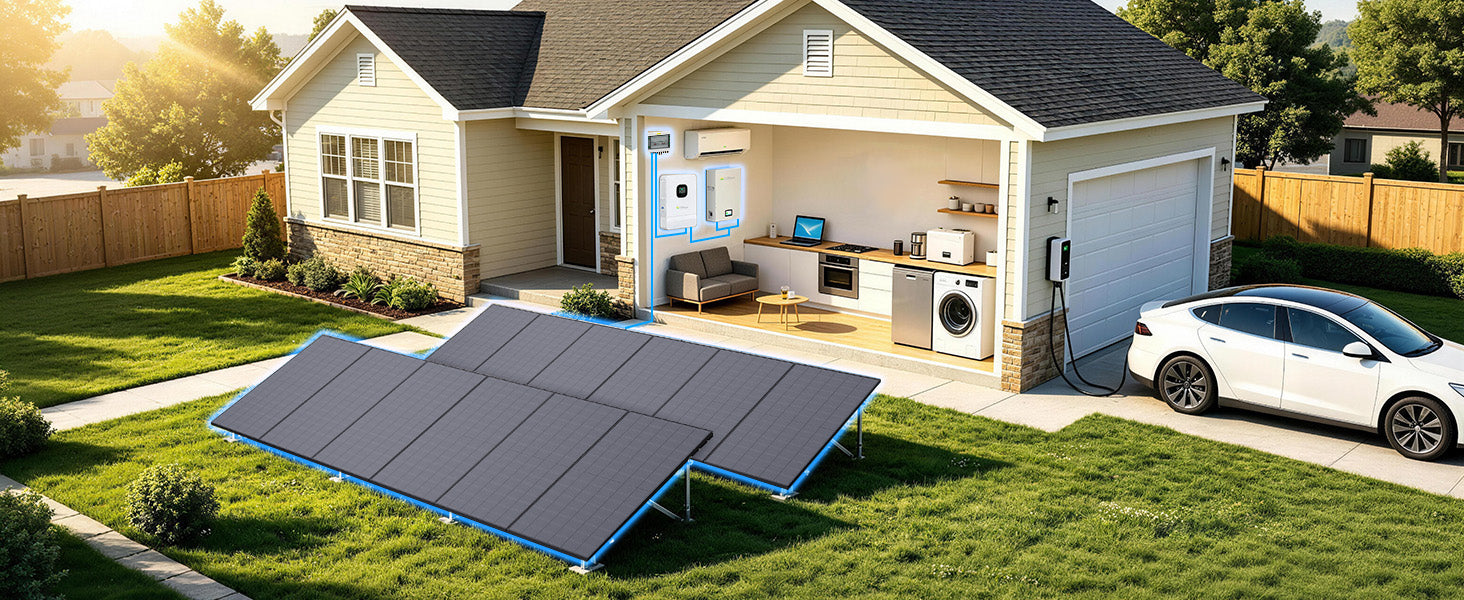

Garden Solar Power
A high-efficiency ground-mounted solar system delivers clean, reliable power for household appliances, EV charging, and off-grid garden energy needs.

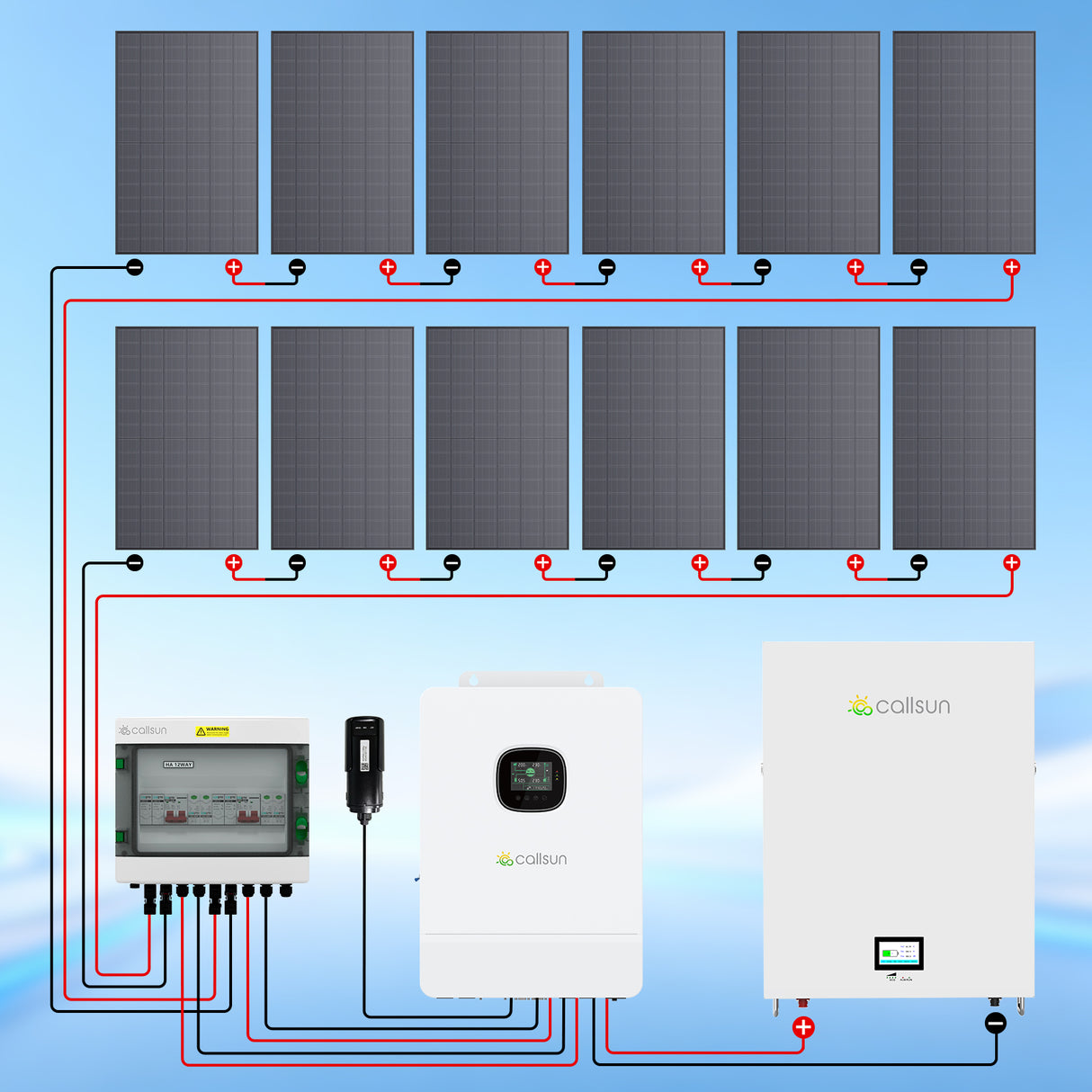

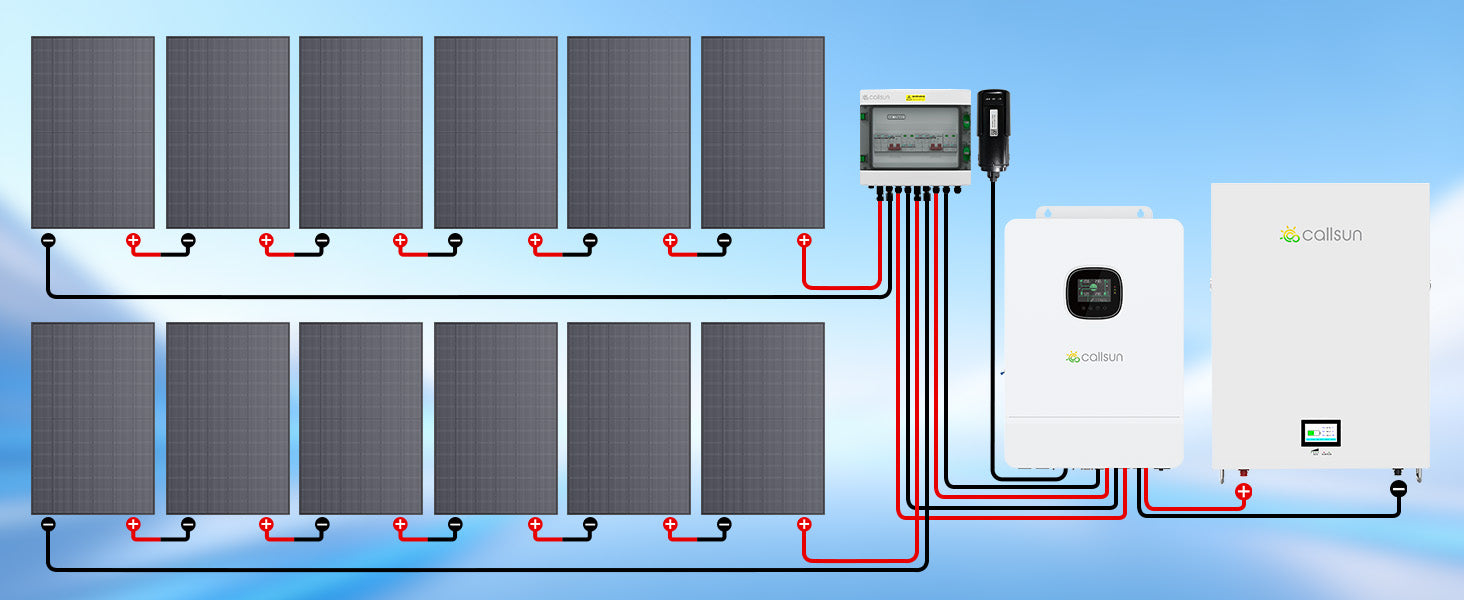

Easy 12-Panel Connection
Clear wiring guidance connects 12 solar panels through a combiner box, hybrid inverter, and energy storage battery for reliable system performance.
Easy 8-Panel Connection
Clear wiring guidance connects 8 solar panels through a combiner box, hybrid inverter, and energy storage battery for efficient system performance.

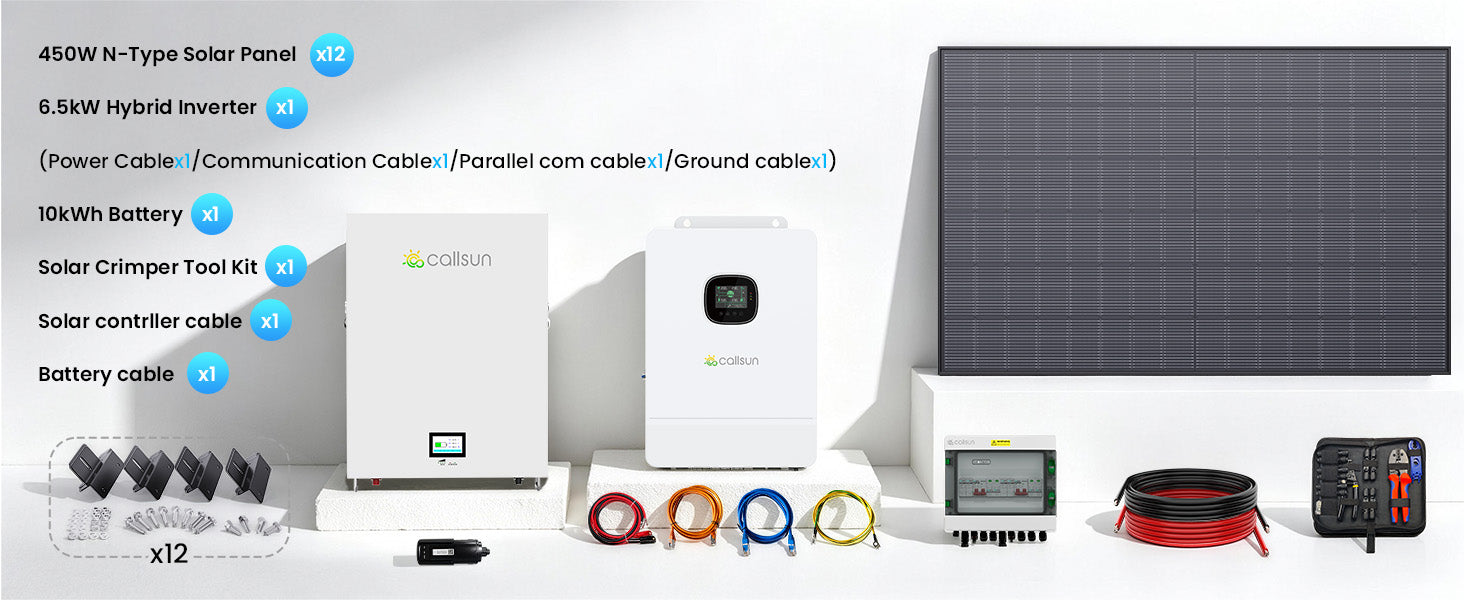

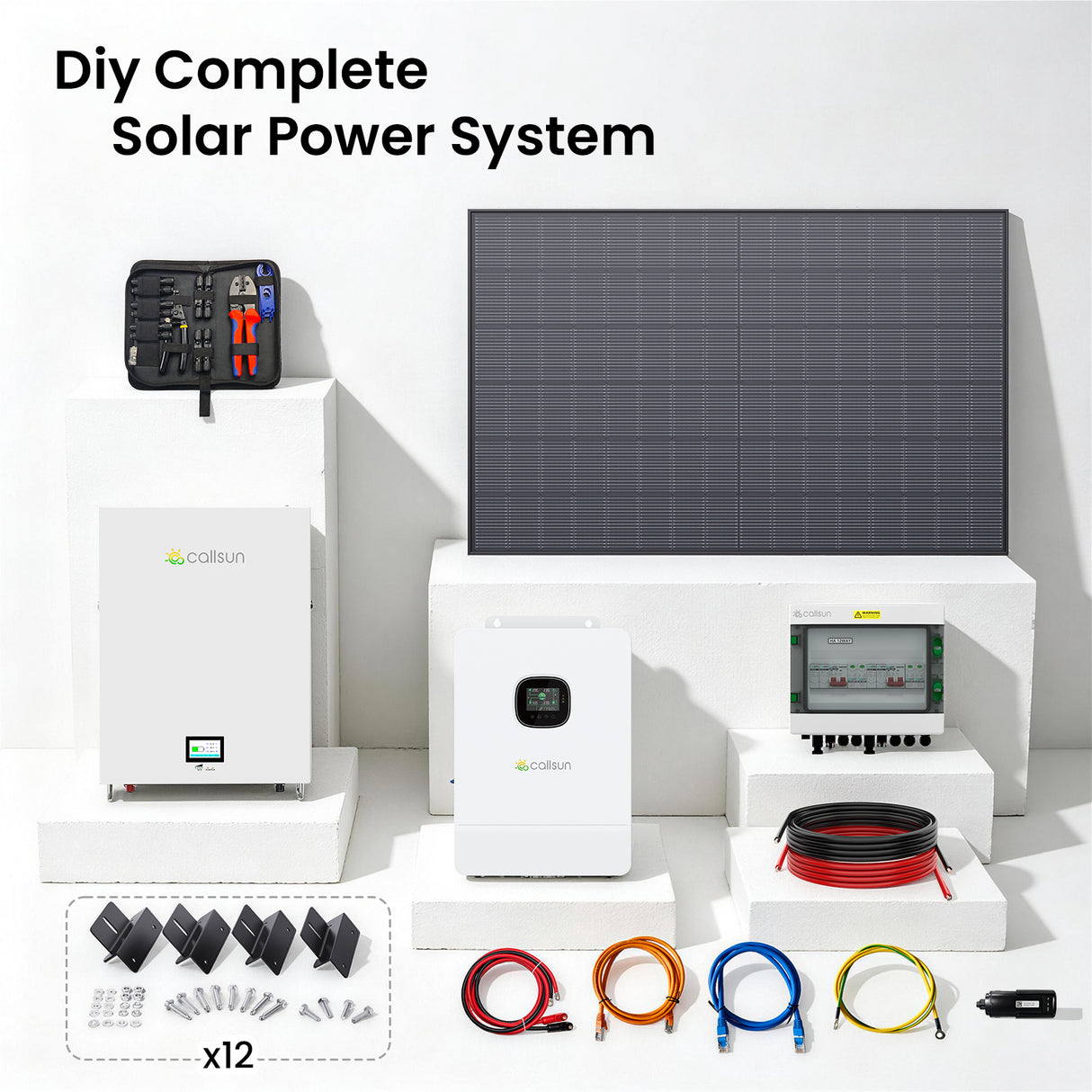

Includes
FAQ
What appliances can this 5.4kW solar power system run?
This system is designed to power most essential household appliances, including refrigerators, TVs, lighting, fans, Wi-Fi routers, washing machines, microwaves, and selected air conditioners. Actual runtime and supported loads depend on your daily energy consumption, battery capacity, and available sunlight. A 5.4kW PV array paired with a 6.5kW hybrid inverter is commonly suitable for residential backup and off-grid applications.
Can this system work during a power outage?
Yes. The 6.5kW hybrid inverter automatically switches to battery backup during grid outages, providing uninterrupted power for connected loads. When sunlight is available, the solar panels can continue charging the battery while supplying your home, helping extend backup time.
Is the 10kWh LiFePO4 battery expandable?
Yes. The system is designed with future expansion in mind. If your energy demand increases, additional compatible LiFePO4 battery modules can typically be added to increase storage capacity. Please refer to the product specifications or contact our technical team to confirm the maximum supported configuration.
Is this solar system suitable for off-grid and residential use?
Absolutely. This complete solar power system is ideal for homes, cabins, workshops, farms, RV properties, and other off-grid applications. It can also be used as a home backup power solution to reduce grid dependence and improve energy security. Hybrid systems of this type are widely used for both off-grid living and residential backup.
Does the kit include everything needed for installation?
The kit includes high-efficiency solar panels, a 6.5kW hybrid inverter, a 10kWh LiFePO4 battery, and the essential components listed on the product page. Before installation, we recommend verifying your roof space, local electrical requirements, and any additional mounting hardware or wiring needed for your specific project. Professional installation is recommended for optimal performance and safety.
