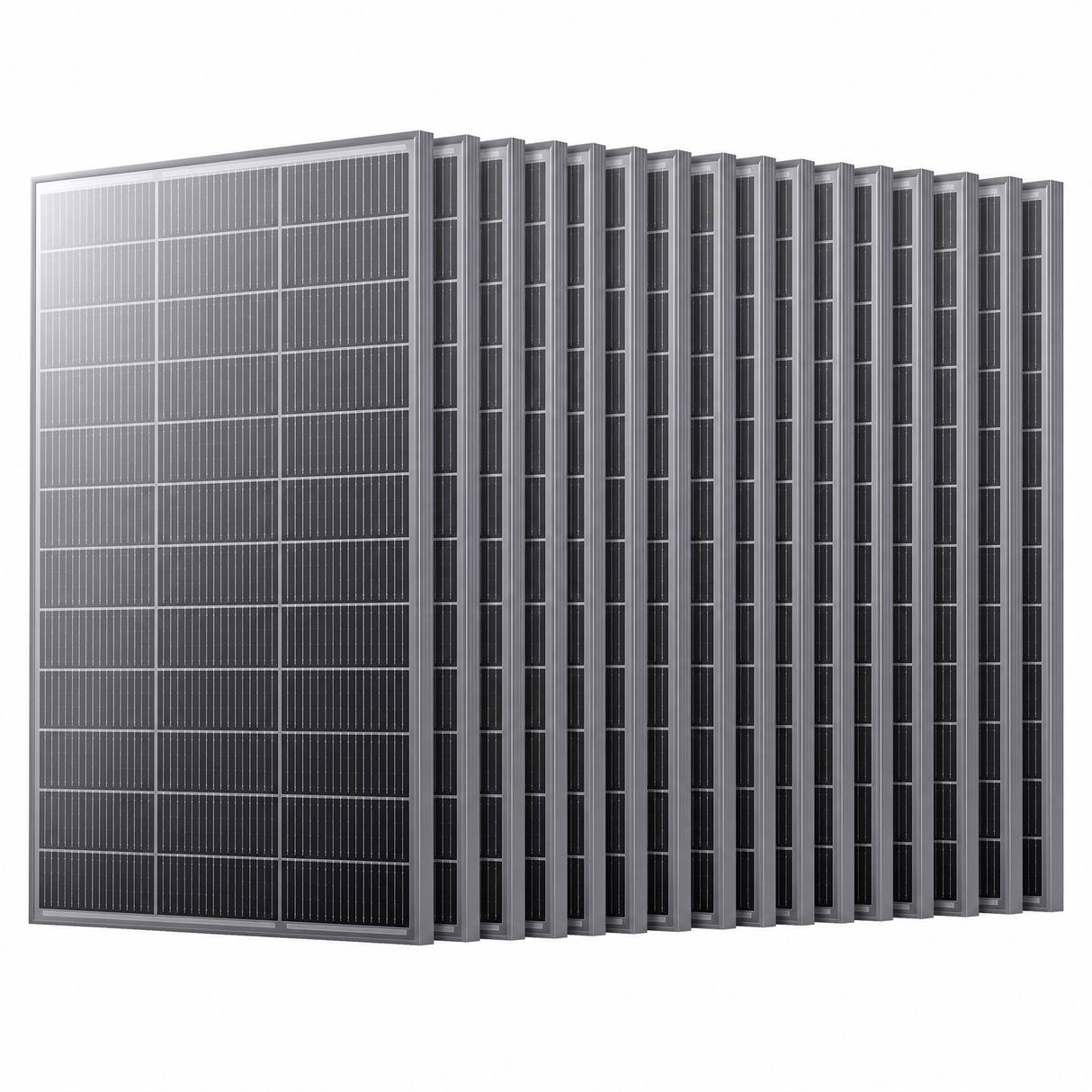

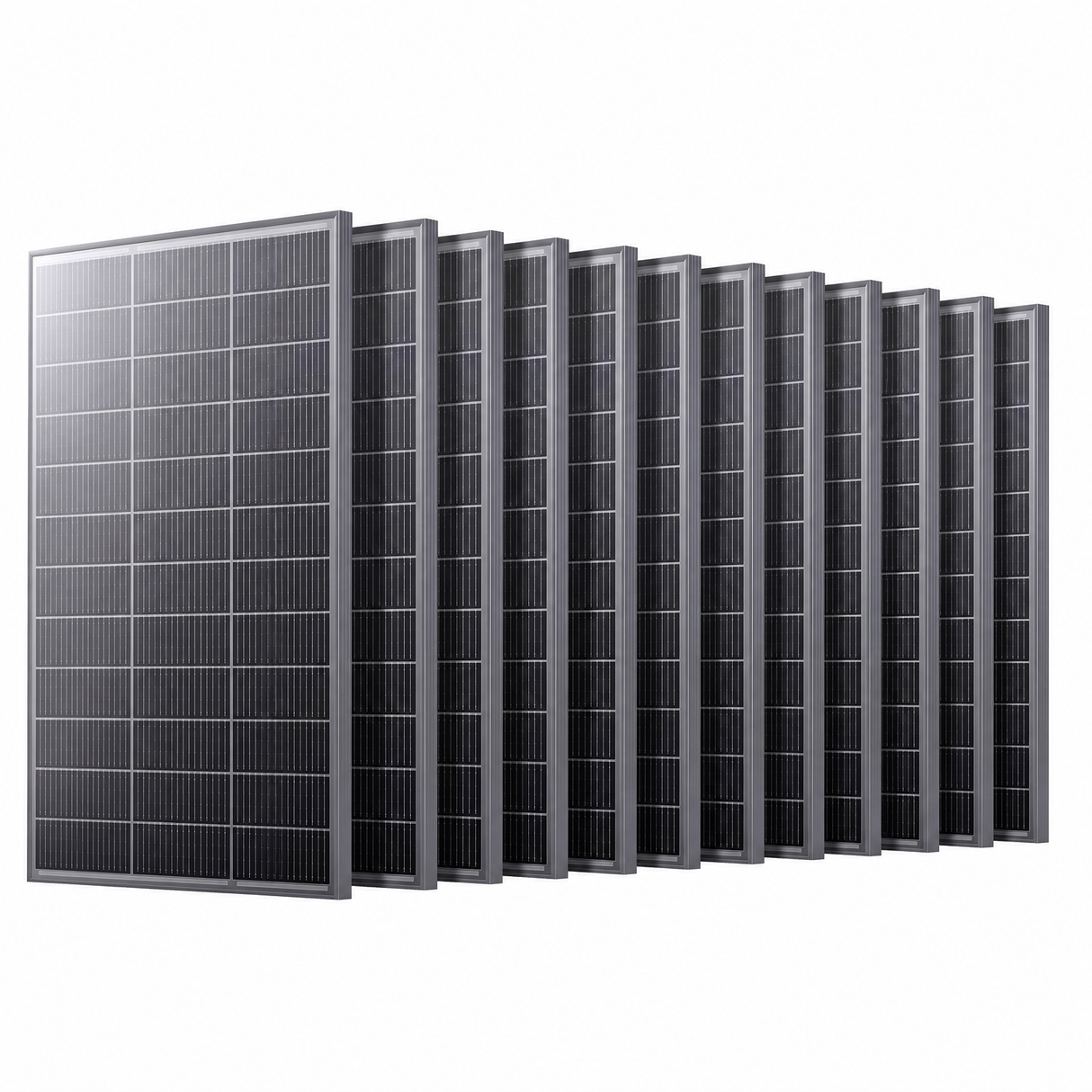

100W N-Type Solar Panel
Key Features
• 25% conversion efficiency N-Type cells with 16BB tech for superior performance in heat and low light
• Compact 15% smaller footprint than standard panels to maximize power when roof space is limited
• IP68 waterproof rating, built to withstand rain, snow, dust, and heavy impact
• Rugged durability with 2400Pa wind load and 5400Pa snow load resistance
• Dimensions: 22.8 * 31.1 * 1.2 inch; designed with pre-drilled holes for easy installation
100W N-Type Solar Panel - 1 Piece is backordered and will ship as soon as it is back in stock.
100 Watt N-Type 16BB Solar Panel
The Callsun 100W N-Type Solar Panel delivers up to 25% efficiency with advanced N-type cells and 16BB design. Compact, durable, IP68 waterproof—ideal for RV, off-grid, and mobile solar systems.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 15% | Larger size |
Engineered for ultimate reliability in any climate.
Built to last, this 100W solar panel features IP68 waterproofing, a corrosion-resistant aluminum frame, impact-resistant tempered glass, and high-load capacity to deliver dependable energy through severe weather, extreme temperatures, and heavy elements.
Understanding Standard Test Conditions for optimal performance.
To achieve the best power output, solar panels are evaluated under Standard Test Conditions (STC)—featuring an irradiance of 1000 W/m², a cell temperature of 25°C, and a spectrum distribution of AM1.5—though real-world output will typically be lower than these lab-rated values.
Maximize your solar energy capture with the correct tilt.
For maximum efficiency and full sunlight exposure, it is generally recommended to install solar panels at an angle of 30 degrees to 45 degrees, as flat placements receiving less direct sunlight will experience a significant drop in power generation.
Why a dedicated solar panel tester yields more reliable results than a power station.
Testing with a portable power station can lead to energy loss during charging and may be limited by maximum input power constraints, making it recommended to use a specialized solar panel tester for more accurate and reliable performance evaluations.
Outperforming the competition with superior efficiency and a compact build.
Featuring an industry-leading 25% conversion efficiency, advanced 16BB solar cells, and an extended 30-year lifespan packed into a 15% smaller design, Callsun solar panels outshine standard market alternatives that offer lower output, fewer busbars, shorter longevity, and bulkier sizes.
Powered by advanced N-Type solar cell technology for superior energy capture.
Utilizing cutting-edge N-Type technology, this high-performance solar panel achieves an industry-leading 25% conversion rate, turning more sunlight into usable power for your RV and off-grid adventures. Experience faster charging and greater energy independence with this premium, efficient solar solution.
Advanced cell structure for unmatched power generation performance.
Upgrade to Callsun's premium monocrystalline solar cells, featuring a cutting-edge 16 Busbars (16BB) design. Compared to ordinary 9BB cells, our advanced structure significantly reduces internal resistance, enhances light absorption, and improves electron collection efficiency. This results in superior power output and higher reliability, ensuring you get the most energy possible from every ray of sunlight.
Precision-engineered layer by layer for ultimate durability and performance.
Crafted with a robust multi-layer structure—featuring low-iron tempered glass for maximum light transmission, high-performance POE films and N-Type solar cells for superior energy conversion, and a durable TPT backsheet paired with a premium aluminum frame—this solar panel is built to withstand the elements and deliver long-lasting, reliable power.
Superior heat resistance delivering 2% more power than P-Type panels.
Engineered with an optimized temperature coefficient of -0.30%/°C, our N-Type solar panel minimizes performance loss in extreme heat, delivering approximately 2% higher power retention compared to traditional P-Type panels and ensuring reliable energy output in scorching desert environments.
Reliable rooftop solar power for your motorhome journeys.
Equip your RV with high-performance solar panels mounted securely on the roof, providing a continuous and clean energy supply to keep your appliances running smoothly while you explore scenic off-grid destinations.
Harness clean, renewable energy right from your roof.
Maximize your home's energy independence by installing high-efficiency solar panels on your rooftop, turning sunlight into a reliable and sustainable power source for daily household needs.
Dependable renewable energy for life on the water.
Power your marine voyages with solar panels seamlessly integrated onto your boat's deck, providing a steady, weather-resistant energy supply for all your electronics and onboard needs while cruising the open seas.
Reliable portable power for your wilderness expeditions.
Set up camp anywhere and keep your essential gear charged with a durable solar panel placed right beside your tent, delivering clean and independent energy for all your outdoor adventures.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | YES | 2×100W(Parallel) |
| Elite 100 V2 / 200 V2 | YES | 4×100W(Parallel) |
| Elite 300 | YES | 4×100W(Parallel) |
| Elite 400 | YES | 4×100W(Parallel) |
| AC2A | YES | 1×100W |
| AC50B / EB3A | YES | 1×100W |
| AC70 | YES | 2×100W(Series or Parallel) |
| AC180 | YES | 2×100W(Series or Parallel) |
| AC200L | YES | 6×100W(Series) |
| AC300 | YES | 6×100W(Series) |
| AC500 | YES | 6×100W(Series) |
| Apex 300 | YES | 4×100W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 6×100W(Series) |
| Delta 2 / 2 Max | YES | 3×100W(Parallel) |
| Delta 3 / 3 Plus | YES | 3×100W(Parallel) |
| Delta 3 Max | YES | 2×100W(Series or Parallel) |
| Delta 3 Max Plus | YES | 4×100W(Parallel) |
| Delta pro 3 | YES | 6×100W(Series)-XT60 |
| River 2 | YES | 1×100W |
| River 2 Pro | YES | 2×100W(Series or Parallel) |
| River 2 Max | YES | 2×100W(Series or Parallel) |
| River 3 | YES | 1×100W |
| River 3 Plus | YES | 2×100W(Series or Parallel) |
| Delta Pro Ultra | YES | 6×100W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | YES | 1×100W |
| SOLIX C800 | YES | 2×100W(Series or Parallel) |
| SOLIX C1000 | YES | 2×100W(Series or Parallel) |
| SOLIX C1000 Gen2 | YES | 2×100W(Series or Parallel) |
| SOLIX C2000 Gen2 | YES | 3×100W(Parallel) |
| SOLIX F2000 | YES | 4×100W(Parallel) |
| SOLIX F2600 | YES | 4×100W(Parallel) |
| SOLIX 521 | YES | 1×100W |
| SOLIX 535 | Limited | 2×100W(Input power limited to 120W) |
| SOLIX F3000 | YES | 7×100W(Series) |
| SOLIX F3800 | YES | 6×100W(Parallel) |
| SOLIX F3800 plus | YES | 7×100W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | YES | 1×100W |
| E500LFP | YES | 1×100W |
| E600LFP | YES | 2×100W(Series or Parallel) |
| E1000LFP | YES | 4×100W(Parallel) |
| E1500LFP | YES | 4×100W(Parallel) |
| E2000LFP | YES | 4×100W(Series) |
| E2400LFP | YES | 4×100W(Series) |
| E3600LFP | YES | 6×100W(Series) |
| E3800LFP | YES | 6×100W(Series) |
| F1000LFP | YES | 3×100W(Parallel) |
| F3000LFP | YES | 5×100W(Series or Parallel) |
| F5000LFP | YES | 7×100W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 3×100W(Series or Parallel) |
| Mega 2 | YES | 6×100W(Series) |
| Mega 2 Pro | YES | 6×100W(Parallel) |
| Exodus 2400 | YES | 3×100W(Series) |
| Exodus 1500 | YES | 5×100W(Parallel) |
| Exodus 600 Plus | YES | 2×100W(Parallel) |
| Exodus 600 | YES | 2×100W(Parallel) |
| Exodus 1200 | YES | 2×100W(Parallel) |
| Guardian 6000 | YES | 6×100W(Series) |
| B2 Extra Battery | YES | 7×100W(Series) |
Specifications
Key Specs at a Glance 100W output · N-Type · 25% efficiency · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 100W |
|---|---|
| Maximum Power Voltage (Vmp) | 22.68V |
| Maximum Power Current (Imp) | 4.41A |
| Open-circuit Voltage (Voc) | 26.02V |
| Short-circuit Current (Isc) | 4.63A |
| Cell Type | Monocrystalline Silicon, N-Type |
| Efficiency | 25% |
| Power Tolerance | 0 ~ 5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 15A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Mechanical Parameters
| Dimension | 578 × 790 × 30 ±5 mm(22.8 × 31.1 × 1.2 ±0.1 in) |
|---|---|
| Weight | 5.2 ± 0.2kg (11.5 ± 0.5 lb) |
| Cell Arrangement | 36pcs (3 × 12) |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Includes
Downloads & View
User Manual
FAQ
1. Why is the actual output sometimes lower than 100W?
The 100W rating is measured under Standard Test Conditions (STC): ideal sunlight and temperature. In real use, sun angle, heat, shading, wiring loss, and device efficiency affect output. So power below 100W is normal and does not indicate a defect.
2. Is this panel compatible with my 12V system?
Yes. It is suitable for 12V systems when used with a compatible charge controller. Please confirm your controller’s input specifications before purchasing.
3. What does “12V” mean in the product title?
“12V” means the panel is designed for use in a 12V system with a charge controller. It does not refer to the panel’s actual output voltage.
4. Can this panel directly power devices or charge batteries?
No. This panel must be used with a compatible charge controller or solar generator to regulate power before charging batteries or powering devices.
5. Does it come with mounting hardware?
No. Mounting hardware is not included. The panel is compatible with standard solar mounting systems.
