500W N-Type Foldable Solar Panel
Key Features
- Get up to 500W of solar power for portable power stations, RVs, vans, camping gear, and off-grid setups. Generate more energy in less time and keep your essential devices powered wherever you go.
- Advanced ShadeGuard™ technology helps maintain stable power output when parts of the panel are affected by trees, roof racks, or uneven sunlight—so you can get more reliable energy throughout the day.
- Built with advanced N-Type 16BB monocrystalline cells, the panel delivers up to 25% conversion efficiency with improved low-light and high-temperature performance.
- The bifacial design captures direct sunlight from the front and reflected light from the rear, delivering up to 7%–30% additional power depending on installation conditions and surrounding surfaces.
500W N-Type Foldable Solar Panel is backordered and will ship as soon as it is back in stock.
500W N-Type Portable Solar Panel
Features N-Type 16BB cells, 25% efficiency, bifacial power generation, IP68 waterproof protection, foldable design, and adjustable kickstands.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |
Portable & Foldable Solar Panel
Foldable design with a 88 × 82.7 × 8.5 cm folded size and 10.2 kg weight for convenient carrying, transport, and outdoor use.

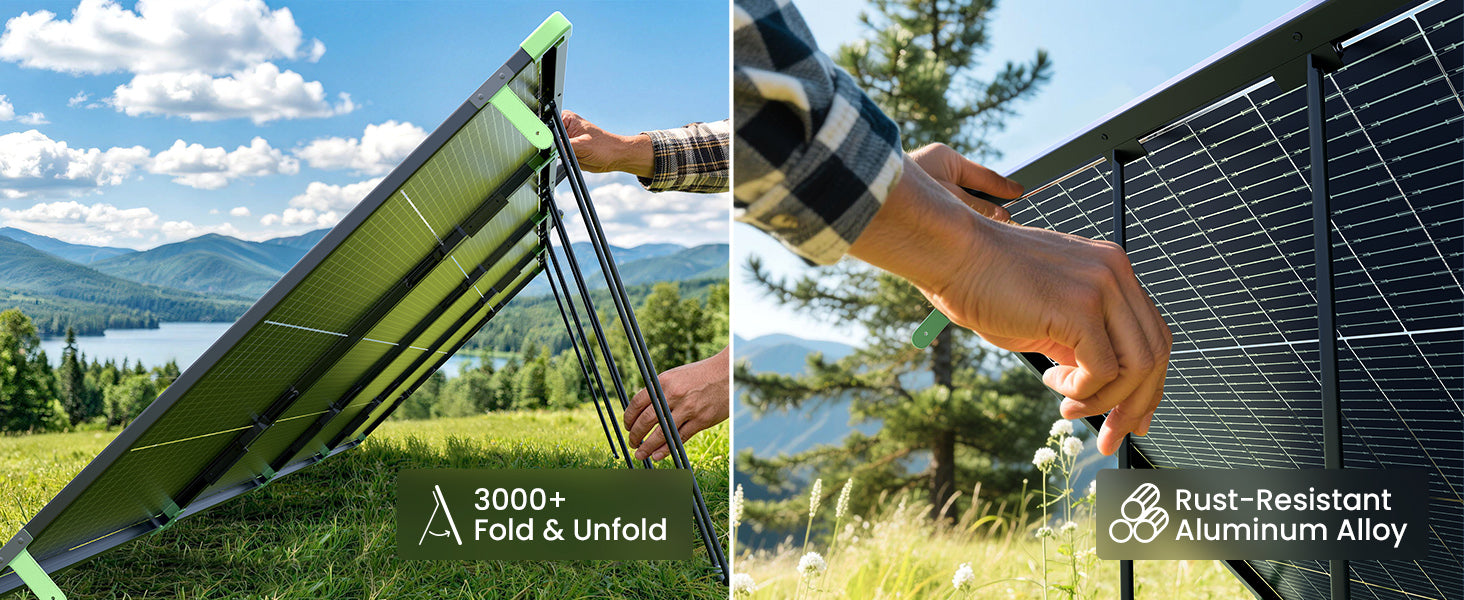

Durable Foldable Design
Rust-resistant aluminum alloy and a robust folding structure support 3,000+ fold-and-unfold cycles for reliable long-term outdoor use.
Bifacial Solar Technology
Bifacial design captures sunlight from both sides, delivering 7%–30% extra power for higher energy output in outdoor environments.

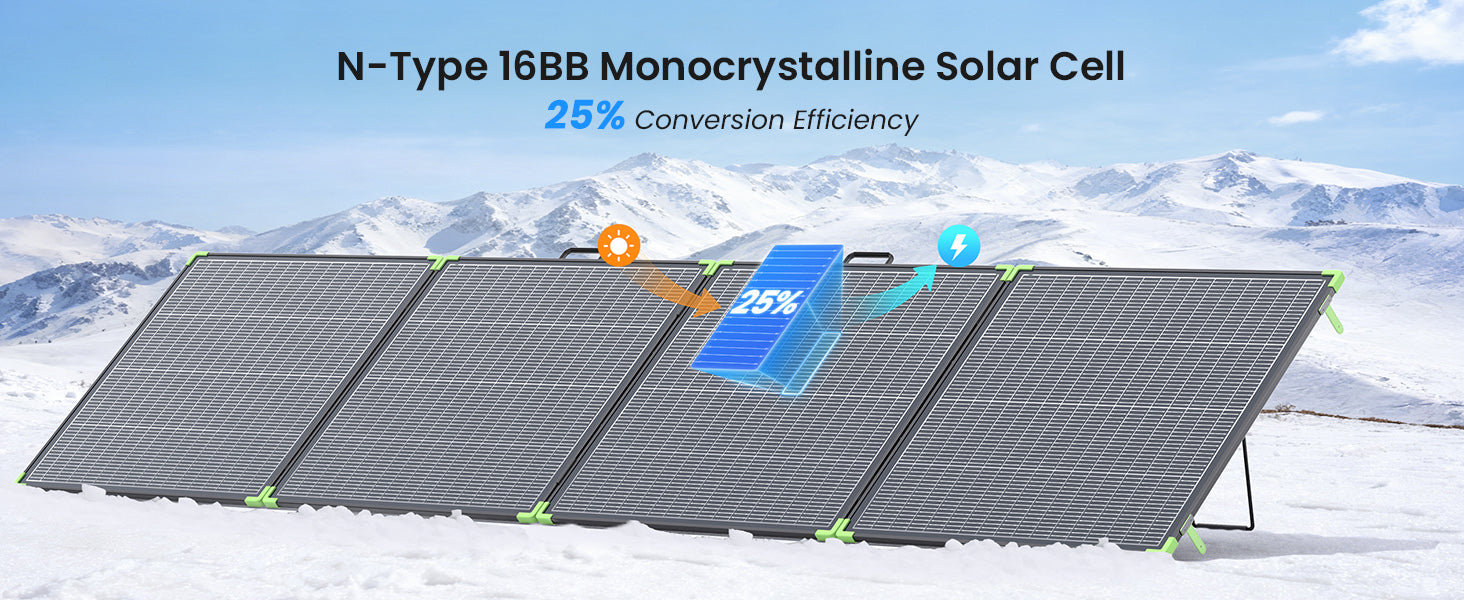

N-Type 16BB Solar Cell
N-Type 16BB monocrystalline cells deliver up to 25% conversion efficiency, maximizing solar energy generation with reliable performance for outdoor and off-grid applications.

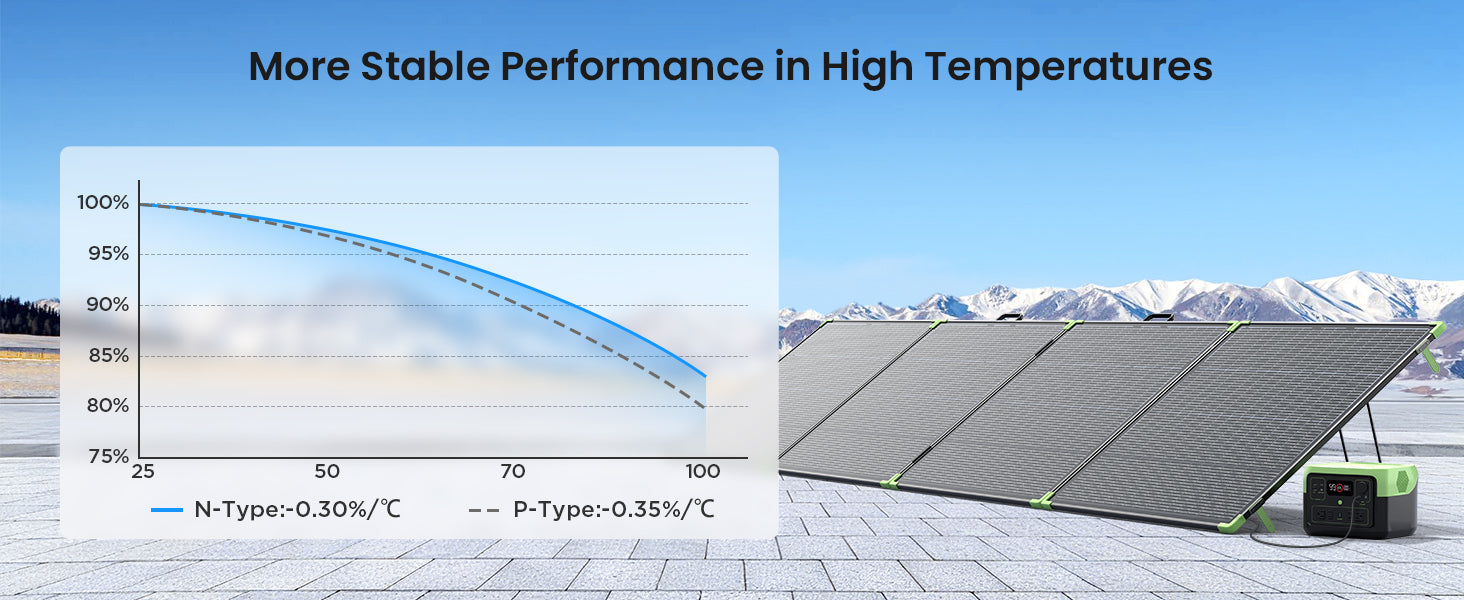

Stable High-Temperature Performance
N-Type cells feature a lower temperature coefficient of -0.30%/°C, maintaining higher power output and reliable performance in hot conditions.
IP68 Waterproof Protection
IP68 waterproof protection helps withstand rain and harsh outdoor conditions, ensuring reliable solar performance during camping and outdoor adventures.
All-Weather Performance
Designed for extreme temperatures from -20°C to 60°C, delivering reliable solar performance across cold, hot, and changing outdoor environments.
Unmatched Power Density
Callsun delivers a superior 49W/kg power-to-weight ratio, offering 500W at just 10.2kg compared to standard 450W, 14kg alternatives.

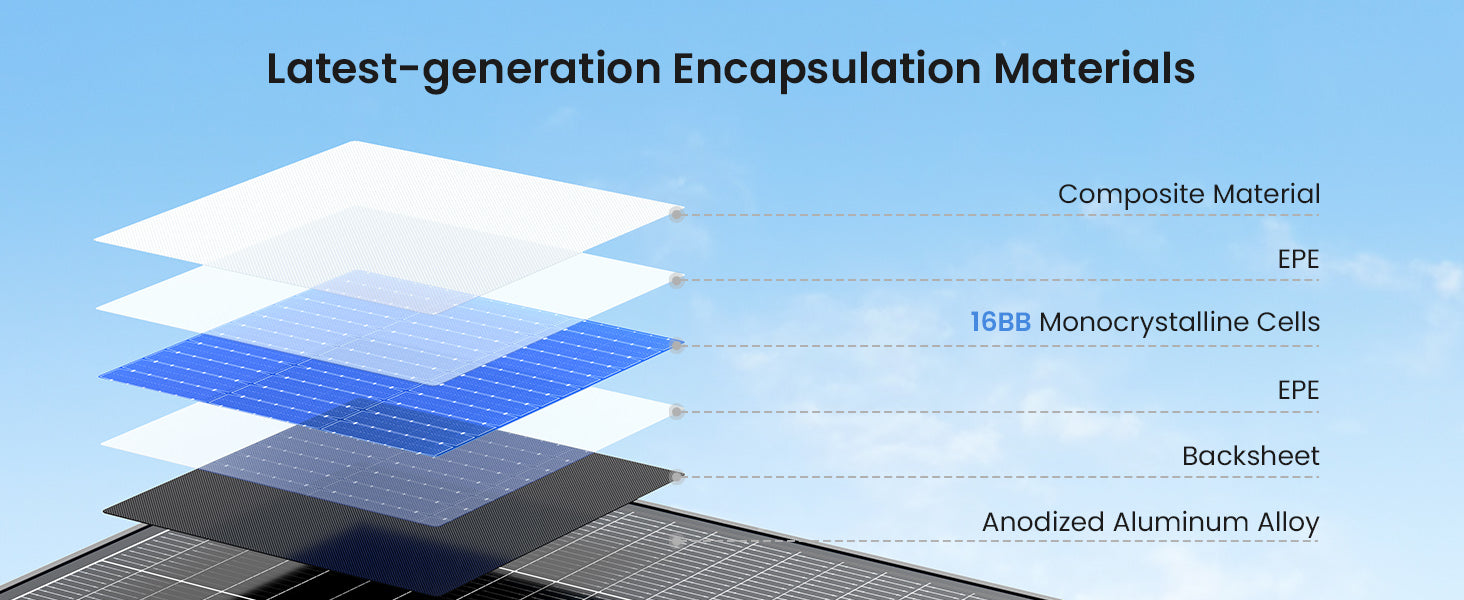

Next-Gen Solar Encapsulation Materials
Built with 16BB monocrystalline cells, composite materials, EPE layers, and anodized aluminum for maximum power output, durability, and long-lasting protection.

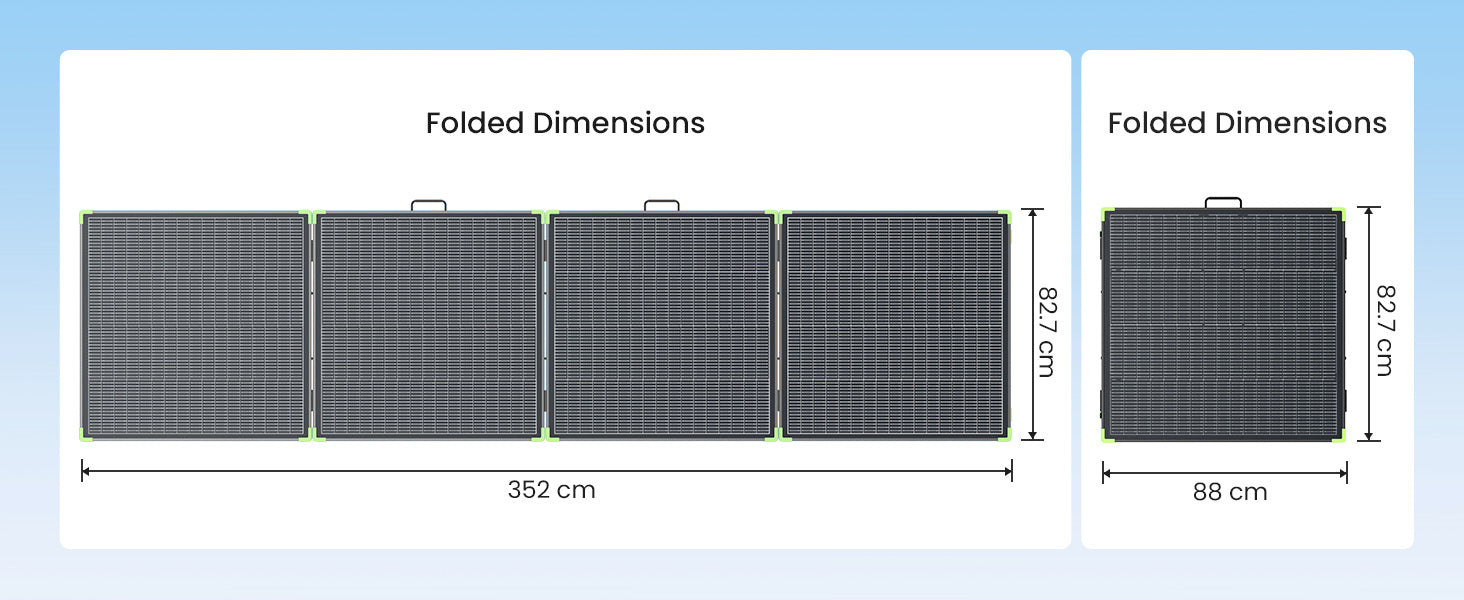

Compact Foldable Solar Panel
Expands to 352 x 82.7 cm for maximum solar intake and folds down to 88 x 82.7 cm for easy storage.
Relaxed Camping, Always Powered
Enjoy nature while solar power charges your appliances and devices.
BBQ, Music, Non-Stop Fun
Bring your solar panel for endless fun during BBQs and music sessions.
RV Adventures, Free Power
Utilize solar power to charge your RV anytime, anywhere for a greener travel.
Survival Gear, Reliable Power
Your reliable source for communication and device power in extreme outdoor environments.
Courtyard Life, Green Energy
Power outdoor toys or devices right in your courtyard and embrace a low-carbon lifestyle.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | NO | PV input current (11.8A) exceeds limit (10A) |
| Elite 100 V2 / 200 V2 | YES | 1×500W |
| Elite 300 | YES | 1×500W |
| Elite 400 | YES | 1×500W |
| AC2A | NO | PV input current (11.8A) exceeds limit (8.2A) |
| AC50B / EB3A | NO | PV input current (11.8A) exceeds limit (8.5A) |
| AC70 | NO | PV input current (11.8A) exceeds limit (10A) |
| AC180 | NO | PV input current (11.8A) exceeds limit (10A) |
| AC200L | YES | 2×500W(Series) |
| AC300 | YES | 2×500W(Series) |
| AC500 | YES | 3×500W(Series) |
| Apex 300 | YES | 1×500W |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 3×500W(Series) |
| Delta 2 / 2 Max | YES | 2×200W(Series) |
| Delta 3 / 3 Plus | YES | 1×500W |
| Delta 3 Max | YES | 1×500W |
| Delta 3 Max Plus | YES | 1×500W |
| Delta pro 3 | YES | 3×500W(Series)-XT60 |
| River 2 | NO | PV input current (11.8A) exceeds limit (8A) |
| River 2 Pro | Limited | 1×500W(Input power limited to 220W) |
| River 2 Max | Limited | 1×500W(Input power limited to 220W) |
| River 3 | NO | PV input current (11.8A) exceeds limit (8A) |
| River 3 Plus | Limited | 1×500W(Input power limited to 220W) |
| Delta Pro Ultra | YES | 3×500W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | NO | PV input current (11.8A) exceeds limit (8.2A) |
| SOLIX C800 | NO | PV input current (11.8A) exceeds limit (8.2A) |
| SOLIX C1000 | YES | 1×500W |
| SOLIX C1000 Gen2 | YES | 1×500W |
| SOLIX C2000 Gen2 | YES | 1×500W |
| SOLIX F2000 | YES | 1×500W |
| SOLIX F2600 | YES | 1×500W |
| SOLIX 521 | NO | PV input current (11.8A) exceeds limit (5.5A) |
| SOLIX 535 | NO | PV input current (11.8A) exceeds limit (10A) |
| SOLIX F3000 | YES | 3×500W(Series) |
| SOLIX F3800 | YES | 2×500W(Parallel) |
| SOLIX F3800 plus | YES | 3×500W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | NO | PV input current (11.8A) exceeds limit (7A) |
| E500LFP | NO | PV input current (11.8A) exceeds limit (7A) |
| E600LFP | NO | PV input current (11.8A) exceeds limit (11A) |
| E1000LFP | YES | 1×500W |
| E1500LFP | YES | 1×500W |
| E2000LFP | YES | 2×500W(Series) |
| E2400LFP | YES | 2×500W(Series) |
| E3600LFP | YES | 2×500W(Series) |
| E3800LFP | YES | 3×500W(Series) |
| F1000LFP | YES | 1×500W |
| F3000LFP | YES | 2×500W(Series or Parallel) |
| F5000LFP | YES | 3×500W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 1×500W |
| Mega 2 | YES | 3×500W(Series) |
| Mega 2 Pro | YES | 2×500W(Parallel) |
| Exodus 2400 | YES | 1×500W |
| Exodus 1500 | NO | PV input voltage (42.5V) exceeds limit (30V) |
| Exodus 600 Plus | NO | PV input voltage (42.5V) exceeds limit (35V) |
| Exodus 600 | NO | PV input voltage (42.5V) exceeds limit (35V) |
| Exodus 1200 | NO | PV input voltage (42.5V) exceeds limit (30V) |
| Guardian 6000 | YES | 3×500W(Series) |
| B2 Extra Battery | YES | 4×500W(Series) |
Specifications
Key Specs at a Glance: 500W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 500W |
|---|---|
| Maximum Power Voltage (Vmp) | 42.5V |
| Maximum Power Current (Imp) | 11.8A |
| Open-circuit Voltage (Voc) | 49.3V |
| Short-circuit Current (Isc) | 12.5A |
| Cell Type | Monocrystalline Silicon, TOPCon |
| Cell Efficiency | 25% |
| First Year Degradation Rate | <1% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 34.65*32.56*3.46in |
|---|---|
| Weight | 22.49 lb |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |

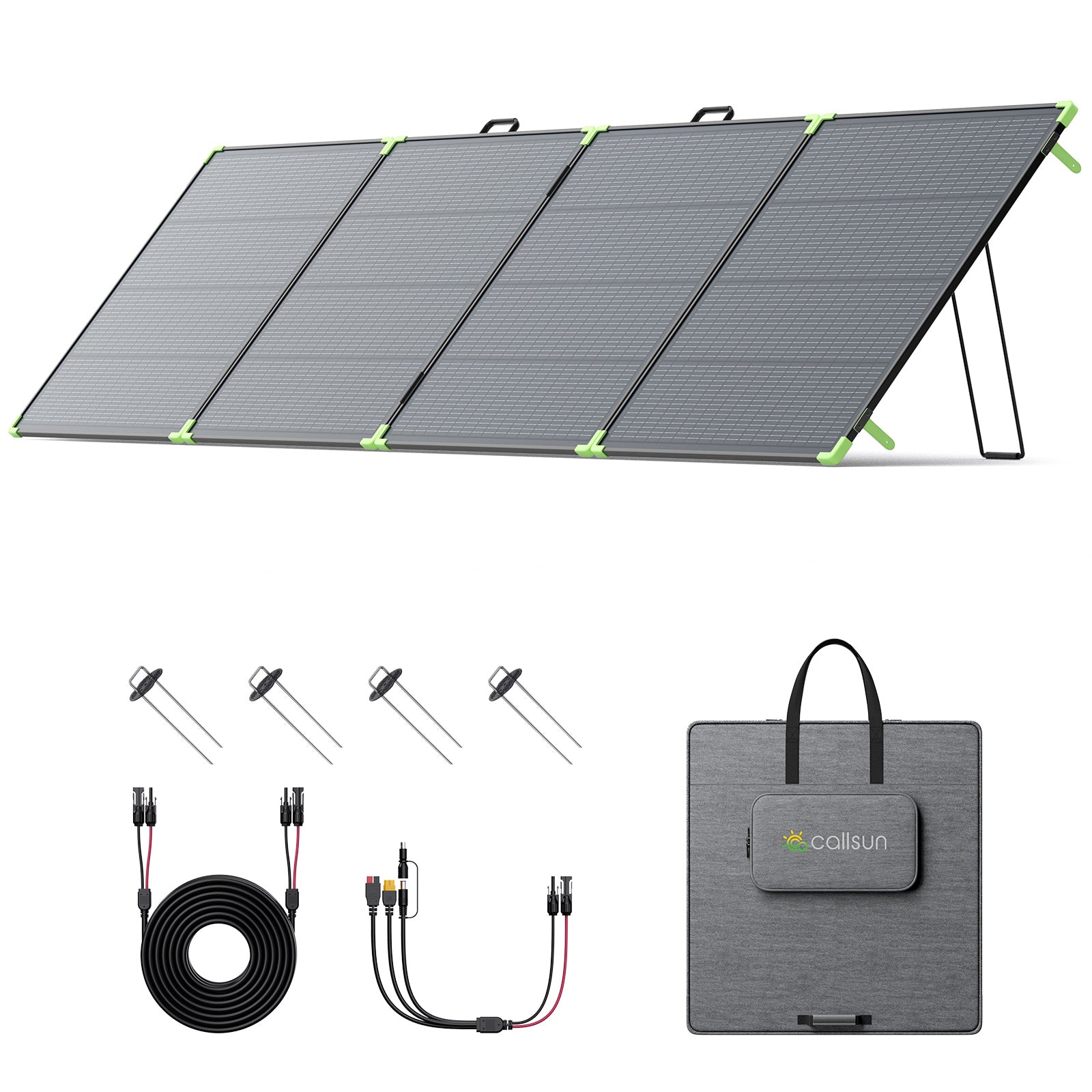

Includes
FAQ
1. What can the 500W N-Type Foldable Solar Panel be used for?
The 500W N-Type Foldable Solar Panel is ideal for RVs, camping, overlanding, cabins, boats, emergency backup, and other off-grid power applications. Its higher power output makes it a great option for charging compatible portable power stations and battery systems.
2. What are the benefits of the N-Type solar cells used in this panel?
N-Type solar cell technology is designed to provide high conversion efficiency and reliable power generation. It also helps the panel maintain strong performance in a variety of outdoor conditions, making it a dependable choice for portable and off-grid solar applications.
3. Is the 500W foldable solar panel easy to transport and set up?
Yes. Despite its high power output, the foldable design makes the panel more convenient to transport and store than a traditional fixed solar panel. Simply unfold the panel, place it in direct sunlight, and connect it to a compatible power station or solar charging system.
4. How long does it take to charge a power station with a 500W solar panel?
Charging time depends on the battery capacity of your power station, available sunlight, weather conditions, panel angle, and the maximum solar input supported by your charging system. Under ideal sunlight conditions, the 500W panel can provide substantially faster charging than lower-wattage solar panels when connected to a compatible system.
5. Can the 500W N-Type Foldable Solar Panel generate power on cloudy days?
Yes. The panel can still produce electricity in cloudy or low-light conditions, although the actual power output will be lower than under direct sunlight. For the best performance, place the panel in an unshaded area and adjust its position to receive as much sunlight as possible.
