50W N-Type Solar Panel – Silver Frame
Key Features
• 25% Efficiency N-Type Cells Advanced 16BB technology delivers 25% conversion efficiency
• Superior 16BB Performance 16 busbar design improves current collection capability compared to standard 9BB cells
• Extreme Weather Resilience Built to withstand 2400Pa wind loads and 5400Pa snow loads
• IP68 Waterproof Durability Features IP68 protection with impact-resistant tempered glass and a corrosion-resistant frame
• Long-Term Performance Backed by a 20-year commitment to maintain 84.5% power output
50W N-Type Solar Panel – Silver Frame - 1 Piece is backordered and will ship as soon as it is back in stock.

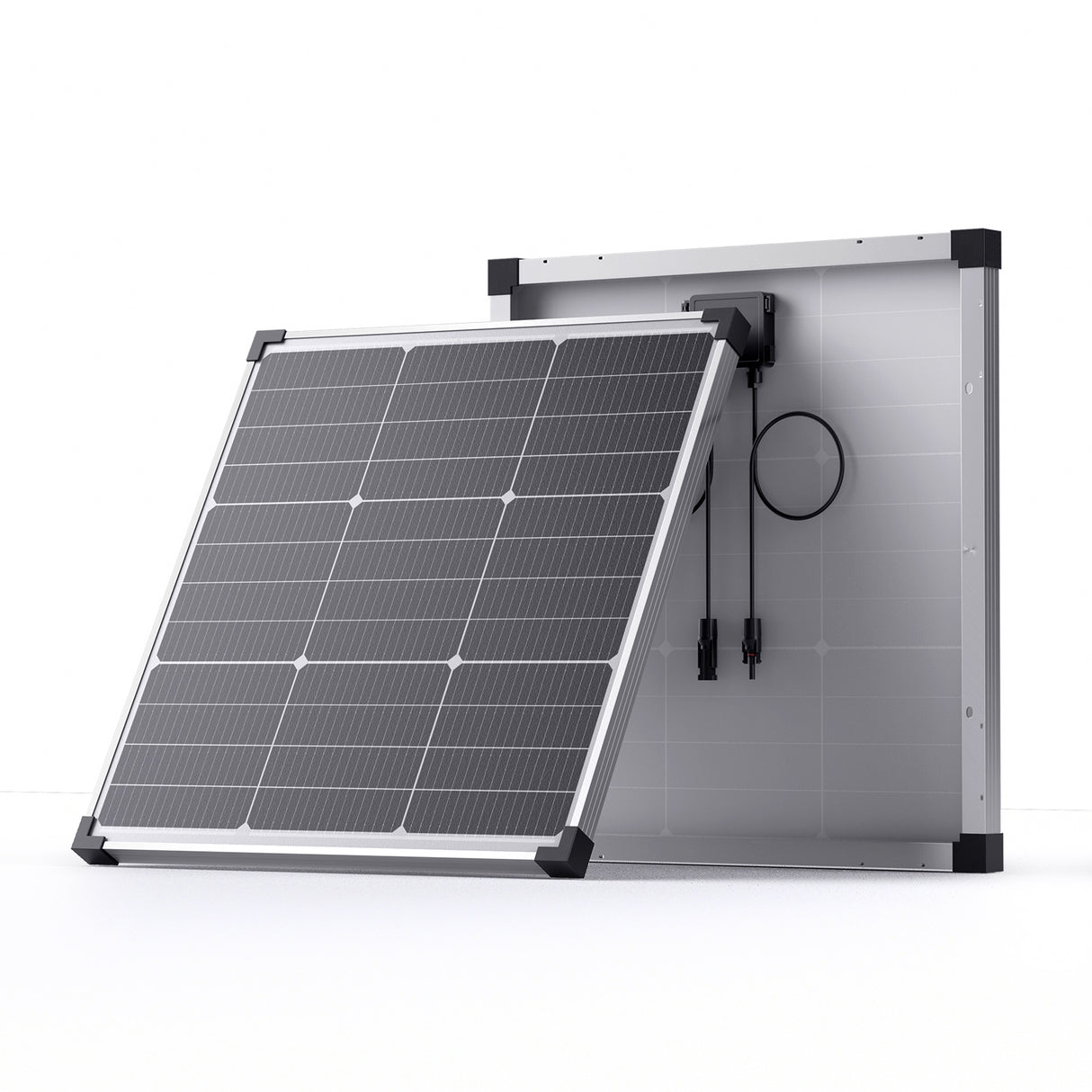

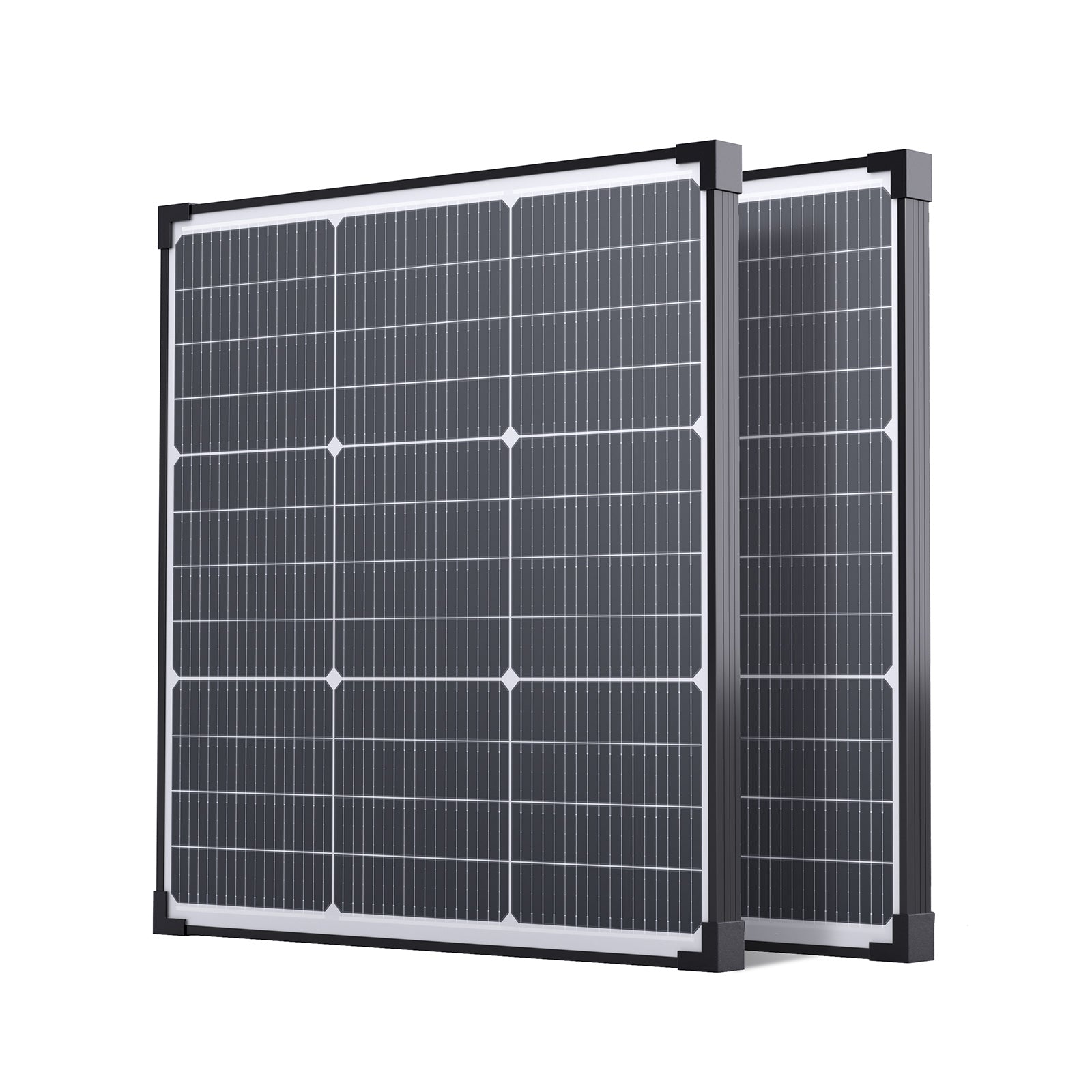

50 Watt N-Type 16BB Solar Panel
Up to 25% efficiency with N-Type 16BB technology, compact design, and IP68 protection for RVs, boats, cabins, and off-grid use.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |

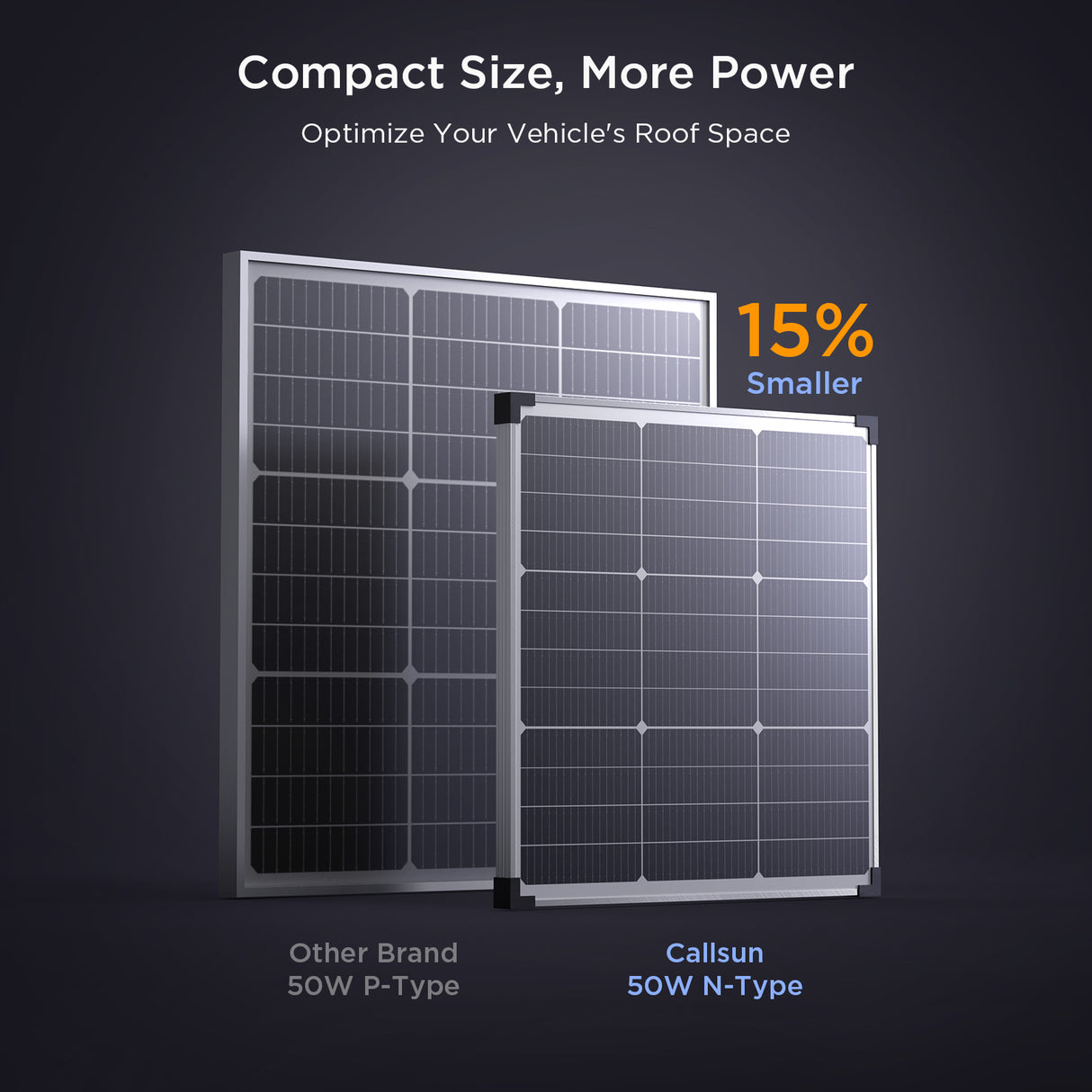

| Size | Smaller 15% | Larger size |

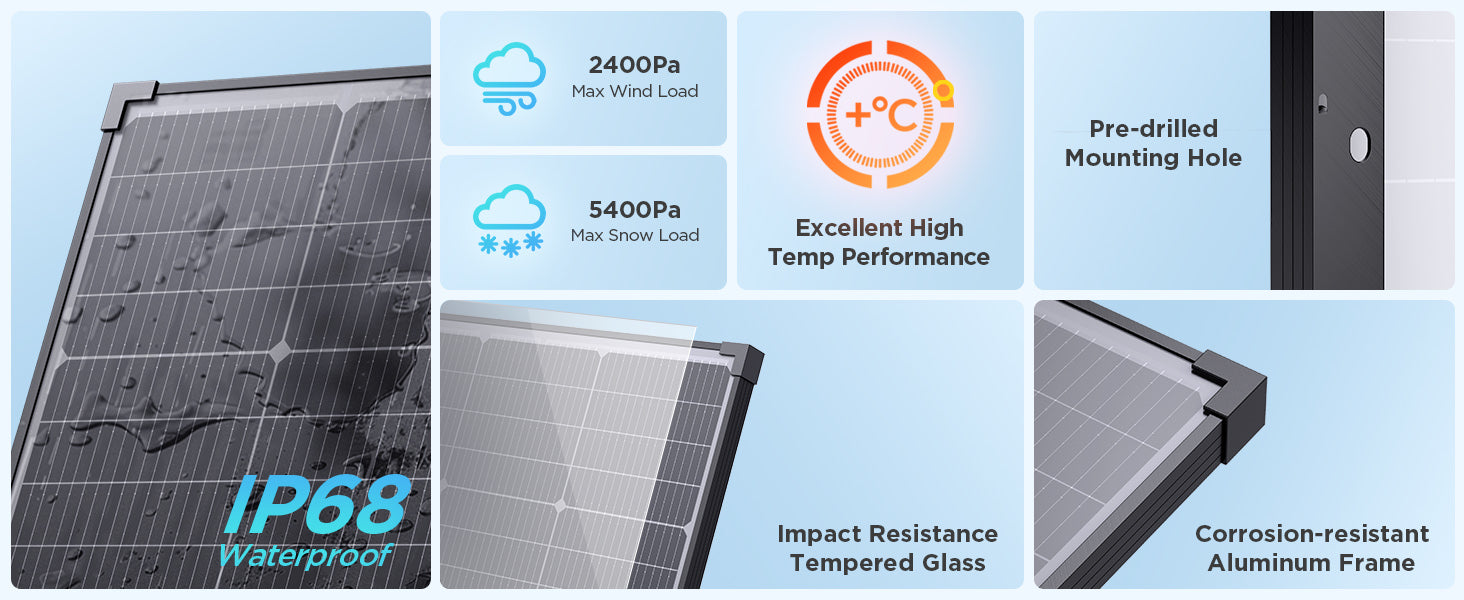

IP68 All-Weather Durability

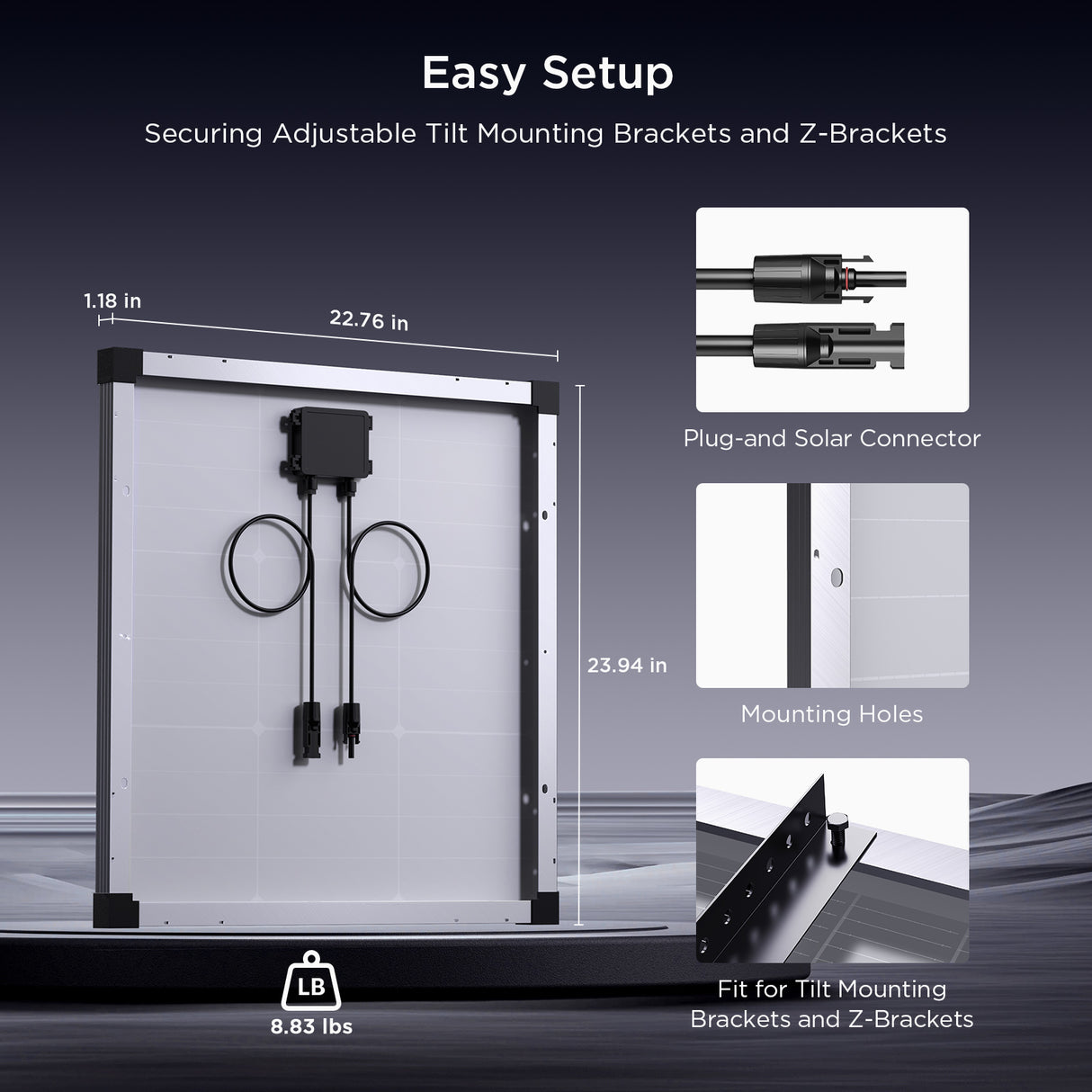

Tempered glass and corrosion-resistant aluminum withstand harsh weather, while pre-drilled holes simplify secure outdoor installation.

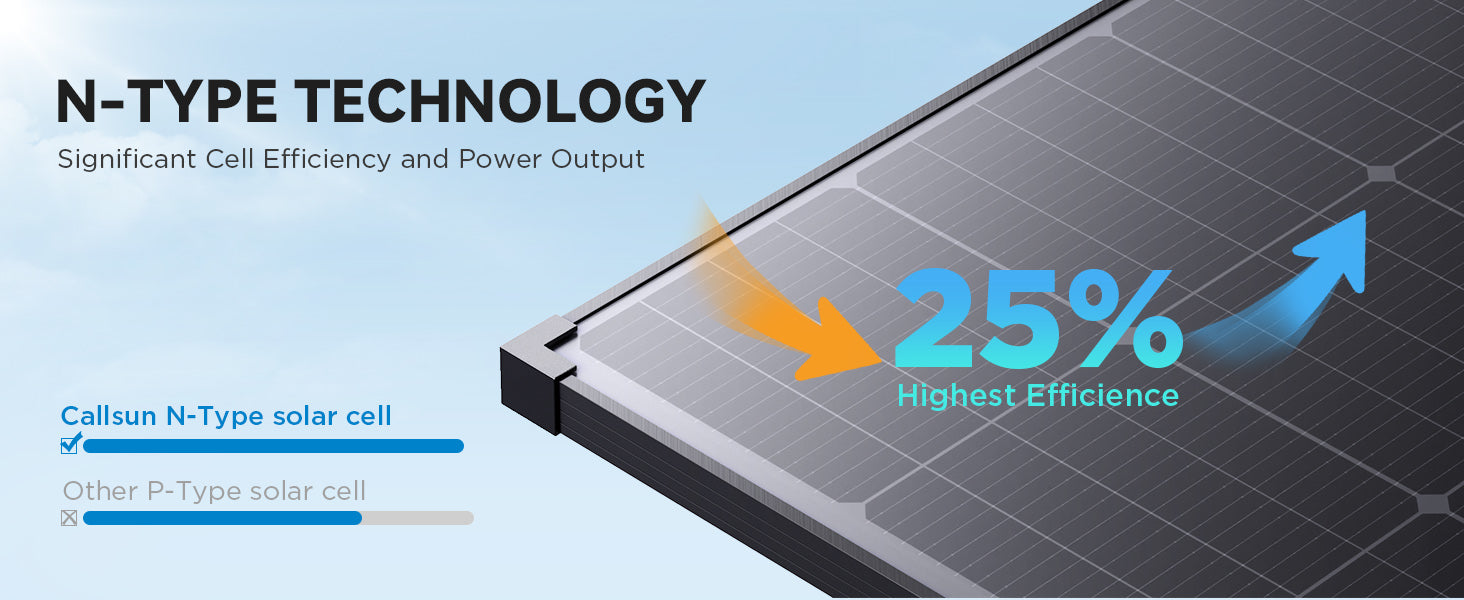

Up to 25% Efficiency
Advanced N-Type cells deliver up to 25% efficiency, maximizing energy conversion and power output over standard P-Type cells.

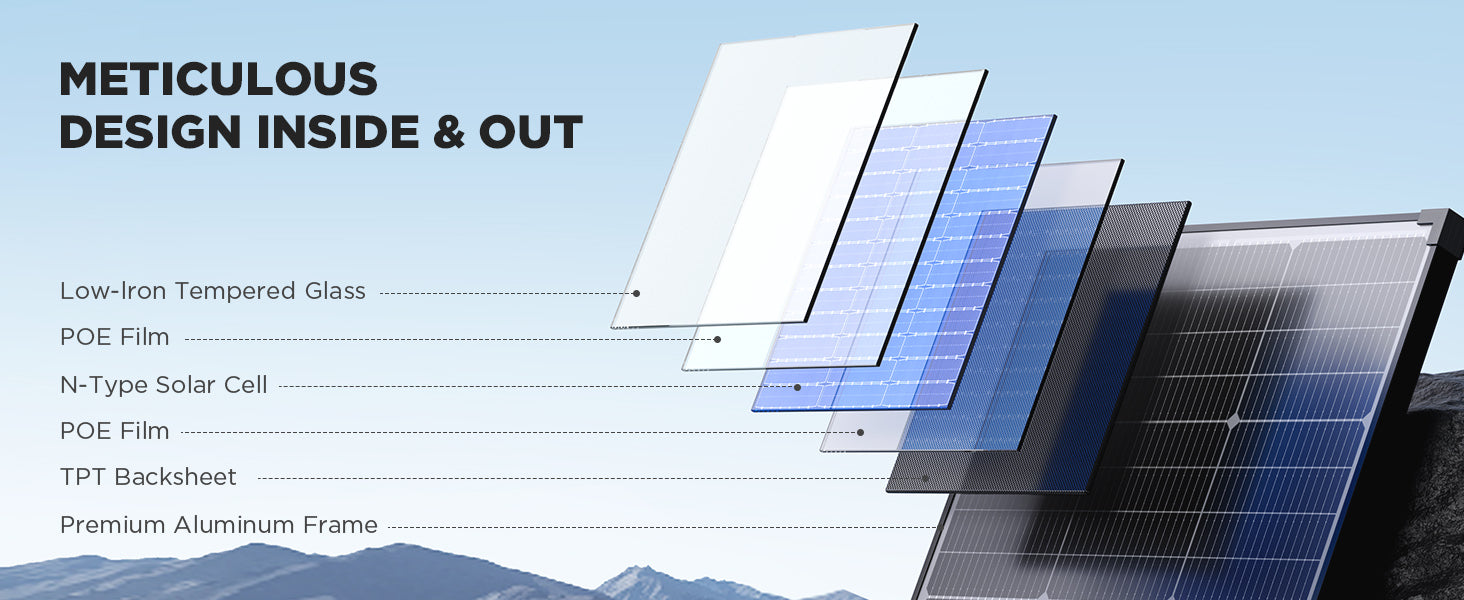

Multi-Layer Durability Design
Low-iron tempered glass, POE films, N-Type cells, TPT backsheet, and aluminum frame deliver lasting structural durability.

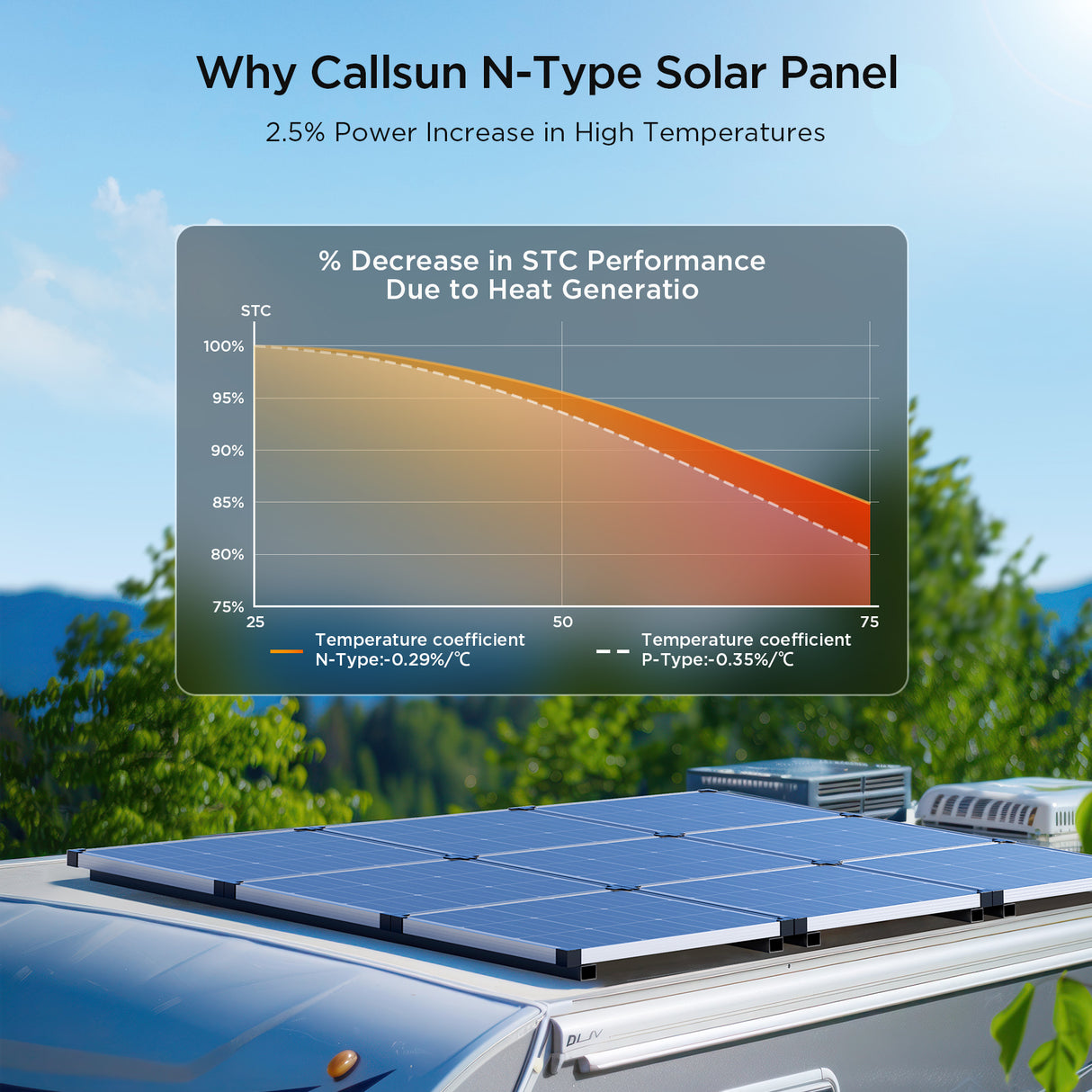

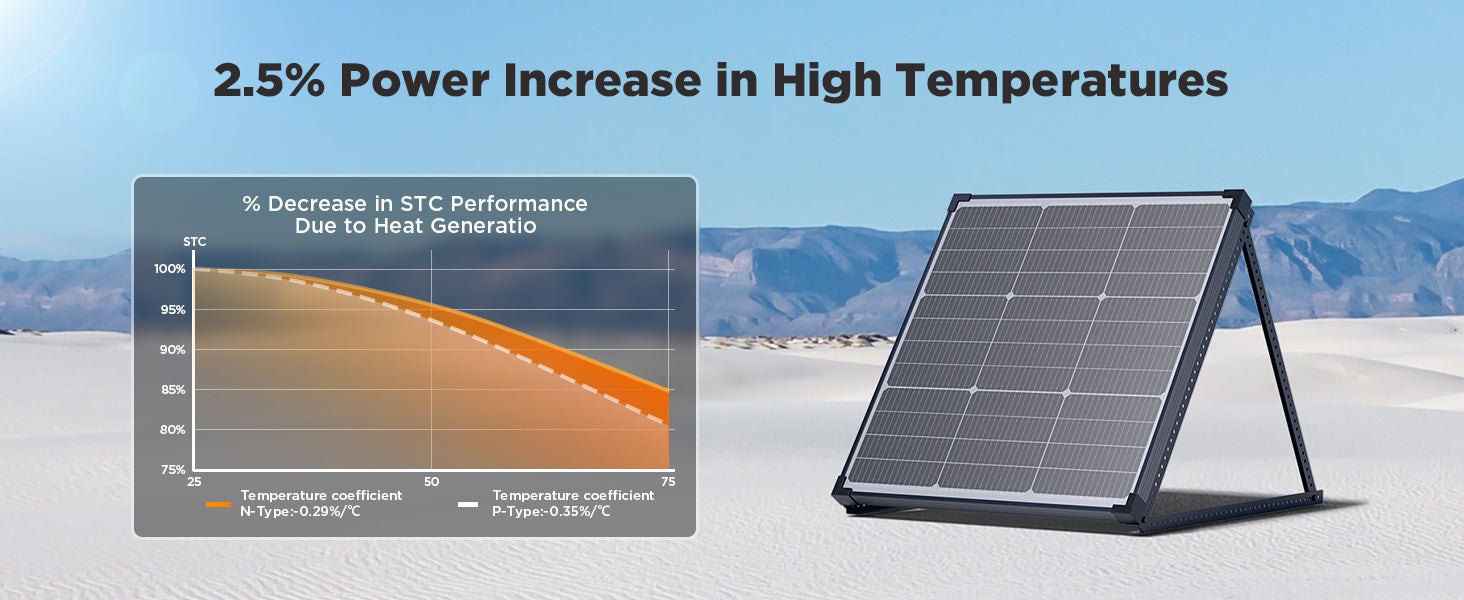

2.5% More Power in Heat
N-Type technology with a -0.29%/°C temperature coefficient reduces heat-related losses, delivering up to 2.5% more power.
20-Year Performance Guarantee
Maintains 84.5% output after 20 years, with IP68 protection and strong resistance to wind, snow, and harsh conditions.

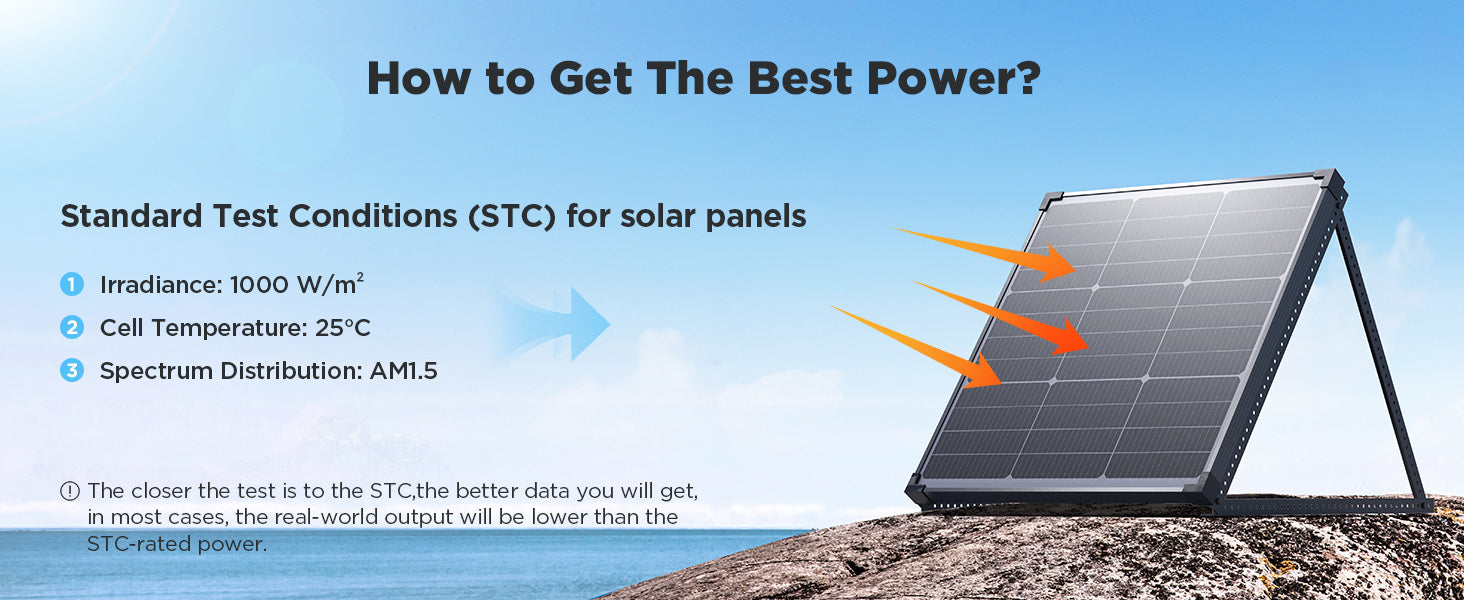

Understand Standard Test Conditions
STC uses 1000 W/m² irradiance, 25°C cell temperature, and AM1.5 spectrum to define rated solar performance.

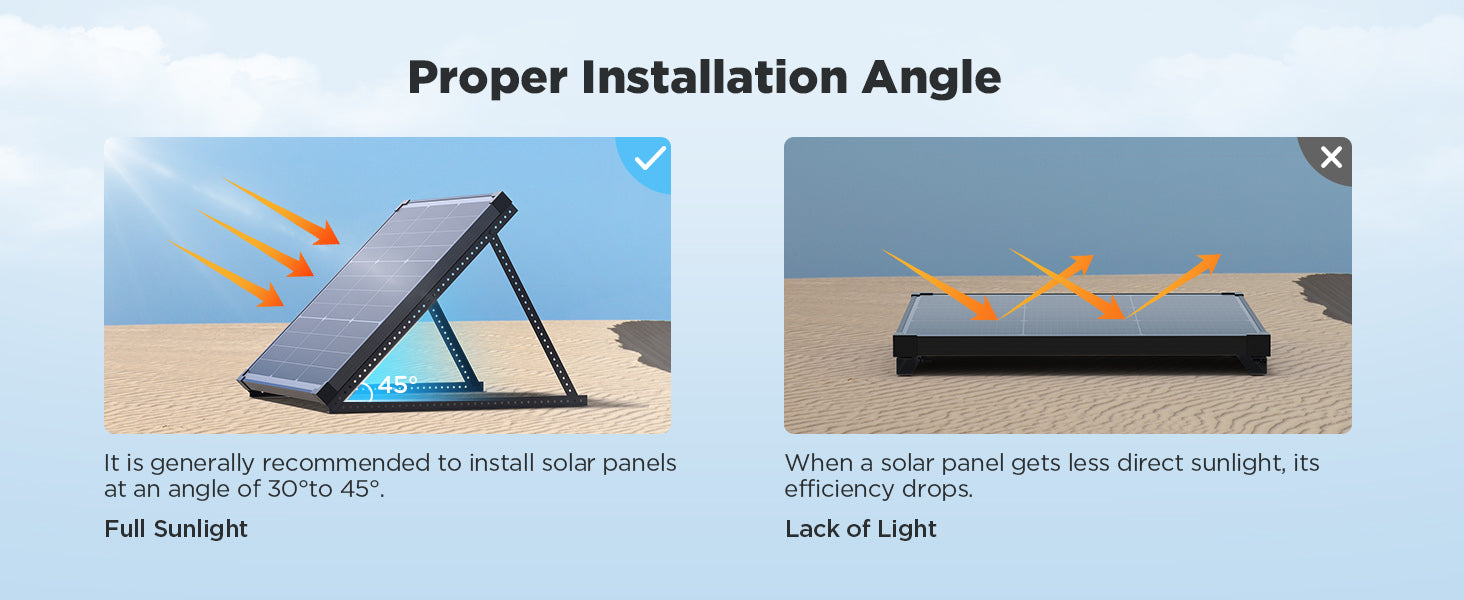

Optimal 30°–45° Installation Angle
Position panels at 30°–45° for optimal sunlight exposure, maximizing energy generation and reducing efficiency losses.

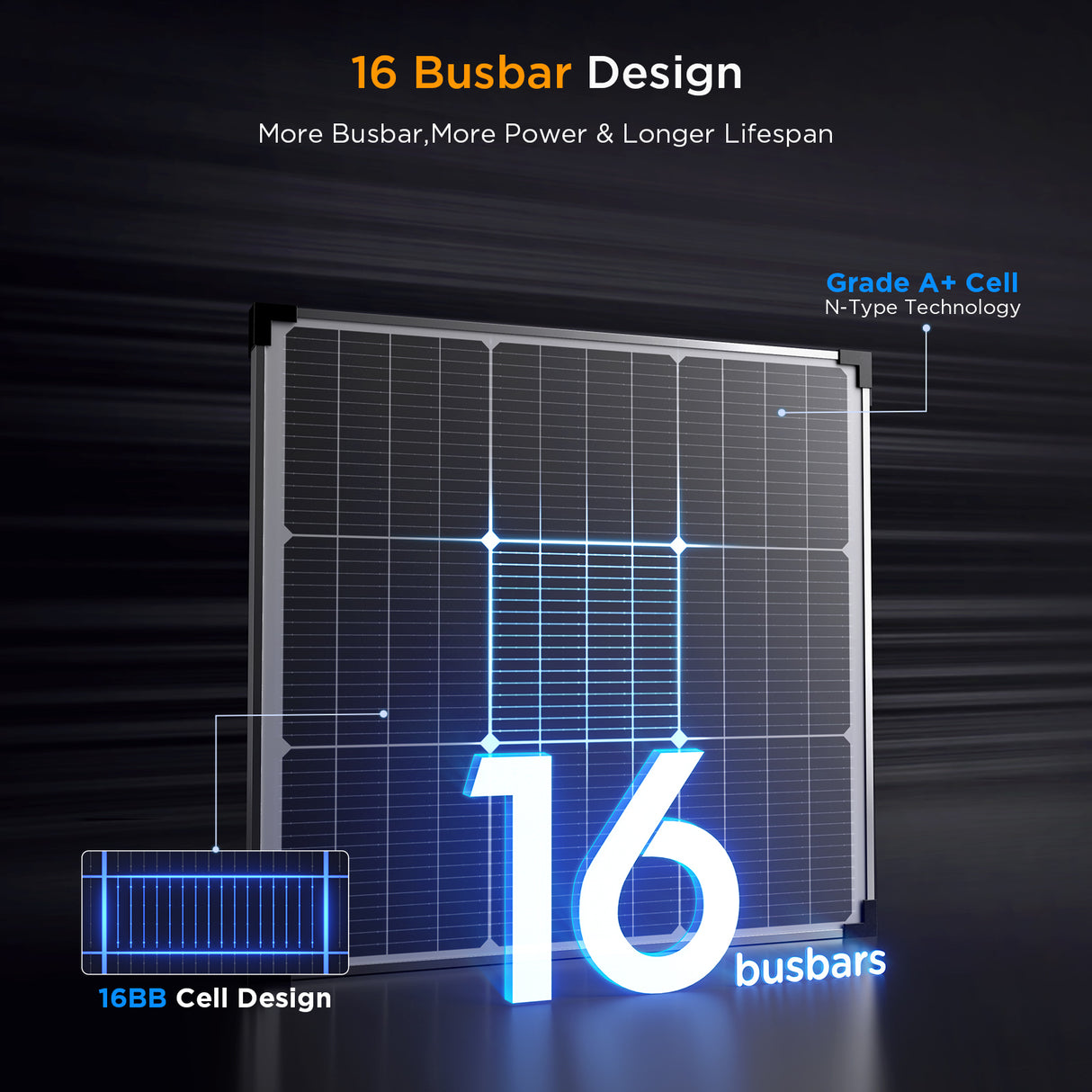

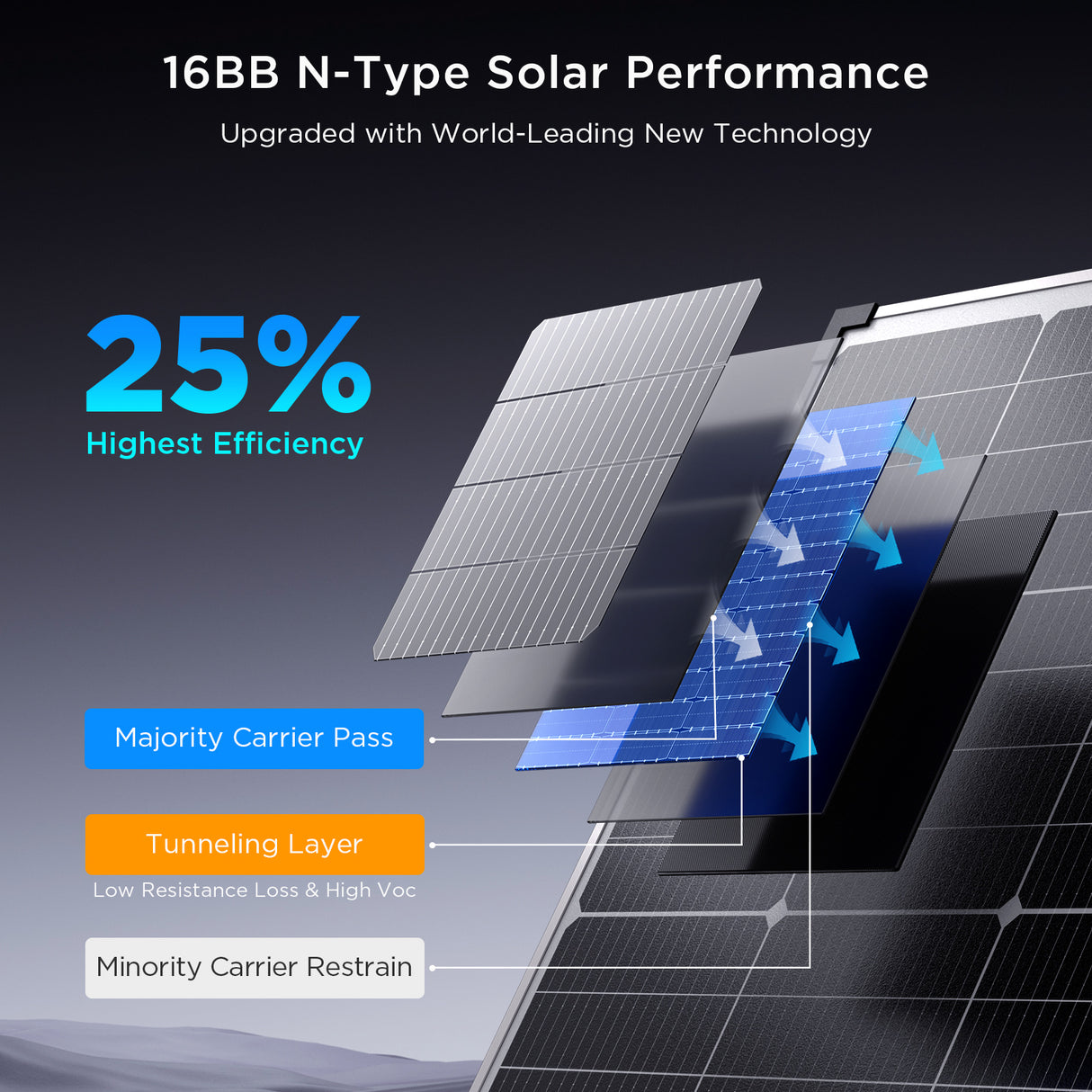

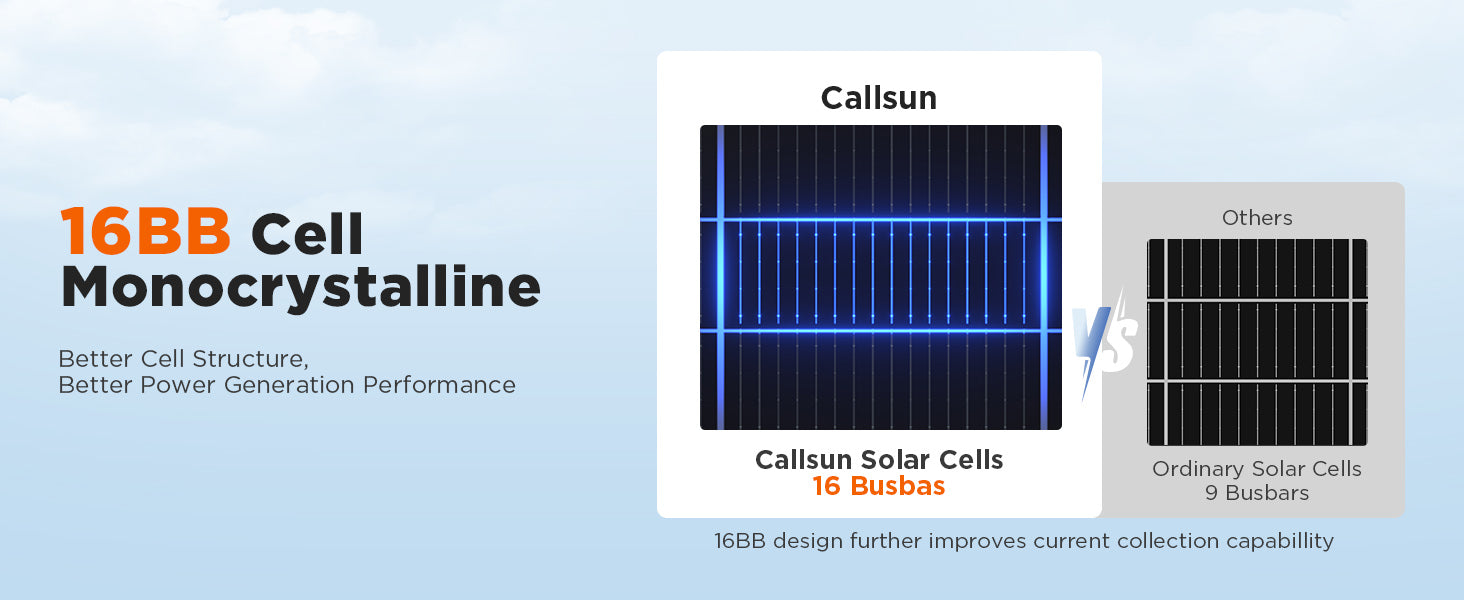

Advanced 16BB Cell Technology
16BB technology improves current collection and energy capture, delivering higher power output than conventional 9-busbar cells.

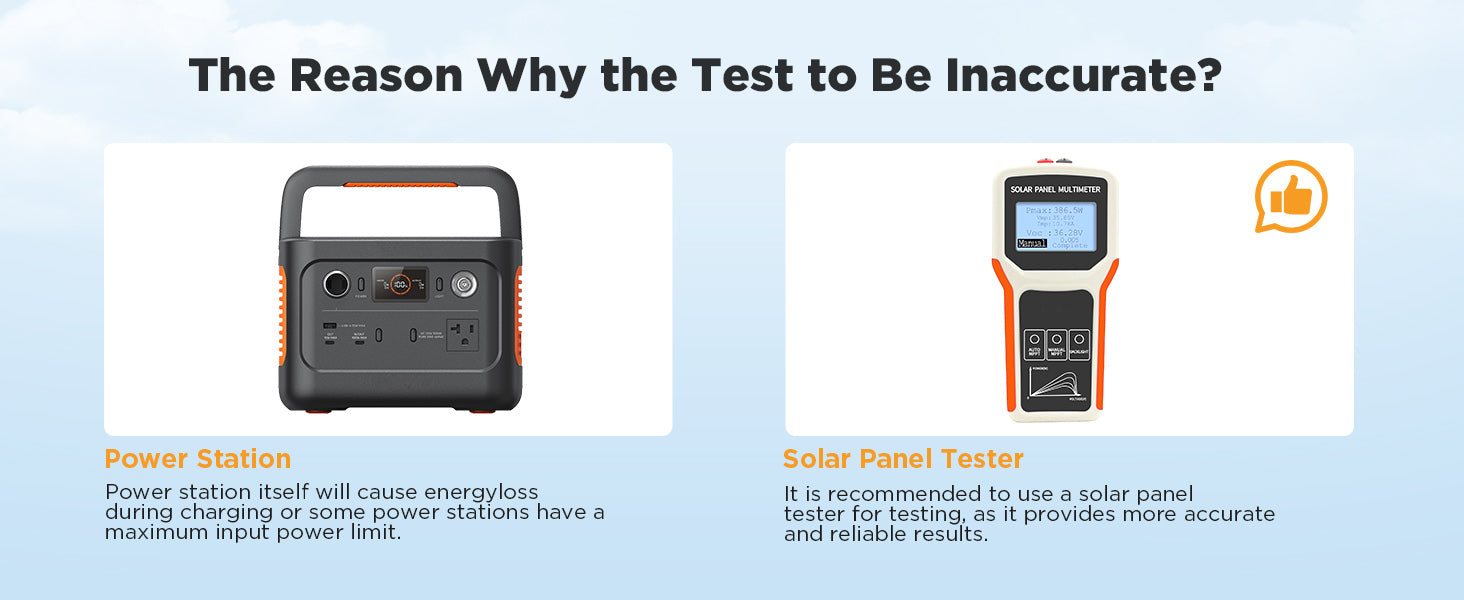

Accurate Solar Panel Testing
Power stations may limit input or cause charging losses; use a dedicated solar tester for more accurate performance results.

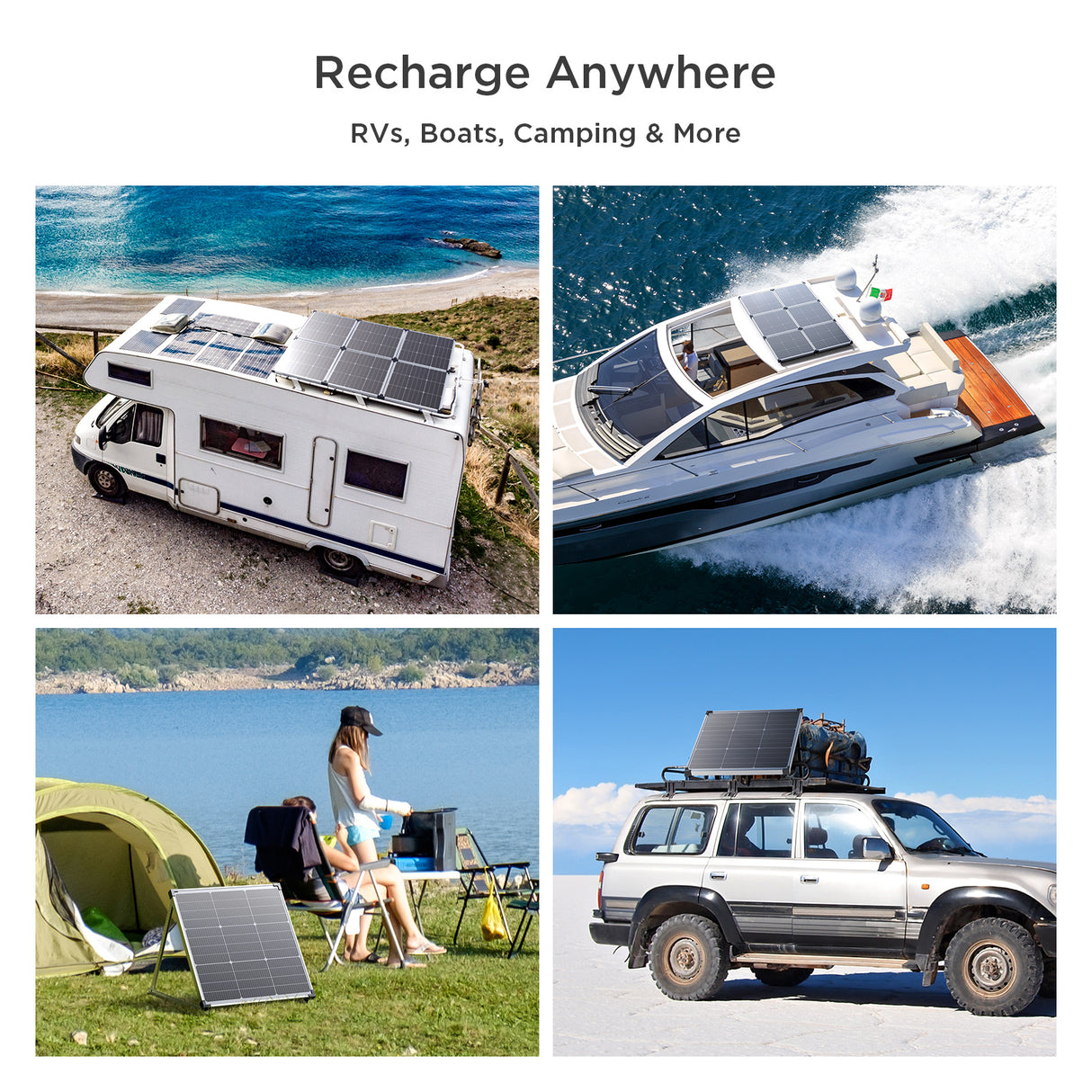

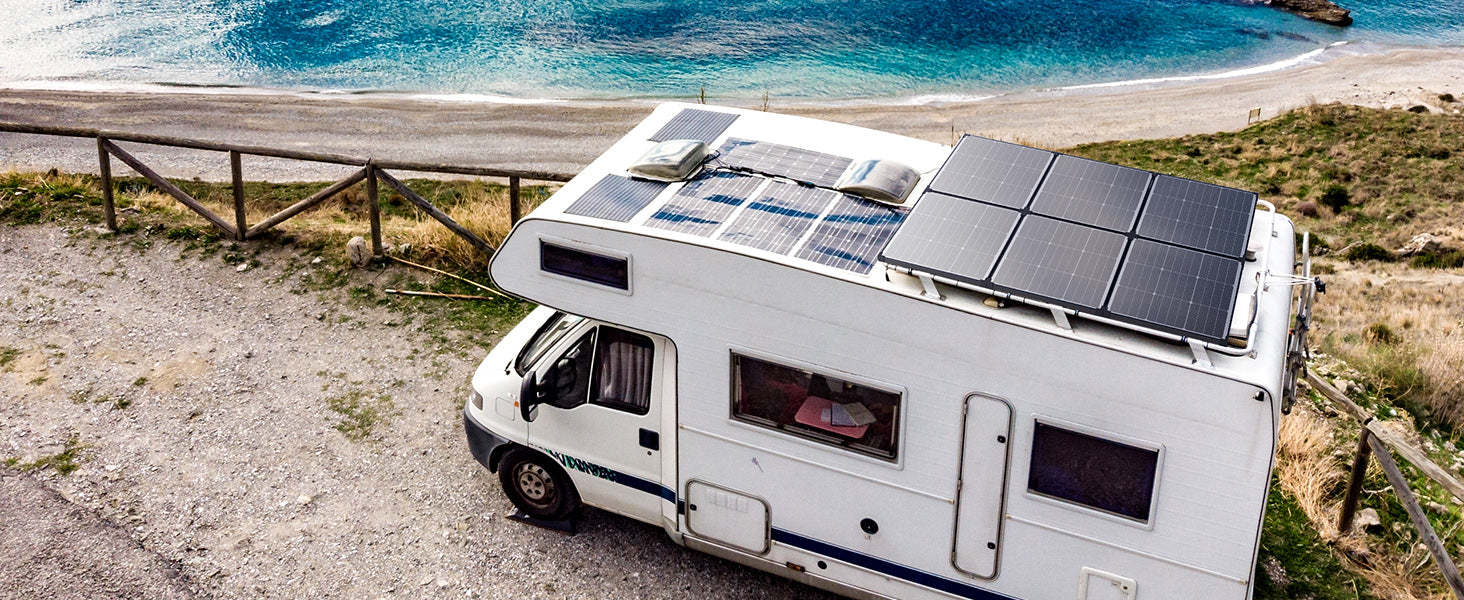

Reliable Solar for RVs
High-efficiency solar panels keep RV batteries charged and appliances powered with durable performance for life on the road.
Portable Solar for Camping
Compact, high-efficiency solar panels provide dependable off-grid power for camping, outdoor adventures, and remote energy needs.

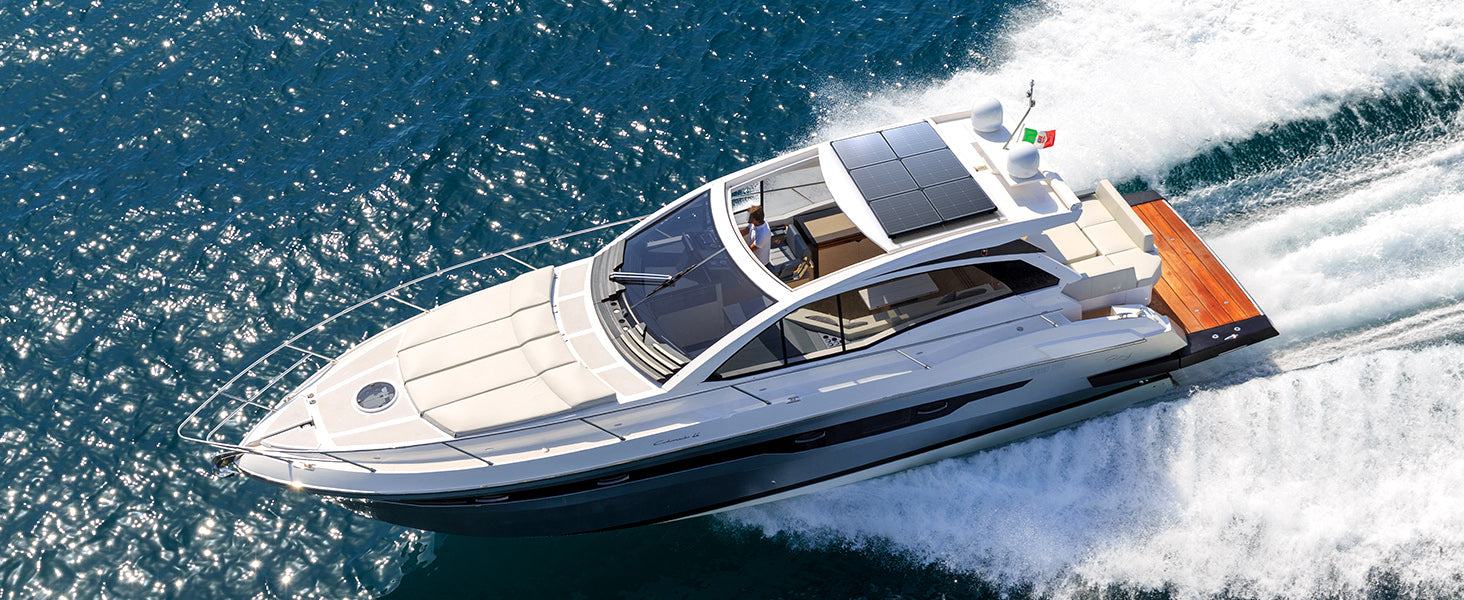

Reliable Solar for Boats
Durable, high-efficiency solar panels withstand harsh marine conditions while keeping boat batteries charged and essential electronics powered.

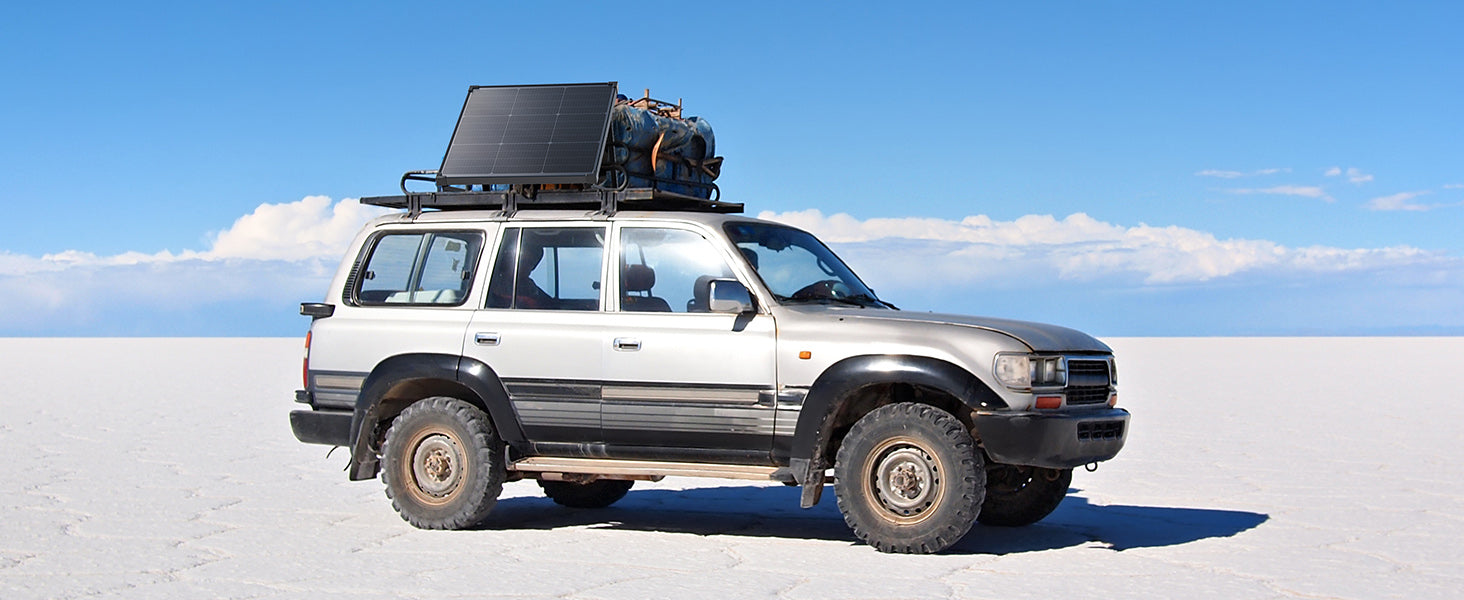

Solar Power for Overlanding
Durable, high-efficiency panels mount securely to roof racks, providing reliable off-grid power for overland vehicles and expeditions.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | YES | 3×50W(Parallel) |
| Elite 100 V2 / 200 V2 | YES | 7×50W(Parallel) |
| Elite 300 | YES | 8×50W(Parallel) |
| Elite 400 | YES | 7×50W(Parallel) |
| AC2A | YES | 3×50W(Parallel) |
| AC50B / EB3A | YES | 3×50W(Parallel) |
| AC70 | YES | 3×50W(Parallel) |
| AC180 | YES | 3×50W(Parallel) |
| AC200L | YES | 7×50W(Series) |
| AC300 | YES | 7×50W(Series) |
| AC500 | YES | 7×50W(Series) |
| Apex 300 | YES | 7×50W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 7×50W(Series) |
| Delta 2 / 2 Max | YES | 5×50W(Parallel) |
| Delta 3 / 3 Plus | YES | 5×50W(Parallel) |
| Delta 3 Max | YES | 5×50W(Parallel) |
| Delta 3 Max Plus | YES | 7×50W(Parallel) |
| Delta pro 3 | YES | 7×50W(Series or Parallel)-XT60 |
| River 2 | YES | 2×50W(Parallel) |
| River 2 Pro | YES | 5×50W(Parallel) |
| River 2 Max | YES | 5×50W(Parallel) |
| River 3 | YES | 2×50W(Parallel) |
| River 3 Plus | YES | 5×50W(Parallel) |
| Delta Pro Ultra | YES | 7×50W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | YES | 2×50W(Parallel) |
| SOLIX C800 | YES | 3×50W(Parallel) |
| SOLIX C1000 | YES | 4×50W(Parallel) |
| SOLIX C1000 Gen2 | YES | 5×50W(Parallel) |
| SOLIX C2000 Gen2 | YES | 6×50W(Parallel) |
| SOLIX F2000 | YES | 7×50W(Parallel) |
| SOLIX F2600 | YES | 7×50W(Parallel) |
| SOLIX 521 | YES | 1×50W |
| SOLIX 535 | YES | 2×50W(Parallel) |
| SOLIX F3000 | YES | 6×50W(Parallel) |
| SOLIX F3800 | YES | 10×50W(Parallel) |
| SOLIX F3800 plus | YES | 8×50W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | YES | 2×50W(Parallel) |
| E500LFP | YES | 2×50W(Parallel) |
| E600LFP | YES | 4×50W(Parallel) |
| E1000LFP | YES | 7×50W(Parallel) |
| E1500LFP | YES | 7×50W(Parallel) |
| E2000LFP | YES | 5×50W(Parallel) |
| E2400LFP | YES | 5×50W(Parallel) |
| E3600LFP | YES | 7×50W(Series or Parallel) |
| E3800LFP | YES | 7×50W(Series or Parallel) |
| F1000LFP | YES | 5×50W(Parallel) |
| F3000LFP | YES | 9×50W(Parallel) |
| F5000LFP | YES | 5×50W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 5×50W(Parallel) |
| Mega 2 | YES | 7×50W(Series) |
| Mega 2 Pro | YES | 11×50W(Parallel) |
| Exodus 2400 | YES | 5×50W(Parallel) |
| Exodus 1500 | YES | 9×50W(Parallel) |
| Exodus 600 Plus | YES | 4×50W(Parallel) |
| Exodus 600 | YES | 4×50W(Parallel) |
| Exodus 1200 | YES | 4×50W(Parallel) |
| Guardian 6000 | YES | 5×50W(Parallel) |
| B2 Extra Battery | YES | 9×50W(Parallel) |
Specifications
Key Specs at a Glance 50W output · N-Type · 25% efficiency · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 50W |
|---|---|
| Maximum Power Voltage (Vmp) | 20.16V |
| Maximum Power Current (Imp) | 2.51A |
| Open-circuit Voltage (Voc) | 23.51V |
| Short-circuit Current (Isc) | 2.64A |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 15A |
| First Year Degradation Rate | <3% |
| Linear Degradation Rate | 0.55% |
| Commitment to maintain 84.5% output | 20 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 578 × 608 × 30 ± 5mm(22.8 × 23.9 × 1.2 ± 0.1in ) |
|---|---|
| Weight | 4 ± 0.2 kg (8.8 ± 0.5 lb) |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.29%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
FAQ
1. How does the 16BB (Busbar) technology improve performance?
The 16BB technology boosts solar panel efficiency and reliability by minimizing energy loss during transmission. More busbars improve conduction, leading to higher power output and better performance, especially in high temperatures.
2. What advantages does an N-type solar panel have over a P-type solar panel?
N-type solar panels offer higher efficiency, better performance in high temperatures and low light, greater resistance to light-induced degradation (LID), and a longer lifespan, making them more reliable and durable over time.
3. Can this panel be used with different solar generators or battery systems?
Yes, the 50W N-type 16BB solar panel is compatible with most popular solar generators and battery systems. It comes equipped with standard solar extension connectors, making it easy to integrate with a wide range of solar power setups.
4. What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel?
When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.
