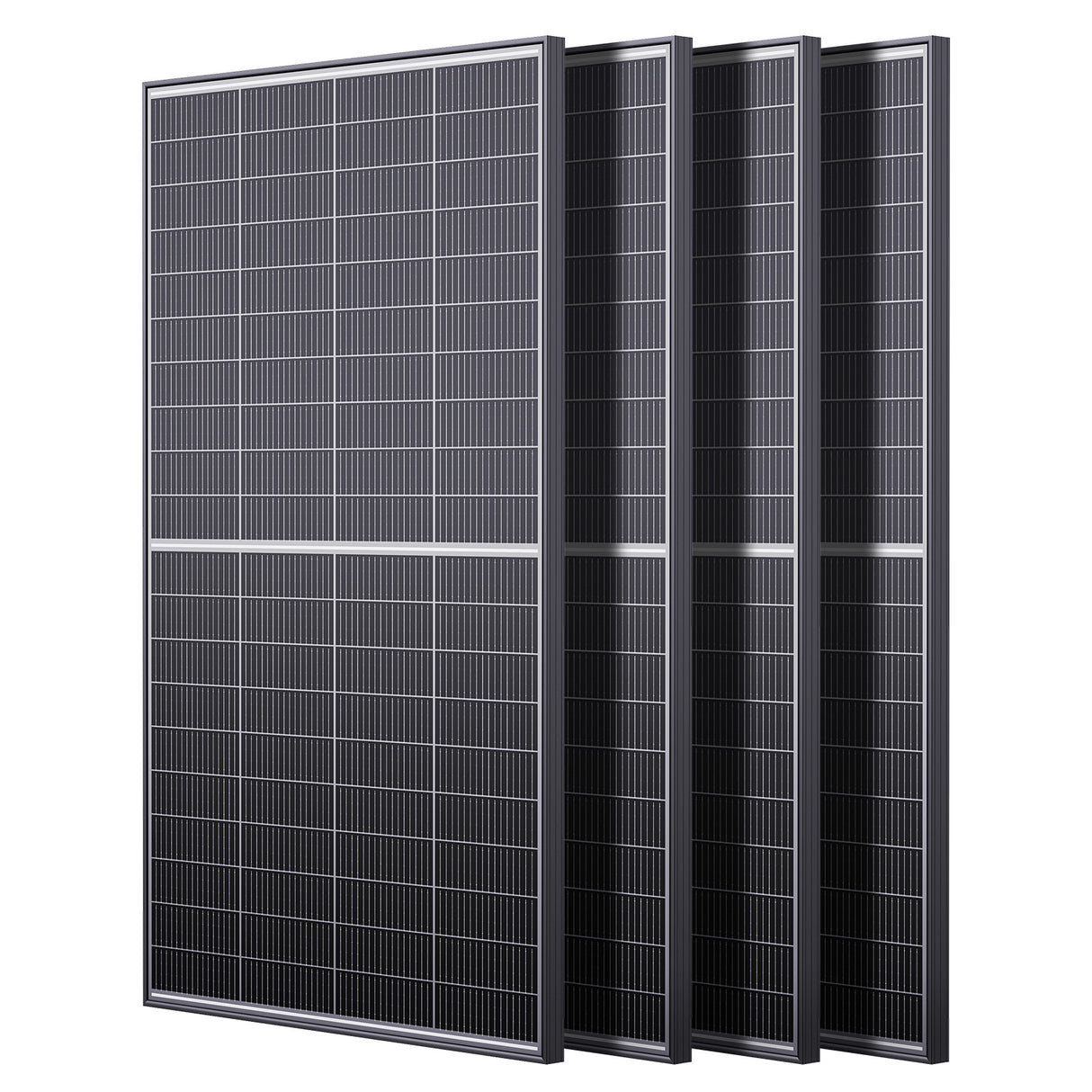

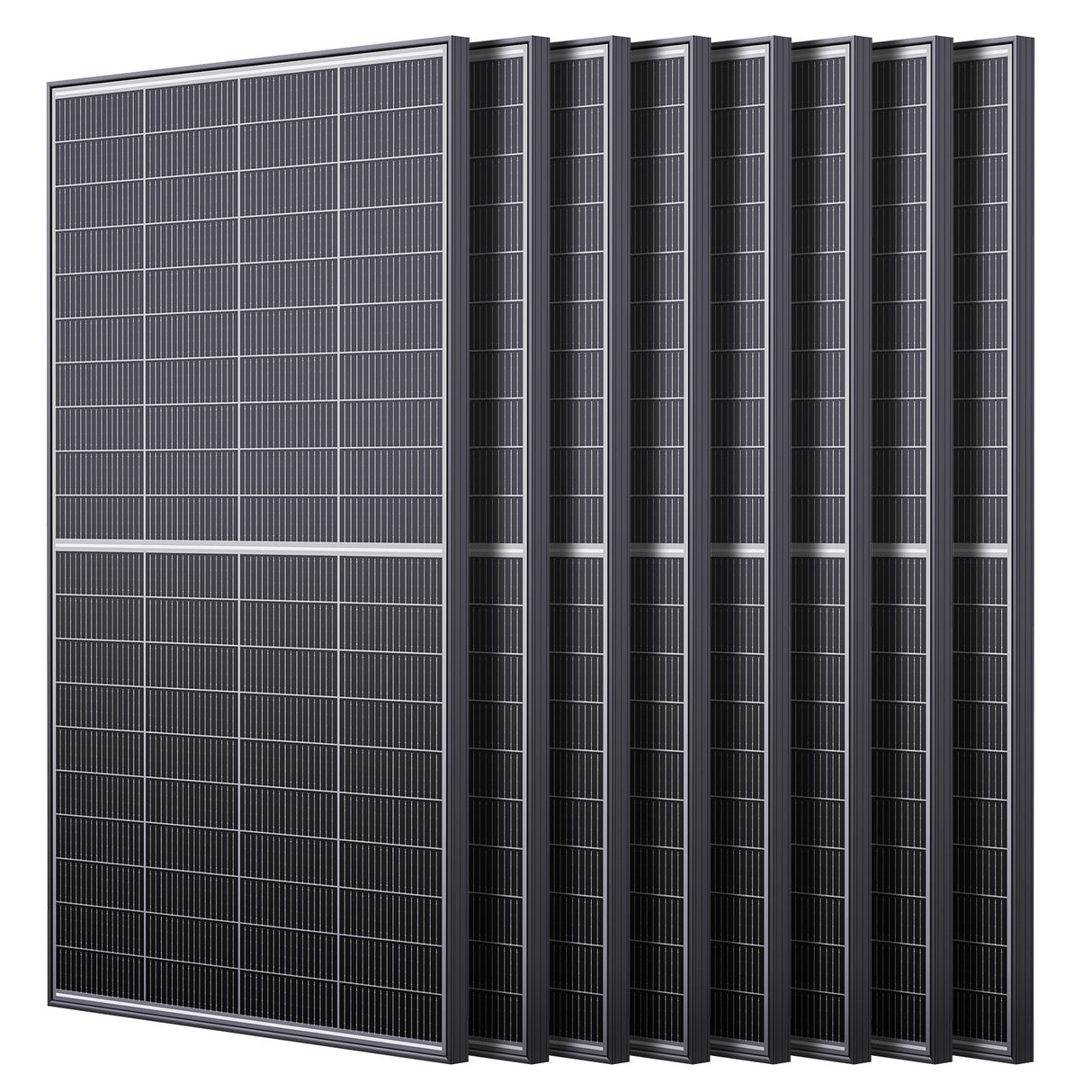

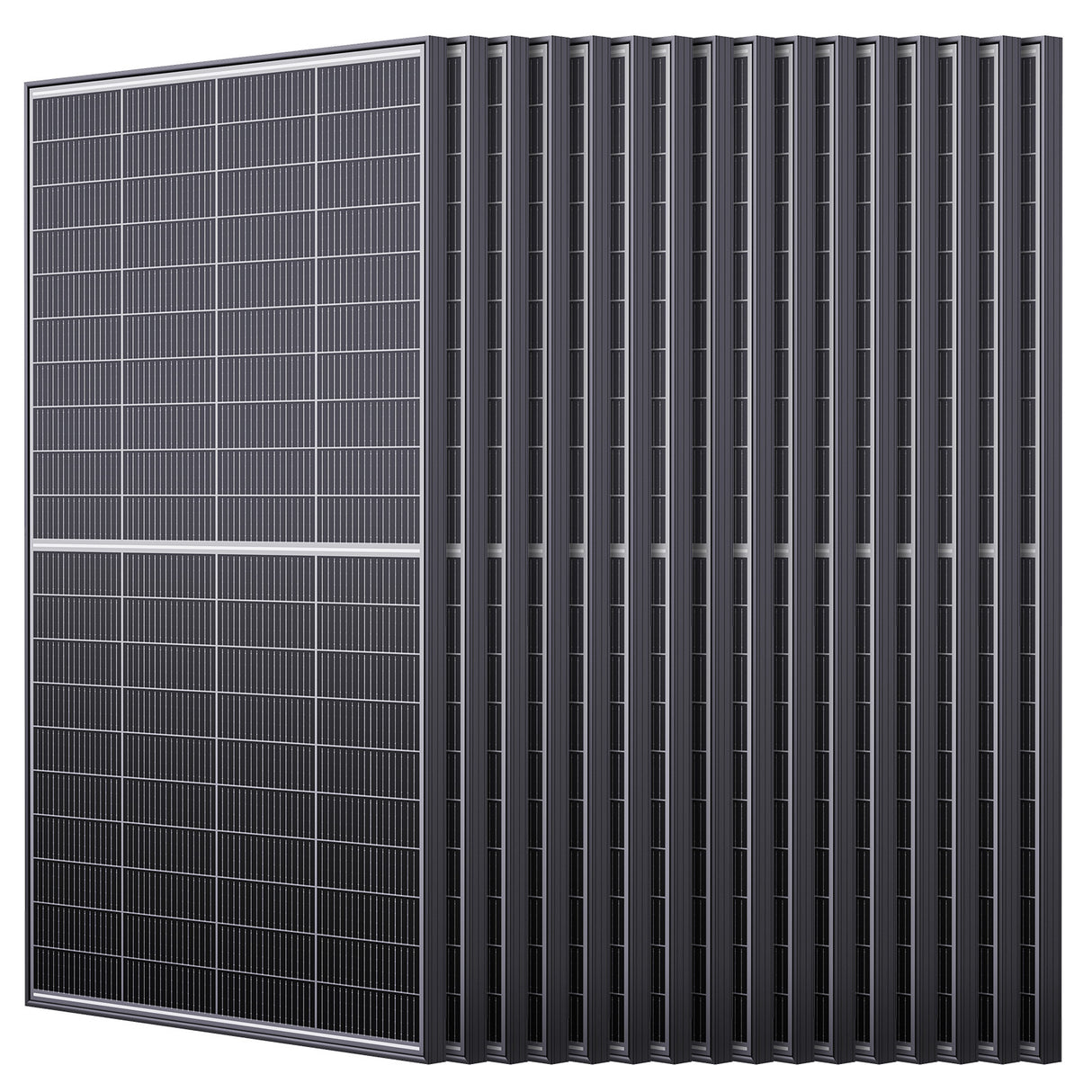

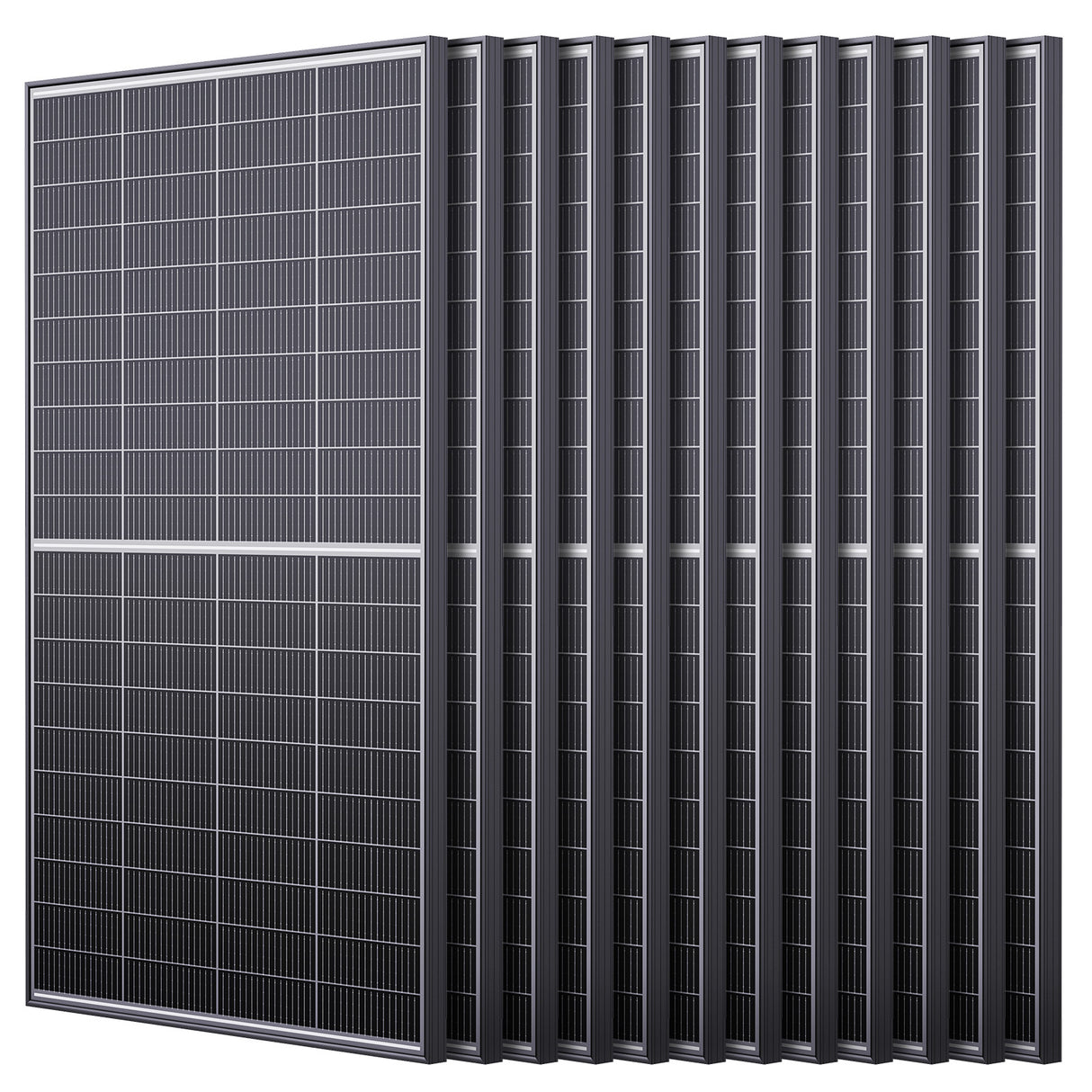

200W N-Type Anti-Shading Bifacial Solar Panel
200W of reliable solar power—even when partial shade gets in the way.
Key Features
• 25% Efficiency High-efficiency N-Type cells
• Anti-Shading Keeps 50% of the panel working
• Bifacial Gain Captures light from both sides
• 26% Smaller More power in less rooftop space
200W N-Type Anti-Shading Bifacial Solar Panel - 1 Piece is backordered and will ship as soon as it is back in stock.














Why Callsun 200w ?
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| Design Life | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |
| Absorbs Light | Both Sides | One Side |
Reliable and Durable
25% N-Type efficiency, bifacial generation, 16BB technology, anti-shading protection, and 25-year durability deliver reliable solar performance.
Advanced Anti-Shading Technology
Parallel architecture keeps 50% of the panel generating power when one module is partially shaded.

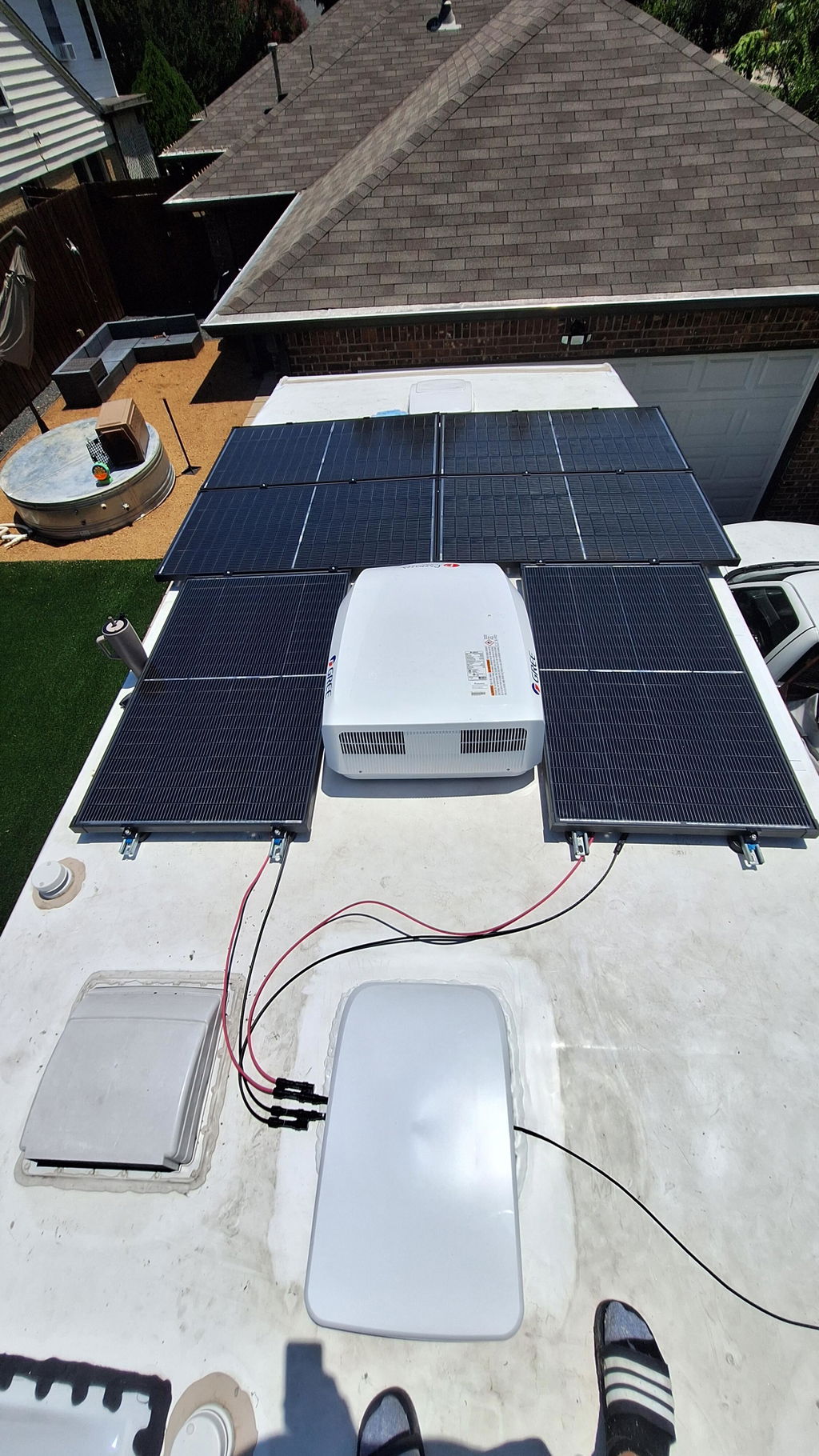

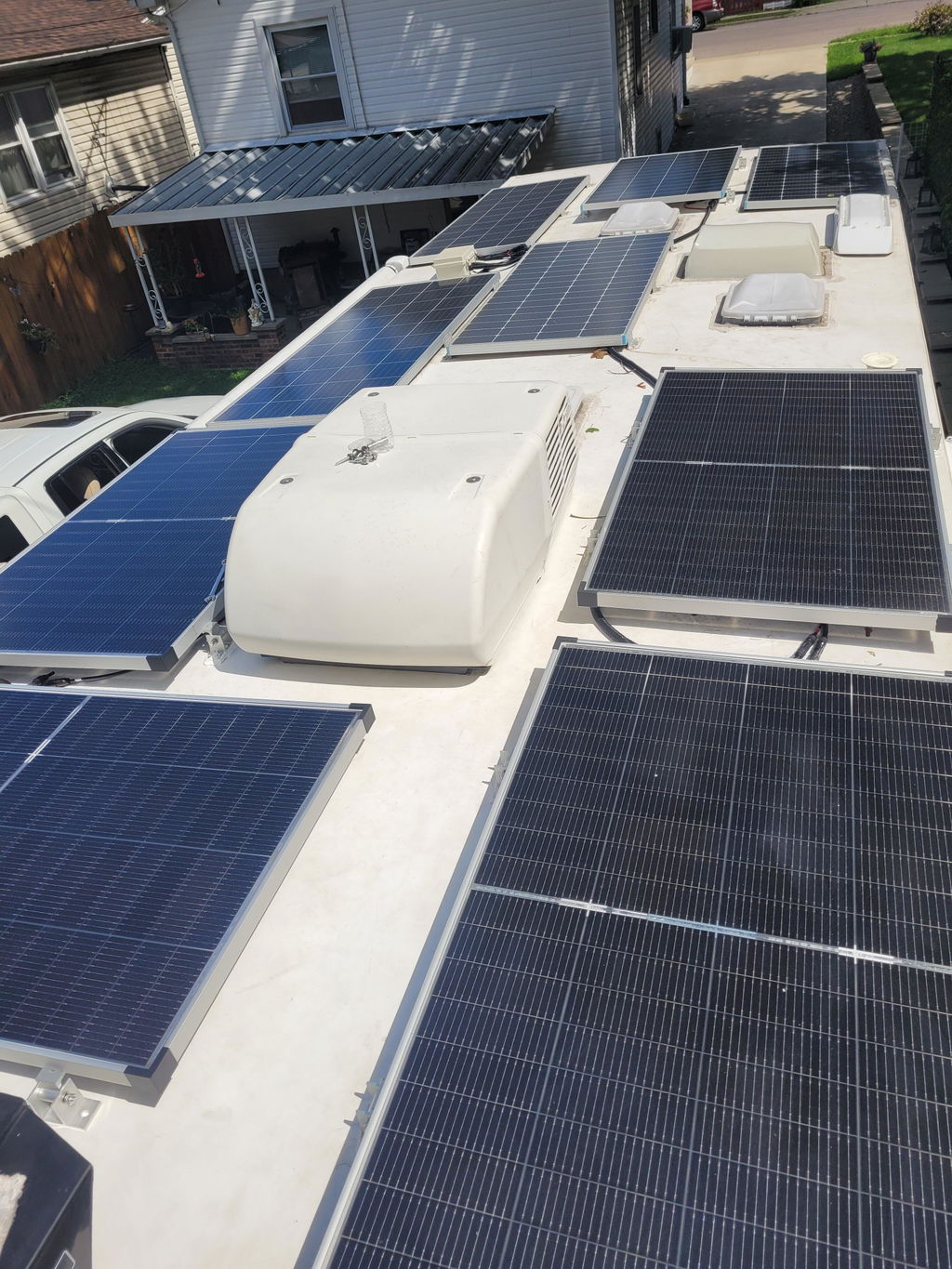

Compact Design for RVs & Vans
Maximize limited rooftop space with a compact 200W footprint.
Advanced N-Type Technology
N-Type cells deliver up to 25% efficiency, with anti-PID protection, low LID loss, and superior low-light performance.
25-Year Performance Guarantee
Guaranteed 84.5% output after 25 years, with IP68 protection, strong load resistance, and -40°C to 85°C durability.

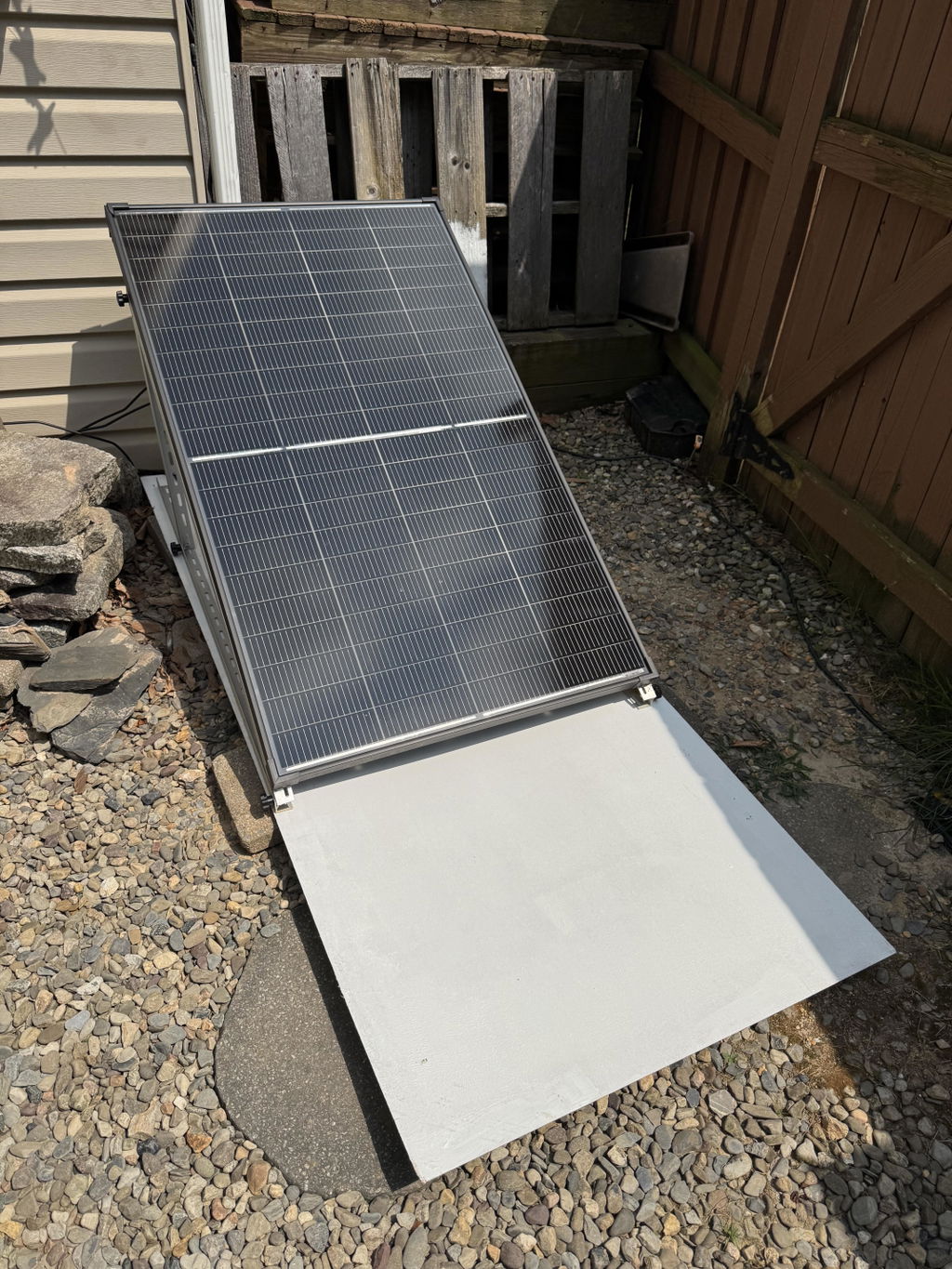

Bifacial Energy Boost

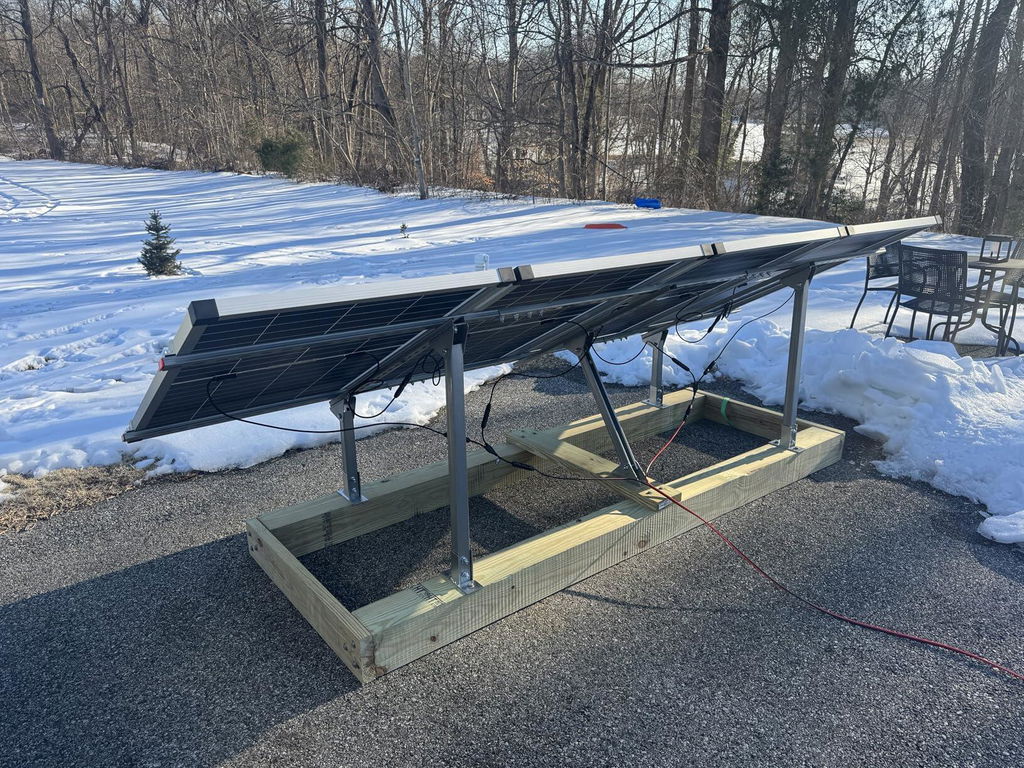

Bifacial technology captures front and rear sunlight, delivering up to 10-30% higher energy yield across snow, sand, and grass.
Flexible Series & Parallel Wiring
Connect multiple panels in series or parallel based on your power station or charge controller's voltage and current requirements.
Superior Low-Light Performance
N-Type cells maintain stable performance in cloudy and low-light conditions, helping extend daily solar generation.
Superior High-Temperature Performance
A lower temperature coefficient helps maintain more stable output as temperatures rise.
Heavy-Duty Shipping Protection
Reinforced cartons and impact-absorbing foam protect panels during transit, ensuring secure delivery in pristine condition.
RV
Trailer
Marine
Rooftop
Off-Grid
Compatibility

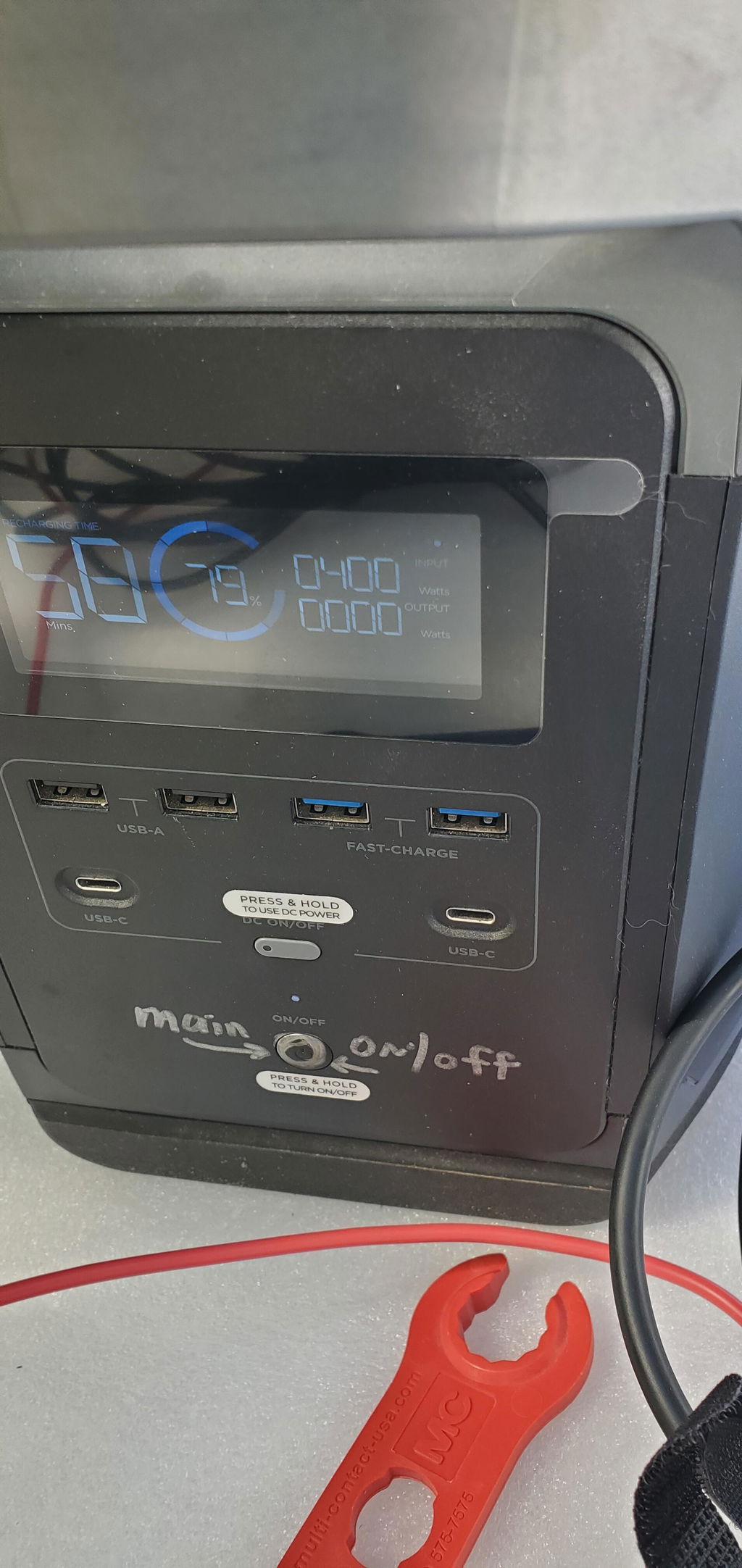

Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | YES | 1×200W |
| Elite 100 V2 / 200 V2 | YES | 2×200W(Series or Parallel) |
| Elite 300 | YES | 2×200W(Series or Parallel) |
| Elite 400 | YES | 2×200W(Series or Parallel) |
| AC2A | NO | PV input current (8.43A) exceeds limit (8.2A) |
| AC50B / EB3A | YES | 1×200W |
| AC70 | YES | 2×200W(Series) |
| AC180 | YES | 2×200W(Series) |
| AC200L | YES | 6×200W(Series) |
| AC300 | YES | 6×200W(Series) |
| AC500 | YES | 6×200W(Series) |
| Apex 300 | YES | 2×200W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 6×200W(Series) |
| Delta 2 / 2 Max | YES | 2×200W(Series) |
| Delta 3 / 3 Plus | YES | 2×200W(Series) |
| Delta 3 Max | YES | 2×200W(Series) |
| Delta 3 Max Plus | YES | 2×200W(Series or Parallel) |
| Delta pro 3 | YES | 6×200W(Series)-XT60 |
| River 2 | NO | PV input current (8.43A) exceeds limit (8A) |
| River 2 Pro | YES | 2×200W(Series) |
| River 2 Max | YES | 2×200W(Series) |
| River 3 | NO | PV input current (8.43A) exceeds limit (8A) |
| River 3 Plus | YES | 2×200W(Series) |
| Delta Pro Ultra | YES | 6×200W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | NO | PV input current (8.43A) exceeds limit (8.2A) |
| SOLIX C800 | YES | 1×200W |
| SOLIX C1000 | YES | 2×200W(Series) |
| SOLIX C1000 Gen2 | YES | 2×200W(Series) |
| SOLIX C2000 Gen2 | YES | 2×200W(Series) |
| SOLIX F2000 | YES | 2×200W(Series or Parallel) |
| SOLIX F2600 | YES | 2×200W(Series or Parallel) |
| SOLIX 521 | NO | PV input current (8.43A) exceeds limit (5.5A) |
| SOLIX 535 | Limited | 1×200W(Input power limited to 120W) |
| SOLIX F3000 | YES | 6×200W(Series) |
| SOLIX F3800 | YES | 2×200W(Series)/3×200W(Parallel) |
| SOLIX F3800 plus | YES | 6×200W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | NO | PV input current (8.43A) exceeds limit (7A) |
| E500LFP | NO | PV input current (8.43A) exceeds limit (7A) |
| E600LFP | YES | 2×200W(Series)-(Input power limited to 350W) |
| E1000LFP | YES | 2×200W(Series or Parallel) |
| E1500LFP | YES | 2×200W(Series or Parallel) |
| E2000LFP | YES | 3×200W(Series) |
| E2400LFP | YES | 3×200W(Series) |
| E3600LFP | YES | 6×200W(Series) |
| E3800LFP | YES | 6×200W(Series) |
| F1000LFP | YES | 2×200W(Series) |
| F3000LFP | YES | 5×200W(Series) |
| F5000LFP | YES | 7×200W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 3×200W(Series) |
| Mega 2 | YES | 6×200W(Series) |
| Mega 2 Pro | YES | 3×200W(Series or Parallel) |
| Exodus 2400 | YES | 3×200W(Series) |
| Exodus 1500 | YES | 2×200W(Parallel) |
| Exodus 600 Plus | YES | 1×200W |
| Exodus 600 | YES | 1×200W |
| Exodus 1200 | YES | 1×200W |
| Guardian 6000 | YES | 5×200W(Series) |
| B2 Extra Battery | YES | 6×200W(Series) |
Specifications
Key Specs at a Glance: 200W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 200W |
|---|---|
| Maximum Power Voltage (Vmp) | 23.74V |
| Maximum Power Current (Imp) | 8.43A |
| Open-circuit Voltage (Voc) | 27.31V |
| Short-circuit Current (Isc) | 8.91A |
| Cell Type | N-Type,16BB, 182mm, Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 1304 × 770 × 35(±5)mm 51.34 × 30.31 × 1.58(±0.2)in |
|---|---|
| Weight | 10.8(±0.2)kg 23.81(±0.5) lb |
| Cell Arrangement | 80pcs (4 × 10) × 2 |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Includes
FAQ
1. Why is the actual output sometimes lower than 200W?
The 200W rating is measured under Standard Test Conditions (STC): ideal sunlight and temperature. In real use, sun angle, heat, shading, wiring loss, and device efficiency affect output. So power below 200W is normal and does not indicate a defect.
2. Why are two Callsun 200W panels in series ideal for 60V portable power stations?
Each Callsun 200W panel has a Voc of ~27.3V. Connecting two in series gives ~54.6V, safely within most 60V power stations’ input range. This allows the MPPT controller to operate more efficiently, improving power conversion and charging speed.
3. Can this panel work with different solar generators or battery systems?
Yes, the 200W N-type 16BB bifacial solar panel is compatible with most popular solar generators and battery systems. It comes equipped with standard solar extension connectors, making it easy to integrate with a wide range of solar power setups.
4. What does "12V" mean in the product title, and why is it different from the panel's actual voltage?
On the product page, you may see a title like "xxx Watt 12 Volt Solar Panel." The "12V" does not refer to the panel's voltage (Voc or Vmp). It simply means the panel is suitable for use in a 12V system.
