200W N-Type Bifacial Solar Panel

$179.99
First order: Save 5% WELCOME5
Pack Option
Delivery Methods
Delivery time: 1-3 business days.
30-Day Return and Refund Service
Warranty Coverage
Free Shipping
DescriptionSpecsIncludesDownloadsFAQReviews

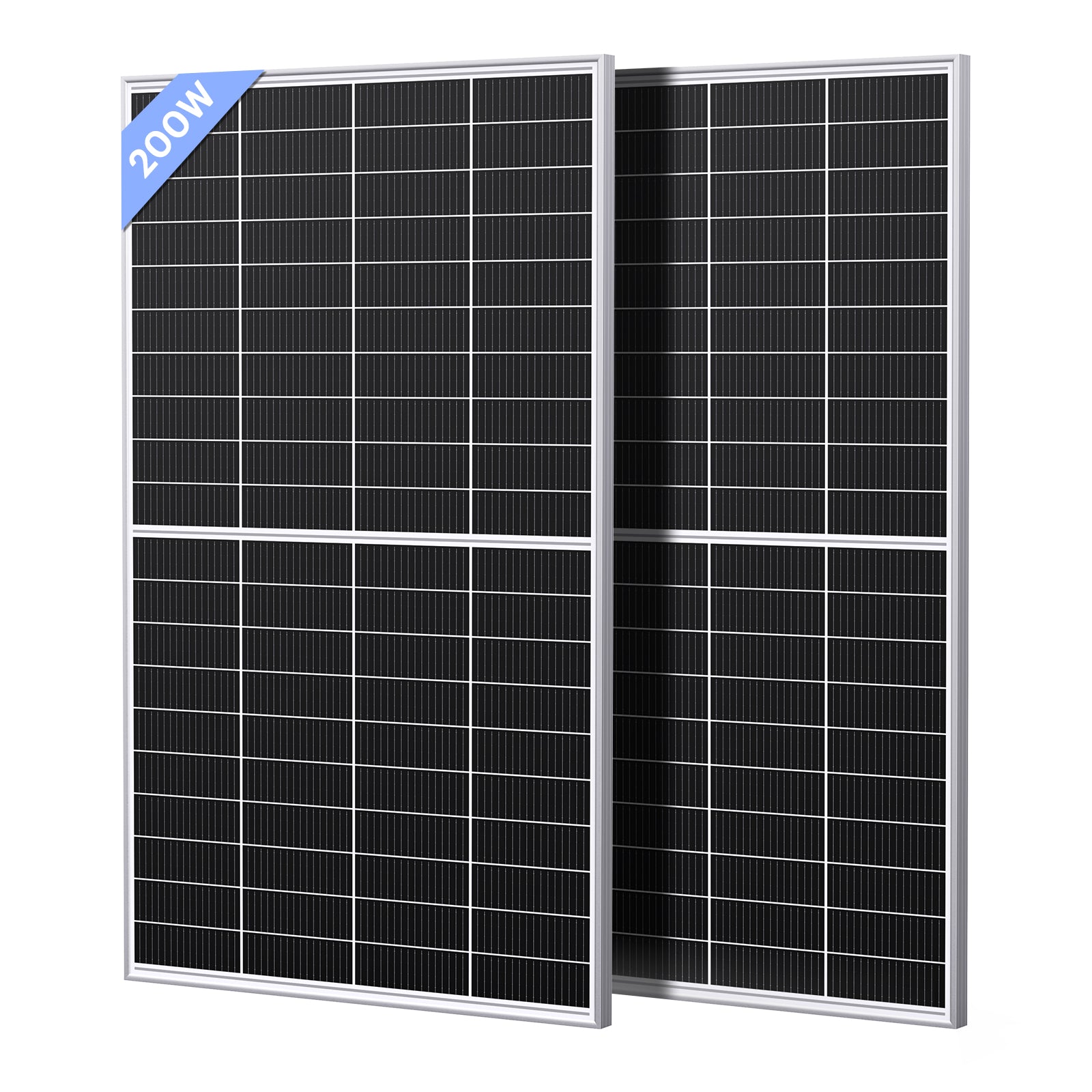

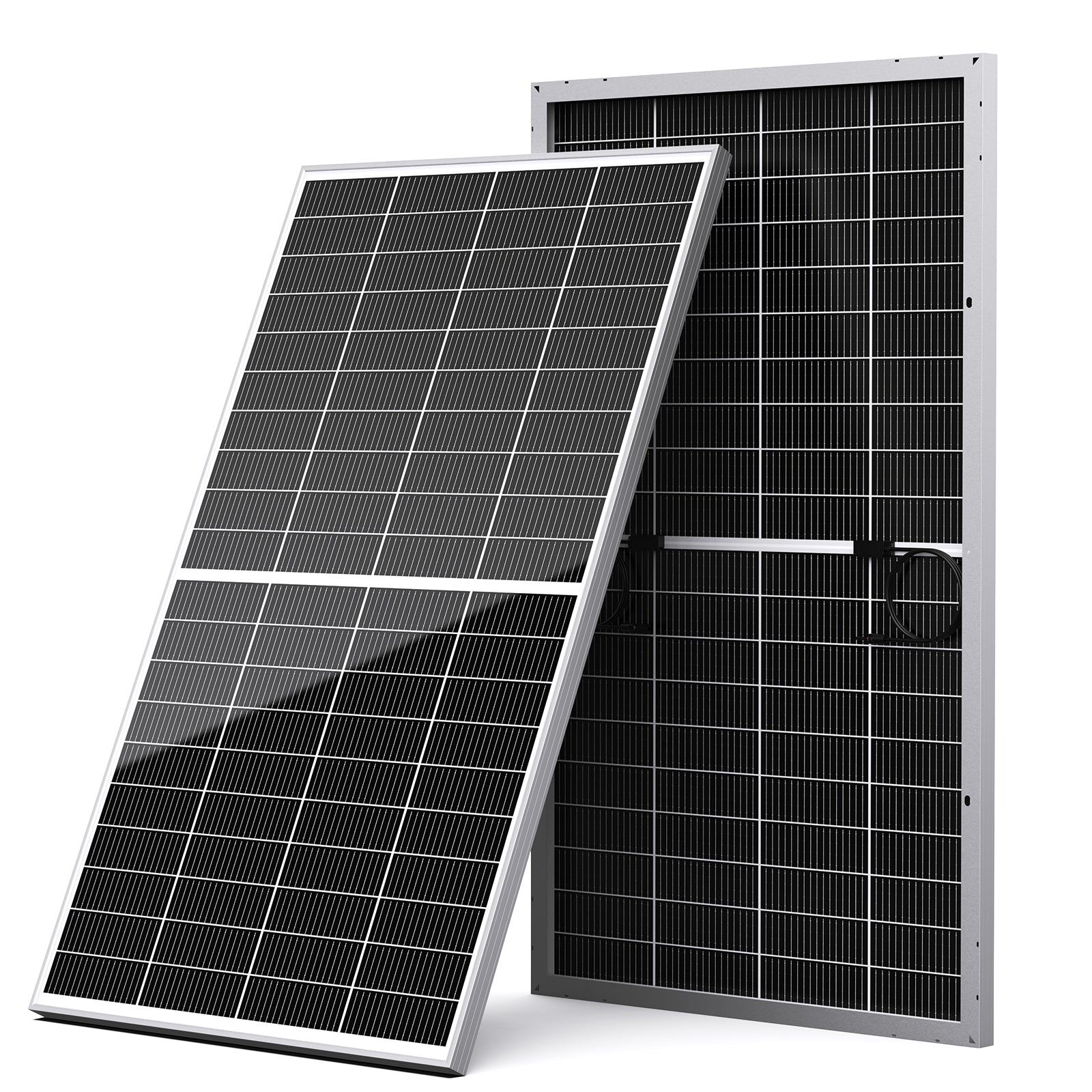

200 Watt N-Type Anti-Shad Bifacial Solar Panel

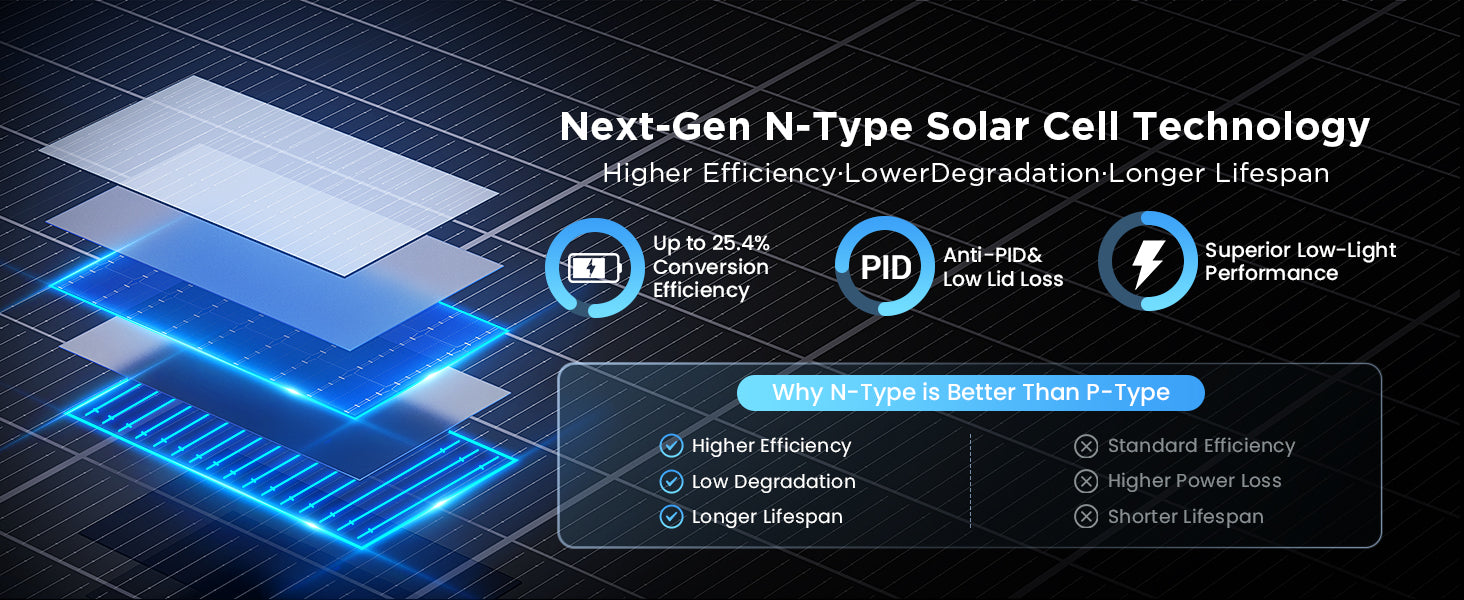

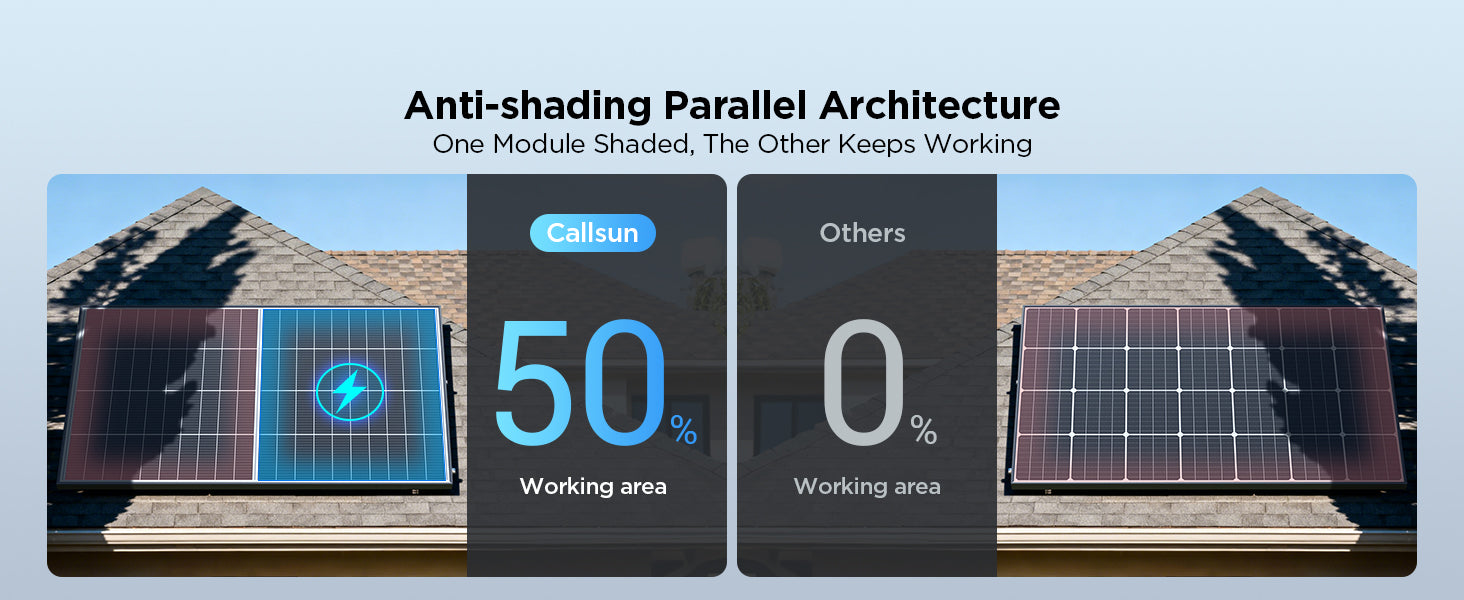

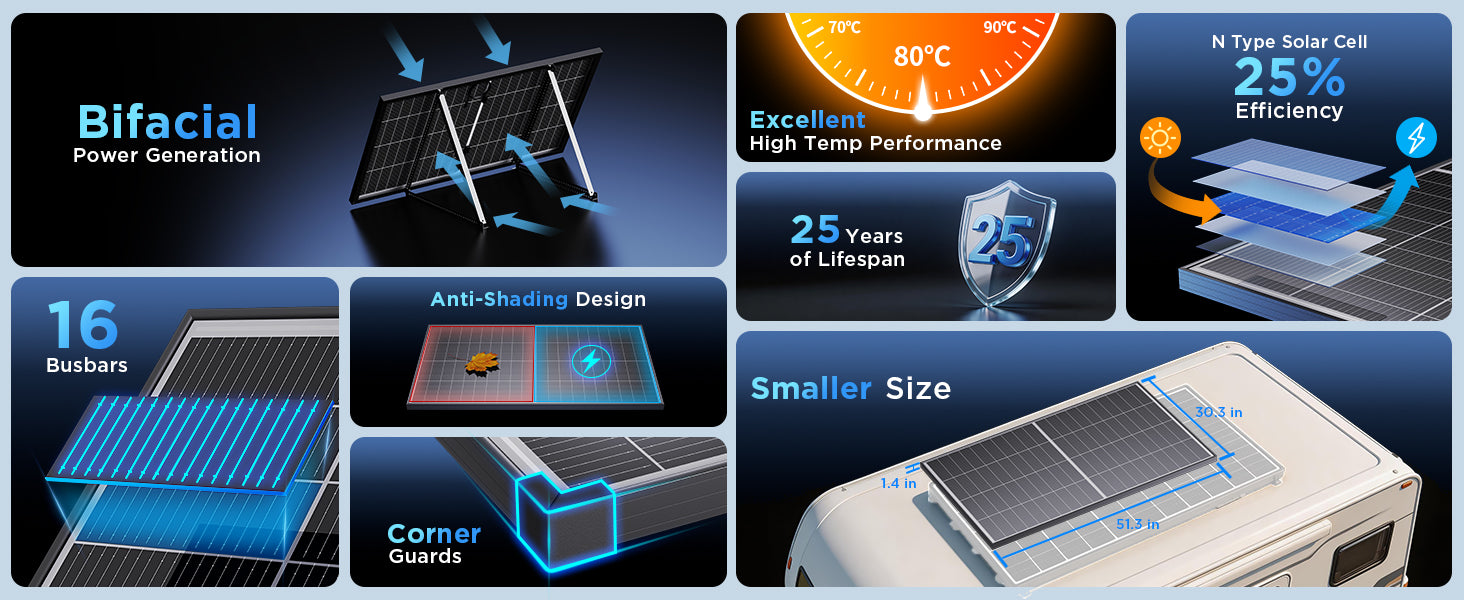

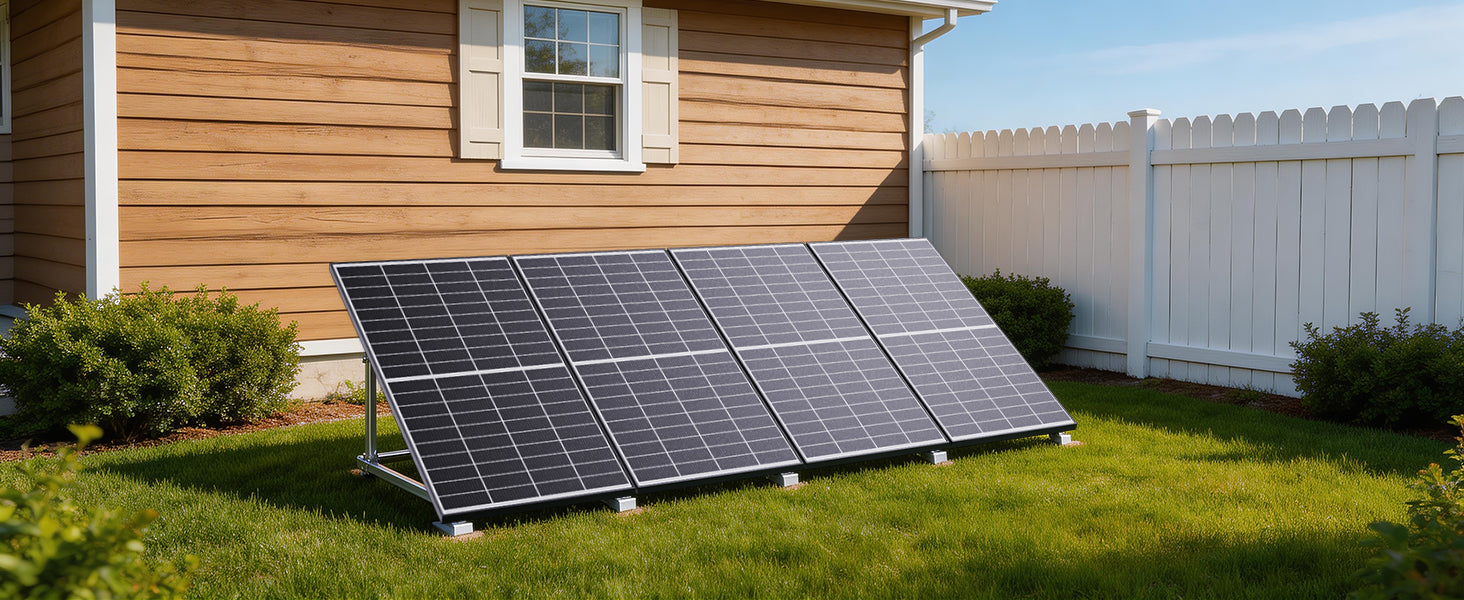

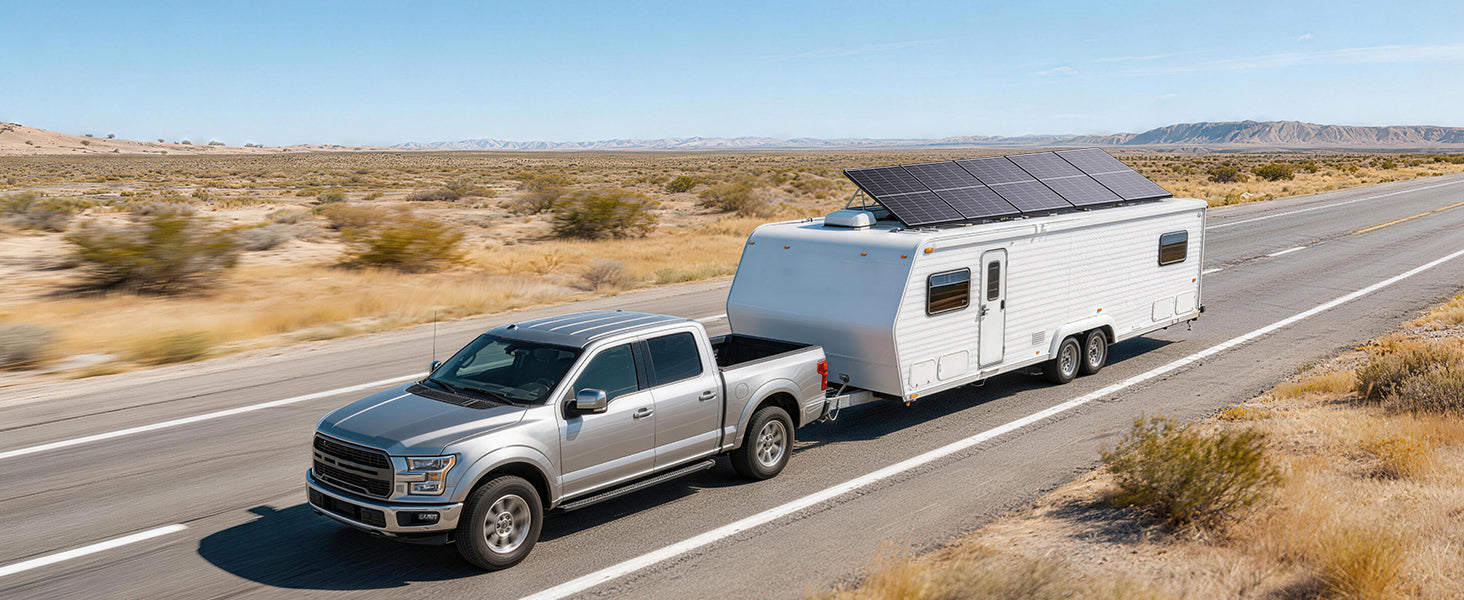

The Callsun 200W N-Type Anti-Shade Bifacial Solar Panel features advanced N-Type 16BB cells and TwinCell anti-shading technology, delivering up to 30% more energy and stable output even under partial shade. Built for durability and efficiency, it’s ideal for RVs, vans, rooftops, cabins, and off-grid solar systems.

Callsun N-Type Bifacial vs Other Solar Panels Comparison

Feature Callsun N-Type Bifacial Solar Panel Other Solar Panels
Efficiency 25% 22%
Solar Cells 16BB 9BB / 10BB
LifeSpan 30 Years 25 Years
Size Smaller 26% Larger size

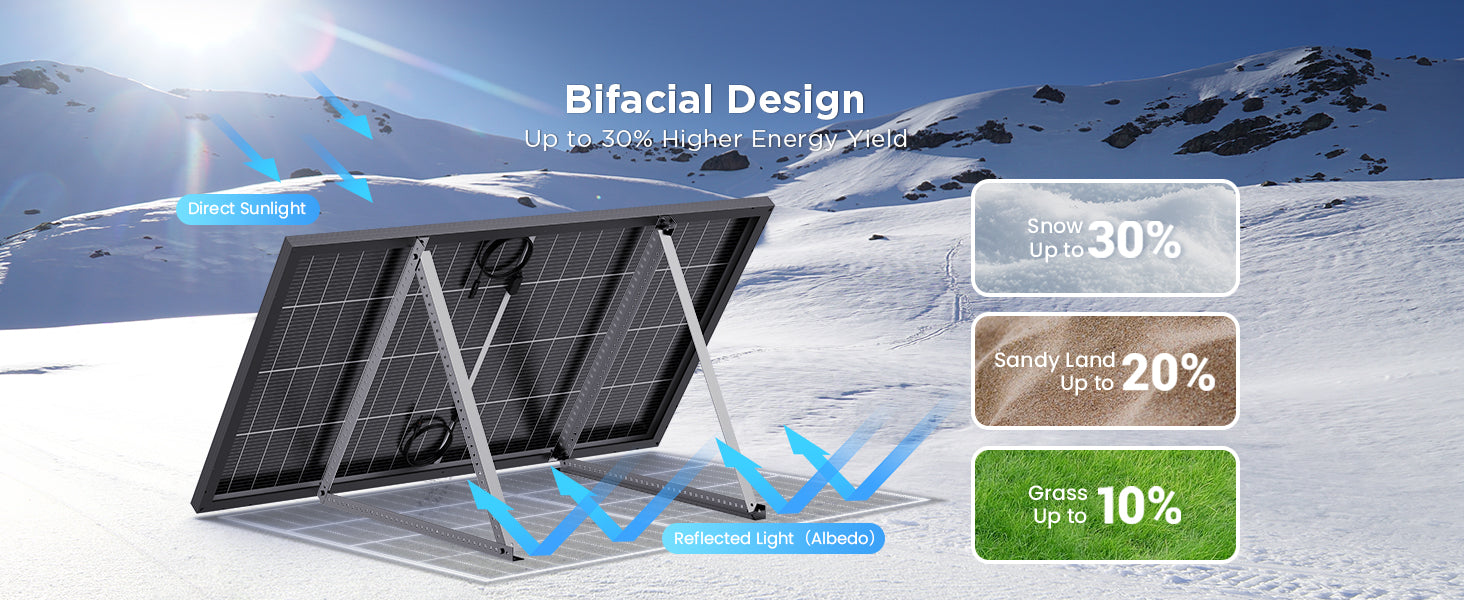

Absorbs Light Both Sides One Sides

Specifications

Key Specs at a Glance: 200W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68

Mechanical Characteristics(STC)

Maximum Power (Pmax) 200W
Maximum Power Voltage (Vmp) 23.74V
Maximum Power Current (Imp) 8.43A
Open-circuit Voltage (Voc) 27.31V
Short-circuit Current (Isc) 8.91A
Cell Type Monocrystalline Silicon, TOPCon
Cell Efficiency 25%
Power Tolerance 0~5%
Maximum System Voltage 1000V DC
Maximum Series Fuse Rating 25A
First Year Degradation Rate <1%
Linear Degradation Rate 0.4%
Commitment to maintain 84.5% output 25 years

*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.

Specifications

Dimension 1304 × 770 × 35mm(51.34"L × 30.31"W × 1.38"H)
Weight 10.8kg(23.81 lb)
Cell Arrangement 80pcs (4 × 10) × 2
Glass 3.2mm Tempered Glass
Frame Anodized Aluminium Alloy
IP Rating IP68
Max. Wind Load/Snow Load 2400Pa/5400Pa
Connector Solar Connector Compatible

Temperature Coefficients

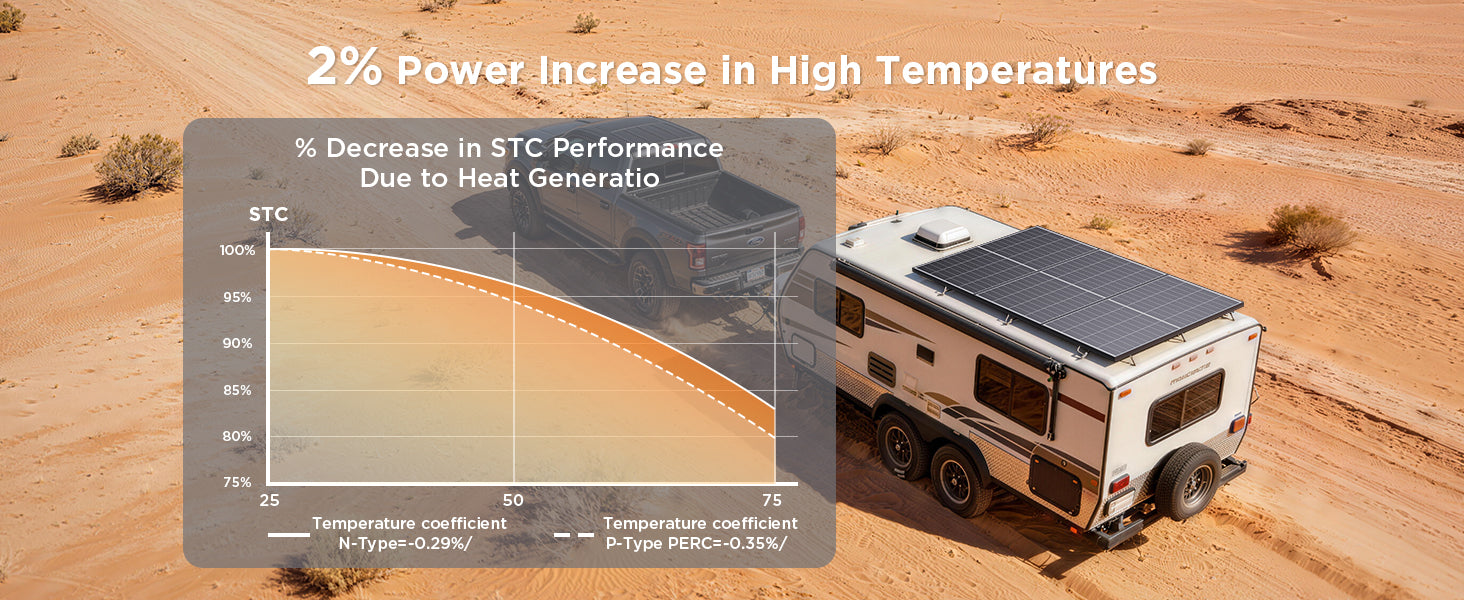

Temperature Coefficients of Pmax -0.30%/K
Temperature Coefficients of Voc -0.25%/K
Temperature Coefficients of Isc 0.045%/K
Operating Temperature(°C) -40°C ~ 85°C (-40°F ~ 185°F)

Includes

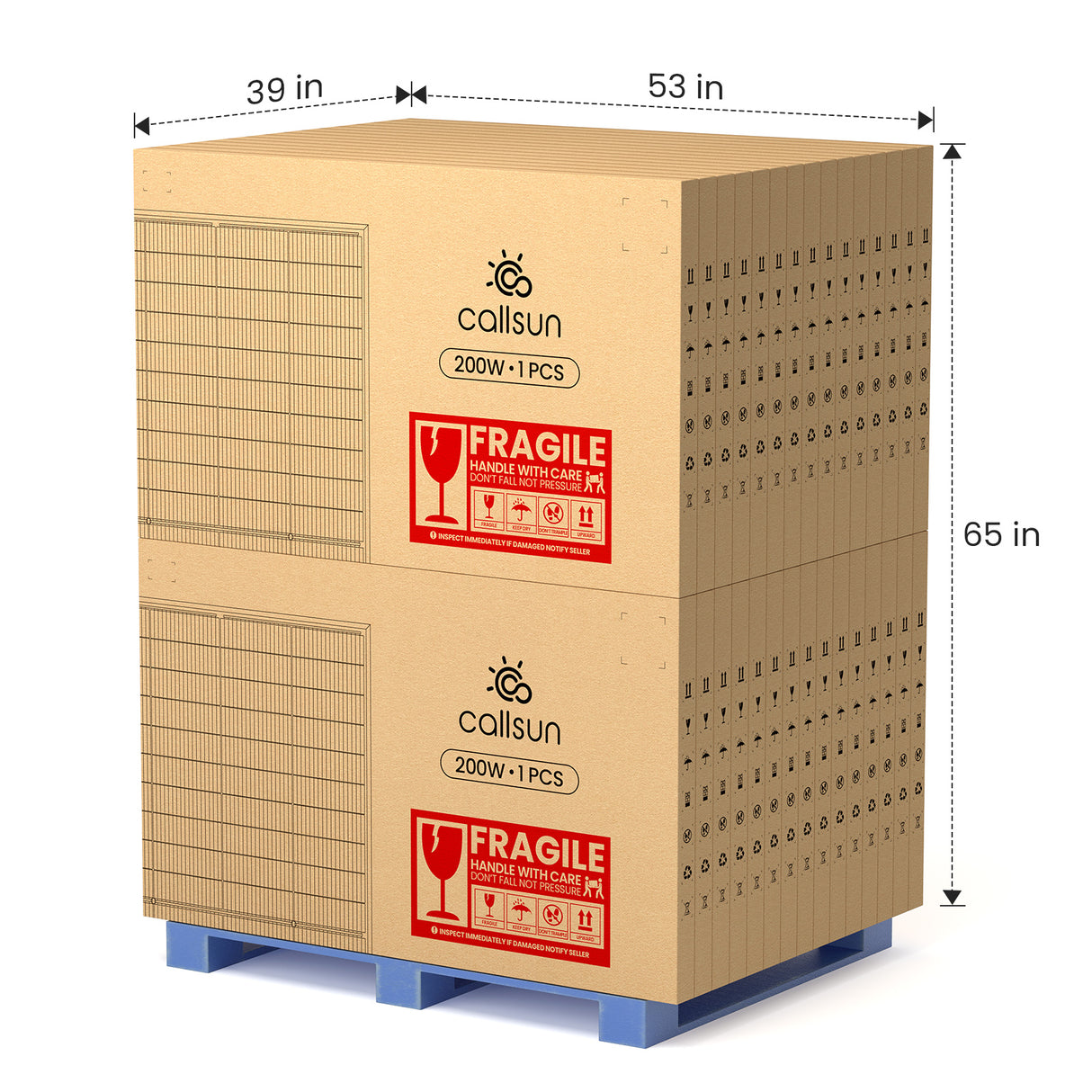

1 Piece: 200W N-Type Anti-Shade Bifacial Solar Panel ×1

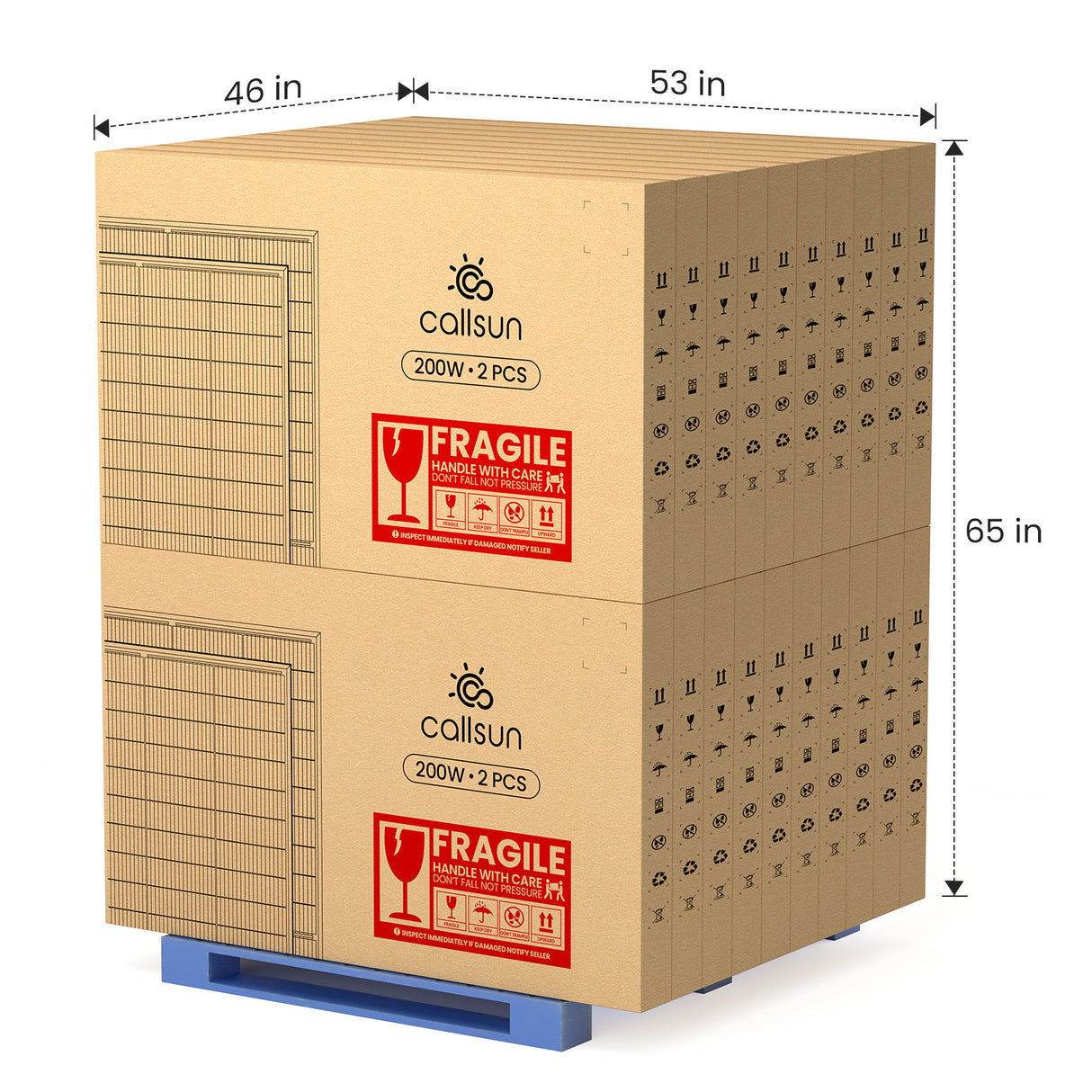

2 Piece: 200W N-Type Anti-Shade Bifacial Solar Panel ×2

Downloads & View

User Manual

View Download

FAQ

1. Why is the actual output sometimes lower than 200W?

The 200W rating is measured under Standard Test Conditions (STC): ideal sunlight and temperature. In real use, sun angle, heat, shading, wiring loss, and device efficiency affect output. So power below 200W is normal and does not indicate a defect.

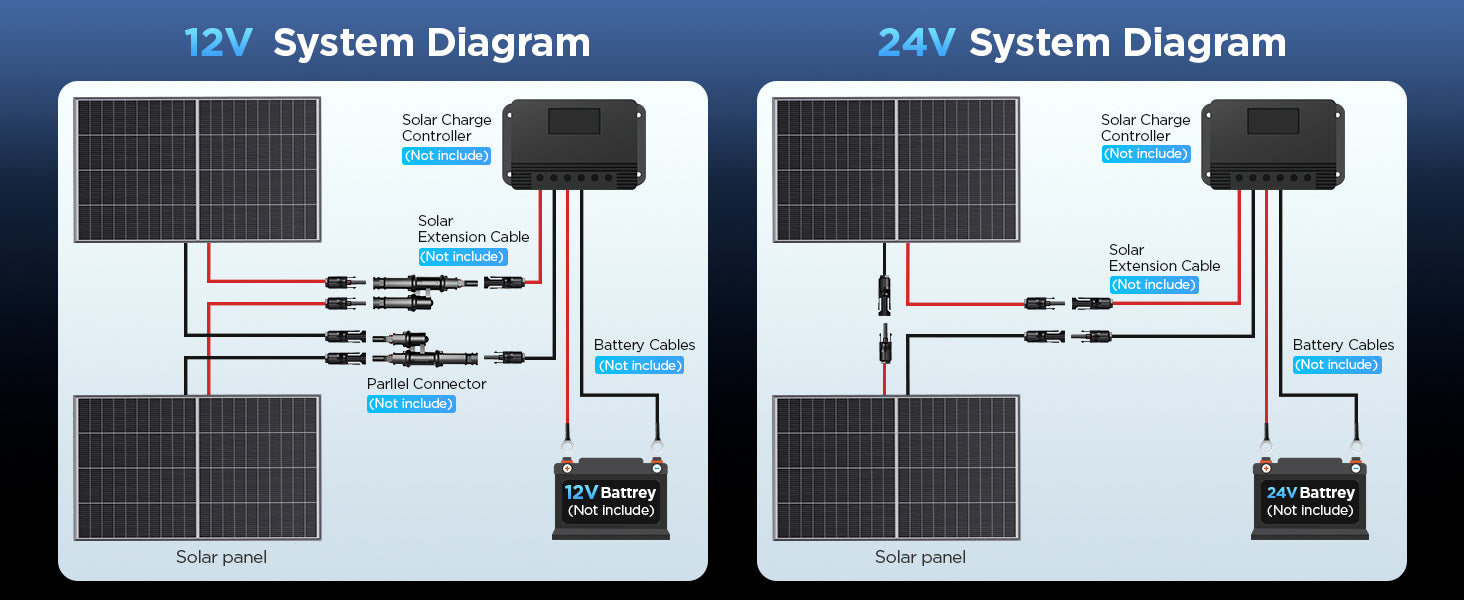

2. Why are two Callsun 200W panels in series ideal for 60V portable power stations?

Each Callsun 200W panel has a Voc of ~27.3V. Connecting two in series gives ~54.6V, safely within most 60V power stations’ input range. This allows the MPPT controller to operate more efficiently, improving power conversion and charging speed.

3. Can this panel work with different solar generators or battery systems?

Yes, the 200W N-type 16BB bifacial solar panel is compatible with most popular solar generators and battery systems. It comes equipped with standard solar extension connectors, making it easy to integrate with a wide range of solar power setups.

4. What does "12V" mean in the product title, and why is it different from the panel's actual voltage?

On the product page, you may see a title like "xxx Watt 12 Volt Solar Panel." The "12V" does not refer to the panel's voltage (Voc or Vmp). It simply means the panel is suitable for use in a 12V system.
