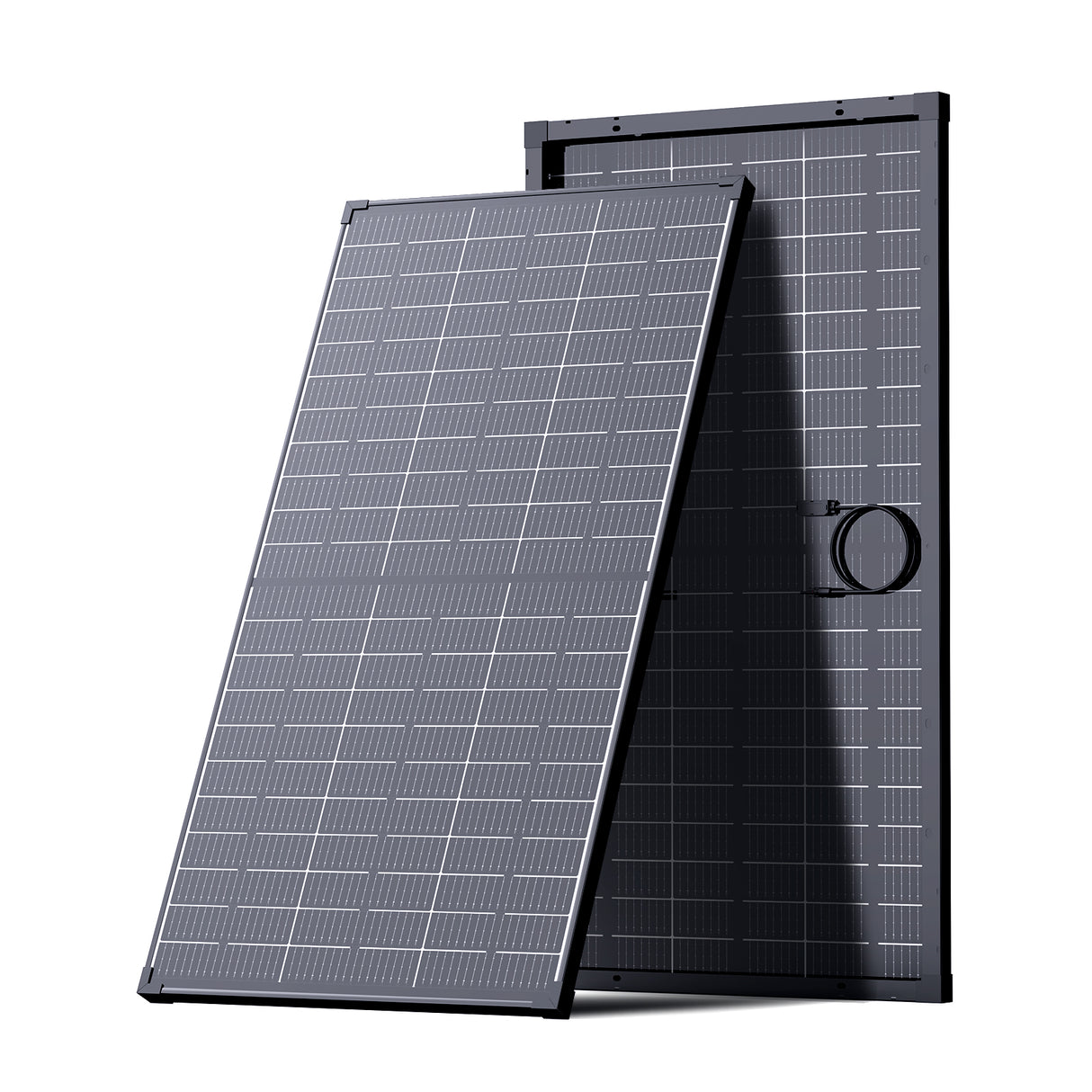

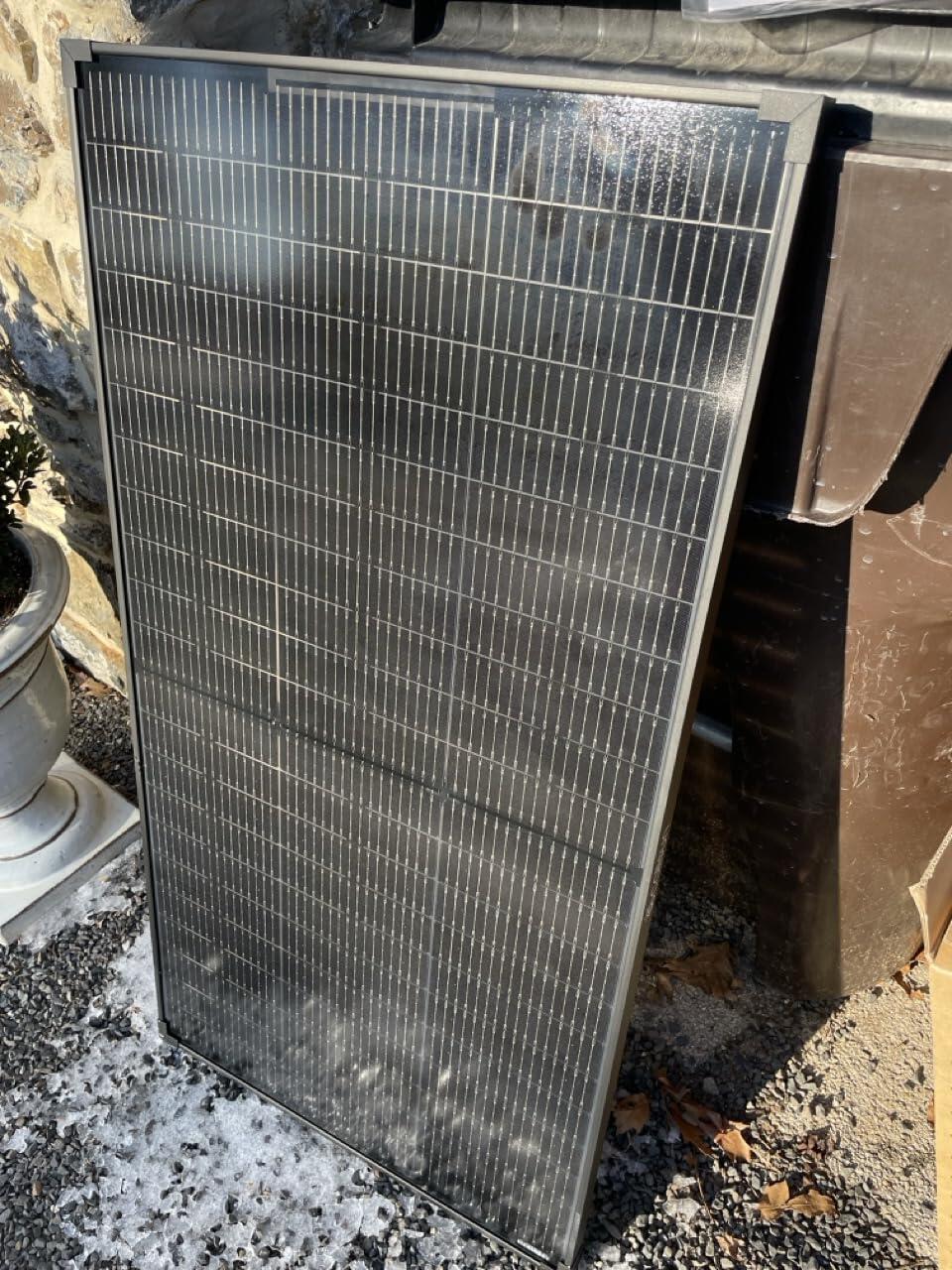

120W N-Type Bifacial Solar Panel
Key Features
• 50% Yield in Half Shade Advanced parallel circuitry and TwinCell design maintain 50% power output during partial shading

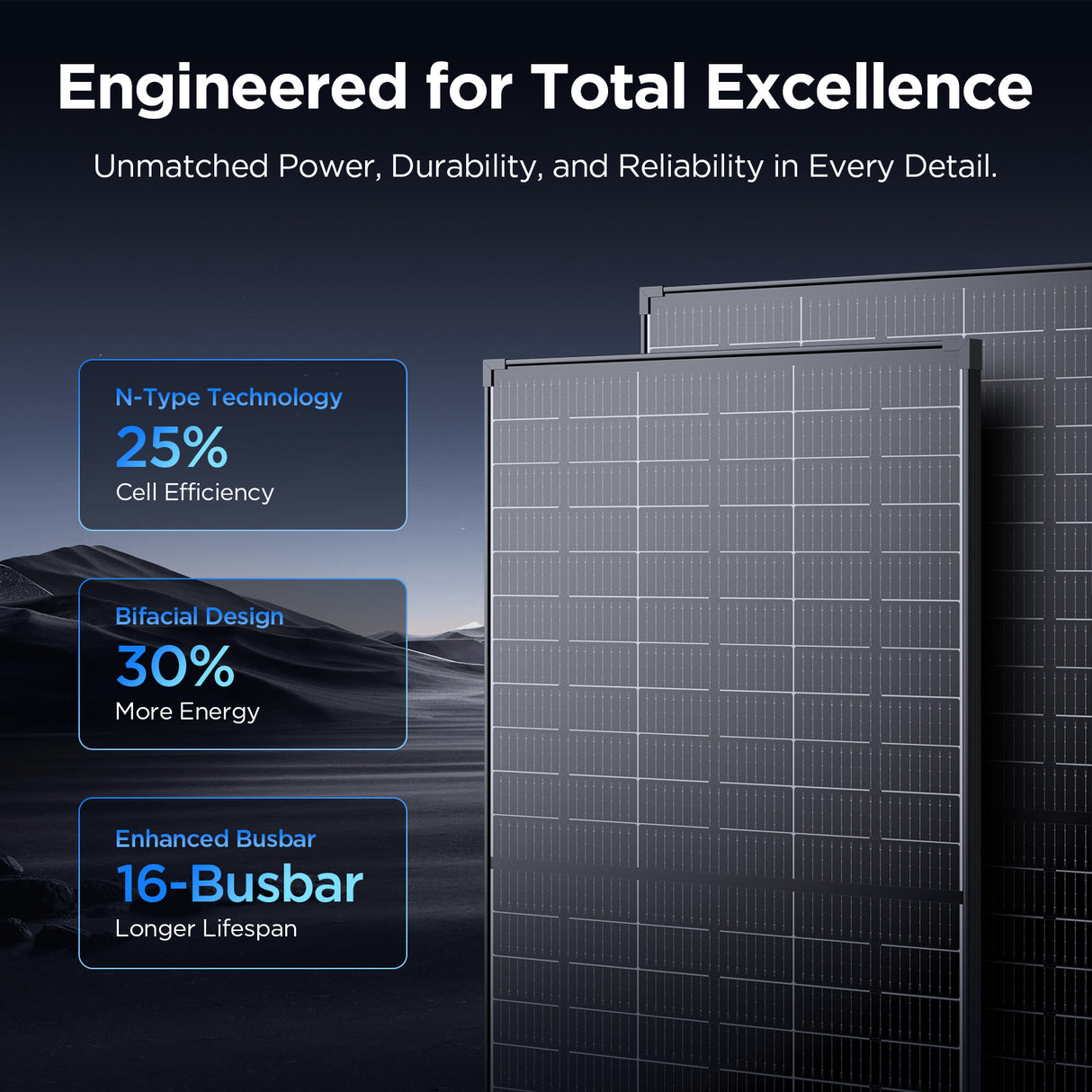

• 25% Efficiency N-Type Cells High-performance 16BB technology delivers 25% conversion efficiency
• IP68 Waterproof Certified for superior durability and protection against harsh environmental conditions
• 12V/24V System Versatility Engineered for easy integration into diverse off-grid solar power systems
• Enhanced Durability Features 3.2mm impact-rated glass and a rigid anodized aluminum frame for maximum longevity
120W N-Type Bifacial Solar Panel - 2 Pieces is backordered and will ship as soon as it is back in stock.
Delivery time: 3-8 business days.
30-Day Return and Refund Service
Warranty Coverage
Free Shipping120W N-Type Bifacial Solar Panel
The Callsun 120W Bifacial Solar Panel delivers high-efficiency and durable solar power for reliable off-grid energy anywhere.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |

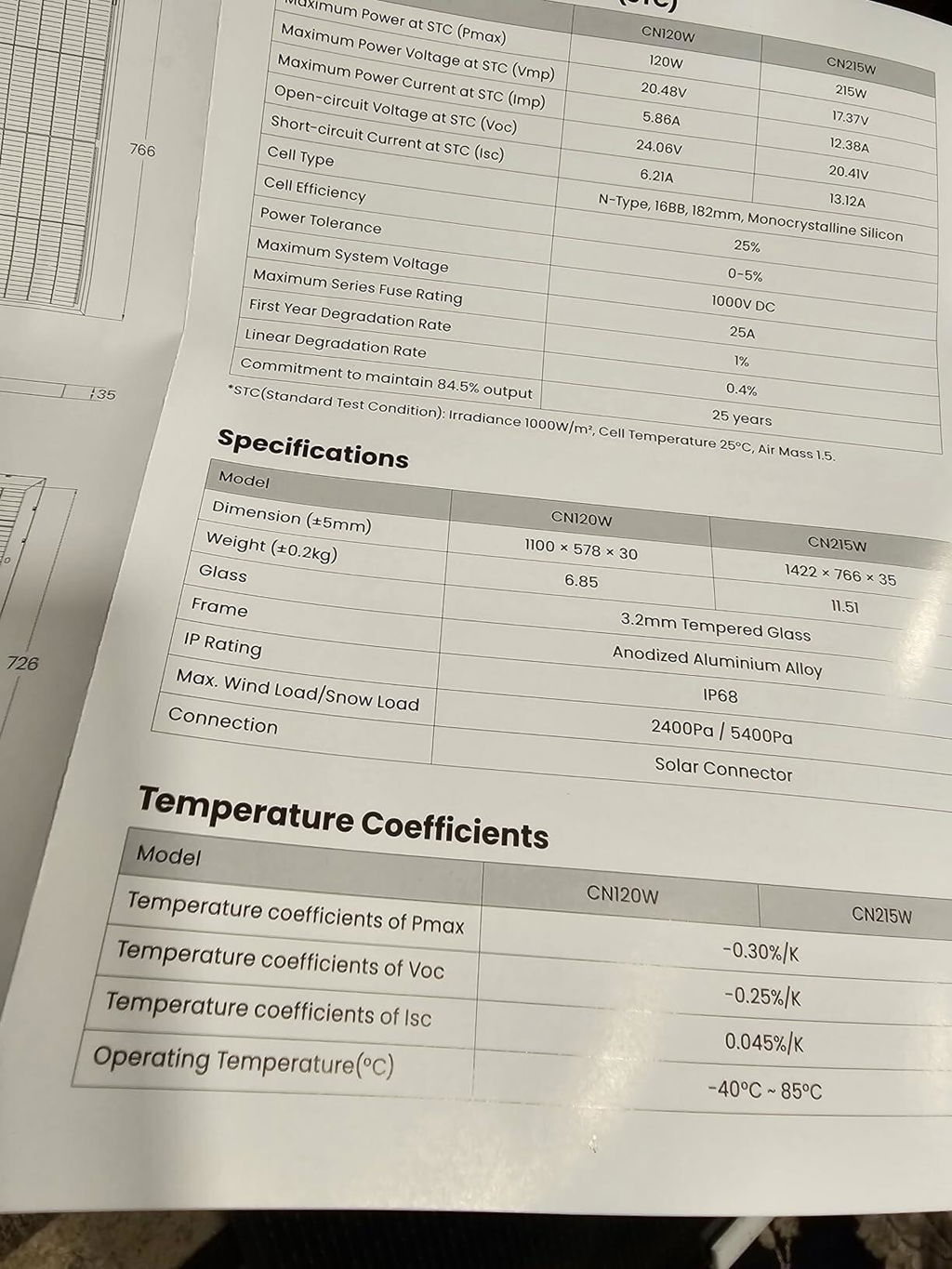

Specifications
Key Specs at a Glance: 120W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68

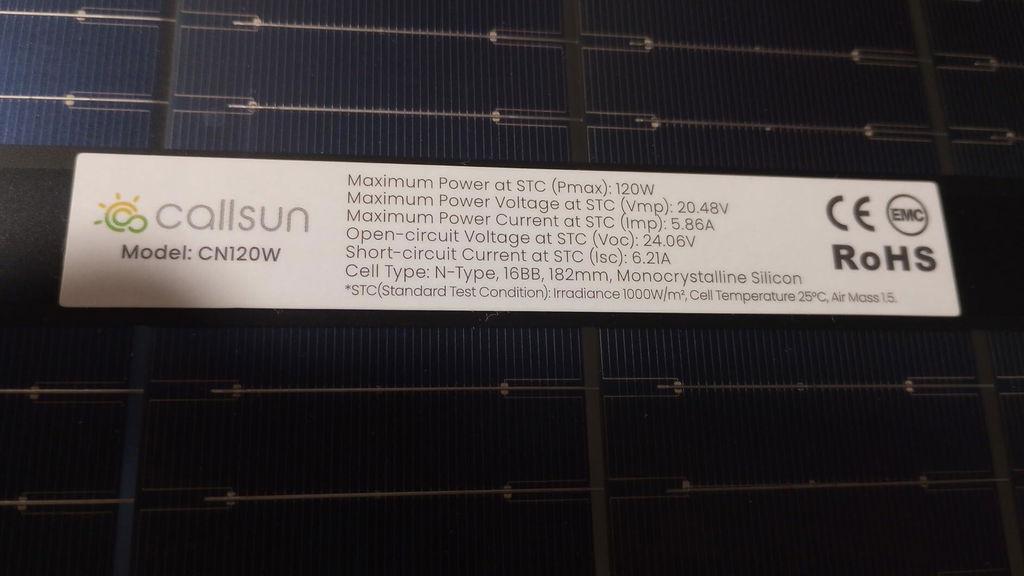

Mechanical Characteristics(STC)

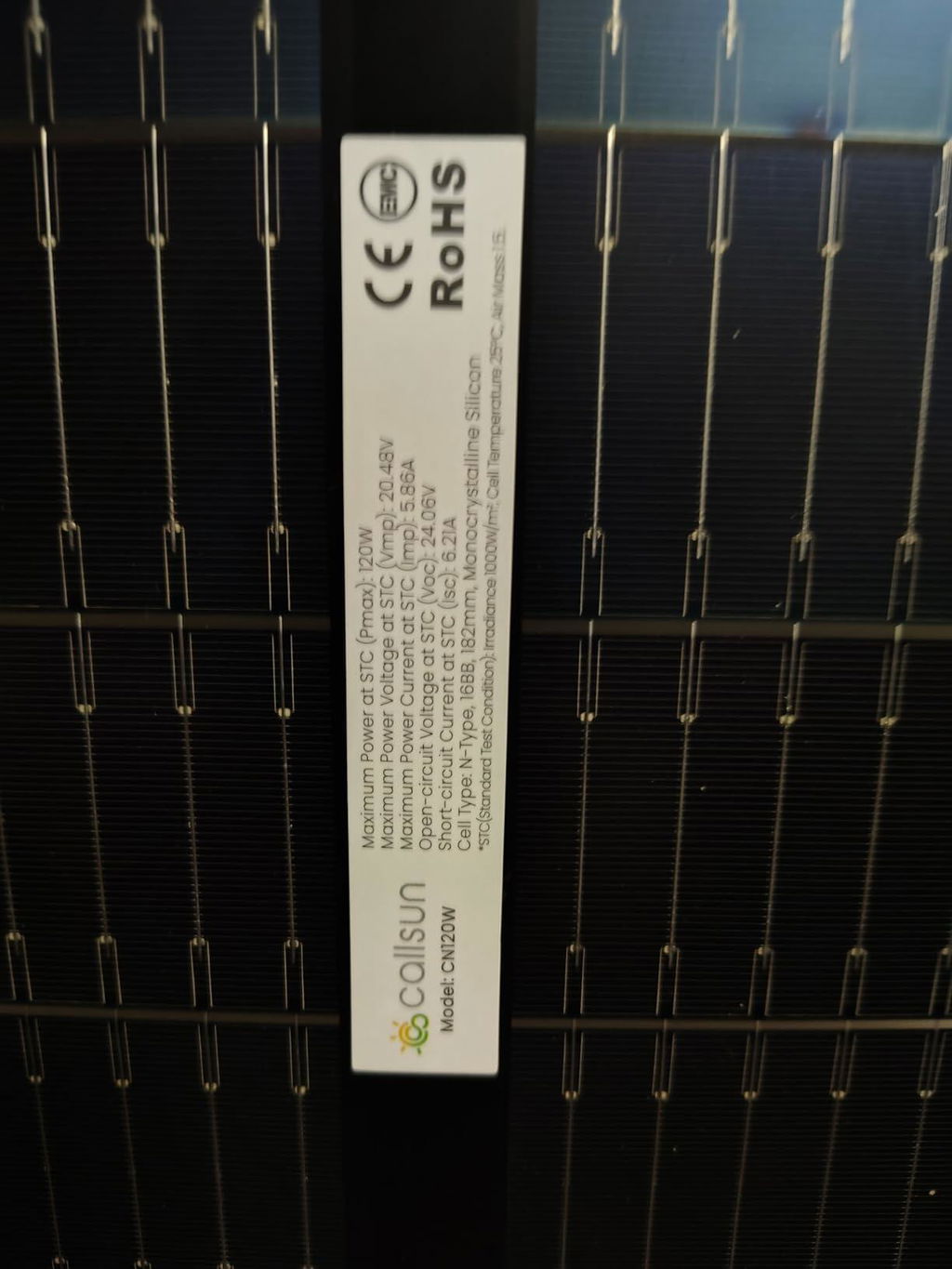

| Maximum Power (Pmax) | 120W |
|---|---|
| Maximum Power Voltage (Vmp) | 20.48V |
| Maximum Power Current (Imp) | 5.86A |
| Open-circuit Voltage (Voc) | 24.06V |
| Short-circuit Current (Isc) | 6.21A |

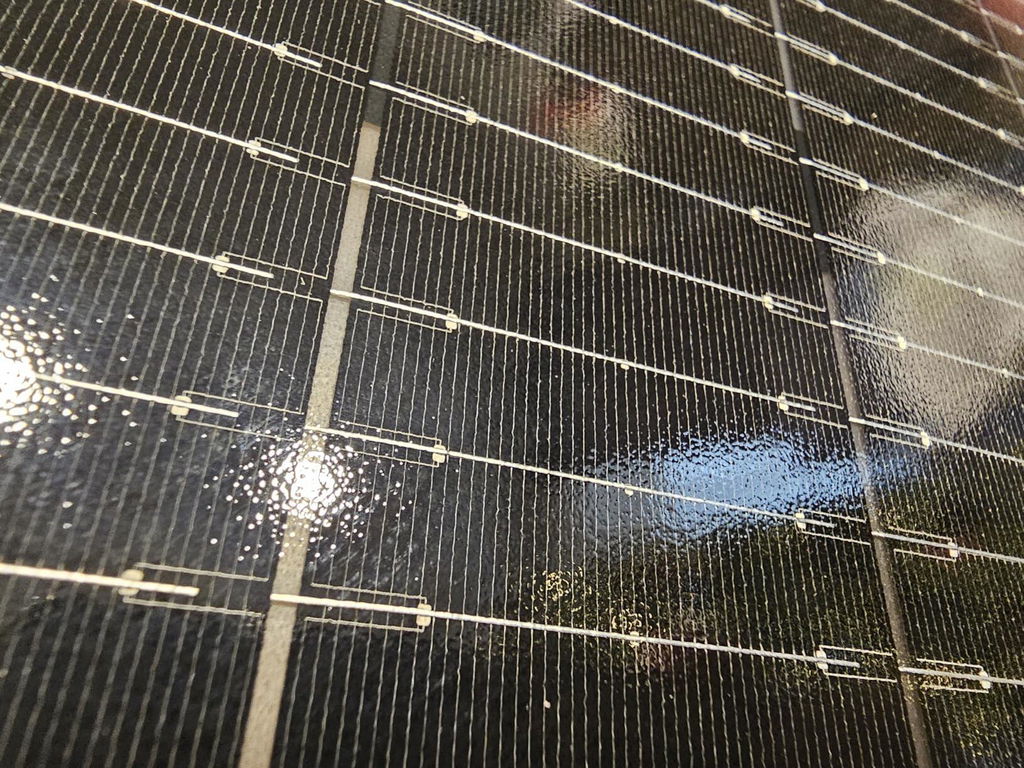

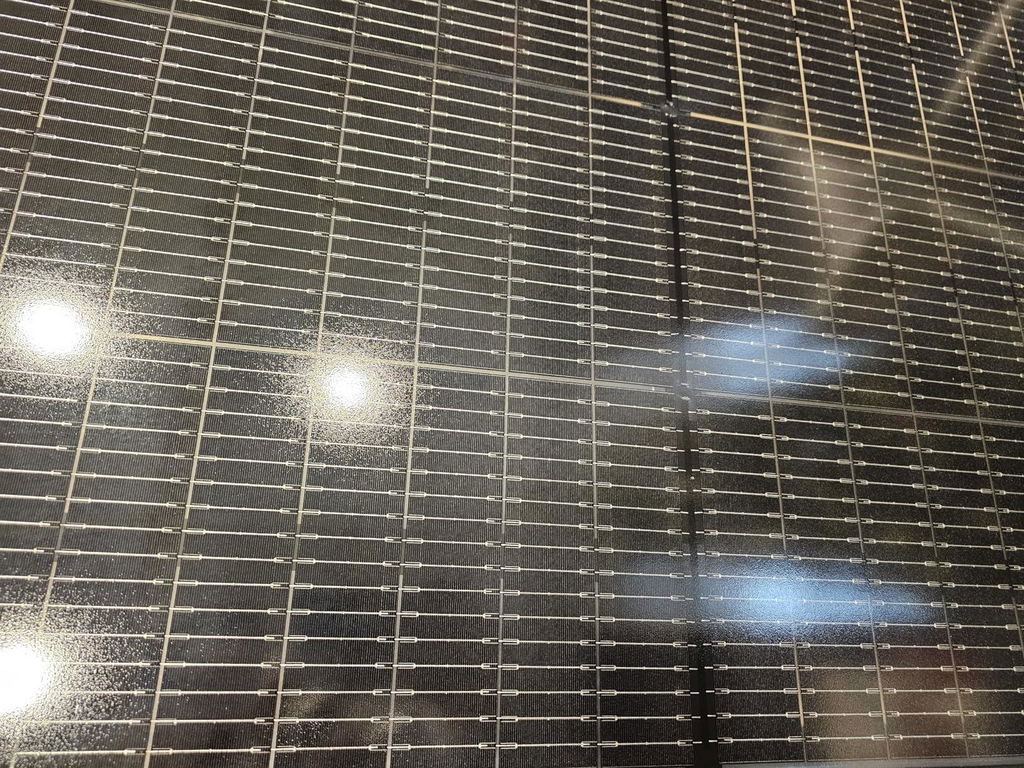

| Cell Type | N-Type,16BB, 182mm, Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications

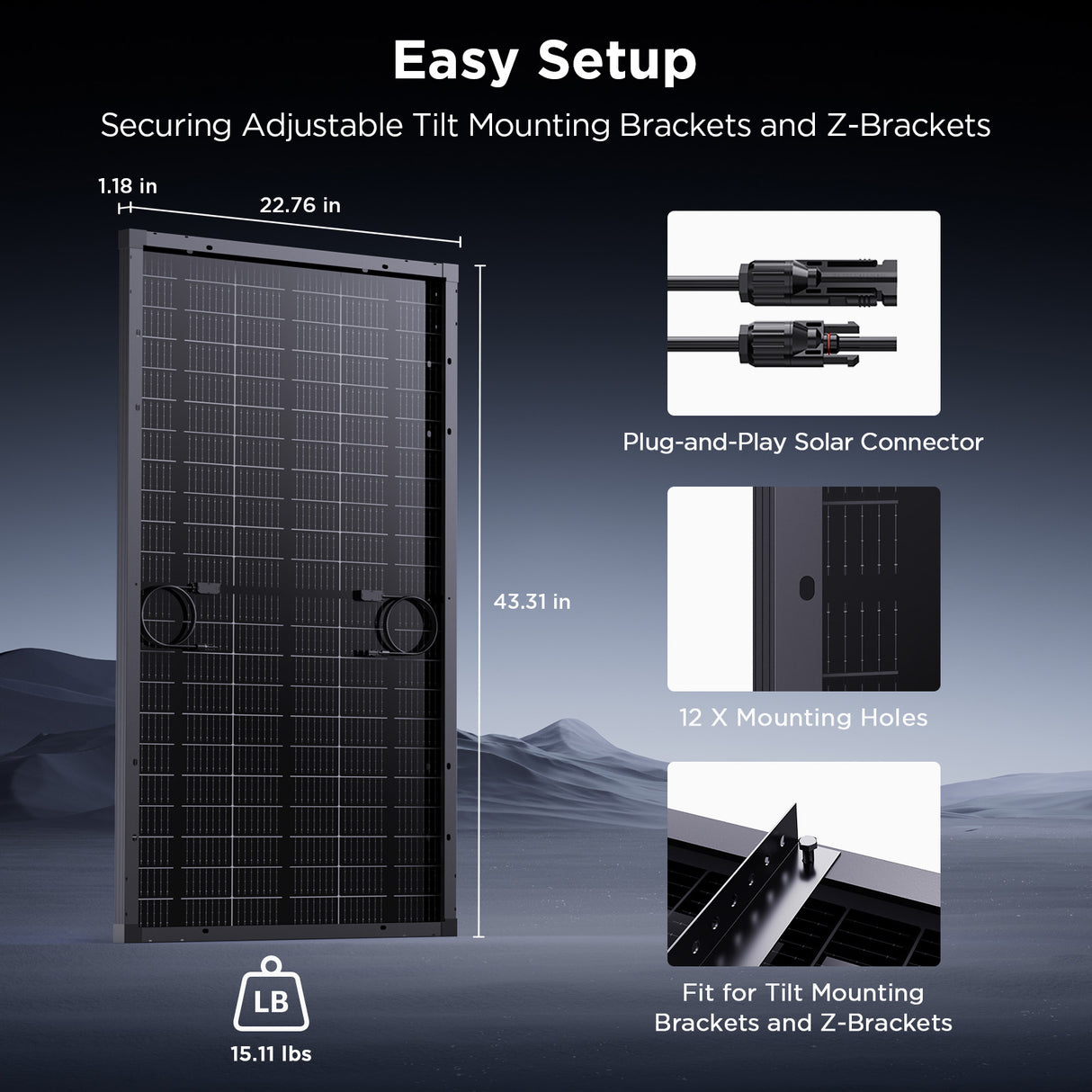

| Dimension | 1100 × 578 × 30 ±5mm(43.31 × 22.76 × 1.38 ± 0.2in) |
|---|---|
| Weight | 6.85 ±0.2kg (15.09 ±0.5lb) |
| Cell Arrangement | 80pcs (4 × 10) × 2 |

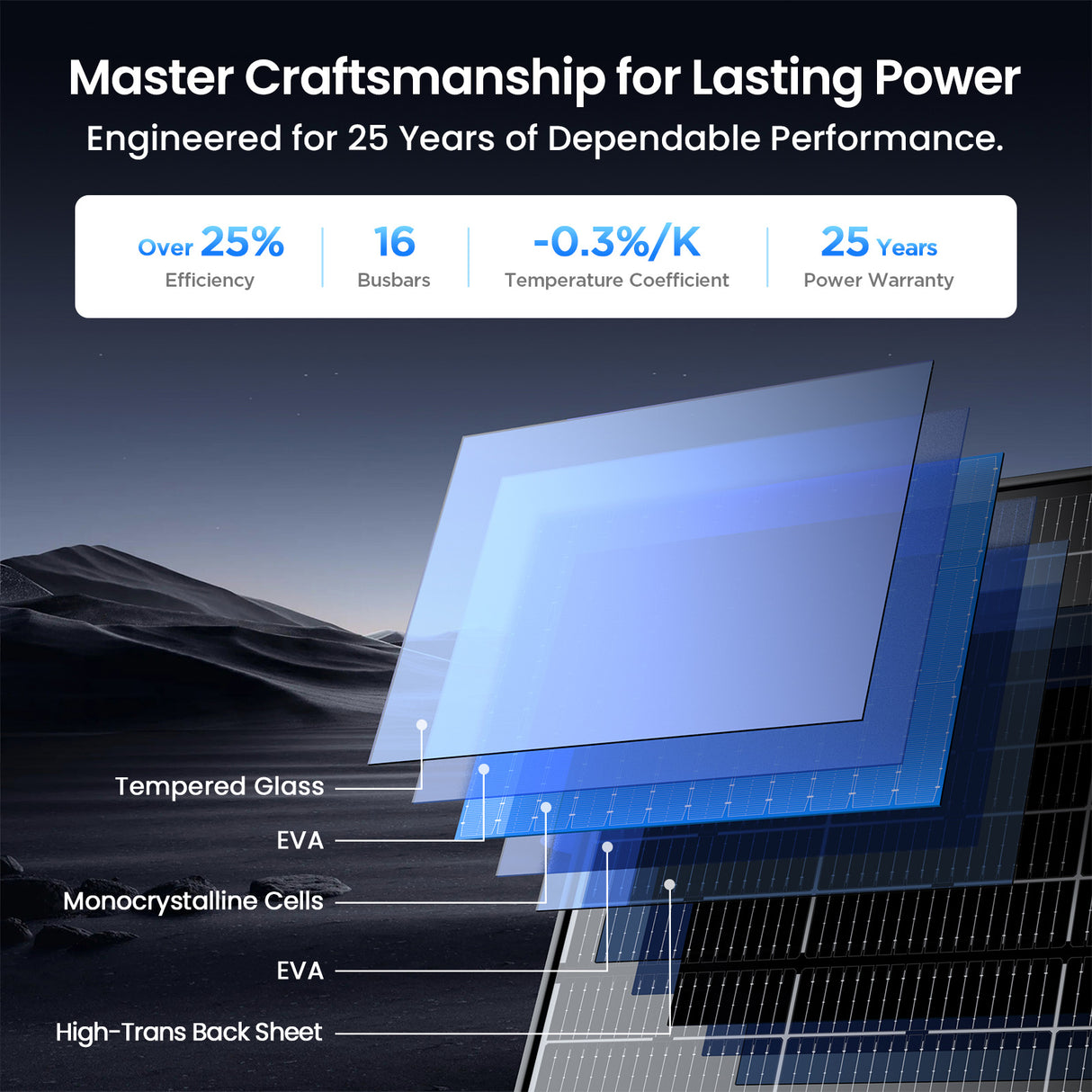

| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |

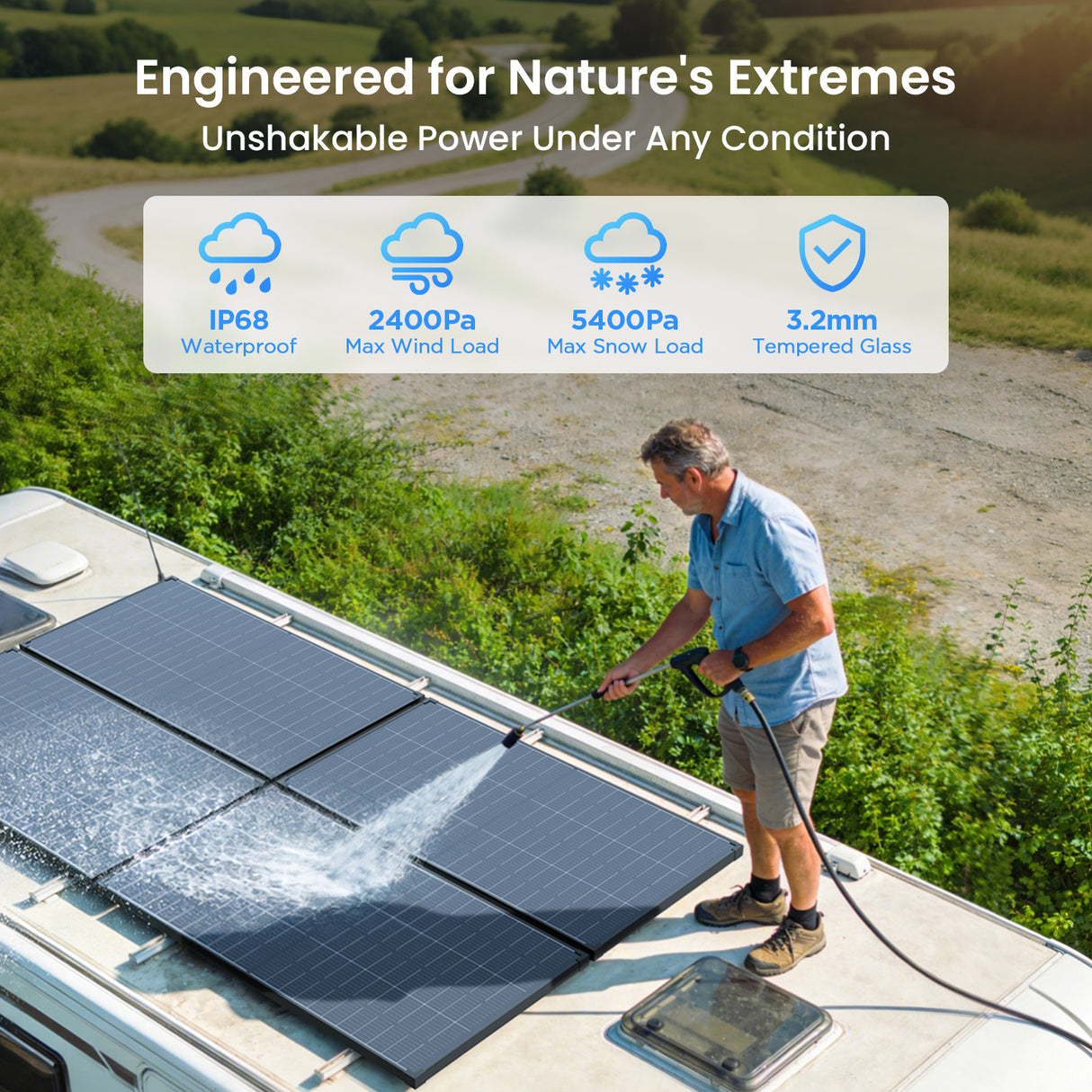

| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.30%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |

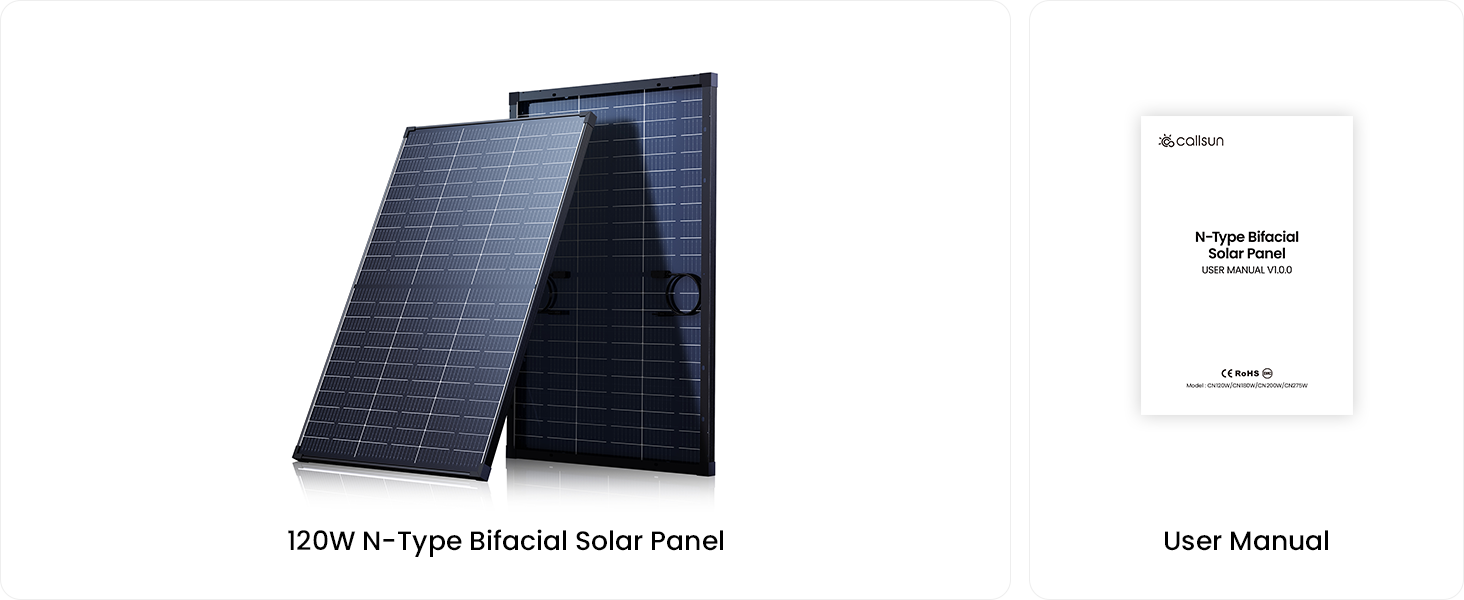

Includes
Downloads & View
User Manual
FAQ
1. What is the efficiency of the Callsun 120W N-Type Bifacial Solar Panel?
The Callsun 120W N-Type Bifacial Solar Panel uses advanced N-Type 16BB technology to achieve an industry-leading 25% conversion rate, outperforming standard solar panels and allowing your portable power stations to recharge faster and more efficiently.
2. How does the Callsun 120W N-Type Bifacial Solar Panel perform in reflected or low-light conditions?

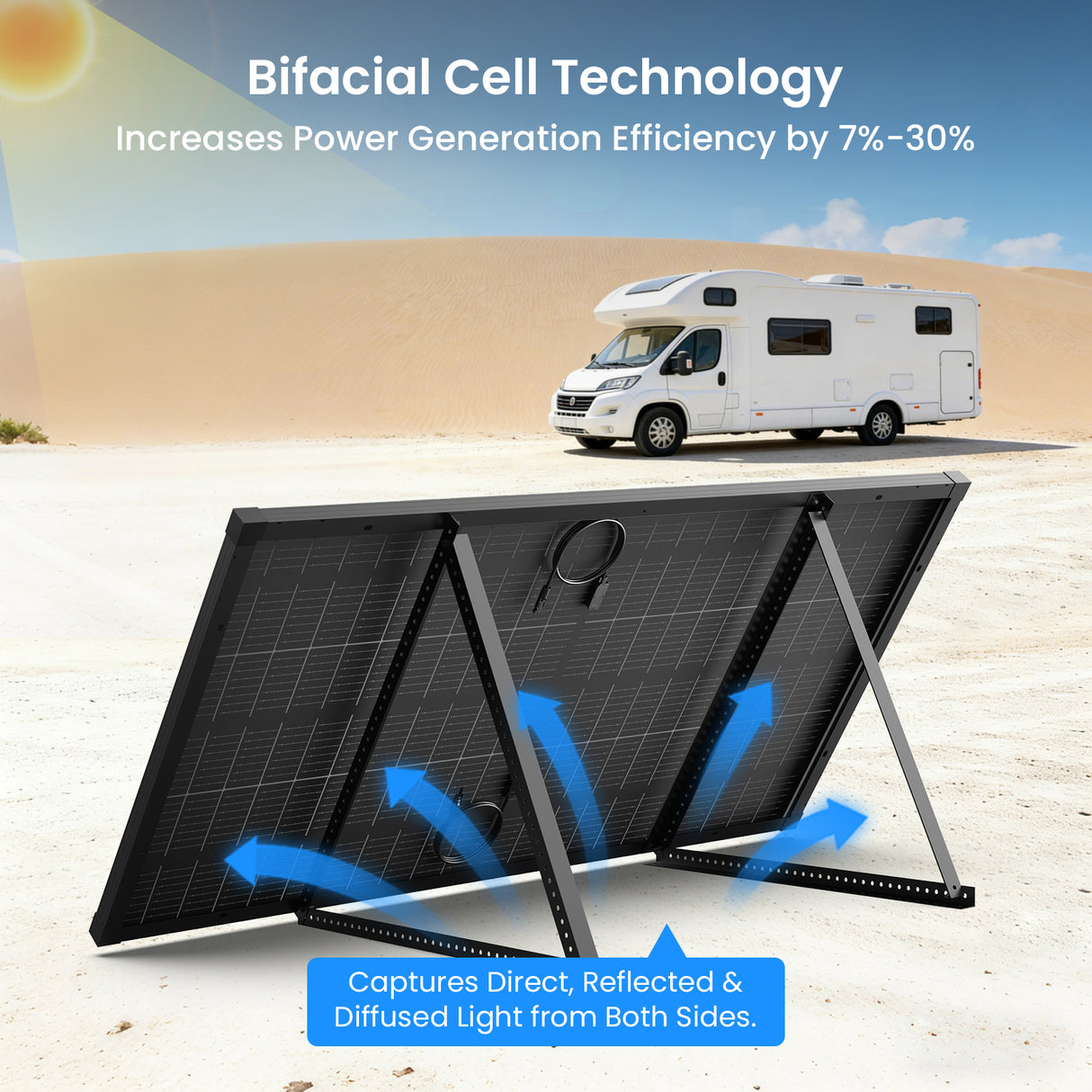

This Callsun 120W N-Type Bifacial Solar Panel can capture reflected light from surfaces such as snow, sand, or white decks, boosting energy output by up to 30%. It also maintains high performance in low-light conditions, including cloudy days, dawn, or dusk, ensuring your off-grid power stays reliable.
3. Can this 120W solar panel be connected in series or parallel?
Yes. You can connect multiple 120W panels in series to increase voltage, or in parallel to increase amperage. Always ensure the combined voltage/current does not exceed your charge controller's limit.

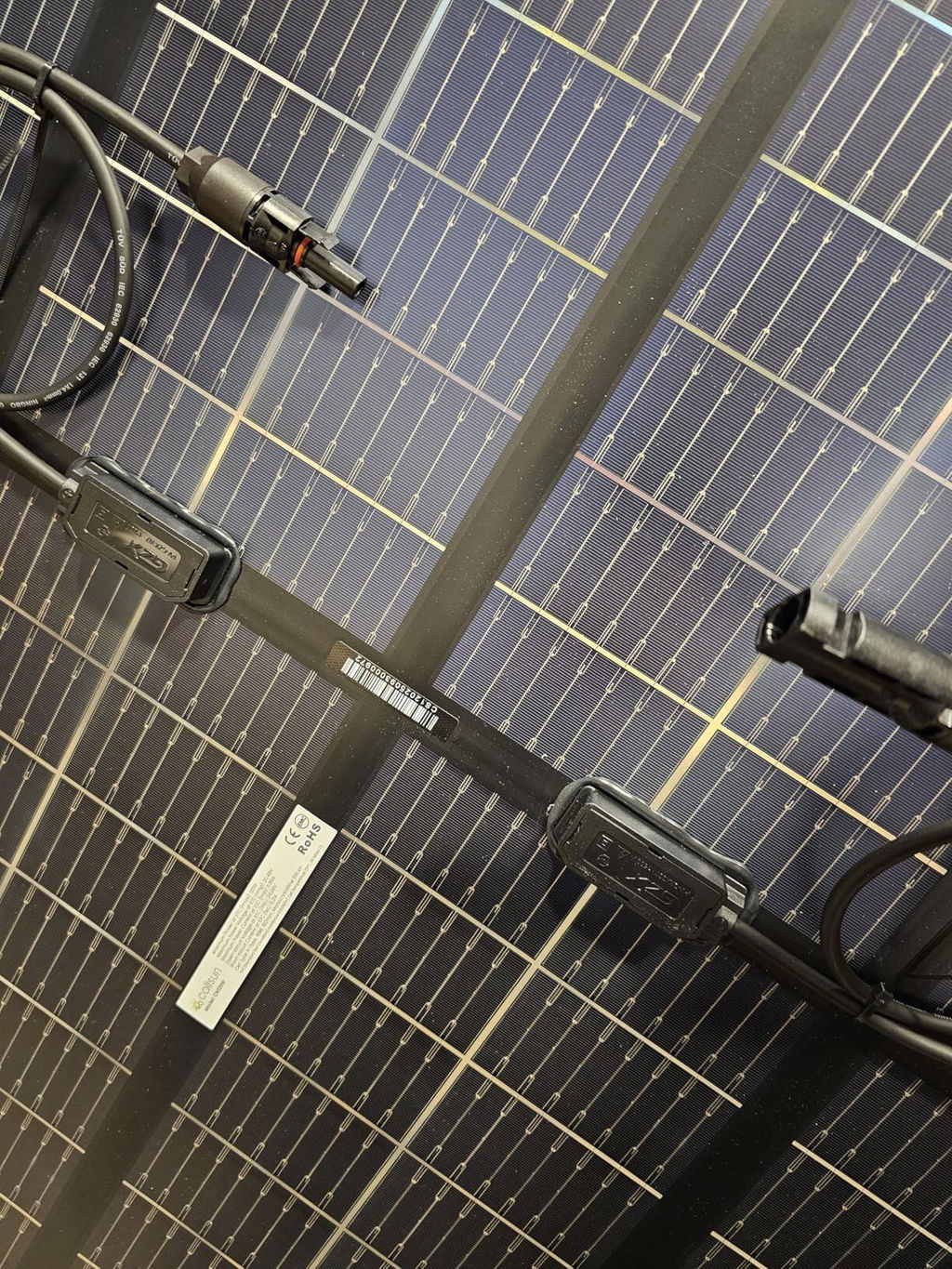

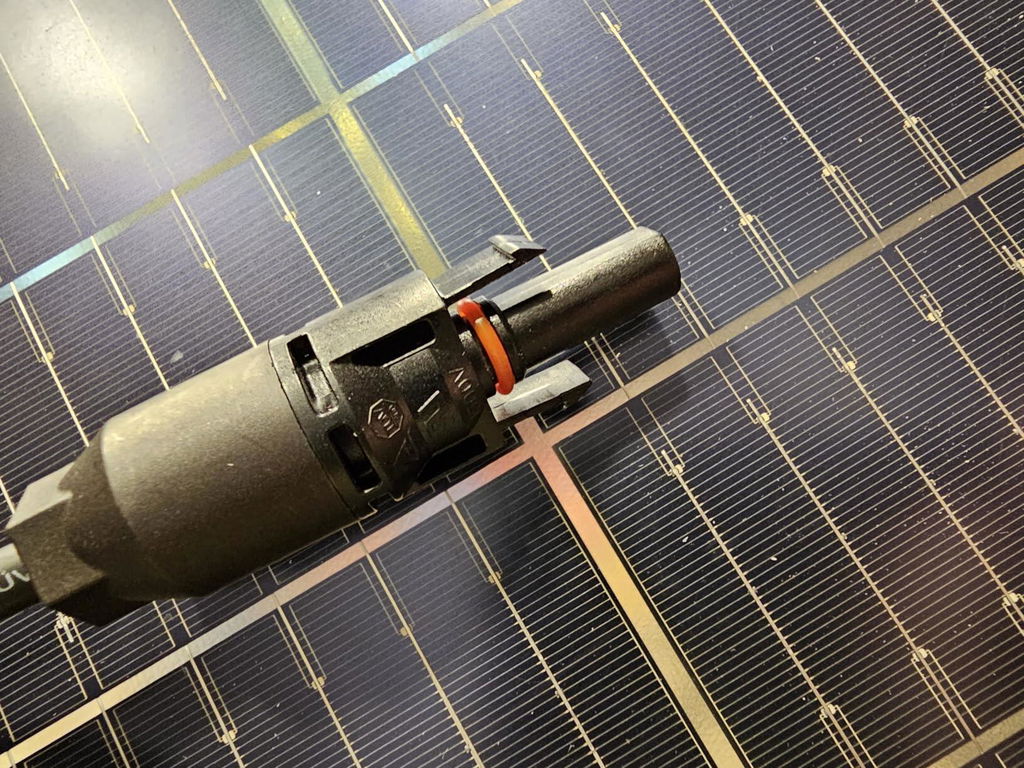

4. What connectors does it come with? Can it plug into my power station directly?

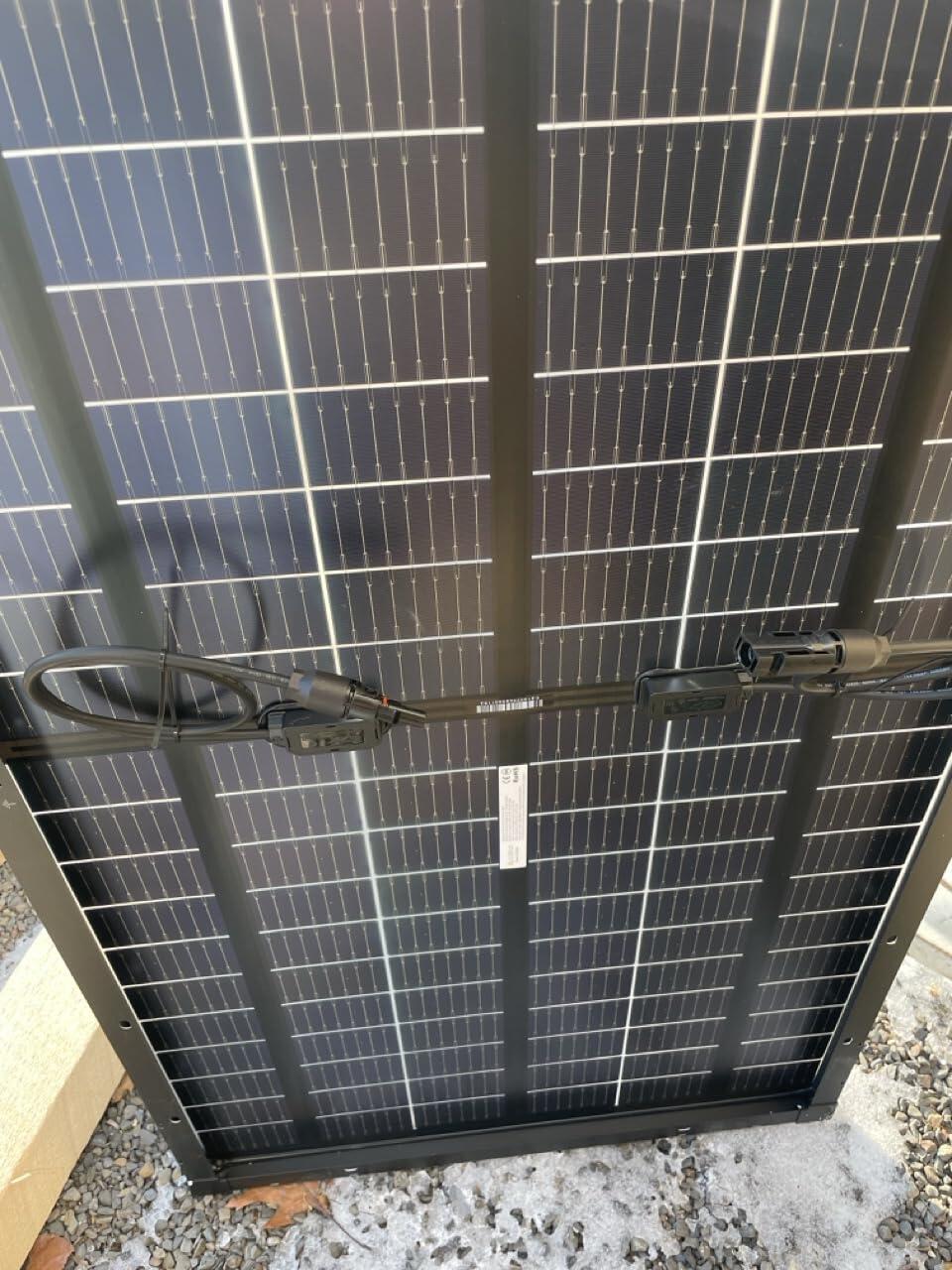

It comes with standard solar connector cables. If your portable power station uses a different input port (such as DC 8mm, XT60, or Anderson), you will need a matching adapter cable to complete the connection.
