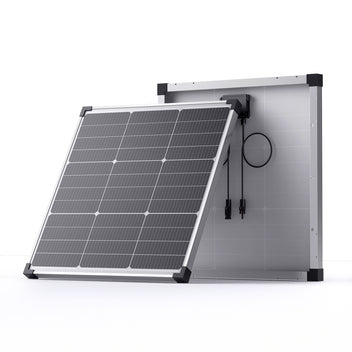

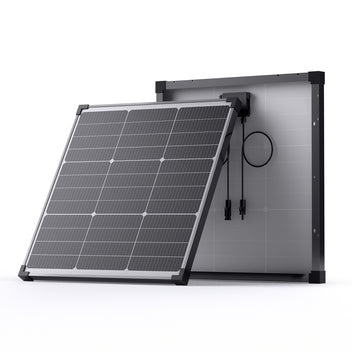

50W N-Type Solar Panel
Key Features
• 25% Efficiency N-Type Cells Advanced 16BB technology delivers 25% conversion efficiency
• Superior 16BB Performance 16 busbar design improves current collection capability compared to standard 9BB cells
• Extreme Weather Resilience Built to withstand 2400Pa wind loads and 5400Pa snow loads
• IP68 Waterproof Durability Features IP68 protection with impact-resistant tempered glass and a corrosion-resistant frame
• Long-Term Performance Backed by a 20-year commitment to maintain 84.5% power output
Colors
50W N-Type Solar Panel - 1 Piece is backordered and will ship as soon as it is back in stock.
You May Also Need
-
41in Adjustable Solar Panel Mount Brackets
Regular price $49.99Unavailable -
Adjustable Solar Panel Tilt Mount Brackets
Regular price $35.99Unavailable -
Solar Panel Mounting Z Brackets
Regular price $9.99Unavailable -
20FT 10AWG Solar Panel Extension Cable
Regular price $29.99Unavailable -
8.2FT 11AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs
Regular price $19.99Unavailable -
Solar Y Branch Connectors MMF+FFM Pair
Regular price $9.99Unavailable -
Regular price $27.99Unavailable
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 15% | Larger size |
IP68 All-Weather Durability
Tempered glass and corrosion-resistant aluminum withstand harsh weather, while pre-drilled holes simplify secure outdoor installation.
Up to 25% Efficiency
Advanced N-Type cells deliver up to 25% efficiency, maximizing energy conversion and power output over standard P-Type cells.
Multi-Layer Durability Design
Low-iron tempered glass, POE films, N-Type cells, TPT backsheet, and aluminum frame deliver lasting structural durability.
2.5% More Power in Heat
N-Type technology with a -0.29%/°C temperature coefficient reduces heat-related losses, delivering up to 2.5% more power.
20-Year Performance Guarantee
Maintains 84.5% output after 20 years, with IP68 protection and strong resistance to wind, snow, and harsh conditions.
Understand Standard Test Conditions
STC uses 1000 W/m² irradiance, 25°C cell temperature, and AM1.5 spectrum to define rated solar performance.
Optimal 30°–45° Installation Angle
Position panels at 30°–45° for optimal sunlight exposure, maximizing energy generation and reducing efficiency losses.
Advanced 16BB Cell Technology
16BB technology improves current collection and energy capture, delivering higher power output than conventional 9-busbar cells.
Accurate Solar Panel Testing
Power stations may limit input or cause charging losses; use a dedicated solar tester for more accurate performance results.
Reliable Solar for RVs
High-efficiency solar panels keep RV batteries charged and appliances powered with durable performance for life on the road.
Portable Solar for Camping
Compact, high-efficiency solar panels provide dependable off-grid power for camping, outdoor adventures, and remote energy needs.
Reliable Solar for Boats
Durable, high-efficiency solar panels withstand harsh marine conditions while keeping boat batteries charged and essential electronics powered.
Solar Power for Overlanding
Durable, high-efficiency panels mount securely to roof racks, providing reliable off-grid power for overland vehicles and expeditions.
Compatibility
Works with 100+ Portable Power Stations
| Model | Compatible | Recommended/Note |
|---|---|---|
| Elite 30 V2 | YES | 3×50W(Parallel) |
| Elite 100 V2 / 200 V2 | YES | 7×50W(Parallel) |
| Elite 300 | YES | 8×50W(Parallel) |
| Elite 400 | YES | 7×50W(Parallel) |
| AC2A | YES | 3×50W(Parallel) |
| AC50B / EB3A | YES | 3×50W(Parallel) |
| AC70 | YES | 3×50W(Parallel) |
| AC180 | YES | 3×50W(Parallel) |
| AC200L | YES | 7×50W(Series) |
| AC300 | YES | 7×50W(Series) |
| AC500 | YES | 7×50W(Series) |
| Apex 300 | YES | 7×50W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Delta pro | YES | 7×50W(Series) |
| Delta 2 / 2 Max | YES | 5×50W(Parallel) |
| Delta 3 / 3 Plus | YES | 5×50W(Parallel) |
| Delta 3 Max | YES | 5×50W(Parallel) |
| Delta 3 Max Plus | YES | 7×50W(Parallel) |
| Delta pro 3 | YES | 7×50W(Series or Parallel)-XT60 |
| River 2 | YES | 2×50W(Parallel) |
| River 2 Pro | YES | 5×50W(Parallel) |
| River 2 Max | YES | 5×50W(Parallel) |
| River 3 | YES | 2×50W(Parallel) |
| River 3 Plus | YES | 5×50W(Parallel) |
| Delta Pro Ultra | YES | 7×50W(Series) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| SOLIX C300 / C300 DC | YES | 2×50W(Parallel) |
| SOLIX C800 | YES | 3×50W(Parallel) |
| SOLIX C1000 | YES | 4×50W(Parallel) |
| SOLIX C1000 Gen2 | YES | 5×50W(Parallel) |
| SOLIX C2000 Gen2 | YES | 6×50W(Parallel) |
| SOLIX F2000 | YES | 7×50W(Parallel) |
| SOLIX F2600 | YES | 7×50W(Parallel) |
| SOLIX 521 | YES | 1×50W |
| SOLIX 535 | YES | 2×50W(Parallel) |
| SOLIX F3000 | YES | 6×50W(Parallel) |
| SOLIX F3800 | YES | 10×50W(Parallel) |
| SOLIX F3800 plus | YES | 8×50W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| E300LFP | YES | 2×50W(Parallel) |
| E500LFP | YES | 2×50W(Parallel) |
| E600LFP | YES | 4×50W(Parallel) |
| E1000LFP | YES | 7×50W(Parallel) |
| E1500LFP | YES | 7×50W(Parallel) |
| E2000LFP | YES | 5×50W(Parallel) |
| E2400LFP | YES | 5×50W(Parallel) |
| E3600LFP | YES | 7×50W(Series or Parallel) |
| E3800LFP | YES | 7×50W(Series or Parallel) |
| F1000LFP | YES | 5×50W(Parallel) |
| F3000LFP | YES | 9×50W(Parallel) |
| F5000LFP | YES | 5×50W(Parallel) |
| Model | Compatible | Recommended/Note |
|---|---|---|
| Mega 1 | YES | 5×50W(Parallel) |
| Mega 2 | YES | 7×50W(Series) |
| Mega 2 Pro | YES | 11×50W(Parallel) |
| Exodus 2400 | YES | 5×50W(Parallel) |
| Exodus 1500 | YES | 9×50W(Parallel) |
| Exodus 600 Plus | YES | 4×50W(Parallel) |
| Exodus 600 | YES | 4×50W(Parallel) |
| Exodus 1200 | YES | 4×50W(Parallel) |
| Guardian 6000 | YES | 5×50W(Parallel) |
| B2 Extra Battery | YES | 9×50W(Parallel) |
Specifications
Key Specs at a Glance 50W output · N-Type · 25% efficiency · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 50W |
|---|---|
| Maximum Power Voltage (Vmp) | 20.16V |
| Maximum Power Current (Imp) | 2.51A |
| Open-circuit Voltage (Voc) | 23.51V |
| Short-circuit Current (Isc) | 2.64A |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 15A |
| First Year Degradation Rate | <3% |
| Linear Degradation Rate | 0.55% |
| Commitment to maintain 84.5% output | 20 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications
| Dimension | 578 × 608 × 30 ± 5mm(22.8 × 23.9 × 1.2 ± 0.1in ) |
|---|---|
| Weight | 4 ± 0.2 kg (8.8 ± 0.5 lb) |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.29%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
FAQ
1. How does the 16BB (Busbar) technology improve performance?
The 16BB technology boosts solar panel efficiency and reliability by minimizing energy loss during transmission. More busbars improve conduction, leading to higher power output and better performance, especially in high temperatures.
2. What advantages does an N-type solar panel have over a P-type solar panel?
N-type solar panels offer higher efficiency, better performance in high temperatures and low light, greater resistance to light-induced degradation (LID), and a longer lifespan, making them more reliable and durable over time.
3. Can this panel be used with different solar generators or battery systems?
Yes, the 50W N-type 16BB solar panel is compatible with most popular solar generators and battery systems. It comes equipped with standard solar extension connectors, making it easy to integrate with a wide range of solar power setups.
4. What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel?
When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.
50W N-Type Solar Panel
50W N-Type Solar Panel - 1 Piece is backordered and will ship as soon as it is back in stock.
I am a solar fanatic and have MANY panels of all sorts and sizes, and these are a new favorite. Between the N-type solar cells and the 16BB on these small, lightweight panels, they consistently produce more than rated in optimal conditions (angle, temp, clear sky), but even when partially shaded by either clouds or trees, they put out far more than any others. I bought four so I could wire them 2S2P if desired, and found a carry bag that will hold two of them (I use foam sheets to protect them) back to back. When I get around to it, I will make lightweight pvc stands for them, but for now I just lean them against my e-wagon I use to haul solar panels and power stations out to the yard. I highly recommend these panels!
I compared this side by side with a Renogy 50W. This one delivers 60W consistently while the other lags behind.
Even with thin clouds and late evening sun, I’m getting a steady charge through my Victron MPPT.
Verified here in SoCal. Hit 68 watts each with direct positioning. Absolutely awesome output for a 50W rated panel.
The 16BB tech is no joke. I’m getting 0.12 watts/sq. inch which is 20% better than my older Renogy setup.
Pretty cool seeing this max out at 72 Watts. Need I say more?
Peaking out at 68 watts each with March Sun and direct positioning in California is awesome! It means that since most of us don't get to utilize solar trackers, we'll likely get rated capacity in 'normal' conditions. Only downside is you'll have to be aware of the 'capability' when sizing the rest of your components. The 0.12 watts/sq. inch is 10 to 30% better than other panels from names you are familiar with. That is AWESOME!
Delivers 60w. Better then renogy 50w panel.
Compared both side by side.
Great panel. Was at 60 watts here in California. The inside surface a little rough being 3 d printed but a good panel for everyday use off the grid. Other folding
types are not for everyday use. The sun eats them Up . Easily transported, not like the 100 watts ones
Needed a couple of panels for 12v ventilation fans. They were inexpensive but seem to be high quality. When tested, they were generating 78 and 82 watts.
Needed a couple of panels for low wattage applications (running 12v ventilation fans). These were inexpensive, but seem to be of high quality.
And when tested upon receipt, they were generating 78 and 82 watts. So both panels well exceeded their 50 watt rating handily.
Hope they last, but all indications are that they are a quality product.

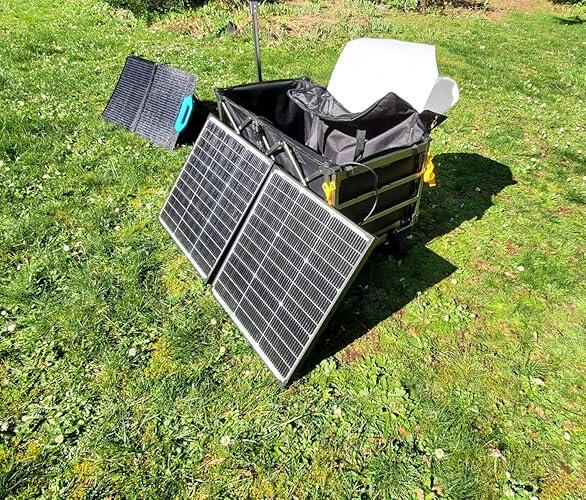

Easily transported, not like the bulky 100 watt ones. I use them for my e-wagon to haul power stations out to the yard. Highly recommend these panels!
