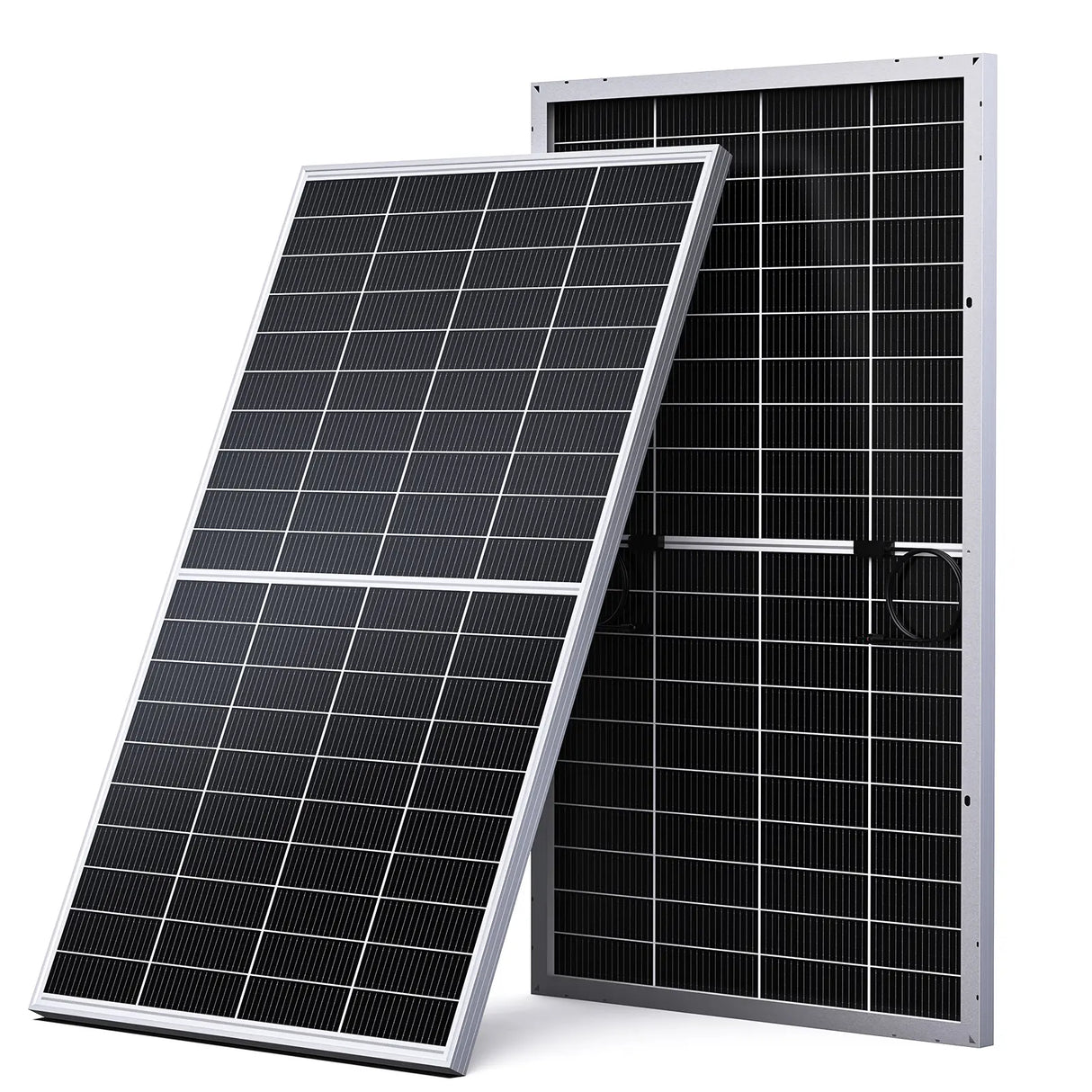

200W N-Type Bifacial Solar Panel – Silver Frame (Used – Excellent Condition)

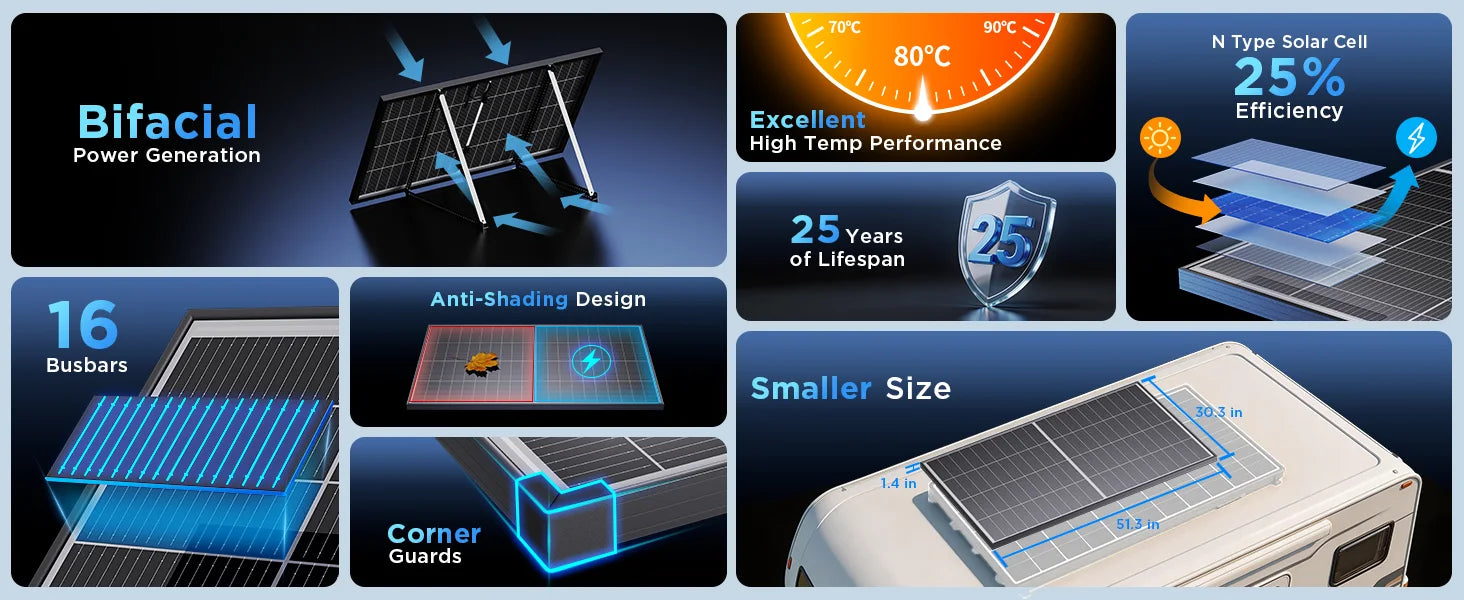

Key Features

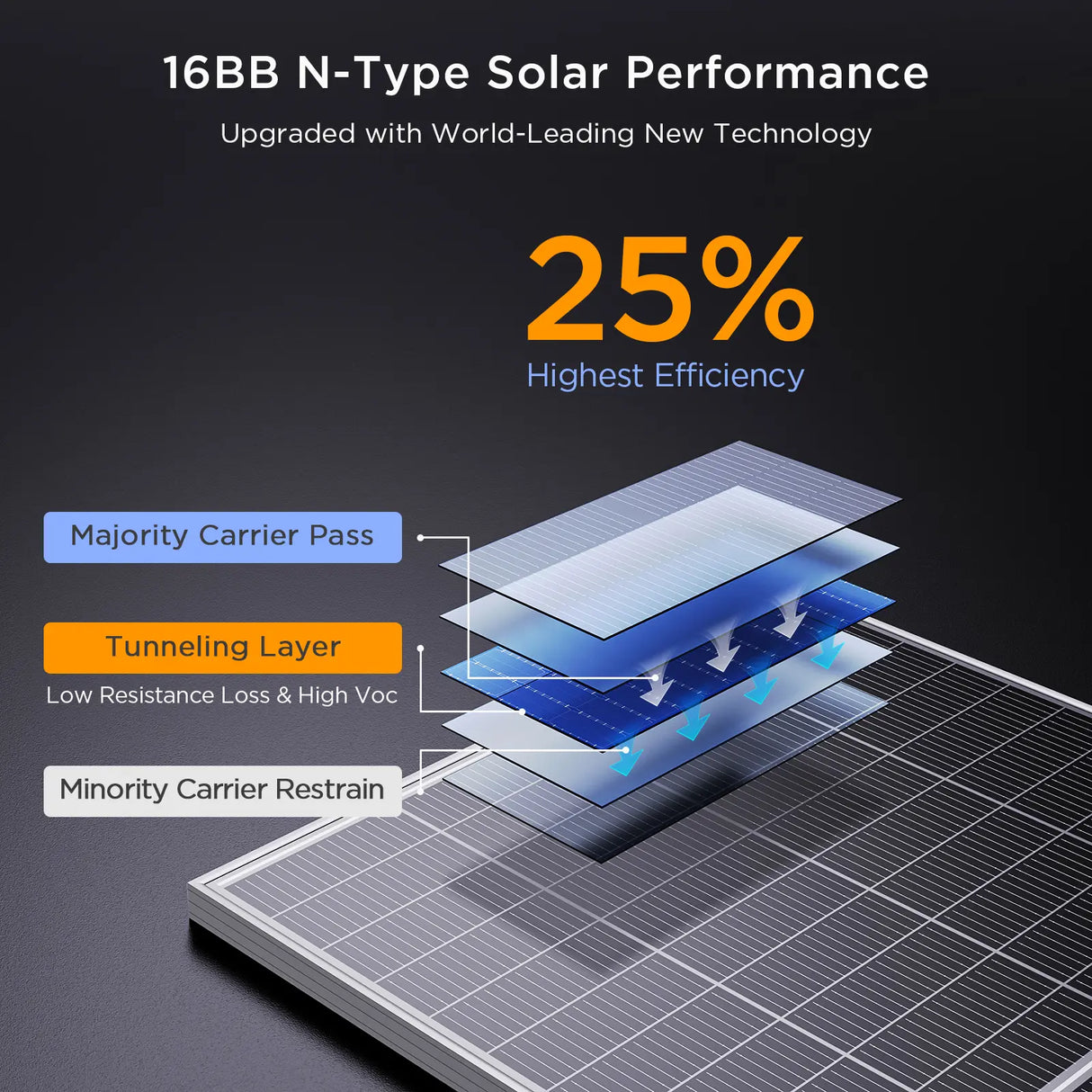

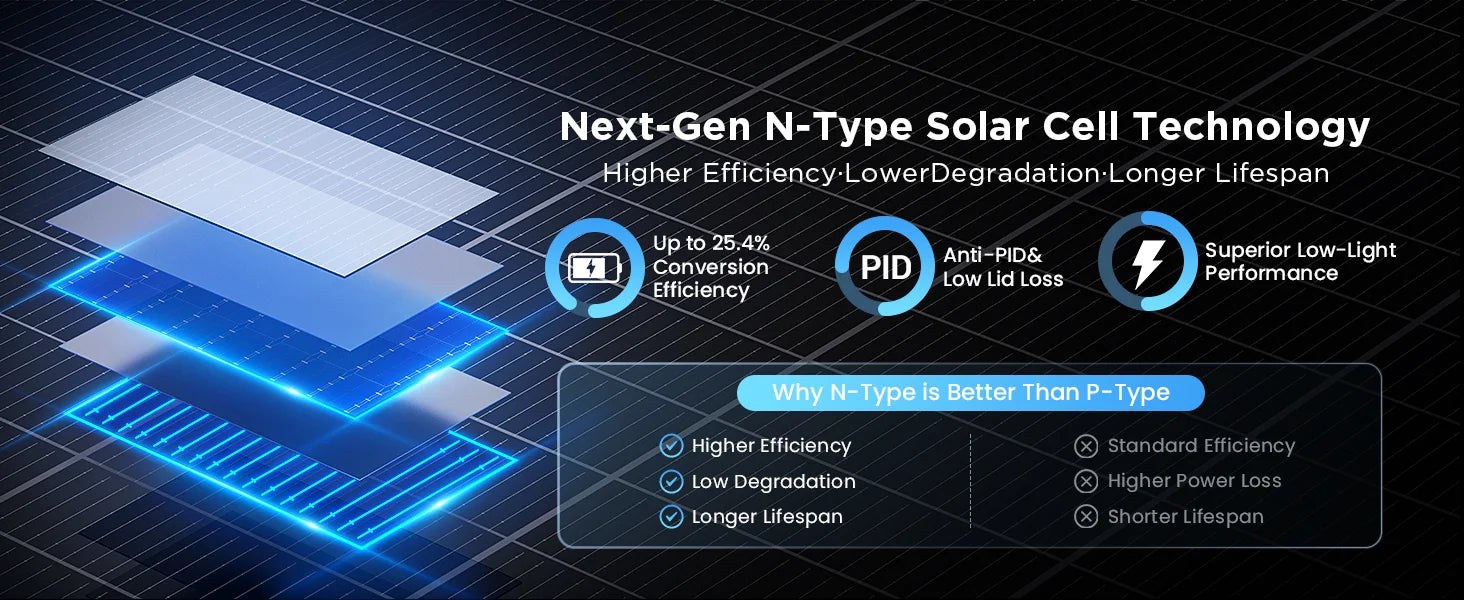

• 25% Efficiency N-Type Cells Advanced N-type technology delivers 25% conversion efficiency

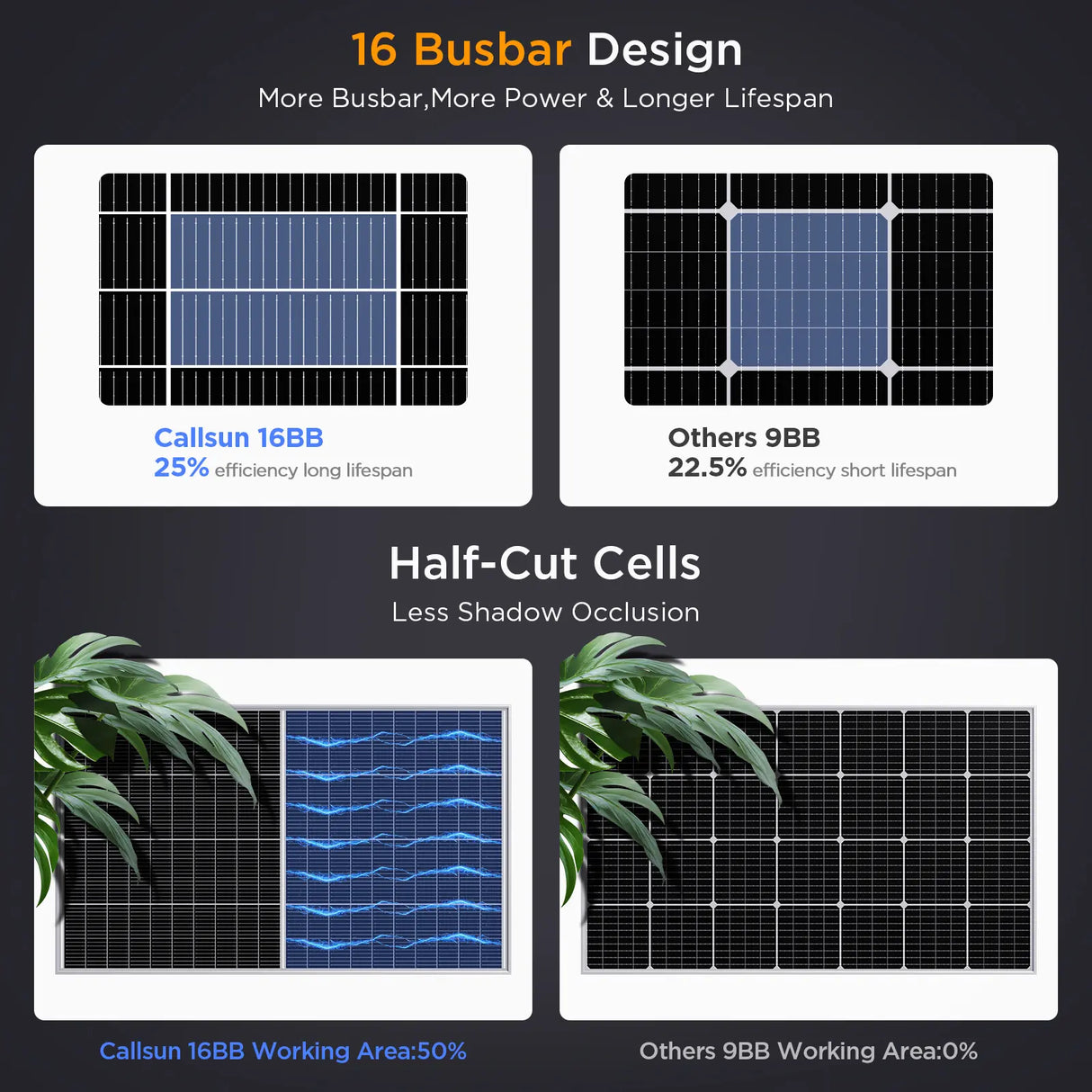

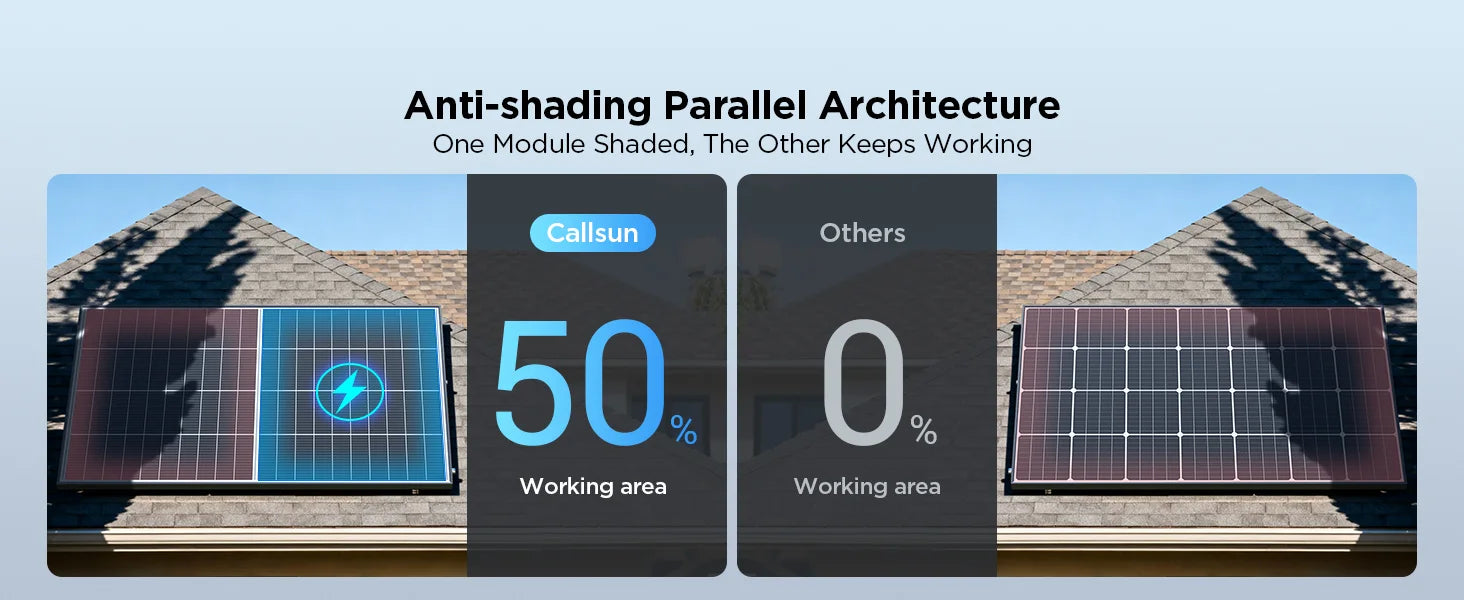

• Anti-Shading Parallel Architecture Unique design keeps 50% of the module working when partially shaded

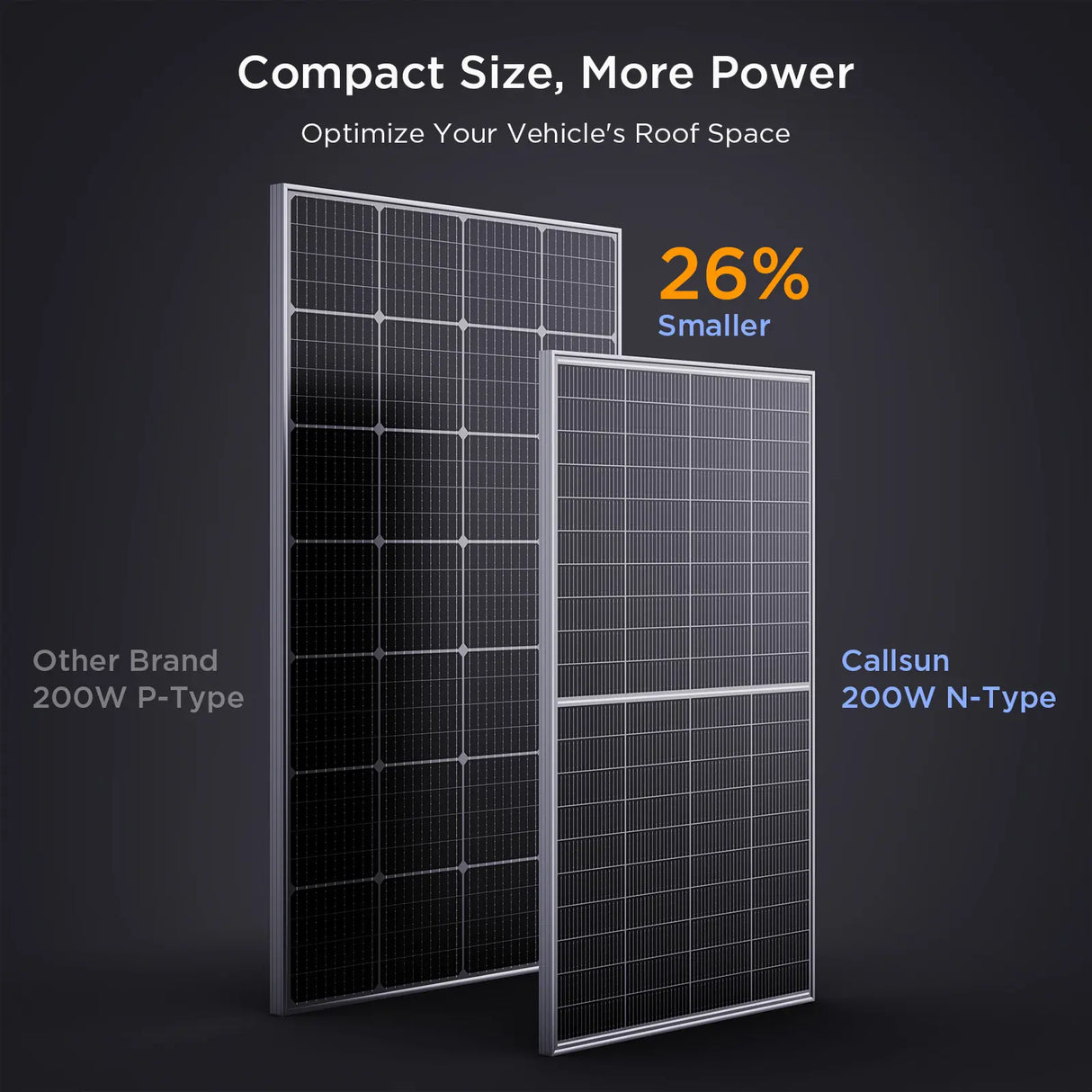

• Ultra-Compact Size 51.3 × 30.3 × 1.4 inch footprint is 26% smaller to maximize roof space

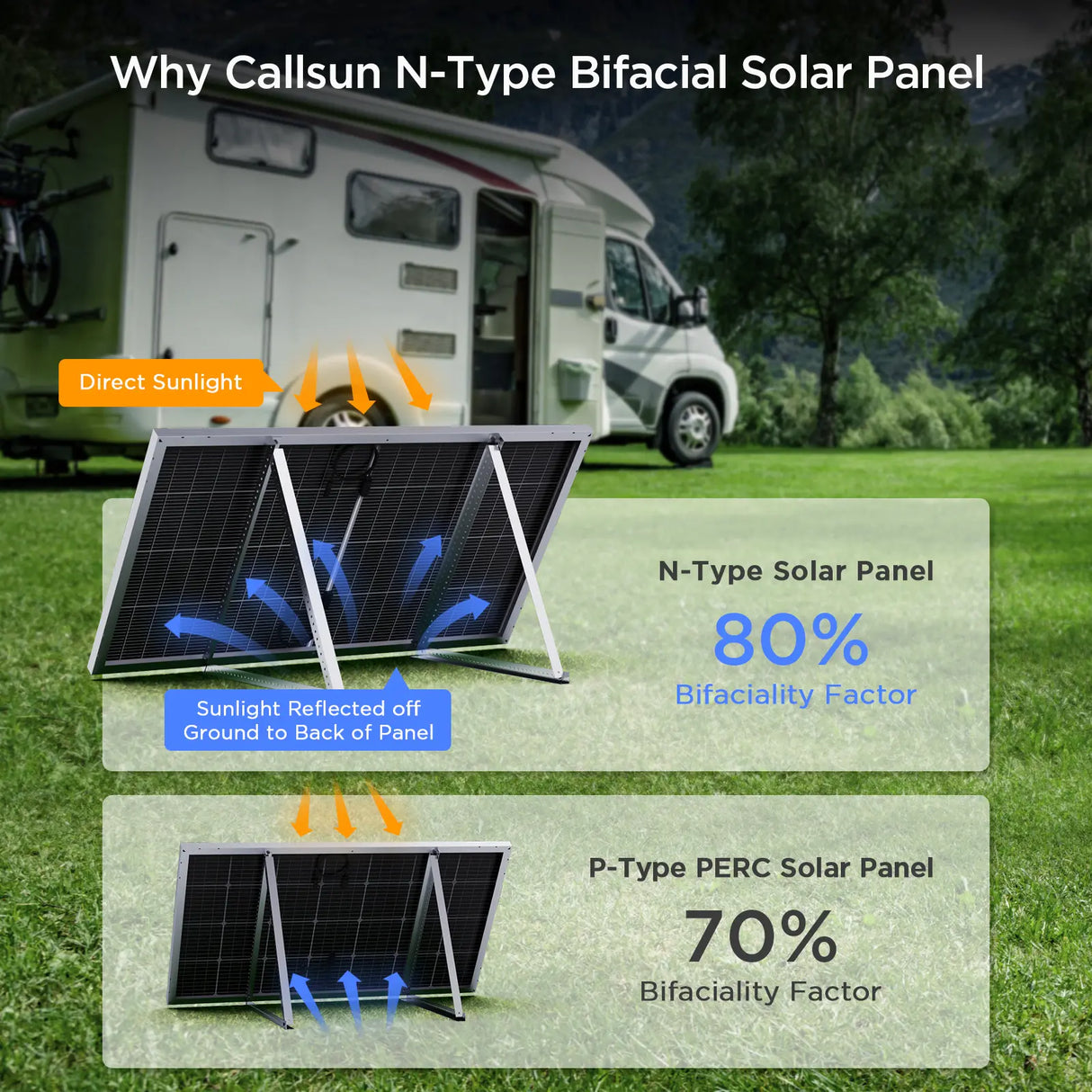

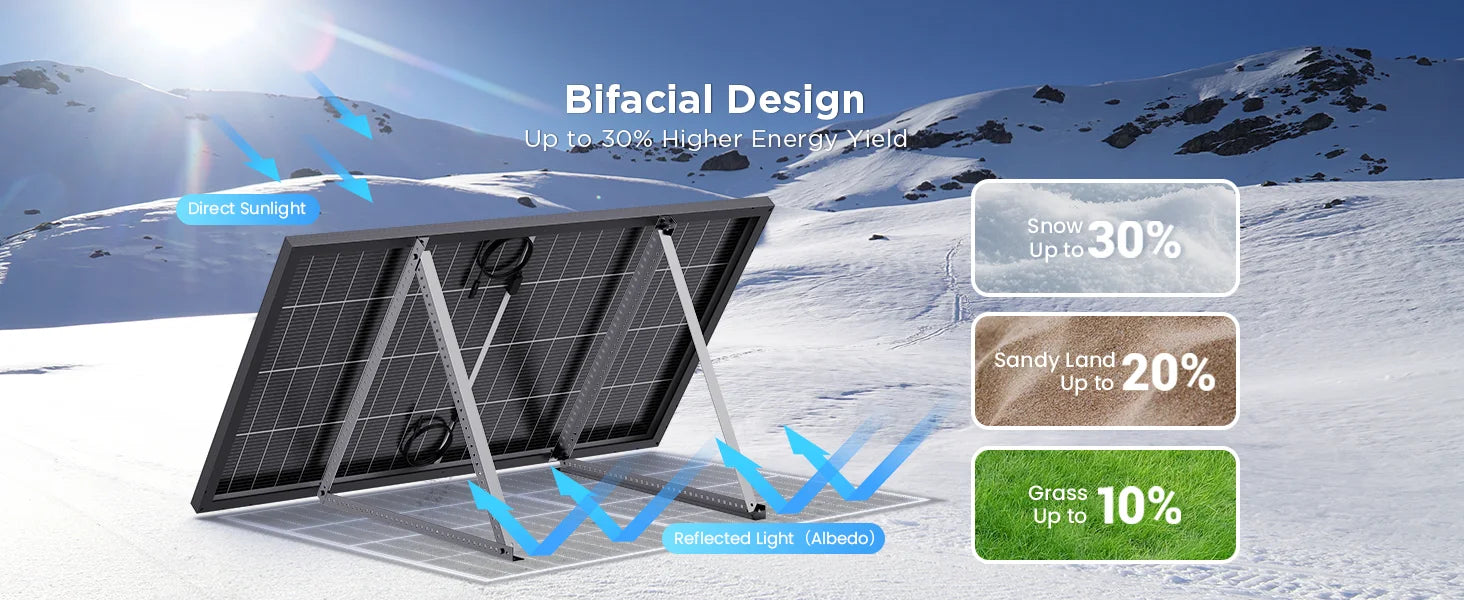

• Bifacial 16BB Performance Dual-sided light absorption and 16 busbars boost low-light output
• Long-Lasting Durability Rugged build with corner guards ensures a 30-year lifespan
200W N-Type Bifacial Solar Panel – Silver Frame (Used – Excellent Condition) - 1 Piece is backordered and will ship as soon as it is back in stock.
Delivery time: 3-8 business days.

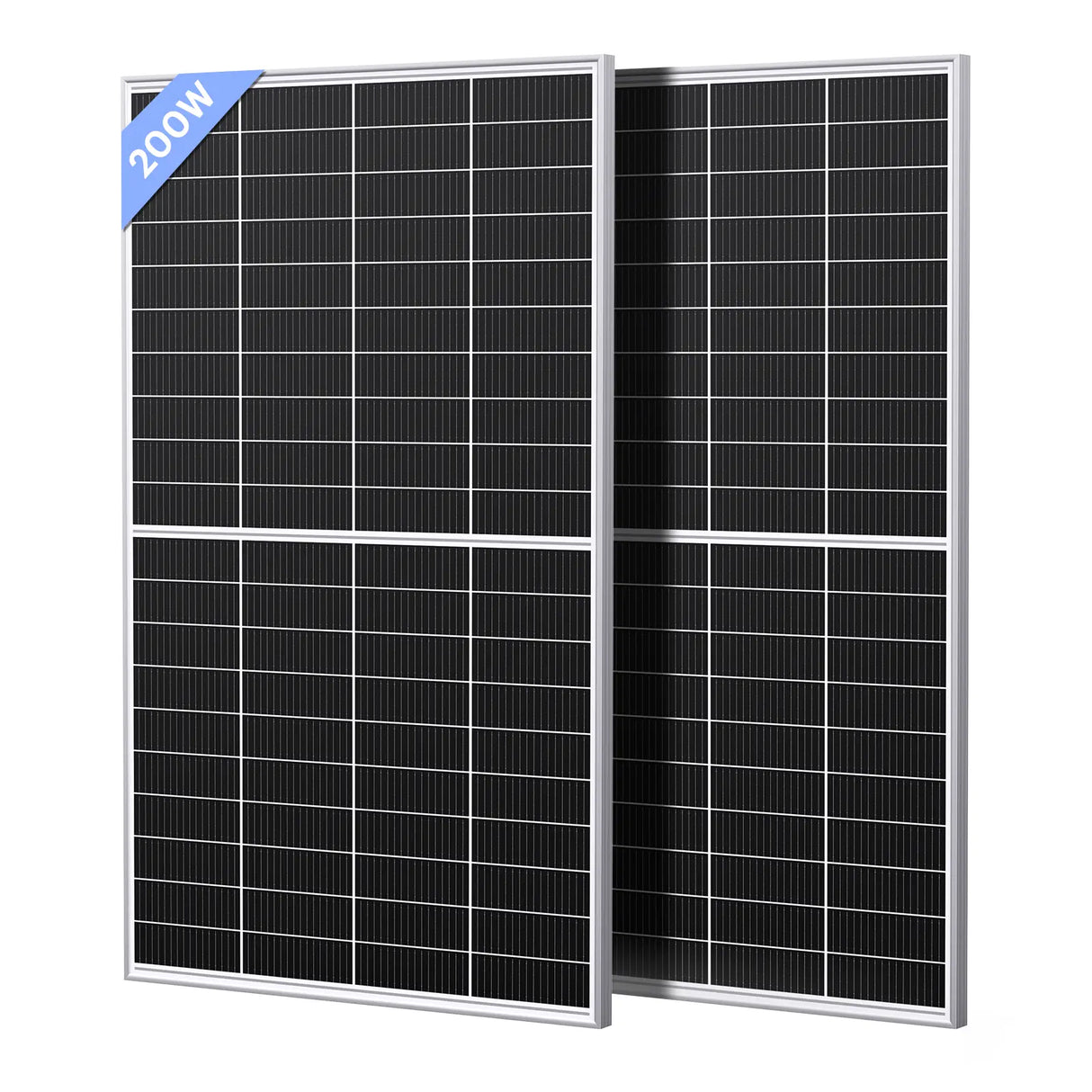

200 Watt N-Type Anti-Shad Bifacial Solar Panel

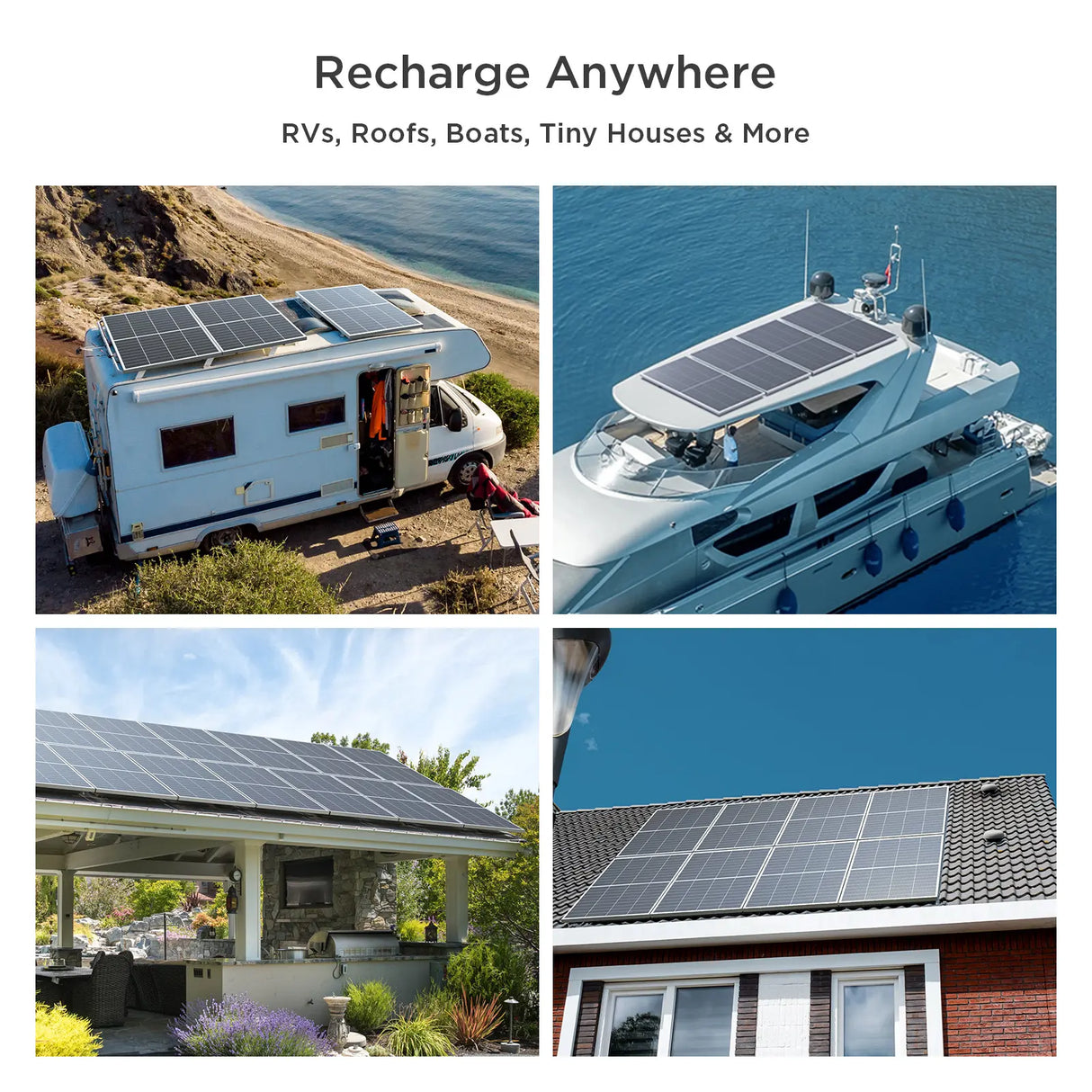

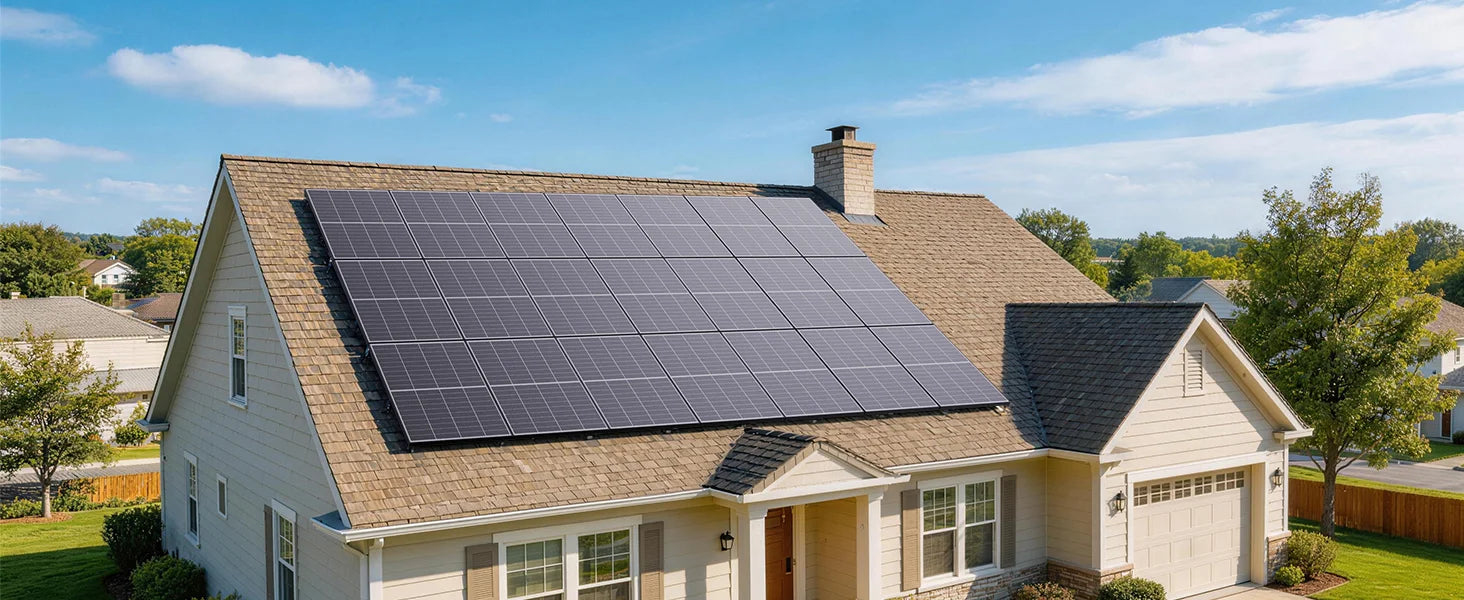

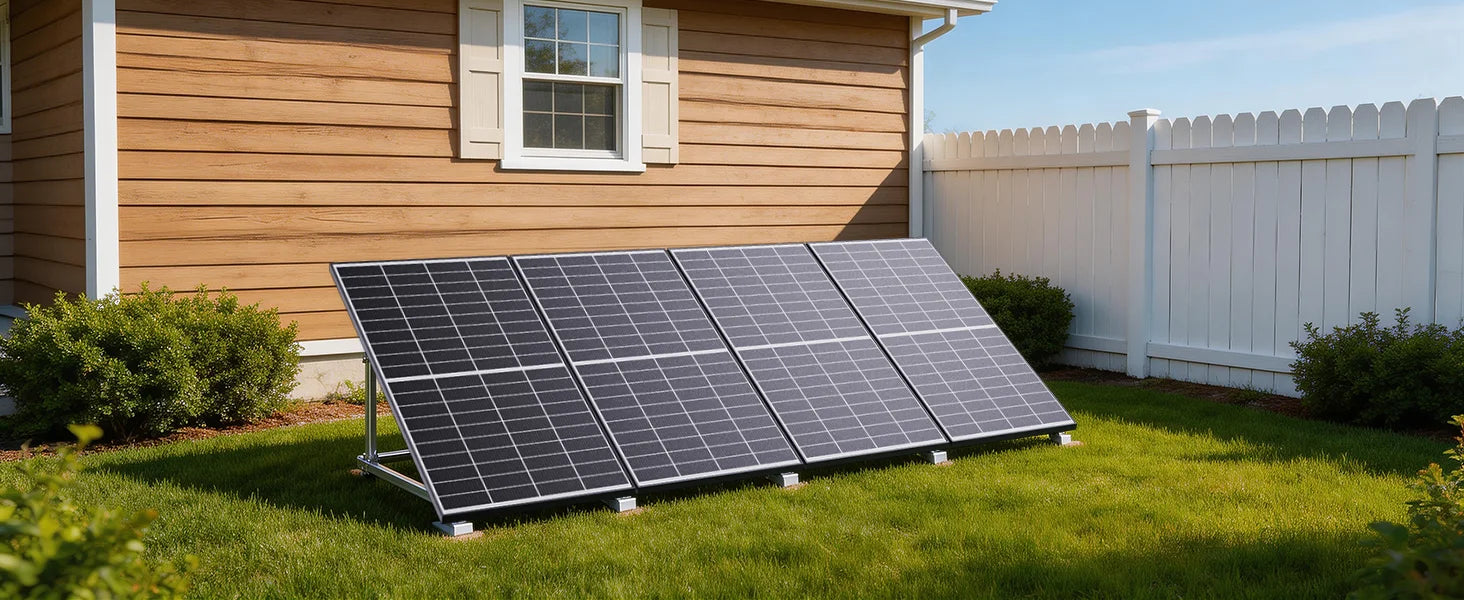

The Callsun 200W N-Type Anti-Shade Bifacial Solar Panel features advanced N-Type 16BB cells and TwinCell anti-shading technology, delivering up to 30% more energy and stable output even under partial shade. Built for durability and efficiency, it’s ideal for RVs, vans, rooftops, cabins, and off-grid solar systems.
Callsun N-Type Bifacial vs Other Solar Panels Comparison
| Feature | Callsun N-Type Bifacial Solar Panel | Other Solar Panels |
|---|---|---|
| Efficiency | 25% | 22% |
| Solar Cells | 16BB | 9BB / 10BB |
| LifeSpan | 30 Years | 25 Years |
| Size | Smaller 26% | Larger size |
| Absorbs Light | Both Sides | One Sides |
Specifications
Key Specs at a Glance: 200W output · N-Type · 25% efficiency · Bifacial · Anti-Shade · 16BB · IP68
Mechanical Characteristics(STC)
| Maximum Power (Pmax) | 200W |
|---|---|
| Maximum Power Voltage (Vmp) | 23.74V |
| Maximum Power Current (Imp) | 8.43A |
| Open-circuit Voltage (Voc) | 27.31V |
| Short-circuit Current (Isc) | 8.91A |
| Cell Type | N-Type,16BB, 182mm, Monocrystalline Silicon |
| Cell Efficiency | 25% |
| Power Tolerance | 0~5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| First Year Degradation Rate | 1% |
| Linear Degradation Rate | 0.4% |
| Commitment to maintain 84.5% output | 25 years |
*STC(Standard Test Condition): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass 1.5.
Specifications

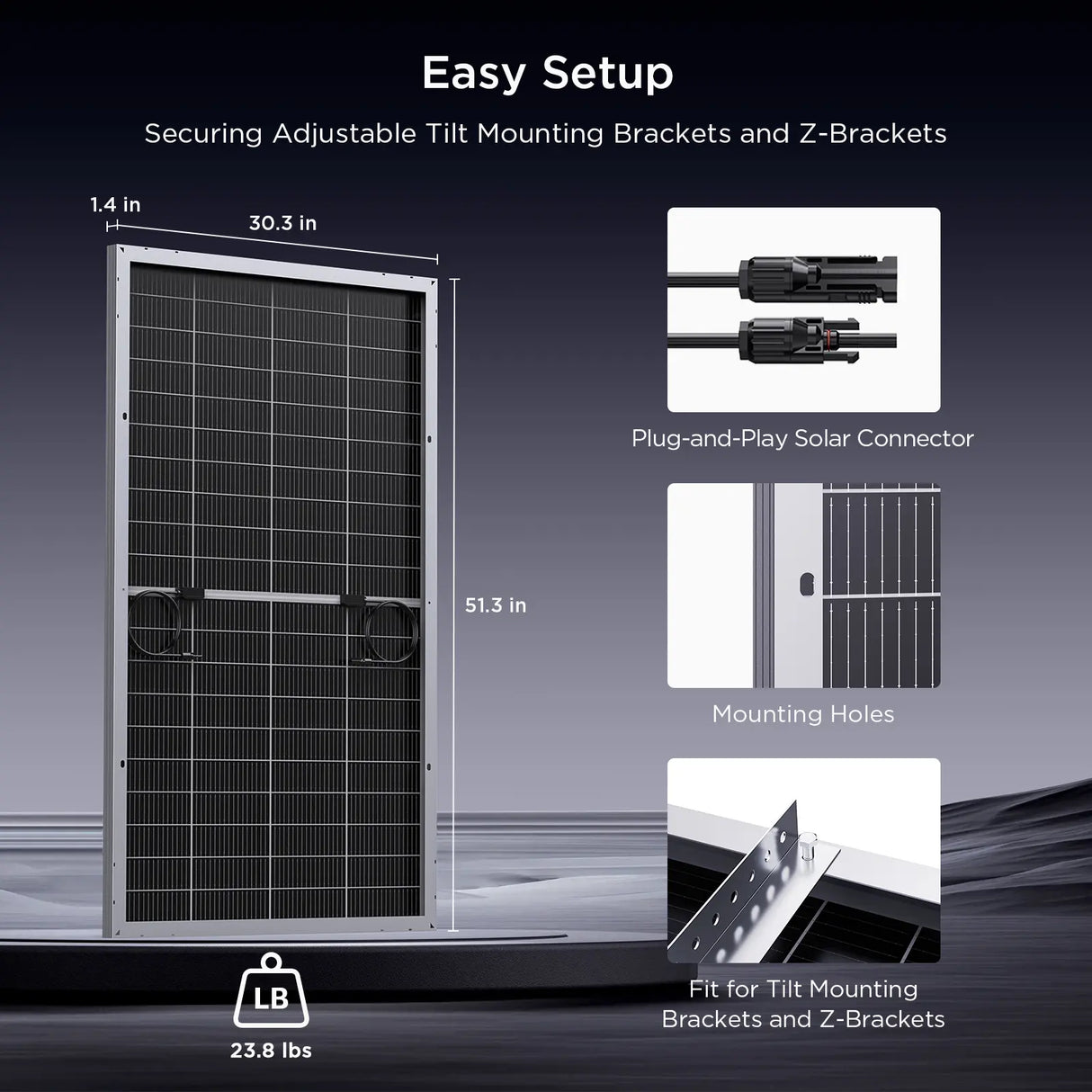

| Dimension | 1304 × 770 × 35(±5)mm 51.34 × 30.31 × 1.58(±0.2)in |
|---|---|
| Weight | 10.8(±0.2)kg 23.81(±0.5) lb |
| Cell Arrangement | 80pcs (4 × 10) × 2 |
| Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |

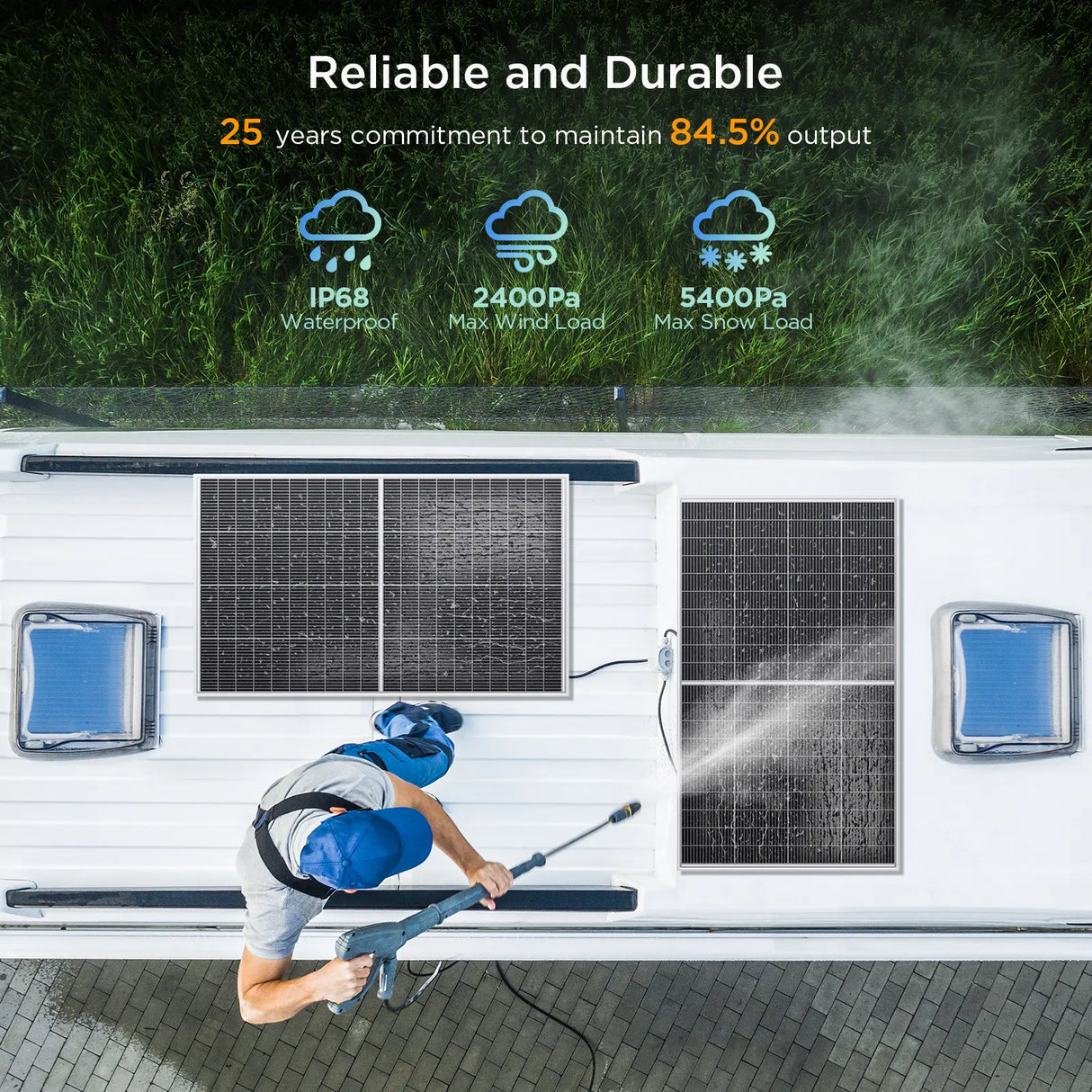

| IP Rating | IP68 |
| Max. Wind Load/Snow Load | 2400Pa/5400Pa |
| Connector | Solar Connector Compatible |
Temperature Coefficients
| Temperature Coefficients of Pmax | -0.30%/K |
|---|---|
| Temperature Coefficients of Voc | -0.25%/K |
| Temperature Coefficients of Isc | 0.045%/K |
| Operating Temperature(°C) | -40°C ~ 85°C (-40°F ~ 185°F) |
Includes
Downloads & View
User Manual
FAQ
1. Why is the actual output sometimes lower than 200W?
The 200W rating is measured under Standard Test Conditions (STC): ideal sunlight and temperature. In real use, sun angle, heat, shading, wiring loss, and device efficiency affect output. So power below 200W is normal and does not indicate a defect.

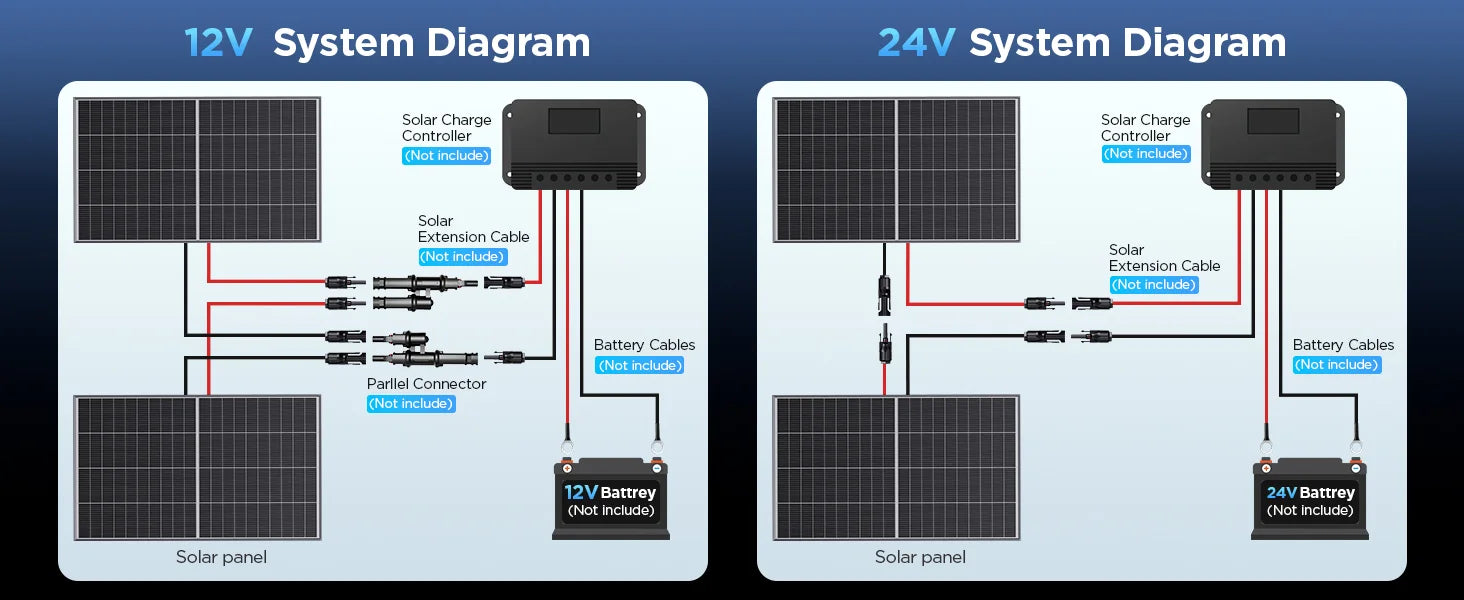

2. Why are two Callsun 200W panels in series ideal for 60V portable power stations?
Each Callsun 200W panel has a Voc of ~27.3V. Connecting two in series gives ~54.6V, safely within most 60V power stations’ input range. This allows the MPPT controller to operate more efficiently, improving power conversion and charging speed.
3. Can this panel work with different solar generators or battery systems?
Yes, the 200W N-type 16BB bifacial solar panel is compatible with most popular solar generators and battery systems. It comes equipped with standard solar extension connectors, making it easy to integrate with a wide range of solar power setups.
4. What does "12V" mean in the product title, and why is it different from the panel's actual voltage?
On the product page, you may see a title like "xxx Watt 12 Volt Solar Panel." The "12V" does not refer to the panel's voltage (Voc or Vmp). It simply means the panel is suitable for use in a 12V system.
